TSR-302
Handheld Touch Screen Remote
Supplemental Guide
Crestron Electronics, Inc.

Crestron product development software is licensed to Crestron dealers and Crestron Service Providers (CSPs) under a limited non-exclusive,
non-transferable Software Development Tools License Agreement. Crestron product operating system software is licensed to Crestron
dealers, CSPs, and end-users under a separate End-User License Agreement. Both of these Agreements can be found on the Crestron
website at www.crestron.com/legal/software_license_agreement.
The product warranty can be found at www.crestron.com/warranty.
The specific patents that cover Crestron products are listed at patents.crestron.com.
Crestron, the Crestron logo, Crestron Toolbox, and Rava are either trademarks or registered trademarks of Crestron Electronics, Inc. in the
United States and/or other countries. Wi-Fi, WPA, and WPA2 are either trademarks or registered trademarks of Wi-Fi Alliance in the United
States and/or other countries. Other trademarks, registered trademarks, and trade names may be used in this document to refer to either the
entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of others.
Crestron is not responsible for errors in typography or photography.
This document was written by the Technical Publications department at Crestron.
©2015 Crestron Electronics, Inc.

Supplemental Guide – DOC. 7663B Contents
•
i
Contents
Access the Setup Screens 1
Access the Setup Screens via the Device Buttons .................................................. 1
Access the Setup Screens via Crestron Toolbox..................................................... 1
Configure the TSR-302 3
RF Setup................................................................................................................. 3
Single Gateway Setup................................................................................ 3
Gateway Roaming Setup ........................................................................... 5
Audio Setup ............................................................................................................ 8
Display Setup.......................................................................................................... 8
Timeouts ................................................................................................................. 9
WiFi Setup ............................................................................................................ 10
Diagnostics ........................................................................................................... 16
Keypad Test............................................................................................. 17
Touch Test............................................................................................... 18
RF Test .................................................................................................... 18
Mic Test ................................................................................................... 19
Battery Diag ............................................................................................. 19
Dock Test ................................................................................................ 20
Test Patterns............................................................................................ 20
Rava Test................................................................................................. 21
About .................................................................................................................... 22
Save & Exit............................................................................................................ 22

Supplemental Guide – DOC. 7663B TSR-302: Handheld Touch Screen Remote
•
1
TSR-302: Handheld Touch Screen
Remote
Access the Setup Screens
The main screen is the starting point for configuring the TSR-302 Handheld Touch Screen
Remote from Crestron®.
NOTE:
If no project has been loaded or if an invalid project has been loaded, the TSR-302
defaults to a screen that allows access to the main screen.
The setup screens enable basic configuration prior to regular operation of the TSR-302.
If a project is running, the main screen can be accessed using one of two methods: via the
first four buttons on the device or via Crestron Toolbox™.
Access the Setup Screens via the Device Buttons
Press
(Power
), (
Home
),
MENU
, and
GUIDE
on the TSR-302 in sequence twice
(press , ,
MENU
,
GUIDE
, , ,
MENU
,
GUIDE
) within a 5-second period.
Access the Setup Screens via Crestron Toolbox
To access the main screen via Crestron Toolbox, perform the following procedure:
1. Establish communication with the TSR-302.
2. Right-click on the device, and select
Functions > Setup Mode
.
3. Select
Enter Setup Mode
. The main screen is displayed.
NOTE:
Select
Exit Setup Mode
to exit the setup screen.

2
•
TSR-302: Handheld Touch Screen Remote Supplemental Guide – DOC. 7663B
TSR-302 Main Screen
The main menu displays the current battery status, gateway (RF) signal strength, and Wi-Fi®
signal strength, as well as
RF Setup
,
Audio Setup
,
Display Setup
,
Timeouts
,
WiFi Setup
,
and
Diagnostics
buttons. In addition, there is a button that toggles on-screen messages on
and off, a button that provides information about the TSR-302, and a
Save & Exit
button.
The functions of each are detailed in the next section of this guide.

Supplemental Guide – DOC. 7663B TSR-302: Handheld Touch Screen Remote
•
3
Configure the TSR-302
RF Setup
On the main screen, tap
RF Setup
to display the
RF Setup
screen.

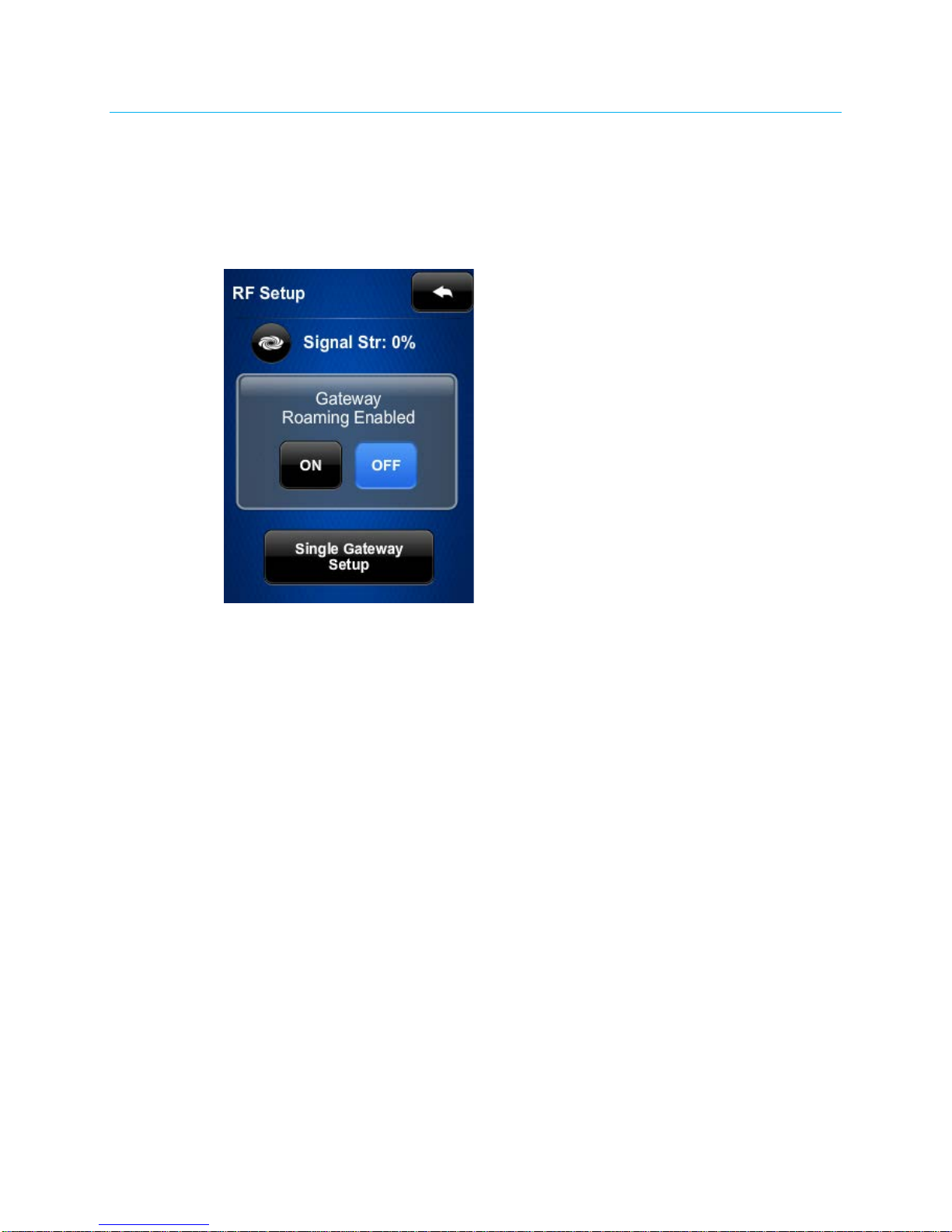

RF Setup Screen
The
RF Setup
screen shows the RF signal strength and has controls for enabling or
disabling roaming.
Before a TSR-302 can be used with a Crestron control system, it must first be acquired by
a Crestron Extended Range (RF) Wireless Gateway (sold separately).
Single Gateway Setup
When roaming is not enabled, i.e., a single gateway is used, there is a
Single Gateway
Setup
button at the bottom of the screen.
To acquire a TSR-302, perform the following procedure:
1. Use a stylus or other thin-tipped object to press
ACQUIRE
on the gateway to enter
Acquire mode. The accompanying LED illuminates, indicating the unit is ready to
link with the touch screen. (The gateway can also be put into Acquire mode via
Crestron Toolbox.)
2. Place the TSR-302 in Acquire mode by tapping
Acquire
on the
RF Setup
screen.
The screen displays an “Acquire in progress” message, and the TSR-302 is
automatically acquired by the gateway within 2 minutes.

4
•
TSR-302: Handheld Touch Screen Remote Supplemental Guide – DOC. 7663B
RF Setup Screen (Acquire in Progress)
3. When the process is complete, the screen displays an “Acquire OK” message.
Press
ACQUIRE
on the gateway to exit Acquire mode. The LED turns off.
RF Setup Screen (Acquire OK)
NOTE:
Select an RF channel between 12 and 23 for maximum range. Channels 11 and 24
through 26 have less range but are available if RF interference requires moving the RF
channel.
NOTE:
The RF ID of the unit must match the RF ID specified in the SIMPL Windows
program.
For details, refer to Best Practices for Installation and Setup of Crestron RF Products (Doc.
6689) at www.crestron.com/manuals.

Supplemental Guide – DOC. 7663B TSR-302: Handheld Touch Screen Remote
•
5
Gateway Roaming Setup
When roaming is enabled, i.e., more than one gateway is used, there is a
Gateway
Roaming Setup
button at the bottom of the screen.
RF Setup Screen (Gateway Roaming Enabled)
Tap
Gateway Roaming Setup
to display the
RF Roaming Setup
screen.
RF Roaming Setup Screen
Tap
RF Settings
to access the
RF Settings
screen.

6
•
TSR-302: Handheld Touch Screen Remote Supplemental Guide – DOC. 7663B

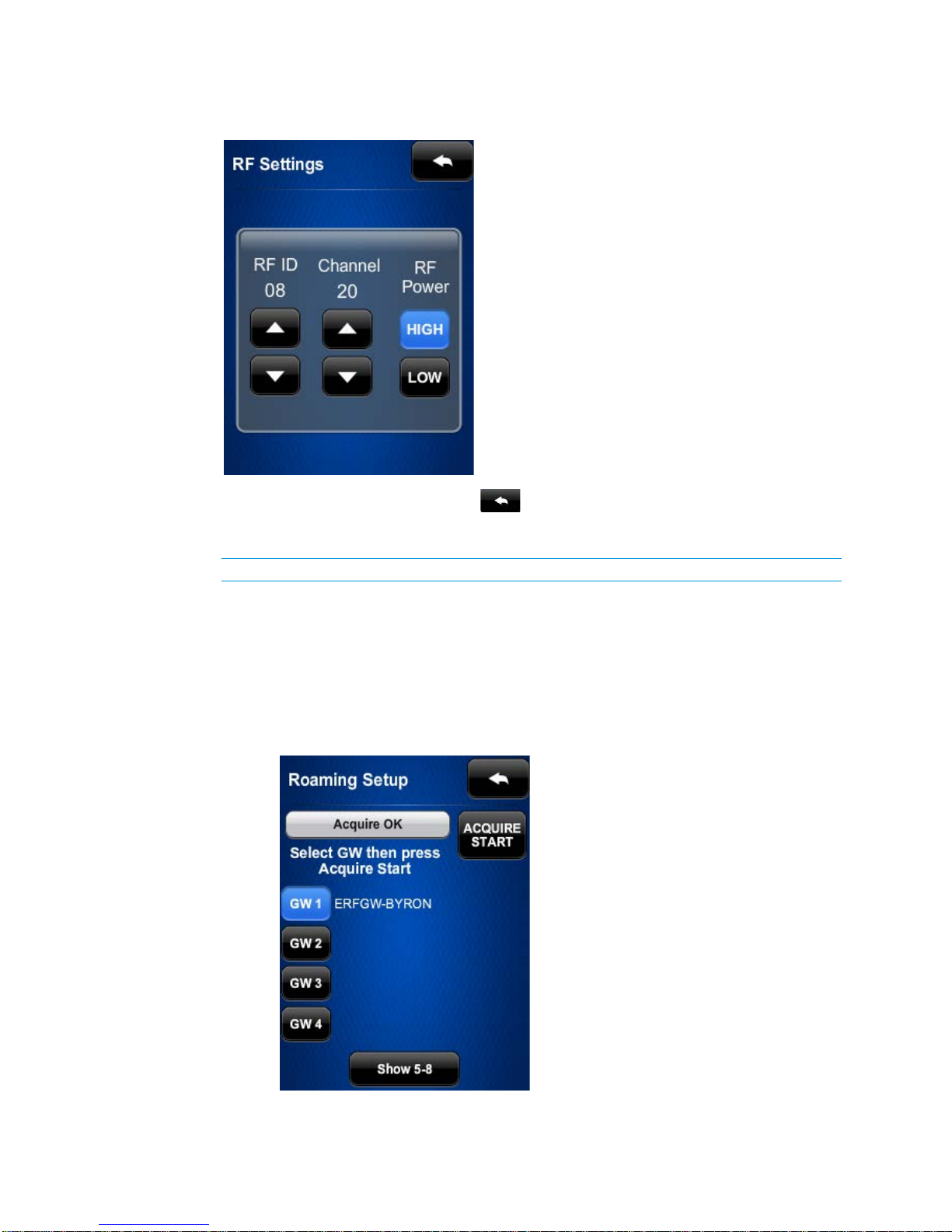

RF Settings Screen
After making any desired settings, tap to return to the
RF Roaming Setup
screen.
Enable multiple gateways to acquire a TSR-302 by performing the following procedure:
NOTE:
Only one gateway at a time can be in Acquire mode.
1. Use a stylus or other thin-tipped object to press
ACQUIRE
on one of the gateways
to enter Acquire mode. The accompanying LED illuminates, indicating the unit is
ready to link with the touch screen. (The gateway can also be put into Acquire
mode via Crestron Toolbox.)
2. On the
RF Roaming Setup
screen, tap
Acquire Gateways
to display the
Roaming
Setup
screen.
Roaming Setup Screen

Supplemental Guide – DOC. 7663B TSR-302: Handheld Touch Screen Remote
•
7
3. Select one of the gateways, and then tap
ACQUIRE START
.
4. When the process is complete, the screen displays an “Acquire OK” message.
5. Repeat steps 3 and 4 for any additional gateways to which the TSR-302 is to be
acquired.
6. Press
ACQUIRE
on the gateway to exit Acquire mode. The LED turns off.
NOTE:
Select an RF channel between 12 and 23 for maximum range. Channels 11 and 24
through 26 have less range but are available if RF interference requires moving the RF
channel.
NOTE:
The RF ID of the unit must match the RF ID specified in the SIMPL Windows
program.
For details, refer to Best Practices for Installation and Setup of Crestron RF Products (Doc.
6689) at www.crestron.com/manuals.

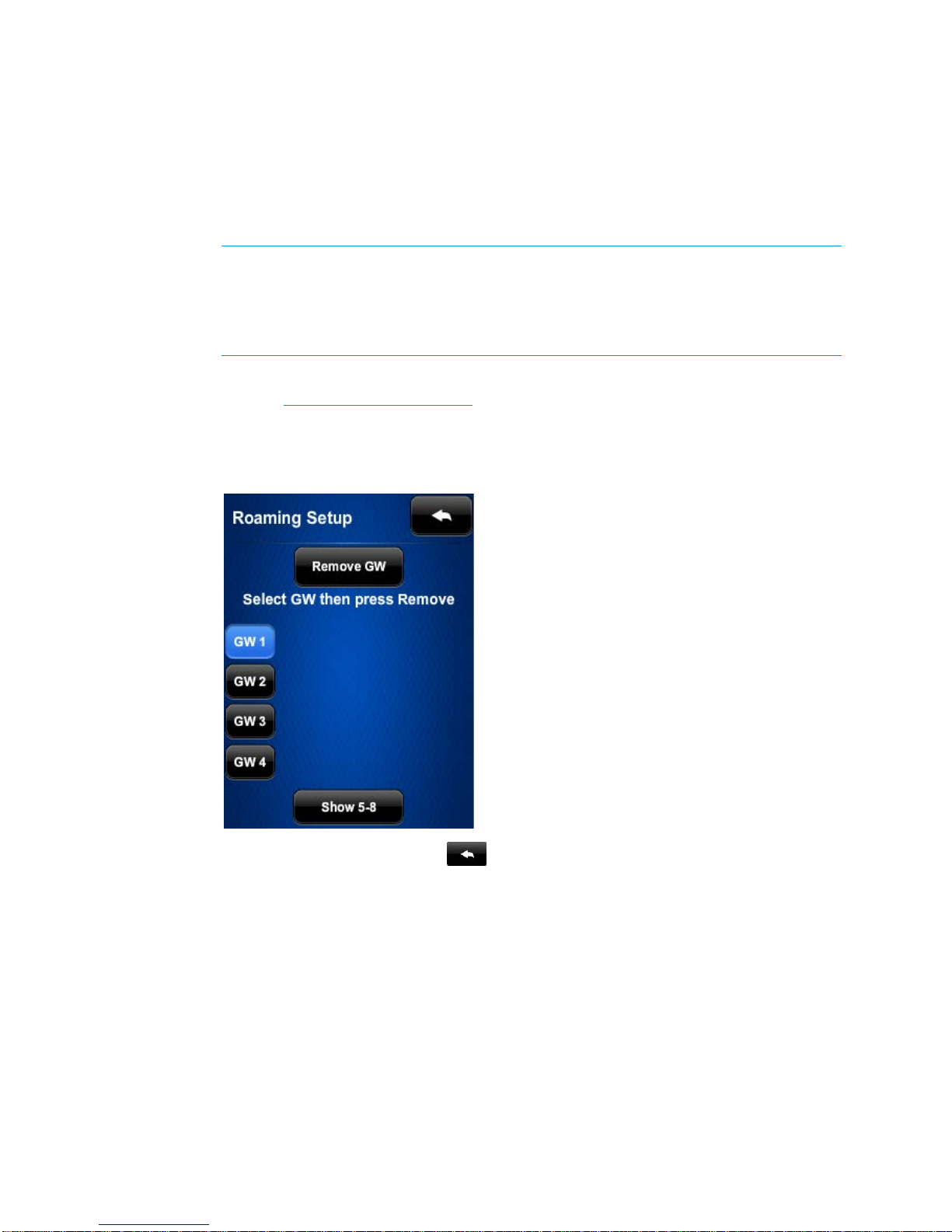

To remove any gateways from the roaming setup, tap
Remove Gateways
on the
RF
Roaming Setup
screen. Then select the gateway to be removed and tap
Remove GW
.
Roaming Setup Screen
On any of the setup screens, tap to go back to the previous screen.

8
•
TSR-302: Handheld Touch Screen Remote Supplemental Guide – DOC. 7663B
Audio Setup
On the main screen, tap
Audio Setup
to display the
Audio Setup
screen.

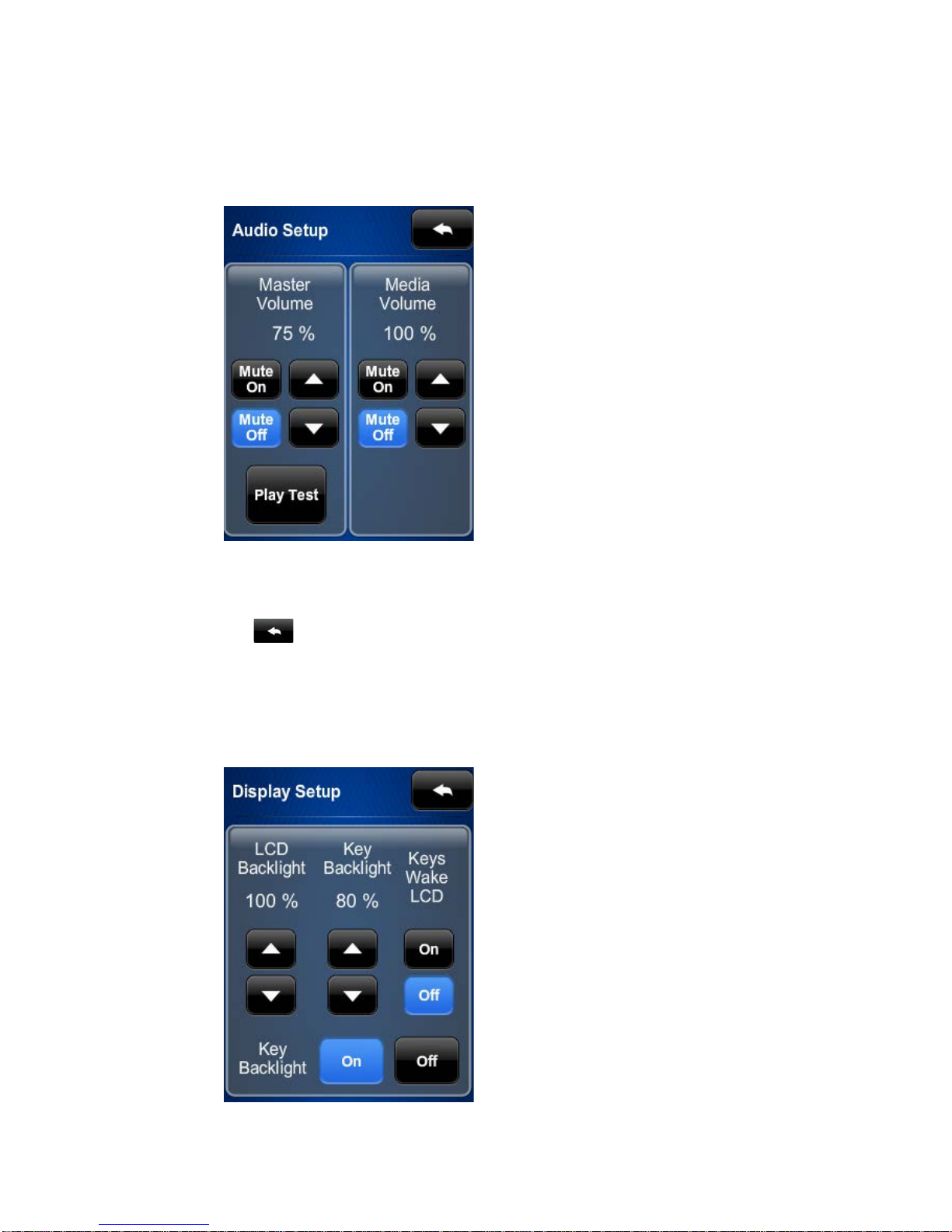

Audio Setup Screen
The
Audio Setup
screen provides controls for muting (or unmuting) the audio, adjusting the
Master Volume
and the
Media Volume
, and playing a test audio file. The
Media Volume
controls adjust H.264 streaming media level in relation to the
Master Volume
controls.
Tap to return to the main screen.
Display Setup
On the main menu, tap
Display Setup
to enter the
Display Setup
screen.
Display Setup Screen

Supplemental Guide – DOC. 7663B TSR-302: Handheld Touch Screen Remote
•
9
The
Display Setup
screen provides brightness controls for
LCD Backlight
and
Key
Backlight
, and
On
and
Off
controls for
Keys Wake LCD
and
Key Backlight
.
Tap to return to the main screen.
Timeouts
On the main screen, tap
Timeouts
to enter the
Standby Timeout
screen.
Standby Timeout Screen
The
Standby Timeout
screen provides controls to adjust the
Standby
timeout (from 0 to
120 seconds) and the
Power Down
timeout (from 0 to 240 seconds) for when the TSR-302
is undocked. There is also a
Standby
timeout control (from 0 to 120 seconds) for when the
TSR-302 is docked.
Tap
Screen Saver Options
to display the
Screen Saver
screen.

10
•
TSR-302: Handheld Touch Screen Remote Supplemental Guide – DOC. 7663B
Screen Saver Screen
This screen has
On
and
Off
controls for the screen saver and for displaying the time in a
24-hour format. In addition, there are
Screen Saver Brightness
controls.
Tap to return to the
Standby Timeout
screen.
Tap again to return to the main screen.

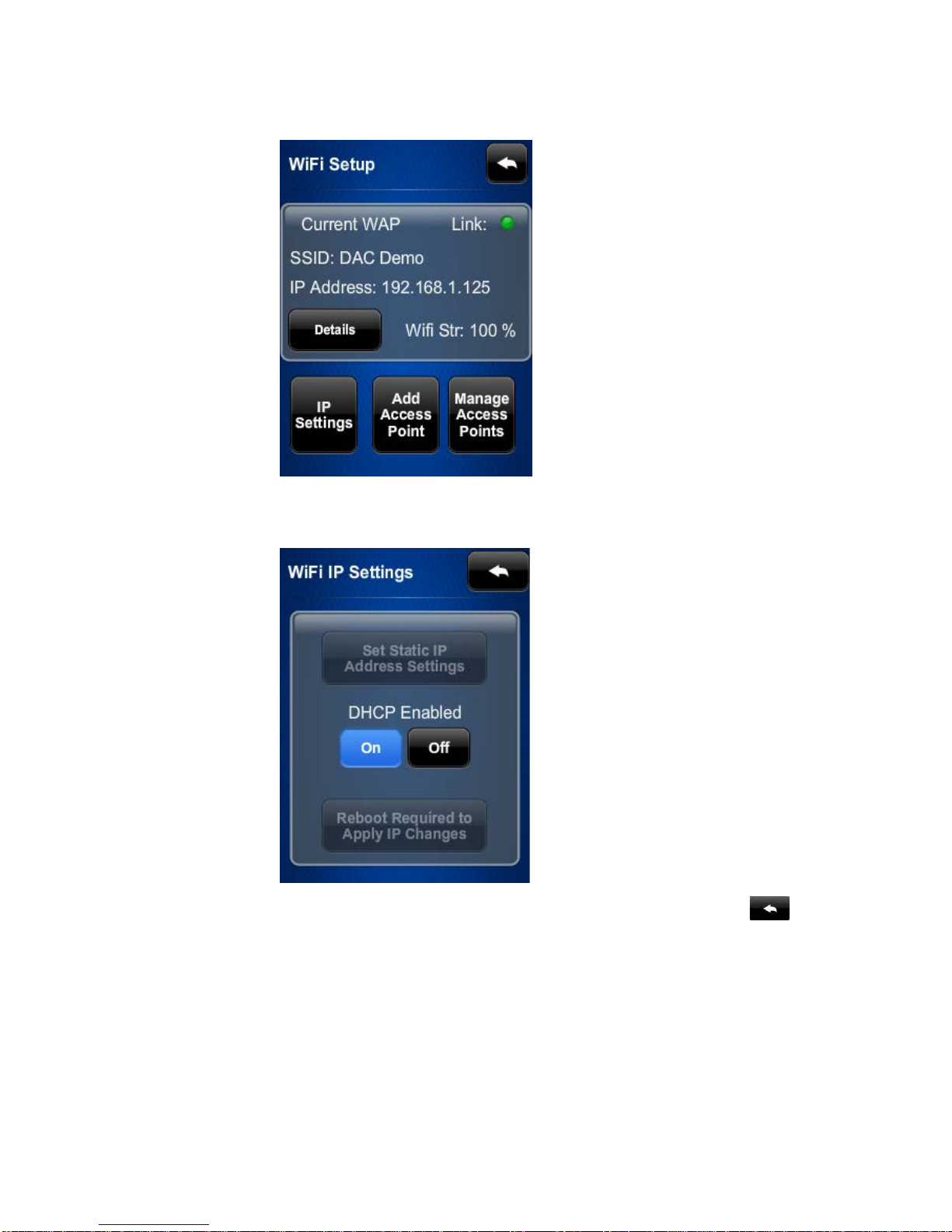

WiFi Setup
On the main menu, tap
WiFi Setup
and then tap
Add Access Point
to display the
Select
Access Point
screen.
Select Access Point Screen

Supplemental Guide – DOC. 7663B TSR-302: Handheld Touch Screen Remote
•
11
If the desired wireless access point is already in the list, tap
Connect
. Otherwise, perform
the following procedure to add a new access point:
1. Tap
Add new
to display the
Confirm Info
screen.
Confirm Info Screen
2. Tap the
WAP Name (SSID)
field and enter the name using the on-screen
keyboard.
3. Tap the
Security
field to display the
Encryption
screen.
Encryption Screen
4. Select the appropriate type of encryption, and then tap to return to the
Confirm Info
screen.
5. Tap the
Password
field and enter the password using the on-screen keyboard.

12
•
TSR-302: Handheld Touch Screen Remote Supplemental Guide – DOC. 7663B

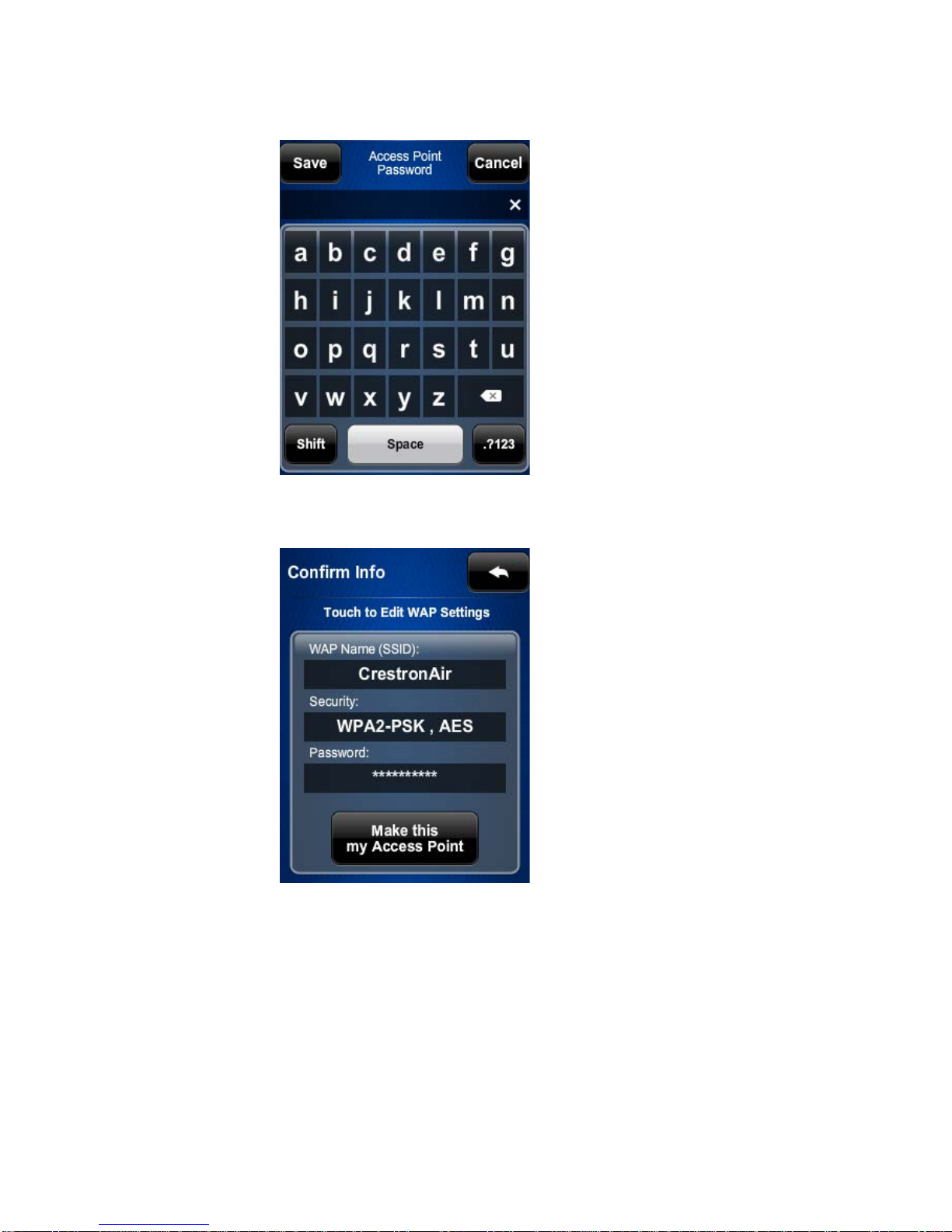

Access Point Password On-Screen Keyboard
6. Tap
Save
to save the password and return to the
Confirm Info
screen.
Confirm Info Screen (After Data Entry)
7. Tap
Make this my Access Point
to confirm the entries and display the
WAP
Connect
screen.

Supplemental Guide – DOC. 7663B TSR-302: Handheld Touch Screen Remote
•
13
WAP Connect Screen (While Connecting)
WAP Connect Screen (Connected)
8. Tap
Done
to accept the connection to the wireless access point and to display the
WiFi Setup
screen.

14
•
TSR-302: Handheld Touch Screen Remote Supplemental Guide – DOC. 7663B
WiFi Setup Screen
9. Tap
IP Settings
to display the
WiFi IP Settings
screen.
WiFi IP Settings Screen (DHCP On)
10. The TSR-302 ships with DHCP enabled by default. To use DHCP, tap
repeatedly to return to the main screen.
To enter static IP settings, tap
Off
under
DHCP Enabled
.

Supplemental Guide – DOC. 7663B TSR-302: Handheld Touch Screen Remote
•
15
WiFi IP Settings Screen (DHCP Off)
11. Tap
Set Static IP Address Settings
to display the
Static IPs
screen.
Static IPs Screen
12. Tap the
Static IP address
field to open an on-screen numeric keypad.

16
•
TSR-302: Handheld Touch Screen Remote Supplemental Guide – DOC. 7663B
On-Screen Numeric Keypad
13. Enter the address and tap
Save
to return to the
Static IPs
screen.
14. Tap each of the rest of the fields in turn and enter their respective addresses, and
then tap
Save
.
15. Tap to return to the
WiFi IP Settings
screen.
16. Tap
Reboot Required to Apply IP Changes
to apply the entries and reboot the
TSR-302.
Diagnostics
On the main screen, tap
Diagnostics
to display the
Diagnostics
screen.
Diagnostics Screen
