Croplands US200C/25/100R3 User manual

OPERATORS
MANUAL
TRAYMOUNT
SPR AYERS www.croplands.com.au
STOP
BEFORE COMMENCING
operation, ENSURE you read
& understand this manual, its
contents, and any additional
information supplied.
Attach product bar code here
MODELS:
US200C/25/100R3
US300/30/100R3
US500/30/100R3
US500/40/100RT3
US600/30/100R3
US600/40/100RT3
US200C/252/HR30
US300/30/HR30TG
US600/30/HR30TG
US600/40/TWIN
US500/30/HR30TG
US500/70/HR30TG
US500/40/TWIN
US200
US200/15
US400/15
GP-OMTRAY-A

GP-OMTRAY-A
2
INTRODUCTION
GENERAL MANAGER’S WELCOME
Congratulations on the purchase of your new Croplands sprayer.
Croplands has been in the business of building and selling spraying
equipment since 1972. For over 45 years we have been supplying spray
equipment to farmers, contractors, growers and all our customers involved
in growing crops and in the control of pests and diseases.
Croplands is a wholly owned subsidiary of Nufarm Ltd, the largest supplier
of crop protection chemicals in Australasia, and one of the fastest growing
global suppliers world-wide.
At Croplands, we pride ourselves on our commitment to supplying machinery
that is at the forefront of the industry’s needs. We believe we can back up
our products and through constant research and development, bring to you
the best equipment you can find.
We welcome any feedback from you about our equipment.
On the back page, you will find our contact details, and locations where
our staff can be reached during business hours.
After hours, you can email us and expect a reply the following morning.
Please read this manual in its entirety before you operate your sprayer.
This will ensure you have a trouble-free start up.
We trust you will get years of good use from your Croplands Sprayer.
Yours Sincerely
Sean Mulvaney
General Manager
Croplands has taken steps to ensure this operator’s manual is as current and as accurate as possible.
Due to the ever-changing markets of cropping and farming, Croplands is constantly striving to be at the
forefront of innovation and technology. While the information in this manual is considered accurate at the
time of writing, Croplands reserves the right to change this information without notice. Croplands will not
accept liability for any inaccuracy in this publication, or changes forthwith.
Sean Mulvaney
General Manager

3
CONTENTS
SECTION 1
IMPORTANT INFORMATION
Foreword
About this manual
Before operating your sprayer
Terminology
Warranty Policy
SECTION 2
SAFETY
SECTION 3
PRODUCT IDENTIFICATION
& SPECIFICATION
Croplands Traymount Sprayer
Specifications
Traymount Retraspray Range
Traymount 200|300|600 Litre Manual Reel
Traymount 500 Litre Manual Reel
Croppak 200|400 Litre
SECTION 4A
PREOPERATION, MOTORISED
PUMP MODELS
Retraspray
Unloading
Fitment
Hook-Up
Description of the plumbing
Spray gun
Spray gun, lance, hose and clamp accessories
Filling, filters and draining
Pre-operation Check-list
Initial start up procedure, motorised sprayer
Shut down
SECTION 4B
PREOPERATION,
12V PUMP MODELS
Unloading
Fitment
Hook-Up
Description of the plumbing
Spray Lance
Filling, filters & draining
Pre-operation check-list
Initial start-up procedure, 12-volt sprayer
SECTION 5
OPERATION
Daily start up procedure
Adding chemical to the spray tank
Operating the hand gun/lance
Hand gun spraying method
Operating pointers
Boom spraying
Clean & flush the sprayer
Using tank & equipment cleaners
SECTION 6
SPRAYING INFORMATION
& CALLIBRATION
When to spray
Useful formula
Calibration-general
Spot sprayer calibration
SECTION 7
TROUBLE SHOOTING & MAINTENANCE
Daily maintenance
20 Hours maintenance
Annual maintenance
Troubleshooting 12 volt pump problems
Troubleshooting Retraspray
SECTION 8
DRAWINGS
US200C/252/HR30TG
US300C/30/100RC
US600/30/100RCT
US200
US400
US500

GP-OMTRAY-A
4
SECTION 1
IMPORTANT INFORMATION
FOREWORD
Croplands Equipment is a subsidiary of Nufarm Australia
Ltd and operates as Croplands Equipment Pty Ltd in
Australia and Croplands Equipment Ltd in New Zealand.
Croplands are a leading manufacturer and supplier of
spraying equipment.
This operator’s manual covers the Croplands’ Optima range
of RTV / Traymount Sprayers.
Manufactured to a high standard for use in Agriculture
and Horticulture, every effort has been made to include
all information needed for the correct use of your RTV /
Traymount Sprayer.
ABOUT THIS MANUAL
This manual provides assembly, setting up, operating and
maintenance instructions for the RTV / Traymount Sprayer.
All models of the RTV / Traymount Sprayer are in the
Identification and/or in the Specification Chapter.
Some model types also have different options available.
Some features explained in this manual may not be
applicable to your model.
Please pass on this manual with the sprayer or boom at
the time of resale for use by the new owner.
This manual, RTV / Traymount Sprayer, was published in
July 2020.
Check online as there may be more recent revisions of
this manual.
As the owner of a Croplands product, please read this
manual thoroughly to fully familiarise yourself with all
aspects of the safe and correct operation of your RTV /
Traymount Sprayer. Maintenance information and useful
tips have been included. We trust you will use these tips to
get the best from your RTV / Traymount Sprayer.
BEFORE OPERATING YOUR SPRAYER
1. Before attempting to use your sprayer, make sure you
read the Operator’s Manual and properly understand:
» All Safety Issues
» Operation, set up & pre-delivery instructions
» Calibration of the sprayer
» Sprayer Maintenance
2. Read and follow instructions on chemical
manufacturers’ labels.
3. Always wear applicable protective clothing.
TERMINOLOGY
These terms/symbols used throughout this manual:
DANGER
!
Probability of a death or serious
injury if accident occurs
WARNING
!
Read and understand this
operators’ manual before operating
the RTV / Traymount Sprayer.
CAUTION
!
To highlight potential injury or
machinery damage.
WARNING
!
To stress potential dangers and the
importance of personal safety.
NOTE
To convey useful operating information.

5
WARRANTY POLICY
Refer to your Croplands Warranty and Pre-delivery Booklet supplied with your RTV / Traymount Sprayer. Always make contact
with your Croplands Dealer first and foremost for warranty matters.
NOTE
For full conditions of warranty and warranty
policy, please see the Warranty & Pre-Delivery
booklet provided with this sprayer.

GP-OMTRAY-A
6
SECTION 2
SAFETY
The supplied (as a separate document
along with this sprayer) Croplands
SAFETY manual must be read and
understood before operating your RTV
/ Traymount Sprayer.
OPERATORS
SAFETY
MANUAL www.croplands.com.au
STOP
BEFORE COMMENCING
operation, ENSURE you read
& understand this manual, its
contents, and any additional
information supplied.
GP-SAFE-A

7
SECTION 3
PRODUCT IDENTIFICATION & SPECIFICATION
CROPLANDS TRAYMOUNT SPRAYER
Whenever possible, use the serial number of the Traymount
sprayer when requesting service or parts information.
Where a serial plate is not provided or is no longer on the
unit, use the part number from the bar code affixed to this
manual or the Warranty & Pre-delivery booklet.
SPECIFICATIONS
Tank
The Croplands Tray mount range of tanks is constructed from
a UV stabilised, medium density polythene for low distortion
qualities and impact resistance. A screw down main lid is
installed on all models and comes standard with a basket
strainer. A hand wash tank is fitted standard for operator
safety and can be used to clean the suction filter in the field if
needed. A deep sump provides excellent suction and allows
the tank to completely drain.
Pumps
Croplands uses positive displacement diaphragm pumps –
either 12-volt powered for smaller models, or petrol powered
higher capacity AR pumps?. The size and output of pumps
vary depending on the machine specifications ordered.
The pump model and pump serial number is located on the
pump itself. The plate shows the name of the manufacturer,
type and model of the pump, serial number, maximum
working pressure and other requirements. For further
information on parts for your pump, refer to the parts section
on the Croplands website. Use the pump model as the
reference.
Hose reels
Croplands Tray Mount Sprayer range is available with either
- 30 meter hose reel and Turbo Gun 400.
or
- 12-volt auto retractable RetraSpray reel with 100m of
non kink hose and Turbo Gun 400.
Controls
Standard on the 12-volt models is a pressure regulator
mounted on the pump outlet to regulate pressure & flow.
Liquid not required for the boom or reel is bypassed back
to tank. A pressure gauge is provided. 12-volt pumps are
considered to be intermittent duty cycle pumps and extended
operating periods will trigger the thermal overload switch.
The motor must be allowed to settle to a lower (ideally
ambient) temperature before recommencing operation.
An electric on/off switch is provided in the power loom.
On the models with an AR petrol powered 25 or 32 L/min
pump, the pressure regulating valves is either mounted on the
pump, or remotely operated with hoses provided to go to the
towing vehicle. This regulating PRV has taps for boom or hose
reel control and a pressure relief system.
Manuals
Separate manuals for the motor/pumps and (where used)
RetraSpray units are supplied along with the unit.

GP-OMTRAY-A
8
SECTION 3
PRODUCT IDENTIFICATION & SPECIFICATION

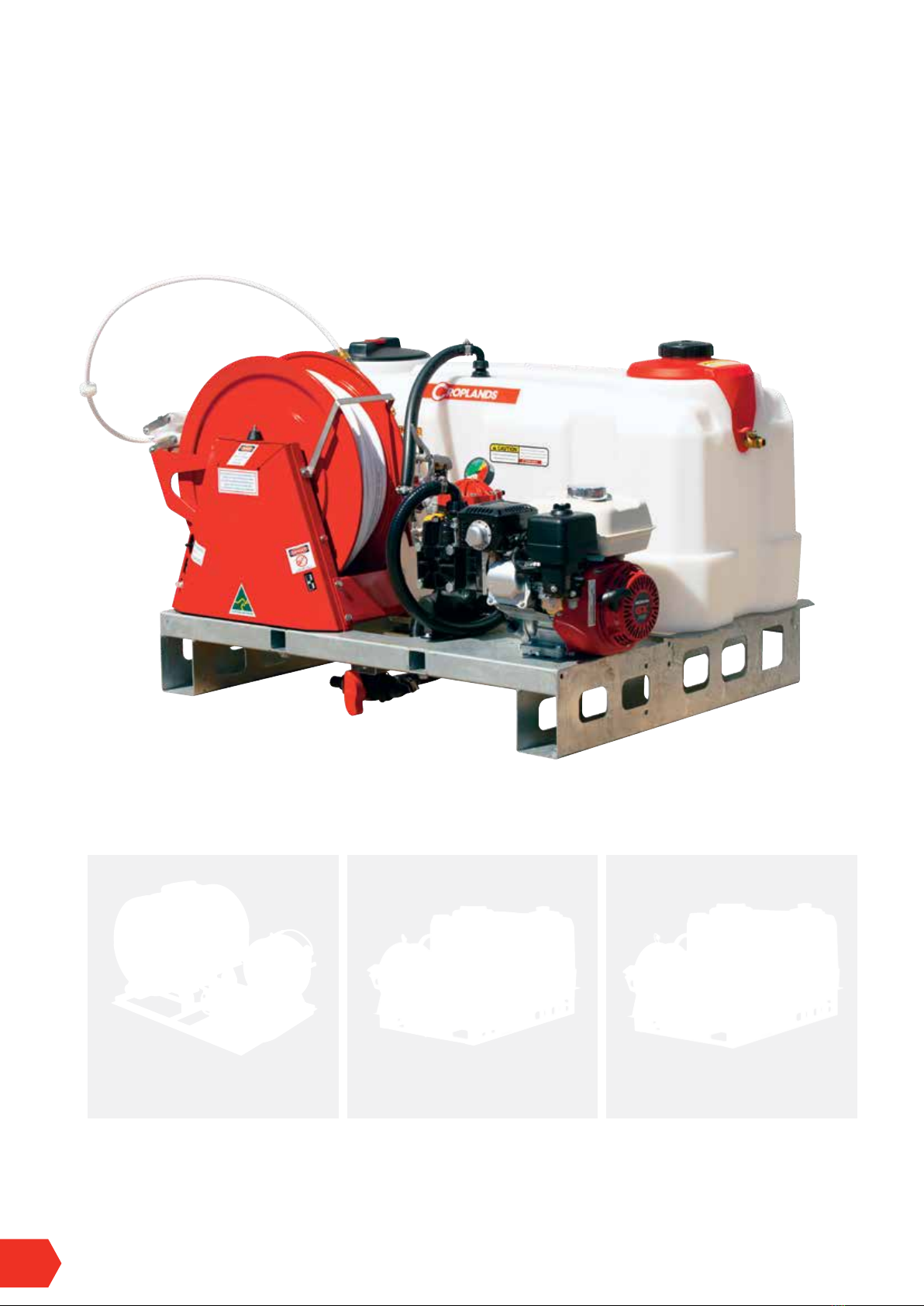

US500/30/100R3 US600/30/100R3 US600/40/100RT3
US300/30/100R3

9
TRAYMOUNT
RETRASPRAY RANGE
QUICK GUIDE
» Heavy duty hot-dip galvanised frame with carry handles
» UV-stabilised tank with level markings
» Large filling lid with basket strainer
» Large sump for total emptying and easy draining and clean out
» Genuine Honda motor to power the reliable AR diaphragm pump
» 12-volt remote rewind reel option for effortless spraying and high productivity (RSRL3-100RC models)
» For weed spraying, sheep jetting, fire fighting, water carting and pest control
UNIT WIDTH LENGTH HEIGHT WEIGHT
US200C/25/100R3 1360mm 990mm 805mm 134kg
US300/30/100R3 1360mm 990mm 805mm 148kg
US500/30/100R3 1700mm 1200mm 1200mm 220kg
US500/40/100RT3 1700mm 1200mm 1200mm 250kg
US600/30/100R3 1255mm 1575mm 990mm 199kg
US600/40/100RT3 1300mm 1575mm 990mm 239kg
Disclaimer: dimensional and weight information supplied is for base model only with no options. This information is subject to change without notice.
ORDER CODE DESCRIPTION
US200C/25/100R3 200 litre traymount sprayer with galvanised frame, Honda powered 25 L/min pump, 12-volt auto retractable RetraSpray reel
with 100m of non kink spray hose and Turbo400 Gun. 6 litre hand wash tank
US300/30/100R3 300 litre traymount sprayer with galvanised frame, Honda powered 35 L/min pump, 12-volt auto retractable RetraSpray reel
with 100m of non kink spray hose and Turbo400 Gun. 6 litre hand wash tank
US500/30/100R3 500 litre traymount sprayer with galvanised frame, Honda powered 35 L/min pump, 12-volt auto retractable RetraSpray reel
with 100m of non kink spray hose and Turbo400 Gun
US500/40/100RT3 500 litre traymount sprayer with galvanised frame, Honda powered 46.3 L/min pump, twin 12-volt auto retractable
RetraSpray reels with 100m of non kink spray hose and Turbo400 Guns
US600/30/100R3 600 litre traymount sprayer with galvanised frame, Honda powered 35 L/min pump, 12-volt auto retractable RetraSpray reel
with 100m of non kink spray hose and Turbo400 Gun. 6 litre hand wash tank
US600/40/100RT3 NEW 600 litre traymount sprayer with galvanised frame, Honda powered 46.3 L/min pump, twin 12-volt auto retractable
RetraSpray reels with 100m of non kink spray hose and Turbo400 Guns. 6 litre hand wash tank

GP-OMTRAY-A
10
SECTION 3
PRODUCT IDENTIFICATION & SPECIFICATION
US600/30/HR30TG US600/40/TWINUS300/30/HR30TG
US200C/252/HR30

11
TRAYMOUNT
200 |300 |600 LITRE
MANUAL REEL
QUICK GUIDE
» Heavy duty hot-dip galvanised frame with carry handles
» UV-stabilised tank with level markings
» Large filling lid with basket strainer
» Large sump for total emptying and easy draining and clean out
» Genuine Honda motor to power the reliable AR diaphragm pump
» Steel hose reel with galvanised mount, 30 metres of high quality hose and Turbo400 gun
» For weed spraying, sheep jetting, firefighting, water carting and pest control
UNIT WIDTH LENGTH HEIGHT WEIGHT
US200C/252/HR30 1275mm 1015mm 725mm 112kg
US300/30/HR30TG 1275mm 1015mm 725mm 117kg
US600/30/HR30TG 1255mm 1575mm 990mm 199kg
US600/40/TWIN 1220mm 1475mm 990mm 239kg
Disclaimer: dimensional and weight information supplied is for base model only with no options. This information is subject to change without notice.
ORDER CODE DESCRIPTION
US200C/252/HR30 NEW 200 litre traymount sprayer with galvanised frame, Honda powered 25 L/min AR pump. Manual two tap controls,
30 metre hose reel and Turbo400 Gun. 6 litre hand wash tank
US300/30/HR30TG NEW 300 litre traymount sprayer with galvanised frame, Honda powered 35 L/min AR pump. Manual two tap controls,
30 metre hose reel and Turbo400 Gun. 6 litre hand wash tank
US600/30/HR30TG NEW 600 litre traymount sprayer with galvanised frame, Honda powered 35 L/min AR pump. Manual two tap controls,
30 metre hose reel and Turbo400 Gun. 6 litre hand wash tank
US600/40/TWIN NEW 600 litre traymount sprayer with galvanised frame, Honda powered 46.3 L/min AR pump. Manual two tap controls,
Twin 30 metre hose reels and Turbo400 Guns. 6 litre hand wash tank

GP-OMTRAY-A
12
SECTION 3
PRODUCT IDENTIFICATION & SPECIFICATION
TRAYMOUNT
500 LITRE MANUAL REEL
QUICK GUIDE
» Heavy duty hot-dip galvanised frame with carry handles
» UV-stabilised tank with level markings
» Large filling lid with basket strainer
» Large sump for total emptying and easy draining and clean out
» Genuine Honda motor to power the reliable AR diaphragm pump
» Steel hose reel with galvanised mount, 30 metres of high quality hose and Turbo400 gun
» For weed spraying, sheep jetting, firefighting, water carting and pest control
UNIT WIDTH LENGTH HEIGHT WEIGHT
US500/30/HR30TG 1700mm 1200mm 1200mm 220kg
Disclaimer: dimensional and weight information supplied is for base model only with no options. This information is subject to change without notice.
ORDER CODE DESCRIPTION
US500/30/HR30TG CropPak 500 litre, AR30 pump, reel with 30 metre hose and Turbo400 Gun, galvanised skid-frame
US500/70/HR30TG CropPak 500 litre, AR70 pump, reel with 30 metre hose and Turbo400 Gun, galvanised skid-frame. AR70 pump is ideal for
use with a range of booms (see page 18 and 19)
US500/40/TWIN CropPak 500 litre, AR40 pump, twin reel both with 30 metre hose and Turbo400 Gun, galvanised skid frame
US500/40/TWINUS500/30/HR30TG

13
CROPPAK
200 |400 LITRE
These flat-based units are a great choice for a higher
capacity utility sprayer. They will sit on a ute tray,
RTV tray, tractor tray or trailer. The clever design
includes cutaways in the tank to provide baffles to
avoid sudden liquid movement – a must if being
used on sloping country.
FEATURES
1. 3-stage filtration. Large filling screen under lid; suction filter; pressure filter in lance handle.
2. Lance clips onto lid.
3. Metal lance with adjustable nozzle. Superior to plastic, higher strength.
4. Graduated, translucent tank. Easy to see liquid level in the tank with level marks.
5. Rugged design, locally made. Rotomolded tank has uniform thickness and can take high impact force.
6. UV stabilised tank. Many imported models have no UV inhibitor in the material.
7. Carry handles ensures safe handling.
8. Integrated baffles to avoid sudden liquid movement.
9. 6 metres of high quality 20 Bar rated spray hose fitted and hose holders mounted on tank.
10. Long, heavy duty 12-volt power lead with rocker-switch for easy hook-up to your battery.
11. High quality electrical connector to the pump with waterproof plug for quick hook up and reliability.
UNIT WIDTH LENGTH HEIGHT WEIGHT
US200 600mm 1190mm 600mm 35kg
US200/15 600mm 1190mm 600mm 40kg
US400/15 750mm 1490mm 750mm 80kg
Disclaimer: dimensional and weight information supplied is for base model only with no options. This information is subject to change without notice.
ORDER CODE DESCRIPTION
US200 200 litre CropPak, on-demand 6.8 L/min open-flow pump, 6 metres of spray hose, spray lance and electrical power lead
with on/off switch
US200/15 200 litre CropPak, on-demand 15 L/min open-flow pump, pressure regulator and gauge. 3-way valve enables connection
to a boom. 6 metres of spray hose standard with spray lance. Power lead with on/off switch provided
US400/15 (Not pictured) 400 litre CropPak, 12-volt 15 L/min Triplex pump with pressure adjusting regulator fitted, 6 metres hose and
adjustable spray lance. Accessories available such as small booms
1
2
4
7
8
6
5
93

GP-OMTRAY-A
14
SECTION 4A
PRE-OPERATION, MOTORISED MODELS
See section 4B for 12-Volt models.
RETRASPRAY
See separate manual for the 12-volt Retraspray retractable
reel and its operation.
UNLOADING
Take care when loading / unloading these sprayers. These
sprayers are well past the capacity for one or two people
to manually handle. Most models have either forklift or sling
pickup points. Be careful of the balance.
All loading / unloading should be done with tanks empty.
See Section 5 of the Safety manual.
FITMENT
Make sure the unit is securely fastened. In many cases this
will involve bolting the unit to a vehicle. Remember to factor
in the weight of a full tank when determining the mounting,
and always consult the vehicles manual for load ratings and
suitable mounting points.
HOOKUP
Retraspray models will require hook up to a suitable 12-volt
power source. See the Retraspray manual.
Connect & route a drain hose to a convenient and safe place
for draining the tank. See below.
DESCRIPTION OF THE PLUMBING
There are 3 configurations of the plumbing for the motorised
pump sprayers – dependant on the choice of pump.
• The AR252 pump models are identified by the large red
plastic pressure regulator.
• The AR30 & AR 40 pump models are identified by the
all metal pressure regulator.
• The AR70 pump model is designed for use with a spray
boom and feature a remote pressure regulator.
The operating principles for both are very similar. See below
example using AR252 pump.
A. The suction line from the tank, to the ball valve.
B. Ball valve. To the left (as shown) is drain, to the right is to
the pump. Vertically up is OFF.
C. Suction Filter. Check and clean frequently, and especially
at the commencement of any spray program (best
checked before chemical is added).
D. Pressure Regulator – and surplus flow goes back to tank
via (E) to aid agitation. The regulator also includes the
pressure gauge.
E. Return to tank. This line is also used for agitation.
F. Spray line to the hose reel (s). Includes an on / off tap.
Operator’s Manual Manual Part No: GP-OMRET-A
RetraSpray
Retractable Reel Sprayers
Attach product bar code here
E
D
B
F
C
A

15
Note the ball valve has 3 positions, with vertical up as OFF.
It’s suggested the user connect a hose to the drain side of
the valve and route the hose to a convenient place for safe
draining of the tank.
• Be careful to dispose of any chemical in an
environmentally responsible manner.
AR252 Pressure Regulator (ARGR30)
The top portion of the Pressure regulator (red arrow) is used
to set the pressure required. Turn clockwise to increase the
pressure and anti-clockwise to decrease the spray pressure.
Note the AR252 pump is rated to a maximum of 25 Bar
pressure.
In the example shown the non-spraying pressure has been set
to 12 Bar (green arrow). Take note of where the maximum
of 25 Bar is located on the pressure gauge (in the green
sector).
To bypass the pressure line & /or send spray / agitation back
to tank, rotate the lower level of the pressure regulator to the
position shown (yellow arrow).
Note in these 2 photo’s the spray line tap is in the off position
(blue arrow).

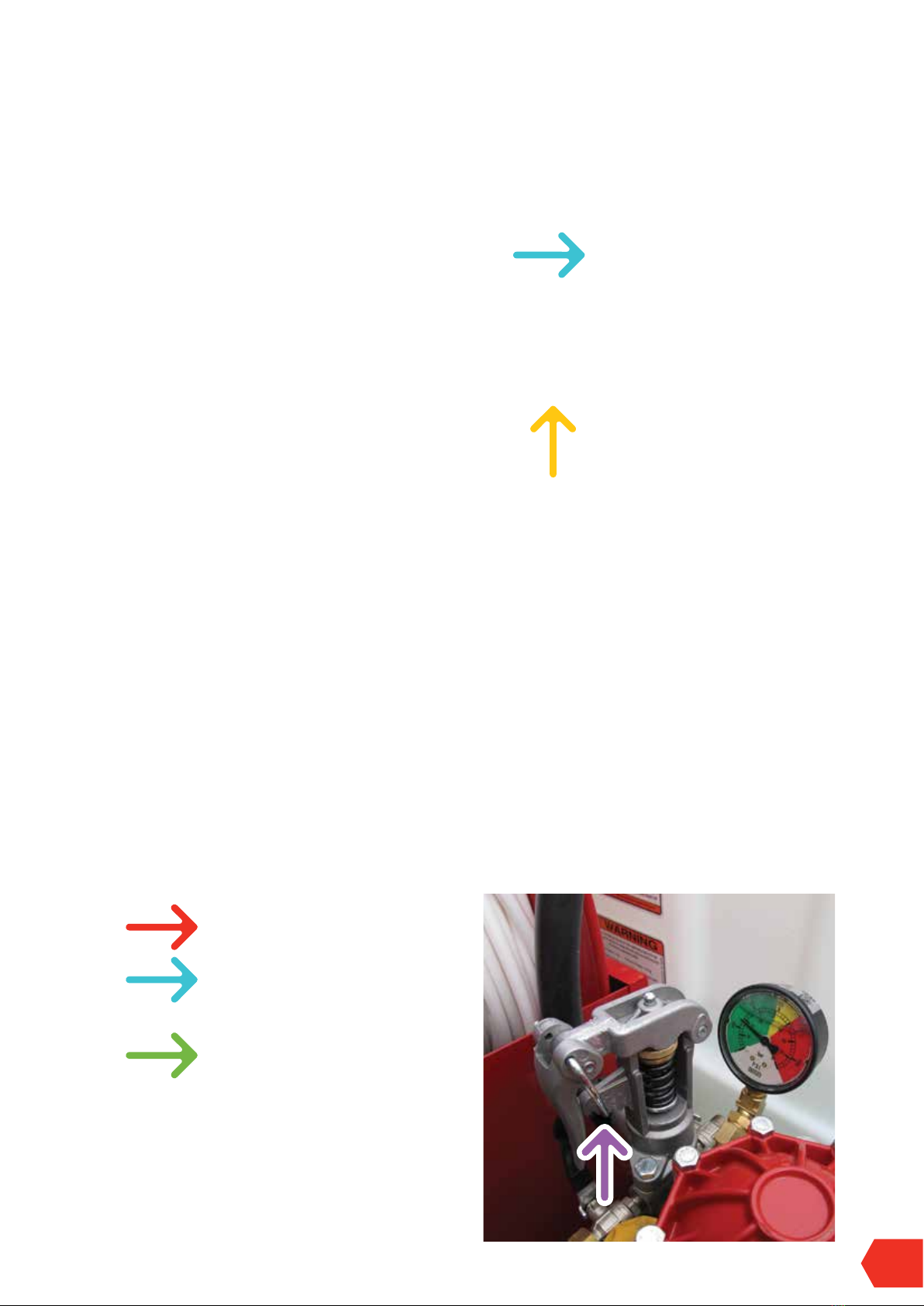

AR30 / 40 Pressure Regulator (ARGI40)
In the example shown the regulator has been set ready to spray
(level arm is down) and the pressure has been set to 18 Bar.
The regulator has 2 places for pressure adjustment.
Course adjustment is via the wire / notches – see the
(purple arrow).
Use positions ….
1 for up to 10 Bar,
2 for up to 20 Bar,
3 for up to 30 Bar,
4 for up to 40 Bar.

GP-OMTRAY-A
16
SECTION 4A
PRE-OPERATION, MOTORISED MODELS
See section 4B for 12-Volt models.
Fine adjustment is via the brass knob. Disengage the PRV lever
(see green outline) before adjusting the brass knob as
pointed, Up (increase pressure) or Down (decrease pressure).
Disengaging the lever also activates the bypass / “dump” to
tank / agitation.
Note the AR30 & 40 are rated to a maximum of 40 Bar
pressure which correlates to the top of the green sector of the
gauge. Never operate in the yellow or red sectors.
AR70 Pressure Regulator (ARUCM-5)
The US500/70/HR30TG uses the ARUCM-5 remote 5-way
controller more suited to operating a boom. In addition to the
rotary (red) knob for pressure adjustment are 4 boom on /
off section valves and a master “dump” to tank valve.
ARUCM-4 shown.
Agitation
Note the volume of agitation from liquid bypassing the
regulator (whilst spraying) is determined by the difference
between pump performance (pressure) and the selected
spray pressure.
SPRAY GUN
Motorised Traymount sprayers are supplied with the Turbo
400 Spray Gun, with 1.5mm nozzle.
Practice the operation of the gun with fresh water before
undertaking any chemical spraying.

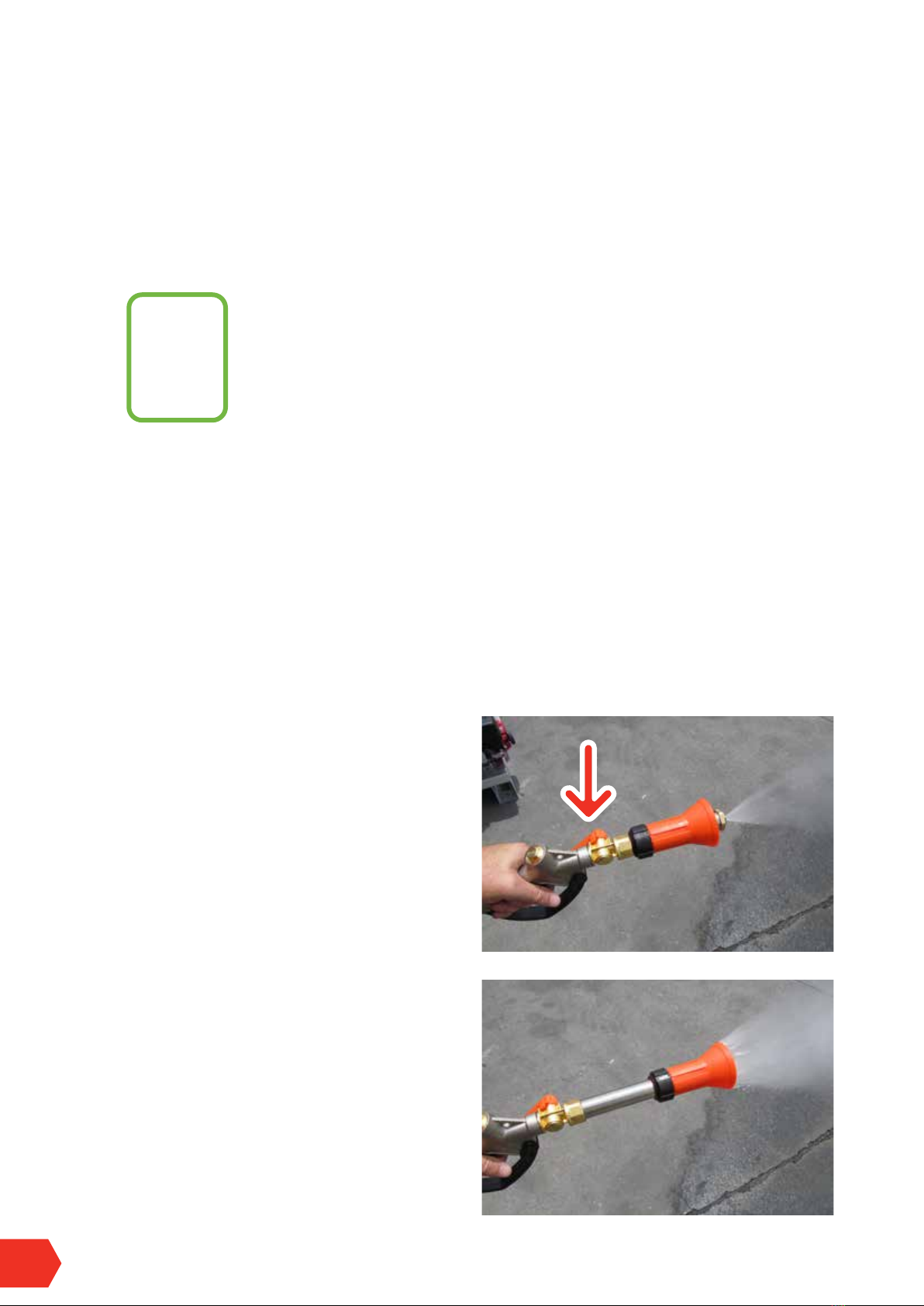

Controls are a hand-held trigger, side lever for spray pattern
(red arrow) and sliding / adjustable cone.
The side lever is used to adjust for cone or straight stream
spray. Slide the orange cone forwards for a “fogging”
type spray.

17
FILLING, FILTERS & DRAINING
It’s important to keep all filters clean. A careful, common sense
approach to water quality, mixing of chemicals and care of
filters, hoses and tank will ensure trouble free spraying.
Filling is via the lid, filtered via the basket – be very careful to
not splash chemical when filling.
Draining is via the ball valve, with the tap pointing to the left
(as shown). It’s suggested the user connect a hose to the drain
side of the valve and route the hose to a convenient safe
place for draining the tank.
• Take care to dispose of chemical in an environmentally
responsible manner.
Suction lines are fitted with a filter. The type, size and mesh
vary from model to model. All meshes are colour coded
and, in most cases, alternative mesh sizes are available via
spray shops.
Red = 32 mesh (course) - not used from the factory.
Blue = 50 mesh
Yellow = 80 mesh
Green = 100 mesh (fine)
SPRAY GUN, LANCE, HOSE AND CLAMP ACCESSORIES
For more information on accessories etc consult the Croplands Optima Spray Range catalogue.
SPRAY GUN, LANCE, HOSE AND CLAMP
ACCESSORIES

GP-OMTRAY-A
18
SECTION 4A
PRE-OPERATION, MOTORISED MODELS
See section 4B for 12-Volt models.
PREOPERATION CHECKLIST
Before operating the sprayer:
• Familiarise yourself with all supplied manuals.
• Check the sprayer is securely mounted.
• Check that the spray tank is clean, and drain tap is
not open.
• Check that the suction line filter is clean.
• Check the hose reel / spray gun or Retraspray unit is
correctly installed. In the case of Retraspray units, connect
the sprayer power leads to a 12-volt battery (see separate
the Retraspray manual).
• Fill the hand wash tank (if fitted) with clean fresh water.
• Check all plumbing and fittings are tight and not
damaged. Fill the sprayer tank with clean water -
making sure the basket filter is in place when filling.
Check for leaks.
• Safety Manual … has been read, understood and
appropriate preparations have been implemented.
INITIAL STARTUP PROCEDURE,
MOTORISED SPRAYER
Always use fresh water for familiarisation, maintenance,
testing or training. If the unit has seen chemical, always wear
safety gloves (as a minimum precaution).
Engine & pump check:
The Honda GX200 engine will have been pre-checked for
operation at the factory. However, it is recommended you
check the oil level as per the Honda manual.
Check the oil level in the pump. Pumps, oil requirements and
fill positions vary from model to model – check the manual
supplied for each unit.

19
Familiarize yourself with the engine controls – choke, on/off,
engine speed control and starter pull-chord.
First Time Start-up
This example is with AR252 pump model. The routine steps are
the same – controls will vary from pump to pump and PRV.
• Oil checks done, correct & adequate fuel.
• Fill the sprayer with some clean water (50 litres would
be sufficient for initial familiarisation).
• Set the PRV to “Bypass” lever as shown (yellow arrow),
and ball valve to the reel in the off position, as shown
(blue arrow).
As a starting point set the PRV pressure adjustment knob to
approximately 4 turns UP (low pressure). All units are tested
and adjusted at the factory before delivery, so take note of
the original setting. On AR30 / 40 pumps, set PRV to the first
wire – lever up / bypass mode)
• Turn on the Honda’s ignition.
• Set choke to ON. Note hot starts don’t need the choke.
• Set run speed to Minimum (see image)
• Pull Start, usually 2 times is sufficient.
o If not starting after 4 or 5 pulls, turn off the choke and
set the throttle to full power. Will usually start first time.
If all else fails, consult the Honda manual.
• Once the engine is running reliably at approximately ¼
power ….
o Confirm that the pump has primed and is working
(flow will be bypassing back to tank).
o Turn on the pressure valve, as circled.
For the AR30 it’s lever down.
o Adjust the pressure until you have the required
pressure, say 12 Bar as circled.
o Turn on the ball valve to the hose reel / spray gun
/ RetraSpray / boom, as circled.

GP-OMTRAY-A
20
SECTION 4A
PRE-OPERATION, MOTORISED MODELS
See section 4B for 12-Volt models.
• Spray. Hold down the hand grip lever of the spray gun.
Once the unit is spraying clean water, adjust the engine
power until the operating pressure (whilst spraying) is at
the required level. While the hand gun is spraying, check
that the:
o Nozzle spray pattern is even, adjusting the spray
pattern to suit the application you are planning to
carry out.
o Pump pressure is constant and within the limit of the
maximum pressure rating.
o Release the hand grip lever to stop spraying.
• For spot spraying applications, the required pressure
will vary significantly depending on the application and
equipment used (boom, lance, gun). Whilst checking the
sprayer with fresh water, also check for the maximum
pressure likely to be used / checking for leaks etc.
Boom Spraying
The AR30/40/70 sprayers fitted with one hose reel come
fitted with 2 taps on the pressure side – one to the spray reel
and the other is spare, for another hose reel or maybe a small
boom such as Croplands MBX-4, (note this is not a factory
fitted option).
Turn on the tap to the boom position. Water should now spray
from the nozzles. Adjust the spraying pressure to a maximum
of 5 bar pressure for boom spraying.
Whilst the pump is running, check all the nozzles to ensure the
spray pattern is uniform and check there are no leaks from
boom joints, fittings or the nozzle bodies.
For further information on boom spraying, see Section 6 -
Spraying Information.
SHUT DOWN
Note see section 5 for more information on cleaning &
flushing.
Spray to empty
• Always easier to shut down after spraying until the tank
and hose lines are empty.
• Reduce engine power to idle.
• Turn off the engine by using the ignition kill switch.
• Turn off the fuel if leaving for some time.
Shut down with tank partially full
• Reduce engine power to idle.
• Turn off the engine by using the ignition kill switch.
• Use the spray gun to relieve any residual pressure / liquid
in the spray line. Do not leave hoses full of water in the
heat of summer or the cold of winter.
• If the unit is not going to be used for spraying on the
same day, drain the tank and drain the hose.
With the initial start-up procedure is successfully completed,
the sprayer is ready for operation.
Go to section 5, Operation
CAUTION
!
When the tank becomes empty, the pump will
continue to run. Running the pump dry temporarily
will not cause damage. However, avoid letting
the pump run dry for long periods.
