DE100 ATA 33 Install Guide
Removable ATA 33 Drive Enclosure
Receiving Frame Motherboard
Activity Select Jumper (JP39): Default setting is “A” to use the
activity indicator light on the receiving frame. Set to “B” to use the drive
activity light on the computer chassis.
Master/Slave Selection Jumper (J4A): Master Drive configuration
(default). Forces master drive configuration on receiving frame. Change
jumper to set slave drive configuration, or remove jumper to use unit ID
select switch on receiving frame.
Master/Slave Connection (J6): Used for older model drives that do
not support a Slave Present handshake signal at I/O connector Pin-39.
When using two receiving frames, a connection between J6 may be
required.
Remote Drive Activity (J7): Pins A & C are used for remote drive
activity. All other pins are reserved.
Master/Slave Drive Selection
There are two ways to set the Master/Slave drive designation.
1. Use the factory-installed jumper on your IDE drive - In most
cases, the drive will be factory configured as a Master IDE drive
using a jumper plug on the drive itself. No configuration changes
are required. For multiple drive configurations, it is necessary to set
the first IDE drive as Master and the second IDE drive to Slave. This
can be done by changing the jumper on the IDE drive itself (refer to
the drive manufacturer documentation). This method Requires no
additional configuration of the drive carrier circuit board.
2. Use the hard-wire connector J3 on the drive carrier
circuit board - The Master/Slave drive selection can also be set by
the receiving frame using either Jumper 4A located on the rear panel
or by setting the unit ID select switch. These two methods require the
fabrication of a cable (not provided).
Figure 1: Drive Installation Assembly
Receiving
Frame
Figure 2: Receiving Frame Motherboard (rear view)
Cable
Cover
(provided)
Disk Drive
(not included)
ID Select Cable
I/O Cable
Power Cable
#6-32
Phillips Flat Hd.
Screw
(6 total)
Drive Carrier

Rugged, Reliable, Mobile, SecureTM
1-800-260-9800 www.CRU-DataPort.com
Figure 4: Unit ID Select Switch Location
NOTES: The unit ID number display is for ID display purposes
only. The master/slave setting must be set on the drive itself.
The lock on the Data Express receiving frame functions as a lock
and a DC power switch for the carrier unit. The lock MUST be
engaged (turned counterclockwise) in order to supply power to
the carrier and installed drive unit.
Limited Product Warranty
CRU-DataPort (CRU) warrants the Data Express DE100 to be free
of significant defects in material and workmanship for a period of
five years from the original date of purchase. CRU’s warranty is
nontransferable and is limited to the original purchaser.
Limitation of Liability
The warranties set forth in this agreement replace all other warranties.
CRU expressly disclaims all other warranties, including but not limited
to, the implied warranties of merchantability and fitness for a particular
purpose and non-infringement of third-party rights with respect to the
documentation and hardware. No CRU dealer, agent or employee is au-
thorized to make any modification, extension, or addition to this warranty.
In no event will CRU or its suppliers be liable for any costs of procurement
of substitute products or services, lost profits, loss of information or data,
computer malfunction, or any other special, indirect, consequential, or
incidental damages arising in any way out of the sale of, use of, or inability
to use any CRU product or service, even if CRU has been advised of the
possibility of such damages. In no case shall CRU’s liability exceed the
actual money paid for the products at issue. CRU reserves the right to
make modifications and additions to this product without notice or taking
on additional liability.
Certification
EMI Standard: FCC Part 15 Class B, CE
EMC Standard: EN55022, EN55024
FCC Certification
This device has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received;
including interference that may cause undesired operation.
Register your product at www.CRU-DataPort.com
A7-100-0005 Rev. 1

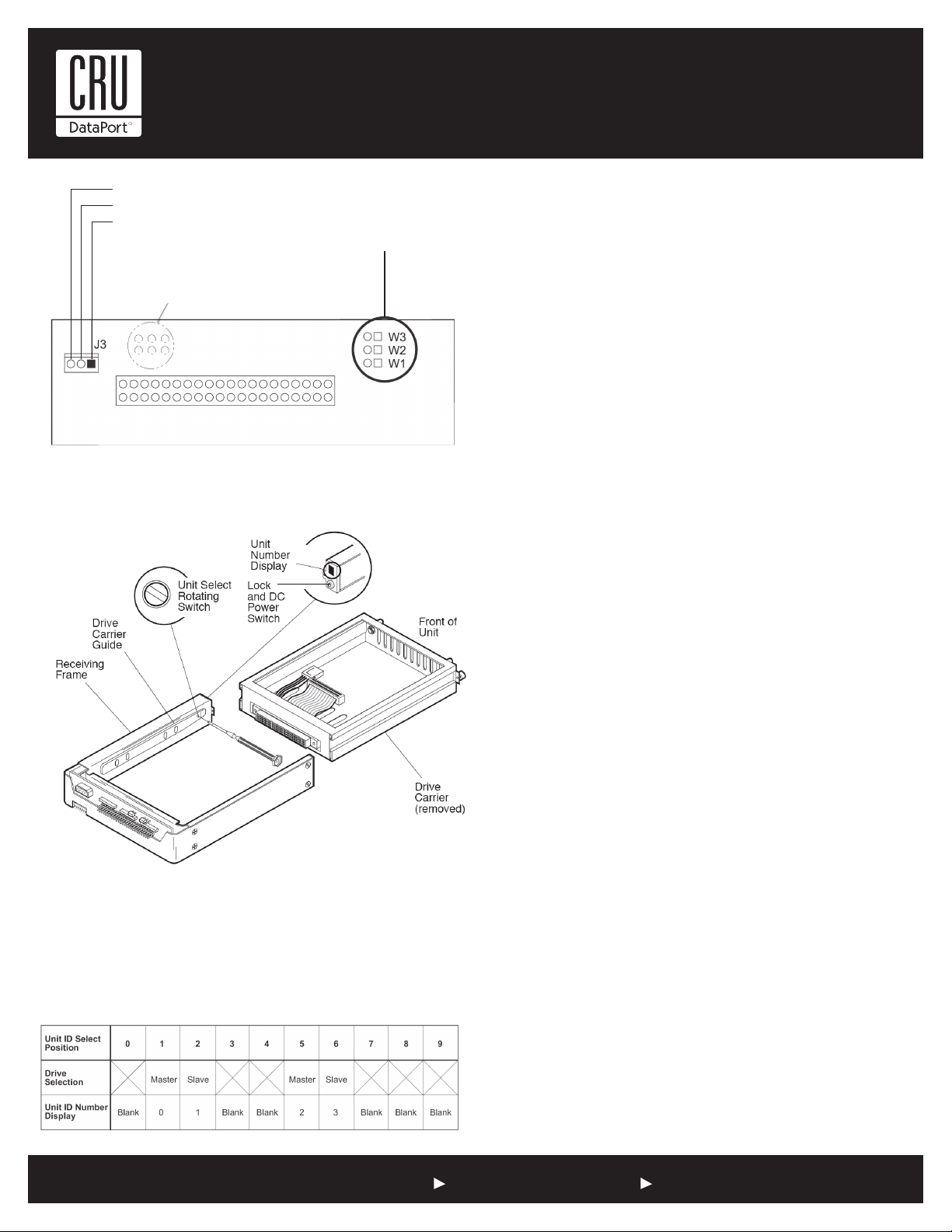

Figure 3: Drive Carrier Circuit Board
Unit ID Select Switch Settings
The following table lists the unit ID select switch settings and the valid
AT/IDE unit numbers. Please note that all invalid switch settings have
shaded boxes and result in a blank display in the receiving frame window.
Drive Active Connection
Slave Connection (J3 Pin 2)
Master Connection (J3 Pin 2)
W1, W2, W3 location on
older revision boards
Drive Type Jumpers
Selecting the Unit ID Number: Use the alignment tool (provided) to
select the ID number of the disk drive.
