6V/0.8A
XC 0.8
CHARGING
1. Connect the charger to the battery.
2. Connect the charger to the wall socket. The error lamp will indicate if the battery
clamps are incorrectly connected. The reverse polarity protection will ensure that the
battery or charger will not be damaged.
3.Follow the indication lamps through the charging process.
The battery is fully charged when is lit.
4. Stop charging at any time by disconnecting the mains cable from the wall socket.
CONGRATULATIONS
to the purchase of your new professional switch mode battery charger. This charger is
included in a series of professional chargers from CTEK SWEDEN AB and represents the
latest technology in battery charging.

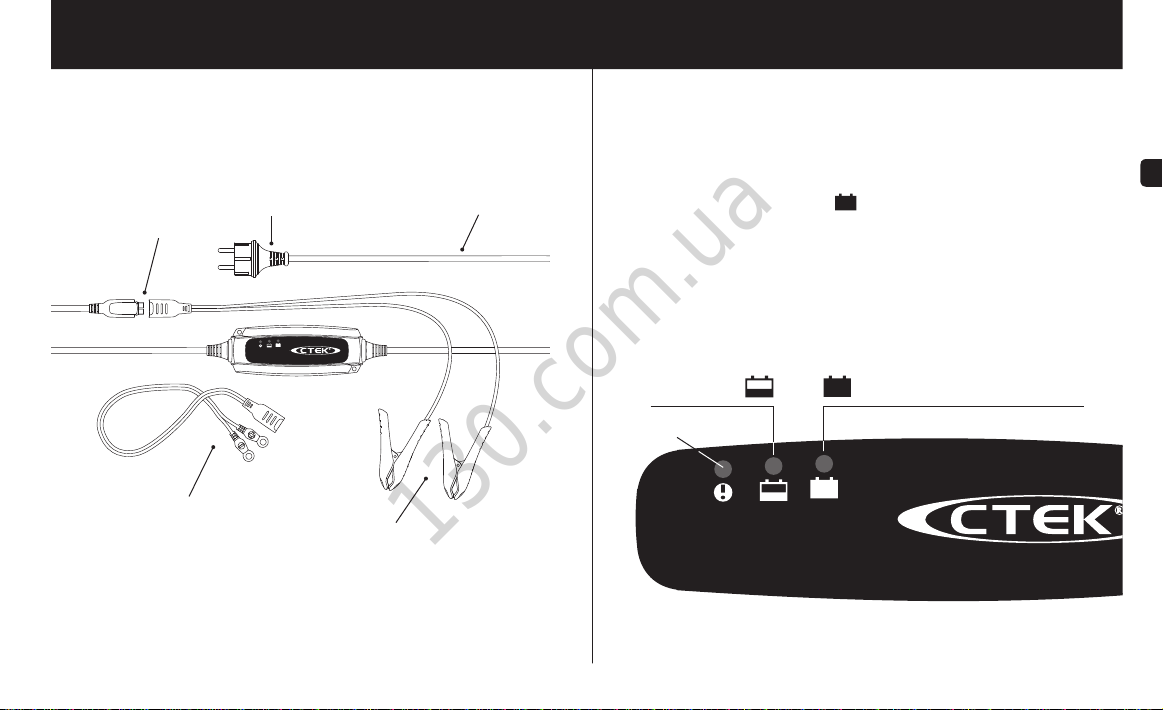

CTEK COMFORT CONNECT – eyelet M6
6V/0.8A
XC 0.8
CTEK COMFORT CONNECT
MAINS CABLE
DESULPHATION
BULK
ABSORPTION
FULLY CHARGED
PULSE, MAINTENANCE CHARGING
CTEK COMFORT CONNECT – clamp
CHARGE CABLE
SUPPLY PLUG*
*Supply plugs may differ to suit your wall socket.
MANUAL
ERROR LAMP
Autogoods “130”
130.com.ua

4 • EN
BATTERY SIZE (Ah) TIME TO 80% CHARGED
2Ah 2h
8Ah 8h
20Ah 20h
60Ah 60h
READY TO USE
The table shows the estimated time for empty battery to 80% charge

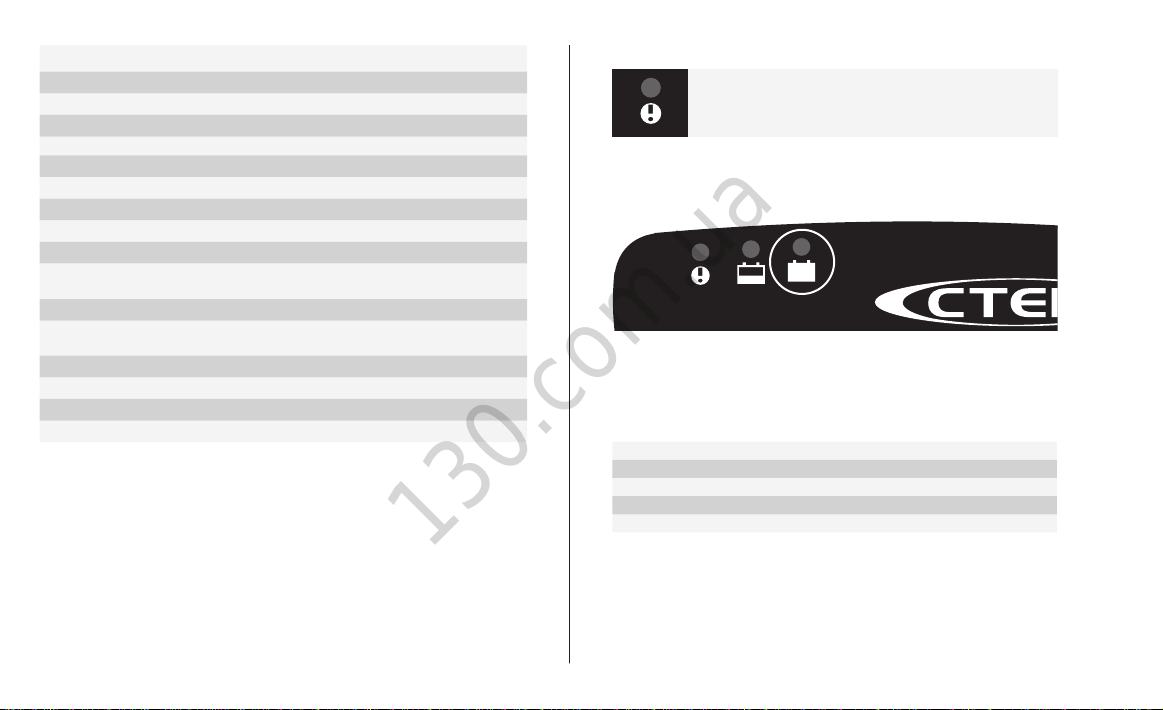

ERROR LAMP
If the error lamp is lit, check the following:
— Is the chargers positive lead connected to the
batterys positive pole?
— Connect the charger according to page 6.
TECHNICAL SPECIFICATIONS
Charger model XC 0.8
Model number 1054
Rated Voltage AC 220–240VAC, 50–60Hz
Charging voltage 7. 2 V
Start voltage 3.7V
Charging current 0.8A max
Current, mains 0.2A rms (at full charging current)
Back current drain* <1Ah/month
Ripple** <4%
Ambient
temperature
-20°C to +50°C, output power is reduced
automatically at high temperatures
Charger type 4-step, fully automatic charging cycle
Battery types All types of 6V lead-acid batteries
(WET, MF, Ca/Ca, AGM and GEL)
Battery capacity 1.2–10 0A h
Dimensions 142x51x36mm(LxWxH)
Insulation class IP65
Weight 0.3kg
*) Back current drain is the current that drains the battery if the charger is not connected
to the mains. CTEK chargers has a very low back current.
**) The quality of the charging voltage and charging current is very important. A high
current ripple heats up the battery which has an aging effect on the positive electrode.
High voltage ripple could harm other equipment that is connected to the battery. CTEK
battery chargers produce very clean voltage and current with low ripple.
6V/0.8A
XC 0.8
FULLY CHARGED
Autogoods “130”
130.com.ua

EN
EN • 5
1
VOLTAGE (V)CURRENT (A)
PULSE
DESULPHATION BULK ABSORPTION
Increasing voltage
to 7.2V
0.8A
1
7.2V 7.2V
Declining current
6.4V‒7.2V
0.8‒0.4A
2 3 4

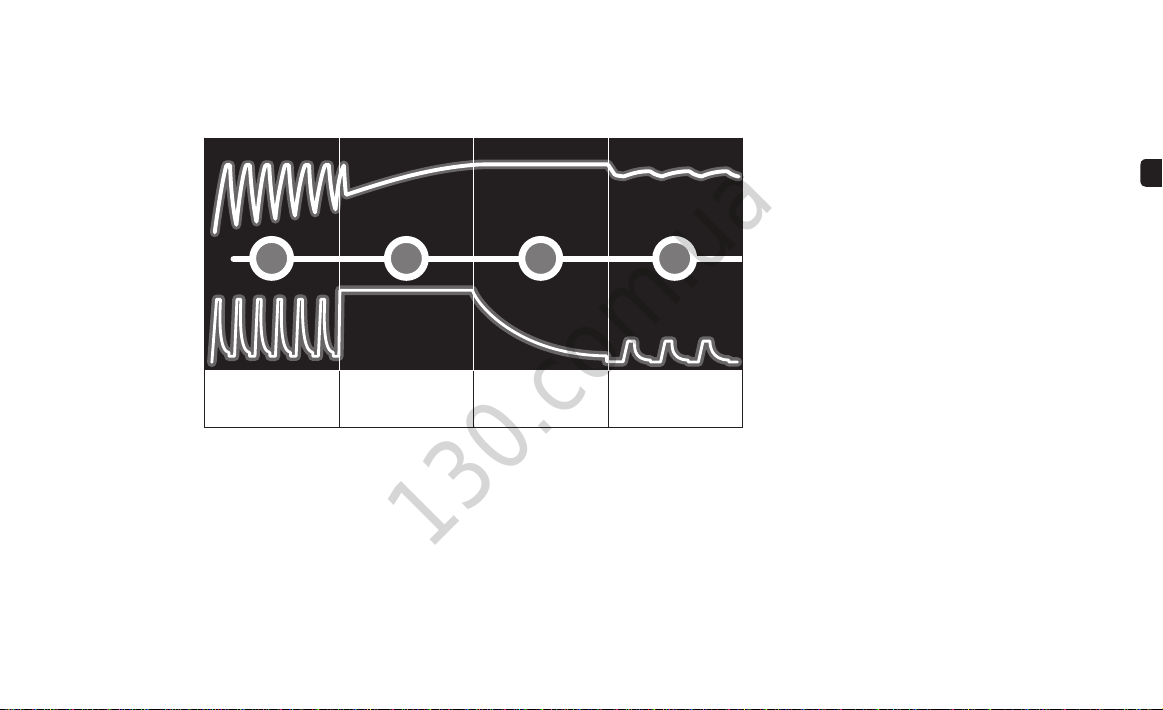

CHARGING PROGRAM
XC 0.8 is equipped with a multi purpose charging program. XC 0.8 charges all batteries 1.2–100Ah
in the temperature range of -20˚ to +50˚C (-4˚F to +122˚F).
CTEK SWEDEN AB, issues this limited warranty to
the original purchaser of this product. This limited
warranty is not transferable. The warranty applies
to manufacturing faults and material defects for
5 years from the date of purchase. The customer
must return the product together with the receipt of
purchase to the point of purchase. This warranty
is void if the battery charger has been opened,
handled carelessly or repaired by anyone other
than CTEK SWEDEN AB or its authorised repre-
sentatives. CTEK SWEDEN AB makes no war-
ranty other than this limited warranty and is not
liable for any costs other than those mentioned
above, i.e. no consequential damages. Moreover,
CTEK SWEDEN AB is not obligated to any war-
ranty other than this warranty.
LIMITED WARRANTY
STEP 1 DESULPHATION
Detects sulphated batteries. Pulsing cur-
rent and voltage, removes sulphate from
the lead plates of the battery restoring
the battery capacity.
STEP 2 BULK
Charging with maximum current until
approximately 80% battery capacity.
STEP 3 ABSORPTION
Charging with declining current to maxi-
mize up to 100% battery capacity.
STEP 4 PULSE
Maintaining the battery at 95–100%
capacity. The charger monitors the
battery voltage and gives a pulse when
necessary to keep the battery fully
charged.
Autogoods “130”
130.com.ua

6 • EN
SAFETY
• The charger is designed for charging 6V lead-acid batteries. Do not use the charger
for any other purpose.
• Check the charger cables prior to use. Ensure that no cracks have occurred in the
cables or in the bend protection. A charger with damaged cables must be scrapped.
• Never charge a damaged battery.
• Never charge a frozen battery.
• Never place the charger on top of the battery when charging.
• Always provide for proper ventilation during charging.
• Avoid covering the charger.
• A battery being charged could emit explosive gasses. Prevent sparks close to the
battery. When batteries are reaching the end of their lifecycle internal sparks may occur.
• All batteries fail sooner or later. A battery that fails during charging is normally
taken care of by the chargers advanced control, but some rare errors in the battery
could still exist. Don’t leave any battery during charging unattended for a longer period
of time.
• Ensure that the cabling does not jam or comes into contact with hot surfaces or sharp
edges.
• Battery acid is corrosive. Rinse immediately with water if acid comes into contact
with skin or eyes, seek immediate medical advice.
• Always check that the charger has switched to before leaving the charger unat-
tended and connected for long periods. If the charger has not switched to within 40
hours, this is an indication of an error. Manually disconnect the charger.
• Batteries consume water during use and charging. For batteries where water can
be added, the water level should be checked regularly. If the water level is low add
distilled water.
• This appliance is not designed for use by young children or people who cannot read
or understand the manual unless they are under the supervision of a responsible person
to ensure that they can use the battery charger safely. Store and use the battery charger
out of the reach of children, and ensure that children cannot play with the charger.
• Connection to the mains supply must be in accordance with the national regulations
for electrical installations.
+
+
–
–
Comfort
Connect
6V/0.8A
XC0.8
CONNECT AND DISCONNECT THE CHARGER TO A BATTERY
Comfort
Connect
Comfort
Connect
INFO
If the battery clamps are incor-
rectly connected, the reverse
polarity protection will ensure that
the battery and charger are not
damaged.
For batteries mounted inside a
vehicle
1. Connect the red clamp to the bat-
tery's positive pole.
2. Connect the black clamp to the
vehicle chassis remote from the fuel
pipe and the battery.
3. Connect the charger to the wall
socket
4. Disconnect the charger from the wall
socket before disconnecting the battery
5. Disconnect the black clamp before
the red clamp.
Some vehicles may have posi-
tively earthed batteries.
1. Connect the black clamp to the bat-
tery's negative pole.
2. Connect the red clamp to the vehicle
chassis remote from the fuel pipe and
the battery.
3. Connect the charger to the wall
socket
4. Disconnect the charger from the wall
socket before disconnecting the battery
5. Disconnect the red clamp before the
black clamp.
20015436F
Autogoods “130”
130.com.ua

EN
EN • 7
SUPPORT
CTEK offers a professional customer support: www.ctek.com.
For latest revised user manual see www.ctek.com. By e-mail: [e-mail],
bytelephone:+46(0)22535180,byfax+46(0)22535195.
Bymail:CTEKSWEDENAB,Rostugnsvägen3,SE-77670VIKMANSHYTTAN,
SWEDEN.
VIKMANSHYTTAN,SWEDEN2011-09-01
Bengt Hagander, President
CTEK SWEDEN AB
CTEK PRODUCTS ARE PROTECTED BY 2011- 09-19
20015436F
Patents Designs Trade marks
EP10156636.2pending RCD 509617 CTM 669987
US12/780968 pending US D575225 CTM844303
EP1618643 USD580853 CTM372715
US7541778 USD581356 CTM3151800
EP1744432 US D571179 CTM 1461716 pending
EP1483817pending RCD321216 CTM1025831
SE524203 RCD000911839 CTM 405811
US7005832B2 RCD 081418 CTM830545751pending
EP1716626 pending RCD 0 01119911- 0 001 CTM 1475420 pending
SE526631 RCD 001119911-0002 CTM1935061pending
US7638974 B2 RCD 081244 V28573IP00
EP1903658pending RCD321198 CTM 1082141 pending
EP09180286.8 pending RCD321197 CTM 2010004118 pending
US12/646405 pending ZL200830120184.0 CTM 4-2010-500516 pending
EP1483818 ZL200830120183.6 CTM410713
SE1483818 RCD001505138-0001 CTM 2010/05152 pending
US76297 74 B2 RCD000835541-0001 CTM1042686
EP09170640.8 pending RCD000835541-0002 CTM 766840 pending
US12/564360pending D596126
SE528232 D596125
SE525604 RCD001705138pending
USD29/378528pending
RCD201030618223.7pending
USRE42303
USRE42230
