Double lock
Gooseneck
InstructIon manual
Installer: Read and understand this manual. Fully instruct and demonstrate the operation of this gooseneck hitch to the end user.
Include the importance of observing all warnings. Provide this manual in its entirety to the end-user.

Curt Manufacturing LLC., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective,
Curt Manufacturing LLC., may repair or replace the product, at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of
this product voids the warranty. Curt Manufacturing LLC.'s liability is limited to repair or replacement of products found to be defective, and specifically excludes liability for incidental or
consequential loss or damage.
60607 GOOSENECK HITCH

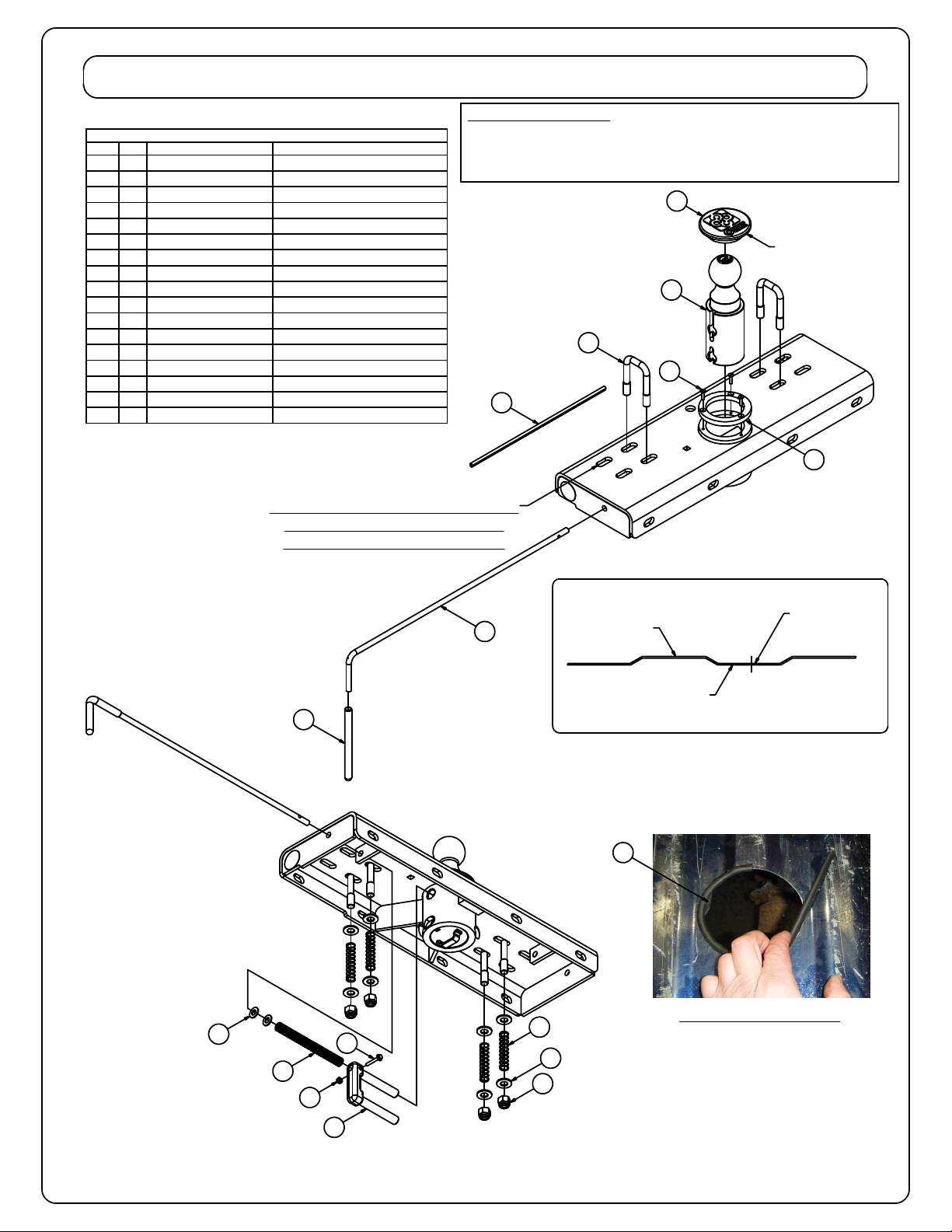

FIGURE 1
Parts List
DESCRIPTION
PART NUMBER
QTY
ITEM
SAFETY CHAIN LOOP ASSEMBLYCM-C60-CLA21
2" x 3" SAFETY CHAIN LOOPCM-C60-CL11.1
U-BOLT SPRINGCM-C60-S21.2
NYLOCK HEX NUT
1_2 - 1321.3
FW,1/2 SAE,ZPFW12SAE
41.4
WASHER3/8"
22
FLAT HEAD C'SUNK CAP SCREW#10-32 x 3/4
33
NYLOCK HEX NUT#10-24 NYLOCK HEX NUT14
HEX HEAD FLANGE SCREW#10-24 x 1.25 HHFS1
5
TURNOVER BALL COMPLETECM-C60-B16
CAST LOCK PINCM-C600-CLP1
7
.375" HANDLE RODCM-C60-R18
7.5 LB COMPRESSION SPRINGCM-C60-CS
19
VINYL HANDLE GRIPCM-C60-H
110
RUBBER COVERCM-C60-RC
111
.300" U-SHAPED EDGINGCM-UE1
112
3.75 DIA. x .375" CHROME RINGCM-C600-CR113
TOP VIEW OF HITCH
BOTTOM VIEW OF HITCH
USE 60607 CENTER SECTION TO
LOCATE AND DRILL SAFETY
CHAIN ATTACHMENT HOLES
HIGH RIB SECTION
LOW RIB SECTIONS
HOLE LOCATION
FOR SAFETY CHAIN
ATTACHMENTS
USE AS NEEDED FOR
PROPER PULL LENGTH
WHEN BALL IS NOT IN
USE, INSERT SUPPLIED
RUBBER COVER
PAGE 2
8
10
11
9
2
6
1.1
1.4
1.3
1.2
2/26/2013
7
12
13
3
WARNING DO NOT invert ball when carrying
heavy loads on 2 wheel drive trucks. The ball may
hit the top of the differential,brake lines, or sensors.
(NOTE: Do not invert ball on any Toyota Tundra Models)
12
U-EDGING INSTALLED
AROUND EDGE OF 4" HOLE
IN TRUCK BED
5
4

Warning!! Carefully exam ine the location of fuel lines, brake lines, and electrical wires BEFORE INSTALLATION.
Brake, fue l, and electrical lines may n eed to be loosened or repositioned to provide clearance for ne w hardware. The
installation of this hitch m ay requ ire m odification or rem oval of heat shields. The u se of overlo ad springs, air bag s, etc.
m ay be required when towing heavy loads.
Installing 60607 T urnover Gooseneck After Cross Arm Sub-kit Installation
1) Install rubber edging (CM -UE1) on cut edge for 60607 cylind er, trim excess.
2) Position the 60607 over the rea r axle an d up to the rea r cross arm with the cylinder facing the correct
direction for the applica tion. Install four 1/2" x 1 3/4" carriage bolts into th e 606 07 first, the n throu gh the
rear cross a rm and se cure with 1/2" fla nge nuts, finge r tighten.
3) Mo ve the fro nt cross arm to the 60 607 and install the 1/2" x 1 3/4" carriage bolts into the cross arm then
through the 60607 and secure with 1/2" flange nuts.
4) Torque all 1/2" h ardware to 110 ft-lbs.
Installing Safety Chain Attachments
1) From under the truck use the 60607 gooseneck as a temp late to drill four 1/2” ho les for the safety chain
attachments.
2) Usin g a 1/2” drill bit, drill the center of each slotted ho le in the gooseneck. (Note: Be s ure the holes are
drilled in the lower rib section of the truck bed as shown in FIGURE 1).
3) From inside the truck box place the two U-bolts (1.1) through the predrilled holes in the bed of th e truck.
4) From beneath the truck place a washer (1.4), a spring (1.2), a washer (1.4) and a nylock n ut (1.3) on each
of the four U-bolt legs. Tighten the nylock nuts until flush with the bottom o f the U-bolt.
Installing handle / lock
1) Insert Locking Pin (7) into the ball cylinder with hand le rod ho le located on top.
2) Slide rubber grip (10) on to handle rod.
3) Insert handle rod from outside vehicle, through the hole in the 60607 end pla te, and through the rod guide
as shown. (Hand le rod may b e installed on driver side o r passenger side, depending on preference).
4) Slide the compression spring (9) over handle rod before insertin g the handle rod into the locking pin.
Insert handle rod into locking pin and secure with #10 screw (5) and nylock nu t (4) as sh own.
(Note: Use 1-2 additional 3/8” washers (2) as needed to ensure proper pull length of locking pin).
Caution!!!
1. Check that all 1/2" h ardware has been torqu ed to 110 ft-lbs.
2. Check that all side p late hardwa re has b een torqued. Some hardware listed will no t apply to your
application.
3/8" t o 45 ft-lbs.
1/2" t o 11 0 ft-lb s.
9/16” t o 150 ft-lb s.
5/8" t o 21 0 ft-lb s.
3/4" t o 38 0 ft-lb s.
3. Re-attach Brake, Fuel, an d Electrical lines so they do not contact any of the ad ded fasteners.
60607 Operation
1. Pull the handle out as far as po ssible and rotate clockwise until the locking p in is disengag ed a nd locked
out.
2. Insert ball in the tow position into the cylinde r by aligning the ball groove with the cylinde r p in. If the groove
and pin are not aligned sim ply rotate ball until the ba ll drops into place.
3. Rotate handle cou nter clockwise until locking pin snaps back in to position. (Note: Be certain the locking
pin passes completely through the ball and securely into the cylin der.
60607 Installation check
1. Set ball in towing positio n an d ha ndle in locked p osition.
2. Connect the trailer to the hitch ball.
3. Check truck b ox clearan ce, there should be a minim um clearance of 6" betwee n the bottom of the trailer
overhang and the top of the box sides. Verify clearance betwee n the truck and tra iler at cab and box
co rn ers.
Maintenance (Requ ired every 30 days or prior to use)
1. Keep hitch ball lubricated regularly. Use silicone spray or equivalent to prevent wear and rust.
2. Keep hitch assembly free o f dirt and other fore ig n deb ris.
3. Check for proper torque on all nuts and b olts before each use. Also check for excessive wear.
4. Check for ball wear before each use. (Note: Do not tow trailer with worn or damaged parts).
Curt Manufacturing LLC., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective,
Curt Manufacturing LLC., may repair or replace the product, at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of
this product voids the warranty. Curt Manufacturing LLC.'s liability is limited to repair or replacement of products found to be defective, and specifically excludes liability for incidental or
consequential loss or damage.
60607 GOOSENECK HITCH
PAGE 3

Curt Manufacturing LLC., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective,
Curt Manufacturing LLC., may repair or replace the product, at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of
this product voids the warranty. Curt Manufacturing LLC.'s liability is limited to repair or replacement of products found to be defective, and specifically excludes liability for incidental or
consequential loss or damage.
***DO NOT EXCEED VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY.***
**REMOVAL OF REAR WINDOW ACCESSORIES MAY BE REQUIRED.**

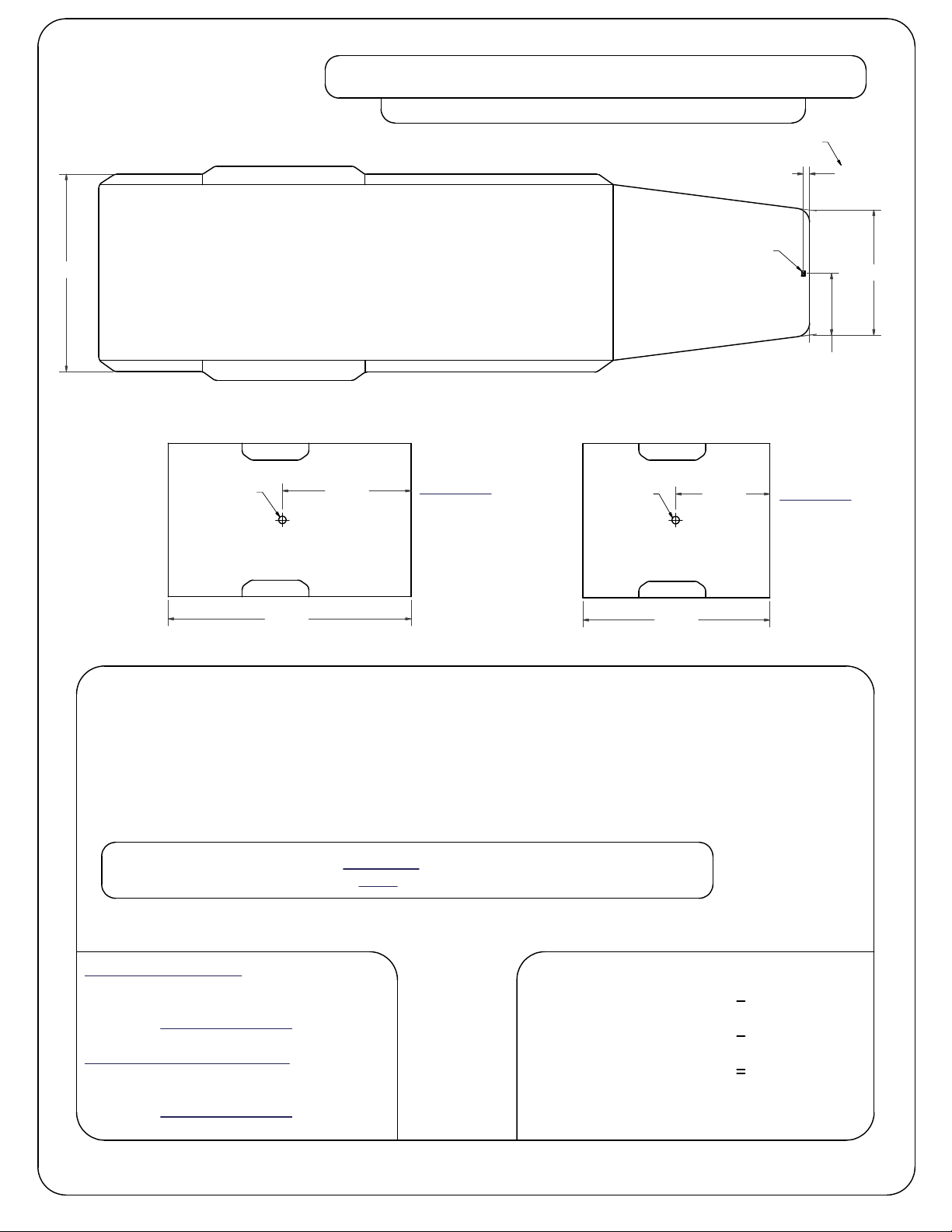

CAB TO TRAILER CLEARANCE
TRAILER
LONG & SHORT TRUCK BEDS
***GENERALLY, TAPERED NOSE TRAILERS ADHERE TO THE FOLLOWING DESIGNS:***
8 FT. WIDE TRAILERS TAPER TO 6 FT. AT THE COUPLER.
7 FT. WIDE TRAILERS TAPER TO 5 FT. AT THE COUPLER.
96 in
96 in 72 in
***DO NOT USE THESE***
DIMENSIONS FOR DRILLING
***DO NOT USE THESE***
DIMENSIONS FOR DRILLING
CAB OF TRUCK CAB OF TRUCK
47 in
(X)
35 in
(X)
**WARNING REFERENCE CLEARANCE CALCULATOR BEFORE TOWING**
***IF (Z) IS POSITIVE, TRAILER WILL NOT INTERFERE WITH CAB OF TRUCK.***
IF (Z) IS NEGATIVE, TRAILER WILL INTERFERE WITH CAB OF TRUCK!!!
EXAMPLE: YOUR CALCULATION:
STANDARD TRAILER
X - Y = Z
35 - 36 = -1
(TRAILER WILL INTERFERE WITH CAB)
TRAILER WITH OVERHANG
[(X) - (W)] - Y = Z
[35 - 4] - 36 = -5
(TRAILER WILL INTERFERE WITH CAB)
(CAB TO BALL CENTER)
-
(COUPLER OVERHANG)
-
1/2 (TRAILER WIDTH)
=
(MINIMUM CLEARANCE
CLEARANCE CALCULATION
(CAB TO BALL CENTER) - 1/2 (TRAILER WIDTH) = (MINIMUM CLEARANCE)
(X) - (Y) = (Z)
IF THERE IS AN OVERHANG FROM THE COUPLER THEN THE EQUATION IS:
[(X) - (W)] - (Y) = (Z)
72 in
36 in
(Y)
4 in
(W)
HITCH BALL HITCH BALL
COUPLER
COUPLER OVERHANG
PAGE 4

Parts List
DESCRIPTIONPART NUMBERQTYITEM
HEX BOLT1/2 - 13 x 1 1/261
WASHER1/2"62
HEX FLANGE NUT
HFN 1213143
CARRIAGE BOLT1/2-13 x 1 1/2
84
1/2" TUBE SPACER60636-TS
25
HEX BOLT1-8 x 2 1/226
HEX NUT1-82
7
1" HELICAL LOCK WASHER/
ZINC PLATED (HEX FREE)
1 LOCK WASHER28
WASHER
1.00 DIA.29
Curt Manufacturing Inc., warrants this product to be free of defects in material or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective,
Curt Manufacturing Inc., may repair or replace the product, at their option,when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of
this product voids the warrant. Curt Manufacturing Inc.'s liability is limited to repair or replacement of products found to be defective, and specificaly excludes liability for incidental or
consequential loss or damage.
60636
INSTALLATION STEPS
WARNING!! BRAKE, FUEL, AND ELECTRICAL LINES MAY NEED TO BE LOOSENED OR REPOSITIONED TO PROVIDE CLEARANCE FOR NEW HARDWARE.
ALL MODELS REQUIRE MODIFICATION OR REMOVAL OF HEAT SHIELDS. ON SHORT BED MODELS, CHECK FOR ADEQUATE TURNING CLEARANCE
BETWEEN THE FRONT OF ALL TRAILERS AND THE TRUCK CAB.
FRONT OF TRUCK
FIGURE 2
REAR OF TRUCK
BEFORE INSTALLING
An overhead lifting device, such as chain falls, engine hoist, or cable come-a-long, can be used to lift the center section of the
hitch in place. Lower a loop of rope or chain through the hole in the truck bed floor and attach it to the round hitch receiver
tube in the center section. Use the lifting device to raise the center section until the round hitch receiver tube that protrudes
from the center section fits in the hole in the truck bed floor. Maintaining upward pressure may facilitate fastening the cross-
member to the center section, especially if the truck bed floor has been distorted downward from heavy use. If you use an
overhead-lifting device, it should be disconnected before squaring the center section across the frame, installing the sideplates
and torquing fasteners.
1) Lower and remove spare tire and heat shield. The heat shield is located above the rear axle under the truck bed. It is
attached with four sheet metal screws (7/32" hex head). Replace the front screw after removing the heat shield.
2) Mark the location for the hole in the truck bed. Measure from the tail gate end of the truck bed, by hooking a tape measure
over the back of the truck box and marking the correct location.(NOTE: DO NOT MEASURE FROM EDGE OF TAILGATE)
Next, mark the center between the wheel wells. This marks the center point for the drill hole. This hole location is critical for
the correct installation of this hitch. Measure, mark, and saw carefully. This location will put the ball 4"-5" in front of the axle.
Short Bed Installation 48 1/16"
Long Bed Installation 48 1/16"
NOTE: If truck has a plastic bed liner, you may drill through both, but it is more difficult to accurately locate the
midpoint between the wheel wells, and to keep the bed liner from moving while cutting the hole. Make a
4"(3 5/8" for C-630/C-640) hole at this location using a 4"(or 3 5/8") hole saw, or by making a 4"(or 3 5/8")
circle and cutting it out with a saber saw equipped with a metal cutting blade.
3) On power stroke diesels only, loosen the tail pipe hanger bracket in front of the rear axle. Place a ratchet strap around the
highest part of the tail pipe and the rear axle. Pull the tail pipe down by tightening the ratchet strap to achieve sufficient clear-
ance for hitch parts. After installing parts, insert a 1/4" shim in the tail pipe bracket and tighten. Cut the safety chain U-bolts,
on the exhaust pipe side, off to an inside length of 3 1/4", and cut 1 1/2" off of the safety chain springs.
80-96 FORD 1/2, 3/4, & 1 TON TRUCKS
97-98 FORD 3/4 & 1 TON TRUCKS
(WITH & WITHOUT OVERLOAD SPRINGS)
**OLD BODY STYLE** (LONG & SHORT BED)
PAGE 1
**DO NOT EXCEED RECOMMENDED VEHICLE TOWING WEIGHT!**
DRIVER SIDEPLATE
TUBE SPACER INSTALLS
BETWEEN SIDEPLATE
AND FRAME
PASSENGER SIDEPLATE
REAR CROSS ARM
FRONT CROSS ARM
1" BED FLOOR FLANGE IN
PASSENGER SIDE WHEEL WELL
1"
1.5" 1 1/4"
BED FRAME RAIL
FIGURE 1
APPROX. CUT LINE
12/28/2012
SHOWN WITH C-600
INSTALLED
(NOT INCLUDED IN SUBKIT)
WARNING!! ON TWO WHEEL DRIVE TRUCKS A CLEARANCE CHECK MUST BE PERFORMED WHEN TRUCK IS LOADED
AND UNLOADED TO VERIFY THE INVERTED BALL WILL NOT INTERFERE WITH THE TOP OF THE DIFFERENTIAL

**DO NOT EXCEED RECOMMENDED VEHICLE TOWING WEIGHT!**
PAGE 2
80-96 FORD 1/2, 3/4, & 1 TON TRUCKS
97-98 FORD 3/4 & 1 TON TRUCKS
(WITH & WITHOUT OVERLOAD SPRINGS)
**OLD BODY STYLE** (LONG & SHORT BED)
60636
WARNING!! BRAKE, FUEL, AND ELECTRICAL LINES MAY NEED TO BE LOOSENED OR REPOSITIONED
TO PROVIDE CLEARANCE FOR NEW HARDWARE.
ALL MODELS REQUIRE MODIFICATION OR REMOVAL OF HEAT SHIELDS.
ON SHORT BED MODELS, CHECK FOR ADEQUATE TURNING CLEARANCE
BETWEEN THE FRONT OF ALL TRAILERS AND THE TRUCK CAB.
INSTALLATION STEPS CONTINUED
Curt Manufacturing Inc., warrants this product to be free of defects in material or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective,
Curt Manufacturing Inc., may repair or replace the product, at their option,when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of
this product voids the warrant. Curt Manufacturing Inc.'s liability is limited to repair or replacement of products found to be defective, and specificaly excludes liability for incidental or
consequential loss or damage.
4) Install the rear cross arm(has the deepest notches at the ends) by sliding it between the bed and the frame on the pass-
enger side in an inverted V position. In order to do this, the bed floor flange must be cut about 2" to the rear of the front most
bed frame rail (As shown in Figure 1) (NOTE: the notches must face the front of the truck) After it rests on the frames,
slide it towards the back of the truck. Rotate the arm so the notches are perpindicular to the truck bed. This process is made
easier by loosening the bed bolts in the frame rails behind the axle and using a crescent wrench or channels locks on the
slotted side of the cross arm to rotate it down on its long axis, placing the side without slots flush against the truck bed floor
and the cut-outs span the truck frame.
5) Install the front cross arm by sliding it between the bed and the frame on the passenger side in an inverted V position.
(NOTE: the notches must face the rear of the truck.) After it rests on the frame, slide it towards the front of the truck.
Rotate the arm so the notches are perpindicular to the truck bed and the cut-outs span the truck frame.
6) Before raising the center section in position between the cross arms with the ball cylinder towards the back of truck.
drop the back exhaust hanger. The round hitch receiver that protrudes from the top of the center section must fit through the
hole in the truck bed. Using (8) 1/2" carriage bolts, attach the center section to the holes in both cross arms. Finger tight
only with (8) 1/2" flange nuts. When re-attaching exhaust hanger, bend upward to adjust if tailpipes touch the center section.
7) Square the center section and cross arms across the frame. Place a 1 1/2" bolt with a washer through the back flange of
the sideplate into the rear cross arm and Finger tight only with a 1/2" flange nut. (As shown in Figure 2) Place a 1 1/2"
bolt with a flat washer through the front flange of the sideplate into the front cross arm. (As shown in Figure 2) Finger
tight only with a 1/2" flange nut. (REPEAT FOR OTHER SIDE) (NOTE: locate and release the brake line and fuel
line retaining clip from the frame rail on the driver side before attaching driver sideplate.) If bed bolts were loosend
in step 4, re-tighten them now.
8) Trucks without overload springs: Align the large 1" hole and the rear hole on each sideplate to the existing holes in the
truck frame. Place a 1" bolt with a 1" washer through the inside of the frame. Place the tube spacer between the frame and
sideplate and attach a 1" washer, 1" lock washer, and 1" nut on the outside of the sideplates and Finger tight only. (As
shown in Figure 2) On the rear of the sideplate, place a 1/2" x 1 1/2" bolt through the inside of the truck frame through the
sideplate and attach with a 1/2" flange nut. (As shown in Figure 2) Finger tight only.
Trucks with overload springs: The sideplates can be modified to fit trucks with overload springs. To do this, cut 10" off
the back of the sideplates(the narrow end of the sideplates). Install the 1" bolts as described in the above paragraph. Now
drill a 1/2" hole through the frame rails at the slot nearest the front of the sideplate. Attach with a 1/2" x 1 1/2" bolt and
washer from the inside of the frame and Finger tight only with a 1/2" flange nut.
9) With the sideplates installed on both sides, torque all 1" fasteners to 300 ft-lbs. and all 1/2" fasteners to 110 ft-lbs in the
following order:
First: Torque the center section to the front and rear cross arms.
Second: Torque the sideplate flanges to the front and rear cross arms.
Third: Torque the sideplates to the truck frame on both sides.
10) When installing the C-600 handle, it may be necessary to notch the bed floor flange on the driver side of the truck similarly to
the notch placed on the passenger side in step 4. The placement of the notch will be determined by the handle placement.
(REFER TO GOOSENECK HITCH INSTRUCTIONS FOR INSTALLATION AND OPERATING PROCEDURES)
Maintenance (Required every 30 days or prior to use)
1. Keep hitch ball lubricated regularly. Use silicone spray or equivalent to prevent wear and rust.
2. Keep hitch assembly free of dirt and other foreign debris.
3. Check for proper torque on all nuts and bolts before each use. Also check for excessive wear.
4. Check for ball wear before each use. (Note: Do not tow trailer with worn or damaged parts.)

Curt Manufacturing Inc., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective,
Curt Manufacturing Inc., may repair or replace the product, at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of
this product voids the warranty. Curt Manufacturing Inc.'s liability is limited to repair or replacement of products found to be defective, and specifically excludes liability for incidental or
consequential loss or damage.
96 in 72 in
36 in
96 in 72 in
TRAILER
LONG & SHORT TRUCK BEDS
HITCH BALL HITCH BALL
47 in 35 in
COUPLER
(X) (X)
(Y)
(CAB TO BALL CENTER) - 1/2 (TRAILER WIDTH) = (MINIMUM CLEARANCE)
(X) - (Y) = (Z)
IF THERE IS AN OVERHANG FROM THE COUPLER THEN THE EQUATION IS:
[(X) - (W)] - (Y) = (Z)
***IF (Z) IS POSITIVE, TRAILER WILL NOT INTERFERE WITH CAB OF TRUCK.***
IF (Z) IS NEGATIVE, TRAILER WILL INTERFERE WITH CAB OF TRUCK!!!
4 in
COUPLER OVERHANG
(W)
STANDARD TRAILER
X - Y = Z
35 - 36 = -1
(TRAILER WILL INTERFERE WITH CAB)
TRAILER WITH OVERHANG
[(X) - (W)] - Y = Z
[35 - 4] - 36 = -5
(TRAILER WILL INTERFERE WITH CAB)
***GENERALLY, TAPERED NOSE TRAILERS ADHERE TO THE FOLLOWING DESIGNS:***
8 FT. WIDE TRAILERS TAPER TO 6 FT. AT THE COUPLER.
7 FT. WIDE TRAILERS TAPER TO 5 FT. AT THE COUPLER.
CAB OF TRUCK CAB OF TRUCK
***DO NOT EXCEED VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY.***
**REMOVAL OF REAR WINDOW ACCESSORIES MAY BE REQUIRED.**
***DO NOT USE THESE***
DIMENSIONS FOR DRILLING
***DO NOT USE THESE***
DIMENSIONS FOR DRILLING
EXAMPLE: YOUR CALCULATION:
(CAB TO BALL CENTER) ________
(COUPLER OVERHANG) ________
1/2 (TRAILER WIDTH) ________
(MINIMUM CLEARANCE) ________
PAGE 3
CAB TO TRAILER CLEARANCE
