Cybernet CyberMed H22 User manual

CyberMed H22/N22
All-in-one Medical Panel PC
User’s Manual
Rev: V1.1
Copyright©,2012. All rights reserved
All other brand names are registered trademarks of their respective owners.

WMP-226/227 User’s Manual
ii
The information contained in this document is subject to change without notice

CyberMed H22/N22 User’s manual
iii
Version Change History
Date
Version
Description
Remark
2012/7/6
1.0
First release
Cosa Huang
2012/8/20
1.1
Update battery spec
James.Chiu

CyberMed H22/N22 User’s manual
iv
Acknowledgments
Intel® 2nd generation Core i and Celeron are registered
trademarks of Intel® Corporation.
IBM, PC/AT, PS/2 are trademarks of International Business
Machines Corporation.
Microsoft® Windows is a registered trademark of Microsoft®
Corporation.
RTL is a trademark of Realtek Semi-Conductor Co., Ltd.
C&T is a trademark of Chips and Technologies, Inc.
UMC is a trademark of United Microelectronics Corporation.
ITE is a trademark of Integrated Technology Express, Inc.
VIA is a trademark of VIA Technology, Inc.
Award is a registered trademark of Award Software
International, Inc.
PS/2 is a trademark of International Business Machines
Corporation.
Intel is a trademark or registered trademark of Intel
Corporation.
Microsoft Windows is a registered trademark of Microsoft
Corporation.
Winbond is a registered trademark of Winbond Electronics
Corporation.
All other product names or trademarks are properties of
their respective owners.

CyberMed H22/N22 User’s manual
v
FCC Class B
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 18 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a residential
environment.
This equipment generates, usesand can radiate radio frequency energy. If
not installed and used in accordance with this user manual, it may cause
harmful interference to radio communications.
Note that even when this equipment is installed and used in accordance
with this user manual, there is still no guarantee that interference will not
occur. If this equipment is believed to be causing harmful interference to
radio or television reception, this can be determined by turning the
equipment on and off. If interference is occurring, the user is encouraged
to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and the receiver
Connect the equipment to a power outlet on a circuit different from
that to which the receiver is connected
Consult the dealer or an experienced radio/TV technician for help
Warning:
Any changes or modifications made to the equipment which are
not expressly approved by the relevant standards authority could
void your authority to operate the equipment.
To avoid risk of electric shock, this equipment must only be
connected to a supply mains with protective earth.
Do not modify this equipment without authorization of the
manufacturer.

CyberMed H22/N22 User’s manual
vi
Safety Instructions
Intended use
The CyberMed H22/N22 is intended to serve as a medical monitor
which is designed for general purpose for hospital environment
and for diagnosis. It could be used for Surgical, Radiology, PACS
(Picture Archiving Communication Systems), LIS (Lab
Information Systems) and Electronic Medical Record purpose. It
shall not be used for life-supporting system.
WARNING: Critical diagnostic decision must not be based solely
on images displayed by this device
Greeting & Setup
Thank you for purchasing the CyberMed H22/N22 unit. We wish
that this unit will be durable and reliable in providing your medical
application needs. Please follow the instructions below to ensure
the unit continues to have high performance.
Unpacking
After opening the carton, there will be a medical panel PC unit
with an accessory box. Examine the contents to see if there are
damages to the unit and if all accessories are present.
Setting up
Please read this manual carefully and remember to keep this
manual for future reference.
Safety Instructions & Cleaning
The unit has undergone various tests in order to comply with
safety standards. Inappropriate use of the open frame unit may
be dangerous. Please remember to follow the instructions below
to insure your safety during the installation and operating
process.
Transporting & Placement of unit
1. When moving the unit on a cart; be very cautious. Quick
stops, excessive forces and uneven surfaces may cause
the cart to overturn thus risking the unit to fall to the
ground.

CyberMed H22/N22 User’s manual
vii
2. If the medical panel PC unit does fall to the ground,
immediately turn the power off and disconnect cords. Then
contact a service technician for repairs. Continual use of
the unit may result cause a fire or electric shock. Also, do
not repair the unit on your own.
3. Having two or more people transporting the display unit is
recommended. In addition, when installing the unit by
suspending it also requires two or more people.
4. Before suspending the unit, make sure the material used
for suspension is sturdy and stable. If not properly
suspended, the display unit may fall and cause serious
injury to people standing nearby as well as to the unit
itself.
5. If you wish to mount the display unit, remember to use
only the mounting hardware recommended by the
manufacturer.
Electrical and Power Source Related
1. This medical panel PC unit must operate on a power source
as shown on the specification label. If you are not sure
what type of power supply used in the area, consult your
dealer or local power supplier.
2. The power cords must not be damaged. Applied pressure,
added heat, and tugging may damage the power cord.
3. The power cord must be routed properly when setup takes
place. We advise that this aspect measure is to prevent
people from stepping on the cords or while the unit is
suspended to prevent flying objects from getting tangled
with the unit.
4. Do not overload the AC outlets or extension cords.
Electrical shocks or fires may occur from overloading.
5. Do not touch the power source during a thunderstorm.
6. If your hands are wet, do not touch the plug.
7. Use your thumb and index finger, grip firmly on the power
cord to disconnect from the electrical socket. By pulling
the power cord, may result in damaging it.

CyberMed H22/N22 User’s manual
viii
8. If the unit is not going to be in use for an extended period
of time, remember to disconnect the unit.
9. The medical panel PC unit uses voltage between
100-240VAC. Connect the unit to a power source with the
same numerical value as shown. Please use only the power
cord provided by the dealer to ensure safety and EMC
compliance.
Various Factors of Environment
1. Do not insert objects into the openings.
2. Do not have liquids seep into the internal areas of the
medical panel PC unit.
3. Having liquids seep in or inserting objects into the unit
may result in electric shocks from taking and/or short
circuiting the internal parts.
4. Do not place the medical panel PC unit in the presence of
high moisture areas.
5. Do not install the medical panel PC unit in a wet
environment.
6. Do not place near unit near heat generating sources.
7. Do not place the unit in a location where it will come in
contact with fumes or steam.
8. Remember to keep the medical panel PC unit away from
the presence of dust.
9. If water has flow in or seep in, immediately disconnect the
open frame unit. Then contact a service technician for
repairs.
Ventilation Spacing
1. Do not cover or block the openings on the top and back
sides of the display unit. Inadequate ventilation may cause
overheating thus reducing the lifespan of the unit.
2. Unless proper ventilation is present, do not place unit in an
enclosed area; such as a built-in shelf. Keep a minimum
distance of 10 cm between the display unit and wall.

CyberMed H22/N22 User’s manual
ix
Cleaning the unit
1. Remember to turn off the power source and to unplug the
cord from the outlet before cleaning the unit.
2. Carefully dismount the unit or bring the unit down from
suspension to clean.
3. Please use a dry soft cloth to clean the unit.
4. Take a dry cloth and wipe the unit dry. Remember to avoid
having liquids seep into the internal components and areas
of the medical panel PC unit.
Servicing, Repairing, Maintenance & Safety Checks
1. If the unit is not functioning properly, observe the
performance level of the display closely to determine what
type of servicing is needed.
2. Do not attempt to repair the medical panel PC unit on your
own. Disassembling the cover exposes users’ to high
voltages and other dangerous conditions. Notify and
request a qualified service technician for servicing the unit.
3. To avoid risk of electric shock, this equipment must only
be connected to a supply mains with protective earth.
4. If any of the following situations occur turn the power
source off and unplug the unit. Then contact a qualified
service technician.
(a) A liquid was spilled on the unit or objects have fallen
into the unit.
(b) The unit is soaked with liquids.
(c) The unit is dropped or damaged.
(d) If smoke or strange odor is flowing out of the operating
unit.
(e) If the power cord or plug is damaged.
(f) When the functions of the unit are dysfunctional.
5. When replacement parts are needed for the medical panel
PC unit, make sure service technicians use replacement
parts specified by the manufacturer, or those with the

CyberMed H22/N22 User’s manual
x
same characteristics and performance as the original
parts. If unauthorized parts are used it may result in
starting a fire, electrical shock and/or other dangers.

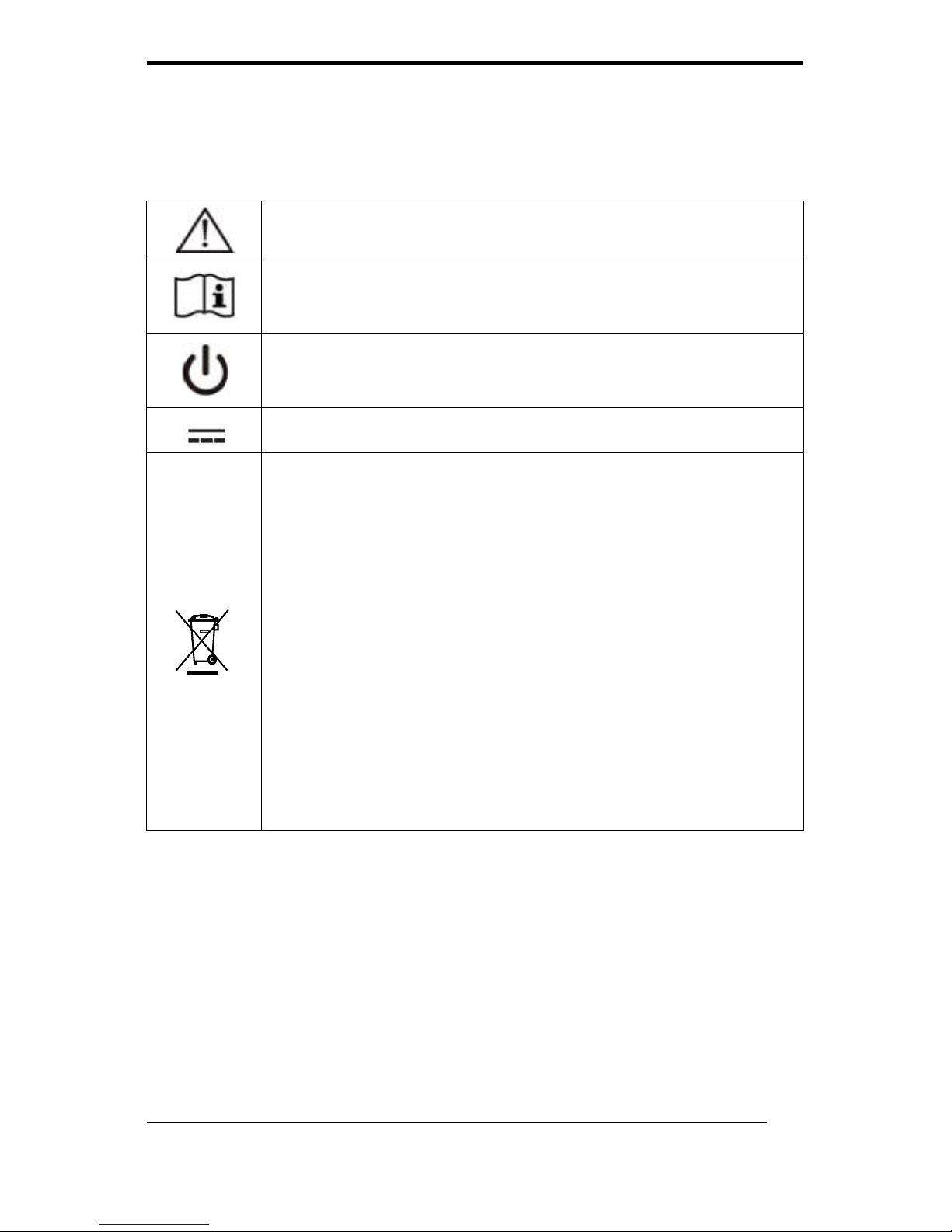

ISO 7000-0434 : Caution, consult ACCOMPANYING
DOCUMENTS.
ISO 7000-1641 : Follow operating instructions or
Consult instructions for use.
IEC 60417 -5009 : STAND-BY.
IEC 60417-5031 : Direct current.
EU-wide legislation, as implemented in each
Member State, requires that waste electrical and
electronic products carrying the mark (left) must be
disposed of separately from normal household
waste. This includes monitors and electrical
accessories, such as signal cables or power cords.
When you need to dispose of your display products,
please follow the guidance of your local authority, or
ask the shop where you purchased the product, or if
applicable, follow any agreements made between
yourself.
The mark on electrical and electronic products only
applies to the current European Union Member
States.

CyberMed H22/N22 User’s manual
xi
When networking with electrical devices, the operator is
responsible for ensuring that the resulting system meets the
requirements set forth by the following standards:
– EN 60601-1 (IEC 60601-1)
Medical electrical equipment
Part 1: General requirements for safety
– EN 60601-1-1 (IEC 60601-1-1)
Medical electrical equipment
Part 1-1: General requirements for safety
Collateral standard: Safety requirements for
Medical electrical systems
– EN 60601-1-2 (IEC 60601-1-2)
Medical electrical equipment
Part 1-2: General requirements for safety
Collateral standard: Electromagnetic compatibility;
Requirements and tests
Accessory equipment connected
to the analog and digital interfaces
must be in compliance with the
respective nationally harmonized
IEC standards (i.e. IEC 60950 for
data processing equipment, IEC
60065 for video equipment, IEC
61010-1 for laboratory
equipment, and IEC 60601-1 for
medical equipment.) Furthermore all configurations shall comply
with the system standard IEC 60601-1-1. Everybody who
connects additional equipment to the signal input part or signal
output part configures a medical system, and is therefore,
responsible that the system complies with the requirements of
the system standard IEC 60601-1-1. The unit is for exclusive
interconnection with IEC 60601-1 certified equipment in the
patient environment and IEC 60XXX certified equipment outside
of the patient environment. If in doubt, consult the technical
services department or your local representative.

CyberMed H22/N22 User’s manual
xii
Caution:
DO NOT LEAVE THIS EQUIPMENT IN AN UNCONTROLLED
ENVIRONMENT WHERE THE STORAGE TEMPERATURE IS BELOW
-20° C (-4° F) OR ABOVE 60° C (140° F). THIS MAY DAMAGE THE
EQUIPMENT.
This equipment shall not be used in life support systems.
The user is not to touch SIP/SOPs and the patient at the same
time.
Caution – Use suitable mounting apparatus to avoid risk of injury.
The sound pressure level at the operator’s position according to
IEC 704-1:1982 is no more than 70dB (A).
A) Grounding reliability can only be achieved when the equipment
is connected to an equivalent receptacle marked “Hospital
Only” or “Hospital Grade”.
B) Use a power cord that matches the voltage of the power outlet,
which has been approved and complies with the safety
standard of your particular country.
C) Caution: This adapter Sinpro MPU101-105 is a forming part of
the medical device
Contact information:
Address: 5 Holland, Bldg. 201
Irvine, CA92618
U.S.A.
TEL: [phone]
E-Mail: [e-mail]

CyberMed H22/N22 User’s manual
xiii
Table of Contents
Acknowledgments .................................... iv
FCC Class B.............................................. v
Safety Instructions ................................... vi
Introduction............................................ 1
Product Description.................................... 1
Package list..............................................2
Features ..................................................3
Specifications ........................................... 4
Guidance and manufacturer’s declaration –
electromagnetic emissions .......................... 6
Guidance and manufacturer’s declaration –
electromagnetic immunity........................... 8
Guidance and manufacturer’s declaration –
electromagnetic immunity........................... 9
Immunity.................................................9
Cleaning/Disinfecting ............................... 11
Getting Started ..................................... 12
System Set Up........................................ 12
Dimension.............................................. 13
System View .......................................... 15
Disconnect Device ................................... 17
BIOS Setup ........................................... 18
Appendix............................................... 28
A. Jumper settings and Connectors ............ 28
B. L type Stand (optional kit) .................... 51
C. Battery Pack Specifications.................... 52
D. Change Win Xp resolution to 1920*1080. 53
E. How to disable battery when system hang up
-CyberMed H22/N22 ................................ 54
F. Scrap Computer Recycling..................... 55

CyberMed H22/N22 User’s manual
1
Introduction
Product Description
The CyberMed H22/N22 Medical Panel PC are based on Intel 2nd
generation Core i processor which can deliver faster graphic with
higher CPU performance. It accommodates one 2.5” SATA II hard
disk drive and up to 8GB DDR3 SODIMM.
The high brightness LCD, Low noise (CyberMed H22) / Fanless
(CyberMed N22) solution, integrated multimedia functions and
extensive expansion options make them the perfect platform
upon which to build comprehensive lifestyle computing
applications.
The CyberMed H22/N22 includes all the features of a powerful
computer into a slim and attractive chassis. The CyberMed
H22/N22 has a 21.5” high brightness TFT display with 1920 x
1080 resolutions.
The CyberMed H22/N22 is compact, Giga LAN and selectable
WLAN network compatible PC with full safety and medical
approval and features to control a dedicated system with a wide
variety of applications. Combining the CyberMed H22/N22 into
your system can achieve both cost-saving and efficient
improvements.
Common applications include Surgical, Radiology, PACS (Picture
Archiving Communication Systems), LIS (Lab Information
Systems) and Electronic Medical Record. The CyberMed H22/N22
are definitely your perfect choices.

CyberMed H22/N22 User’s manual
2
Package list
Before you begin installing your Medical Station, please make
sure that the following items have been shipped:
•The CyberMed H22/N22 Medical Panel PC unit
•One CD containing user manual, chipset drivers
•Power Adapter x 1 (Mf:Sinpro, type/model: MPU101-105)
•Power cord – Hospital grade used(US type), or other type in
UK, EU…etc.
•Touch pen x 1 (By configuration)
•Screw x 8 (VESA 75/100 use)

CyberMed H22/N22 User’s manual
3
Features

Seamless on the front side
Easy wipe surfaces with no internal corners
21.5" (1920X1080) Diagnostic Panel
High performance Intel 2nd generation Core i series mobile
CPU
Supports PCI-E x 16 & mini PCI-e expansion
HDD Anti-vibration mechanism
Low noise Smart fan solution(CyberMed H22)
Fanless Solution (CyberMed N22)
Anti-bacteria (MRSA) plastic housing
Built-in Battery backup function (option)
optional Video Graphic card (CyberMed H22 only)

CyberMed H22/N22 User’s manual
4
Specifications
[
Hardware Specifications
Display 21,5” 250 nits Full HD TFT LCD
CPU Support
CyberMed H22
Intel® socket rPGA988B Core™ i5-2410M (3M
Cache, 2.30 GHz) 35W
Intel® socket rPGA988 Core™ i5-2510E (3M
Cache, 2.50 GHz) 35W
Intel® socket rPGA988 Core™ i3-2330E (3M
Cache, 2.20 GHz) 35W
Intel® socket PGA988B Celeron™ B810 (2M
Cache, 1.60 GHz) 35W
CyberMed N22
Intel® Core™ i5-2467M Processor (3M Cache,
1.60 GHz)
Disk Drive Space 2.5” Hard Disk Drive (SATA II)
Expansion
Two Mini PCIe slot;
One PCI expansion (load 10.78W) or one PCI-E
expansion slot
Button
Power Button// Audio adjustment (+)(-) //
brightness (+)(-
) // LCD on/off // Clean me(auto
release after 1 minute)
I/O
Standard version
1 RS-232 port + 1 RS-232/422/485 port
4 USB 2.0 ports
1 DC-in w/ lock function
2 Gigabit LAN RJ-45 Connectors
Sound:
1 x Line-in
1 x line-out
2 x 1.5W Speakers on back side
LCD Specifications
Model Name
AUO M215HW03 V1
Display Type
21.5” color TFT LCD
Max. Resolution
1920 x 1080 (Full HD)
Contrast Ratio
1000 : 1 (Typ)
Pixel Pitch (um)
248.25 (per one triad) × 248.25
Luminance (cd/m2)
250 (TYP)

CyberMed H22/N22 User’s manual
5
Viewing Angle
170°(H)
160°(V)
Operating
Temperature
0°C~ 40°C (32°F~104°F)
Brightness Control
Yes
Power Adapter Specifications
Power
Close-frame
MFR Sinpro
Type
MPU101-105
Input Voltage
AC 100 ~ 240 V, 1.25 – 0.5A @ 47 ~ 63 Hz
Output Voltage
DC 12V @ 8.33 A
MTBF
100,000 hrs operation at 25°C
Mechanical Specifications
Architecture Close-frame
Front Bezel
PET bezel with resistive touch screen
Color
Medical-white
Mounting / Holder VESA 75/100mm
Construction
3mm ABS + PC TYPE Plastic housing
Dimension (WxHxD) 540 x 375 x 78 mm
Net Weight
CyberMed H22: 6.5kg (w/o power adapter)
CyberMed N22: 7.0kg (w/o power adapter)
Packing Filler PE
Environmental Specifications
Temperature
Operating: 0°C to 40°C (32°F ~104°F)
Storage, Transportation: -20°C to 60°C (-4°F
~140°F)
Humidity
Operating: 10% to 90%, non-condensing
Storage, Transportation: 10% to 90%@ 40°C,
non-condensing
Vibration
Operating: 15g/0.53 oz, 11 ms, half sine wave
Non-operating: 50g/1.76 oz, 11 ms, half sine
wave
Shock
Operating: 5 ~ 17 Hz ,
Amplitude：0.117 ~ 500Hz ,
Acceleration：1.0G
Non-operating:10~55Hz/0.15g, 55~500Hz/2.0g

CyberMed H22/N22 User’s manual
6
Altitudes
Operational: up to 3000 m (9842 feet)
Shipping: up to 12192 m (40000 feet)
Pressure
700 – 1060 hPa (Operation)
186 – 1060 hPa (Storage)
186 – 1060 hPa (Transportation)
Input Power Rating
For Adaptor:
AC100~240 V, 1.25 – 0.5A, @47 ~ 63 Hz.
For Unit:
DC 12V, 8.33A
Power Consumption
CyberMed H22: 98W Max (Typical: 79.50W)
CyberMed N22: 98W Max (Typical: 46.50W)
Touch Screen
Type Full flat 5-wire, Analog Resistive
Interface
USB interface, 5V
Resolution 4096 x 4096
Light Transmission
>78% at 550 nm wavelength
Life Time
35M times, 250g at same place
Guidance and manufacturer’s declaration – electromagnetic
emissions
The model CyberMed H22/N22 is intended for use in the electromagnetic
environment specified below. The customer or the user of the model
CyberMed H22/N22 should assure that it is used in such an environment.
Emissions test Compliance Electromagnetic environment –
guidance
RF emissions
CISPR 11 The model CyberMed H22/N22 uses
RF energy only for its internal
function. Therefore, its RF emissions
are very low and are not likely to
cause any interference in nearby
electronic equipment.
RF emissions
CISPR 11 The model CyberMed H22/N22 is
suitable for use in all establishments,
including domestic establishments
and those directly connected to the
public low-voltage power supply
Harmonic
emissions
IEC 61000-3-2
