NB22 Users Manual
CyberMed-NB22,iOne-NB22 Series
Users Manual
FCC-B Radio Frequency Interference Statement
This equipment has been tested and found to comply
with the limits for a class B digital device, pursuant to part 15 of the FCC rules. These
limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the measures listed below.
Reorient or relocate the receiving antenna.
Increase the distance between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/television technician for help.
Notice 1 The changes or modifications not expressly approved by the party
Responsible for compliance could void the user's authority to operate the
equipment.
Notice 2 Shielded interface cables and A.C. power cord, if any, must be used in
order to comply with the emission limits.
Trademarks
All trademarks are the properties of their respective owners.
Intel® is a registered trademarks of Intel Corporation.
Windows® 10/8.1/ 7/Vista/XP/NT/2000/98/95 are registered trademarks of Microsoft
Corporation. Award® is a registered trademark of Phoenix Technologies Ltd.
AMI® is a registered trademark of American Megatrends Inc.

2
NB22 Users Manual
Safety Instructions
1. Always read the safety instructions carefully.
2. Keep this equipment away from humidity.
3. Lay this equipment on a reliable flat surface before setting it up.
4. The openings on the enclosure are for air convection hence protect the
equipment from overheating. DO NOT COVER THE OPENINGS.
5. Confirm the voltage of the power source and adjust accordingly to 110/220V
before connecting the equipment to the power inlet.
6. Place the power cord in such a way that it cannot be stepped on. Do not
place anything over the power cord.
7. Always unplug the Power Cord before inserting any add-on card or module.
8. All cautions and warnings on the equipment should be noted.
9. Never pour any liquid into the opening. This will cause damage and/or electrical
shock.
10. Do not disable the protective grounding pin from the plug. The equipment must
be connected to a grounded main socket/outlet.
11. The Optical Storage devices are classified as Class 1 Laser products. Use of
controls or adjustments or performance of procedures other than those specified
is prohibited.
12. Do not touch the Laser lens inside the optical storage drive.
13. If any of the following situations arise, have the equipment checked by
authorized service personnel:
The power cord or plug is damaged.
Liquid has penetrated into the equipment.
The equipment has been exposed to moisture.
The equipment has not worked well or you cannot get it working according to
the User's Guide.
The equipment has been dropped and damaged.
The equipment has obvious signs of breakage.
14. Do not attempt to remove or upgrade any component by yourself, any installation
or modification should be conducted by service personnel.
“Warning: If this equipment is modified, appropriate inspection and testing must be
conducted to ensure continued safe use of equipment”.
DO NOT LEAVE THIS EQUIPMENT IN AN UNCONDITIONED ENVIRONMENT WITH
OPERATING TEMPERATURE ABOVE 30° C (86°F). ALSO DO NOT CHARGE THE
BATTERIS INSIDE THE SYSTEM WHEN OPERATING AS FULL LOAD CPU AT
MORE THAN 80% UTILIZATION, IT MAY DAMAGE THE EQUIPMENT AND
BATTERIES.
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the
same or equivalent type recommended by the manufacturer.

3
NB22 Users Manual
WEEE Statement
(Waste Electrical and Electronic Equipment)
The WEEE directive places an obligation on EU-based manufacturers, distributors,
retailers and importers to take-back electronics products at the end of their useful life.
A sister Directive, ROHS (Restriction of Hazardous Substances) compliments the
WEEE Directive by banning the presence of specific hazardous substances in the
products at the design phase. The WEEE Directive covers products imported into the
EU as of August 13, 2005. EU-based manufacturers, distributors, retailers and
importers are obliged to finance the costs of recovery from municipal collection points,
reuse, and recycling of specified percentages per the WEEE requirements.
Instructions for disposal of WEEE by Users in the European Union
The symbol shown below is on the product or on its packaging, which indicates that
this product must not be disposed of with other waste. Instead, it is the user’s
responsibility to dispose of their waste equipment by handing it over to a designated
collection point for the recycling of waste electrical and electronic equipment. The
separate collection and recycling of your waste equipment at the time of disposal will
help to conserve natural resources and ensure that it is recycled in a manner that
protects human health and the environment. For more information about where you
can drop off your waste equipment for recycling, please contact your local city office,
your household waste disposal service or where you purchased the product.

4
NB22 Users Manual
TABLE OF CONTENTS
FCC-B Radio Frequency Interference Statement....................................................... 1
Trademarks .................................................................................................................. 1
Safety Instructions....................................................................................................... 2
WEEE Statement.......................................................................................................... 4
Introduction.................................................................................................................. 5
CyberMed NB/S & iOne NB/S seriesSpecifications .................................................... 5
Power Information ......................................................................................................... 7
CyberMed NB/S & iOne NB/S seriesOver View ......................................................... 12
Battery information.................................................................................................... 17
Cleaning the surface of the All in One PC................................................................ 21
Power saving for Windows ....................................................................................... 21
Installing the Hard Disk Drive ................................................................................... 23
Installing and Removing the Batteries ..................................................................... 24
Appendix. A Battery charging and discharging behavior of CyberMed NB22 / iOne
NB22 ........................................................................................................................... 25
Appendix. B How to storage battery and protect battery life.................................. 27
Cybernet Recycling
SOP………………………………………………………………………..28

5
NB22 Users Manual
Getting to know your All in One PC
This manual refers to both the Medical model known as CyberMed NB22/
NB24/ S22/ S24/ C22/ H24 and the Enterprise model known as iOne NB22
/ NB24/ S22/ S24.
Model difference:
1) CyberMed: means white color unit for medical markets with Antigerm
and Medical grade certifications.
2) iOne means black color unit for commercial markets and
Government.
3) “NB” means system with battery application and fanless.
4) “S” means system without battery application and fanless.
5) “C” means standard models with fan.
6) “H” means 24 inch models with fan.
Introduction
Congratulations for purchasing the CyberMed NB/S series & iOne NB/S series. The
CyberMed NB/S series & iOne NB/S series are the most advanced medical and
commercial grade all in one PCs ever made, With the fantastic appearance and small
form factor, it can easily be set anywhere. The feature packed platform also gives you
an exciting PC experience.
CyberMed NB / S & iOne NB / S series Specifications
Display
21.5” (16:9 format) with LED
backlight
Maximum resolution 1920 x
1080
Back light: 250nits
MVA wide view angle
Power Input
1 x DC-19V 6.31A
110~240V AC
CPU
Support Intel latest Skylake
platform
Intel® Core™ i7-6600U
Intel® Core™ i5-6300U
Intel® Core™ i3-6100U
Touch Screen
10F-Multi-touch capacitive
touch.
Support Palm rejection
Support water proof
Memory
2 x DDR4 So-DIMM
sockets, one DIMM pre
channel up to 16GB,
Maximum 32GB
Integrated
communications
Intel AC7265 support
IEEE802.11ac + BT4.0
(Optional)

6
NB22 Users Manual
Supports memory data
transfer rates of
1866MHz/2133MHz for
DDR4, un-buffered non-
ECC DDR4 DIMMs
Storage
Integrated Serial ATA
controller facilitates high-
speed transfers at up to
6Gbps
Maximum 2 x 2.5” HDD or
SSD
Support M.2 Solid State
Drive
Camera
3.0M Web camera
(Optional)
Video &
Graphics
Integrated Intel® HD
Graphics 520
Battery
3 x hot swappable battery
with 270WHr capacity
Battery life over 12 hours
base on normal usage
Charging time: 5 hours
(Validated charging from
6% to 99%)
Durability
IP65 front panel
IPX1 back cover
Operating
system
Windows 10
Windows 8.1
Windows 7
Ubuntu 14.04
Fedora 20
CentOS6.6
Audio
Realtek High Definition
Audio
Built-in 2 x 2 watt stereo
speakers
Audio jack for Line-out /
Microphone
Operating
Environment
Ambient Temperature: 0°C
~ 30°C (operating).
Relative
Humidity
10% ~ 90% (non-
condensing)
I/O Port
4 x USB3.0 connector
1 x Line-out
1 x Microphone
1 x HDMI-in
1 x HDMI-out
2 x RJ-45 giga LAN
1 x 4Pin DIM power Jack
1 x Docking connector
1 x COM RS-232/422/485
with 5/12V
3 x Optional COM RS-232
Available Color
White, Anti-Microbial plastic
Dimensions
21.75” x 14.5”
Weight
13.95lbs without battery

7
NB22 Users Manual
OSD
buttons
Power button
Privacy button
Brightness / Contrast
System
BIOS
AMI Flash BIOS supports
ACPI, API, DMI, Plug & Play,
and security password.
Supports booting from HDD,
PXE, LAN, CD-ROM, and
USB device.
Battery
charging
Station
Maximum 3 x batteries
charging
Charging time: 3hrs
With security lock
BIOS
Security
BIOS System POST and
BIOS setup password
protection. TPM version 1.2 /
2.0 Support.
Certifications
FCC Class B/ CE
EN55022 / EN55024/
EN60601-1/ EN3014 89
UL60601 / UL60950
IEC60950
Power Information:
FSP120-REBN2, 120W, Made by FSP TECHNOLOGY INC.
EM11011M, 120W, Made by EDAC Power Electronics Co., Ltd. for EN60601-
1:2006,IEC60601-1:2005
Intended use
The CyberMed NB/S series are designed for general pc application for health care
environment and for diagnosis. It maybe be used for Radiology, PACS (Picture
Archiving Communication Systems),LIS (Lab Information Systems) and Electronic
Medical Record purpose. It shall not be used for life-supporting system.
WARNING: Critical diagnostic decision must not be based solely on images displayed
by this device.
Unpacking
After opening the carton, there is the NB/S-LCD PC with an accessory box. Check
carefully to see if there are any damages or missing parts.
Read the Manual
Please read this manual carefully and remember to keep this manual for future
reference.

8
NB22 Users Manual
Safety Instructions & Cleaning
This product has undergone various tests in order to comply with safety standards.
Inappropriate use or open the housing may be dangerous. Please remember to follow
the instructions below to ensure your safety during the installation and operating
process.
Transporting & Placement of unit
1. When moving the unit on a cart; be very cautious. Quick stops, excessive forces and
uneven surfaces may cause the cart to overturn thus risking the unit to fall to the
Ground.
2. If the LCD PC unit does fall to the ground, immediately turn the power off and
disconnect cords. Then contact a service technician for repairs. Continual use of
The unit may result cause a fire or electric shock. Also, do not repair the unit on your
own.
3. Having two or more people transporting the LCD PC unit is recommended. In
addition, when installing the unit by suspending it also requires two or more people.
4. Before suspending the unit, make sure the material used for suspension is sturdy and
stable. If not properly suspended, the LCD PC unit may fall and cause serious injury to
people standing nearby as well as to the unit itself.
5. If the user wishes to mount the LCD PC unit, remember to use only the mounting
hardware recommended by the manufacturer.
Electrical and Power Source Related
1. This LCD PC unit can be operated on AC power source and Batteries. AC power can
be from 110V to 240V.
2. The power cords must not be damaged. Applied pressure, added heat, and tugging
may damage the power cord.
3. The power cord must be routed properly when setup takes place. We advise that this
aspect measure is to prevent people from stepping on the cords or while the unit is
suspended to prevent flying objects from getting tangled with the unit.
4. Do not overload the AC outlets or extension cords. Electrical shocks or fires may
occur from overloading.
5. Do not touch the power source during a thunderstorm.

9
NB22 Users Manual
6. If your hands are wet, do not touch the plug.
7. Use your thumb and index finger, grip firmly on the power cord to disconnect from the
electrical socket. By pulling the power cord, may result in damaging it.
8. If the unit is not going to be in use for an extended period of time, remember to
disconnect the unit.
9. The LCD PC unit uses 19V DC output from an adapter. Connect the unit to a power
source with the same numerical value as indicated. Please use only the power cord
provided by the dealer to ensure safety and EMC compliance.
WARNING:To avoid risk of electric shock, this equipment must only be connected to a
supply mains with protective earth.
Disconnect Device
1. To fully disengage the power to the unit, please disconnect the power cord from the
AC inlet and batteries.
Various Factors of Environment
1. Operating Temperature: 0°C to 30°C; Non-operating temperature: -20°C to 60°C.
2. Operating Humidity (Non-Condensing): 10% to 90%. Non-operating Humidity (Non-
condensing): 10% to 90%.
3. Do not insert objects into the openings.
4. Do not have liquids seep into the internal areas of the LCD PC unit.
5. Having liquids seep in or inserting objects into the unit may result in electric shocks
from taking and/or short circuiting the internal parts.
6. Do not place the LCD PC unit in the presence of high moisture areas.
7. Do not install the LCD PC unit in a wet environment.
8. Do not place unit near heat generating sources.
9. Do not place the unit in a location where it will come in contact with excessive fumes
or steam.
10. Remember to keep the LCD PC unit away from the presence of excessive dust.

10
NB22 Users Manual
11. If water has seeped in, immediately disconnect the Power- Then contact a service
technician for repairs.
Ventilation Spacing
1. This unit is sealed and there are no opening on front or back side, however, there are
battery doors and side USB port doors that are also sealed. The only gap is in the I/O
area where air can flow in-no risk of cleaning sprays getting inside the unit.
2. Unless proper ventilation is present, do not place unit in an enclosed area; such as a
built-in shelf. Keep a minimum distance of 10 cm between the LCD PC unit and wall.
Cleaning the unit
1. Remember to turn off the power source and to unplug the cord from the outlet before
cleaning the unit.
2. Carefully dismount the unit or bring the unit down from suspension to clean.
3. Please use a dry soft cloth to clean the unit.
4. Take a dry cloth and wipe the unit dry. Remember to avoid having liquids seep into
the internal components and areas of the LCD PC unit.
Servicing, Repairing, Maintenance & Safety Checks
1. If the unit is not functioning properly, observe the performance level of the LCD PC
closely to determine what type of servicing is needed.
2. Do not attempt to repair the LCD PC unit on your own. Disassembling the cover
exposes users’ to high voltages and other dangerous conditions. Notify and request a
qualified service technician for servicing the unit.
3. To avoid risk of electric shock, this equipment must only be connected to a supply
mains with protective earth.
4. If any of the following situations occur turn the power source off and unplug the unit.
Then contact a qualified service technician.
(a) A liquid was spilled on the unit or objects have fallen into the unit.
(b) The unit is soaked with liquids.
(c) The unit is dropped or damaged.
(d) If smoke or strange odor is flowing out of the operating unit.
(e) If the power cord or plug is damaged.
(f) When the functions of the unit are dysfunctional.

11
NB22 Users Manual
5. When replacement parts are needed for the LCD PC unit, make sure service
technicians use replacement parts specified by the manufacturer, or those with the
same characteristics and performance as the original parts. If unauthorized parts are
used it may result in starting a fire, electrical shock and/or other dangers.
ISO 7000-0434: Caution, consult ACCOMPANYING
DOCUMENTS.
ISO 7000-1641: Follow operating instructions or Consult
instructions for use.
IEC 60417 -5009: ready to use.
IEC 60417-5031: Direct current.
EU-wide legislation, as implemented in each Member State,
requires that waste electrical and electronic products carrying the
mark (left) must be disposed of separately from normal house hold
waste. This includes monitors and electrical accessories, such as
signal cables or power cords. When you need to dispose of your
medical panel PC products, please follow the guidance of your
local authority, or ask the shop where you purchased the product,
or if applicable, follow any agreements made between yourself.
The mark on electrical and electronic products only applies to the
current European Union Member States.

12
NB22 Users Manual
CyberMed & iOne NB/S series Overview
Front View
There are four buttons on the lower bezel of the screen. From right to left they are:
OSD key
Response time
Function
Ready to use
Delay 1.5 sec
On/off System Power

13
NB22 Users Manual
Menu
button/Privacy
button
immediately
First enter into Menu; Second to confirm. When
turn off the privacy button- it will Turn off the
Touch function as well.
When turn on the privacy button, it won’t turn on
the Touch function and also wake up the unit
from sleep mode as well.
Brightness / +
Immediately
Turn on the Brightness adjustment on display
Continuous send out pulse when user’s finger
keeps pressing the button and increase the value
Select button in Menu
Brightness / -
Immediately
Turn on the Brightness adjustment on display
Continuous send out pulse when user’s finger
keeps pressing the button and decrease the
value
Select button in Menu

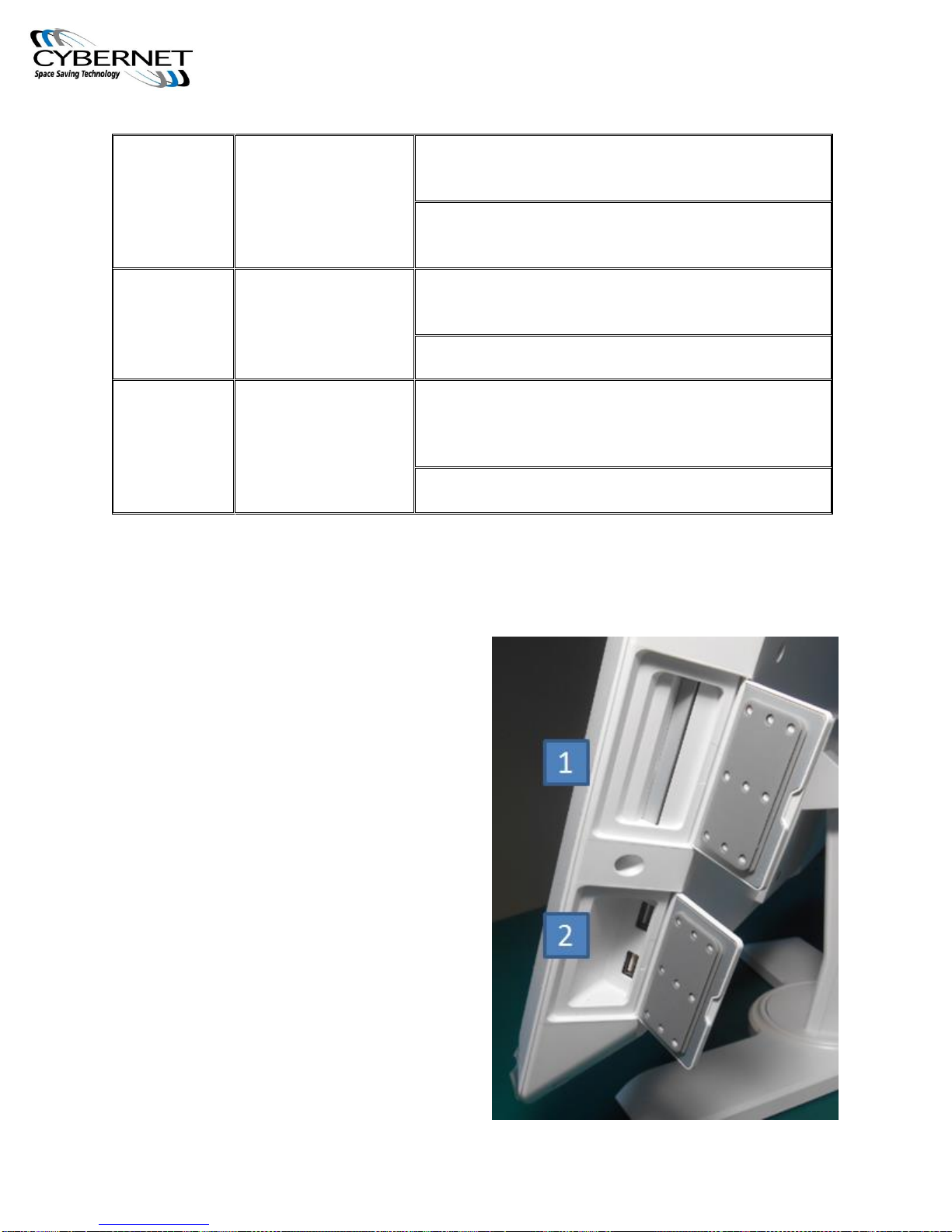

Side I/O View

14
NB22 Users Manual
No.
Item
Description
1
Smart Card
Reader
(Option)
Comply with ISO7816
–1,2,3 T=1 and T=0
protocol.
Memory card:
Synchronous 2-line,3-
line and I2C Interface,
EMV L1 (Version
2000)
2
USB2.0
ports
2 x USB 2.0 The USB
interface supports
Plug and Play.500mA
output current.
Back view

15
NB22 Users Manual
No.
Item
Description
1
Battery Door
Battery door will show
2
Side screw hole
Reserve for external module:
Finger Print module / MSR / NFC
3
HOME KEY
When press the button:
In Win7 will be indicated “CTRL + ALT + DEL”
function.
In Win8.1/10 will be indicated “Home Key” function.
4
VESA mount hole
Support 75 x 75 and 100 x 100 VESA mounting.
5
Speaker
Support 2-channel 2Watt speaker output.
6
HDD door
Support easy access HDD removable

16
NB22 Users Manual
Bottom Panel I/O Ports
No.
Item
Description
1
DC-IN
19V input with 120Watt adapter.
2
COM1
COM port with RS232/RS422/RS485 and 5V/12V at
pin 9 selectable in BIOS Setup menu.
3
LAN1
Intel I219LM 10/100/Gigabit LAN, Support Wake on
LAN, PXE and vPro technology.
4
LAN2
Realtek RTL8111 10/100/Gigabit LAN, Support Wake
on LAN and PXE.
5
HDMI-out
Support HDMI output, maximum resolution 4096x2160
@ 24 Hz
6
HDMI-in
HDMI interface input supported for another system
with HDMI-out as a display monitor, which can be
selectable by OSD buttons on front panel of NB/S
series system after OS boot up or auto connected as
a monitor if the another system active with HDMI
cable plug in before system power on.
7
USB3.0
4 x USB 3.0 interface supported with 5Gbit/s transfer
rate / 900mA output current and compatible with
USB2.0 and USB1.1.
8
Microphone
Azalia Audio interface supported, the Input/output
Configurations can be selectable by Audio Manager in
Windows when external audio devices plug-in and the
task window auto pop out.
9
LINE-out
10
CMOS
Clear CMOS button. When press the button will
restore system BIOS as default setting.
11
COM2
Optional 2nd COM port with RS-232 only.

17
NB22 Users Manual
On Screen Display Usage
Contrast: Select to toggle greater or lesser contrast.
“I” shows information of current display setting.
”Menu” to select language.
“Factory Default” resets monitor to original settings.

18
NB22 Users Manual

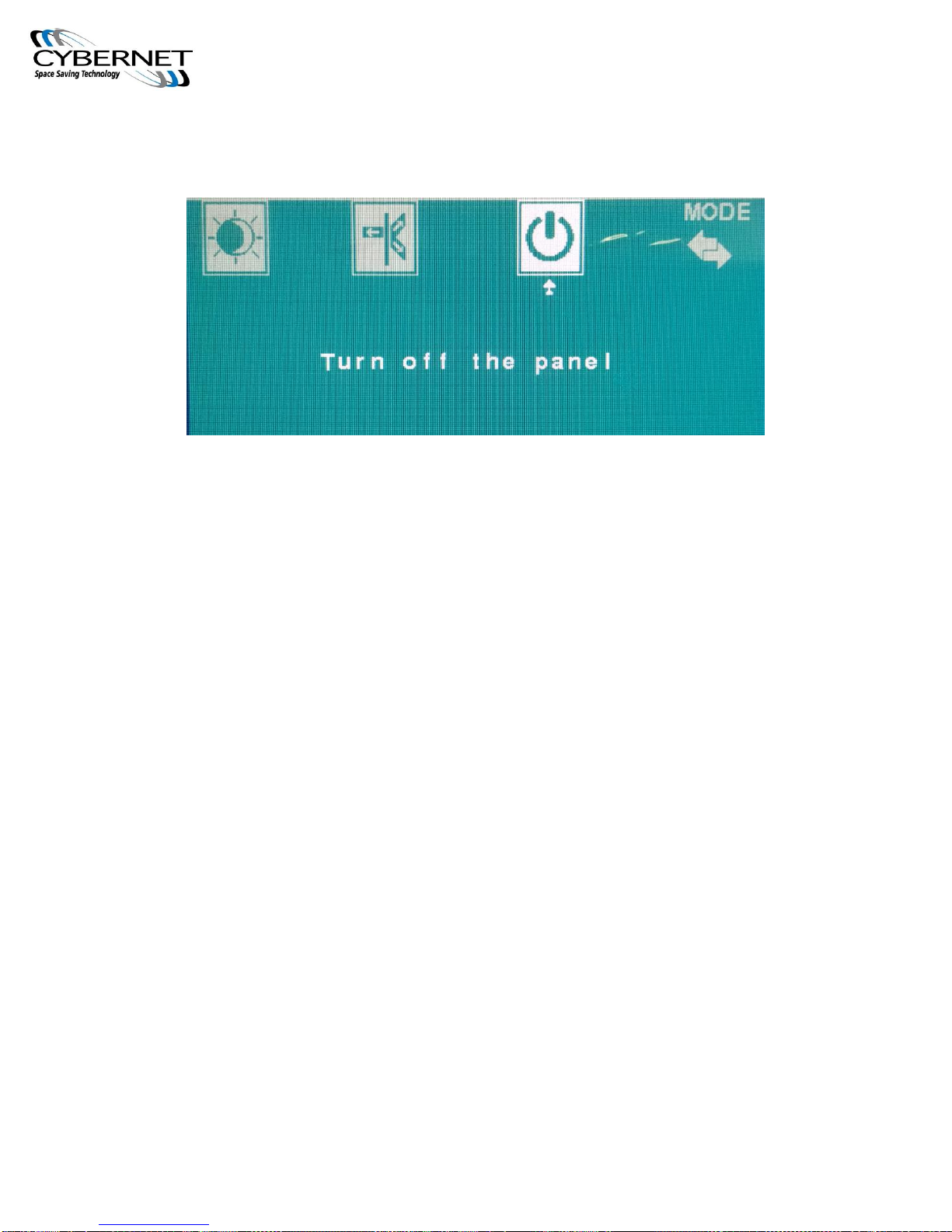

“Display Mode Switch” to turn the System into Monitor and Monitor into System
(PC), by connecting “Display Port In” connector, as shown in the picture.
Turn off the Panel will turn on the Privacy button so that the display will become blank.
Battery Information:
Spec:
15.12V / 5900mAh, Lithium-ion battery.
Charge Voltage: 17.4V
Charge Current: Max 0.5C
Discharge Current: Max 1C
Battery Dimension: 146 x 82.6 x 21 mm
Certification: FCC / CE / IEC62133 / UL2054
Each Battery provides an LED indicator, allowing the user to press the LED button and
get an indication of battery capacity and status.
LED Level meaning:
1x LED –1~20% capacitive level
2x LED –21~40% capacitive level
3x LED –41~60% capacitive level
4x LED –61~80% capacitive level
5x LED –81~100% capacitive level (all LEDs are on-full bar)

19
NB22 Users Manual
Power Management
Power management of LCD-PC has the potential to save significant amounts of
electricity as well as deliver environmental benefits.
To be energy efficient, turn off your display or set your LCD-PC to sleep mode after a
period of user inactivity.
Power Management in Windows OS
[Power Options] in Windows OS allows you to control the power management features
of your display and hard drive. Go to [Start] > [Control Panel].

20
NB22 Users Manual
Then click on the [Power Options] link.
Select a power plan that suits your personal needs. You may also fine-tune the settings
by clicking [Change plan settings].
The Shut Down LCD-PC Menu presents the options of Sleep (S3) & Shut
