IPC-R2is / IPC-E2is
User Manual
Declaration of Conformity
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference
in which case the user will be require to correct the interference at his own expense.
Notice 1 The changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
The product(s) described in this manual complies with all applicable European
Union (CE) directives if it has aCE marking. For computer systems to remain CE
compliant, only CE-compliant parts may be used. Maintaining CE compliance
also requires proper cable and cabling techniques.
Trademarks
All trademarks are the properties of their respective owners.
Intel® is a registered trademarks of Intel Corporation.
PS/2 and OS®/2 are registered trademarks of International Business Machines
Corporation.
Windows® 11/10 are registered trademarks of Microsoft Corporation.
Netware® is a registered trademark of Novell, Inc.
Award® is a registered trademark of Phoenix Technologies Ltd.
AMI® is a registered trademark of American Megatrends Inc

DOC ID: 16001100
Page | 2
WEEE Statement
(Waste Electrical and Electronic Equipment)
The WEEE directive places an obligation on EU-based manufacturers, distributors,
retailers and importers to take-back electronics products at the end of their useful life.
A sister Directive, ROHS (Restriction of Hazardous Substances) compliments the
WEEE Directive by banning the presence of specific hazardous substances in the
products at the design phase. The WEEE Directive covers products imported into the
EU as of August 13, 2005. EU-based manufacturers, distributors, retailers and
importers are obliged to finance the costs of recovery from municipal collection points,
reuse, and recycling of specified percentages per the WEEE requirements.
Instructions for disposal of WEEE by Users in the European Union
The symbol shown below is on the product or on its packaging, which indicates that
this product must not be disposed of with other waste. Instead, it is the user’s
responsibility to dispose of their waste equipment by handing it over to a designated
collection point for the recycling of waste electrical and electronic equipment. The
separate collection and recycling of your waste equipment at the time of disposal will
help to conserve natural resources and ensure that it is recycled in a manner that
protects human health and the environment. For more information about where you
can drop off your waste equipment for recycling, please contact your local city office,
your household waste disposal service or where you purchased the product.

DOC ID: 16001100
Page | 3
Safety Instructions
1. Always read the safety instructions carefully.
2. Keep this equipment away from humidity.
3. Lay this equipment on a reliable flat surface before setting it up.
4. Confirm the voltage of the power source and adjust accordingly to 110/220V
before connecting the equipment to the power inlet.
5. Place the power cord in such a way that it cannot be stepped on. Do not
place anything over the power cord.
6. Always unplug the Power Cord before inserting any add-on card or module.
7. All cautions and warnings on the equipment should be noted.
8. Never pour any liquid into the opening. This will cause damage and/or electrical
shock.
9. Do not disable the protective grounding pin from the plug. The equipment must
be connected to a grounded main socket/outlet.
10. If any of the following situations arise, have the equipment checked by
authorized service personnel:
•The power cord or plug is damaged.
•Liquid has penetrated into the equipment.
•The equipment has been exposed to moisture.
•The equipment has not worked well or you cannot get it working according to
the User's Guide.
•The equipment has been dropped and damaged.
•The equipment has obvious signs of breakage.
11. Do not attempt to remove or upgrade any components by yourself, any
installation or modification should be conducted by service personnel.
DO NOT LEAVE THIS EQUIPMENT IN AN UNCONDITIONED ENVIRONMENT WITH
A STORAGE TEMPERATURE ABOVE 70° C (158°F). IT MAY DAMAGE THE
EQUIPMENT.
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the
same or equivalent type recommended by the manufacturer.

DOC ID: 16001100
Page | 4
Table of Contents
Declaration of Conformity ............................................................................................1
Trademarks....................................................................................................................1
WEEE Statement ...........................................................................................................2
Safety Instructions........................................................................................................3
Introduction ...................................................................................................................5
IPC R2is & IPC E2is Specifications..............................................................................6
IPC-R2is & IPC-E2is Overview .....................................................................................8
IPC-R2is Dimension ....................................................................................................8
IPC-E2is Dimension.....................................................................................................8
IPC-R2is Front I/O View ..............................................................................................9
IPC-E2is Front I/O View...............................................................................................9
IPC-R2is / IPC-E2is Back I/O View..............................................................................9
Power Management.....................................................................................................16
Waking the System Up..............................................................................................18
IPC-R2is / IPC-E2is BIOS introduction ......................................................................19
Appendices..................................................................................................................20
A - Cybernet’s Recycling Program.............................................................................21
B - Getting Help.........................................................................................................21

DOC ID: 16001100
Page | 5
Caution:
Warning, electricity
Direct current
Operating Instructions
Alternating current
Ready to use
Introduction
Congratulations on your purchase of the IPC-R2is / IPC-E2is. We are confident the IPC-
R Series is the premier Slim Rugged PC line on the market. With their sleek design and
small form factor, these units can be quickly deployed anywhere they are needed and
their easy-to-use, feature-packed interfaces offer an unparalelled user experience. If
you have any questions about your new IPC-R2is / IPC-E2is, please do not hesitate to
contact us using any of the support numbers provided at the end of this User Manual.

DOC ID: 16001100
Page | 6
IPC R2is & IPC E2is Specifications
CPU
Supports Intel Whiskey Lake 8th Generation Processor,
FCBGA1528
Memory
2 x DDR4 SO-DIMM sockets, up to 32GB combined
Supports memory data transfer rates of 2133MHz/2400 MHz for
DDR4, un-buffered non-ECC DDR4 SO-DIMMs
Storage
Serial ATA controller facilitates high-speed transfers up to 6Gbps
Maximum 2 x 2.5” HDD or SSD
Video & Graphics
Intel® UHD Graphics 620
Front I/O Ports
2x HDMI1.4 Port, up to 4096 x 2304 @ 60Hz
4x USB3.1
2x USB2.0
2x RJ45 Gigabit (Gbe) LAN
1x COM RS-232 / 422 / 485 and 5V / 12V / RI
1x DC-IN Power Connector (6-36V)
1x DC-IN Power Terminal Block (6-36V)
1x Remote On/Off Terminal Block
Rear I/O Ports
3x COM RS-232
2x Easy access HDD door with lock
1x Power button
2x POE LAN support, complies with IEEE 802.3at, up to 25.5W at
52V per port (Optional)
Power Input
19V / 3.78A Power Adapter, 72W, AC Input: 100-240V AC / 2.0A/
50-60Hz
19V / 6.31A Power Adapter, 120W, AC Input: 100-240V AC 2.0A/
50-60Hz
Wireless
Communications
Intel AC9260/AX200/AX210 support IEEE802.11ac/ax + BT5.1
above (Optional)
Operating System
Windows 11 / 10 / IoT / Pro
Linux
Operating Environment
Ambient Temperature: -10°C ~ 50°C (operating)
Relative Humidity
10% ~ 95% (non-condensing)
Vibration
5 Grms @5-500 Hz according to IEC60068-2-64
Shock
Operating, 50 Grms, Half-sine 11ms duration according to
IEC60068-2-27
Dimensions
10.74” x 6.65” x 2.16” (L,W,D)
Weight
5 lb
System BIOS
AMI Flash BIOS supports ACPI, API, DMI, Plug & Play, and
security password. BIOS System POST and BIOS setup
password protection. TPM version 2.0 Support.
TPM
1 x Trusted Platform Module (TPM2.0) Infineon SLB9665

DOC ID: 16001100
Page | 7
Certifications
FCC part 15B class B
EN55032 / EN55024 class B
ICES-003

DOC ID: 16001100
Page | 8
IPC-R2is & IPC-E2is Overview
IPC-R2is Dimension
IPC-E2is Dimension

DOC ID: 16001100
Page | 9
IPC-R2is Front I/O View
IPC-E2is Front I/O View
IPC-R2is / IPC-E2is Back I/O View

DOC ID: 16001100
Page | 10
Power button
The Power Button is a momentary switch with LED indicator.
LED Color
Power Status
System Status
Solid Blue
S0
Working state
Blinking
S3
Suspend to RAM
Press the power button to turn on the system. To force a shutdown, press and hold the
power button for 4-seconds.
HDMI Port
HDMI1.4 supports up to 4096x2304 resolution at 60Hz.
USB3.1
There are 4x USB3.1 connections available, which supports up to 5Gbps data rate.
These USB ports are also compliant with Super Speed (SS), High Speed (HS), Full

DOC ID: 16001100
Page | 11
Speed (FS), and Low Speed (LS).
USB2.0

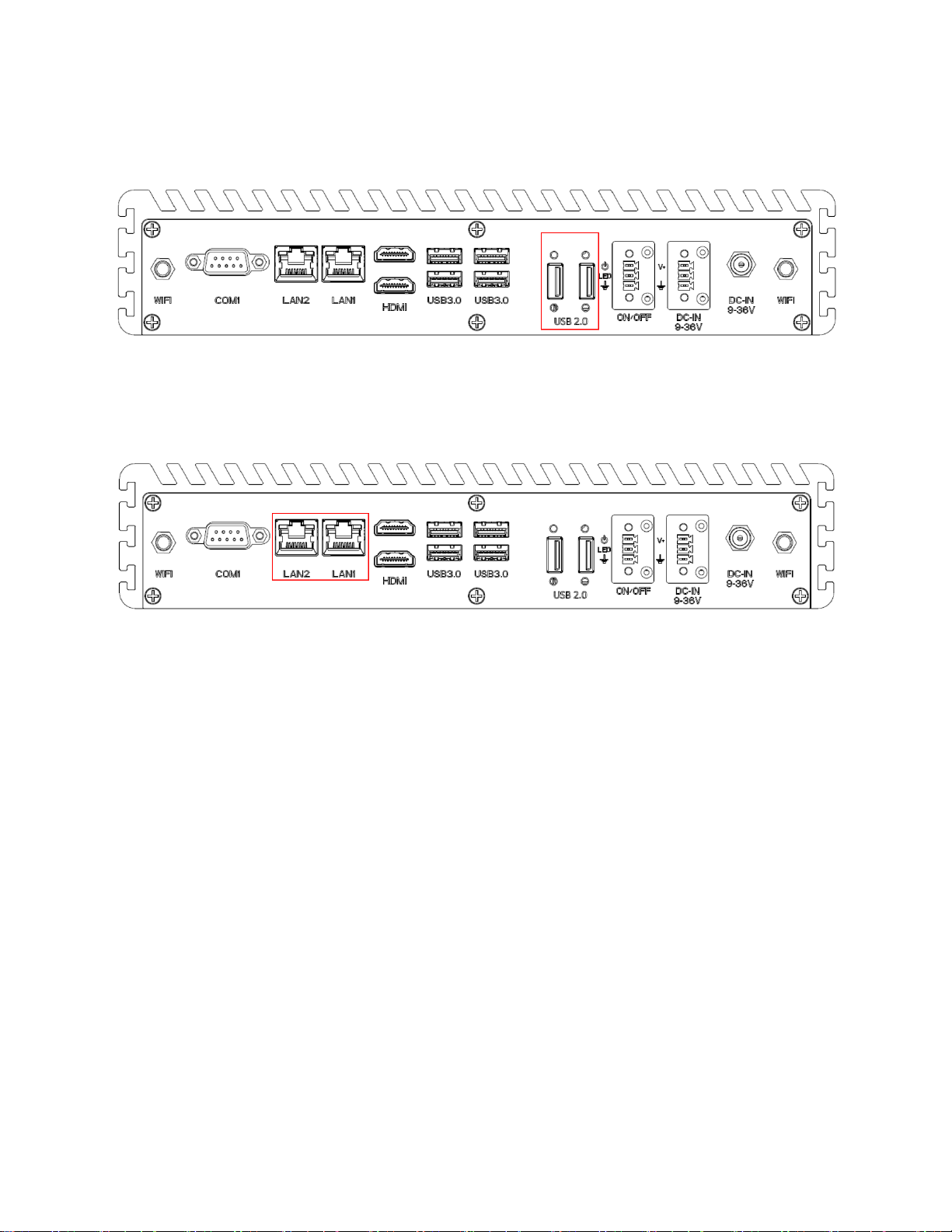

There are 2x USB2.0 connections available, which supports up to 480Mbps data rate.
These USB ports are also compliant with High Speed (HS), Full Speed (FS), and Low
Speed (LS).
Ethernet Port
LAN1: Intel I219LM 10/100/Gigabit LAN, supports Wake on LAN, PXE boot and vPro
technology.
LAN2: Intel I210 10/100/Gigabit LAN, supports Wake on LAN, PXE boot and vPro
technology.

DOC ID: 16001100
Page | 12
Serial Ports
Serial port 1 can be configured for RS-232, RS-422, or RS-485 with auto flow control
communication. The default definition of COM1 is RS-232, which can be configured in
the BIOS.
The pin assignments are listed below:
Serial
Port
Pin No.
RS-232
RS-422
(5-wire)
RS-422
(9-wire)
RS-485
(3-wire)
COM1
1
DCD
TXD-
TXD-
DATA-
2
RXD
TXD+
TXD+
DATA+
3
TXD
RXD+
RXD+
-----------
4
DTR
RXD-
RXD-
-----------
5
GND
GND
GND
GND
6
DSR
-----------
RTS-
-----------
7
RTS
-----------
RTS+
-----------
8
CTS
-----------
CTS+
-----------
9
RI/5V/
12V
-----------
CTS-
-----------

DOC ID: 16001100
Page | 13
Serial ports 2-4 are all RS-232 and the pin assignments are listed below:
Serial Port
Pin No.
RS-232
COM2~4
1
DCD
2
RXD
3
TXD
4
DTR
5
GND
6
DSR
7
RTS
8
CTS
9
NC

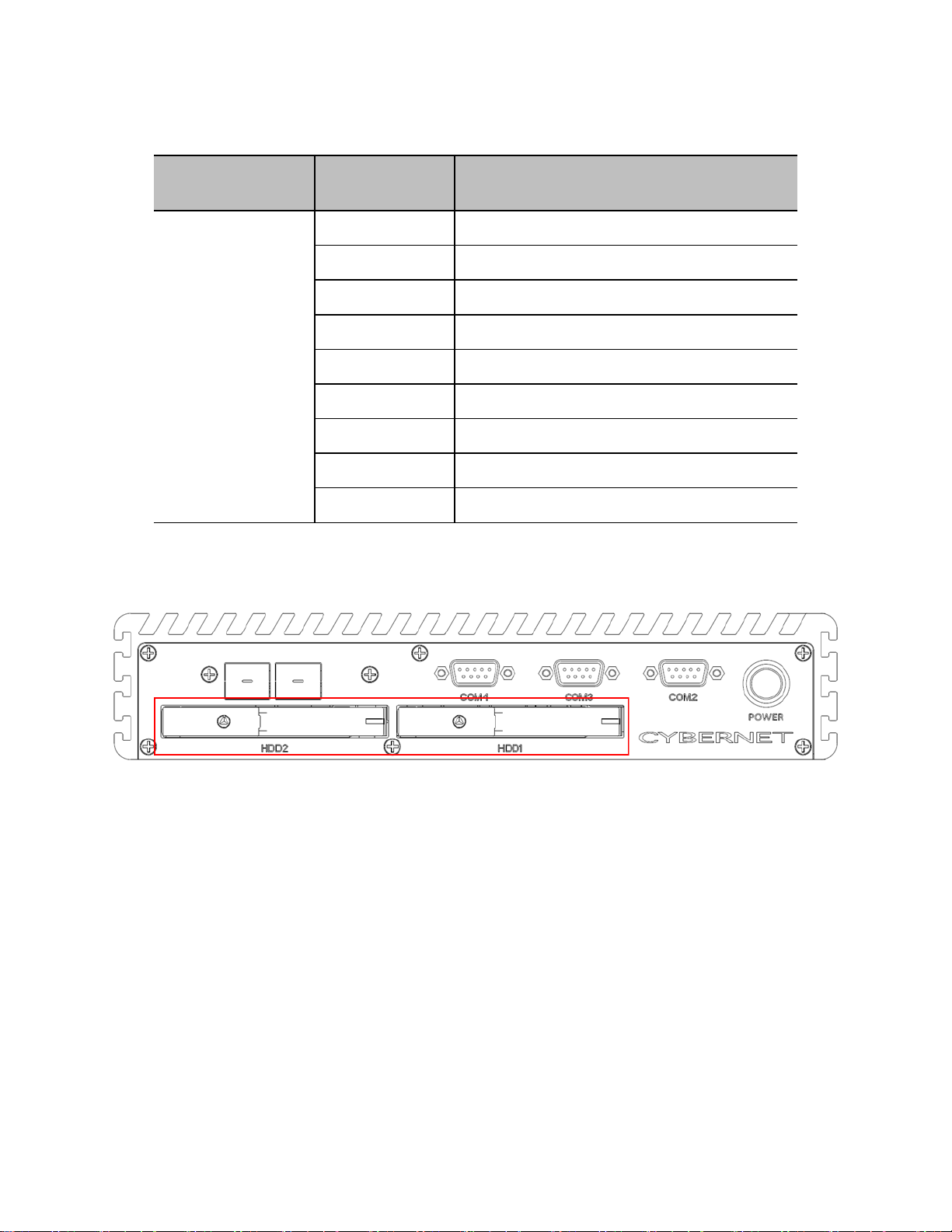

SSD/HDD Trays
There are 2x front-accessible 2.5” SSD/HDD locking trays.

DOC ID: 16001100
Page | 14
Power Terminal Block
The system supports 9V to 36V DC power input by terminal block.
Pin No.
Definition
1
V+
2
NC
3
Chassis Ground
Power On/Off Switch
This terminal block supports a 2-pin power on/off switch.
Pin No.
Definition
1
Power
2
Power LED
3
Chassis Ground

DOC ID: 16001100
Page | 15
PoE (Power over Ethernet) Ports (Optional)
There are 2x optional Ethernet ports on the IPC-R2is / IPC-E2is that supports IEEE
802.3at (PoE+) Power over Ethernet connection, delivering up to 25.5W / 52V per port
and 1000BASE-T GbE data signals over standard Ethernet Cat 5/6 cable. Each PoE
connection is powered by Intel® i210 GbE Ethernet controller and independent PCI
express interface to connect with multi-core processor for network and data transmit
optimization.

DOC ID: 16001100
Page | 16
Power Management
Taking advantage of the power management options available on Windows OS can
save you significant amounts of electricity and also provide environmental benefits. For
better energy efficiency, turn off your display or set your PC to sleep mode after
prolonged periods of user inactivity.
Power Management in Windows OS
Right click the start button, and select [Power Options].
Then click [Additional power settings].

DOC ID: 16001100
Page | 17
Select a power plan that suits your personal needs. You may also fine-tune the settings
by clicking [Change plan settings].
For quick and convenient management of system power, the Shut Down Menu provides
options for Sleep (S3) and Shut Down (S5).
Power Management through ENERGY STAR qualified monitors (Not supplied with the
IPC-R2is / IPC-E2is)
The power management feature allows the IPC-R2is / IPC-E2is to initiate a low-power
or “Sleep” mode after a period of user inactivity. When used with an external ENERGY
STAR qualified mnitor, this functionality also supports similar power management
features for the display. To take advantage of these potential energy savings, the power
management feature can be set to behave in the following ways when the system is
operating on AC power:
•Turn off the display after 15 minutes.
•Initiate Sleep after 30 minutes.

DOC ID: 16001100
Page | 18
Waking the System Up
The IPC-R2is / IPC-E2is can wake up from power saving mode in response to a
command from any of the following:
•the power button,
•the network (Wake on LAN)
•the mouse
•the keyboard

DOC ID: 16001100
Page | 19
IPC-R2is / IPC-E2is BIOS introduction
The AMI BIOS provides a Setup utility program for specifying system configurations and
settings. The BIOS ROM of the system stores the Setup utility. When you turn on the
computer, the AMI BIOS is immediately activated. Pressing the <F2> or <DEL> key
allows you to enter the Setup utility. If you are a little bit late pressing the <F2> or
<DEL> key, POST (Power On Self-Test) will continue with its test routines, thus
preventing you from invoking the Setup. If you still wish to enter Setup, restart the
system by pressing the “Reset” button or simultaneously pressing the <Ctrl>, <Alt> and
<Delete> keys. You can also restart by turning the system Off and back On again.
Pressing the <F11> key during bootup allows you to enter the Boot menu. The following
message will appear on the screen:
