D-CUT MD-230 User manual

OPERATION MANUAL
D-CUT Flooring Cutter MD-230
www.dcutproducts.com

2

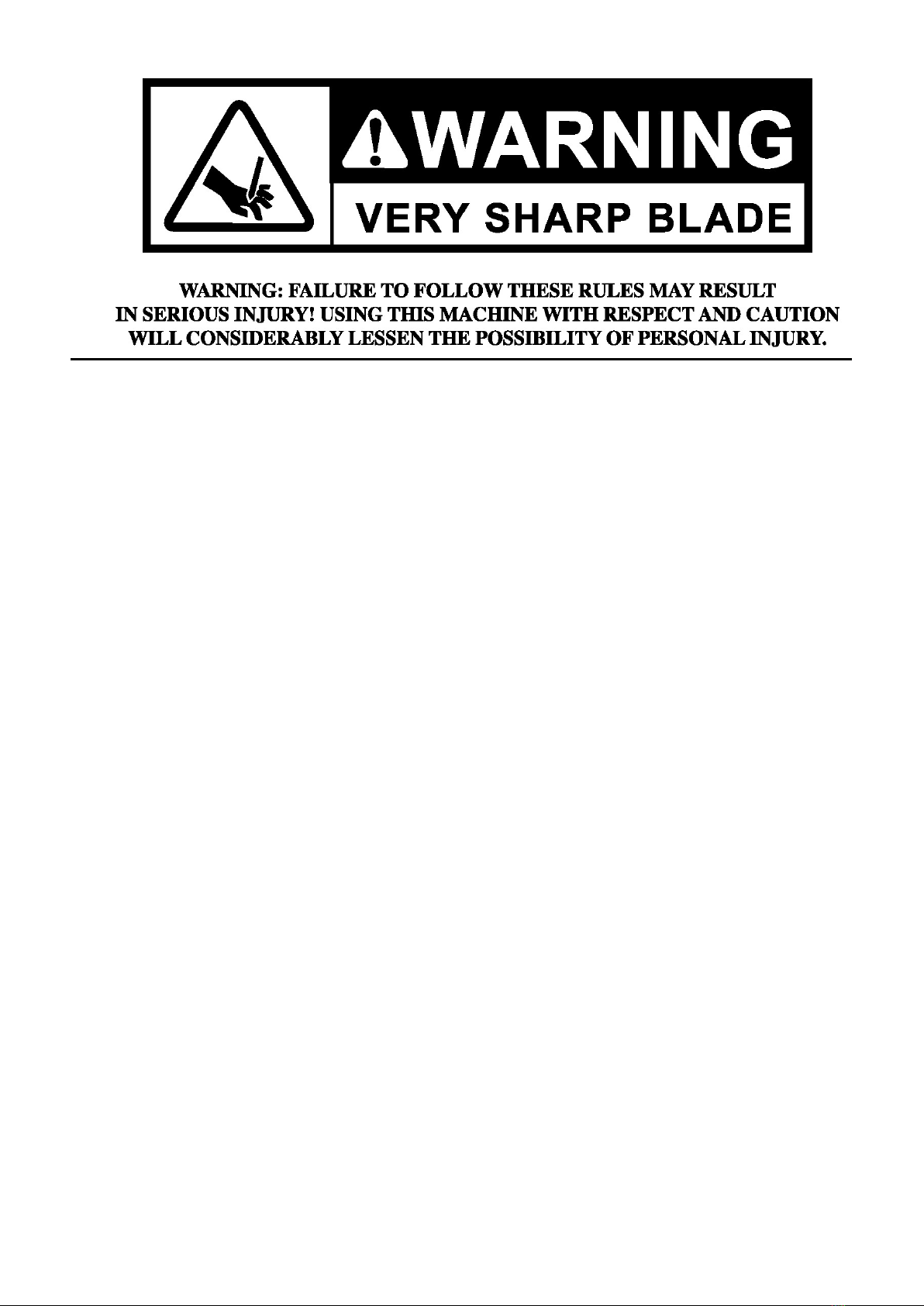

SAFETY RULES FOR THE FLOORING CUTTER
READ AND UNDERSTAND THIS INSTRUCTION MANUAL BEFORE
OPERATING THE D-Cut MULTI-FLOORING CUTTERS.
1. If you are not thoroughly familiar with the operation of D-Cut Multi-flooring
Cutter, obtain advice from a qualified instructor or call 630-916-9100 USA
2. Stay alert. Do not operate while under the influence of drugs, alcohol, or
medication.
3. Always wear safety approved eye protection with side shields(ANSI Z87.1)
4. Keep work area free of debris.
5. Keep children and unauthorized persons away from the D-Cut Multi-flooring
Cutter and work area.
6. Make sure tool is secure. Operate only on a firm substrate or solid stand.
7. Use the right tool. Do not force the D-Cut Multi-flooring Cutter or use it for a
job for which it was not designed; use only on approved materials.
8. Keep the blade sharp. A dull blade will not perform properly.
9. Always keep hands away from blade while operating or carrying the cutter.
10. Do not alter or misuse this tool. The D-Cut Multi-flooring Cutter is precision
built; modifications not specified in this manual may result in a dangerous
and unsafe environment.
11. Maintain the D-Cut Multi-flooring Cutter with care. Keep Blade sharp and
clean. Follow instructions for changing accessories.
12. Use only recommended accessories. The use of improper accessories may be
hazardous and cause injuries.
13. Never leave the D-Cut Multi-flooring Cutter unattended. Secure the handle
with the lock chain when not in use.

3
CUTTING AND C
Installation
1
Install the table to the cutter
base with provided screws and
bolts as shown.
Warning: Do not put your
fingers against the sharp edge
of the blade at any time.
Straight
Cutting
Insert material between the
cutting blade and the base,
flush it with the guide bar as
shown and hold the material
then push handle down to
complete a cut.
Warning: Maintain control
of the handle. Do not allow
handle to slam back after
making a cut.
Installation
2
Then insert the handle into the
handle base as show and
tighten provided screw.

4
Changing the Nylon Bar
Use the provided Allan wrench
to remove the five screws, then
hold the nylon bar and carefully
move it out of nylon bar holder.
Warning: Do not put your
fingers against the sharp edge
of the blade at any time.
Transport
Insert the pin as shown to the
hole in the aluminum eccentric
cam and carry the cutter as
shown.
Changing the
Blade
Use the provided Allan
wrench to remove the five
screws, then hold the blade
by each end and carefully
move the blade out of blade
holder.
Note: the flat side of the blade
facing the table.
Warning: Do not put your
fingers against the sharp edge
of the blade at any time.

5
PARTS LIST

6
Parts Q’ty
Parts Q’ty
1 Screw M6 × 12 4 25 Right ABS Handle 1
2 Washer Φ6 4 26 Bolt M4 × 30 2
3 Rubber Feet 4 27 Left ABS Handle 2
4 Rod 2 28 Guide Bar 1
5 Hex Bolt M8 × 55 4 29 Nut M10 4
6 Hex Bolt M8 × 50 4 30 Sleeve 6
7 Main Base 1 31 Nut M5 3
8 Screw M4 × 14 5 32 Working Table 3
9 Nylon Bar 1 33 Screw M5 ×12 2
10 Blade 1 34 Screw M5 ×25 6
11 Spring 1 35 Carry Handle 1
12 Screw M5 × 10 5 36 End Board 1
13 Blade Base 1 37 Foot 1
14 Screw M8 × 14 2 38 Bolt M8 × 30 4
15 Nut M8 1 39 Frame A 1
16 Nylon Wheel 4 40 Cross Bar 3
17 Aluminum Eccentric Cam 1 41 Frame B 1
18 Screw M6 × 16 2 42 Spring Pin 1
19 Handle Base 1 43 Nut M8 4
20 Bolt M12 × 120 1 44 Pin Sleeve 2
21 Handle A 1 45 Screw M4 × 10 4
22 Screw M8 2 46 Pin 2
23 Handle B 1 47 Shaft 2
24 Nut M4 2
