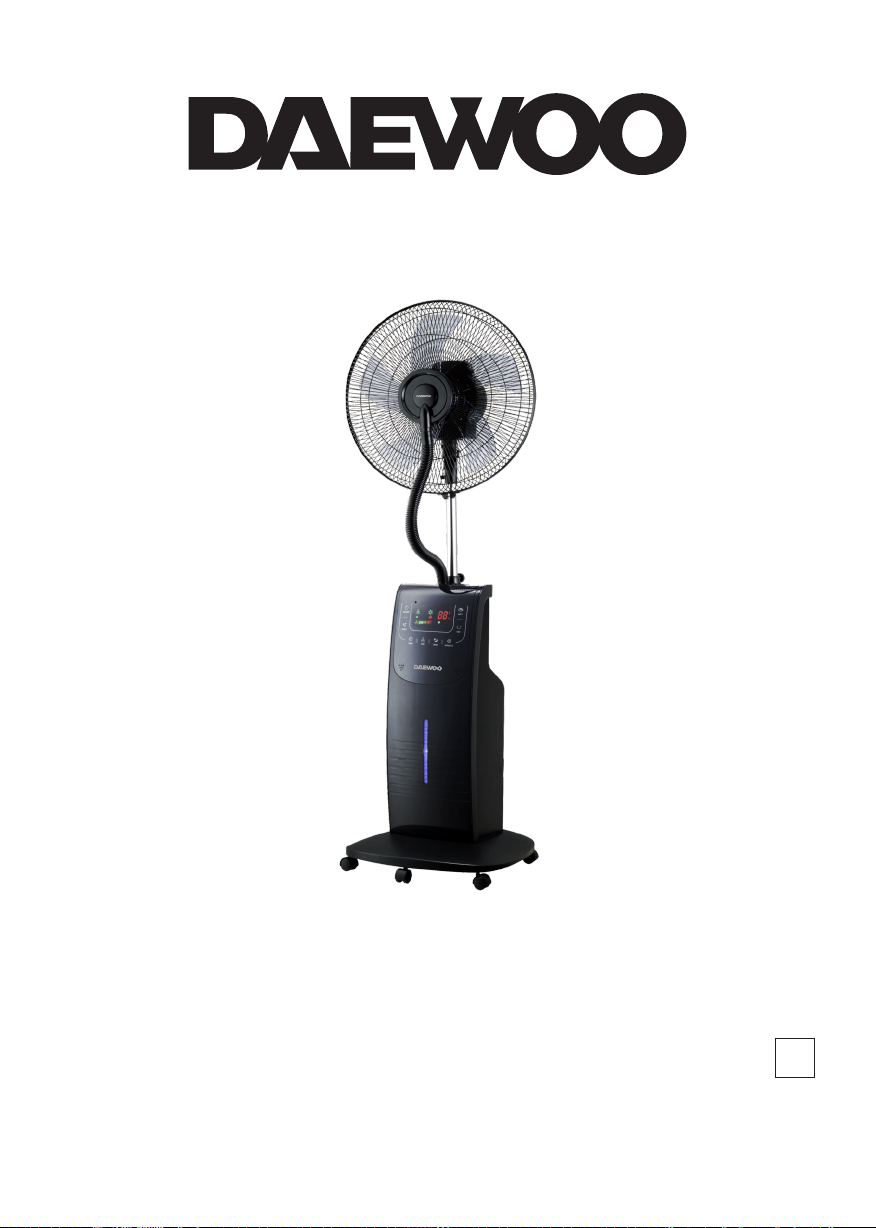

Daewoo DMF-4010S User manual

Mist Fan
DMF-4010S
Instrucon Manual
GB

2
General Safety Instrucons
The following regulaons must be obeyed to prevent the dangers
to yourself or others.
1. Wet hands cannot be used to contact power plugs. In order to
avoid risk of electrical shock
2. When to start the fan, do not tough the film in the tank, or else
you will feel painful or be in danger.
3. When the tank is dry, the water levels switch automacally cut
to protect. To connue, just pour in some water.
4. Protect against debris falling into the grill and mouth of fan to
avoid damage to fan while working
5. If the body is lted for cleaning or other purposes, first cut off
the power supply.
6. 40 °C or above temperature water should not be used into
water tank.
7. Do not put any metals, chemicals or others should not be put
into water bole holder to avoiding abnormal atomizaon and
danger.
8. Please replace the mosquito mat when switch it off 5 minutes
later to make it cool.
9. The inflammable should not be put on the surface of mosquito
repellent.
10.For infants the elderly or infirm, do not stay directly to the mist
fan for a long me when it works.
11.The mist fan should work under the condion of rated power.
12.If the power line damages, must use components from the
manufacturer or maintenance department to replace.
13.The mist fan should be put more than 30cm away from wall
and far away from curtain and cloth.
14.Mist fan should not be used when on the incline ground.
15.Finger or others should not be put into air outlet or inlet to
avoid machine broken easily.

3
16.Do not lean mist fan or turn over or will let the water spilt out.
17.Pull out power line if not use mist fan.
18.Do not let children play with ice box.
19.Do not let Children, disabilies and common sense absence
man to use this product unless under the guidance of
professionals.
Technical Parameter
Product Name Mist stand fan Model Daewoo
DMF-4010S
(TSP40-EA)
Rated power 220 -240V~ Rated frequency 50Hz
Consumpon power 90 W Water tank
capacity
3.1L
Installaon diagram
1. decoraon ring
2. front guard
3. blade lock
4. leaf
5. guard lock
6. rear guard
7. guard circle
8. motor shell
9. motor
10. connector
11. stanchion pole
12. connecon terminal
13. handle screw 18. base
14. control panel 19. castor
15. body forward shell 20. base lock
16. water tank 21. mist pole
17. body rear shell 22. remote control

4
According to above installaon diagram, please follow the installaon:
First check every part is ready before installaon.
Step1: First install the five castors (19) on the base (18).
Step2: Install the body (15) into the base (18), then use the base lock (20) to screw
on the base ghtly.
Step3: Put stanchion pole (11) into fan body (15), and fix connecon terminal (12),
then fasten by handle screw (13).
Step4: Install the rear guard (6) onto the motor sha (8) then use guard lock (5) to
fasten.
Step5: Install the fan leaf (4) onto the motor sha, then screw it.
Step6: Install decoraon ring (1) on the front guard (2) and screw.
Step7: Put the front guard (2) and rear guard (6) together, and use screw to fasten
decoraon ring.
Step8: Pull the mist pole through into decoraon ring (1). Installaon is complete.

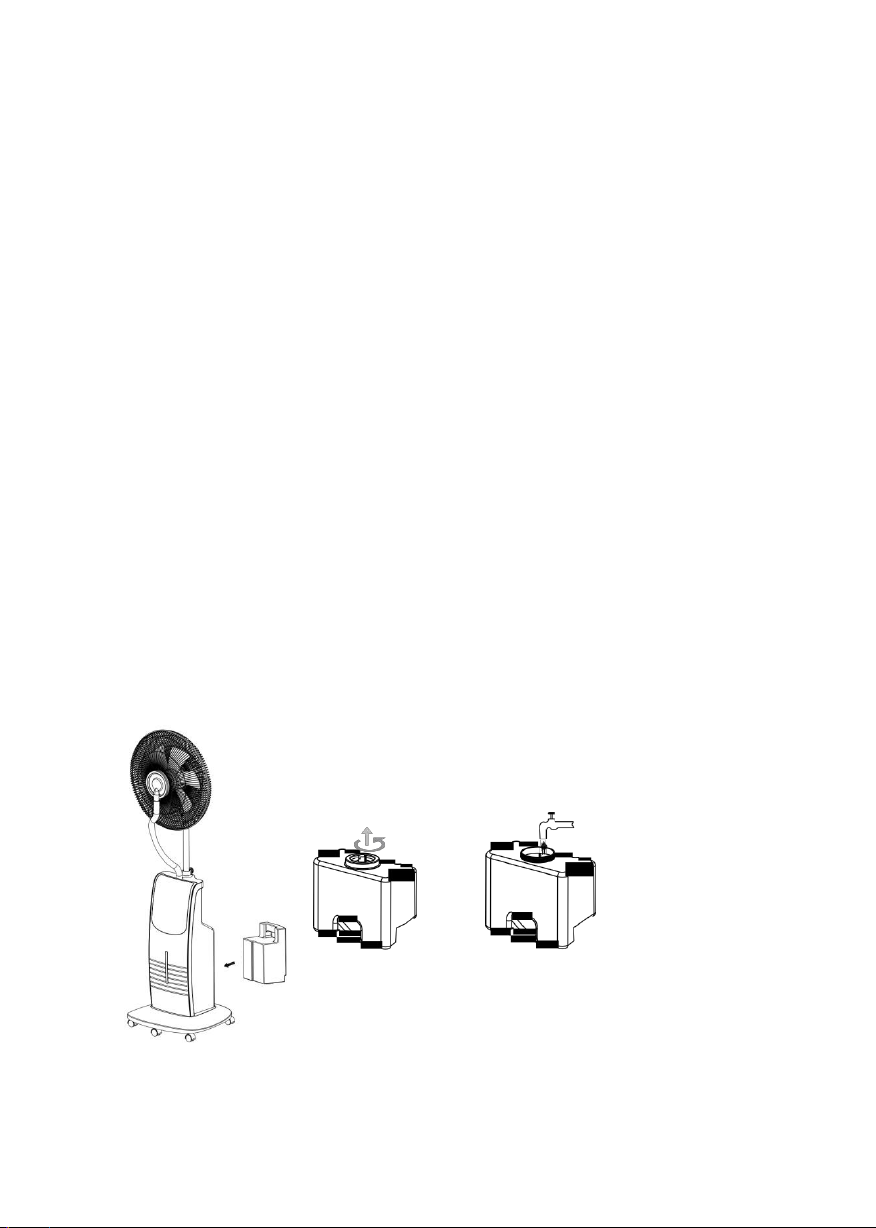

Humidifier
Push the water tank upward, remove tank, unscrew the cap and fill with water to a
suitable level, the temperature of water should not above 40°C, screw the cap and dry
the tank surface.

5
Product instrucon
Insert the power cord into plug socket with rated power 220-240V~ 50Hz before use

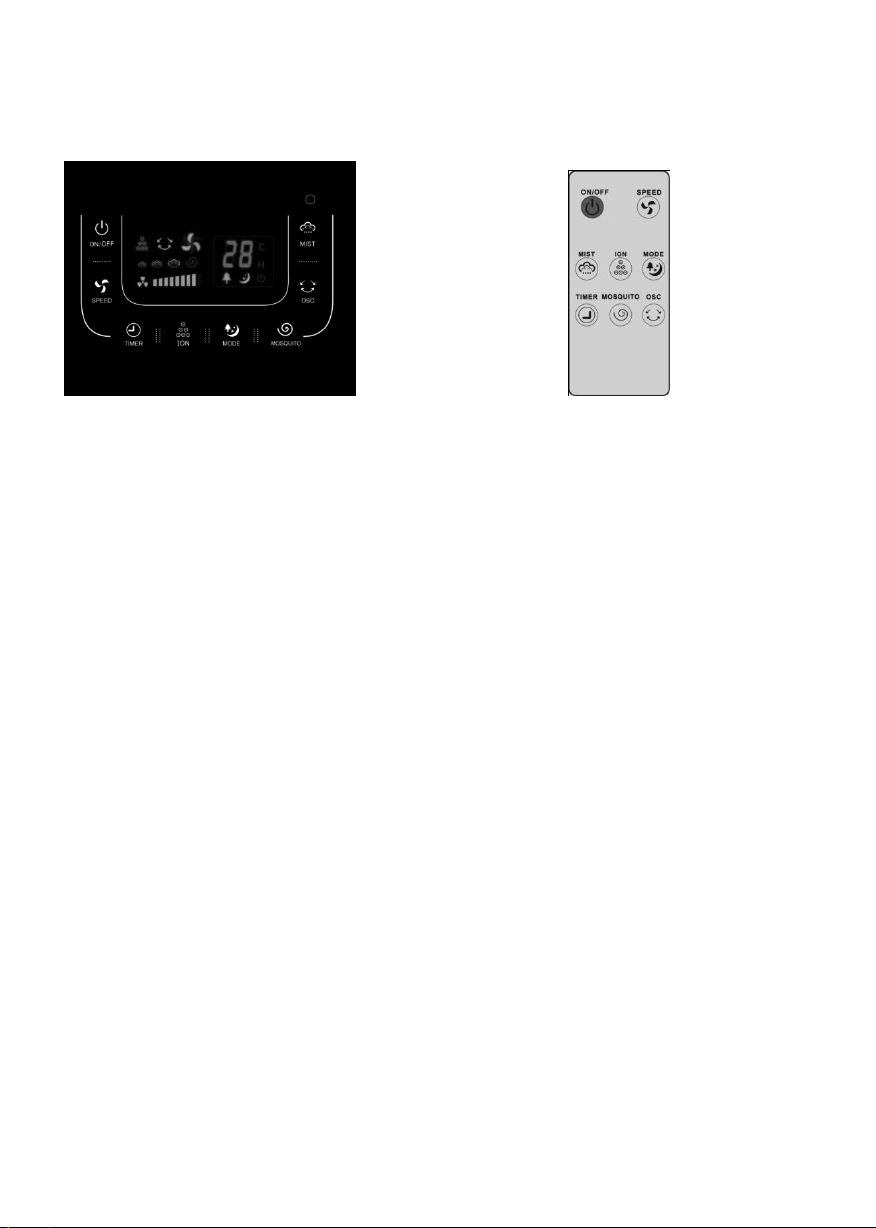

Control Panel Remote control
1. Insert the power cord into plug socket, and hear “beep” sound aer power is
connected work as shown above, use remote control point to receive window and
push any buon, various funcons work accordingly.
2. ON/OFFBuon
First me push ON/OFF buon, the indicator light is on and push it again, the
speed is in the low Level.
3. SPEEDBuon: This buon can control fan speed by low/Mid/High.
4. TIMER Buon: first push, the environment temperature shows 01H then goes
to 12H in turn, then mer stops working aer push it again. When mer works,
room temperature displays.
5. ION Buon: Push this buon, light of Ion funcon is on, push it again ION funcon
off.
6. Mode buon: first push the buon, nature mode light is on. Push again, light of
sleep mode Is on, push it third mes, normal mode works.
7. Mosquito Buon: push the buon, red light of mosquito repellent on. Press again
light off.
8. 0SC Buon: Push the buon, light of OSC on. Press again light off.
9. MIST Buon: Push the buon at first me, light of humidifier on, push again,
medium light on, large light on then light off and so on (indicator light of body shell
is blue when is normal, when lack of water light is red.)
10. Aer power on, first push ON/OFFthen MISTbuon, it works same as point 9.

6
11. Aer power on, first press ON/OFF then Mosquito buon, it works same as point
10.
12. Aer power on, first press ON/OFFthen ION buon, it works same as point 5.
Ice box
First, take out ice box from the refrigerator aer freezing.
And put it on water holder to make temperature lower. It can be reused.
The aroma tray
Take aroma case out firstly then put several drops aroma liquid, the aroma will
evaporate slowly and be full of room when the mist fan works. The ideal space of aroma
is about 12 square meters with well venlated room.
Cleaning and Maintenance
Cut off power before cleaning
Clean
When cleaning, if there is dirty things inside use a detergent to clean and put 2~3 drop
machine oil into motor bearing
Please use so cloth to dry the body part and base.
Water bole holder cleaning
First cut power off, take out water tank then pull mist tube appropriately. Clean it if it’s
dirty. Use clean water to wash mist control box.
Pour out the rest water from water bole holder and use so cloth
to make it dry. Note that no scraping on atomizer film.

7
Troubleshoong
Fault Reason Approach
1.no rotaon
power on
1.motor no working
2.too low voltage
3.motor sha gets stuck
4.circuit board broken
1.push on high wind
2.turn to rated power
3.Strike motor shell to
make spindle smoothly or
repair it.
4.repair it(the same model
circuit board))
2.Apparent
vibraon
1.Rear guard loosens
2.Blade screw loosens
3.blade broken or imbalance
4.blade imbalance
1.Lock net hoop ghtly
2.screw fan blade ghtly
3.replace fan blade
4.turn over fan blade180º
then install
3.Atomizer
working,
no mist
1.Water tank includes other
liquid(like aroma and
mosquito repellent)
2.water tank broken and full
of water
1.Clean water tank, mist
tank several mes.
2.put clean water in water
tank.
4.Atomizer no
working
1.The floater 1.Make floater float
5.Indicator light
off, no wind no
mist
1.Power plugs in not well
2.Power switch is off
1.Plug in well
2.switch it on
6.Indicator light
on, wind no mist.
1.water tank lacking water
2.Humidifier no working
1.put water in water tank
2.switch humidifier on
3.make floater pressure
plate ghtly

8
7.mist with odors 1.Odors will disappear aer
use for a period of me.
2.The water tank interior part
is no clean.
1.Open water tank cap in a
cool venlated place
2.change the water in
water tank
8.other problems 1.Motor with burning smell
2.Exposed Metal part charged
insulaon damage
3.Motor rear shell
overheang
4.Motor rear shell and net
hoop broken
1.Stop using and repair
2.Stop using and repair
3.Use it again aer stop
using temporarily
4.use it aer repairing
Correct Disposal of this product
This marking indicates that this product should not be disposed
with other household wastes throughout the EU. To prevent
possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to promote the
sustainable reuse of material resources. To return your used
device, please use the return and collecon systems or contact the
retailer where the product was purchased. They can take this
product for environmental safe recycling.

9
Venlateur brumisateur
DMF-4010S
Mode d'emploi
FR

10
Instrucons générales de sécurité
Les consignes suivantes doivent être respectées pour garanr la
sécurité des autres et de vous-même.
1. Ne pas manipuler les prises électriques avec les mains
mouillées, pour éviter les risques d’électrocuon.
2. Lorsque vous démarrez le venlateur, ne touchez pas le film
dans le réservoir, car cela peut être douloureux et dangereux.
3. Le réservoir est équipé d’un interrupteur de sécurité qui se
déclenche lorsque le niveau d’eau est trop bas. Pour connuer
à uliser la machine, remplissez le réservoir d’eau.
4. Évitez que des débris ne tombent dans la grille et dans les
pales du venlateur, pour éviter que ce dernier ne subisse des
dommages.
5. Si le venlateur tombe, débranchez-le avant de le remere
d’aplomb pour le neoyer ou d’autres tâches de maintenance.
6. Ne pas uliser d’eau dont la température dépasse 40 °C dans le
réservoir d’eau.
7. Ne pas mere d’objet métallique, de produits chimiques ou
autres dans le réservoir d’eau pour éviter les problèmes
d’atomisaon, et autres dangers.
8. Aendez cinq minutes avant de remplacer la mousquaire,
pour lui laisser le temps de refroidir.
9. Ne pas uliser de produit an-mousque inflammable.
10.Éviter que les bébés, les personnes âgées ou les personnes
handicapées ne soient exposées à la brume pendant des
périodes prolongées.
11.Veillez à brancher le venlateur brumisateur sur une prise
murale délivrant le type de courant correct.
12.Si le cordon d’alimentaon est endommagé, faites-le
remplacer par le fabricant ou prenez contact avec un
professionnel.
13.Placez le venlateur brumisateur à une distance d’au moins 30
cenmètres des murs, et aussi éloigné que possible des
rideaux ou autres objets de ssu.
