95XF series XF/XE engine
TECHNICAL DATA
1-1
1. XF/XE ENGINE
1.1 GENERAL
Valve clearance
Valve clearance (cold/warm):
inlet 0.45 mm
exhaust 0.45 mm
DEB
DEB setting 1.40 mm
V-belt tension

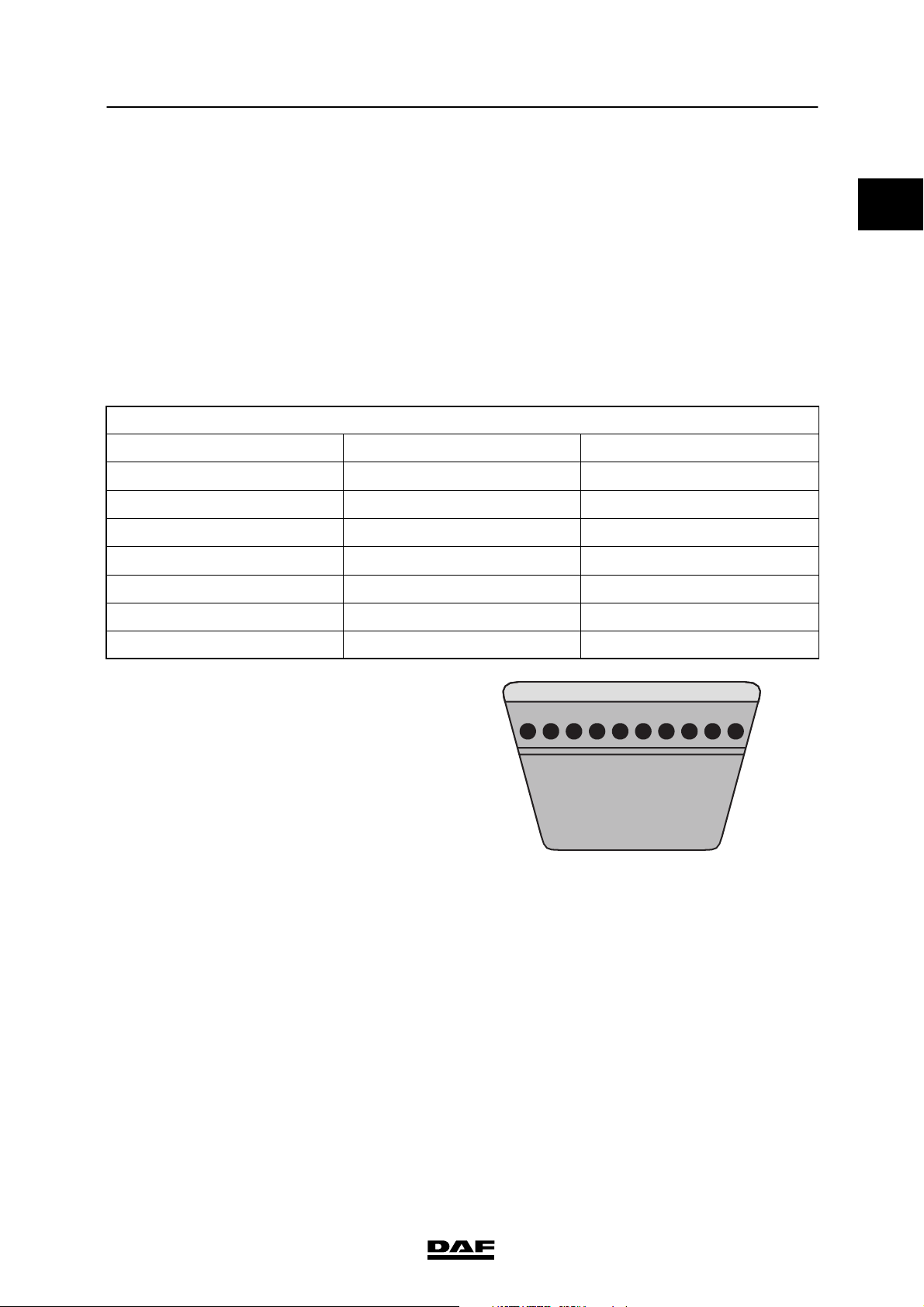

Belt tension “12.5–mm” V-belts in Newtons (N)
Multiple V-belt Single V-belt
raw-edge1raw-edge1
New V-belt2
Setting tension 1200 600
Test tension ≥800 ≥400
Worn-in V-belt3
Minimum tension 500 250
Adjusting tension 700 350
(1) Raw-edge V-belts can be recognised by looking at
their edges and at the inside of the V-belt. Except for
the upper part of the belt side, no textile fabric is
present in the rubber (polished sides).
Version: either a toothed or a non-toothed belt.
(2) After fitting the new V-belt, set the pre-tension to the
”setting tension” and after a trial run inspect whether
the pre-tension complies with the ”test tension”.
If the tension reading is lower than the ”test tension”
specified in the table, set the V-belt to the minimum
”test tension”.
(3) If the V-belt tension is lower than the ”minimum
tension”, set the belt to the ”adjusting tension”.
M2121
200424

TECHNICAL DATA
XF/XE engine 95XF series
1-2
1.2 TIGHTENING TORQUES
Lubrication system
Oil drain plug 60 Nm
Oil filter 45 Nm
Central bolt for centrifugal oil filter 20 Nm
Valve cover
Valve cover attachment bolts 25 Nm
DEB
DEB attachment bolts 110 Nm
DEB set screw nut 25 Nm
1.3 FILLING CAPACITIES
Oil sump (incl. engine oil filter) approx. 29 litres
Cooling system with integrated ZF retarder approx. 50 litres + 10 litres
200424
0

0
95XF series VF engine
TECHNICAL DATA
2-1
2. VF ENGINE
2.1 GENERAL
Valve clearance
(cold)
Inlet valve 0.35 mm
Exhaust valve 0.70 mm
Unit injector
Setting value for unit injector (cold) 0.50 - 0.75 mm
C-brake
Setting value for C-brake (cold) 0.58 mm
V-belt tension
Belt tension for poly V-belts in Newtons (N)
6-rib version 10-rib version
New poly V-belt 700 1100
Run-in poly V-belt1300 - 600 450 - 900
(1) A run-in poly V-belt is a belt which has been used for
10 minutes or longer.
If the belt tension of a run-in poly V-belt is below the
minimum permitted tension, it should be adjusted to
the maximum permitted tension.
200424

TECHNICAL DATA
VF engine 95XF series
2-2
2.2 TIGHTENING TORQUES
Lubrication system
Oil drain plug 135 Nm
Oil filter 55 Nm
Valve cover
Valve cover attachment bolts 12 Nm
Lock nut for valve clearance adjusting bolt 55 Nm
Unit injector
Lock nut for unit injector adjusting bolt 65 Nm
Unit injector attachment bolt 40 Nm
C-brake
Lock nut for C-brake adjusting bolt 24 Nm
C-brake housing attachment bolts 102 Nm
Rocker housing
Rocker housing attachment
bolts (1 to 6)
Rocker housing attachment
bolts (7-8)
115 Nm
45 Nm
M2144
425
316
7 8
(
)
M2144
425
316
7 8
M2144
425
316
7 8
Rocker shaft
Rocker shaft attachment bolts 156 Nm
2.3 FILLING CAPACITIES
Oil sump (incl. engine oil filter) approx. 42 litres
Cooling system approx. 37 litres
0
200424

0
95XF series Gearbox
TECHNICAL DATA
3-1
3. GEARBOX

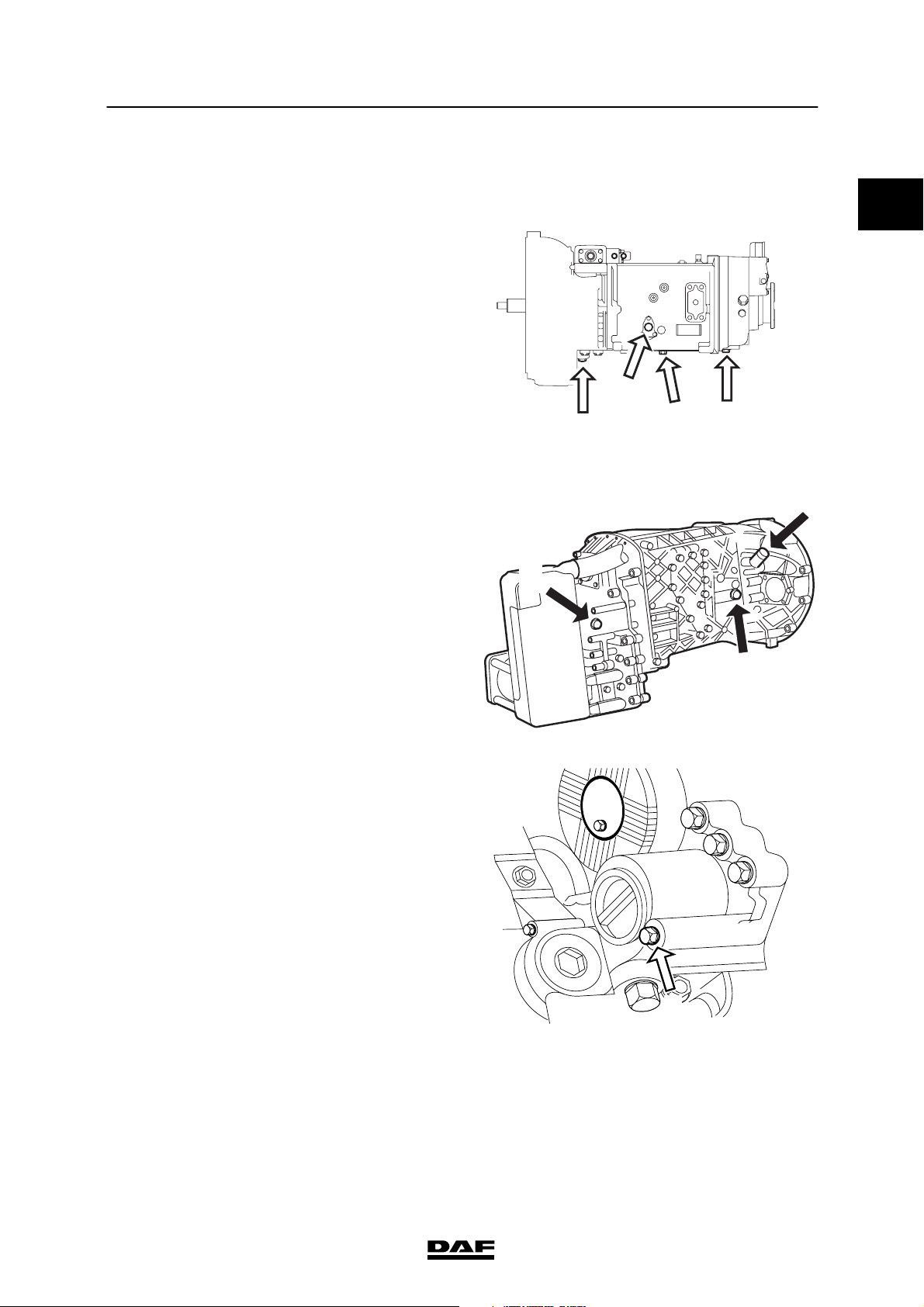

3.1 TIGHTENING TORQUES
Gearbox
ZF 8S-151/181 and 16S-151/181/221
Level check/filler plug (A) 60 Nm
Drain plug (B) 60 Nm
Drain plug (C/D) 60 Nm
M3023
D
A
BC
ZF 8S-151/181 and 16S-151/181/221
with integrated retarder
Drain plug (D) 60 Nm
Oil filter attachment bolt (1) 23 Nm
B
C
V300186
D
M3052
1
200424

TECHNICAL DATA
Gearbox 95XF series
3-2
3.2 FILLING CAPACITIES
ZF 16S-181
Filling capacity approx. 13 litres
ZF 16S-221
Filling capacity approx. 13 litres
ZF 16S-181/221 with integrated retarder
Filling capacity approx. 12 litres
0
200424

0
95XF series Rear axle
TECHNICAL DATA
4-1
4. REAR AXLE
4.1 GENERAL
Wheel bearing play, 1347 axle 0.025 - 0.25 mm
4.2 TIGHTENING TORQUES
Filler and drain plugs/hub plugs (Torx wrench) 85 Nm
M24 hexagon U-bolt nut, property class 8 600 Nm*
M24 hexagon U-bolt nut, property class 10 770 Nm*
M22 hexagon U-bolt nut (tandem axle),
property class 10 555 Nm*
* Evenly tighten the two U-bolt nuts
alternately.
4.3 FILLING CAPACITIES
Differential
1347 axle
Minimum caster Maximum caster
Filling capacity approx. 21.5 litres approx. 23.5 litres
1354 axle
Filling capacity approx. 16.5 litres
1355T axle
Minimum caster Maximum caster
1st axle capacity approx. 13.0 litres approx. 18.0 litres
2nd axle capacity approx. 11.5 litres approx. 13.0 litres
Wheel hub
1347 axle
Filling capacity per hub approx. 0.9 litres
1354 axle
Filling capacity per hub approx. 2 litres
1355T axle
Filling capacity per hub approx. 2 litres
200424

TECHNICAL DATA
Rear axle 95XF series
4-2
0
200424

0
95XF series Retarder
TECHNICAL DATA
5-1
5. RETARDER
5.1 TIGHTENING TORQUES
VOITH retarder 133-2
Retarder drain plug 150 Nm
Butterfly valve drain plug 65 Nm
Retarder dipstick 80 Nm
Retarder level check plug 80 Nm
Retarder filler plug M18 x 1.5 50 Nm
M24 x 1.5 80 Nm
Coolant drain plug 50 Nm
5.2 FILLING CAPACITIES
Voith 133-2
Filling capacity 8.2 litres
200424

TECHNICAL DATA
Retarder 95XF series
5-2 200424
0

0
95XF series Brakes
TECHNICAL DATA
6-1
6. BRAKES
6.1 GENERAL
Automatic brake adjuster stroke (09N044 axle,
FTP-type vehicles) 25 - 35 mm
Automatic brake adjuster stroke (other axles) 35 - 40 mm
Reverse torque of adjusting bolt >18 Nm
200424

TECHNICAL DATA
Brakes 95XF series
