1
PREFACE
This Quick Reference Guide consists of sections which in short describe the systems,
controls and functions of the truck.
©201520 DAF Trucks N.V., Eindhoven, The Netherlands.
This text has been translated from the English source. Translation may lead to
interpretation differences regarding contents and meaning of the written text.
Therefore, in case of dispute, the English version of this document shall always be
considered the sole and authentic source for determining the contents and meaning of
the written text.
In the interest of continuing product development, DAF reserves the right to change
specifications or products at any time without prior notice.
No part of this publication may be reproduced and/or published by printing, by
photocopying, on microfilm or in any way whatsoever without the prior written consent
of DAF Trucks N.V.
INTRODUCTION
This truck is equipped with advanced features for optimal performance and driver
satisfaction.
These features have been designed to help you, and when correctly used, they result
in improved fuel efficiency.
To benefit optimally from all these new features it is good to learn about these features,
right from the beginning.
Before you start using this truck, read this quick reference guide to help you to realise
the maximum benefit in the shortest time possible.
NOTE: Learn more in the driver's manual or see the videos and animations
on the DAF Trucks NV YouTube channel.
DW63216901.book Page 1 Monday, May 18, 2015 4:25 PM

2
1
Quick Reference Guide
BEFORE A DRIVE
Main switch
Switch on the main switch to provide power to the vehicle´s systems.
Mechanical main switch
Electronic main switch
The electronic main switch also has a
switch (1) on the control panel in the
cabin.
D005006
ON
OFF
D005007
OFF
ON
D005029
1
DW63216901.book Page 2 Monday, May 18, 2015 4:25 PM

3
1
Quick Reference Guide
Checks
Always perform the following checks before driving off:
– Possible leaks of vehicle systems (air, engine oil, coolant).
– Wheel attachment and tyre pressures.
– Air filter indicator (behind the front panel).
– Windscreen washer fluid level (behind the front panel).
– Coolant level (behind the front panel).
– Fuel level.
– AdBlue level.
– Master display for system warnings.
– Engine oil level (the dipstick and filler opening are located behind the front panel).
Exterior light check
Press the exterior light check switch (1)
on the ignition key or remote control for
2 seconds.
D005048
1
DW63216901.book Page 3 Monday, May 18, 2015 4:25 PM

4
1
Quick Reference Guide

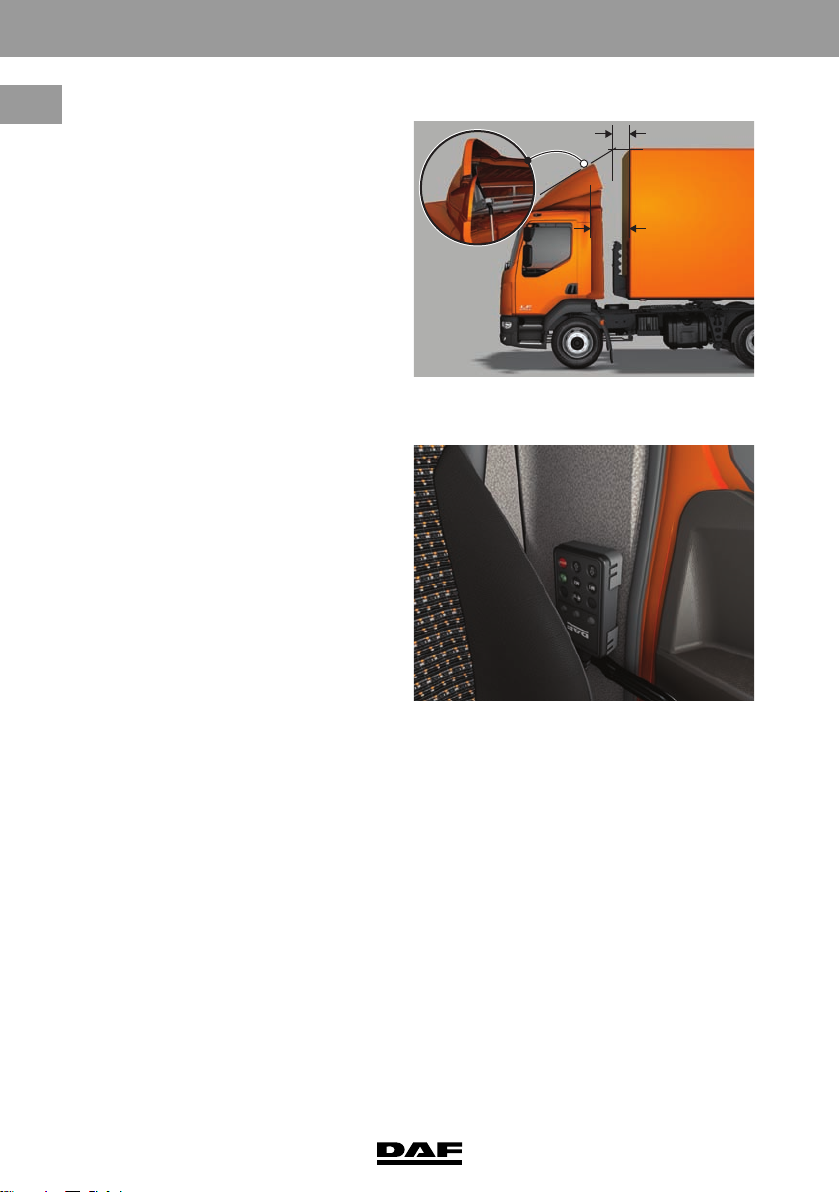

Spoiler settings
To minimise fuel consumption, adjust
the roof spoiler as indicated.
Air suspension height settings
Adjust the rear axle of the vehicle to the
desired height and store the height.
(two stored vehicle heights possible,
M1 and M2)
D005005
1/2 X
X
D005049
DW63216901.book Page 4 Monday, May 18, 2015 4:25 PM

5
1
Quick Reference Guide

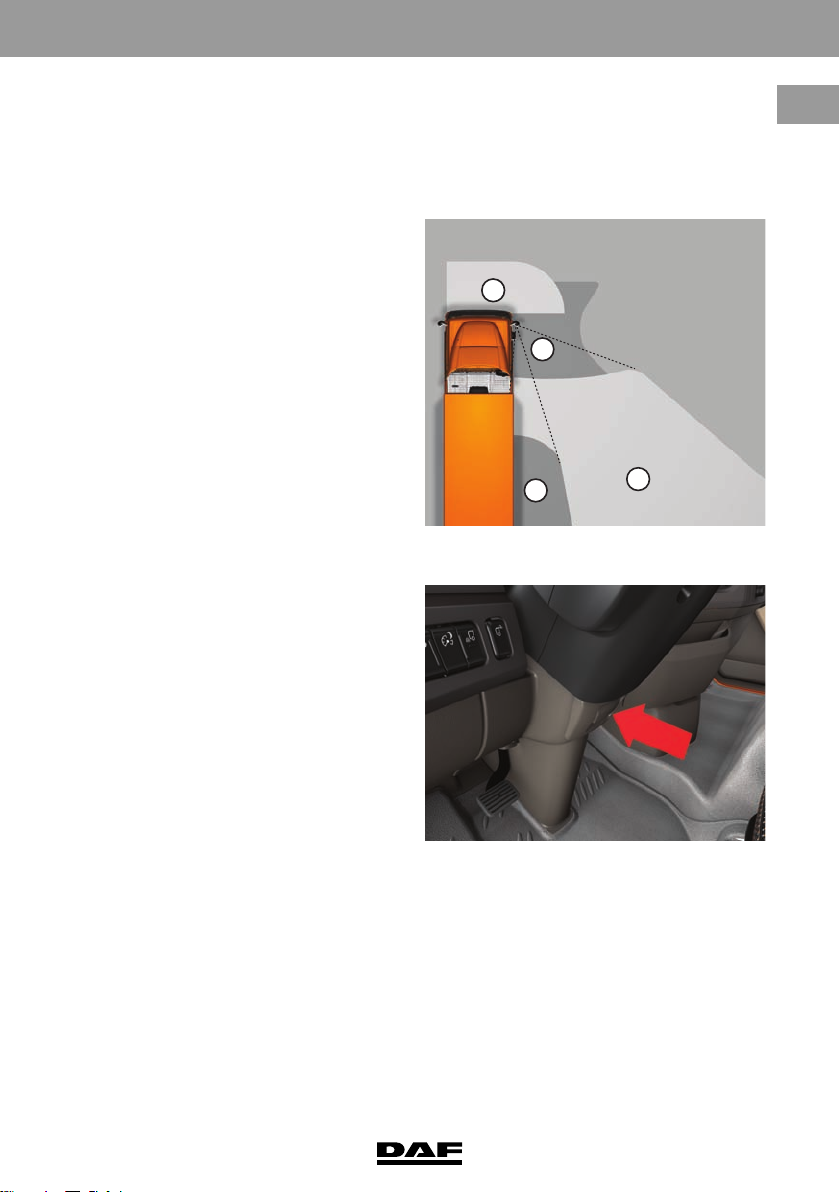

Mirror settings
Set the chair and safety belt to the desired position.
Adjust the mirrors at the driver side.
Adjust the mirrors at the co-driver side so the following areas are visible:
A Wide view mirror
B Main mirror
C Kerb mirror
D Front view mirror
Steering column settings
Unlock the steering column and adjust it
to the desired position.
D002222
D
B
C
A
D005028
DW63216901.book Page 5 Monday, May 18, 2015 4:25 PM

6
1
Quick Reference Guide
DRIVING CONTROLS
Master display
The master display informs you about
system warnings and/or vehicle
settings.
The colour indicates what the
information concerns:
– Red (danger).
– Yellow (warning).
– Blue (settings).
– Grey (information).
– Green (Driver Performance
Assistance).
Steering column controls
Left-hand steering column switch
1 Horn button.
2 Direction indicators, right.
3 Direction indicators, left.
4 Main beam and headlight flash.
Steering wheel switches (SWS)
1 Volume control.
2 Scroll function.
3 Phone control.
4 Engine brake.
5 Variable speed limiter.
6 Driving: Cruise control.
Standstill: Engine Speed
Control.
D002228
D005030
1 2
3
4
D005031
1456
23
DW63216901.book Page 6 Monday, May 18, 2015 4:25 PM

7
1
Quick Reference Guide

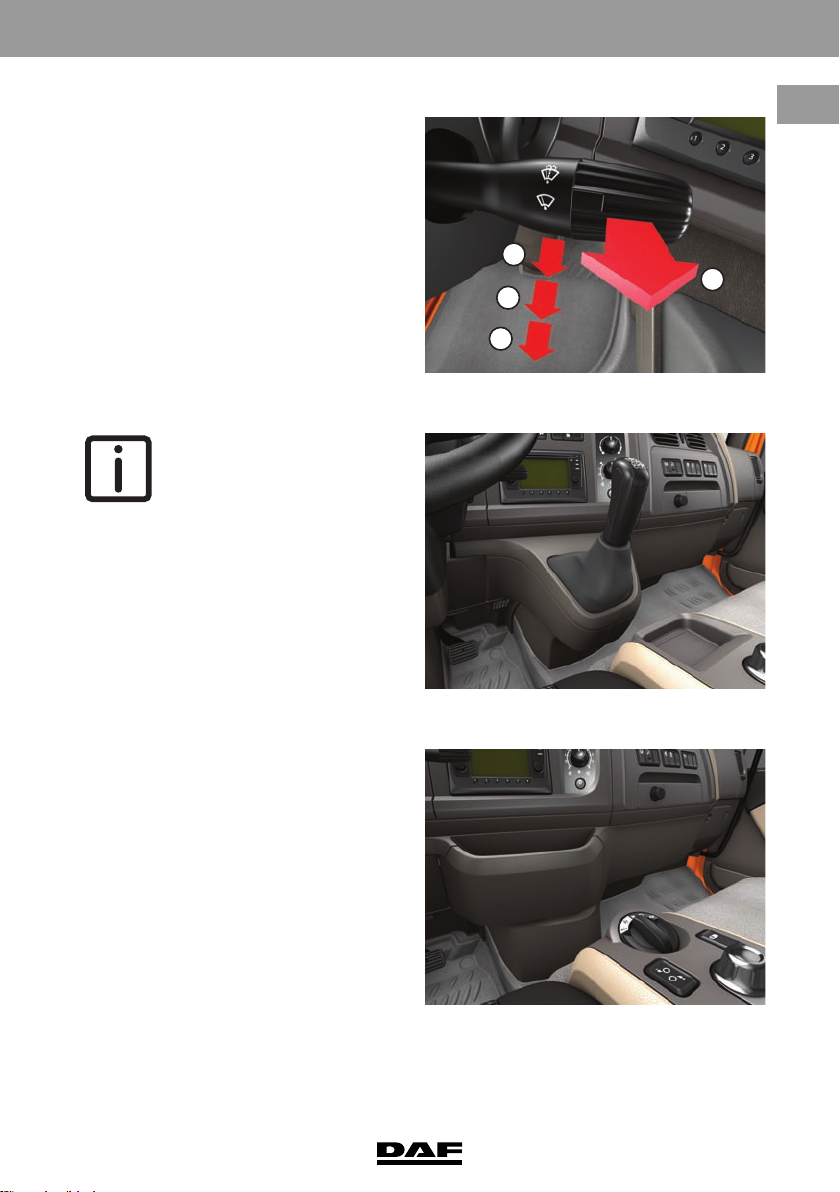

Right-hand steering column switch
1 Intermitting wipe.
2 Wipe speed (low).
3 Wipe speed (high).
4 Wipe and wash.
Manual gearbox
NOTE: In case of a 9-speed
gearbox the switch on the
gear change lever is used to
pre-select the range (low
and high range).
AS Tronic gearbox
R Reverse mode.
N Neutral.
D Drive mode.
The positions with the tortoise symbol
are for either the forward or reverse
manoeuvring mode.
With switch (12) on the control panel
the Hill Start Aid (HSA) is switched on or
off.
The HSA function can be used with an
AS Tronic gearbox to drive off at a hill
without using the park brake.
D005032
1
2
3
4
D005033
D005034
DW63216901.book Page 7 Monday, May 18, 2015 4:25 PM

8
1
Quick Reference Guide
Regenerating DPF
The Emission Aftertreatment System (EAS) is equipped with a Diesel Particulate Filter
(DPF) which must be cleaned (regenerated).
For most types of operation regeneration will be handled automatically by the vehicle
without any driver involvement.
Familiarise yourself with the DPF switch, the three levels of regeneration, their
warnings and what action to take. Make sure that you have enough AdBlue for your
journey.
There are three types of regeneration:
Passive regeneration
Automatic regeneration of the DPF above a certain temperature. No intervention
required by the driver and no indication on the master display.
Active regeneration
Regeneration when driving, triggered by the engine management system (EMS).
No intervention by the driver needed.
NOTE: When at low speed
or with the vehicle stationary
(during forced stationary
regeneration) the yellow
coloured high exhaust
system temperature (HEST)
is shown in the instrument
panel, take care that no
people, vehicles, animals or
combustible materials are
within 2 metres of the
exhaust outlet. D002232
DW63216901.book Page 8 Monday, May 18, 2015 4:25 PM

9
1
Quick Reference Guide
Forced stationary regeneration
When Passive and Active Regeneration is not sufficient the system will prompt that a
forced stationary regeneration is required.
A forced stationary regeneration is performed at stand-still and triggered by the driver.
To prevent the engine derating power, perform regeneration of the DPF as soon as
safely possible.
Four different levels of pop-up messages are possible to warn you the DPF must be
regenerated stationary.
1. Soot level high. Regeneration required (yellow).
An alternative to overcome this is to take the motorway route which will
clear the soot via passive regeneration.
If ignored this warning will re-appear at the next and subsequent
key cycles.
2. Soot level too high. Start regeneration immediately (yellow).
Again, to overcome this is to take the motorway route.
3. Soot level full. Regeneration required now (yellow).
The engine derates power and a forced stationary regeneration is
required as soon as safely possible.
4. Soot level full. Service required (red).
The engine derates power and an authorised DAF Service dealer must
service the vehicle.
It is no longer possible to perform a forced stationary regeneration.
Safety checks
Before starting a forced stationary regeneration, make sure that following safety checks
have been met:
– The vehicle is parked outside with a minimum of 2 metres clear space around the
exhaust discharge pipe.
– The park brake is applied.
– The engine is running at idle speed.
– The vehicle is NOT left unattended.
– The coolant temperature is above 65 degrees.
DW63216901.book Page 9 Monday, May 18, 2015 4:25 PM

10
1
Quick Reference Guide
Performing forced stationary regeneration
When all safety checks have been met,
press up the DPF switch (1) once to
allow the engine management system
(EMS) to carry out a self check. Follow
the instructions on the instrument
panel.
Press the switch up again to start the
forced stationary regeneration process.
NOTE: Switch off (down) to
stop or inhibit regeneration
when working inside or when
entering a hazardous area. D005035
1
DW63216901.book Page 10 Monday, May 18, 2015 4:25 PM

11
1
Quick Reference Guide
CONTROLS
Mirror and windows controls
1 Mirror heater.
2 Window control left or right.
Dashboard
1 Light switch
– Spring-loaded position (left):
Switch off daytime running
lights.
– 0: Lights switched off.
– 1: Marker lights on.
– 2: Headlights and marker
lights on.
– Front fog lights: pull out one
step.
– Rear fog lights: pull out two
steps.
2 Work light.
3 Static cornering light.
4 Dimmed instrument lighting.
5 Headlight height adjustment.
D005036
1
2
D005037
1
2
5
4
3
DW63216901.book Page 11 Monday, May 18, 2015 4:25 PM

12
1
Quick Reference Guide
Master display
A Interactive and dialogue area.
B Indication bar.
C Driver Performance Assistant
(DPA) status bar.
1 Symbol of selected menu.
2 Menu title.
3 Warning indicators.
4 Scroll function available.
The on-board computer system can be
accessed using the master display.
The system is controlled using the
Menu Control Switch (MCS).
Turn the MCS to select and press to
enter a menu, function or setting.
Press the return button to go back one
level or press and hold to exit the menu
fully.
D002235
C
A
B
1 2 3
4
D005038
VEHICLE INFO – Air supply.
– Tyre Pressure Indication (TPI).
– DPF information.
DRIVING SUPPORT – Economic driving.
– Adaptive Cruise Control (ACC).
– Predictive Cruise Control (PCC).
– Power Take Off (PTO).
– Axle load.
– Speed information.
SERVICE INFO – Warning list.
–Nextservice.
– Vehicle Identification Number (VIN).
– Total fuel.
DW63216901.book Page 12 Monday, May 18, 2015 4:25 PM

13
1
Quick Reference Guide

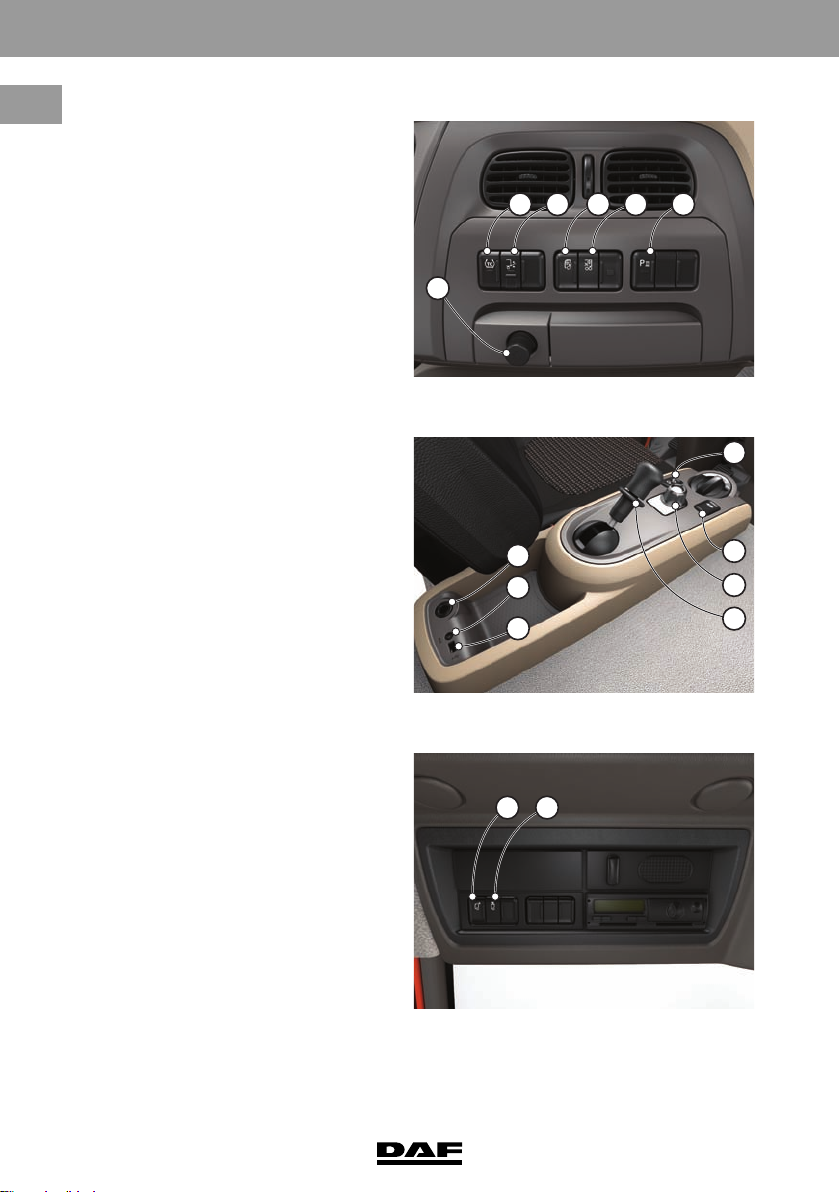

Control panel
1 Instrument lighting dimmer.
2 PTO-1 switch.
3 Cross-axle differential lock
switch.
4 Flasher hazard warning lights
switch.
5 Advanced Emergency Braking
System (AEBS) switch.
6 Lane Departure Warning
System (LDWS) switch.
7 Adaptive Cruise Control (ACC).
8 Air distribution, rotary knob.
9 Air temperature control, rotary
knob.
10 Fan speed, rotary knob.
11 Air conditioning switch.
12 Hill start aid switch
13 Lock or unlock co-drivers door.
14 Reverse buzzer deactivation
switch.
15 Diesel Particulate Filter (DPF)
switch.
16 Main switch.
17 Hydraulic platform surround light
switch
18 Stop & Go switch. (version
dependent)
TELEPHONE – Truck phone.
– Bluetooth telephone.
– Phone volume.
SETTINGS – Alarm & clock.
– Language.
–Units.
– Dim settings.
– Speed control.
– Tachograph card settings.
TRIP INFO – Drive time.
– Trip 1.
– Trip 2.
D005039
8
9
10
11
5 6 741 2 3
12
13
14
15
16
17
18
DW63216901.book Page 13 Monday, May 18, 2015 4:25 PM

14
1
Quick Reference Guide
Centre console
1 ASR traction aid switch.
2 Cargo lift switch.
3 Cabin interior detection off
switch.
4 Superstructure loading space
detection off switch.
5 Auxiliary heater switch
6 12V / 5A lighter or accessory
connection (maximum 60W).
Park brake console
1 AS Tronic +/- switch.
2 AS Tronic manual or automatic
switch.
3 Menu Control Switch (MCS)
4 Park brake handle.
5 USB connection DAF radio.
6 AUX plug DAF radio.
7 24V / 15A accessory connection
(maximum 360W).
Roof console
Sleeper Cab
1. Roof hatch switch.
2. Rotating light switch.
D005040
1 2 3 4 5
6
D005047
7
6
5
1
2
4
3
D005041
12
DW63216901.book Page 14 Monday, May 18, 2015 4:25 PM

15
1
Quick Reference Guide
AFTER A DRIVE
Filling fuel tank
Fill the fuel tank or tanks to the
maximum level with diesel of the
prescribed quality.
NOTE: When the vehicle is
equipped with a duel fuel
tank system, fill both fuel
tanks separately.
Filling AdBlue tank
When filling the AdBlue tank and there
is (a chance for) frost, fill it to maximum
75%.
Fill the AdBlue tank with AdBlue of the
prescribed quality.
Leaving the vehicle
Test the vehicle (combination) with the park brake handle.
Close both doors and press button (1)
for more than 2 seconds to initiate
comfort locking.
D005042
D005043
D005048
1
DW63216901.book Page 15 Monday, May 18, 2015 4:25 PM
