LF45/55 series Internal and external cab components
TECHNICAL DATA
1-1
1. INTERNAL AND EXTERNAL CAB COMPONENTS
1.1 GENERAL
Main dimensions and weights
KK1 01 170
L
H
K1 01 192
B

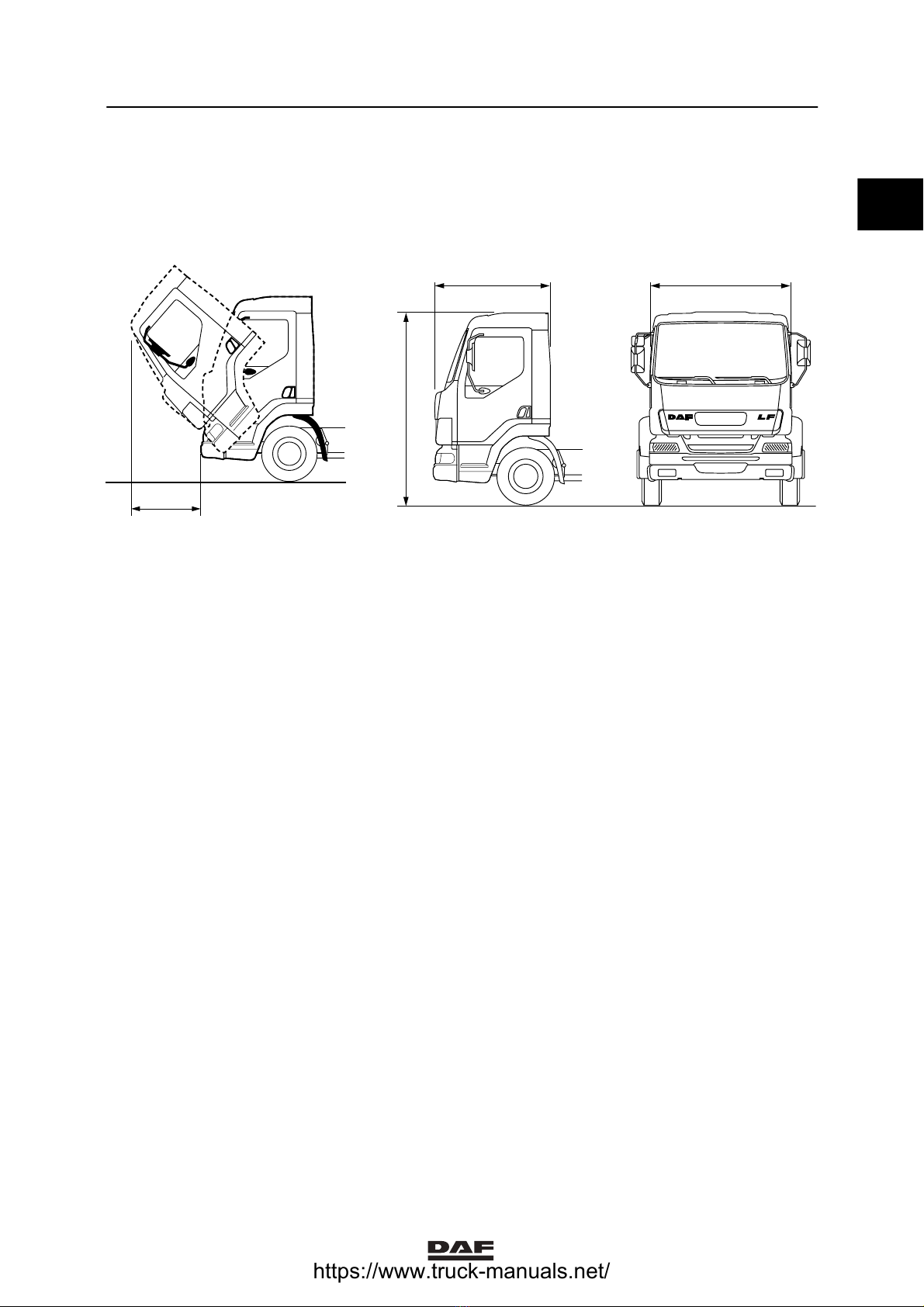

Cab dimensions in mm: Day cab Sleeper Cab
length (L) 1600 mm 2000 mm
width (B) 2130 mm 2130 mm
max. height (H) 2900 mm (1) 2900 mm (1)
tilting (K) 1105 mm (2) 1105 mm (2)
Cab weights:
Day cab 595 kg
Sleeper cab 750 kg
Notes:
(1) Height (H) dependent on version and tyre
size
(2) Dimension K measured from the front of
the bumper.
ǹ0210 https://www.truck-manuals.net/

1TECHNICAL DATA
Internal and external cab components LF45/55 series
1-2
Permissible cab weights: max.
Roof console evenly distributed 5 kg
Roof evenly distributed 150 kg
Weight on the bunk 125 kg
Cab side members
Welding on cab side members is NOT
permitted.
When repairing the cab side member, you must
use sheet-metal trimming panels.
These must be fitted by spot welding.
0
ǹ0210
https://www.truck-manuals.net/

0
1
LF45/55 series Internal and external cab components
TECHNICAL DATA
1-3
Straightening dimensions
AB
C
D
E
F
K1 01 209
Door opening dimensions
A - D 1283 mm
C - F 887 mm
B - E 1591 mm
ǹ0210 https://www.truck-manuals.net/

1TECHNICAL DATA
Internal and external cab components LF45/55 series
1-4
BC
A
FE
D
K1 01 208
Rear wall dimensions
A - D 2042 mm
B - C 1926 mm
B - E 2435 mm
C - F 2435 mm
0
ǹ0210
https://www.truck-manuals.net/

0
1
LF45/55 series Internal and external cab components
TECHNICAL DATA
1-5
M
N K
L
G
HBCE
J
I
ADF
K1 01 210
Cab front dimensions
A - B 836 mm
C - D 836 mm
E - F 836 mm
G - I 1973 mm
H - J 1973 mm
Front panel dimensions
N - L 1945 mm
K - M 1945 mm
ǹ0210 https://www.truck-manuals.net/

1TECHNICAL DATA
Internal and external cab components LF45/55 series
1-6
Field of vision dimensions
B3
B4
B2
B1
A1A3
D1
C1
C3C4
C2
A2
B5
B
A
C
D
K100237
Mirror size 1 size 2 size 3 size 4 size 5
Pavement mirror [A] 1m 1m 1.25 m
Wide-angle mirror [B] 2.5 m 15 m 12.5 m 25 m 3m
Main mirror on co-driver’s
side [C]
30 m 3.5 m 0.75 m 4m
Main mirror on driver’s
side [D]
10 m 2.5 m
0
ǹ0210
https://www.truck-manuals.net/

0
1
LF45/55 series Internal and external cab components
TECHNICAL DATA
1-7
Windscreens
Curing times for windscreen adhesive
Product name DAF number Vehicle mobile in
workshop after:
Cab can be tilted
after:
Vehicle usable
after:
Sikaflex 255 FC 1271129 6 hours 8hours 12 hours
Sika Tack Ultrafast 1241020 2 hours 4hours 6 hours
Sika Tack plus
booster
1357925 1hour 1 hour (1) 2 hours
Notes:
(1) If a vehicle is equipped with an airbag, the
curing time is 2 hours
A relative humidity of less than 50% delays
curing, as does a temperature lower than 20_C.
Products applied for bonded windscreens
Product name DAF number Properties Applications
Sikaflex 255 FC 1271129 Processing time
20 min.
Adhesive (cold process) for
bonding windscreens
Sika Tack UF 1241020 Processing time
10 min.
Adhesive (warm process) for
bonding windscreens
Sika Tack plus
booster
1357925 Processing time
10 min.
Adhesive (cold process) for
bonding windscreens
Sika Aktivator 1312362 Cleaning fluid for cleaning the glass
and the frame.
Sika remover
SR 208
1241019 Removal of adhesive which has not
yet hardened. Do not use on
surfaces to be bonded.
ǹ0210 https://www.truck-manuals.net/

1TECHNICAL DATA
Internal and external cab components LF45/55 series
1-8
1.2 TIGHTENING TORQUES
The tightening torques stated in this paragraph
are different from the standard tightening
torques stated in the overview of the standard
tightening torques. The other threaded
connections which are not stated must therefore
be tightened to the tightening torque stated in
the overview of standard tightening torques.
When attachment bolts and nuts are to be
replaced, it is important - unless stated
otherwise - that these bolts and nuts are of
exactly the same length and property class as
the removed ones.
Steering wheel
Steering wheel attachment bolt 50 ᐔ5Nm
Universal joint
Universal joint attachment bolt 56 ᐔ5.6 Nm(1)
Airbag
Airbag module attachment bolt 5 ᐔ1Nm
Contact unit attachment bolt 1.2 Nm
Electronic unit 10 ᐔ2Nm
Note:
(1) Always replace the attachment bolt and
nut.
0
ǹ0210
https://www.truck-manuals.net/

0
1
LF45/55 series Cab suspension
TECHNICAL DATA
2-1
2. CAB SUSPENSION
2.1 GENERAL
The day cab can be fitted with rubber spring
elements at the front. The version with rubber
spring elements at the front does not have a
stabiliser.
The coil spring elements are fitted with shock
absorbers.
The length of the spring elements and the cab
height cannot be adjusted.
On models equipped with coil spring elements at
the front, a difference in cab height can be
corrected to a certain extent using the stabiliser
bar.
At the rear, coil springs are used. The length of
the spring elements varies depending on
whether a day cab or a sleeper cab is involved.
Cab support, general
The distance between the cab
supports (A) measured from the
left side of the left support to the
left side of the right support is: 1000 mm
9
15
10
16 12
11
13
14
K1 00 575
ǹ0210 https://www.truck-manuals.net/

1TECHNICAL DATA
Cab suspension LF45/55 series
2-2

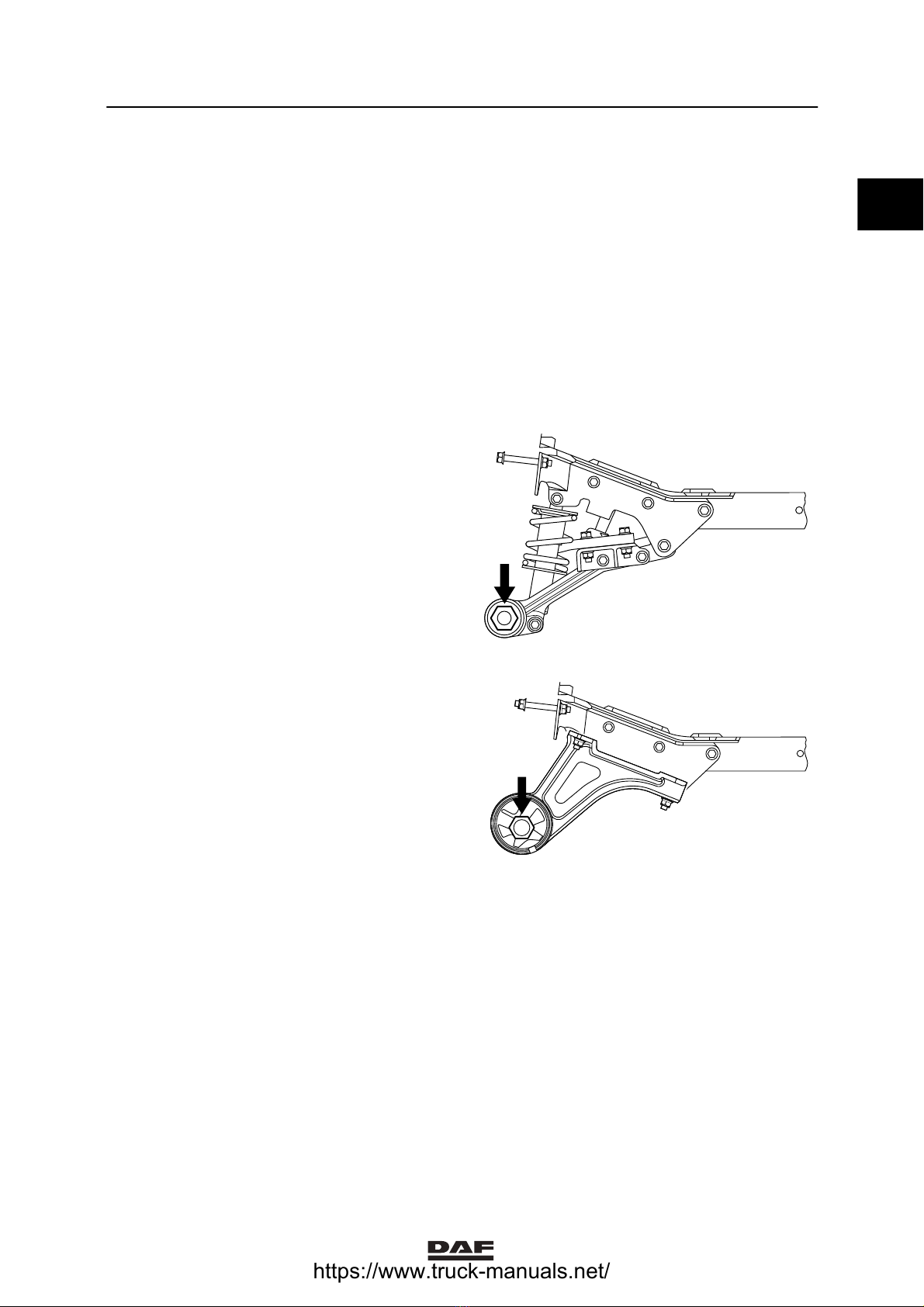

Cab support with silentblock
Silent block mounting angle (A) 67_-71_
A
K1 01 475
Cab support with coil spring suspension
Silent block mounting angle (A) 18_-22_
A
K1 01 442
0
ǹ0210
https://www.truck-manuals.net/

0
1
LF45/55 series Cab suspension
TECHNICAL DATA
2-3
2.2 TIGHTENING TORQUES
The tightening torques stated in this paragraph
are different from the standard tightening
torques stated in the overview of the standard
tightening torques. The other threaded
connections which are not stated must therefore
be tightened to the tightening torque stated in
the overview of standard tightening torques.
When attachment bolts and nuts are to be
replaced, it is important - unless stated
otherwise - that these bolts and nuts are of
exactly the same length and property class as
the removed ones.

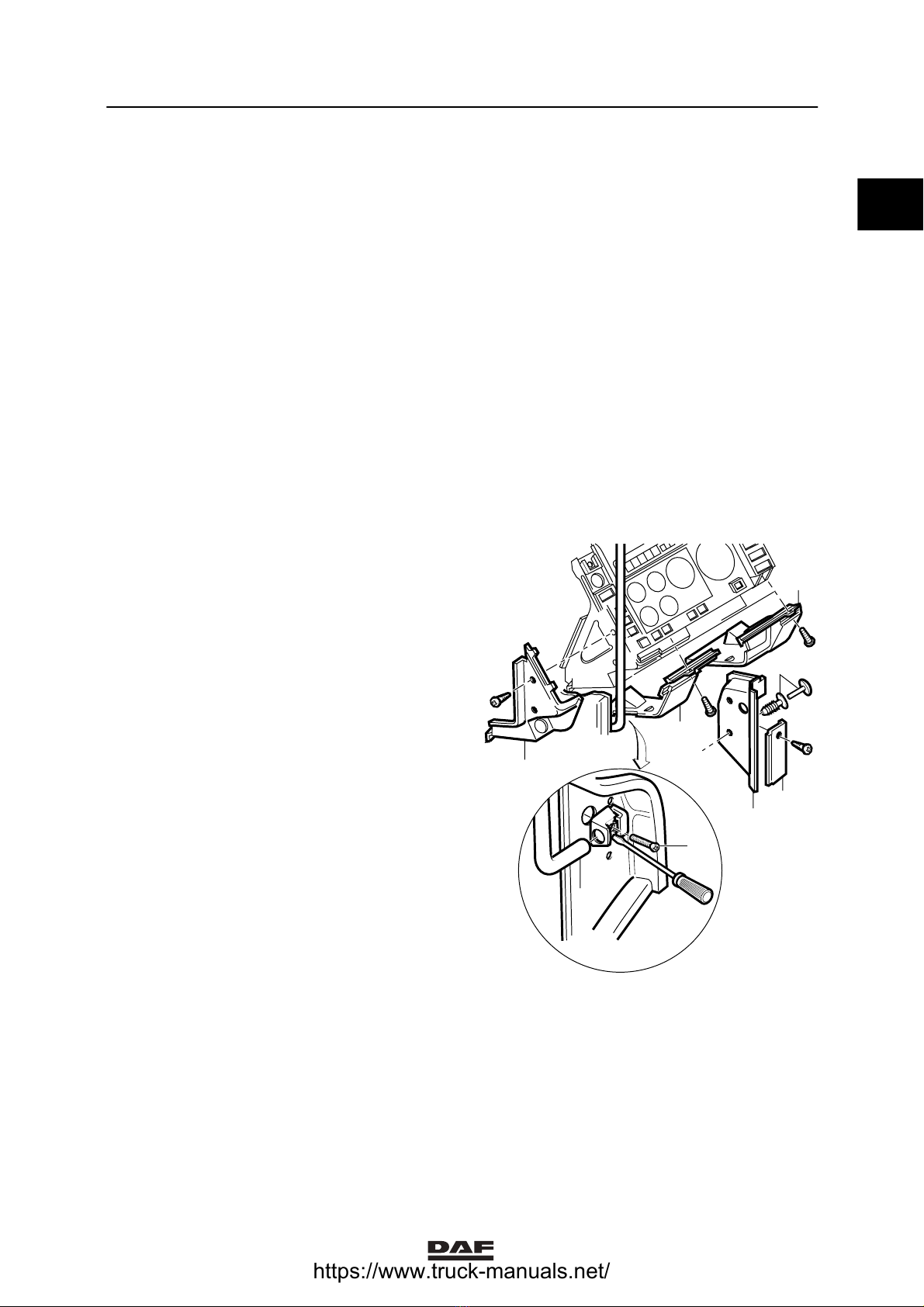

Attachment bolts for cab suspension
using coil springs
Cab suspension
attachment bolt
250 Nm + 150_
angular
displacement
K1 01 573
Attachment bolts for cab suspension
using rubber spring elements
Cab suspension
attachment bolt
250 Nm + 150_
angular
displacement
K1 01 574
1
ǹ0210 https://www.truck-manuals.net/

1TECHNICAL DATA
Cab suspension LF45/55 series
2-4
0
ǹ0210
https://www.truck-manuals.net/

0
1
LF45/55 series Cab tilting gear
TECHNICAL DATA
3-1
3. CAB TILTING GEAR
3.1 GENERAL
Lifting cylinder
Nominal pressure 250 bar
Cab tilting pump
Nominal pressure 250 bar
Pressure limiting valve 350 + 30 bar
3.2 FILLING CAPACITIES
Cab tilting pump
Effective oil capacity of the cab-tilting pump. 200 cm3
ǹ0210 https://www.truck-manuals.net/

1TECHNICAL DATA
Cab tilting gear LF45/55 series
3-2
0
ǹ0210
https://www.truck-manuals.net/

0
1
LF45/55 series Seats
TECHNICAL DATA
4-1
4. SEATS
4.1 GENERAL
Height control valve
Adjusting dimension X for height control valve 1 - 2 mm
4.2 TIGHTENING TORQUES
The tightening torques stated in this paragraph
are different from the standard tightening
torques stated in the overview of the standard
tightening torques. The other threaded
connections which are not stated must therefore
be tightened to the tightening torque stated in
the overview of standard tightening torques.
When attachment bolts and nuts are to be
replaced, it is important - unless stated
otherwise - that these bolts and nuts are of
exactly the same length and property class as
the removed ones.
M8 attachment bolt 22 Nm
M10 attachment bolt 22 Nm
Attachment bolt 7/16″UNF-2B 37 Nm
ǹ0210 https://www.truck-manuals.net/

1TECHNICAL DATA
Seats LF45/55 series
4-2
0
ǹ0210
https://www.truck-manuals.net/
