PREFACE
This Quick Reference Guide consists of sections which in short describe the systems,
controls and functions of the truck.
©201735 DAF Trucks N.V., Eindhoven, The Netherlands.
This text has been translated from the English source. Translation may lead to
interpretation differences regarding contents and meaning of the written text.
Therefore, in case of dispute, the English version of this document shall always be
considered the sole and authentic source for determining the contents and meaning of
the written text.
In the interest of continuing product development, DAF reserves the right to change
specifications or products at any time without prior notice.
The latest information about your truck can be found online as follows:
– Select your country on the DAF site: http://www.daf.com
– Click on 'DAF Euro 6 drivers manuals' under the heading 'The quick route to'.
– Enter the chassisnumber to download your drivers manual.
No part of this publication may be reproduced and/or published by printing, by
photocopying, on microfilm or in any way whatsoever without the prior written consent
of DAF Trucks N.V.
INTRODUCTION
This truck is equipped with advanced features for optimal performance and driver
satisfaction.
These features have been designed to help you, and when correctly used, they result
in improved fuel efficiency.
To benefit optimally from all these new features it is good to learn about these features,
right from the beginning.
Before you start using this truck, read this quick reference guide to help you to realise
the maximum benefit in the shortest time possible.
NOTE: Learn more in the driver's manual or see the videos and animations
on the DAF Trucks NV YouTube channel.
DW63299401.book Page 1 Monday, September 4, 2017 3:58 PM

2
LOGGING DATA
NOTE: IMPORTANT PRIVACY NOTICE: This vehicle may be equipped
with a Connected Truck Device or other Data Logger that is able to send and
log i.a. this truck’s VIN and technical data including location data. Please
refer to your driver’s manual for more information.
DW63299401.book Page 2 Monday, September 4, 2017 3:58 PM

3
1
Quick Reference Guide
BEFORE A DRIVE

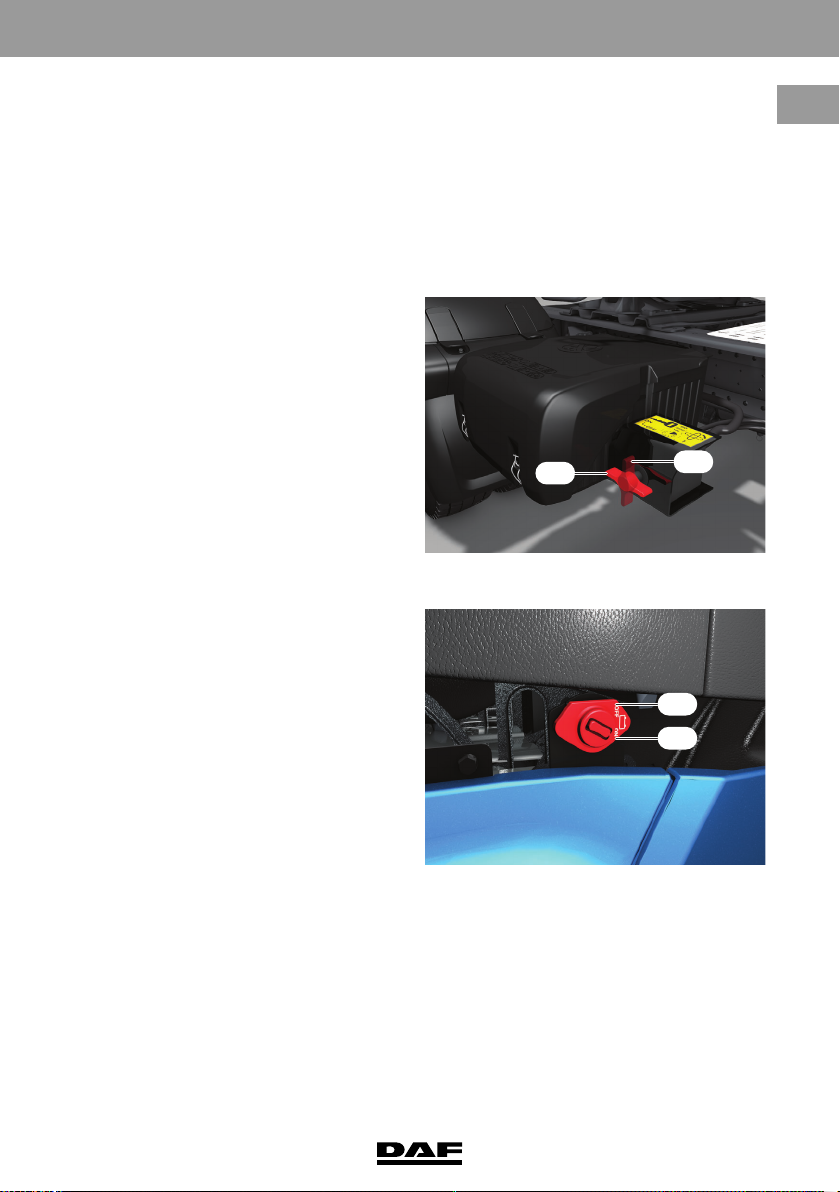

Main switch
Switch on the main switch to provide power to the vehicle´s systems.
First switch off the ignition and wait 80 seconds before switching off the main
switch. The after-run phase EAS (Emission Aftertreatment System) must have ended
before operating the main switch.
Mechanical main switch
Electronic main switch
D005166
ON
OFF
D005168
ON
OFF
DW63299401.book Page 3 Monday, September 4, 2017 3:58 PM

4
1
Quick Reference Guide
The electronic main switch also has a
switch (1) on the centre console in the
cabin.
Checks
Always perform the following checks before driving off:
– Possible leaks of vehicle systems (air, engine oil, coolant).
– Wheel attachment and tyre pressures.
– Air filter indicator (on the air filter).
– Windscreen washer fluid level (in the right-hand side door fender).
NOTE: Use the lever in the top section of the front panel to unlock the
front panel.
– Coolant level (behind the front panel).
– Fuel level.
– AdBlue level.
– Master display for system warnings.
– Engine oil level (on the master display).
NOTE: Topping up via the filler opening behind the front panel.
D005170
1
DW63299401.book Page 4 Monday, September 4, 2017 3:58 PM

5
1
Quick Reference Guide
Exterior light check
Press the exterior light check switch (1)
on the ignition key or remote control for
2 seconds.
Spoiler settings
To minimise fuel consumption, adjust
the roof spoiler as indicated.
D005171
1
D005173
1/2 X
X
DW63299401.book Page 5 Monday, September 4, 2017 3:58 PM

6
1
Quick Reference Guide
Air suspension height settings
Using the basic remote control
Switch the basic remote control on by
pressing the 'Stop key'.
Adjust or restore the chassis height of
the vehicle to the desired height or
driving height.
Switch the basic remote off by pressing
the 'Stop key'.
NOTE: Even with the basic remote switched off, the 'Stop key' remains
active.
Using the extended remote control
Adjust the front and/or rear axle of the
vehicle and/or the axles of the trailer to
the desired height and store the height.
(four 'pre-sets' possible, M1 till M4)
D005221
D005175
DW63299401.book Page 6 Monday, September 4, 2017 3:58 PM

7
1
Quick Reference Guide

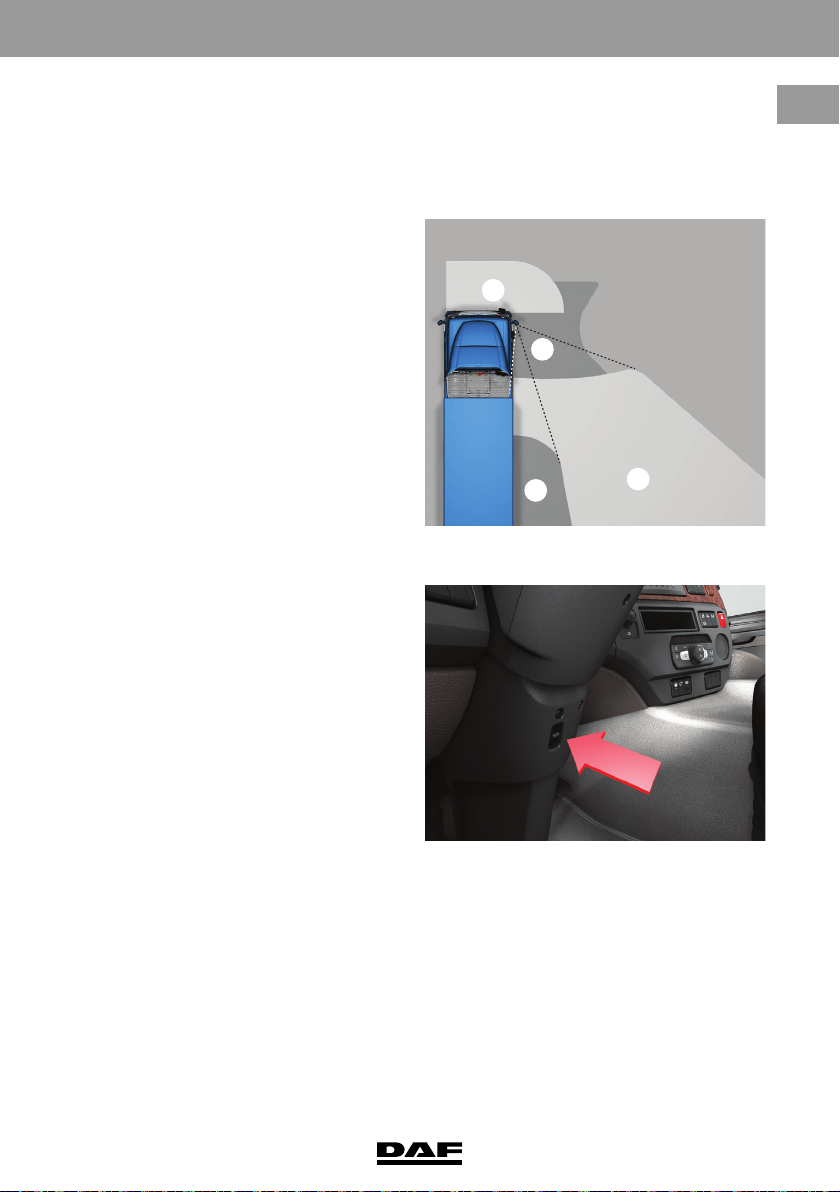

Mirror settings
Set the chair and safety belt to the desired position.
Adjust the mirrors at the driver side.
Adjust the mirrors at the co-driver side so the following areas are visible:
A Wide view mirror
B Main mirror
C Kerb mirror
D Front view mirror
Steering column settings
Unlock the steering column and adjust it
to the desired position.
D005177
D
B
C
A
D005179
DW63299401.book Page 7 Monday, September 4, 2017 3:58 PM

8
1
Quick Reference Guide

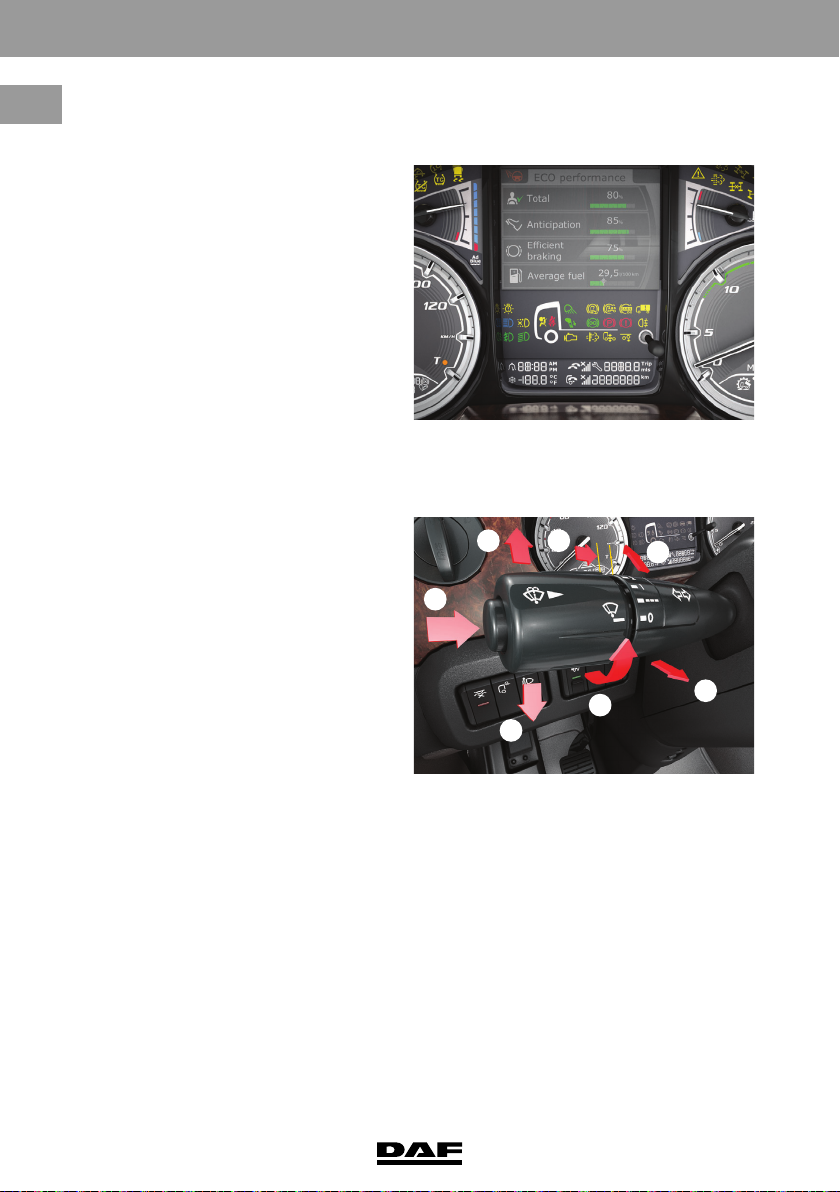

DRIVING CONTROLS

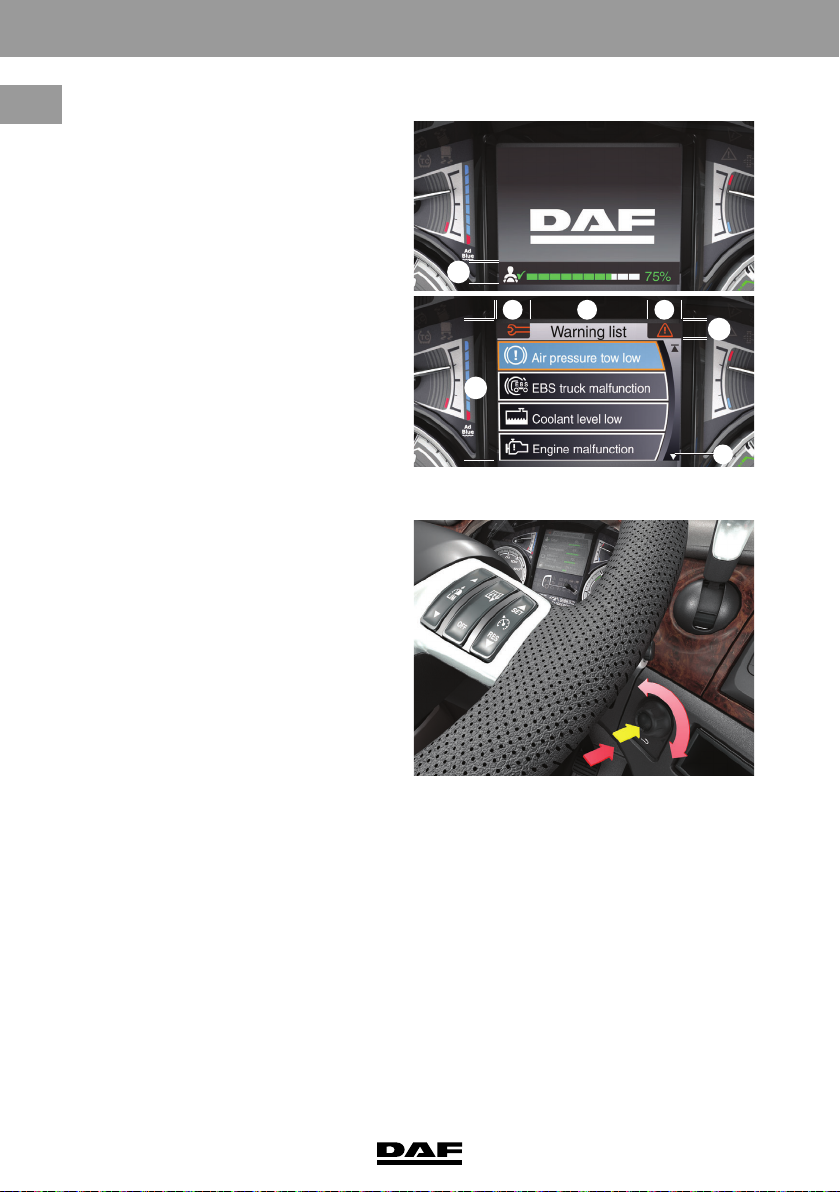

Master display
The master display informs you about
system warnings and/or vehicle
settings.
The colour indicates what the
information concerns:
– Red (danger).
– Yellow (warning).
– Blue (settings).
– Grey (information).
– Green (Driver Performance
Assistance).
Steering column controls
Left-hand steering column switch
1 Horn button.
2 Direction indicators, right.
3 Direction indicators, left.
4 Windscreen washers switch.
5 Windscreen wiper switch.
6 Main beam.
7 Headlight flash.
D005180
D005182
1
2
3
46
7
5
DW63299401.book Page 8 Monday, September 4, 2017 3:58 PM

9
1
Quick Reference Guide
Steering wheel switches (SWS)
1 Volume control for either
telephone or DAF audio.
2 Scroll function for either
telephone or DAF audio.
3 Pick-up call, end call or reject
telephone call.
4 Variable speed limiter or with the
vehicle at standstill Engine
Speed Control.
5 Advanced vehicle speed
settings (via menu on master
display) and all settings off.
6 Cruise control or with the vehicle
at standstill Engine Speed
Control.
NOTE: Activation of cruise control automatically engages Predictive Cruise
Control (PCC), Adaptive Cruise Control (ACC) and downhill speed control
(DSC).
Settings for the systems PCC, ACC and DSC are done using the advanced
vehicle speed settings menu. This menu can be entered using the top part
of steering wheel switch (5).
D005184-2
1456
23
DW63299401.book Page 9 Monday, September 4, 2017 3:58 PM

10
1
Quick Reference Guide

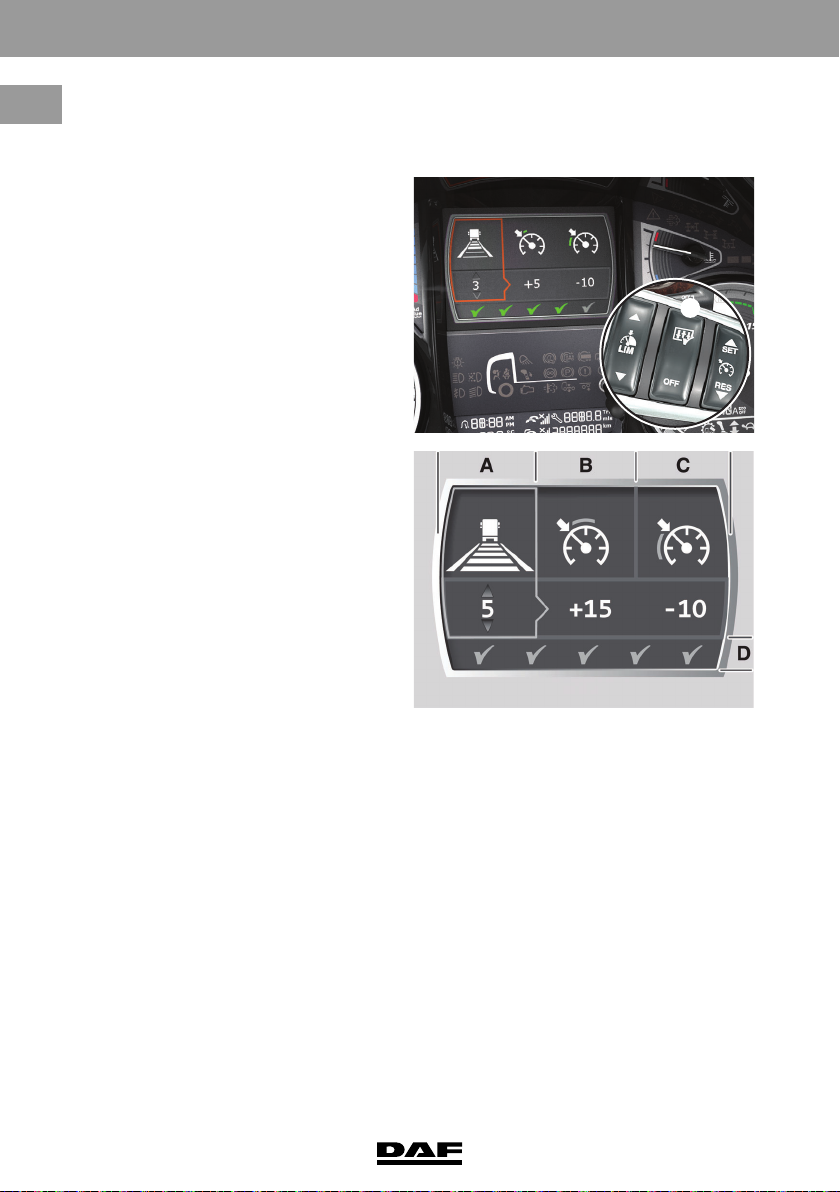

Advanced vehicle speed settings
Pressing the top part of steering wheel switch (1) opens the advanced vehicle settings
menu.
A ACC distance setting
B PCC and DSC overshoot (+
value) setting
C PCC undershoot (- value)
setting
D Fuel economy score
Setting A is preselected and by
pressing the top part of the middle
steering wheel switch (1) again, the
settings B and C can be selected
(toggle function).
With the advanced vehicle settings
menu opened both of the two other
switches can be used to change the
selected setting. When for a short delay
no changes are made, the advanced
vehicle speed menu is closed.
D005222
1
D005155-2
DW63299401.book Page 10 Monday, September 4, 2017 3:58 PM

11
1
Quick Reference Guide
Right-hand steering column switch
With manual gearbox
A Version with MX Engine Brake
(MEB) or retarder.
B Version with exhaust brake.
1 Eco Mode 'OFF'. If selected, an
icon is displayed in the
tachometer display.

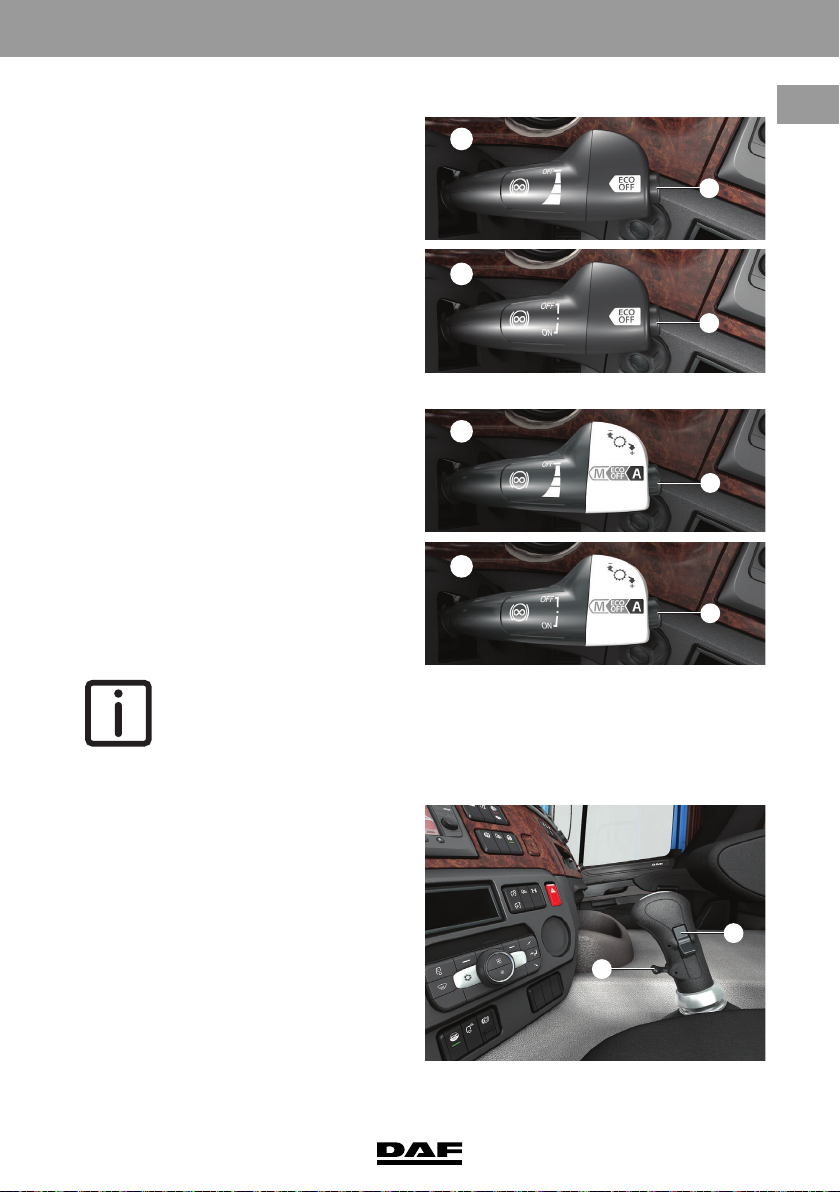

With TraXon gearbox
NOTE: Manual shifting using the right-hand steering column switch, is only
possible in the positions 'Eco Mode 'OFF'' or 'Manual'.
Manual gearbox
1 Changing half gears (splitting).
2 Pre-select the range (low and
high range).
D005187
A
B
1
1
D005189
A
B
1
1
D005191
1
2
DW63299401.book Page 11 Monday, September 4, 2017 3:58 PM

12
1
Quick Reference Guide

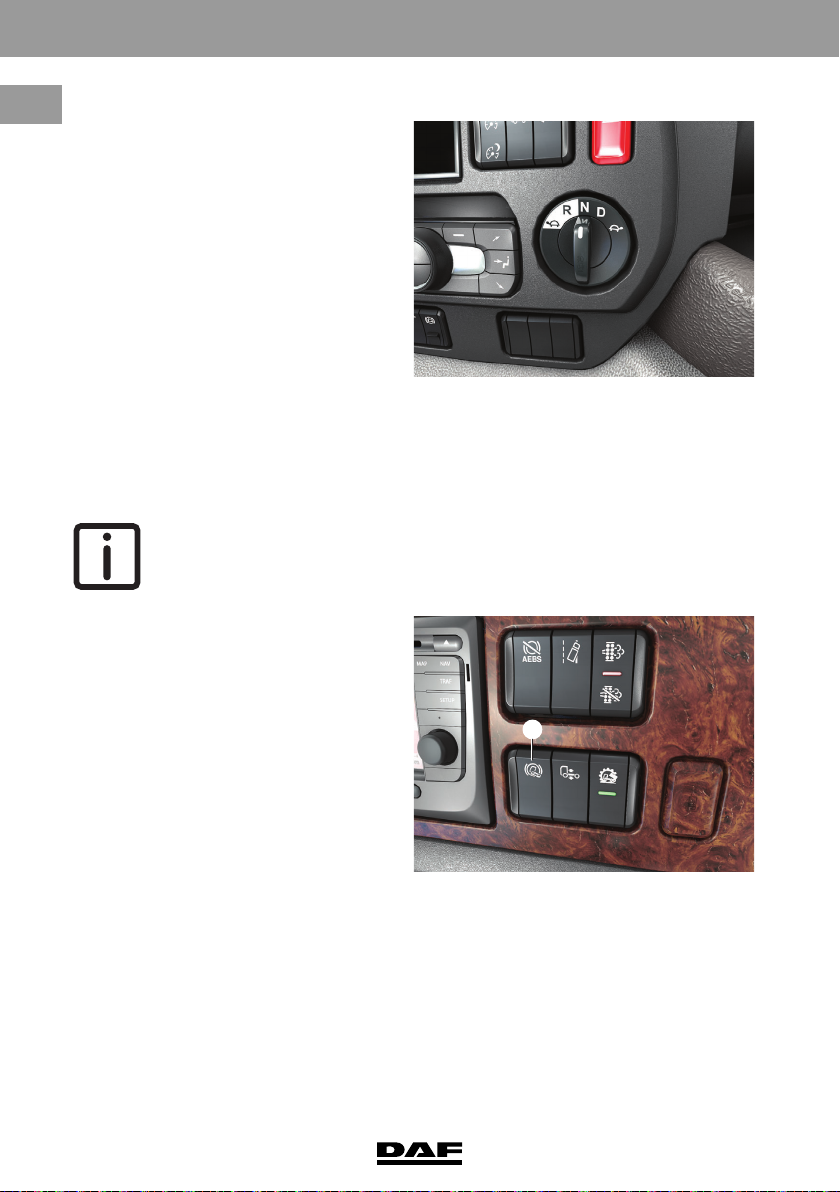

TraXon gearbox
D Drive mode.
N Neutral.
R Reverse mode (the TraXon has
four reverse gears, R1 to R4. )
When the reverse mode is selected, R1
is displayed on the tachometer display.
While at standstill R2 can be selected
using the right-hand stalk switch.
While reversing the TraXon gearbox will
not, automatically, shift to a different
reverse gear.
Shifting to a different reverse gear is
possible using the right-hand stalk
switch and at sufficient vehicle speed.
So if the vehicle speed is too low, the
TraXon does not shift from for example
R2 to R3.
NOTE: The positions with the tortoise symbol are for either the forward or
reverse manoeuvring mode.
In reverse manoeuvring mode only R1 can be selected.
With switch (1) the Hill Start Aid (HSA)
is switched on or off.
The HSA function can be used with an
TraXon gearbox to drive off at a hill
without using the park brake.

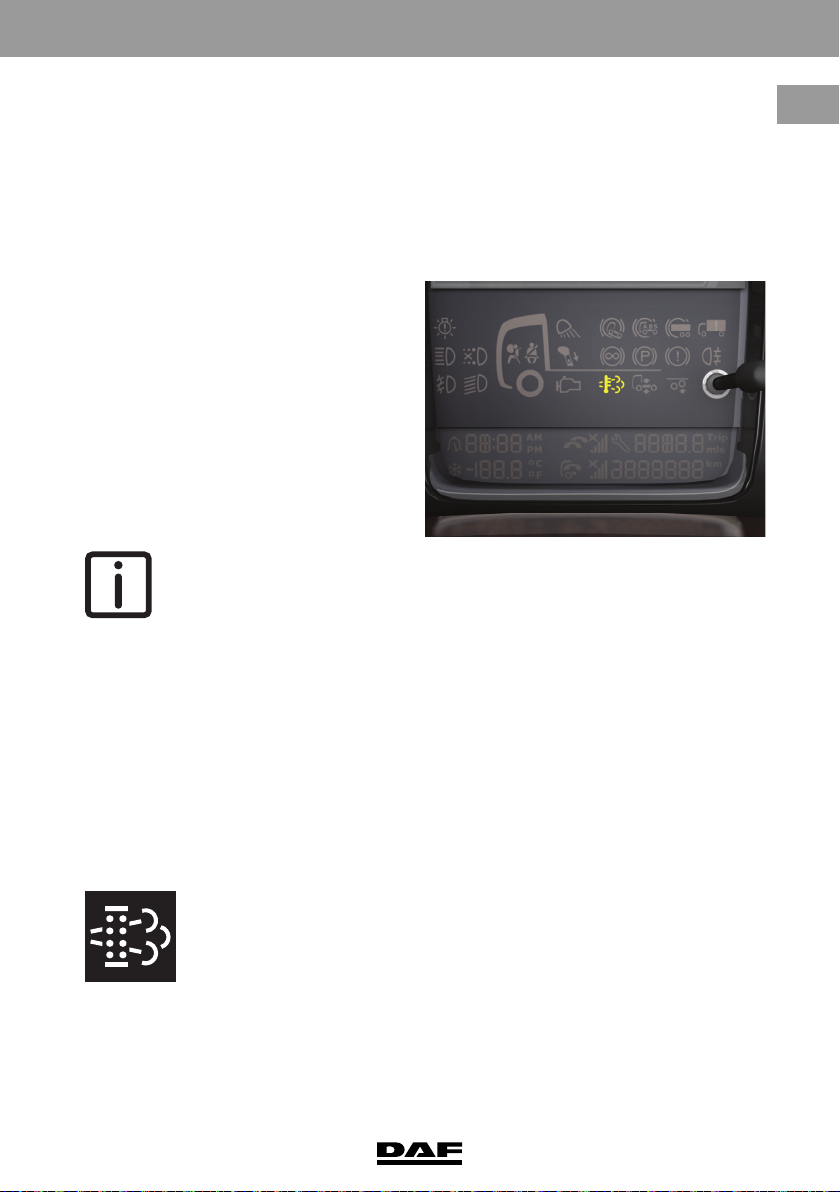

Regenerating DPF
The Emission Aftertreatment System (EAS) is equipped with a Diesel Particulate Filter
(DPF) which requires regular regeneration.
Normally regeneration is handled automatically by the vehicle without any driver
involvement.

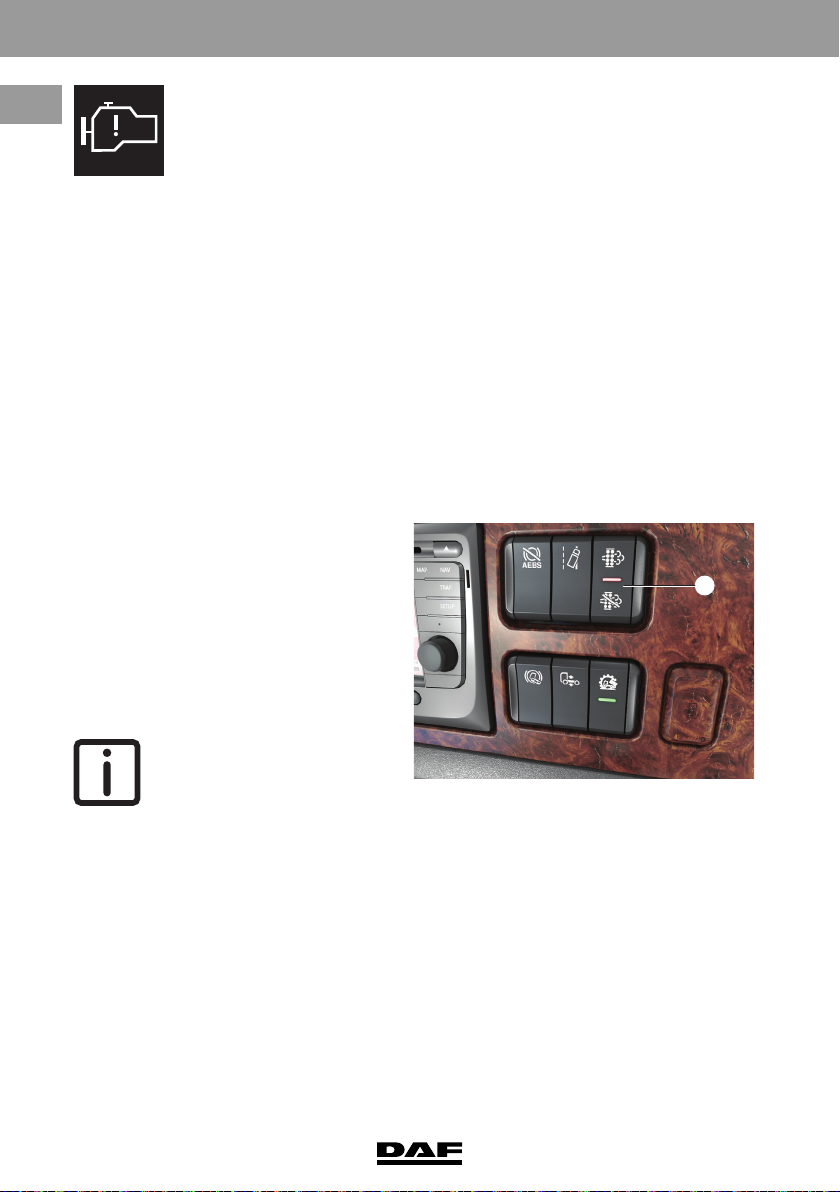

Familiarise yourself with the DPF switch, the three levels of regeneration, their
warnings and what action to take. Make sure that you have enough AdBlue for your
journey.
D005220
D005193
1
DW63299401.book Page 12 Monday, September 4, 2017 3:58 PM

13
1
Quick Reference Guide
There are three levels of regeneration:
Passive regeneration
Automatic regeneration of the DPF above a certain exhaust temperature. No
intervention required by the driver and no indication on the master display.
Active regeneration
Regeneration when driving, triggered by the engine management system (EMS). No
intervention by the driver required.
NOTE: When at low speed or with the vehicle stationary (during forced
stationary regeneration) the yellow coloured high exhaust system
temperature (HEST) is shown in the instrument panel. Take care that no
people, vehicles, animals or combustible materials are within 2 metres of the
exhaust outlet.
Forced stationary regeneration
When Passive and Active Regeneration is not sufficient the system will prompt that a
forced stationary regeneration is required.
A forced stationary regeneration is performed at stand-still and triggered by the driver.
To prevent the engine derating power, perform regeneration of the DPF as soon as
safely possible.
Four different levels of pop-up messages on the master display are possible to warn
you the DPF must be regenerated stationary.
1. Soot level high. Regeneration required (yellow).
An alternative to overcome this is to take a motorway route which will
clear the soot via passive regeneration.
When ignored, this warning will re-appear at the next key cycles.
2. Soot level too high. Start regeneration immediately (yellow).
Again, to overcome this is to take the motorway route.
D005194
DW63299401.book Page 13 Monday, September 4, 2017 3:58 PM

14
1
Quick Reference Guide
3. Soot level full. Regeneration required now (yellow).
The engine derates power and a forced stationary regeneration is
required as soon as safely possible.
4. Soot level full. Service required (red).
The engine derates power and an authorised DAF Service dealer must
service the vehicle.
It is no longer possible to perform a forced stationary regeneration.
Safety checks
Before starting a forced stationary regeneration, make sure that following safety checks
have been performed:
– The vehicle is parked outside with a minimum of 2 metres clear space around the
exhaust outlet.
– The park brake is applied.
– The engine is running at idle speed.
– The vehicle is NOT left unattended.
– The coolant temperature is above 65 degrees.
Performing forced stationary regeneration
When all safety checks have been met,
press the upper side of the DPF switch
(1) once to allow the engine
management system (EMS) to carry out
a self check. Follow the instructions on
the master display.
Press the upper side of the DPF switch
again to start the forced stationary
regeneration process.
NOTE: Prevent any
regeneration action by
switching to 'OFF' (press the
lower side of the DPF switch)
when working inside or when
entering a hazardous area.
D005196
1
DW63299401.book Page 14 Monday, September 4, 2017 3:58 PM

15
1
Quick Reference Guide
CONTROLS

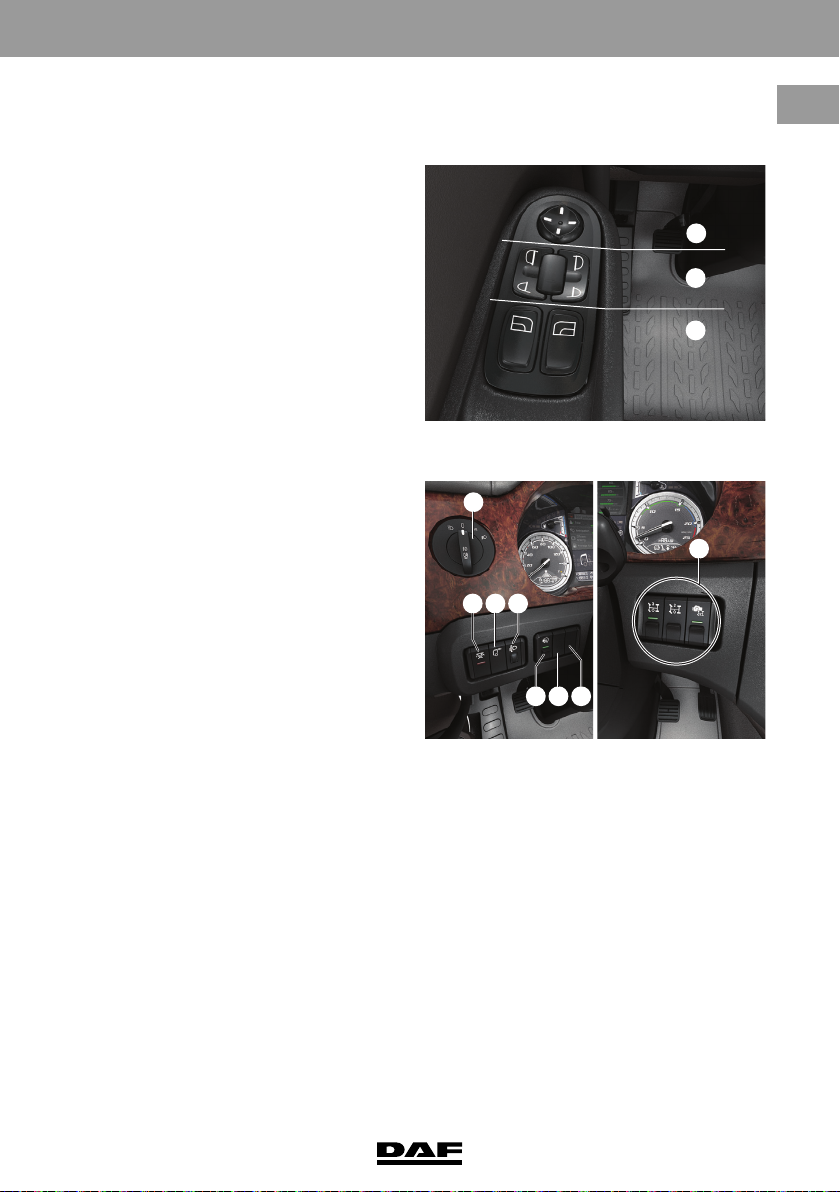

Mirror and window controls
1 Adjust mirror button.
2 Mirror selection and mirror
heater.
3 Window control left or right.
Dashboard
1 Light switch
– Spring-loaded position (left):
Switch off daytime running
lights.
– 0: Lights switched off.
– 1: Marker lights on.
– 2: Headlights and marker
lights on.
– Front fog lights: pull out one
step.
– Rear fog lights: pull out two
steps.
2 Interior lighting on/off switch
3 Tractor: Working light on the
cabin cross member.
Rigid: Light in the loading space.
4 Headlight height adjustment
(only in combination with
halogen headlights)
5 Tractor: Fifth wheel slider lock.
Rigid: Taillift.
6 Not used.
7 Not used.
8 PTO switches.
Move the lock upward to release
the switch.
D005198
1
2
3
D005200
1
8
2 3 4
765
DW63299401.book Page 15 Monday, September 4, 2017 3:58 PM

16
1
Quick Reference Guide
Master display
A Interactive and dialogue area.
B Indication bar.
C Driver Performance Assistant
(DPA) status bar.
1 Symbol of selected menu.
2 Menu title.
3 Warning indicators.
4 Scroll function available.
The on-board computer system can be
accessed using the master display.
The system is controlled using the
Menu Control Switch (MCS).
Turn the MCS to select and press to
enter a menu, function or setting.
Press the Enter key to go back one level
or press and hold to exit the menu fully.
D005201
C
A
B
1 2 3
4
D005203
DW63299401.book Page 16 Monday, September 4, 2017 3:58 PM

17
1
Quick Reference Guide
Menu overview
VEHICLE INFO – Air supply.
– Engine oil level.
– Soot filter information.
– Battery information.
– Tyre information.
NOTE: . TPI or TPM
(version dependent). TPI
measures the tyre condition
in relation to wheel speed.
TPM measures tyre
pressure and tyre
temperature.
– Axle load monitoring.
DRIVING SUPPORT – Economic driving.
– Adaptive Cruise Control (ACC).
– Drive time.
– Power Take Off (PTO).
– Cruise Control.
– Speed information.
SERVICE INFO – Warning list.
– Next service.
– Vehicle Identification Number (VIN).
– Total fuel consumption.
TELEPHONE – Truck phone.
– Bluetooth phone.
– Telephone volume.
SETTINGS – Alarm & clock.
– Speed control.
– Language.
–Units.
– Tachograph card settings.
– Dimmed instrument light settings.
TRIP INFO – Trip 1.
– Trip 2.
DW63299401.book Page 17 Monday, September 4, 2017 3:58 PM
