DAF LF Series User manual

ΛΦEmergency response guide

©201426 DW53293901
©201426 DAF Trucks N.V., Eindhoven,
The Netherlands.
In the interest of continuing product development,
DAF reserves the right to change specifications
or products at any time without prior notice.
No part of this publication may be reproduced
and/or published by printing, by photocopying, on
microfilm or in any way whatsoever without the
prior consent in writing of DAF Trucks N.V.

STRUCTURE
©201426
ΛΦseries
0
1
Structure
EMERGENCY RESPONSE GUIDE

©201426 1
Table of contents
EMERGENCY RESPONSE GUIDE
ΛΦ series
1
Emergency response guide
TABLE OF CONTENTS
Page Date
1. SECURING THE VEHICLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 . . . . . 201426
1.1 Switching off the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 . . . . . 201426
1.2 Main switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 . . . . . 201426
1.3 Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4 . . . . . 201426
1.4 Airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5 . . . . . 201426
1.5 Fluids . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7 . . . . . 201426
1.6 Regeneration unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9 . . . . . 201426
2. STABILISING THE VEHICLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 . . . . . 201426
2.1 Seat adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 . . . . . 201426
2.2 Air suspension chassis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2 . . . . . 201426
2.3 Cabin suspension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3 . . . . . 201426
3. RELEASING A TRAPPED DRIVER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 . . . . . 201426
3.1 Cabin types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 . . . . . 201426
3.2 Cabin dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2 . . . . . 201426
3.3 Opening the grille . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5 . . . . . 201426
3.4 Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6 . . . . . 201426
3.5 Door lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7 . . . . . 201426
3.6 Mechanical steering wheel adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8 . . . . . 201426
3.7 Steering wheel adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9 . . . . . 201426
4. TOWING INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1 . . . . . 201426
4.1 Removing the drive shaft . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1 . . . . . 201426
4.2 Releasing the parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2 . . . . . 201426
4.3 Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3 . . . . . 201426
5. LIFTING INFORMATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1 . . . . . 201426
5.1 Lifting at the front or back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1 . . . . . 201426
5.2 Jacking up mechanically sprung front axles . . . . . . . . . . . . . . . . . . . . . . . 5-2 . . . . . 201426
5.3 Jack up at the back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3 . . . . . 201426

2©201426
EMERGENCY RESPONSE GUIDE
Table of contents ΛΦ series
1

©201426 1-1
Securing the vehicle
EMERGENCY RESPONSE GUIDE
ΛΦ series
1
1. SECURING THE VEHICLE
1.1 SWITCHING OFF THE ENGINE
Ignition switch
If the ignition switch can be reached, an attempt
can be made to stop the engine by switching off
the ignition.
CO2
Another method is to blow CO2into the air inlet.
The engine no longer receives sufficient oxygen
so it stops.
The air inlet can be accessed behind the cabin.
First, lift the rubber gaiter and blow CO2into the
bottom half using a fire extinguisher.
G001281
CO
2

1-2 ©201426
EMERGENCY RESPONSE GUIDE
Securing the vehicle ΛΦ series
1
1.2 MAIN SWITCH
If the vehicle is equipped with a main switch, it is
either mechanically or electronically operated,
depending on the vehicle version.
The switch can be used to interrupt the power
supply from the batteries to the vehicle (except
for the tachograph).
Electronic main switch
The electronic main switch does not switch off at
once when it is operated; this happens with a 10-
second delay. This is to allow the after-running of
various electrical systems on the vehicle.

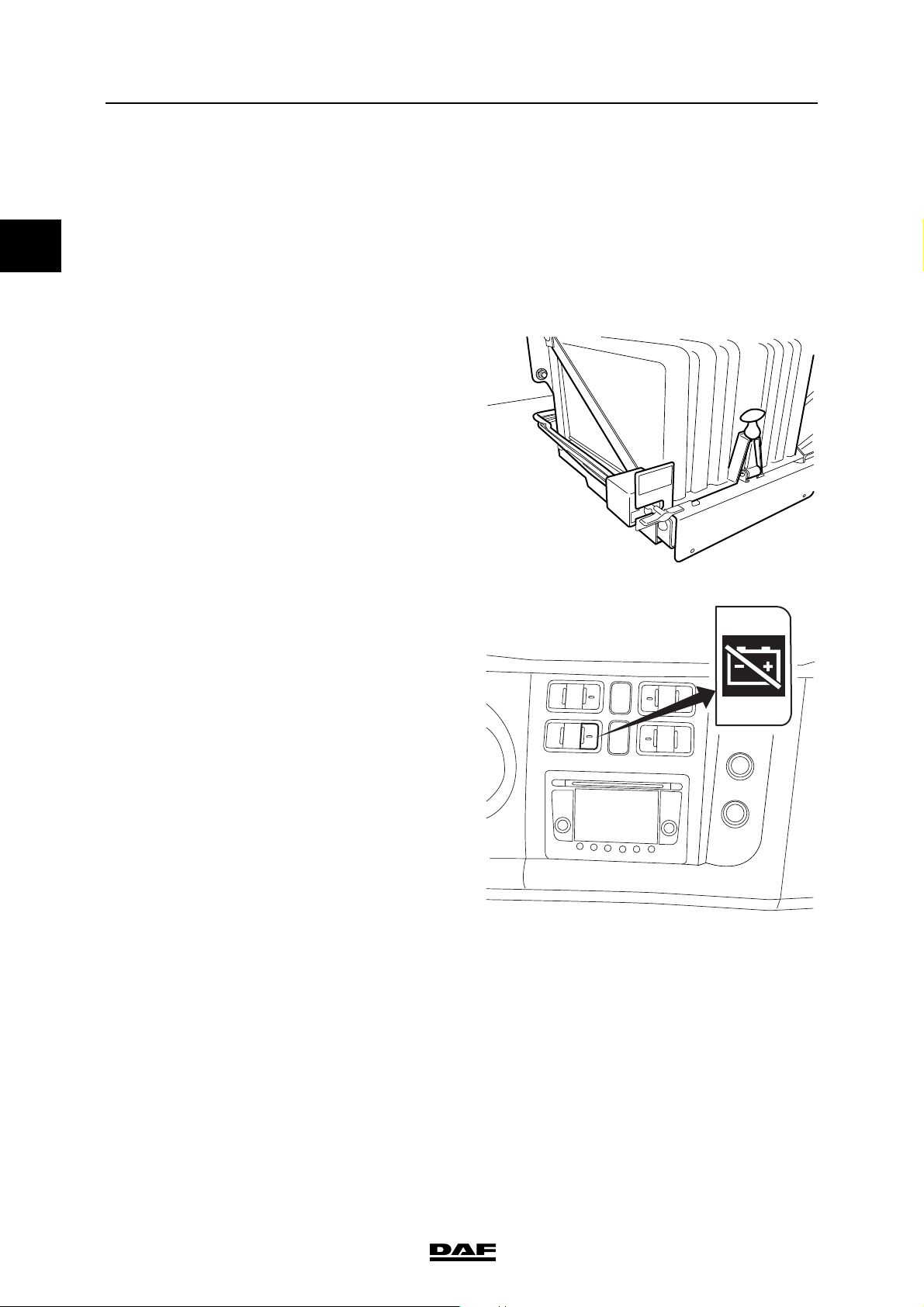

The electronic main switch (usually located close
to the battery pack).
If the vehicle is equipped with an electronic main
switch, there is also a switch on the centre
console in the cabin.
G002344
E505013

©201426 1-3
Securing the vehicle
EMERGENCY RESPONSE GUIDE
ΛΦ series
1
Mechanical main switch
Mechanically operated main switches only have a
switch outside the cabin.
G002345

1-4 ©201426
EMERGENCY RESPONSE GUIDE
Securing the vehicle ΛΦ series
1
1.3 BATTERIES
Location of the batteries
The batteries are located on the left- or right-hand
side of the chassis frame, or at the rear within the
chassis.
Disconnecting the batteries
1. Switch off the ignition.
2. Switch off all electrical consumers.
3. Remove the battery cover.
4. Disconnect the battery clamp from the
negative pole.
5. Disconnect the battery clamp from the
positive pole.
6. Hold the positive and negative cables
together to discharge any power that may be
stored in the capacitors.
7. Secure the cables; make sure that they
cannot come into contact with the terminals.

©201426 1-5
Securing the vehicle
EMERGENCY RESPONSE GUIDE
ΛΦ series
1
1.4 AIRBAG
WARNING! Airbag modules and
safety belt tensioners are
pyrotechnic systems and contain an
explosive charge.
Vehicles equipped with an airbag and safety belt
tensioner system can be identified by a sticker
with the airbag symbol on the windscreen.
In addition, there is an identification 'AIRBAG'
visible on the steering wheel. A vehicle equipped
with an airbag also has an automatic safety belt
tensioner.
SET
G001309

1-6 ©201426
EMERGENCY RESPONSE GUIDE
Securing the vehicle ΛΦ series
1
The automatic safety belt tensioner is fitted on the
rear side of the driver's and co-driver's seat.
Safety instructions
- Do not place any objects near undeployed
airbags
- Before any work is carried out on an airbag
system:
1. the ignition must be switched off.
2. the main switch must be turned off.
3. the battery clamp must be removed from
the negative pole.
4. wait at least 30 seconds.
- Never disconnect an electrical connector in
the airbag or safety belt tensioner circuits if
the electronic control unit is energised.
G001312
1

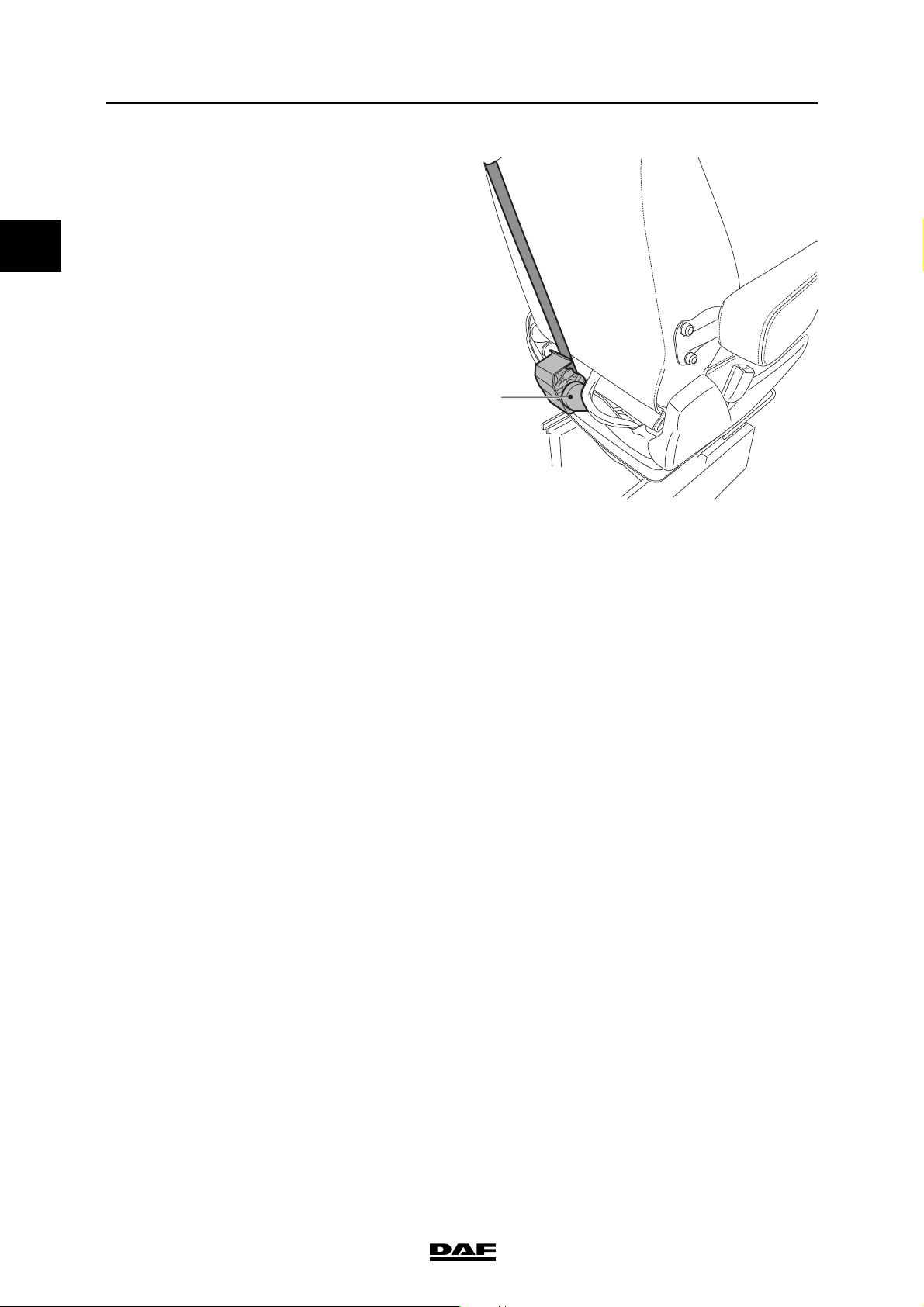

1 Safety belt tensioner

©201426 1-7
Securing the vehicle
EMERGENCY RESPONSE GUIDE
ΛΦ series
1
1.5 FLUIDS
The capacities and position of the tanks depend
on the vehicle type.
AdBlue
AdBlue is a non-flammable, non-toxic, colourless,
odourless and water-soluble liquid.
AdBlue is a liquid consisting of 32.5% urea and
67.5% water.
AdBlue must meet the specifications according to
DIN 70070.
High temperatures
If AdBlue is heated in the tank to 50°C over a long
period of time, the decomposing AdBlue can
produce ammonia vapours. Ammonia vapours
have a pungent odour. For this reason, avoid
inhaling possible ammonia vapours escaping
when unscrewing the AdBlue filler cap. These
concentrations of ammonia vapours are neither
toxic nor hazardous to health.
Low temperatures
AdBlue freezes at temperatures of approximately
-11°C.
12 4
5
K104001
3
6

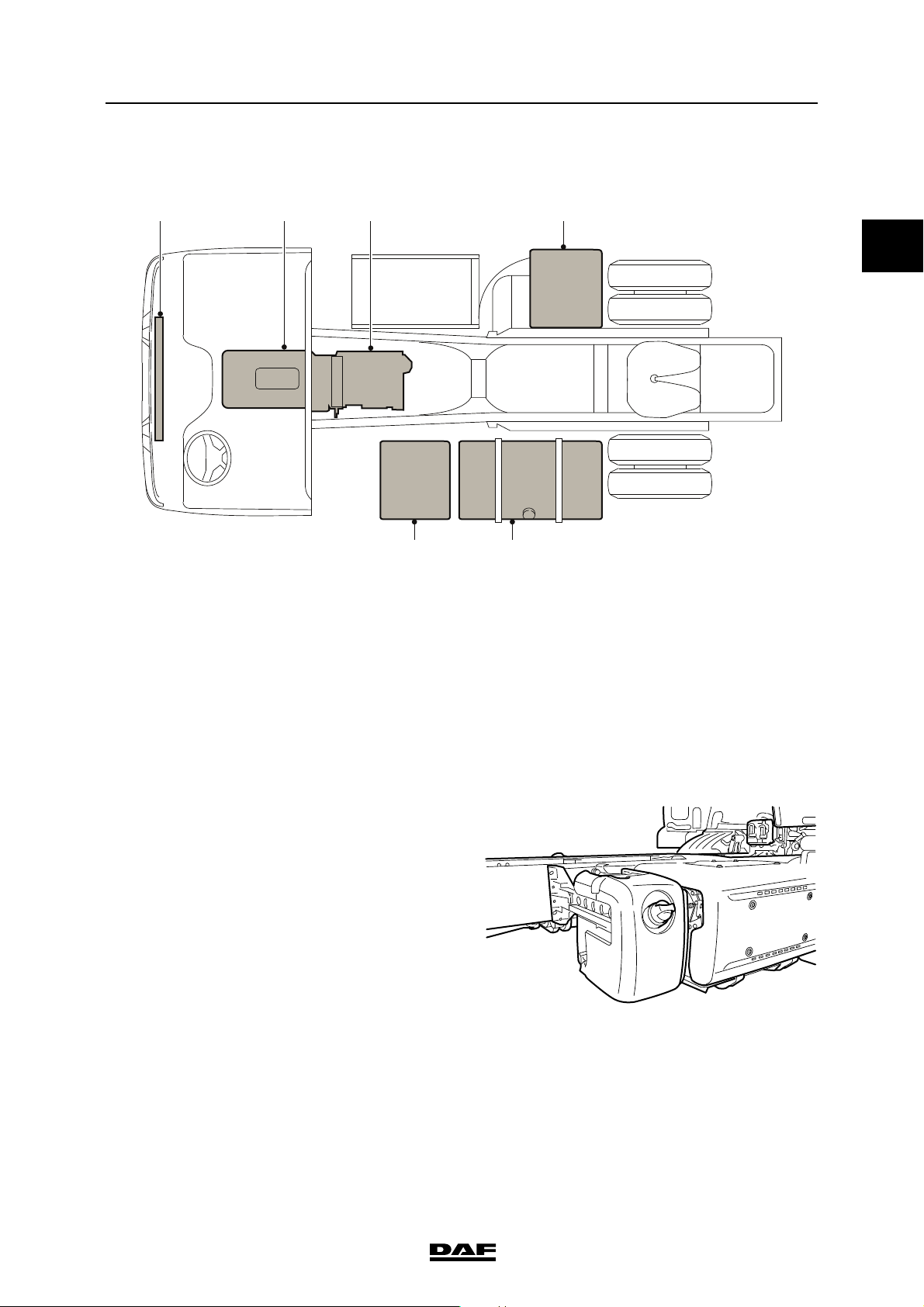

1 Coolant: 48 litres
2 Engine oil: 17- 23.5 litres
3 Gearbox oil: 14 litres
4 AdBlue: 25 or 50 litres
5 Fuel: up to 430 litres
6 Battery acid
i403576

1-8 ©201426
EMERGENCY RESPONSE GUIDE
Securing the vehicle ΛΦ series
1
WARNING!
AdBlue safety instructions
- Avoid direct contact.
- In the event of contact with the
skin, rinse with plenty of water.
- In the event of contact with the
eyes, rinse for at least 15
minutes with plenty of water and
seek medical assistance.
- If swallowed, rinse mouth with
plenty of water; do not induce
vomiting.
- Use in a ventilated area.
Procedure after spillage
- Rinse with plenty of water.

©201426 1-9
Securing the vehicle
EMERGENCY RESPONSE GUIDE
ΛΦ series
1
1.6 REGENERATION UNIT
During regeneration the exhaust gases, the
surroundings of the regeneration unit and the
catwalk can reach high temperatures that can
potentially harm bystanders or the surrounding
area.
WARNING! There is a risk of fire or
other hazardous situation if the
temperature can ignite flammable
materials.
Switch off the regeneration unit
Set the switch in the OFF position to stop or
inhibit regeneration.
G001936
G002346

1-10 ©201426
EMERGENCY RESPONSE GUIDE
Securing the vehicle ΛΦ series
1

©201426 2-1
Stabilising the vehicle
EMERGENCY RESPONSE GUIDE
ΛΦ series
1
2. STABILISING THE VEHICLE
2.1 SEAT ADJUSTMENT
NOTE: Before removing the seat, be
aware of the safety instructions if the
vehicle is equipped with an airbag and
therefore an automatic safety belt
tensioner.
NOTE: The seat can be adjusted if the
vehicle air pressure is at least 7 bar.
Seat settings
3
2
1
12 11 10 9 8 7 6
5
4
1 Seat length adjustment.
2 Seat cushion length adjustment.
3 Armrest (optional).
4 Backrest angle adjustment.
5 Seat cushion heating (only on driver seat
version).
6 Upper lumbar support adjustment (only
on comfort seat).
7 Lower lumbar support adjustment (only
on comfort seat).
8 Lateral support adjustment (only on
comfort seat).
9 Vertical seat damper.
10 Seat height adjustment.
11 Seat tilt adjustment
12 Quick down.
10. Seat height adjustment
11. Seat tilt adjustment
12. Quick down
Knob down (seat in driving posi-
tion): the seat drops to its lowest
position.
Knob up (with lowered seat): the
seat rises to the last height adjust-
ment.

2-2 ©201426
EMERGENCY RESPONSE GUIDE
Stabilising the vehicle ΛΦ series
1
2.2 AIR SUSPENSION CHASSIS
General
On vehicles equipped with air suspension, a
remote control unit is used to operate the vehicle
height.
The remote control unit is located against the
console of the driver's seat.
NOTE: This control unit can only be
operated when the ignition is switched
on.
NOTE: Unless stated otherwise, the
keys need only be pressed once briefly.
Remote control A
M1 M2
STOP
C900268
rear of truck selected
automatic setting of normal driving
height
lifting of chassis to pre-set height
as M1, but for a different chassis
height
lifting of selected chassis ends
when the key is released
lowering of selected chassis ends
when the key is released
all adjustments are stopped
