Daikin VRV 5 BS4A14AJV1B User manual

Installer and user reference guide
VRV 5 branch selector unit
BS4A14AJV1B
BS6A14AJV1B
BS8A14AJV1B
BS10A14AJV1B
BS12A14AJV1B

1 | About this document
Installer and user reference guide
2
BS4~12A14AJV1B
VRV 5 branch selector unit
4P695527-1 – 2022.02
1 About this document
WARNING
Make sure installation, servicing, maintenance, repair and applied materials follow
the instructions from Daikin and, in addition, comply with applicable legislation and
are performed by qualified persons only. In Europe and areas where IEC standards
apply, EN/IEC 60335-2-40 is the applicable standard.
Target audience
Authorised installers + end users
INFORMATION
This appliance is intended to be used by expert or trained users in shops, in light
industry and on farms, or for commercial use by lay persons.
Documentation set
This document is part of a documentation set. The complete set consists of:
▪General safety precautions:
-Safety instructions that you must read before installing
-Format: Paper (in the box of the BS unit)
▪BS unit installation and operation manual:
-Installation and operation instructions
-Format: Paper (in the box of the BS unit)
▪Installer and user reference guide:
-Preparation of the installation, reference data,…
-Detailed step-by-step instructions and background information for basic and
advanced usage
-Format: Digital files on https://www.daikin.eu. Use the search function to
find your model.
Latest revisions of the supplied documentation may be available on the regional
Daikin website or via your dealer.
The original documentation is written in English. All other languages are
translations.
Technical engineering data
▪A subset of the latest technical data is available on the regional Daikin website
(publicly accessible).
▪The full set of latest technical data is available on the Daikin Business Portal
(authentication required).
1.1 Meaning of warnings and symbols
DANGER
Indicates a situation that results in death or serious injury.

1 | About this document
Installer and user reference guide
3
BS4~12A14AJV1B
VRV 5 branch selector unit
4P695527-1 – 2022.02
DANGER: RISK OF ELECTROCUTION
Indicates a situation that could result in electrocution.
DANGER: RISK OF BURNING/SCALDING
Indicates a situation that could result in burning/scalding because of extreme hot or
cold temperatures.
DANGER: RISK OF EXPLOSION
Indicates a situation that could result in explosion.
WARNING
Indicates a situation that could result in death or serious injury.
WARNING: FLAMMABLE MATERIAL
CAUTION
Indicates a situation that could result in minor or moderate injury.
NOTICE
Indicates a situation that could result in equipment or property damage.
INFORMATION
Indicates useful tips or additional information.
Symbols used on the unit:
Symbol Explanation
Before installation, read the installation and operation
manual, and the wiring instruction sheet.
Before performing maintenance and service tasks, read the
service manual.
For more information, see the installer and user reference
guide.
The unit contains rotating parts. Be careful when servicing or
inspecting the unit.
Symbols used in the documentation:
Symbol Explanation
Indicates a figure title or a reference to it.
Example: " 1–3 Figure title" means "Figure 3 in chapter 1".
Indicates a table title or a reference to it.
Example: " 1–3 Table title" means "Table 3 in chapter 1".

2 | General safety precautions
Installer and user reference guide
4
BS4~12A14AJV1B
VRV 5 branch selector unit
4P695527-1 – 2022.02
2 General safety precautions
In this chapter
2.1 For the installer....................................................................................................................................................................... 4
2.1.1 General ................................................................................................................................................................... 4
2.1.2 Installation site ....................................................................................................................................................... 5
2.1.3 Refrigerant — in case of R410A or R32 ................................................................................................................. 5
2.1.4 Electrical ................................................................................................................................................................. 7
2.1 For the installer
2.1.1 General
DANGER: RISK OF BURNING/SCALDING
▪Do NOT touch the refrigerant piping, water piping or internal parts during and
immediately after operation. It could be too hot or too cold. Give it time to return
to normal temperature. If you MUST touch it, wear protective gloves.
▪Do NOT touch any accidental leaking refrigerant.
WARNING
Improper installation or attachment of equipment or accessories could result in
electrical shock, short-circuit, leaks, fire or other damage to the equipment. ONLY
use accessories, optional equipment and spare parts made or approved by Daikin.
WARNING
Make sure installation, testing and applied materials comply with applicable
legislation (on top of the instructions described in the Daikin documentation).
WARNING
Tear apart and throw away plastic packaging bags so that nobody, especially
children, can play with them. Possible risk: suffocation.
WARNING
Provide adequate measures to prevent that the unit can be used as a shelter by small
animals. Small animals that make contact with electrical parts can cause
malfunctions, smoke or fire.
CAUTION
Wear adequate personal protective equipment (protective gloves, safety glasses,…)
when installing, maintaining or servicing the system.
CAUTION
Do NOT touch the air inlet or aluminium fins of the unit.
CAUTION
▪Do NOT place any objects or equipment on top of the unit.
▪Do NOT sit, climb or stand on the unit.

2 | General safety precautions
Installer and user reference guide
5
BS4~12A14AJV1B
VRV 5 branch selector unit
4P695527-1 – 2022.02
If you are NOT sure how to install or operate the unit, contact your dealer.
In accordance with the applicable legislation, it might be necessary to provide a
logbook with the product containing at least: information on maintenance, repair
work, results of tests, stand-by periods,…
Also, at least, following information MUST be provided at an accessible place at the
product:
▪Instructions for shutting down the system in case of an emergency
▪Name and address of fire department, police and hospital
▪Name, address and day and night telephone numbers for obtaining service
In Europe, EN378 provides the necessary guidance for this logbook.
2.1.2 Installation site
▪Provide sufficient space around the unit for servicing and air circulation.
▪Make sure the installation site withstands the weight and vibration of the unit.
▪Make sure the area is well ventilated. Do NOT block any ventilation openings.
▪Make sure the unit is level.
Do NOT install the unit in the following places:
▪In potentially explosive atmospheres.
▪In places where there is machinery that emits electromagnetic waves.
Electromagnetic waves may disturb the control system, and cause malfunction of
the equipment.
▪In places where there is a risk of fire due to the leakage of flammable gases
(example: thinner or gasoline), carbon fibre, ignitable dust.
▪In places where corrosive gas (example: sulphurous acid gas) is produced.
Corrosion of copper pipes or soldered parts may cause the refrigerant to leak.
2.1.3 Refrigerant — in case of R410A or R32
If applicable. See the installation manual or installer reference guide of your
application for more information.
DANGER: RISK OF EXPLOSION
Pump down – Refrigerant leakage. If you want to pump down the system, and there
is a leak in the refrigerant circuit:
▪Do NOT use the unit's automatic pump down function, with which you can collect
all refrigerant from the system into the outdoor unit. Possible consequence: Self-
combustion and explosion of the compressor because of air going into the
operating compressor.
▪Use a separate recovery system so that the unit's compressor does NOT have to
operate.
WARNING
During tests, NEVER pressurise the product with a pressure higher than the
maximum allowable pressure (as indicated on the nameplate of the unit).

2 | General safety precautions
Installer and user reference guide
6
BS4~12A14AJV1B
VRV 5 branch selector unit
4P695527-1 – 2022.02
WARNING
Take sufficient precautions in case of refrigerant leakage. If refrigerant gas leaks,
ventilate the area immediately. Possible risks:
▪Excessive refrigerant concentrations in a closed room can lead to oxygen
deficiency.
▪Toxic gas might be produced if refrigerant gas comes into contact with fire.
WARNING
ALWAYS recover the refrigerant. Do NOT release them directly into the environment.
Use a vacuum pump to evacuate the installation.
WARNING
Make sure there is no oxygen in the system. Refrigerant may ONLY be charged after
performing the leak test and the vacuum drying.
Possible consequence: Self-combustion and explosion of the compressor because of
oxygen going into the operating compressor.
NOTICE
▪To avoid compressor breakdown, do NOT charge more than the specified amount
of refrigerant.
▪When the refrigerant system is to be opened, refrigerant MUST be treated
according to the applicable legislation.
NOTICE
Make sure refrigerant piping installation complies with applicable legislation. In
Europe, EN378 is the applicable standard.
NOTICE
Make sure the field piping and connections are NOT subjected to stress.
NOTICE
After all the piping has been connected, make sure there is no gas leak. Use nitrogen
to perform a gas leak detection.
▪In case recharge is required, see the nameplate of the unit. It states the type of
refrigerant and necessary amount.
▪The unit is factory charged with refrigerant and depending on pipe sizes and pipe
lengths some systems require additional charging of refrigerant.
▪ONLY use tools exclusively for the refrigerant type used in the system, this to
ensure pressure resistance and prevent foreign materials from entering into the
system.

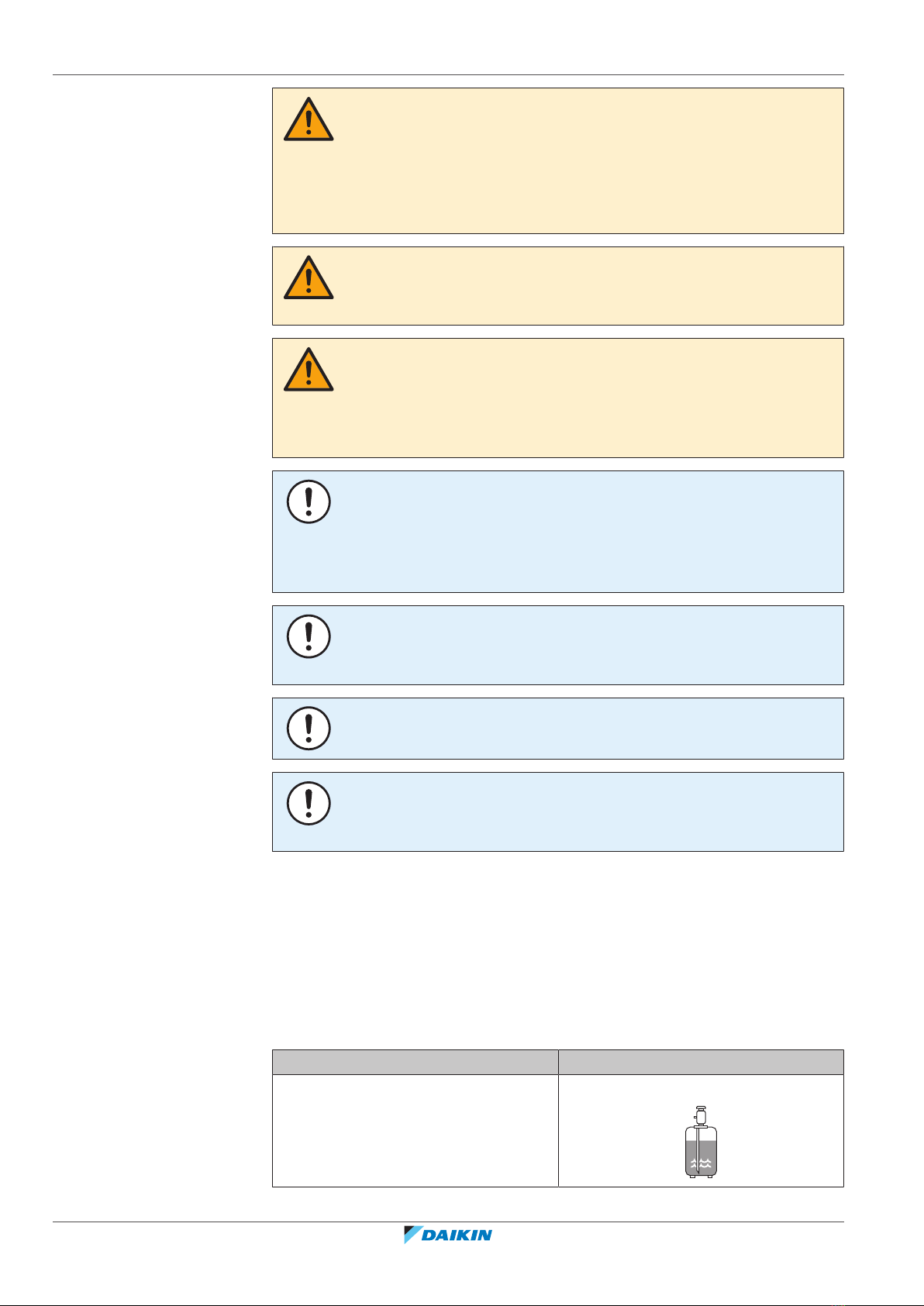

▪Charge the liquid refrigerant as follows:
If Then
A siphon tube is present
(i.e., the cylinder is marked with "Liquid
filling siphon attached")
Charge with the cylinder upright.

2 | General safety precautions
Installer and user reference guide
7
BS4~12A14AJV1B
VRV 5 branch selector unit
4P695527-1 – 2022.02

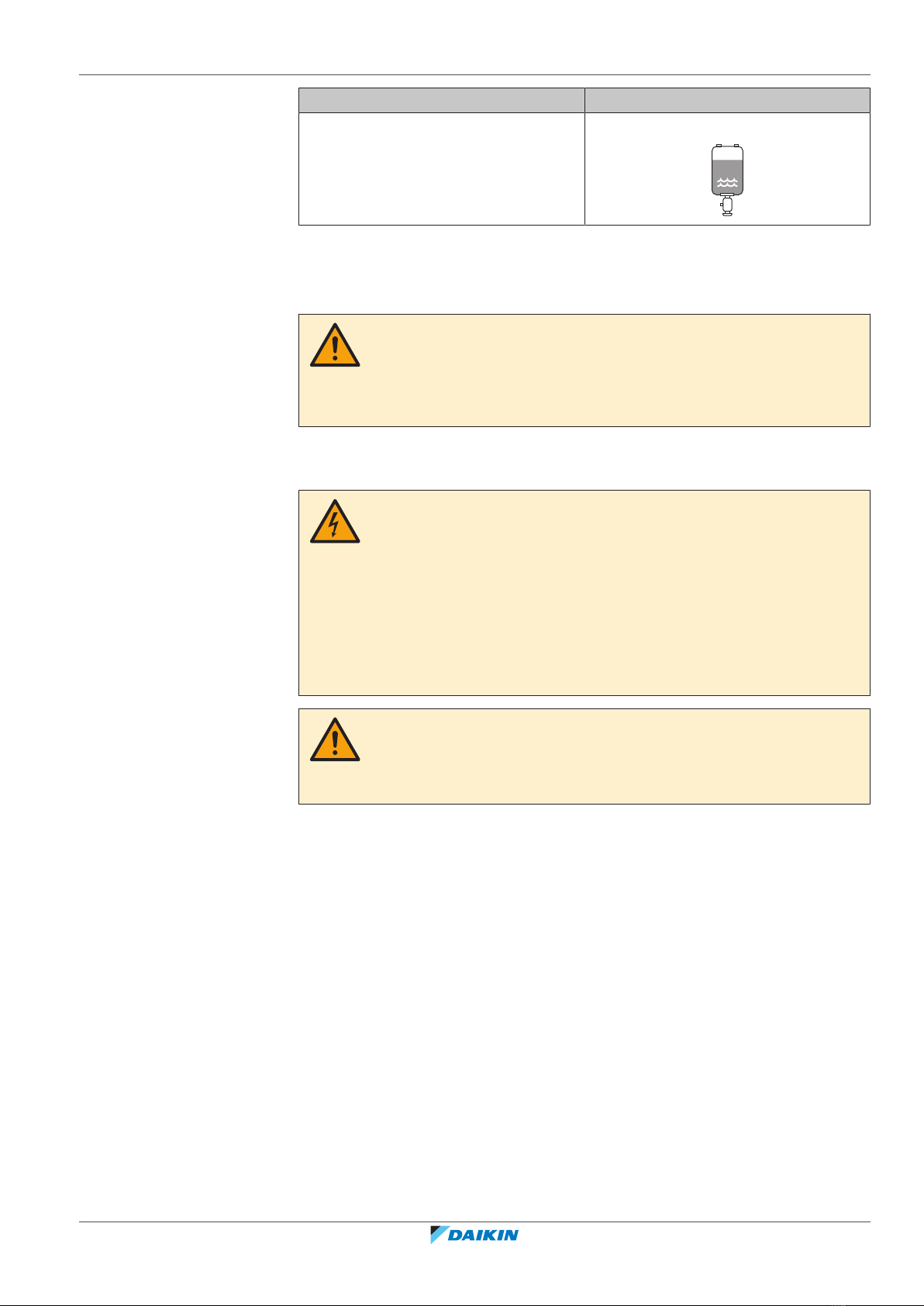

If Then
A siphon tube is NOT present Charge with the cylinder upside down.
▪Open refrigerant cylinders slowly.
▪Charge the refrigerant in liquid form. Adding it in gas form may prevent normal
operation.
CAUTION
When the refrigerant charging procedure is done or when pausing, close the valve of
the refrigerant tank immediately. If the valve is NOT closed immediately, remaining
pressure might charge additional refrigerant. Possible consequence: Incorrect
refrigerant amount.
2.1.4 Electrical
DANGER: RISK OF ELECTROCUTION
▪Turn OFF all power supply before removing the switch box cover, connecting
electrical wiring or touching electrical parts.
▪Disconnect the power supply for more than 10minutes, and measure the voltage
at the terminals of main circuit capacitors or electrical components before
servicing. The voltage MUST be less than 50VDC before you can touch electrical
components. For the location of the terminals, see the wiring diagram.
▪Do NOT touch electrical components with wet hands.
▪Do NOT leave the unit unattended when the service cover is removed.
WARNING
If NOT factory installed, a main switch or other means for disconnection, having a
contact separation in all poles providing full disconnection under overvoltage
categoryIII condition, MUST be installed in the fixed wiring.

2 | General safety precautions
Installer and user reference guide
8
BS4~12A14AJV1B
VRV 5 branch selector unit
4P695527-1 – 2022.02
WARNING
▪ONLY use copper wires.
▪Make sure the field wiring complies with the applicable legislation.
▪All field wiring MUST be performed in accordance with the wiring diagram
supplied with the product.
▪NEVER squeeze bundled cables and make sure they do NOT come in contact with
the piping and sharp edges. Make sure no external pressure is applied to the
terminal connections.
▪Make sure to install earth wiring. Do NOT earth the unit to a utility pipe, surge
absorber, or telephone earth. Incomplete earth may cause electrical shock.
▪Make sure to use a dedicated power circuit. NEVER use a power supply shared by
another appliance.
▪Make sure to install the required fuses or circuit breakers.
▪Make sure to install an earth leakage protector. Failure to do so may cause
electrical shock or fire.
▪When installing the earth leakage protector, make sure it is compatible with the
inverter (resistant to high frequency electric noise) to avoid unnecessary opening
of the earth leakage protector.
WARNING
▪After finishing the electrical work, confirm that each electrical component and
terminal inside the electrical components box is connected securely.
▪Make sure all covers are closed before starting up the unit.
CAUTION
▪When connecting the power supply: connect the earth cable first, before making
the current-carrying connections.
▪When disconnecting the power supply: disconnect the current-carrying cables
first, before separating the earth connection.
▪The length of the conductors between the power supply stress relief and the
terminal block itself MUST be as such that the current-carrying wires are
tautened before the earth wire is in case the power supply is pulled loose from
the stress relief.
NOTICE
Precautions when laying power wiring:
▪Do NOT connect wiring of different thicknesses to the power terminal block (slack
in the power wiring may cause abnormal heat).
▪When connecting wiring which is the same thickness, do as shown in the figure
above.
▪For wiring, use the designated power wire and connect firmly, then secure to
prevent outside pressure being exerted on the terminal board.
▪Use an appropriate screwdriver for tightening the terminal screws. A screwdriver
with a small head will damage the head and make proper tightening impossible.
▪Over-tightening the terminal screws may break them.

2 | General safety precautions
Installer and user reference guide
9
BS4~12A14AJV1B
VRV 5 branch selector unit
4P695527-1 – 2022.02
Install power cables at least 1 meter away from televisions or radios to prevent
interference. Depending on the radio waves, a distance of 1 meter may NOT be
sufficient.
NOTICE
ONLY applicable if the power supply is three‑phase, and the compressor has an ON/
OFF starting method.
If there exists the possibility of reversed phase after a momentary black out and the
power goes ON and OFF while the product is operating, attach a reversed phase
protection circuit locally. Running the product in reversed phase can break the
compressor and other parts.

3 | Specific installer safety instructions
Installer and user reference guide
10
BS4~12A14AJV1B
VRV 5 branch selector unit
4P695527-1 – 2022.02
3 Specific installer safety instructions
Always observe the following safety instructions and regulations.
Unit installation (see "14Unit installation"[ 4
55])
DANGER: RISK OF ELECTROCUTION
DANGER: RISK OF ELECTROCUTION
Do NOT leave the unit unattended when the service cover is removed.
WARNING
In case the safety measures require a ventilated enclosure, respect the following:
▪Auxiliary devices which may be a potential ignition source shall not be installed in
the duct work (example: hot surfaces with a temperature exceeding 700°C and
electric switching devices).
▪Only auxiliary devices (example: extraction fan) approved by the manufacturer
are used in the duct work.
WARNING
Do NOT install operating ignition sources (example: open flames, an operating gas
appliance or an operating electric heater) in the duct work.
WARNING
The appliance shall be stored in a room without continuously operating ignition
sources (example: open flames, an operating gas appliance or an operating electric
heater).
WARNING
The fixing method of the unit MUST be in accordance with the instructions from this
manual. See "14.4Mounting the unit"[461].
WARNING
Follow the service space dimensions in this manual for correct installation of the unit.
See "14.1.1Installation site requirements of the unit"[455].
CAUTION
Appliance NOT accessible to the general public. Install it in a secured area, protected
from easy access.
This unit is suitable for installation in a commercial and light industrial environment.
CAUTION
This equipment is NOT intended for use in residential locations and will NOT
guarantee to provide adequate protection to radio reception in such locations.
CAUTION
If the metal duct passes through a metal lath, wire lath or metal plate of the wooden
structure, separate the duct and wall electrically.

3 | Specific installer safety instructions
Installer and user reference guide
11
BS4~12A14AJV1B
VRV 5 branch selector unit
4P695527-1 – 2022.02
Refrigerant piping installation (see "15Piping installation"[ 4
73])
DANGER: RISK OF BURNING/SCALDING
WARNING
The field piping method MUST be in accordance with the instructions from this
manual. See "15Piping installation"[473].
WARNING
Take sufficient precautions in case of refrigerant leakage. If refrigerant gas leaks,
ventilate the area immediately. Possible risks:
▪Excessive refrigerant concentrations in a closed room can lead to oxygen
deficiency.
▪Toxic gas might be produced if refrigerant gas comes into contact with fire.
WARNING
During tests, NEVER pressurise the product with a pressure higher than the
maximum allowable pressure (as indicated on the nameplate of the unit).
WARNING
Bent header or branch pipes can lead to refrigerant leakage. Possible consequence:
asphyxiation, suffocation and fire.
▪NEVER bend the branch and header pipes sticking out of the unit. They have to
remain straight.
▪ALWAYS support the branch and header pipes at a distance of 1m from the unit.
WARNING
Overheated insulation can start to burn. Possible consequence: fire.
▪When performing brazing work header or branch pipes, cool all other header and
branch pipes by wrapping them in wet cloths.
CAUTION
Install the refrigerant piping or components in a position where they are unlikely to
be exposed to any substance which may corrode components containing refrigerant,
unless the components are constructed of materials that are inherently resistant to
corrosion or are suitably protected against corrosion.
NOTICE
▪Do NOT use mineral oil on flared part.
▪Do NOT reuse piping from previous installations.
▪NEVER install a drier to this unit to guarantee its lifetime. The drying material may
dissolve and damage the system.
Electrical installation (see "16Electrical installation"[ 4
80])
DANGER: RISK OF ELECTROCUTION

3 | Specific installer safety instructions
Installer and user reference guide
12
BS4~12A14AJV1B
VRV 5 branch selector unit
4P695527-1 – 2022.02
DANGER: RISK OF ELECTROCUTION
Before performing work on the unit, disconnect any power source connected to the
unit.
WARNING
If the supply cord is damaged, it MUST be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
WARNING
The electrical wiring connection method MUST be in accordance with the
instructions from this manual. See "16Electrical installation"[480].
WARNING
▪All wiring MUST be performed by an authorised electrician and MUST comply
with the applicable legislation.
▪Make electrical connections to the fixed wiring.
▪All components procured on-site and all electrical construction MUST comply
with the applicable legislation.
WARNING
▪If the power supply has a missing or wrong N-phase, equipment might break
down.
▪Establish proper earthing. Do NOT earth the unit to a utility pipe, surge absorber,
or telephone earth. Incomplete earthing may cause electrical shocks.
▪Install the required fuses or circuit breakers.
▪Secure the electrical wiring with cable ties so that the cables do NOT come into
contact with sharp edges or piping, particularly on the high-pressure side.
▪Do NOT use taped wires, stranded conductor wires, extension cords, or
connections from a star system. They can cause overheating, electrical shocks or
fire.
WARNING
ALWAYS use multicore cable for power supply cables.
WARNING
Use an all-pole disconnection type breaker with at least 3mm between the contact
point gaps that provides full disconnection under overvoltage category III.
WARNING
The appliance MUST be installed in accordance with national wiring regulations.
CAUTION
Do NOT push or place redundant cable length into the unit.
CAUTION
Be careful NOT to pinch cables between the service cover and the switchbox.

3 | Specific installer safety instructions
Installer and user reference guide
13
BS4~12A14AJV1B
VRV 5 branch selector unit
4P695527-1 – 2022.02
Commissioning (see "18Commissioning"[ 4
100])
CAUTION
Do NOT perform the test operation while working on the indoor units.
When performing the test operation, NOT ONLY the outdoor unit, but the connected
indoor unit will operate as well. Working on an indoor unit while performing a test
operation is dangerous.
CAUTION
Do NOT insert fingers, rods or other objects into the air inlet (damper).
Troubleshooting (see "20Troubleshooting"[ 4
107])
DANGER: RISK OF ELECTROCUTION
DANGER: RISK OF BURNING/SCALDING
WARNING
Prevent hazards due to inadvertent resetting of the thermal cut-out: power to this
appliance MUST NOT be supplied through an external switching device, such as a
timer, or connected to a circuit that is regularly turned ON and OFF by the utility.
WARNING
▪When carrying out an inspection on the switch box of the unit, ALWAYS make
sure that the unit is disconnected from the mains. Turn off the respective circuit
breaker.
▪When a safety device was activated, stop the unit and find out why the safety
device was activated before resetting it. NEVER shunt safety devices or change
their values to a value other than the factory default setting. If you are unable to
find the cause of the problem, call your dealer.
3.1 Instructions for equipment using R32 refrigerant
WARNING: MILDLY FLAMMABLE MATERIAL
The refrigerant inside this unit is mildly flammable.
WARNING
▪Do NOT pierce or burn refrigerant cycle parts.
▪Do NOT use cleaning materials or means to accelerate the defrosting process
other than those recommended by the manufacturer.
▪Be aware that the refrigerant inside the system is odourless.

3 | Specific installer safety instructions
Installer and user reference guide
14
BS4~12A14AJV1B
VRV 5 branch selector unit
4P695527-1 – 2022.02
WARNING
The appliance shall be stored as follows:
▪in such a way as to prevent mechanical damage.
▪in a well-ventilated room without continuously operating ignition sources
(example: open flames, an operating gas appliance or an operating electric
heater).
▪in a room with dimensions as specified in "13 Special requirements for R32
units"[440].
WARNING
Make sure installation, servicing, maintenance and repair comply with instructions
from Daikin and with applicable legislation and are executed ONLY by authorised
persons.
CAUTION
Do NOT use potential sources of ignition in searching for or detection of refrigerant
leaks.
NOTICE
▪Take precautions to avoid excessive vibration or pulsation to refrigeration piping.
▪Protect the protection devices, piping and fittings as much as possible against
adverse environmental effects.
▪Provide space for expansion and contraction of long runs of piping.
▪Design and install piping in refrigerating systems such as to minimise the
likelihood of hydraulic shock damaging the system.
▪Mount the indoor equipment and pipes securely and protect them to avoid
accidental rupture of equipment or pipes in case of events such as moving
furniture or reconstruction activities.
NOTICE
▪Do NOT re-use joints and copper gaskets which have been used already.
▪Joints made in installation between parts of refrigerant system shall be accessible
for maintenance purposes.
See "13.3 To determine the required safety measures" [4 41] to check if your
system meets the R32 safety requirements.

For the user
Installer and user reference guide
15
BS4~12A14AJV1B
VRV 5 branch selector unit
4P695527-1 – 2022.02
For the user

4 | User safety instructions
Installer and user reference guide
16
BS4~12A14AJV1B
VRV 5 branch selector unit
4P695527-1 – 2022.02
4 User safety instructions
Always observe the following safety instructions and regulations.
In this chapter
4.1 General.................................................................................................................................................................................... 16
4.2 Instructions for safe operation............................................................................................................................................... 17
4.1 General
WARNING
If you are NOT sure how to operate the unit, contact your
installer.
WARNING
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved.
Children SHALL NOT play with the appliance.
Cleaning and user maintenance SHALL NOT be made by
children without supervision.
WARNING
To prevent electrical shocks or fire:
▪Do NOT rinse the unit.
▪Do NOT operate the unit with wet hands.
▪Do NOT place any objects containing water on the unit.
CAUTION
▪Do NOT place any objects or equipment on top of the
unit.
▪Do NOT sit, climb or stand on the unit.

4 | User safety instructions
Installer and user reference guide
17
BS4~12A14AJV1B
VRV 5 branch selector unit
4P695527-1 – 2022.02
▪Units are marked with the following symbol:
This means that electrical and electronic products may NOT be mixed with
unsorted household waste. Do NOT try to dismantle the system yourself:
dismantling the system, treatment of the refrigerant, of oil and of other parts
MUST be done by an authorised installer and MUST comply with applicable
legislation.
Units MUST be treated at a specialised treatment facility for reuse, recycling and
recovery. By ensuring this product is disposed of correctly, you will help to
prevent potential negative consequences for the environment and human
health. For more information, contact your installer or local authority.
▪Batteries are marked with the following symbol:
This means that the batteries may NOT be mixed with unsorted household
waste. If a chemical symbol is printed beneath the symbol, this chemical symbol
means that the battery contains a heavy metal above a certain concentration.
Possible chemical symbols are: Pb: lead (>0.004%).
Waste batteries MUST be treated at a specialised treatment facility for reuse. By
ensuring waste batteries are disposed of correctly, you will help to prevent
potential negative consequences for the environment and human health.
4.2 Instructions for safe operation
WARNING
Do NOT install operating ignition sources (example: open
flames, an operating gas appliance or an operating electric
heater) in the duct work.
WARNING
▪Do NOT modify, disassemble, remove, reinstall or repair
the unit yourself as incorrect dismantling or installation
may cause an electrical shock or fire. Contact your
dealer.
▪In case of accidental refrigerant leaks, make sure there
are no naked flames. The refrigerant itself is entirely
safe, non-toxic and mildly flammable, but it will
generate toxic gas when it accidentally leaks into a room
where combustible air from fan heaters, gas cookers,
etc. is present. Always have qualified service personnel
confirm that the point of leakage has been repaired or
corrected before resuming operation.

4 | User safety instructions
Installer and user reference guide
18
BS4~12A14AJV1B
VRV 5 branch selector unit
4P695527-1 – 2022.02
WARNING
This unit contains electrical and hot parts.
WARNING
Before operating the unit, be sure the installation has been
carried out correctly by an installer.
WARNING
Do NOT obstruct the opening of the air inlet (damper).
WARNING
The unit is equipped with a refrigerant leak detection
system for safety.
To be effective, the unit MUST be electrically powered at
all times after installation, except for short service periods.
Maintenance and service (see "7Maintenance and service"[ 4
23])
WARNING
The unit is equipped with a refrigerant leak detection
system for safety.
To be effective, the unit MUST be electrically powered at
all times after installation, except for maintenance.
WARNING
NEVER replace a fuse with a fuse of a wrong ampere
ratings or other wires when a fuse blows out. Use of wire
or copper wire may cause the unit to break down or cause
a fire.
WARNING
If the supply cord is damaged, it MUST be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
WARNING
Be careful with ladders when working in high places.
CAUTION
After a long use, check the unit stand and fitting for
damage. If damaged, the unit may fall and result in injury.

4 | User safety instructions
Installer and user reference guide
19
BS4~12A14AJV1B
VRV 5 branch selector unit
4P695527-1 – 2022.02
CAUTION
Do NOT insert fingers, rods or other objects into the air
inlet (damper).
CAUTION
Before accessing terminal devices, make sure to interrupt
all power supply.
About the refrigerant (see "7.3About the refrigerant"[ 4
23])
WARNING: MILDLY FLAMMABLE MATERIAL
The refrigerant inside this unit is mildly flammable.
WARNING
▪Do NOT pierce or burn refrigerant cycle parts.
▪Do NOT use cleaning materials or means to accelerate
the defrosting process other than those recommended
by the manufacturer.
▪Be aware that the refrigerant inside the system is
odourless.
WARNING
▪The refrigerant inside the unit is mildly flammable, but
normally does NOT leak. If the refrigerant leaks in the
room and comes in contact with fire from a burner, a
heater, or a cooker, this may result in fire, or the
formation of a harmful gas.
▪Turn OFF any combustible heating devices, ventilate the
room, and contact the dealer where you purchased the
unit.
▪Do NOT use the unit until a service person confirms that
the part from which the refrigerant leaked has been
repaired.
WARNING
The appliance shall be stored in a room without
continuously operating ignition sources (example: open
flames, an operating gas appliance or an operating electric
heater).

4 | User safety instructions
Installer and user reference guide
20
BS4~12A14AJV1B
VRV 5 branch selector unit
4P695527-1 – 2022.02
WARNING
The R32 refrigerant leakage sensor must be replaced after
every detection or at the end of its lifetime. ONLY
authorised persons may replace the sensor.
Troubleshooting (see "8Troubleshooting"[ 4
25])
WARNING
Stop operation and shut OFF the power if anything
unusual occurs (burning smells etc.).
Leaving the unit running under such circumstances may
cause breakage, electrical shock or fire. Contact your
dealer.
WARNING
Make sure installation, servicing, maintenance, repair and
applied materials follow the instructions from Daikin and,
in addition, comply with applicable legislation and are
performed by qualified persons only. In Europe and areas
where IEC standards apply, EN/IEC 60335-2-40 is the
applicable standard.
