Dancover 2m Series User manual

20-03-2018
for
Greenhouse
DUO

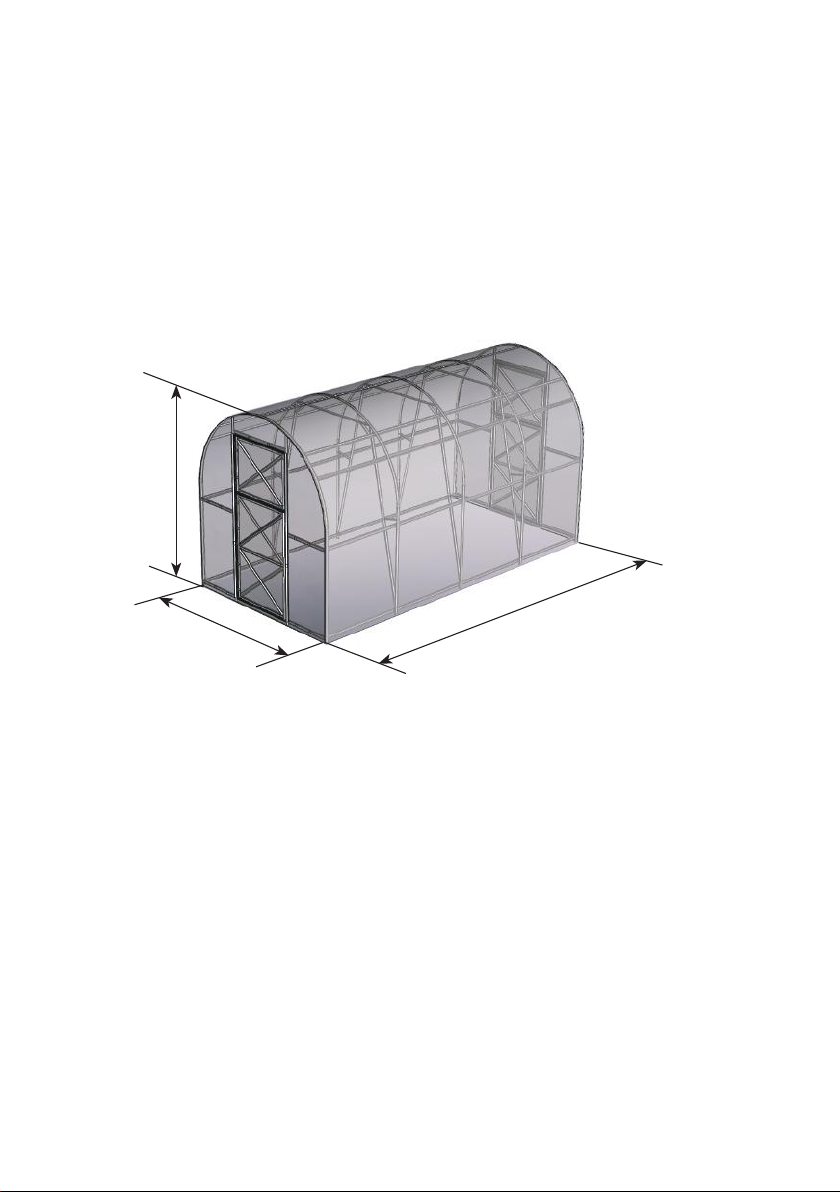

Manual

any length multipple to 2m min 4m
height 2,2 m
wight 2,0 m

2
Content Dimensions, mm Weight max
Greenhouse frame (base length 2m)
1 package - straight parts and assembly manual 55х50х1260 8,0
2 package - parts of arches 230х50х1180 3,0
3 package - straight parts for butt ends 95х50х1260 15,6
4 package - fasteners and parts 180х130х80 2,0
5* package - 350х300 1,5
Insert (base elongation for 2m)
1 package - beams, straight parts, fasteners and parts 75х50х1260 10,5
2 package - parts of arches 230х50х1180 2,0
Perform assembling and operation of the greenhouse in strict accordance with
Packages contents
Greenhouse DUO is designed for creation microclimate favorable for growing garden crops
on cottage and household plots.
Greenhouse might have variable length depending on customers’ desire. Required length
of greenhouse is provided by purchasing of packages with extending inserts. Each insert
add 2m to base length. Base length is 4m. Height of installed frame is 2.1 m
The frame of the greenhouse is made of galvanized iron and is to be assembled with
fundament using angles. Complete set includes all that is needed for fastening of coverage.
Greenhouse may be completed with coverage on buyer’s request. Greenhouse has two
door openings and two small windows in opposite ends.
Packages complectation
greenhouse length packages
№ 1 № 2 № 3 № 4 № 5*Insert
№ 1 № 2
2 м + + + + +
4 м + + + + + + +
6 м + + + + + + + + +
Chart 1
Description
Chart 2
*
5 package is not included in Greenhouse DUO complectation, it is supplied following the customer’s
request. Information about complectation and installing 5 packages are on page 22

3
Detailed complectation of Greenhouse DUO
Marking Name Quantity
1 package
1stand 6
2к End balk 12
2кк Ridge balk 2
2с Edge balk 4
3supports 10
24 base stand 10
2 package
4вк top end arc 2
4в top arc 1
4н bottom arc 6
3 package
8bottom end strainer 8
9-1л top door opening stand 2
9-1п top door opening stand 2
9-2л top door opening stand 2
9-2п top door opening stand 2
9-3 Bottom strap door opening 4
9-4 Top strap door opening 4
10 door opening strainer 4
12фл small window vertical 2
12фп small window vertical 2
12дл door vertical 2
12дп door vertical 2
13м
door and small window horizontal
10
14м small door diagonal 12
Long clamp 10
Short clamp 6
22 Screed horizontal 1
23 Brace details 4
25 Screed radial 2
26 angled bevel 2
Hook for door and small windows 4
Chart 3

4
Detailed complectation of Greenhouse DUO
Marking Name Quantity
4 package
Door and small window loop 8
Hook bracket 8
Screw M4*8 354
Screw M4*14 32
Screw M4*25 68
Screw M4*35 32
Screw M4*40 26
Nut M4 516
Nut M6 6
washer 60
Washer M6 12
Bolt M6*60 6
Special wrench 1
Adhesive tape 1
rotator 4
Bending tube 1
Top bandage 3
Bottom bandage 6
4
Two-side Adhesive tape 4.2m 1
5
8,5 m
3,6 m
12 m
Detailed complectation of Insert
Marking Name Quantity
Package 1 Insert
1stand 4
2Main balk 12
2кк Ridge balk 2
2с Edge balk 4
3supports 4
22 Horizontal screed 2
23 Brace detail 8
24 base stand 4
25 Radial screed 4
26 angled bevel 4
Screw M4*8 138
Screw M4*14 16
Screw M4*25 16
Screw M4*35 8
Nut M4 178
Nut M6 4
washer 16
Washer M6 8
Bolt M6*60 4
Top bandage 2
Bottom bandage 4
2
Two-side Adhesive tape 4.2m 1
2 package INSERT
4в top arc 2
4н bottom arc 4
Chart 4

5
Before use of greenhouse, assemble and install it in accordance with the
manual.
When installing the greenhouse by third
parties, buyer should supervise
compliance of assembling with the
manual.
1.
2.
Operating rules
otesolcesuohneergllatsnitonoD
buildings and trees from which snow
or ice can fall down. 2 m or more
distance is recommended.
Cleaning and washing of polycarbonate sheets
1. Rinse sheet with warm water.
2. To remove dirt, wash it with mild soap solution or domestic detergent using a soft
cloth or sponge.
3. To remove water, rinse the sheet with cold water and wipe with a soft cloth.
Do not use sulphur cartridges for disinfecting greenhouse against
fungal and bacterial agents in order to prevent corrosion (darkening)
of frame
Never use abrasives or high-alkali detergents for cleaning polycarbonate
sheets. Dry wiping damages protective layer of the coverage and shortens
its service life. Never rub surface of polycarbonate sheets with a brush,
metalized fabric or other abrasive materials.
Technical certificate
If snow load index is over 5, snow load control is required (removing snow coat
periodically) in order to eliminate snow pressure on side walls of the greenhouse.
In winter, coverage of greenhouse should not be removed provided that snow
load is limited. In winter Greenhouse DUO doesn’t need any control in the majority
of the areas of Russia, including Moscow, Tver, St.Petersburg Ekaterinburg,
Novosibyrsk and other regions with snow load index under 5 (according to
SNIP 2.01.07-85). Under purchase clarify snow region where greenhouse is
installed.

6
Warranty
1. Manufacturer is responsible for full completing frame elements of
greenhouse.
2. Manufacturer is responsible for assemblability of the greenhouse in
accordance with the manual.
values of weather impact.
4. Warranty period – 12 months from date of purchase.
Warranty conditions
The warranty does not cover cases of:
1. Installation of greenhouse with violation of manual’s requirements.
2. Violation of operating rules.
3. Unintended use of greenhouse.
4. Floods, hurricanes, other natural disasters.
Manufacturer reserves right to change design of greenhouse
Warranty

7
Assembling manual
General view of the frame is given in Picture 1. Parts should be installed in such
a way that side selves of the prole are facing the surface cover. The frame is
assembled of numbered parts, some of which made prefabricated from multiple
parts with the same number, but different indexes.
indexes:
к- last (over the length of the greenhouse);
кк - ridged
н- bottom;
в- top;
п- right;
л- left;
c- edge balk;
- arrow shows the direction of installation as per schemes in the manual.
Terminology:
Left side - on the left, while outside the greenhouse, in front of the door.
Right side - on the right, while outside the greenhouse, in front of the door
Parts are fastened by putting proles together and fastening them with screws
and nuts through the holes. When joining parts in “prole-to-prole” way it does
not matter which of the joined parts is above.
When assembling be careful not to damage the parts as they do not have
sufcient endurance before the whole structure is assembled.
1.
2.
3.
4.
5.
Some parts may have
spare holes which are
there due to uniformity of
parts.
Assembling manual
Introduction
Be careful when assembling the greenhouse! Parts have sharp edges. Beware
of cuts! Perform all works in protective gloves.
When assembling the frame parts should be joined through all holes as
prescribed. A simplied fastening of parts with only one or two screws is the
violation of assembly rules and the ground to relieve the manufacturer of the
warranty responsibility.

8
Assembling manual
А
(view from inside)
Б
(view from outside)
В
(view from outside)
2к
25
1
4вк
9-2
2к
General view of the frame of Greenhouse DUO
Elements 4 - Fig.4
Elements 2- Fig.5

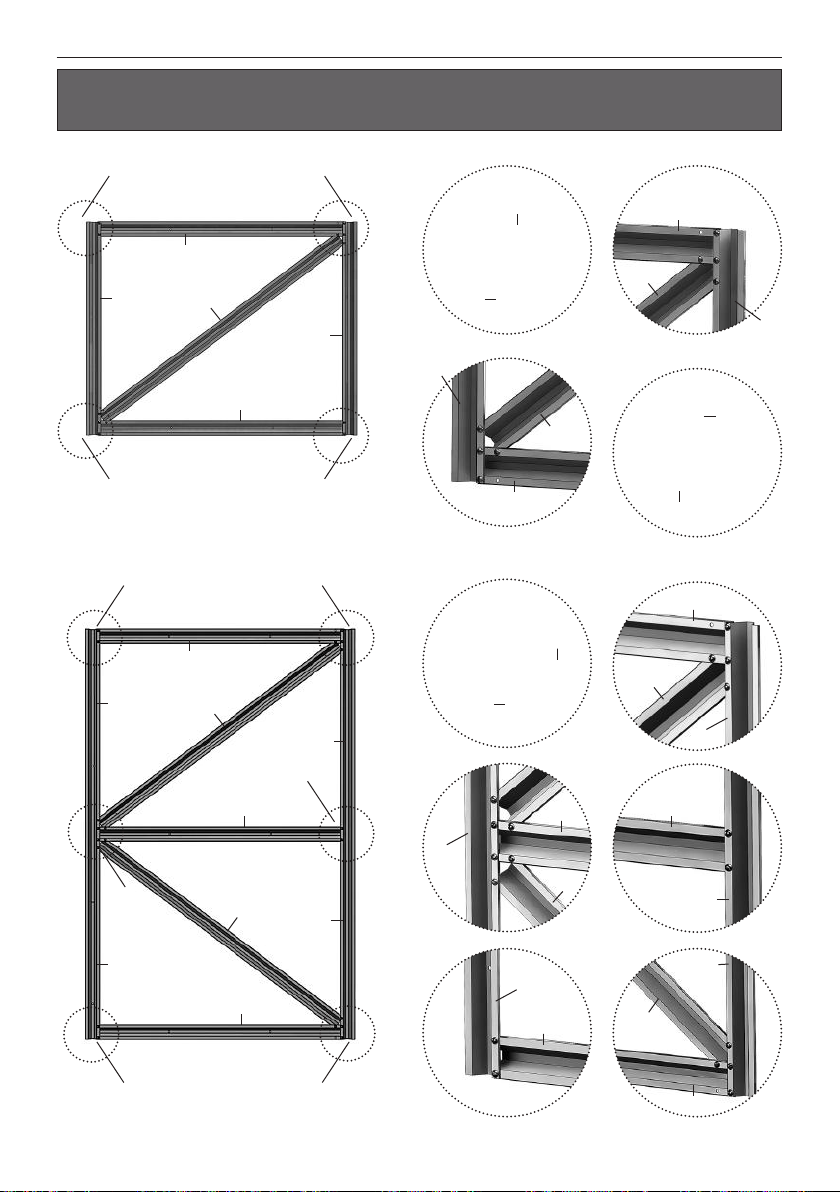

Elements 12...14(door and window) - Fig.13,14
А
Г
Д
Е
В
Б
Fig. 1
4н
4н
1
1
2к
2к
2к
2с
2с
26
22
25
2кк 4вк 4в
23
3
3
8
88
8
24
24
10
9-1л
9-1л
9-2п
9-2л
10
3
24

9
Г
(view from outside)
Д
(view from outside)
Е
(view from outside)
Assembling manual
General view of the frame of the greenhouse, extendable inserts
2к
24 24
9-1
8
8
2к
11
Fig. 2
2
General view of the insert
for Greenhouse DUO.
Each inset extends the
greenhouse length by 2 m.
«Greenhouse DUO»,
extended by any number of
inserts.

10
Level the frame by adding some soil into the holes or deepening the holes in order
to make sure that the lateral parts are straight, horizontal and parallel to each
other, and that the arches are straight when seen from aside. Tighten the screws
again.
Perform the assembly next to the installation site of the greenhouse.
Perform the assembly in accordance with the pictures of assembly stages and the
joints as shown in pic. 6…14.
On the site selected for installation of the greenhouse, dig holes as shown by the
scheme in Pic. 3 to the spade length depth. Set the frame into the holes. Use the
line to check that the diagonals of the frame are equal. General settlement of the
greenhouse on the ground is made in such a way that the lower parts 10 of the
door opening touch the ground, and parts 2 are some 5 cm above the ground. Use
the line again to check the diagonals so that they are equal and adjust the corners
of the frame if necessary.
Assembling manual
Installation steps
1.
2.
3.
4.
2060+2016 * number of inserts
2000
840 580
1008 1008
44
15
Door
Door

11
Assembling manual

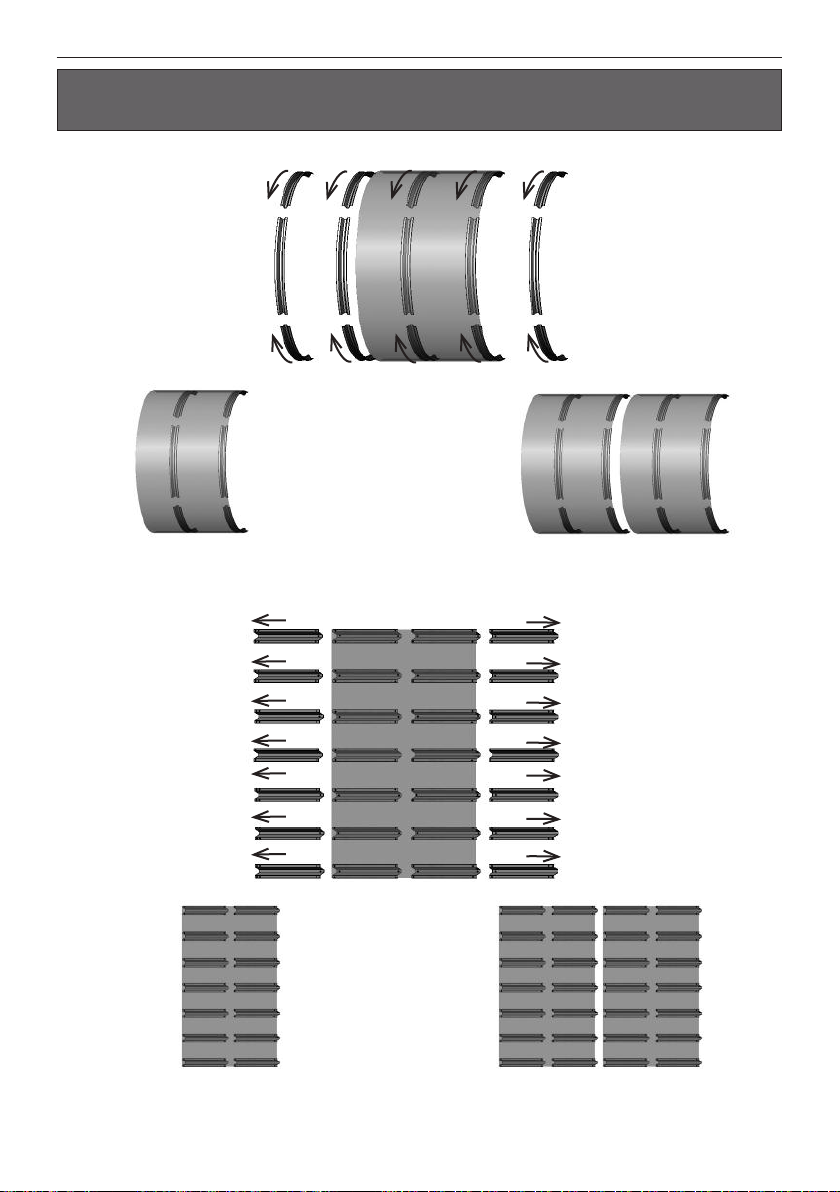

The location of arcs and the longitudinal ttings greenhouses,
extendable inserts
one «insert»
extend the greenhouse at 2 m
Two «inserts»
extend the greenhouse for 4 m
4н
4н
4вк 4вк4в 4в 4в
4н
4н
2к
2к
2к
2к
2к
2к
2
2
2
2кк
2кк
2
2
2
4н
4н
4н
4н
4н
4н
one «insert»
extend the
greenhouse at 2 m
Two «inserts» extend
the greenhouse for
4m
Fig. 4
Fig. 5
2
2
2
2кк
2
2
2
2к
2к
2к
2к
2к
2к
2кк

Assembling manual
12
Installation steps
1 Step
2 Step
А
Б
Г
В
3
26
23
4в
4н
22
А
23
24
1
Б
25
23
4н
В
1

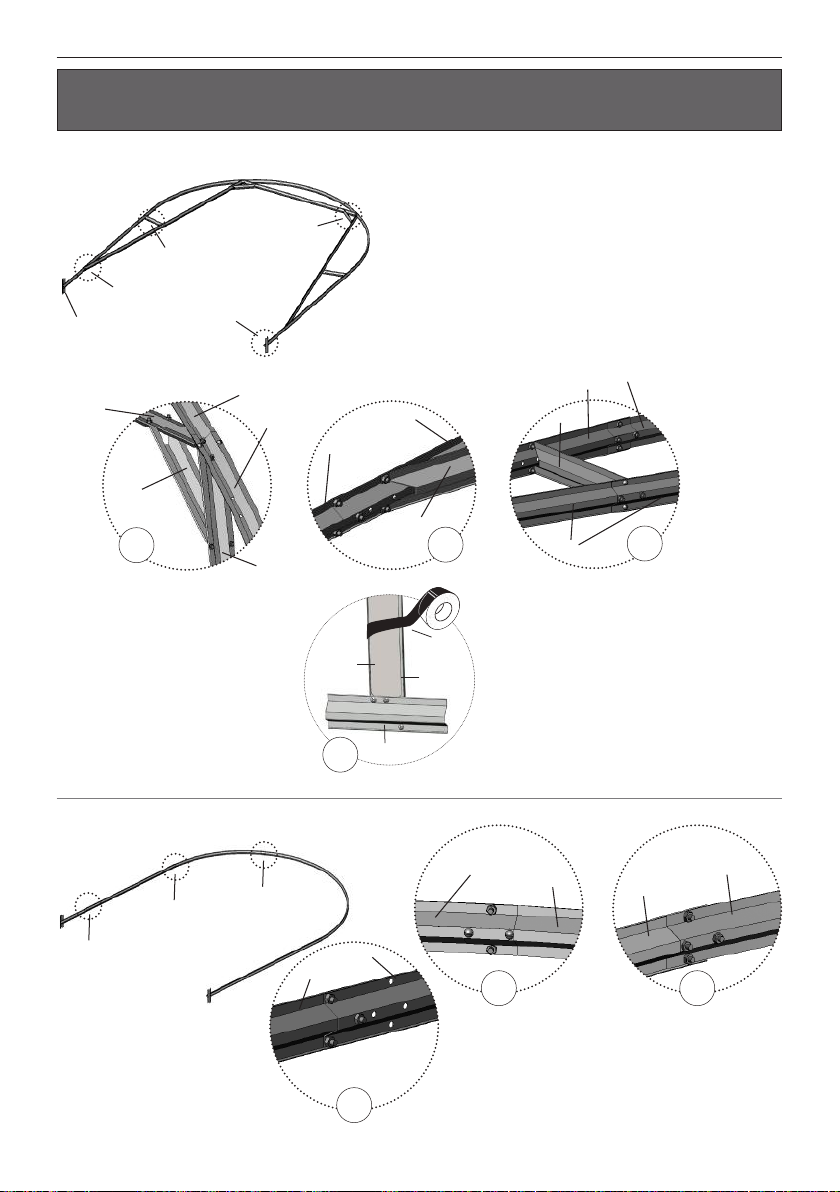

collect a power arc (or the required number
of power arcs depending on the number of
inserts) of the elements 1, 3, 4в, 4н, 22, 23,
24, 25, 26 using screws М4х8, M4 nuts. If the
greenhouse is installed on the base elements
24 and 3 are not used.
Fig. 6
А
Б
В
А
4н 4вк
Б
4Н
1
В
24
1

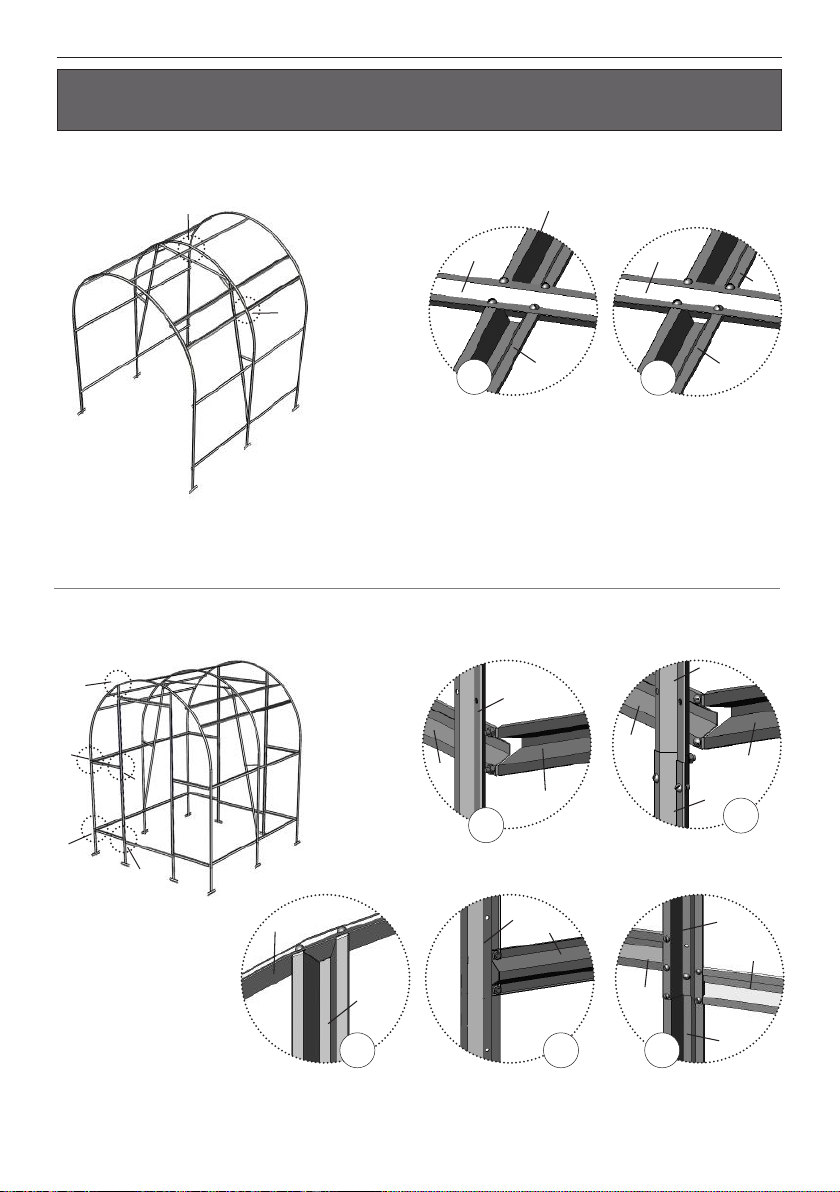

assemble two end arcs with
elements 1, 3, 4вк, 4n, 24.
Fig. 7
3
24
Bottom
wire
babdage
adhesive tape
Г-2

13
join the closest to the end arc elements
2K and 2 in accordance with Fig.5 and
depending on the availability of inserts.
25
2
2
А
А
3 Step
Manual
Installation steps
2
В
А
В

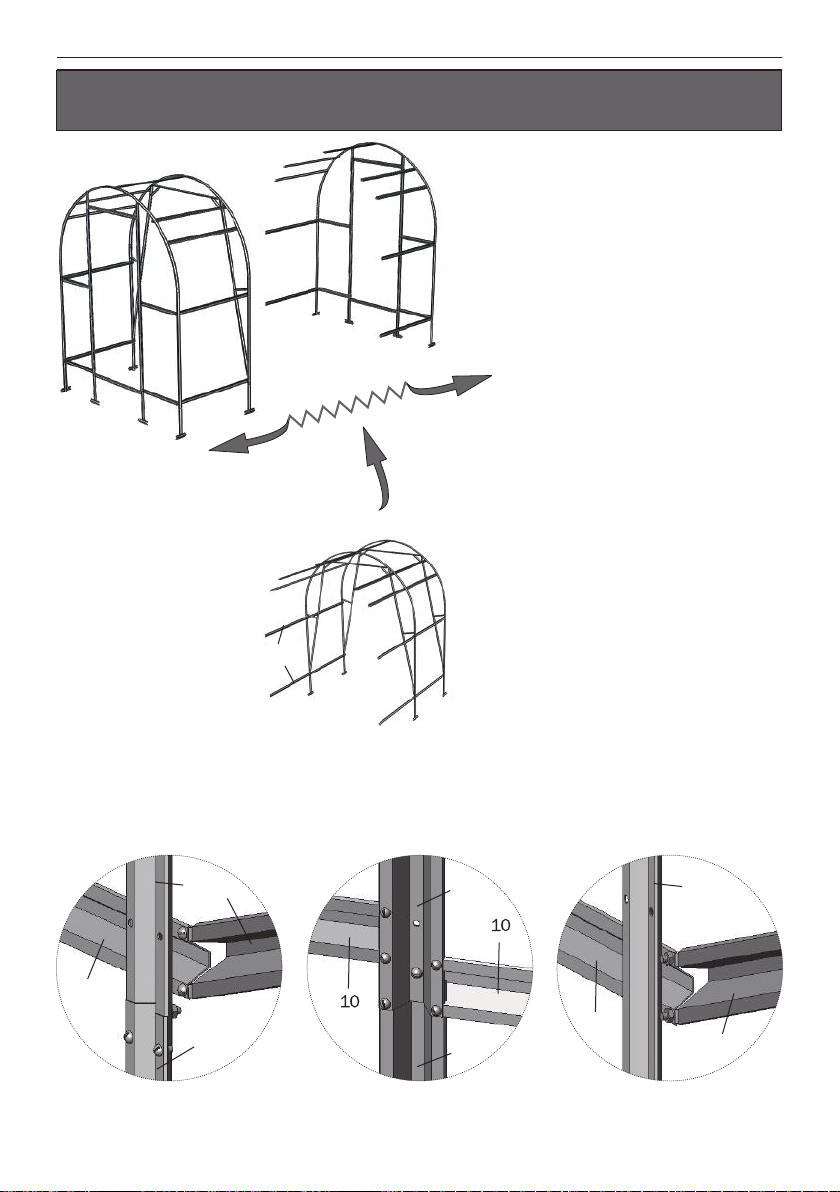

to part, assembled at step 3, connect the
end of the arc
Fig. 9
join balks in accordance with pic.10
and pic.5
А
Д
Е
В
Г
Б
Fig. 10
4 Step
5 Step
4в 4н
2кк 2с
ДЕ
В Г
4н 2к
24
1
АБ
2
2
4н
2к
2
2
23
25
2
2
А
Fig. 8
2к

14
Manual
Installation steps
А
Б
2кк
А
2кк
2кк
4в
2кк
Б2с
4н
to attach the second end of the arc. If
the length of the greenhouse more than
two meters, it’s necessary to attach the
desired number of inserts consistently
increasing runs and the power of the arc,
then attach the end of the arc.
Fig. 11
7 Step
6 Step
А
Б
Д
Г
В
АБ
Г ДВ
2к
8
8
10
4вк
9-2л
9-2л
24
9-1
1
1
824
2к
8
collect details of the ends.
Fig. 12
(inside view)
(outside view) (outside view)
(outside view) (outside view)
2с

15
Manual
Door and window assembly
Fig. 13
Window, outside view
Fig. 14
Door, outside view
А А
В
ДД
К
К
З
З
ИИ
ЖЖ
Л
Л
В
Б Б
Г
Г
12фл
12дл
12дл
12фл
14м
14м
14м
14м
14м
14м
14м
14м
13м
13м
13м
13м
13м
13м
13м
13м
13м
13м
13м
13м
13м
13м
13м
12фп
12дп
12дп
12дп
12дп
12дл
12дл
12дл
12дп
12фп
1 2 ф п
12фл

16
Manual
Left side of
the end
Left side of
the end
Door
Door
Window
Window
Ridged
panel
Right side
of the end
Right side
of the end
CUTTING POLYCARBONATE SHEET PERFORM STRICTLY IN ACCORDANCE WITH THE
FIG.15
Polycarbonate sheet size 2100 x 6000 mm
2420 (installation on the ground)
600 600
200
800
Cut line
allowance
for penetration Into
the ground
allowence
for penetration into
the ground
threshold line
Plan of cutting cellular
polycarbonate with the
installation on the Foundation.
when installed on the ground
side extend.
Fig. 15
allowance for
penetration into the
ground
allowance for
penetration into the
ground
threshold line

17
Manual
Fastening of coverage
Install side parts of the butt end as shown
in Pic.16. Holding a piece of cover surface in
place, fasten it with screws and washers on
parts 8 (pic. 22). And on angles with the use
of self-tapping screws with washers. Holes
for screws should be drilled with 4 mm bore
from inside the greenhouse through ready-
made holes in frame parts. Install pieces of
“half-rounded ridge” by fastening it to angles
with self-tapping screws with washers. Cut
off any overlapping parts on the sides.
3.
Fig.16
protective layer
element 9-1, 9-2
end coverage

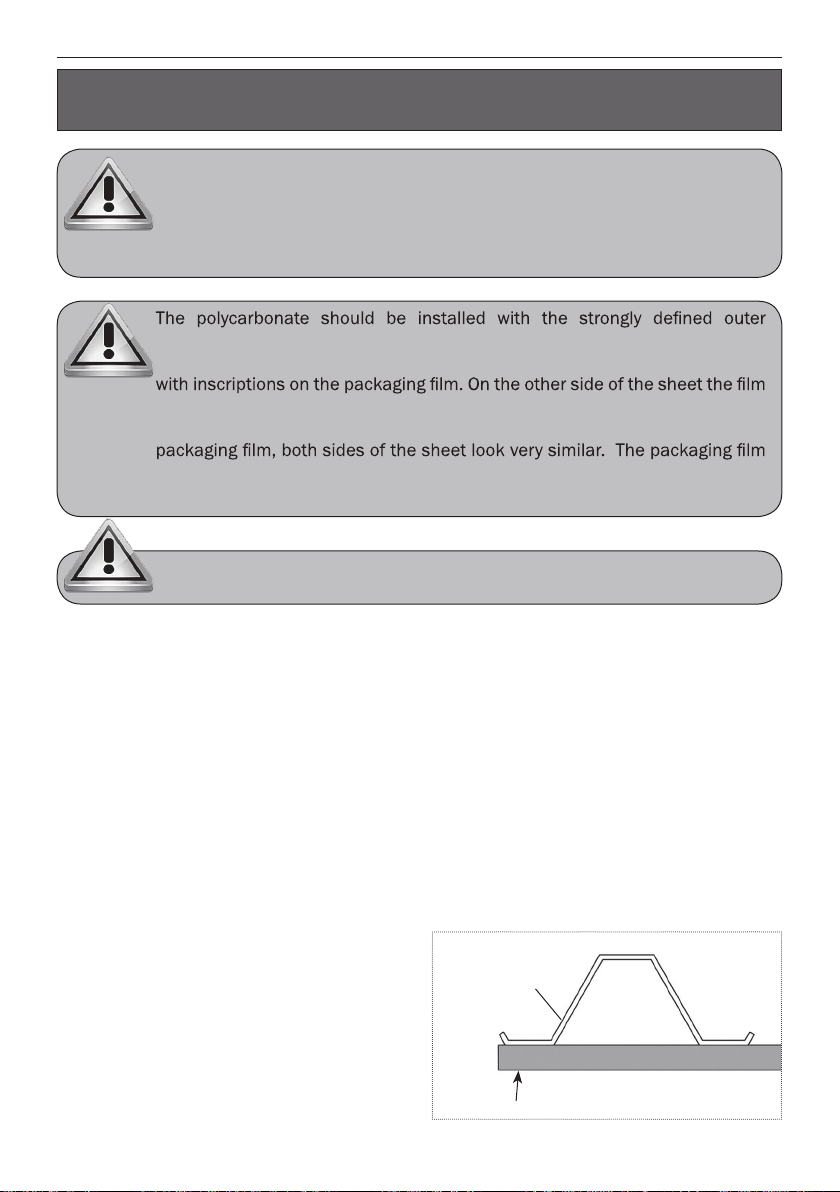

Cutting is better done with an electrical fret saw, or with a jigsaw with small
sawteeth
side (towards the sun), having a protective layer (always make sure when
purchasing or before installation). The protective layer is usually on the side
is clear. After drawing the planning lines on the sheet but before cutting it,
mark the protective side of every piece of polycarbonate: after removing the
should be removed from both sides right before fastening the cover surface
to the frame.
in Fig.15 is a diagram of cuttingt for installation of greenhouses on the Foundation.
If the greenhouse is installed on the ground, the lower part of the sidewalls of the
end, it is recommended to extend 200 mm for the corresponding deepening of
the polycarbonate in the ground. this depth of coating along the perimeter of the
greenhouse creates a barrier to the penetration of the greenhouse the roots of
weeds.
To cover greenhouses need:
for “Greenhouse DUO” - 2 sheets; for “Greenhouse DUO”+insert - 3 sheets;
“Greenhouse DUO”+2 inserts - 4 sheets of polycarbonate with a thickness of
4mm size 2.1 x 6 m.
2. cut a piece of polycarbonate (the cutting line pic.15). Put the piece of cover on the
end, strictly combining the outer edge of the coating elements 9-1, 9-2 (pic. 16)
and draw the elements 1, 4n and 4вк. cut out pieces of the coating to the seam
allowance. Then put the assembled door and window to the coating sheet with the
addition of one lateral edge opposite the hinges of the hinge is 15 mm. pieces of the
coating, located above the window, cut at the installation site.
1.

18
match elements 9-3 and 9-4 (pic.17)
and install them according to pic.19.
press the pieces of polycarbonate at
the edges from the doors and Windows
lining 9-3, 9-4 (pic.19), leaving holes for
rotator. cut pieces of the coating to be
installed above doorways, and under
door openings, install it and fasten it
with washers (pic.22) for detail 10.
trim with a knife the pieces of the
coating in the arcs 4n and 4вк and
parts 1, and then close the resulting
cut adhesive tape in accordance with
pic.18
4.
9-4
9-3
Fig.17
Manual
Fastening of coverage
Secure the pieces of the coating on
the Windows and doors on the side -
the weight of the hinges with washers
(pic.19), and about other parties -
clamps (pic.20), having closed cell
(paste over them with tape). on the
sides opposite to the hinge cover
should get over a frame of 15 mm
(pic.20). loops are superimposed on
top of the polycarbonate and when
tightening the screws under the hinge
polycarbonate crushed.
The cracks in the door opening closed
with plastic wrap (pic.19, 20).
5.
Fig.18
Elements 4ВК, 4НК и 1
adhesive tape
Door or window
short clamp
Element 12
Element 9-1,9-2
Element 9-3,9-4
Fig. 20
6.
7.
Fig. 19
Element 9-1, 9-2
washer
loop
Element 12
Screw М4х14
Screw М4х40
Element 9-3,9-4
Screw М4х25
Screw М4х35 Screw М4х40
End coverage
if the conguration of the
greenhouse has 5-th packet
(sealing prole) see page 22
pic. 27-31.

19
Washers and clamps on the end are set in accordance with pic.21.
Manual
Fastening of coverage
8.
Fig. 21
ground
АБ
АБ
Free of the hole remain In some elements. Do not put screws with the
washers on them.
strap
Short
clamp
Long clamp
Washer
rotator
rotator
9-4
9-3
9-4
9-3
