Dancover ARROW 2,6 User manual

20-03-2018
for
Greenhouse
ARROW 2,6
Manual

Length – any divisible by 2 m
Height 2,47 m
width 2,6 m

2
Contents
Weight
max, kg
Frame (base length 2 m)
Package 1 – beams, straight parts and assembly manual 105х980х65 19,1
Package 2 – parts of arches and butt ends 170х1500х65 18,53
Package 3 – straight parts for butt ends, arch reinforcements
100х1290х65 18,4
Package 4
40х1100х750 1,42
Package 5 - weather strips 85х270х200 1,45
Package 6 - fasteners and parts 350x300 3,8
Package 7 * - side ventilating window 5
Inset (extending the frame by 2 m)
Package 1 - beams 80х980х65 12,5
Package 2 - parts of arches and straight parts 135х1480х65 17,5
Package 3 40х1100х750 1,42
Package 4 - fasteners and parts 85х200х200 1,1
5,2
10,4
15,6
20,8
The greenhouse frame is made of zinc-coated iron and assembled with screws and nuts. The
greenhouse is fixed to the ground by digging special supports into the soil or by joining it to
a foundation slab with fastening hooks. The supply package includes everything you need
for fastening the cover surfaces. Cover surface sheets are supplied following the customer’s
request. The greenhouse has two door openings and two ventilating windows in the opposite
ends. Side ventilating windows are supplied following the customer’s request.
Assembly and operation of the greenhouse should be performed in strict
compliance with the assembly manual and operation rules as specified
in the technical certificate. The technical certificate must be preserved.
Description

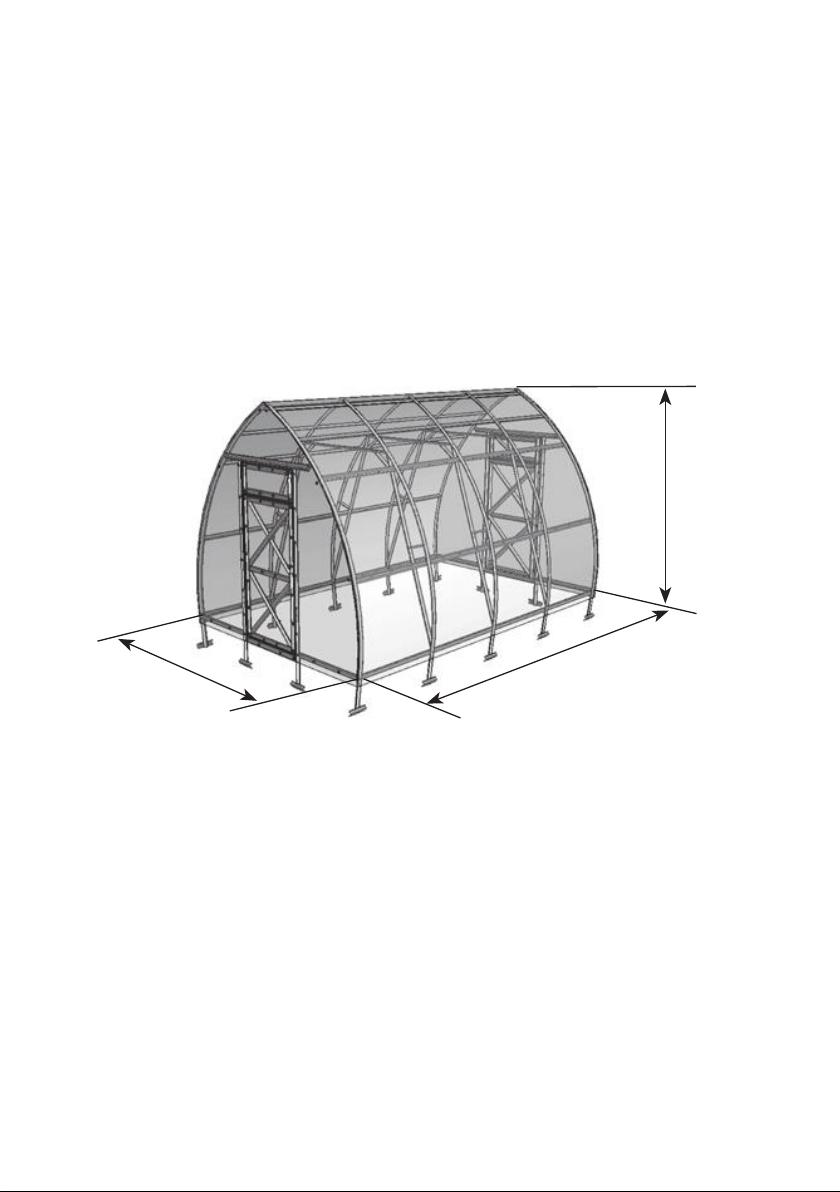

Greehouse specifcations
Chart 1
Length (m)
2m
4m
6m
8m
Covered area, sqm Number of polycarbonate sheets, 2100x6000 (pcs)
Chart 2
Chart 3
Packages supplied
Package contents
Inset
package numbersGreen-
house
length
2m
4m
6m
8m
Dimensions, mm
*-additional packages supplied following the customer’s request.
Greenhouse ARROW is intended to create the microclimate favorable for growing garden and
allotment crops in gardens and household plots. The area of covered ground depends on the length
of the greenhouse (Chart 1). The high of the installed greenhouse frame is 2,5 m, and
the width of 2,6 m is optimal for two garden beds inside. The greenhouse may be of different length
depending on the customer’s wish. The required length of the greenhouse can be attained by
purchasing additional “Inset” packages each adding 2 m to the base length 2 m (Chart 2).

3
Detailed list of parts for Greenhouse ARROW
Marking Name Quantity (pcs)
Package 1 (beams and straight parts)
2Beam 20
14 Door diagonal part 4
15 Door diagonal strap 4
19 Ventilating window horizontal part 4
20 Ventilating window vertical part 4
Hooks 4
Package 2 (arch parts)
4н Lower arch 6
4в Upper arch 6
8Upper door opening stand 4
12 Door vertical part 4
Package 3 (straight parts for butt ends, arch reinforcements)
1stand 10
3support 10
5Butt end upper strainer 2
6Butt end lower strainer 6
7Lower door opening stand 4
9Horizontal strainer 1
10 Side brace 4
11 Brace spreader 2
13 Door horizontal part 6
16 Butt end strap 2
17 Door strap for the latch 4
18 Reinforcement nogging piece 2
Left tubular reinforcement 2
Right tubular reinforcement 2
Package 4 (ridge profile)
Ridge profile 2
Package 5 (weather strips)
Hinge strip (m) 3,6
Door strip (m) 10
Butt end strip (m) 12
Package 6 (fasteners and parts)
Angle 20
Ridge strap 3
Support hook 8
Screw М5х10 378
Screw М5х14 22
Screw М5х35 108
Screw М4х8 6
Screw М4х10 4
Screw М4х35 8
Self-tapping screw 8
Nut М5 526
Nut М4 18
Nut М6 6
Washer 124
Washer М6 12
Upper wire bandage 3
Lower wire bandage 6
Hinges 8
Semi-finished rotator (with 2 elastic headers)
4
Pipe for bending 1
Scotch tape 1
Handle 8
Stud pin 4
Bolt М6х60 6
Bolt М5х50 18
Two-side adhesive tape 4,2
Profile 1.05m 4
Technical certificate
Chart 4

4
Detailed list of parts for Side ventilating window Package 7
Name
Quantity, pcs
Package 1
ф1
Long plank
2
ф2
Short plank
2
ф3
Long diagonal part
1
ф4
Short diagonal part
1
Wire stop 1
Wire extender 1
Package 2
Angle
1
Polycarbonate
0,95x0,43
Weather strip
0,95 m
Divisible hinge
2
Screw М5х10
27
Screw М5х35
8
Washer 32х5
8
Nut М5
35
Clamper 2
Technical certicate
Detailed list of parts for Inset
Package 1
2Beam 20
Package 2
3
Support 4
1
Stand 4
4н Lower arch 4
4в Upper arch 4
9Horizontal strainer 2
10 Side brace 8
11 Brace spreader 4
18 Reinforcement nogging piece 4
Package 3
Ridge profile 2
Package 4
Lower wire bandage 4
Upper wire bandage 2
Ridge strap 2
Screw М5х10 172
Screw М5х35 16
Screw М5х14 4
винт М5х50 4
Screw М4х35 8
Screw М4х8 4
Nut М4 12
Nut М5 196
Nut М6 4
Washer 16
Washer М6 8
Screw М6х60 4
Angle 8
Two-side adhesive tape (m) 4
Profile L=1.0m 4
Chart 5
Chart 6

5

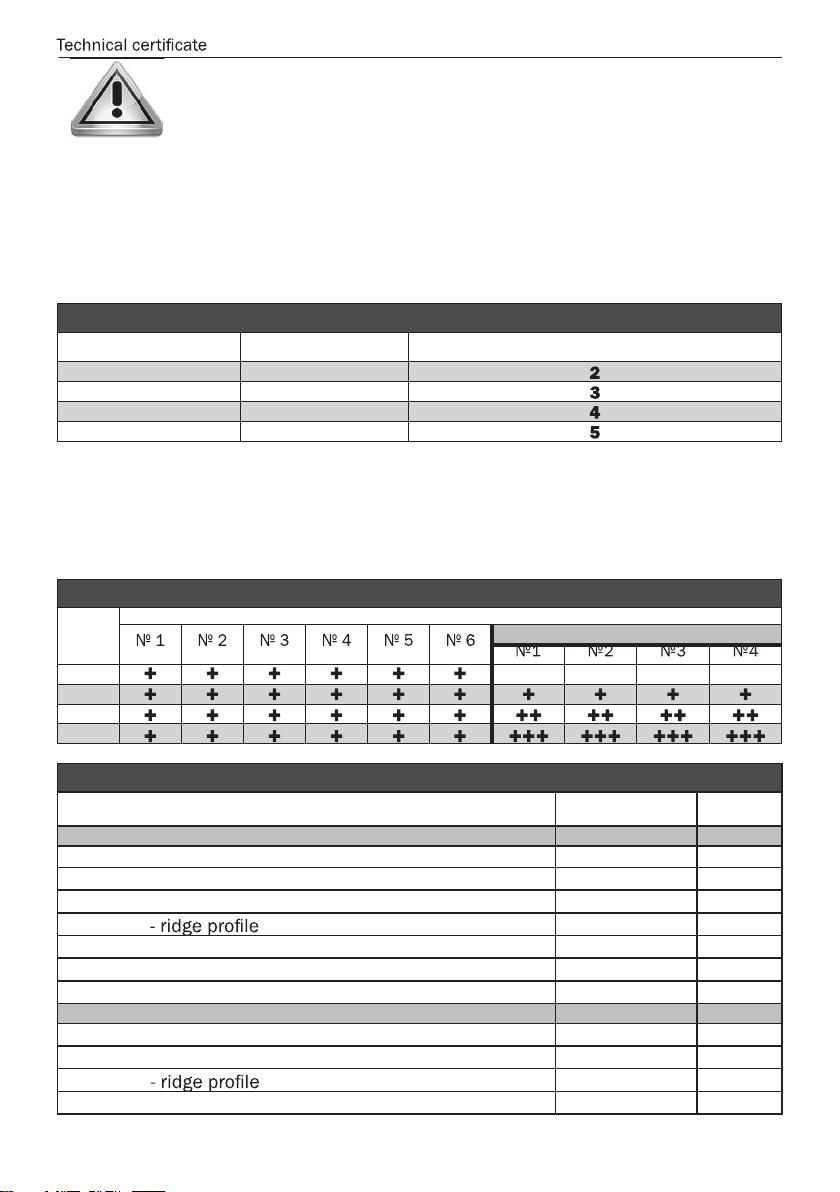

Technical certi cate
1. Before the start of operation, the
greenhouse should be assembled and
installed as prescribed in the manual.
When the greenhouse is assembled
by a third party the customer should
supervise the quality of works to ensure
compliance with the present manual.
2. The greenhouse cover surface should
not be removed for the winter period if
snow load is limited. If the greenhouse
is left unattended for the entire winter
the customer should either remove the
cover surface or estimate the possible
snow load. For the frame assembled
with all parts including strainers and
braces, the maximal snow load begins
when the layer of snow weight is 450
kg per 1 sqm of horizontal surface,
which corresponds to 2.25 m of fresh
snow and 1.1 m of settled snow.
The recommended thickness of the
When the greenhouse is assembled
Operation rules
Cleaning and washing sheets of polycarbonate.
1. Rinse the sheet with warm water.
2. Wash the sheet with a solution of soft soap or with a domestic detergent and
warm water, using a soft rag or a sponge to take away the dirt.
3. Rinse with cold water and dry with a soft rage to take away the water.
By disinfection of the greenhouse from fungus and biological diseases
pathogens do not use “sulphuric sticks”
When cleaning polycarbonate sheets never use abrasives or high-alkali
cleaning compositions. Dry wiping of the surface can damage the protective
layer and reduce its life cycle. Never use brushes, gauze fabric or other
abrasive materials to wipe the surface of polycarbonate sheets.
honeycomb polycarbonate (4 mm) is
sufficient for midland Russia conditions.
However, for areas where snow layer
exceeds 0.6 m the upper part of the
greenhouse should be covered by thicker
polycarbonate in accordance with local
weather conditions.
Do not install the greenhouse too close
to buildings or trees where masses of
snow/ice can fall on it. Recommended
distance is at least 1 m.
The greenhouse is designed to withstand
wind at the speed below 24 m/sec

6
Warranty responsibility
1. The manufacturer shall be responsible for the complete set of parts for
the greenhouse frame.
2. The manufacturer shall be responsible for assemblability of the
greenhouse in accordance with the manual.
3. The manufacturer shall be responsible for the greenhouse endurance in
the specified weather conditions.
4. Time period for making claims is 24 months after the day of purchase.
Warranty provisions
Warranty responsibility shall not cover the following cases:
1. Installation of the greenhouse in violation of the manual provisions.
2. Violation of operation rules.
3. Unintended use of the greenhouse.
4. Deformation of the greenhouse due to soil movement.
5. Floods, hurricanes and other natural disasters.
The manufacturer shall retain the right
to make changes to the greenhouse design.
Warranty responsibility

7
Manual
Installation manual for Greenhouse ARROW

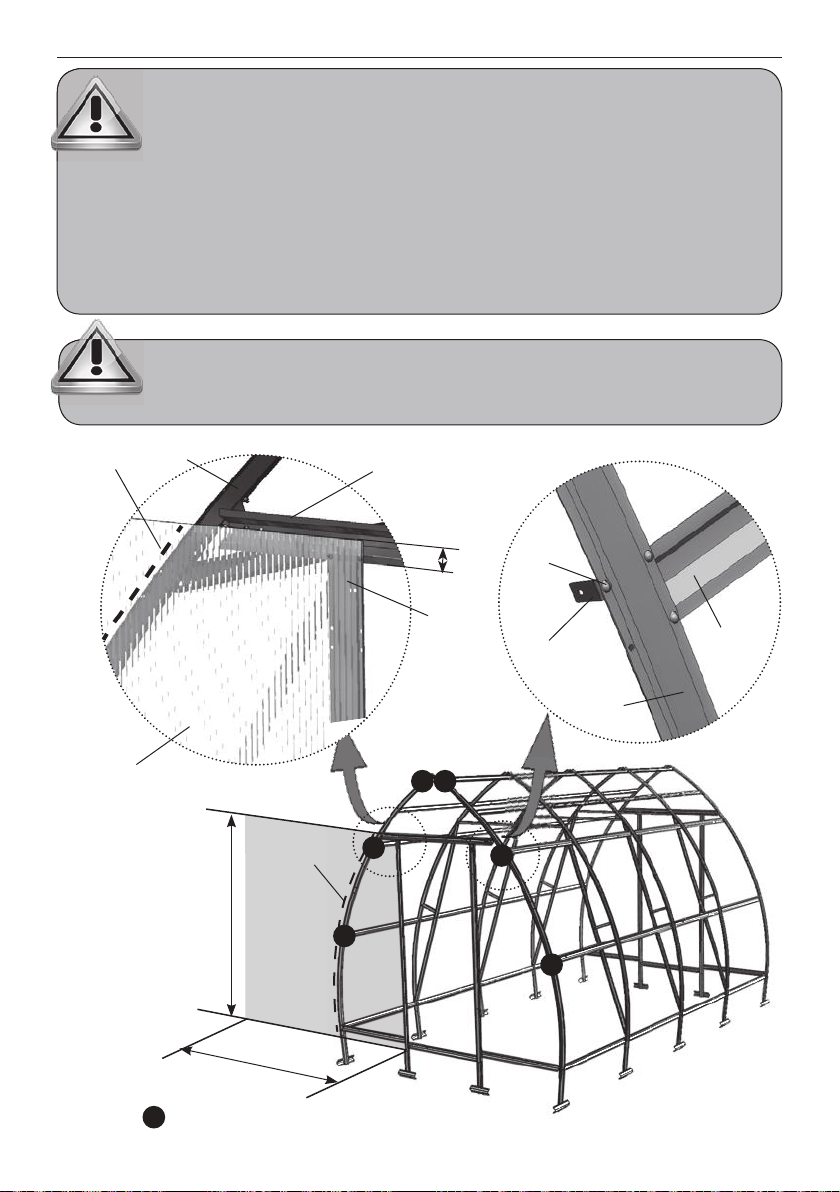

General view of the frame is given in Picture 1 .Parts should be installed in
such a way that side selves of the profile are facing the surface cover. The
frame is assembled of numbered parts.
Symbols:
-arrow shows the direction of
installation as per schemes in the
manual.
Parts are fastened by putting profiles together and fastening them with
screws and nuts through the holes. When joining parts in “profile-to-
profile” way it does not matter which of the joined parts is above.
When assembling be careful not to damage the parts as they do not
have sufficient endurance before the whole structure is assembled. Use
supports (e.g. chairs) at interim stages of assembly to make sure the frame
is lifted steadily and evenly. To make sure holes coincide when assembling
complicated joints, use a 5 mm thick nail or a cone-shaped hand-punch.
1.
2.
3.
4.
Some parts may have spare
holes which are there due to
uniformity of parts.
introduction
Be careful when assembling the greenhouse! Parts have sharp edges.
Beware of cuts! Perform all works in protective gloves.
When assembling the frame parts should be joined through all holes
as prescribed. A simplified fastening of parts with only one or two
screws is the violation of assembly rules and the ground to relieve the
manufacturer of the warranty responsibility.

8
Manual

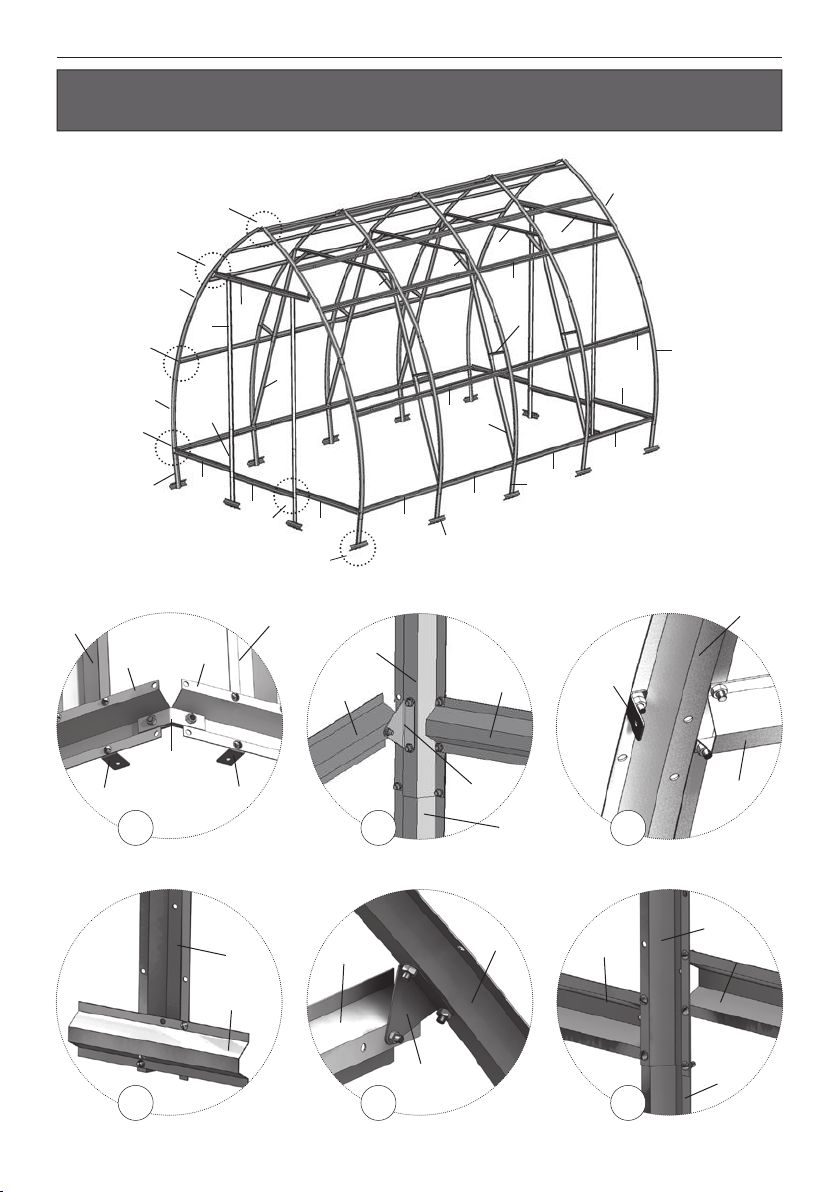

General view of the frame (Greenhouse ARROW)
(view from outside)
4В
Ridge strap
Angle
4В
22
4Н
62
1
Support hook
4Н
(view from outside)
4В
5
Support hook
7
1
6
6
(view from outside)
Angle
4Н
2
3
1
В
Б
Г
Е
Д
4Н
4Н
4В
4В
5
2
2
9
10
10
5
7
8
6
6
6
1
1
3
2
2
2
2
6
11
18
18
2
Pic. 1
(view from outside) (view from inside)
А
А
Г EД
Б В
Angle
(view from inside)

9
Manual
General view of the frame, Greenhouse ARROW
Greenhouse ARROW
extended by any number
of insets.
Pic. 2
Pic. 3
General view of the inset for
Greenhouse ARROW.
Each inset extends the
greenhouse length by 2 m.
858
4060
1000100010001000
2577
Plan of greenhouse stands
resting on the foundation
Pic. 4
60
21

10
2
2
2
2
2
2
22
2
2
2
2
Assembly arches 4в pairwise by joining them
to each other with the ridge strap and brace
9. Join butt end parts 5 with the support hook
to arches 4в.
Join beams 2 to
assembled arches.
2
2
4в
Assembly stages
Pic. 5
Pic. 6
Level the frame by adding some soil into the holes or deepening the holes in order to make
sure that the lateral parts are straight, horizontal and parallel to each other, and that the
arches are straight when seen from aside. If it is necessary to adjust arches, loosen the
joints between beams and arches, level the frame on the ground and tighten the screws
again. Put soil on the stands of the frame after fixing lower wire bindings on part 3 (Piс.10)
Perform the assembly next to the installation site of the greenhouse.

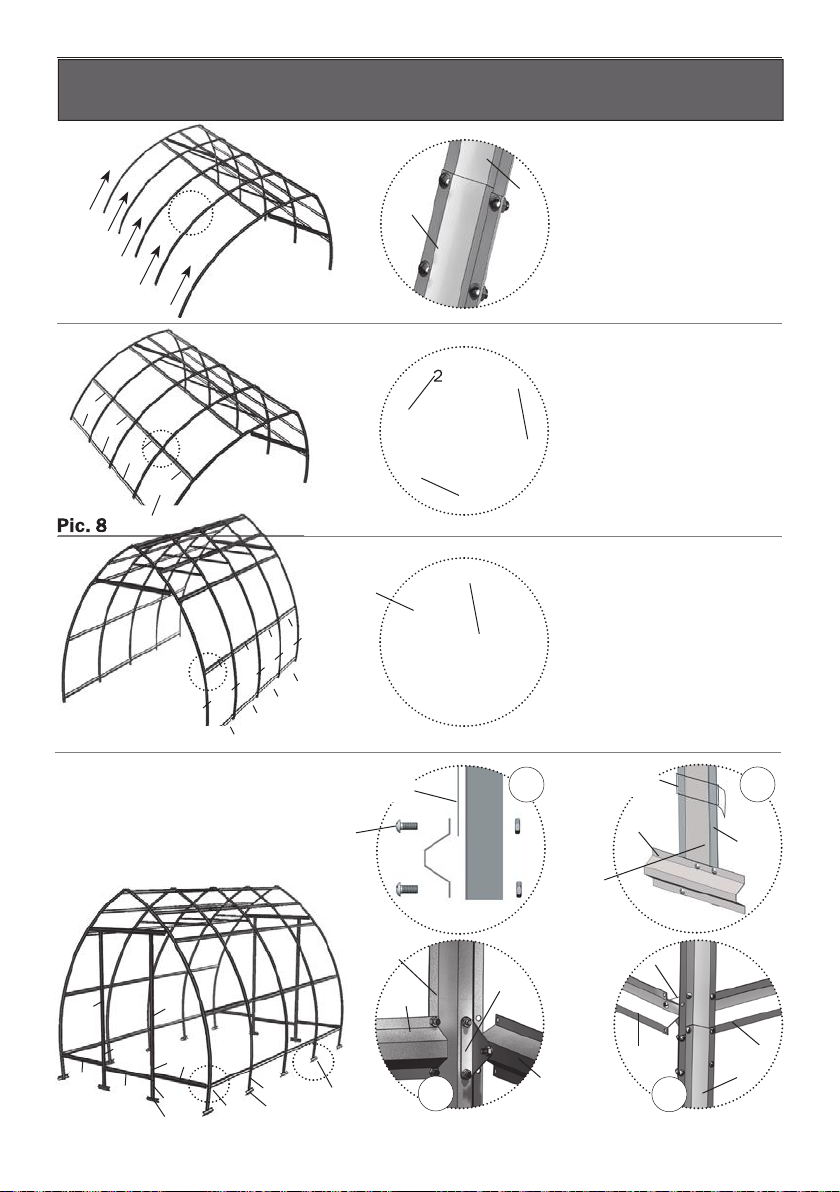

Perform the assembly in accordance with the pictures of assembly stages and the joints
as shown in Pic. 5...12. The pictures illustrate assembly of a 4 m long greenhouse. The
required length of a greenhouse is attained by adding corresponding parts from Inset
package(s). To join the parts, screws М5х10 are used.

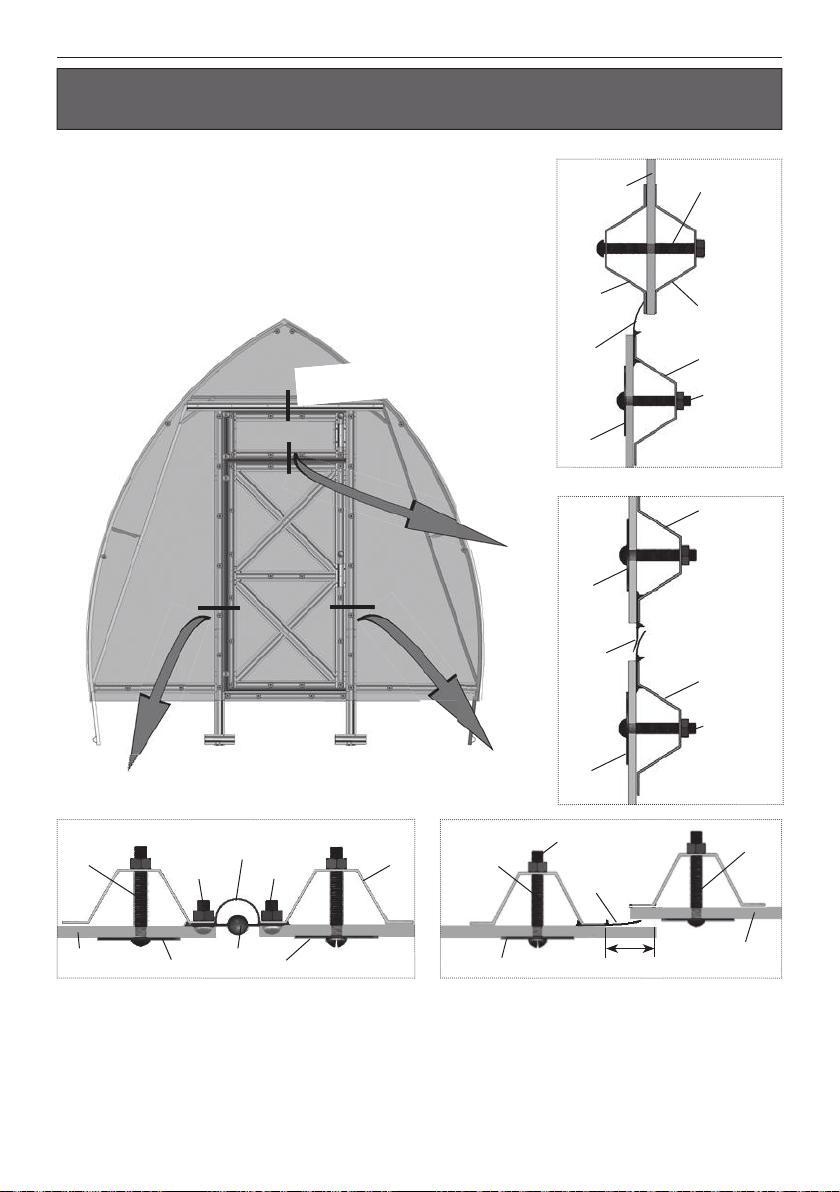

On the site selected for installation of the greenhouse, dig holes as shown by the scheme in
Pic. 4 to the spade length depth. Set the frame into the holes. Use the line to check that the
diagonals of the frame are equal. General settlement of the greenhouse on the ground is
made in such a way that the lower parts 6 of the door opening touch the ground, and parts
2 are some 5 cm above the ground. Use the line again to check the diagonals so that they
are equal and adjust the corners of the frame if necessary.
1.
2.
3.
4.
Installation steps
4в
5
Support hook
Manual
Pic. 5
4в
4в
4в
4в
4в 4в
4в
4в
4в
4в
5
5
9
9
9
А
В
Б
Ridge strap
4в
Б
4в
9
А Б
В

11
Picture 10
2
6
4н
2
1
Support hook
6
Pic. 7
Fasten arches 4н
to arches 4в on
the one side of the
greenhouse.
4н
4н
4н
4н
4н
Fasten beams 2
to arches 4н
Pic. 9
Similarly, install arches
4н and beams 2 on
the other side of the
greenhouse.
7
1
3
7
6
6
6
8
8
3
1
А
Assembly stages
Manual
4н 4в
А ((view from inside) А (view from outside)
Support hook
Б-1, Б-2
Pic. 8
2
2
2
2
Pic. 8
4н
4н
4н 4н 4н
2
2
2
2
22
2
2
2
2
4н
2
4н 2
АА
When installing the greenhouse by
setting it into the ground (without a
foundation) join parts 1 and 3 to the
frame. Put into the vacant hole of part
3 the lower wire binding. Install parts
of butt ends 6,6к, 7, 8.
31
Б-2
one-sided
adhesive tape
3
1
Screw
М4х8
Lower wire
bandage
Lower wire
bandage
Б-1

12
Inside the greenhouse frame, install
side braces on each arch (parts 10). A
side brace in assembled of two parts 10.
Brace spreader 11 is installed at the joint
of parts 10 and fastened to arch 4н.
9
10
4в
10
10
11
10
22
Assembly stages
Pic. 11
А Г
В
Б
Д
Е
Manual
4н
4н
4н
4н
9
18
18
10
А
Г
EД
Б В

13
Manual

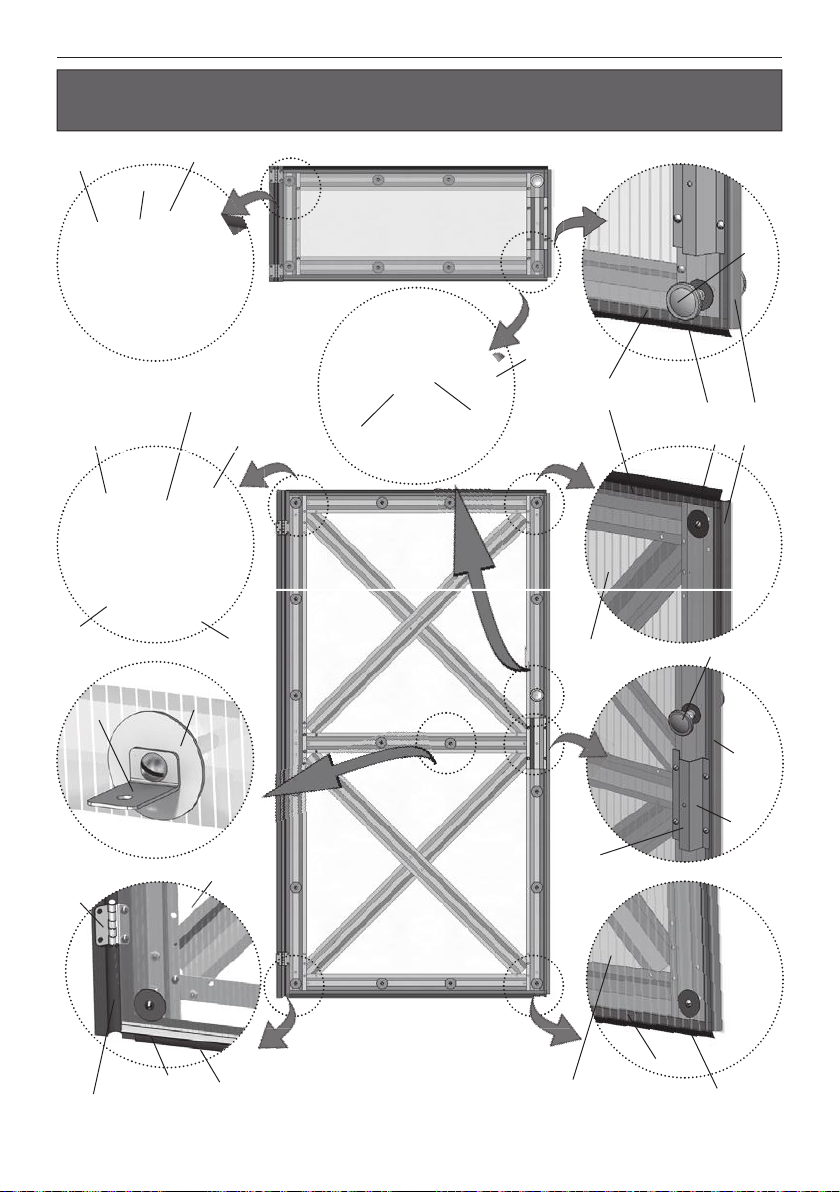

Door assembly
20 20
19
19
Door
Assembly the door and the butt
end ventilating window from
parts 12, 13, 14, 15, 19, 20
(Pic. 12)
14 12
13
14
15
Б
Pic. 12
А
13
14
15
15
15
14
14
14
13
Window
19
20
13
14
12
12
15
15
13
14
13
12
12
12
12
12
15
13
А
Б

14
Manual
Surface cover cutting and fitting
1. Cut the surface cover
sheet for butt ends.
To do so, cut from a
polycarbonate sheet a
piece 2 m long (see the
cutting line in Pic.13).
To create a pattern of
surface cover, put the
cut-out piece to the
assembled butt end of
the greenhouse and,
without taking off the
protective  lm from the
polycarbonate, draw
the pattern lines on the
surface cover sheet
for parts 4в and 4н,
oversized (Pic.14). When
drawing, the edge of
the sheet should exactly
coincide with the edge
of parts 7and 8, while
the upper edge is 30 mm
above the lower edge
of part 5. Cut out the
pattern. Mark lines on
the remaining part of the
sheet using the cutout
pattern in accordance with
the cutting plan (Pic.13).
Cutting is better done with an electrical fret saw, or with a jigsaw with
small sawteeth.
14

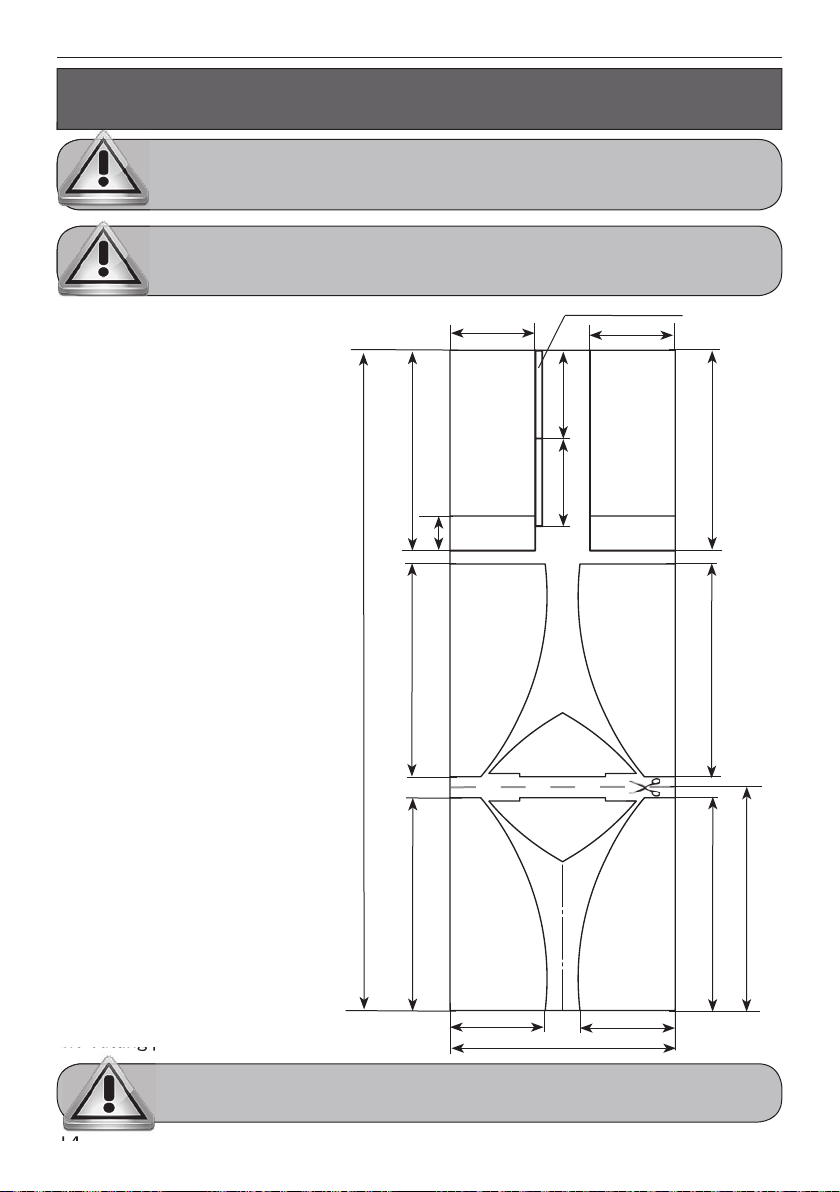

the cutting plan
CUT THE POLUCARBONATE SHEET IN STRICT ACCORDANCE WITH PIC. 13 AND
PIC. 14
Honeycombed polycarbonate sheet 2100 x 6000 mm
800
800
(Pic.13)
6000
2000
1935 1935
1935 1935
2100
900 900
1825
1825
310
cutting line
Warning! When cutting the surface cover in windy weather, fix the edges of
polycarbonate sheets with a load.
door
Left side
Left side Right side
Right side
door
window window
Lower strip
800 800
Ridge
Ridge

15
Manual
Attention! The side edge of a piece of cover surface shall be lined up by parts 7,
8, and the upper edge should be 30 mm higher above the lower edge of part 5.
Mark with oversize for parts 4н and 4в.
Крепление покрытия
The polycarbonate should be installed with the strongly defined outer
side (towards the sun), having a protective layer (always make sure
when purchasing or before installation). The protective layer is usually
on the side with inscriptions on the packaging film. On the other side
of the sheet the film is clear. After drawing the planning lines on the
sheet but before cutting it, mark the protective side of every piece of
polycarbonate: after removing the packaging film, both sides of the
sheet look very similar. The packaging film should be removed from
both sides right before fastening the cover surface to the frame.
Pic. 14
Marking
8
5
2
4в
4в
М5х10
Angle
30 mm
cover surface
2000
2100
marking
- Places for joining angles to the butt end

16
Manual
Раскрой и крепление покрытия торца
Pic. 15
2. Pieces of cover surface above the door should be cut
out as applicable from remaining pieces of polycarbonate.
Mark the cover surface for parts 4в in oversize, lining up
the lower edge of the sheet with the lower edge of part 5
(Pic.15).
marking
cover surface
4в
5
Cutting out and fastening the cover surface
16
Avoid over-tightening screws that fasten the polycarbonate in order
not to damage the polycarbonate sheet and destroy its structure.
Pic.16
3. Install side parts of the butt end as shown in
Pic.14,16. Holding a piece of cover surface in place,
fasten it with screws and washers on parts 6,7,8. And
on angles with the use of self-tapping screws with
washers. Holes for screws should be drilled with 5 mm
bore from inside the greenhouse through ready-made
holes in frame parts. Install pieces of “half-rounded
ridge” by fastening it to angles with self-tapping screws
with washers. Cut off any overlapping parts on the sides.
4. Use a knife to smooth the cover surface according to
the arches 4н and 4в, and then install weather strips as
shown in Pic.17.
5. Fasten pieces of cover surface on the ventilating
window and the door with washers (Pic.18,19), letting
the cover surface out in one side (Pic.23), covering the
cellular structure beforehand (by sticking scotch tape
on it). Weather strips are installed along the contour
of ventilating windows and doors as shown in pictures
18,19,21,22.
Pic.17
Details
4B, 4H
and 1
Butt end weather strip
cover surface
Washer
Screw М5х35
6,7,8
Protective layer
Protective layer
Butt cover

17
Manual
Cutting out and fastening cover surface
Рiс.19
Door weather
strip.
Door weather
strip.
Hinge strip
Cover surface
17
ScrewМ5х14
Cover
surface
Scotch tape
Door weather strip
hinge
Scotch tape
Door weather
strip.
Hinge strip Cover surface
Door weather
strip.
Cover surface
hinge
hinge
Scotch tape
Cover surface
Cover
surface
Scotch tape
Scotch tape
handle
handle
Рiс.18
surface
Door weather
strip.
handle
Stud pin
washer
washer
Angle

18
Manual
Cutting out and fastening cover surface
7. Install the assembled door onto the butt ends,
placing the weather strip as shown in Pic.22.
6. Place the butt end strap 16 onto butt end cover
surface and fasten it onto part 5 through the surface
(Pic.20 and Pic.24). Under part 16 there is a joint
between parts of butt end cover surfaces.
Pic. 21
Pic.23
Butt and cover
door
20..25мм
(the output of surface contour door)
door
Washer
detail 12
Butt and cover
ScrewМ5х35
Screw
М5х35
ScrewМ5х10 Screw М5х10
Screw
М5х35
Hinge strip
hinges
Washer Washer
detail 12
door
Pic.22
Butt end
cover
16
Screw
М5х50
Screw
М5х35
Screw
М5х35
detail 5
Door weather
strip
Door weather
strip
Door weather
strip
detail 13
detail 13
19
форточка
форточка
Pic.20
дверь
Washer
Washer
Washer

19
Manual
Cutting out and fastening cover surface
8. Install washers on the butt end as shown in Pic.24..
9. Install the angle for hooks on the butt end and the door to  x it in the open
position Pic.24
Part 16
Рic.24
Screw
М5х35
hook
butt end surface
angle
screw М4х10
screw М5х10
Ground level
2
8
10. Install tubular reinforcements for door
openings as shown in Pic.25. Fasten them to the
butt end with screw М5х35 through the butt end
cover surface, and with screw М5х10 on the beam
Pic.25
Tubular reinforcement
Washer
screw М5х35
