Installation Instructions
1 MOUNTING THE TIMER
□Mount the timer (1) onto a wall near a GFCI receptacle with the
timer’s LCD display (4) facing outward.
□Install a nail or screw head (not included) into a wall. The nail or
screw must extend at least 7/8 in. out from the wall and allows the
timer receptacles to be 4 feet (1.3 meters) above ground level.
2 INSTALLING THE TIMER
□Hang the timer (1) from the eyelet on the top right of the unit with
the receptacles (3) facing downward with the timer receptacles at
least 4 feet (1.3 meters) above ground level.
□Plug the grounded power cord (2) into a GFCI outlet.
□Plug the device(s) you wish to be on a timer into either of the two
receptacles (3).
□Ensure that the devices you wish to be controlled are turned to the
ON position.
1
2
3
Operation Instructions
1 INITIAL SETUP - SETTING THE TIME
□If no numbers are visible on-screen, plug the timer into an outlet and let the timer charge for 1 hour.
Once charged, press the Reset button (13) in the lower right corner using a toothpick or pencil.
□Use the Up (6) and Down (5) arrows to set the current time, taking note of the AM and PM on the
display (4).
NOTE: Press and hold the Up (5) or Down (3) arrows to cycle through the time faster.
4
56
13
PRODUCT DESCRIPTION
4
2
1
56
8
10
12
13
3
7
9
11
Part Description
1 Timer
2 Grounded Power Cord
3 Receptacles
4 LCD display
5 Down arrow button – Used to scroll through timer settings.
6 Up arrow button – Used to scroll through timer settings.
7 My On Time button – Used to create a custom ON time for your timer. Factory default setting is 6:00 pm.
8 My Off Time button – Used to create a custom OFF time for your timer. Factory default setting is 10:00 pm.
9 Evening 5 pm-12 am button – Pre-set time for your timer. Timer turns on at 5:00 pm and off at 12:00 am.
10 Morning 5 am-8 am button – Pre-set time for your timer. Timer turns on at 5:00 am and off at 8:00 am.
11 All Night 6 pm – 6 am button – Pre-set time for your timer. Timer turns on at 6:00 pm and off at 6:00 am.
12 Countdown button – Used to immediately turn the timer on and then off after a determined timeframe from
1 minute to 24 hours.
13 Reset button – Press to reset the timer to factory default settings.
Use and Care Guide
Outdoor Easy Set Plug-In Timer
Item #1001-550-000
Model #29068
UPC #00030878290685

HOMEDEPOT.com
Please contact 1-866-308-3976 for further assistance.

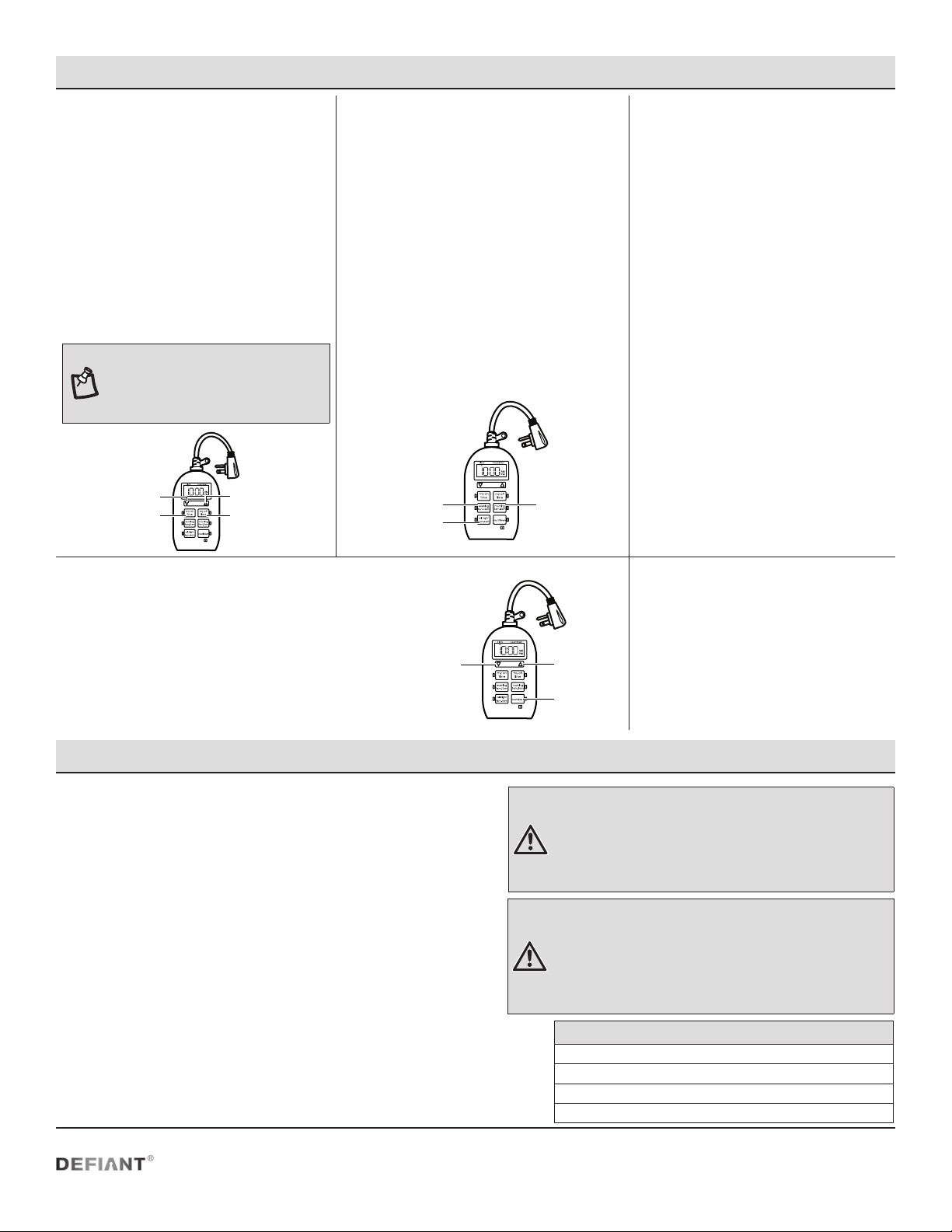

Operation Instructions (continued)
2 CHOOSING A CUSTOM ON/OFF
TIME
□Press the My On Time button (7) and
then use the Up (6) and Down (5) arrow
buttons to set the time you want the
timer to turn On. The blue light next to My
On Time (7) should turn on, indicating that
the On time is set and activated.
□Press the My Off Time button (8) and
then use the Up (6) and Down (5) arrow
buttons to set the time you want the
timer to turn Off. The blue light next to
My Off Time (8) should turn on, indicating
that the Off time is set and activated.
NOTE: If you set the My On Time earlier
than the current time, the timer does
not turn on until the next day at the time
scheduled. Use the Countdown feature to
turn on the timer if needed immediately.
7
56
8
3 USING A PRE-SET ON/OFF TIME
There are three pre-programmed times on this
timer that run individually or simultaneously:
□Press the Evening button (9) if you want the
timer to turn on at 5:00 pm and off at 12:00
am.
□Press the Morning button (10) if you want
the timer to turn on at 5:00 am and off at
8:00 am.
□Press the All Night button (11) if you want
the timer to turn on at 6:00 pm and off at
6:00 am.
Ensure that the blue LED indicator light is
illuminated next to the pre-programmed time you
have chosen. This indicates that the timer is active
and will function properly at your chosen On/Off
times.
11
910
4 COMBINING CUSTOM AND
PRE-SET ON/OFF TIME
If a preset schedule does not t your needs, a
custom on/off time can be used to modify one
of the three preset times. For example, if you
press the Evening button (9) to activate the
timer to turn on at 5:00 pm and off at 12:00
am and then program a My Off Time (8) of
10:00 pm, this creates a 5:00 pm-10:00 pm
timer schedule.
5 USING THE COUNTDOWN FEATURE
Press the Countdown button (12) then use the Up (6) and
Down (5) arrows to set the countdown timer from 1 minute to
24 hours. The Countdown blue LED will illuminate indicating
that the Countdown feature is active. When the Countdown
feature is active, the timer immediately turns on and operates
until the set countdown time expires. The last countdown
time set will become the new default until you change the
countdown time.
5
12
6
6 DAYLIGHT SAVINGS TIME
When daylight savings time occurs, use the
Up (6) and Down (5) arrow buttons to adjust
the clock time by 1 hour.
Safety Information
FCC NOTE
This device complies with part 15 of the FCC and Industry Canada license-exempt RSS
standard(s). Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modications to this equipment. Such modications could void the user’s
authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. This Class B digital apparatus complies with
Canadian ICES-003. These limits are designed to provide reasonable protection against
harmful interference in residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the
instructions may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
□Reorient or relocate the receiving antenna.
□Increase the separation between the equipment and receiver.
□Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
□Consult the dealer or an experienced radio/TV technician for help.
CAN ICES-3(B)/NMB-3(B)
WARNING: RISK OF ELECTRIC SHOCK
□PLUG DIRECTLY INTO A GFCI PROTECTED ELECTRICAL OUTLET
□UNPLUG TIMER BEFORE CLEANING
□FULLY INSERT PLUG
□KEEP AWAY FROM CHILDREN
□NOT FOR WATER IMMERSION
□SUITABLE FOR INDOOR AND OUTDOOR LOCATIONS, STORE INDOORS
WHILE NOT IN USE
WARNING: RISK OF FIRE
□DO NOT USE TO CONTROL APPLIANCES THAT CONTAIN HEATING
ELEMENTS (COOKING APPLIANCES, HEATERS, IRONS, ETC.)
□DO NOT EXCEED ELECTRICAL RATINGS
□RATINGS ARE FOR BOTH OUTLETS COMBINED
□DO NOT USE IF DEVICE OR CORD IS DAMAGED
□DO NOT USE WITH AN EXTENSION CORD
□INSTALL WITH TIMER RECEPTACLES AT LEAST 4 FEET (1.3 METERS)
ABOVE GROUND LEVEL
RATINGS
125V 50/60 Hz
15A 1875W General Purpose/Resistive
10A 1250W Tungsten
1/2 HP
