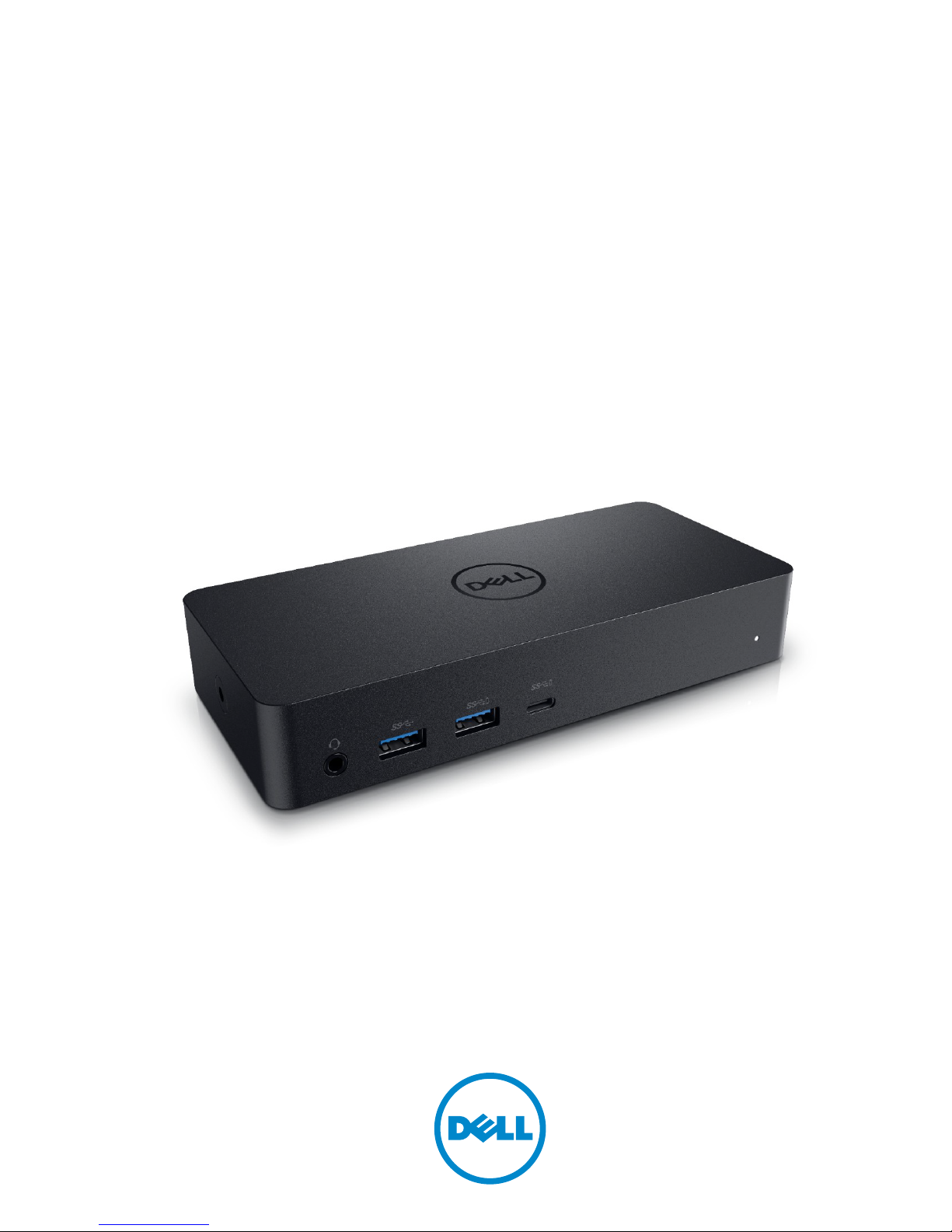

Dell D6000 User manual

D6000
User Guide
DellTM Universal Dock

NOTE: A NOTE indicates important information that helps you make
better use of your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss
of data if instructions are not followed.
WARNING: A WARNING indicates a potential for property damage,
personal injury, or death.
© 2017 Dell Inc. All rights reserved.
Information in this document is subject to change without notice. Reproduction of these
materials in any manner whatsoever without the written permission of Dell Inc. is strictly
forbidden.
Trademarks used in this text: Dell and the Dell logo are trademarks of Dell Inc., Intel®,
Centrino®, Core™, and Atom™are either trademarks or registered trademarks of Intel
Corporation in the U.S. and other countries; Microsoft®, Windows®, and Windows start button
logo are either trademarks or registered trademarks of Microsoft Corporation in the United
States and/or other countries; Bluetooth®is a registered trademark owned by Bluetooth SIG,
Inc. and is used by Dell under license; Blu-ray Disc™is a trademark owned by the Blu-ray Disc
Association(BDA) and licensed for use on discs and players; Other trademarks and trade names
may be used in this document to refer to either the entities claiming the marks and names or
their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other
than its own.
2017 – 03 Rev. A00

3
Package Contents
a. Dell Universal Dock (D6000)
b. Power adapter and power cord
a b
Specifications
Upstream
• USB 3.0 Type A (Via C-to-A converter)
• USB-C (Support power delivery up to 65W)
Downstream
• 3 x USB 3.0 Type A
• 1 x USB 3.0 Type A (front, PowerShare)
• 1 x USB-C (front, Data only, and PowerShare)
• 1 x HDMI
• 2 x DisplayPort
• Gigabit Ethernet
• Combo Audio (Headphone/Mic)
• Audio Line out
Supports USB 3.1 Gen1.
• Product capability : product signals at 5 Gbps
• Marketing name: SuperSpeed USB
• Note: USB 3.1 Gen1 and USB 3.0 terms are synonymous
Power LED Indication
Normal working mode: White light
Platform standby: Amber light
Power O: Light O
LAN port LED Indication
Connection: Green (Solid green)
Active Link: Amber (blinking)

4 
** : No Alt-mode support
DP-1 DP-2 HDMI DP-1 DP-2 HDMI
OutputInputs (plug in)
DP-1
DP-1
DP-1
DP-1
DP-1
DP-2
DP-2
DP-2
DP-2
DP-2
HDMI
HDMI
HDMI
HDMI
HDMI
4K@60Hz
4K@60Hz
4K@60Hz
4K@60Hz
4K@60Hz
4K@60Hz
4K@60Hz
4K@60Hz
N.A.**
N.A.**
4K@60Hz
4K@60Hz
4K@60Hz
USB-3.0 platform users with driver install
5K@60Hz
Maximum resolution and refresh rate supported for your display:
Note: Maximum Resolution/Refresh Rate will also depend on EDID table of monitors
* If without DisplayLink driver, HDMI out will be from Alt-mode and 4K@ 30Hz.
DP-1 DP-2 HDMI DP-1 DP-2 HDMI
OutputInputs (plug in)
DP-1
DP-1
DP-1
DP-1
DP-1
DP-2
DP-2
DP-2
DP-2
DP-2
HDMI
HDMI
HDMI
HDMI
HDMI
4K@60Hz
4K@60Hz
4K@60Hz
4K@60Hz
4K@60Hz
4K@60Hz
4K@60Hz
4K@60Hz
4K@30Hz
4K@30Hz
4K@60Hz
4K@60Hz
4K@60Hz
USB-C platform users with driver install
5K@60Hz

5
Product Overview
Front View
Audio Combo
USB 3.0
USB 3.0
USB-C
HDMI
Ethernet
DP
DP
Power in
USB 3.0
Audio line out
USB 3.0
Back View

6 
Recommended System Requirements
Hardware
DL-6xxx devices (4K UHD resolutions)
Minimum Requirements for Oce, Productivity, Web
Processor: Intel Core i3 2+GHz / Intel Core M / AMD Trinity or better
Memory: 4GB
Video Card: Intel HD 4000, ATI Radeon HD7xxx, NVidia GeForce 5xxM or better, with
drivers released specifically for the Windows version.
USB: USB 2.0 but USB 3.0 recommended
Minimum Requirements for Full-Screen Video Playback
Processor: Intel SkyLake i3 or Intel Core i7 2+GHz / AMD Richland A10-575x / AMD
Kaveri A10-7400P or better
Memory: 8GB
Video Card: Intel HD 4000, ATI Radeon HD 8650, NVidia GeForce 7xxM or better, with
drivers released specifically for the Windows version.
USB: USB 3.0
Disk: 7200RPM or SSD
If playing UHD content (4K), the system must be capable of decoding the 4K video in
the GPU.
Operating System
Wins OS (Win 7, 8, 8.1, 10); 32/64 bits (with DisplayLink Driver version: 8.2 onwards).
Ubuntu OS 14.04.2 or greater.
Chrome OS Build 58 onwards.
1.Lite-On (DPN: VJCH5) adapter:
100 VAC to 240 VAC/50 Hz to 60 Hz.
2.Chicony (DPN: 6G99N) adapter:
100 VAC to 240 VAC/50 Hz to 60 Hz.
Recommended 130W Power adapter
AC/DC
Adapter
Output voltage/
current
Operating Temperature
Max. operating temperature is 40 oC
Input voltage/
frequency/
current
Output: 19.5VDC/6.7A

7
Note: Windows will start installing the DisplayLink driver automatically
if connected to Internet.
2. Follow the screen instructions until the installation is complete.
Windows 7/8/8.1/10 Setup
1. Start to install the drivers first before connecting the Dock to your computer.
It is recommended to download the latest drivers from below support website:
For network/IT administrators, please visit
this link for a corporate installation software
package. (*User registration required)
http://www.displaylink.com/corporateinstall/
· dell.com/support
· displaylink.com/downloads

8 

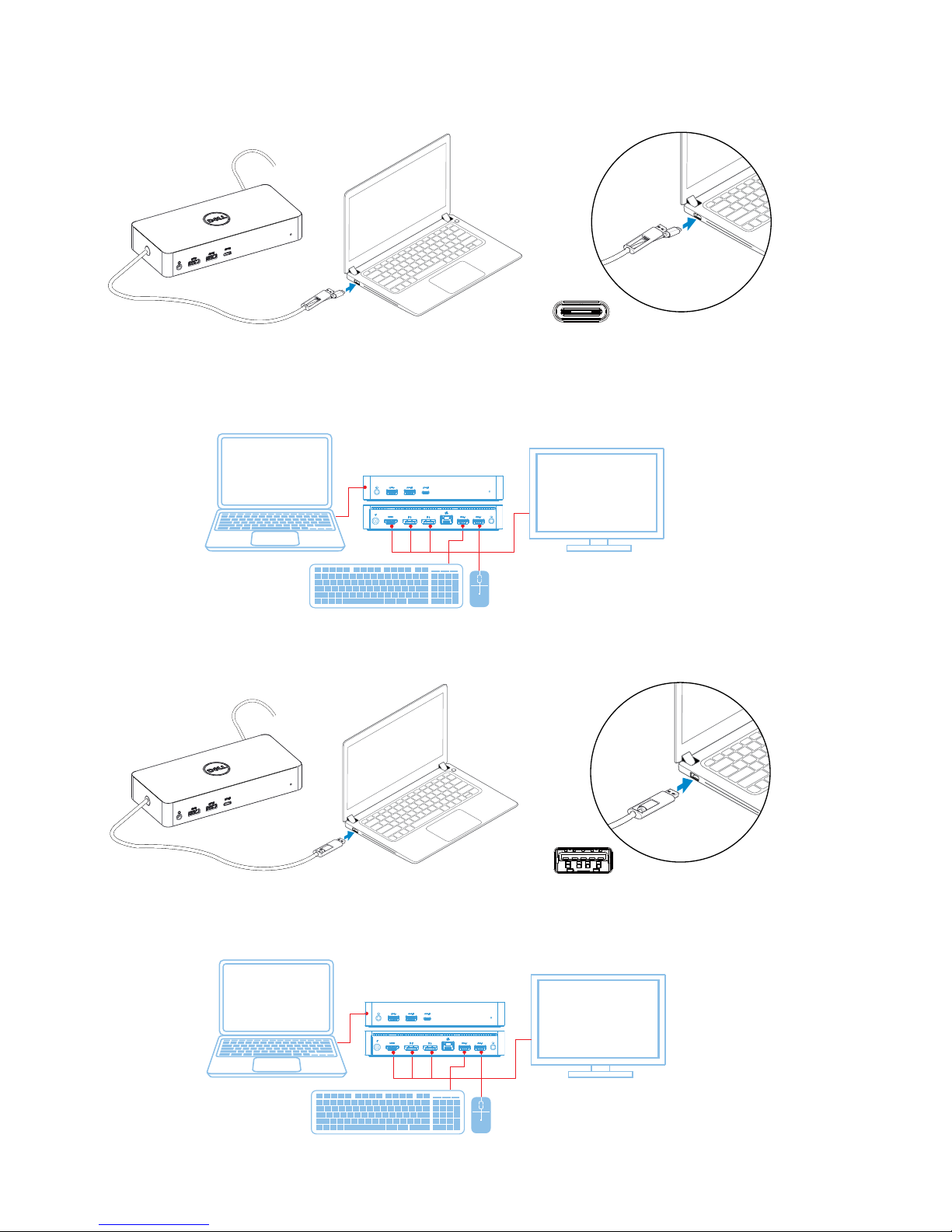

3-2-a. USB 3.0 Type A platform/connection
USB-A
3-1-b. Connect your dock and peripherals to your PC.
3-2-b. Connect your dock and peripherals to your PC.
(Only two video at one time)
3-1-a. USB-C platform/connection
USB-C

9
Features

10 
DisplayLink Manager Menu
Menu Option
DisplayLink Manager
Check for Updates
DisplayLink Devices
Audio Setup
Video Setup
Screen Resolution
Screen Rotation
Extend To
Extend
Set as Main Monitor
Notebook Monitor O
Mirror
O
Fit to TV
Description
Clicking on this item will show the version of DisplayLink
software installed.
Windows update checking.
Connected DisplayLink devices checking.
Opens the Windows Audio Configuration window.
Opens the Windows Screen Resolution window.
Displays a list of available resolutions.
Rotates the screen in clockwise or counter-clockwise direction.
Extends the display to the right or left of the main display.
Extends the Windows desktop onto the display.
Sets this screen as the main display.
Switches o the display of the notebook and makes the
DisplayLink display the main display.
Copies what is on the main display and reproduces it on
this display.
Switches o the display.
Use this function to adjust the size of the windows to fit the
TV screen.
To set the display into extended mode
1. Click on the DisplayLink icon.
2. Select Extend.
The device is now extended in the direction it was the last time the display was in this
mode. For more control, use the Extend To submenu and select one of the options. This
puts the device into extend mode, and places it to the Left/Right/Above/Below the main
(primary) monitor.
To set the display into mirror mode
1. Click on the DisplayLink icon.
2. Select Mirror.
The resolution, colour depth and refresh rate of the primary screen are replicated on
the monitor connected to the DisplayLink USB Graphics device.
