Dell WD19DCS User manual

Dell Docking Station WD19DCS Dual Cable
User Guide
Regulatory Model: K20A
Regulatory Type: K20A001
February 2021
Rev. A00

Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make better use of your product.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid
the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
© 2021 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other
trademarks may be trademarks of their respective owners.

Chapter 1: Introduction................................................................................................................. 4
Chapter 2: Package contents ....................................................................................................... 5
Chapter 3: Hardware requirements................................................................................................7
Chapter 4: Identifying Parts and Features .................................................................................... 8
Chapter 5: Important Information................................................................................................ 12
Chapter 6: Quick Setup of Hardware ...........................................................................................13
Chapter 7: Setup of External Monitors......................................................................................... 18
Updating the graphics drivers for your computer......................................................................................................18
Configuring your Monitors............................................................................................................................................... 18
Display bandwidth.............................................................................................................................................................. 19
Display Resolution Table...................................................................................................................................................19
Chapter 8: Removing the USB Type-C cable module ....................................................................21
Chapter 9: Technical specifications.............................................................................................25
LED Status Indicators.................................................................................................................................................. 25
Power Adapter LED................................................................................................................................................. 25
Docking Status Indicator...................................................................................................................................... 25
Docking specifications..................................................................................................................................................... 25
Input/Output (I/O) Connectors.............................................................................................................................. 26
Dell ExpressCharge and ExpressCharge boost overview........................................................................................ 27
Chapter 10: Dell docking station firmware update .......................................................................28
Chapter 11: Frequently asked questions....................................................................................... 31
Chapter 12: Troubleshooting the Dell Performance Docking Station WD19DCS ........................... 33
Symptoms and solutions..................................................................................................................................................33
Chapter 13: Getting help............................................................................................................. 36
Contacting Dell.................................................................................................................................................................. 36
Contents
Contents 3

Introduction
The Dell Performance Docking Station WD19DCS is a device that links all your electronic devices to your system using a
dual USB Type-C cable interface. Connecting the system to the docking station allows you to access all peripherals (mouse,
keyboard, stereo speakers, external hard drive, and large-screen displays) without having to plug each one into the system.
CAUTION: Update your system’s BIOS, graphic drivers and the Dell Performance Docking Station WD19DCS
drivers to the latest versions available at www.dell.com/support BEFORE using the docking station. Older BIOS
versions and drivers could result your system not recognizing the docking station or not functioning optimally.
Always check if any recommended firmware is available for your docking station at www.dell.com/support.
1
4 Introduction

Package contents
Your docking station ships with the components shown below. Ensure that you have received all the components and contact
Dell (see your invoice for contact information) if something is missing.
Table 1. Package contents
Contents Specifications
1. Docking station
with USB Type-C
cable
2. Power adapter
3. Power cord
Quick Setup Guide
(QSG)
2
Package contents 5

Table 1. Package contents (continued)
Contents Specifications
Safety, Environmental,
and Regulatory
Information
6 Package contents

Hardware requirements
Before using the docking station, ensure that your system has a DisplayPort over dual USB Type-C designed to support the
docking station.
NOTE: Dell Docking stations are supported with select Dell systems. See the Dell Commercial Docking Compatibility Guide
for the list of supported systems and recommended docking.
3
Hardware requirements 7

Identifying Parts and Features
Figure 1. Top view
1. Sleep/Wake up/Power button
NOTE: The dock button is designed to replicate your system's power button. If you connect the Dell Performance Docking
Station WD19DCS to supported Dell systems, the dock button works like your system's power button and you can use it to
power on/sleep/force shutdown the system.
NOTE: The dock button is not functional when connected to unsupported Dell systems or non-Dell systems.
4
8 Identifying Parts and Features

Figure 2. Front view
1. USB 3.1 Gen1/Gen2 Type-C port
2. USB 3.1 Gen1 port with PowerShare
Figure 3. Left view
1. Wedge-shaped lock slot
2. Kensington lock slot
Identifying Parts and Features 9

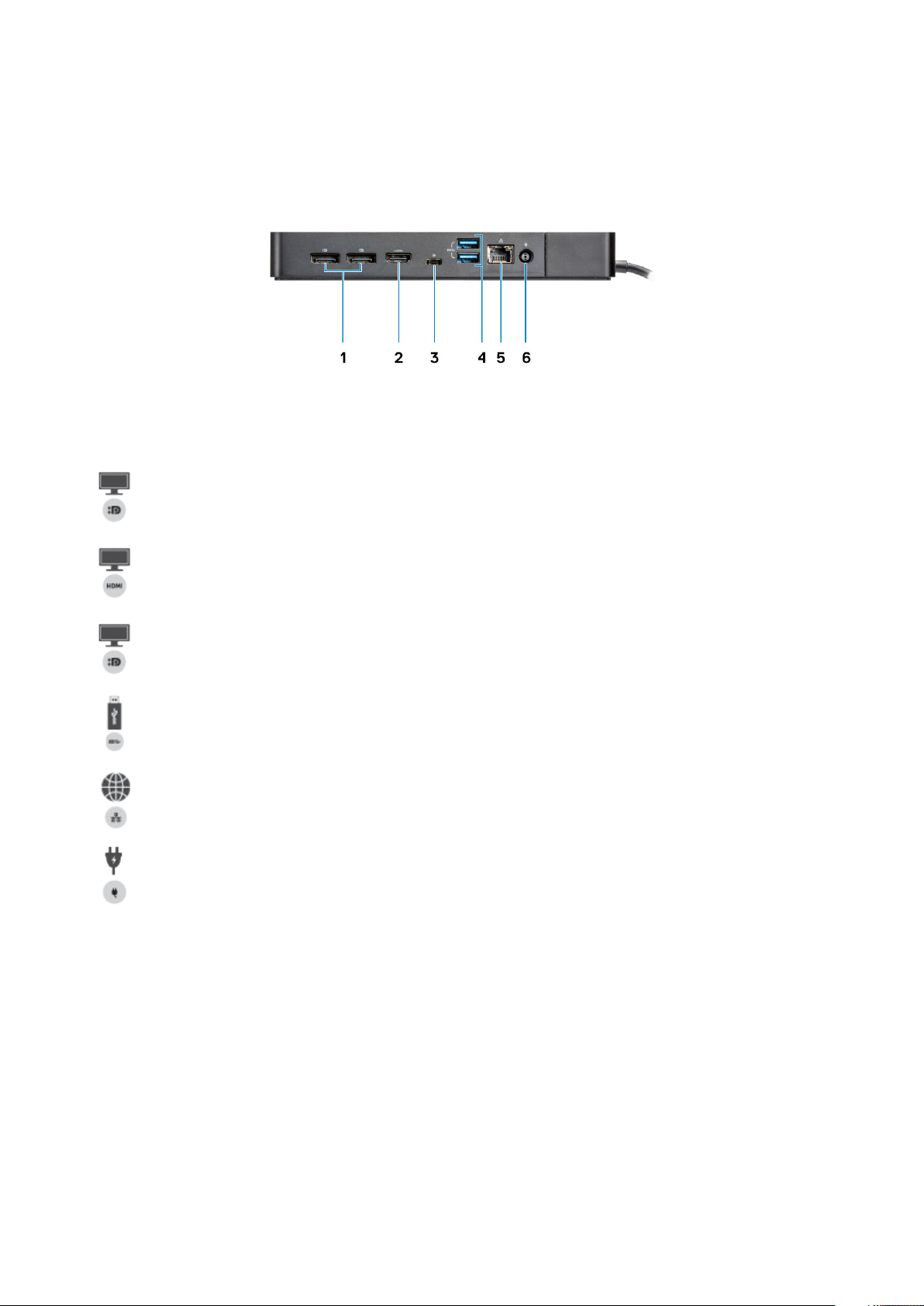

Figure 4. Back view
1. DisplayPort 1.4 (2)
2. HDMI2.0 port
3. USB 3.1 Gen1/Gen2 Type-C port with DisplayPort 1.4
4. USB 3.1 Gen1 port (2)
5. Network connector (RJ-45)
6. Power connector
10 Identifying Parts and Features

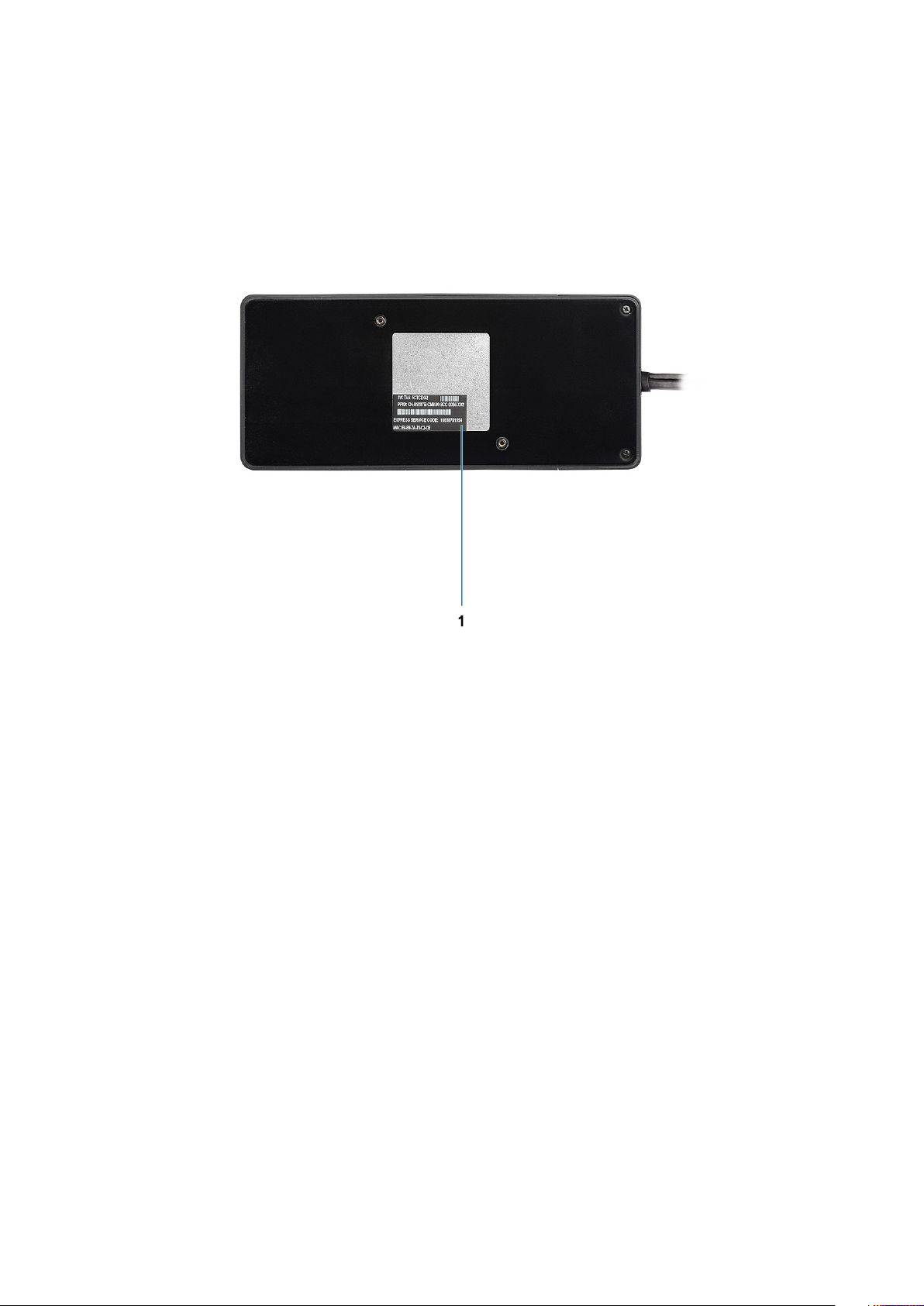

Figure 5. Bottom view
1. Service tag label
Identifying Parts and Features 11

Important Information
Dell Docking Station drivers (Realtek USB GBE Ethernet Controller Driver) are required to be installed before using the docking
station for full functionality. Dell recommends updating the system BIOS and graphics driver to the latest version before using
the docking station. Older BIOS versions and drivers could result in the docking station not being recognized by your system or
not functioning optimally.
Dell highly recommends the following applications to automate the installation of BIOS, firmware, driver, and critical updates
specific to your system and docking station:
●Dell | Update - for Dell XPS systems only.
●Dell Command | Update - for Dell Latitude, Dell Precision, or XPS systems.
These applications are available for download on the Drivers & Downloads page for your product at www.dell.com/support
Updating the Dell Docking Station WD19DCS driver set
To fully support the new generation Dell Docking Station WD19DCS, it is highly recommended to install the following BIOS/
Drivers on a 64–bit Windows operating system:

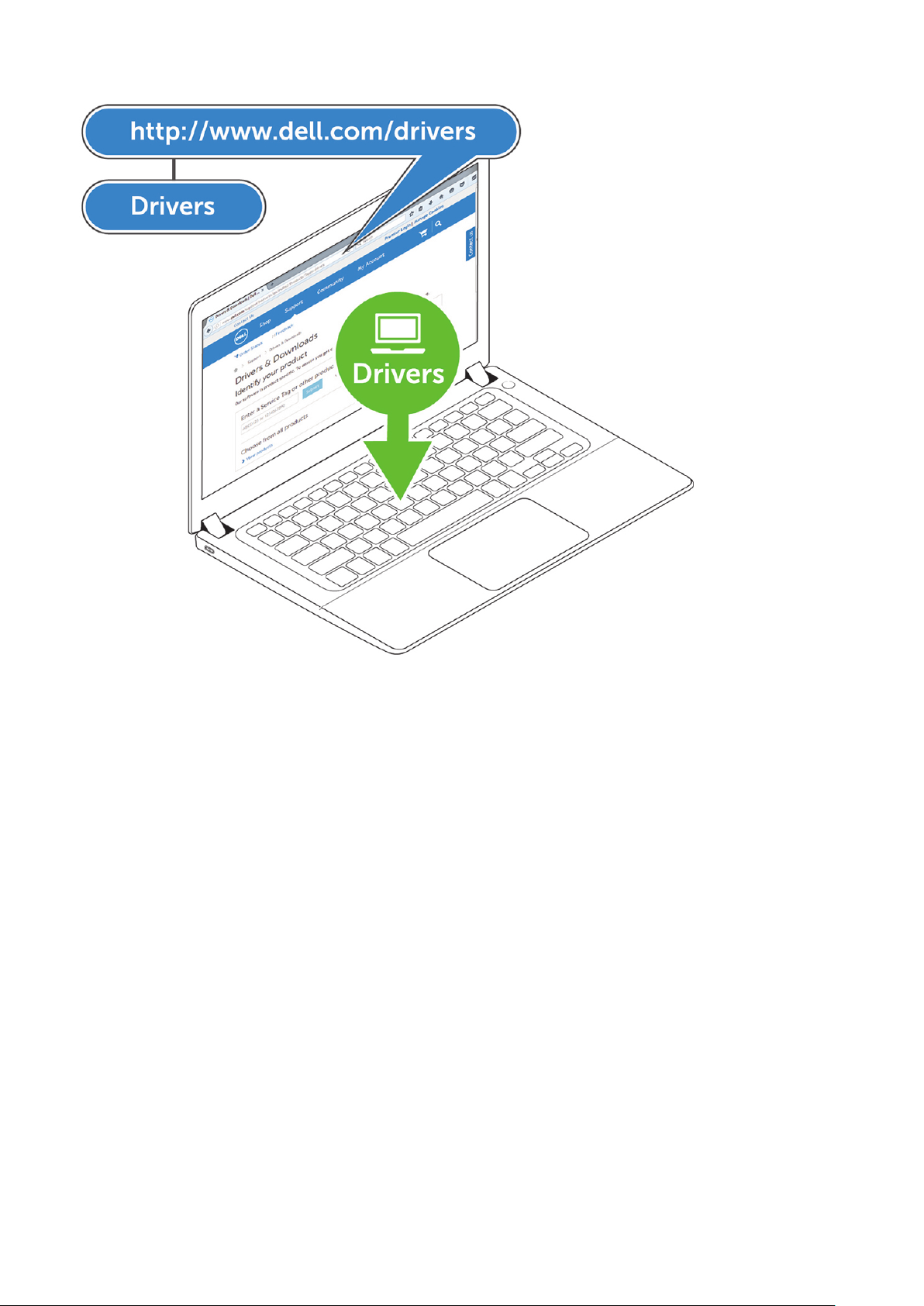

1. Go to www.dell.com/support and click Detect Product to Autodefect your product, or enter your system’s Service Tag in
the Enter a Service Tag or Express Service Code field, or click View Products to browse to your system model.
2. Flash the latest BIOS available for the system. This is available for download at dell.com/support under the “BIOS” section.
Restart the system before the next step.
3. Install the latest Intel HD/NVIDIA/AMD Graphics drivers available for the system. This is available for download at
www.dell.com/support/drivers. Restart the system before the next step.
4. Install the Realtek USB GBE Ethernet Controller Driver for Dell Dock WD19DCS available for your system. This is
available for download at dell.com/support under the “Docks/Stand” section.
5
12 Important Information

2. Connect the AC adapter to a power outlet. Then, connect the AC adapter to the 7.4 mm DC-in power input on the Dell
Performance Docking Station WD19DCS .
14 Quick Setup of Hardware

Figure 7. Connecting the dual USB Type-C connector
NOTE: On supported systems use a single USB Type-C cable to connect the docking station. The other USB Type-C
cable of the docking station can only be used as a power deliverable cable for smartphone or tablet up to 15 W.
4. Connect multiple displays to the docking station, as needed.
16 Quick Setup of Hardware

Figure 8. Connecting the multiple displays
Quick Setup of Hardware 17

Setup of External Monitors
Topics:
•Updating the graphics drivers for your computer
•Configuring your Monitors
•Display bandwidth
•Display Resolution Table
Updating the graphics drivers for your computer
The Microsoft Windows operating systems include the VGA graphics drivers only. Therefore, for optimum graphics performance,
it is recommended that Dell graphics drivers applicable for your computer be installed from dell.com/support under the “Video”
section
NOTE:
1. For nVidia Discrete Graphics solutions on the supported Dell systems:
a. First, install the Intel Media Adapter Graphics Driver applicable to your computer.
b. Second, install the nVidia Discrete Graphics Driver applicable to your computer.
2. For AMD Discrete Graphics solutions on the supported Dell systems:
a. First, install the Intel Media Adapter Graphics driver applicable to your computer.
b. Second, install the AMD Discrete Graphics driver applicable to your computer.
Configuring your Monitors
If connecting two displays, follow these steps:
Steps
1. Click the Start button, and then select Settings.
2. Click System and select Display.
7
18 Setup of External Monitors

3. Under the Multiplay displays section, select Extend these displays.
Display bandwidth
External monitors require a certain amount of bandwidth to work properly. Monitors with higher resolution require more
bandwidth.
●DisplayPort High Bit Rate 2 (HBR2) is DP 1.2 (5.4 Gbps maximum link rate per lane). With DP overhead, the effective data
rate is 4.3 Gbps per lane.
●DisplayPort High Bit Rate 3 (HBR3) is DP 1.4 (8.1 Gbps maximum link rate per lane). With DP overhead, the effective data
rate is 6.5 Gbps per lane.
Table 2. Display bandwidth
Resolution Minimum bandwidth required
1 x FHD (1920 x 1080) display @60 Hz 3.2 Gbps
1 x QHD (2560 x 1440) display @60 Hz 5.6 Gbps
1 x 4K (3840 x 2160) display @30 Hz 6.2 Gbps
1 x 4K (3840 x 2160) display @60 Hz 12.5 Gbps
Display Resolution Table
Only for Recommended Systems from Dell Commercial Docking Compatibility Guide. The following table only addresses the
dual-cable connection and does not support systems that use single Type-C cable.
Table 3. WD19DCS
Display Port Available
Bandwidth
Single Display
(maximum
resolution)
Dual Display
(maximum
resolution)
Triple Display
(maximum
resolution)
Quad Display (maximum
resolution)
HBR2 (HBR2 x4 lanes - 17.2 Gbps) DP1.4/HDMI2.0/
MFDP Type-C:
●DP1.4 +
DP1.4: QHD
●DP1.4 + DP1.4 +
HDMI2.0:
N/A
Setup of External Monitors 19

Table 3. WD19DCS (continued)
Display Port Available
Bandwidth
Single Display
(maximum
resolution)
Dual Display
(maximum
resolution)
Triple Display
(maximum
resolution)
Quad Display (maximum
resolution)
4K (3840 x
2160) @60 Hz
(2560 x
1440) @60
Hz
●DP1.4 +
HDMI2.0:
QHD (2560 x
1440) @60
Hz
●DP1.4 +
MFDP Type-
C: QHD
(2560 x
1440) @60
Hz
○2 x QHD (2560
x 1440) @60
Hz
○1 x FHD (1920 x
1080)
●DP1.4 + DP1.4 +
MFDP Type-C:
○2 x QHD (2560
x 1440) @60
Hz
○1 x FHD (1920 x
1080)
HBR3 (HBR3 x4 lanes - 25.9 Gbps)
With discrete graphics card
See recommended models in
hardware requirements
DP1.4/HDMI2.0/
MFDP Type-C:
8K (7689x4320)
@30 Hz
●DP1.4 +
DP1.4: 4K
(3840 x
2160) @60
Hz
●DP1.4 +
HDMI2.0: 4K
(3840 x
2160) @60
Hz
●DP1.4 +
MFDP Type-
C: 4K (3840
x 2160) @60
Hz
●DP1.4 + DP1.4
+ HDMI2.0: QHD
(2560 x 1440) @60
Hz
●DP1.4 + DP1.4
+ MFDP Type-C:
QHD (2560 x 1440)
@60 Hz
Using Daisy-chain:
●DP1.4 (Daisy-chain 2 x
QHD 2560 x 1440 @30
Hz) + DP1.4 + HDMI2.0:
○QHD (2560 x 1440)
@60 Hz
●DP1.4 (Daisy-chain 2
x QHD 2560 x 1440
@30Hz) + DP1.4 +
MFDP type-C:
○QHD (2560 x 1440)
@60 Hz
NOTE: HDMI2.0 and MFDP (Multi-Function DisplayPort) Type-C ports on the back of all docks in the WD19S family are
toggled. HDMI2.0 and MFDP Type-C cannot support dual monitors simultaneously. Only one of these ports can be used as a
display device at a time.
NOTE: If higher resolution monitors are used, the Graphics driver makes a judgment based on monitor specifications and
display configurations. Some resolutions may not be supported and so will be removed from the Windows Display Control
Panel.
NOTE: Configuration that is supported with AMD and Nvidia in special-graphics mode. This mode is listed in the BIOS for
the Dell Precision mobile workstations 7530/7730 will require enabling special-graphics mode when Switchable is enabled.
Precision 7530 and Precision 7730 with AMD Graphics can only support dual 4K@60 Hz non-HDR monitors when, both
monitors are plugged to the two DP ports (not HDMI).
Precision 7540 and Precision 7740 with AMD Graphics can support up to six displays dependent on GPU capability. With
Nvidia Graphics, it can support up to four displays.
NOTE: Linux operating system is unable to physically turn-off built-in display, the external display numbers will be one less
than the display numbers listed in above tables.
If the Display Port Data Rate is HBR2, then, the maximum resolution that Linux supports is 8192 x 8192 (counted with
built-in display plus external display).
20 Setup of External Monitors
