Set Up Laser Touch on Your Projector
3
NOTE: You computer must have the
following minimum system requirements:
Operating System:
• Windows XP Professional service pack 3
32-bit, Windows 7 32-bit/64-bit, and
Windows 8 32-bit/64-bit
• Windows .NET Framework 4.0
installation is required (You can
download it from the Microsoft site)
• MacOS 10.6 and above
Minimum Hardware:
• Windows processor type: Intel Core i3
or above
• MAC processor type: Intel Core i2 duo
or above
• Windows/MAC RAM: 2 GB of RAM
required or more are recommended
• Windows/MAC Min. HDD space: 110 MB
of available hard-disk space
Part A: Install the Whiteboard
1Install the whiteboard.
NOTE: Refer to "whiteboard installation
instructions".
Set Up Laser Touch on Your Projector
S520 Laser Touch QSC_A02-EMEA.book Page 3 Wednesday, May 14, 2014 6:56 PM

Set Up Laser Touch on Your Projector
4
Part B: Mount the Projector
2Install the wall mount and the projector.
NOTE: The wall mount is shipped with your
projector. Please refer "wall mount
installation instructions".
NOTE: Project at 87" for a maximum image
size projection or ~84" if you would like to
leave a border around the projector image
for optimal touch experience.
Part C: Attach Laser Curtain Kit
3Attach the laser curtain kit onto the
whiteboard.
NOTES:
aAttachment is aided with locating pin
and magnets.
bYou can also lock the kit in place with a
security screw.
cThere is a cover for the laser curtain kit.
(b) Screw
(a)
S520 Laser Touch QSC_A02-EMEA.book Page 4 Wednesday, May 14, 2014 6:56 PM

Set Up Laser Touch on Your Projector
5
Part D: Connect Necessary
Cables
4Connect power, video, Mini USB, and DC-
to-DC cables to the projector.
5Connect the power cable to the power
outlet.
6Connect the DC-to-DC cable to the laser
curtain kit.
2m DC-to-DC cable
S520 Laser Touch QSC_A02-EMEA.book Page 5 Wednesday, May 14, 2014 6:56 PM

Set Up Laser Touch on Your Projector
6
7Connect the VGA cable to your computer.
NOTE: You can also project the image
through VGA-B and HDMI. Press the left
button on your control panel for auto
searching and selecting the correct input
source.
8Connect the Mini USB cable to your
computer.
9Power on the projector by pressing the
power button on the remote control.
MOLEX
5 m Mini USB cable
S520 Laser Touch QSC_A02-EMEA.book Page 6 Wednesday, May 14, 2014 6:56 PM

Set Up Laser Touch on Your Projector
7
Part E: Install the Touch Driver
on Your Computer
10 The TouchDriver install message will pop-
up automatically after you plug in the USB
cable to your computer. Follow the on-
screen instruction to complete setup.
The driver icon will appear in your
computer's notification area if the driver has
installed successfully.
If the Touch driver is not automatically installed,
go to My Computer and run "TouchDriver.exe".
NOTE: You may require administrator-level
access to install the driver. Contact your
network administrator for support.
Part F: Initialize the Touch
Control Function: Auto Adjust
Touch
This is recommended for first-time use, and
necessary when touch screen responds
inaccurately or erratically.
NOTE: You have to project in duplicate or
projector only modes.

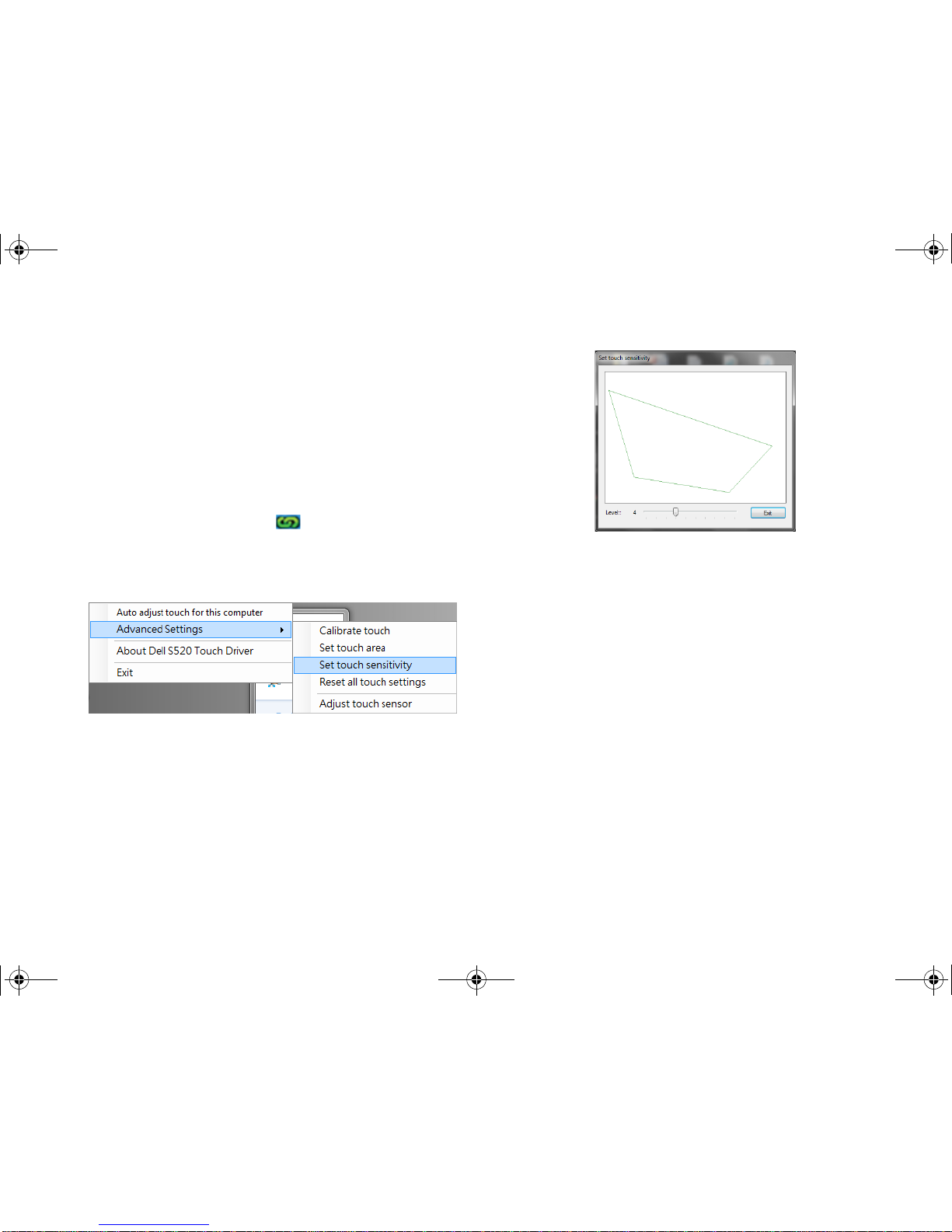

11 When executing driver, click the icon.
The following menu appears on-screen.
S520 Laser Touch QSC_A02-EMEA.book Page 7 Wednesday, May 14, 2014 6:56 PM

Set Up Laser Touch on Your Projector
8
Select "Auto adjust touch for this computer"
option to execute the auto "calibration and
touch area" procedure.
If the "auto adjust touch failed" message
prompts, please take the steps below for
troubleshooting, then do auto adjust touch
again.
aTurn lights off or reduce stray light to
whiteboard
bDo not walk in front of or move the
projector
cAdjust focus to sharpen the projected
If the "auto adjust touch still failed" message
appears on screen, please change to manual
calibrate touch and manual touch area.
Calibrate Touch by Manual:
Executing driver, click the icon, and go
to Advanced Settings menu, click the
Calibrate touch option to execute the
manual calibrate touch mode.
Touch the target marks on the screen.
(Press the "ESC" key to exit the calibration
process). After the 4th point of calibration
is finished, please wait for 2 seconds while
the calibration data is saved.
1
34
2
