DENVER DMB-105HD
THANK YOU FOR BUYING THE DENVER DMB-105HD.
1.WHEN RECORDING TO USB STICK OR EXTERNAL HARDDISC ON THIS MODEL
, YOU HAVE TO WAIT A FEW SECONDS BEFORE PUSHING REC. AFTER INS
ERTING THE MEDIA. OTHERWISE THE UNIT CAN FREEZE IN THE SIGNAL.
IF THAT HAPPENS, THEN PLEASE TAKE OFF POWER AND CONNECT AGAIN TO
FIX THIS.
2.WHEN DIGITAL AUDIO OUTPUT IS SET TO RAW IT IS FOR USING WITH
SURROUND RECEIVER ONLY. YOU HAVE TO MUTE THE SOUND ON THE TV
WHEN ON THIS MODE, OTHERWISE YOU CAN HAVE SOME NOISE IN THE TV
SPEAKERS.
IF USING ONLY WITH TV, THEN PLEASE MAKE SURE THE AUDIO OUTPUT IS
SET TO PCM.
3.AUTO STANDBY FUNCTION:
THIS FUNCTION SHUTS DOWN AUTOMATICALLY AFTER 3 HOURS IF NO USER
INTERFERENCE HAS BEEN DONE DURING THESE HOURS. 2 MINUTES BEFORE
SHUTDOWN A WARNING MESSAGE WILL BE SHOWN ON THE TV.
AUTO STANDBY FUNCTION ARE PRESET TO ON FROM FACTORY SIDE, BUT
CAN BE TURNED OFF IN THE SYSTEM MENU.
4.WHEN USING AN EXTERNAL HARDDISC, PLEASE MAKE SURE YOU HAVE
FORMATTED IT IN FAT OR FAT32 FILESYSTEM.. NTFS WON’T WORK.
AND THE HARDDISC NEED AN EXTERNAL POWER SUPPLY TO WORK, AS THE
USB PORT WON’T GIVE ENOUGH POWER TO RUN IT PROPERLY.

Safety Instructions
Disclaimer
Information in this document is subject to change without notice.
The manufacturer does not make any representations or warranties
(implied or otherwise) regarding the accuracy and completeness of this
document and shall in no event be liable for any loss of profit or any
commercial damage, including but not limited to special, incidental,
consequential, or other damage.
Always read the safety instructions carefully
Keep this Instruction Manual for future reference
Keep this device away from humidity
Lay this device on a reliable flat surface before setting it up
D o not stand it on soft furnishings
If any of the following situation arises, get the Set Top Box checked by
a service technician:
It has been exposed to moisture
It has been dropped and damaged
It has obvious sign of breakage
It has not been working well or you cannot get it to work according
to the Instruction Manual
Warning
To prevent the risk of electric shock, do not open the cover or the
back of the receiver.
Do not block the ventilation holes of the device. Leave appropriate
gap above and around it to allow for adequate ventilation.
Do not place the device in an unventilated cabinet or on top of a unit
which emits heat.
Copyright Statement
No part of this publication may be reproduced in any form by any means
without the prior written permission. Other trademarks or brand names
mentioned herein are trademarks or registered trademarks of their
respective companies.
1
The power cable/disconnect device shall remain easy to operate/disconnect.

Front Panel
Rear Panel
2
DVD
DVB
POWER BUTTON
DISC TRAY
USB
PLAY/PAUSE
EJECT
DVD/DVB
STOP NEXT
PREV

Remote Control Unit
3
4.GOTO
Select the track or time point
you want.
5.DISC/USB
Switch DISC/USB
6.DVD/DVB
Switch DVD/DVB.
9.SETUP
Access or remove setup menu.
10.REPEAT
Repeat chapter/track/title/all.
11.EXIT(DVB)
Used to return to the previous
screen or menu in DVB.

Remote Control Unit
4

Installing the Batteries
Remove the battery cover from the Remote Control and put 2xAAA size
batteries inside the compartment.
The diagram inside the Battery Compartment shows the correct way to
install the batteries.
OPEN
CLOSE
1.Open the cover 2.Install batteries 3.Close the cover
5

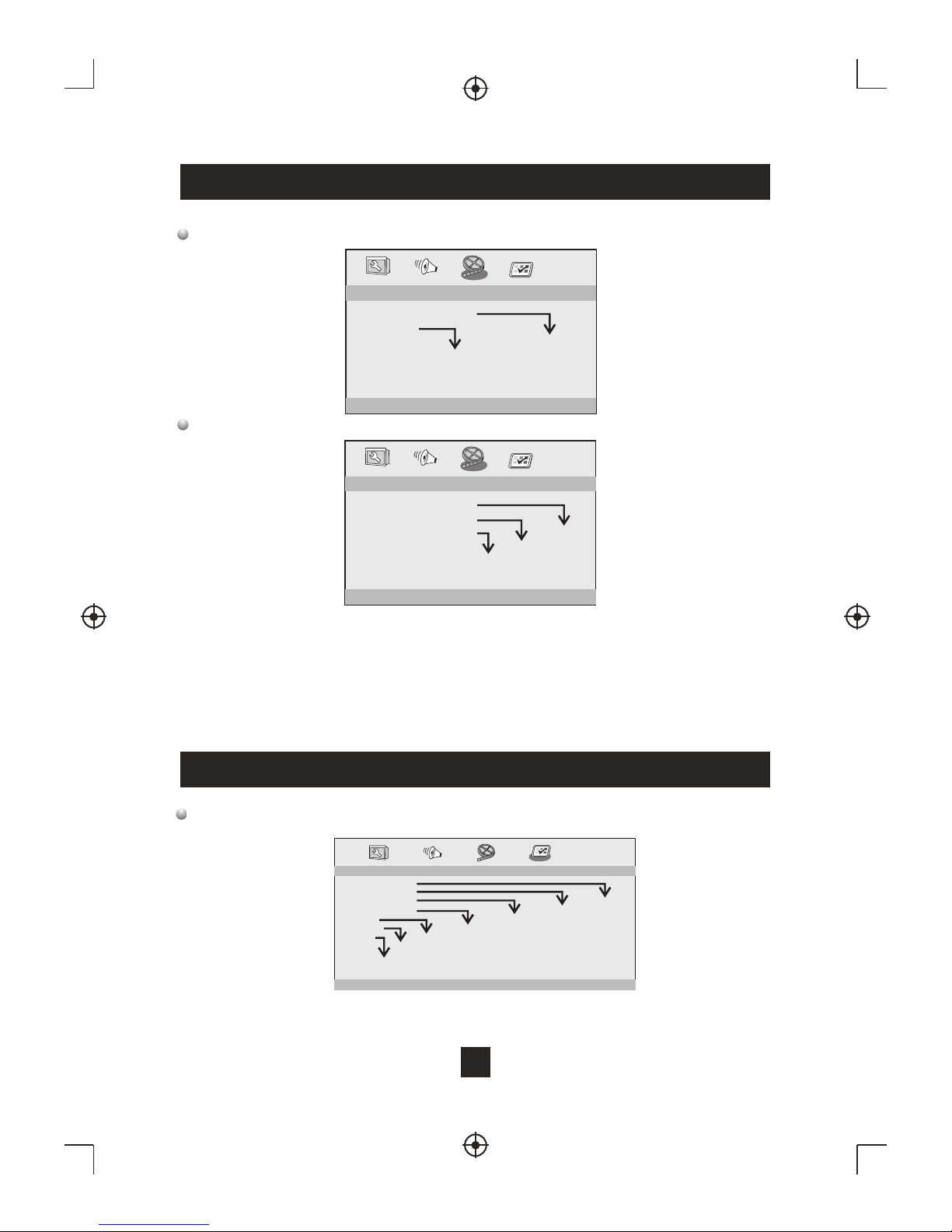

General Setup Page
OSD Language
You can select your own preferred language seetings.
Angle Mark
Displays current angle setting information on the right hand corner
of the TFT screen if available on the disc.
Screen Saver
This function is used to turn the screen saver On or Off.
Press SETUP button to get the setup menu. Use direction buttons
to select the preferred item. After finishing settings, press
SETUP again to normal display.
The following menu items can be changed:
GENERAL: selects the GENERAL PAGE menu.
AUDIO: selects the AUDIO PAGE menu.
VIDEO: selects the VIDEO PAGE menu.
PREFERENCE : selects the PREFERENCE PAGE menu.
General Setup Page
- - GENERALSETUP PAGE - -
GOTO GENERAL SETUP PAGE
TV DISPLAY WIDE
ANGLE MARK ON
OSD LANGUAGE ENG
SCREEN SAVER ON
4:3 PANSCAN
4:3 LETTERBOX
16:9
ON
OFF
ENGLISH
FRENCH
GERMAN
ITALIAN
SPANISH
PORTUGUESE
ON
OFF
TV DISPLAY: selects the aspect ratio of the playback picture.
4:3 PANSCAN: if you have a normal TV and want both sides of the
picture to be trimmed or formatted to fit your TV screen.
4:3 LETTERBOX: if you have a normal TV. In this case, a wide picture
with black bands on the upper and lower portions of the TV screen will
be displayed.
16:9:wide screen display.
6

Audio Setup Page
Audio Setup Page
-- --
DOWNMIX STR
DIGITAL OUTPUT RAW
DOLBY DIGITAL
LT/RT
STEREO
SPDIF/OFF
SPDIF/RAW
SPDIF/PCM
DUAL MONO
DYNAMIC
STR STR
L-MONO
R-MONO
MIX-MONO
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
FULL
OFF
-
- - - -AUDIO SETUP PAGE
GO TO AUDIO SETUP PAGE
Downmix
This options allows you to set the stereo analog output of your
DVD Player.
LT/RT :Select this option if your DVD Player is connected to a
Dolby Pro Logic decoder.
Stereo :Select this option when output delivers sound from only
the two front speakers.
Digital Output
The function is used to select the SPDIF Output:SPDIF Off,SPDIF
/RAW,SPDIF/PCM.
SPDIF Off: Turns off the SPDIF output.
SPDIF/RAW: If you have connected your DIGITAL AUDIO OUT
to a multi-channel decoder/receiver.
SPDIF/PCM: Only if your receiver is not capable of decoding
multi-channel audio.
Dolby digital Setup Page
The options included in Dolby Digital Setup are: and
'Dynamic '.
'Dual Mono '
Dual Mono
Stereo:Left mono sound will send output signals to Left speaker
and Right mono sound will send output signals to Right speaker.
L-Mono:Left mono sound will send output signals to Left speaker
and Right speaker.
R-Mono:Right mono sound will send output signals to Left speaker
and Right speaker.
Mix-Mono:Left and Right mixed mono sound will send output
signals to Left and Right speakers.
Dynamic
Dynamic range compression.
7

Video Setup Page
- - PREFERENCE SETUP PAGE - -
GOTO PREFERENCE PAGE
TV TYPE PAL
AUDIO ENG
SUBTITLE ENG
DISC MENU ENG
PARENTAL
PASSWORD
DEFAULT
ENGLISH
FRENCH
GERMAN
SPANISH
ITALIAN
PORTUGUESE
ENGLISH
FRENCH
GERMAN
SPANISH
ITALIAN
PORTUGUESE
ENGLISH
FRENCH
GERMAN
SPANISH
ITALIAN
PORTUGUESE
1 KID SAF
2 G
3 PG
4 PG13
5 PGR
6 R
7 NC17
8 ADULT
CHANGE
RESET
PAL
MULTI
NTSC
Video Setup Page
- - VIDEO SETUP PAGE - -
GOTO VIDEO SETUP PAGE
VIDEO OUTPUT RGB
TV MODE
HDMI Setup
CVBS
RGB
YUV
PROGRESSIVE
INTERLACE
- - HDMI SETUP - -
HDMI
HDMI ON
RESOLUTION
AUDIO SOURCE AUTO
ON
OFF
480 I
480 P(720)
576 I
576 P(720)
720 P(50Hz)
720 P(60Hz)
1080 I(60Hz)
1080 P(60Hz)
1080 I(50Hz)
1080 P(50Hz)
AUTO
PCM
Preference Page
HDMI Setup page
Notes:
Please select proper resolution according to your TV.otherwise
the TV will have no signal.
Preference Page
8

PAL - Select this if the connected TV is PAL system.It will change the
video signal of a NTSC disc and output in PAL format.
NTSC-Select this if the connected TV is NTSC system.It will change
the video signal of a PAL disc and output in NTSC format.
MULTI:Chang the video signal output automatic according to the
playing disk format.
Audio:Selects a language for audio (if available).
Subtitle:Selects a language for subtitle (if available).
Disc Menu:Selects a language for disc menu (if available).
Parental
Some DVDs may have a parental level assigned to the complete disc
or to certain scenes on the disc.This feature lets you set a playback
limitation level.The rating levels are from 1 to 8 and are country
dependent. You can prohibit the playing of certain discs that are not
suitable for your children or have certain discs played with
alternative scenes.
PASSWORD:Change your password,default is1369.
Default:Back to the factory setting.
Note: If the password has been changed, the parentaland disc
lock code will also be changed.
The default password(1369)is always active even the password
has been changed.
N
TV Type
Selecting the colour system that corresponds to your TV when AV
outputs.This DVD Player is compatible with both NTSC and PAL.
Preference Page
9

OSD LANGUAGE:Select an OSD LANGUAGE
COUNTRY:Select your country of residence.
LCN:Set LCN on or off
TIME ZONE: a.TIME ZONE : Select Time zone of the country.
b.SUMMER TIME: Select Summer timer on or off.
AUTO STANDBY: The unit will automatic power off at standby mode if no
operation is performed after 3 hours, TV screen will display “power down after
120 seconds”beforeunit power off, select exit button by remote control to
cancel standby mode on/off the funtion.
CHANGE PASSWORD:Set or change the password for Locked programs.
Enter your old Password or the default password '1234'. You will then be
asked to enter your new password.
To confirm re-enter your new password.
SYSTEM INFORMATION:Show some information of the player.
FACTORY RESET:Reset the factory setting of player.
10
SYSTEM SETUP
VIDEO SETTINGS
AUDIO SETTINGS
INSTALLATION
CHANNEL EDIT
OSD LANGUAGE
COUNTRY
LCN
TIME ZONE
AUTO STANDBY
CHANGE PASSWORD
SYSTEM INFORMATION
FACTORY RESET

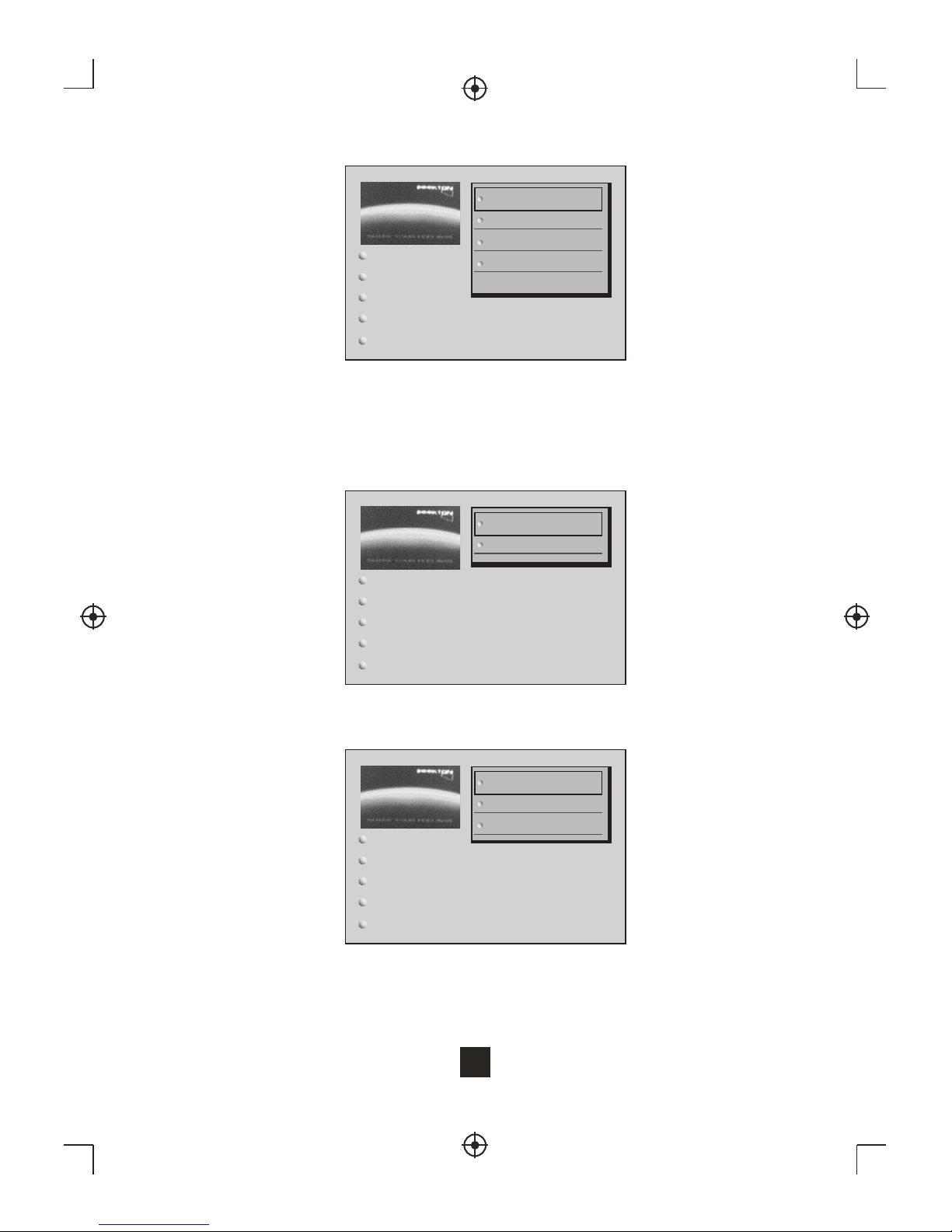

Setup Installation
Press menu key to enter setup installation.

SYSTEM SETUP
VIDEO SETTINGS
AUDIO SETTINGS
INSTALLATION
CHANNEL EDIT
TV SYSTEM
HD OUTPUT
SCREEN RATIO
SCART OUTPUT
TV SYSTEM:Select tv color system pal or ntsc.
HD OUTPUT:HD TV programe display mode(1080i, 720p, 576p/480p,
576i/480i, auto).
SCREEN RATIO: You must set the display format to either 4:3 ,16:9 or Auto
to get the maximum display when watching TV.
SCART OUTPUT :Select Scart output mode : CVBS or RGB
LR MODE: Select audio output mode : LEFT, RIGHT OR STEREO
SPDIF: Select digital audio output mode : PCM or RAW
Manual search: Install new channels manually.
Auto search: Search and install all channels automatically.
Upgrade stb: Upgrade the player.
SYSTEM SETUP
VIDEO SETTINGS
AUDIO SETTINGS
INSTALLATION
CHANNEL EDIT
LR MODE
SPDIF
SYSTEM SETUP
VIDEO SETTINGS
AUDIO SETTINGS
INSTALLATION
CHANNEL EDIT
MANUAL SEARCH
AUTO SEARCH
UPGRADE SIN
11

TV CHANNEL and RADIO CHANNEL:
To edit your programs prefences(favourite, lock, move or delete), as picture 6
1.USB PVR has the following features:
-Support one-channel TS recoding
-Support scheduled recording and real-time recording
-Support program playback
-Support playback modes include: pause, fast forward and fast rewind.
The storage media supported :
-USB adapted hard disk (500mA)
-USB disk (depending on the read-write speed, 500mA)
-In order to delete recorded files on a USB stick then please connect the
USB stick to your computer and then delete the recorded files.
The TV program is recorded to file at .PVR format, which can be played
back on this unit and PC using a suitable player, but can not be played
back on DVD or PDVD.
The file system format support :
-FAT
-FAT 32
2.Before recording
Must plus USB disk or USB adapted hard disk (500mA). Press STOP key to
stop recording.
12
SYSTEM SETUP
VIDEO SETTINGS
AUDIO SETTINGS
INSTALLATION
CHANNEL EDIT
TV CHANNEL
RADIO CHANNEL
SYSTEM SETUP
VIDEO SETTINGS
AUDIO SETTINGS
INSTALLATION
CHANNEL EDIT
CHANNEL EDIT
ADD TO FAV 1
1000 SZTVM01
1001 SZTVM02
1002 SZTVM03
1003 SZTVM04
1004 Data
FAVORITE LOCK MOVE DELETE
PVR (Personal video recorder)

3.Video recording.
- Real-time recording
In the normal play mode, Press ● to enter the recording status. Once video
recording starts, the upper left crner will display the recording icon.
Press STOP key to stop recording.
-Scheduled recording.
User may set up scheduled recording by setting the data, time and program.
Once the scheduled recording time is reached, The player will switch to the
scheduled program automatically for recording.
To scheduled recording , Press EPG key, to enter EPG page. select your
need record program, press OK key to enter scheduled recording page as
4.Recorder file play
-Enter USB mode and select video,then open file of USB and select torrget
document which is recorder.
13
New Reservation 10/3/2006 17:14
Channel Name Nederland 2
DATE YEAR 2006 MONTH 03 Day 10
START TIME HOUR 16 MINUTE 25
End time HOUR 17 MINUTE 20
Runnlng Mode ONE TIME
Reserve Type Rec
Event Name Top of the Pops
OK SAVE Exit Back
Switch Schedule Detall Descrlptor OK New Reservation

The image stopped
suddenly or mosaic
Problem Potential Reasons What to do
No picture Power isn't connected Connect the power
The power switch is not on Switch on the power
Screen shows
No Signal
DVB-T cable not connected
Plug in the DVB-T cable
Incorrect setting Reset setting
No sound from
speaker
No or incorrect connection
with audio cable
Connect the audio cable
correctly
Sound on mute Turn off mute function
Incorrect sound track Try another sound track
Only sound, no
image on the
screen
No or incorrect connection
with AV cable
Make sure cables are
connected correctly
The program is a radio
program
Press <TV/RADIO> key to
shift into TV mode
Remote Control
is not responding
The battery is exhausted Change battery
Remote Control is not
facing or close enough
to the Set Top Box
Adjust the position of the
Remote Control and move
closer to the unit
The signal is too weak Strengthen the signal
Troubleshooting
14

Technical Specifications
15
Video Decoder Format
MPEG4 AVC/H.264 HP@L4
MPEG2 [e-mail]
Output Format 576P , 720P, 1080i, 4:3 and 16:9
Output Port HDMI,2XSCART
Audio Decoder Format MPEG-1 (layer1&2)
Audio output Digital audio: S/PDIF
Power Voltage AC 110-240V 50/60Hz
Working Power 8W
Item Sub Item Parameter
Tuner Input Frequency 170~230MHz
470~860MHz
RF Input level -25~-82dBm
IF Bandwidth 7MHz and 8MHz
Modulation QPSK,16QAM,64QAM
0.5W
Standby power
