ENGLISH
3
NOTICE: Indicates a practice not related to
personal injury which, if not avoided, may result in
propertydamage.
Denotes risk of electricshock.
Denotes risk offire.
Safety Instructions for Charger/Radios
• Do not abuse cord. Never carry the radio by its cord. Never
pull the cord to disconnect from the socket. Keep the cord
away from heat, oil and sharpedges.
• Remove the battery pack. Switch off before leaving it
unattended. Remove the battery pack when not in use, before
changing accessories or attachments and beforeservicing.
• This appliance is intended to be used in moderateclimates.
• This appliance is not intended for use by persons(including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the
appliance by a person responsible for theirsafety.
• Connect the radio charger to a mains supply that is
properly connected to earth. Socket and extension cord
must have an operative protectiveconductor.
• When operating the radio charger in damp
environments is unavoidable, use a residual current
device (RCD). The use of a residual current device (RCD)
reduces the risk of electricshock.
• Children should be supervised to ensure that they do not play
with theappliance.
• Radio shall not be exposed to dripping or splashing; no objects
filled with liquids, such as vases, shall be placed onit.
• No exposed flame sources, such as lighted candles, should be
placed on theradio.
• Mains plug is used as the disconnect device; the disconnect
device (plug) shall remain readilyoperable.
Electrical Safety
The charger/radio has been designed for one voltage only.
Always check that the battery pack voltage corresponds to the
voltage on the rating plate. Also make sure that the voltage of
your charger corresponds to that of yourmains.
WARNING: Risk of electric shock. Use in dry locationsonly.
If the supply cord is damaged, it must be replaced by a
specially prepared cord available through the
DeWALT
serviceorganisation.
Mains Plug Replacement
(U.K. & Ireland Only)
If a new mains plug needs to be fitted:
• Safely dispose of the oldplug.
Congratulations!
You have chosen a
DeWALT
tool. Years of experience, thorough
product development and innovation make
DeWALT
one of the
most reliable partners for professional power toolusers.
Technical Data
DCR027
Power source AC/DC
Type 1
Mains voltage VAC 230
Battery type Li-Ion
Battery voltage VDC 14.4/18
Charge Current A 3
Weight (without battery pack) kg 7.4
EC-Declaration of Conformity
Radio Equipment Directive
Heavy-Duty Bluetooth® Work Site
Charger/Radio
DCR027
DeWALT
hereby declares that the
DeWALT
radio equipment
DCR027 is in compliance with the Directive 2014/53/EU and to
all applicable EU directiverequirements.
The full text of the EU declaration of conformity can be
requested at
DeWALT
, Richard- Klinger-Straße 11, D-65510,
Idstein, Germany or is available at the following internet address:
www.2helpU.com
Search by the Product and Type Number indicated on the
nameplate.
WARNING: To reduce the risk of injury, read the
instructionmanual.
Definitions: Safety Guidelines
The definitions below describe the level of severity for each
signal word. Please read the manual and pay attention to
thesesymbols.
DANGER: Indicates an imminently hazardous
situation which, if not avoided, will result in death or
seriousinjury.
WARNING: Indicates a potentially hazardous situation
which, if not avoided, could result in death or
seriousinjury.
CAUTION: Indicates a potentially hazardous situation
which, if not avoided, may result in minor or
moderateinjury.
English (original instructions)
HEAVY-DUTY BLUETOOTH® WORK SITE CHARGER/RADIO
DCR027

4
ENGLISH
• Connect the brown lead to the live terminal in theplug.
• Connect the blue lead to the neutralterminal.
WARNING: No connection is to be made to the
earthterminal.
Follow the fitting instructions supplied with good quality plugs.
Recommended fuse: 13A.
Using an Extension Cable
An extension cord should not be used unless absolutely
necessary. Use an approved extension cable suitable for
the power input of your charger (see Technical Data). The
minimum conductor size is 1mm2; the maximum length
is30m.
When using a cable reel, always unwind the cablecompletely.
Grounding Instructions
The charger/radio must be grounded. In the event of
malfunction or breakdown, grounding provides a path of
least resistance for electric current to reduce the risk of electric
shock. The charger/radio is equipped with a cord having an
equipment-grounding conductor and a grounding plug. The
plug must be plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local codes
andordinances.
DANGER: Improper connection of the equipment-
grounding conductor can result in a risk of electric
shock. The conductor with insulation having an outer
surface that is green with yellow stripes is the equipment-
grounding conductor. If repair or replacement of the
cord or plug is necessary, do not connect the equipment-
grounding conductor to a live terminal. Repairs shall only
be performed by a D
e
WALT service agent. Do not modify
the plug provided with the charger/radio – if it will not
fit the outlet, have a proper outlet installed by a D
e
WALT
repairagent.
For grounded, cord-connected charger/
radio rated 16A and lower and intended
for use on a nominal 230V supply circuit
The charger/radio is for use on a nominal 230 V circuit,
and has a grounding plug that looks like the plug in the
followingillustration.

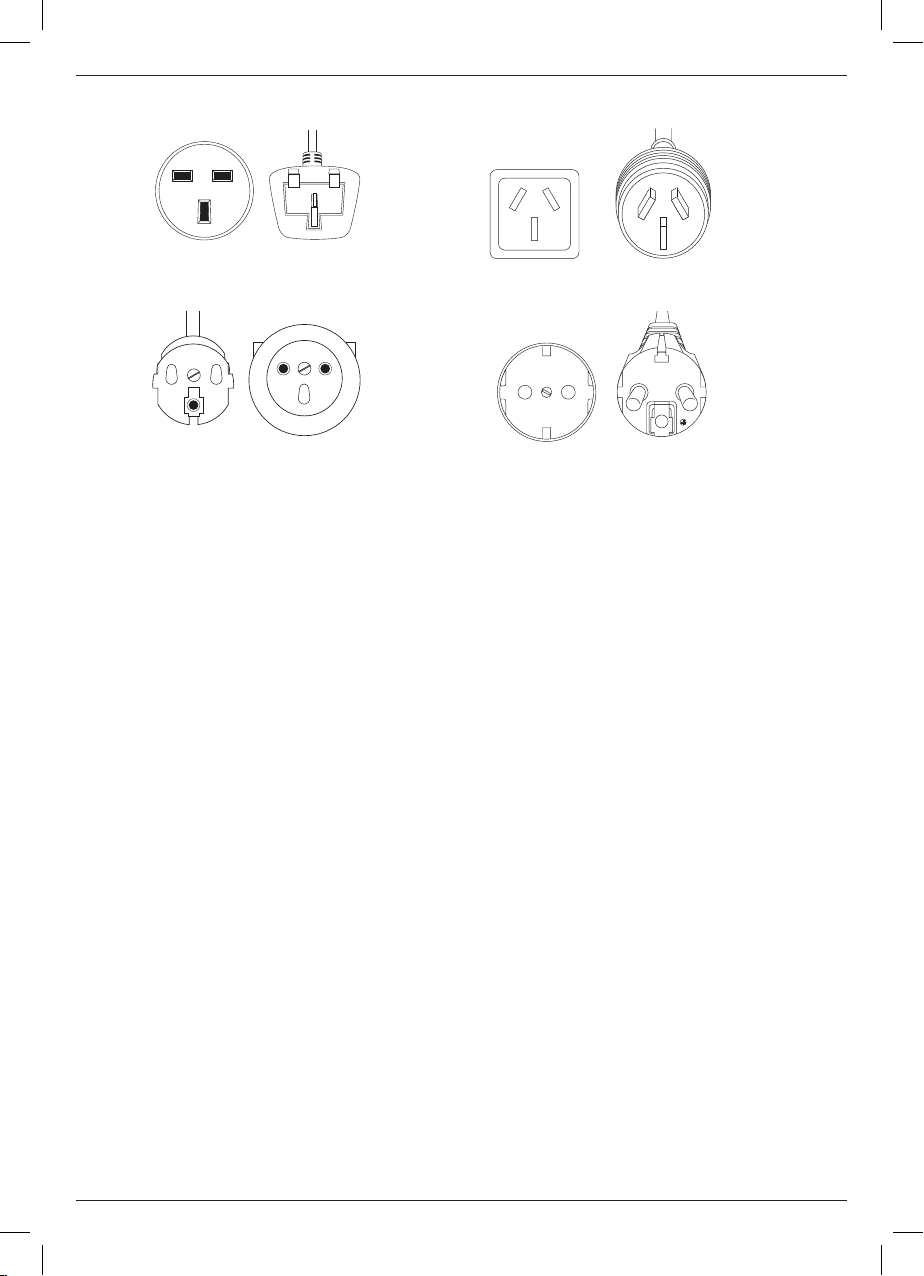

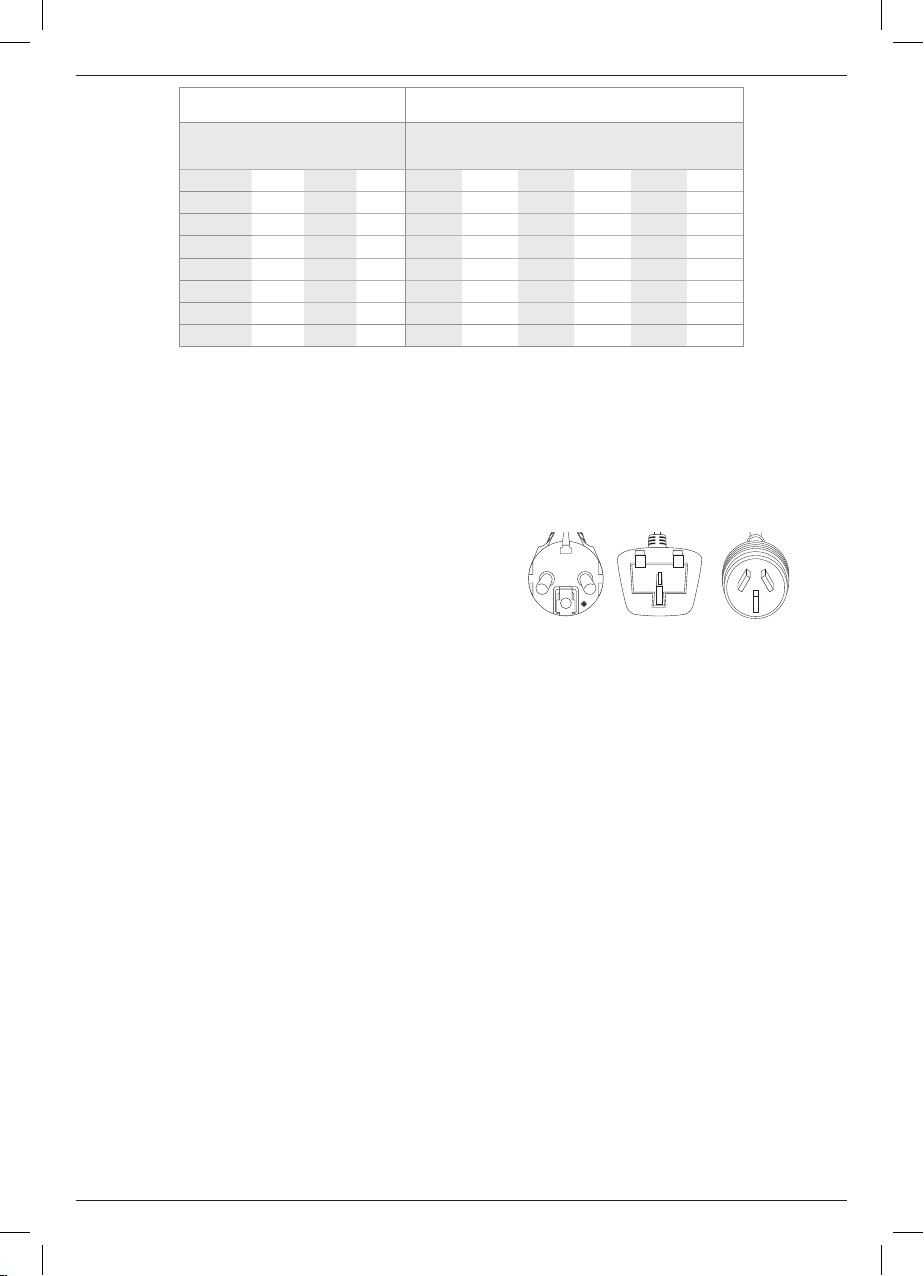

DCR027-BD, -QW DCR027-GB DCR027-XE
SAVE THESE INSTRUCTIONS
Chargers
DeWALT
chargers require no adjustment and are designed to be
as easy as possible tooperate.
Important Safety Instructions for Charger/
Radios
SAVE THESE INSTRUCTIONS: This manual contains important
safety and operating instructions for the your charger/radio.
• Before using charger/radio, read all instructions and
cautionary markings on charger, battery pack, and product
using batterypack.
WARNING: Shock hazard. Do not allow any liquid to get
inside charger. Electric shock mayresult.
WARNING: We recommend the use of a residual current
device with a residual current rating of 30mA orless.
CAUTION: Burn hazard. To reduce the risk of injury,
charge only
DeWALT
rechargeable batteries. Other types of
batteries may burst causing personal injury anddamage.
CAUTION: Children should be supervised to ensure that
they do not play with theappliance.
NOTICE: Under certain conditions, with the charger
plugged into the power supply, the exposed charging
contacts inside the charger can be shorted by foreign
Batteries
Chargers/Charge Times (Minutes)
Cat #
DC
Weight
Batteries Chargers/Charge Times (Minutes)
Cat # VDC Ah
Weight
kg DCB107 DCB113 DCB115 DCB118 DCB132 DCB119
DCB546 18/54 6.0/2.0 1.05 270 140 90 60 90 X
DCB547 18/54 9.0/3.0 1.25 420 220 140 85 140 X
DCB181 18 1.5 0.35 70 35 22 22 22 45
DCB182 18 4.0 0.61 185 100 60 60 60 120
DCB183/B 18 2.0 0.40 90 50 30 30 30 60
DCB184/B 18 5.0 0.62 240 120 75 75 75 150
DCB185 18 1.3 0.35 60 30 22 22 22 X
DCB187 18 3.0 0.48 140 70 45 45 45 90

5
ENGLISH
material. Foreign materials of a conductive nature such
as, but not limited to, steel wool, aluminum foil or any
buildup of metallic particles should be kept away from
charger cavities. Always unplug the charger from the
power supply when there is no battery pack in the cavity.
Unplug charger before attempting toclean.
• DO NOT attempt to charge the battery pack with any
charger/radio other than the one in this manual.
The charger and battery pack are specifically designed to
worktogether.
• These charger/radios are not intended for any uses other
than charging
DeWALT
rechargeable batteries. Any other
uses may result in risk of fire, electric shock orelectrocution.
• Do not expose charger/radio to rain orsnow.
• Pull by plug rather than cord when disconnecting
charger. This will reduce risk of damage to electric plug
andcord.
• Make sure that cord is located so that it will not be
stepped on, tripped over, or otherwise subjected to
damage orstress.
• Do not use an extension cord unless it is absolutely
necessary. Use of improper extension cord could result in risk
of fire, electric shock, orelectrocution.
• Do not place any object on top of charger/radio or place
the charger/radio on a soft surface that might block
the ventilation slots and result in excessive internal
heat. Place the charger/radio in a position away from any
heatsource.
• Do not operate charger/radio with damaged cord or
plug — have them replacedimmediately.
• Do not operate charger/radio if it has received a sharp
blow, been dropped, or otherwise damaged in any way.
Take it to an authorised servicecentre.
• Do not disassemble charger/radio; take it to an
authorised service centre when service or repair is
required. Incorrect reassembly may result in a risk of electric
shock, electrocution orfire.
• Disconnect the charger from the outlet before
attempting any cleaning. This will reduce the risk of
electric shock. Removing the battery pack will not reduce
thisrisk.
• NEVER attempt to connect 2 chargerstogether.
• Your charger/radio is designed to operate on standard
230 V household electrical power. Do not attempt to
use it on any other voltage. This does not apply to the
vehicularcharge.
Charging a Battery (Fig. A, B)
When the charger/radio is plugged in it will charge the installed
battery. Unplugged, the radio will run up to 8 hours on a fully
charged battery using a premium 18V Li-Ion battery. Using
batteries of lower amp hours will yield less runtime.
1. Plug the charger into an appropriate outlet before inserting
batterypack.
2. Insert the battery pack19 into the charger, making sure the
battery pack is fully seated in the charger. The red (charging)
light12will blink repeatedly indicating that the charging
process hasstarted.
3. The completion of charge will be indicated by the red
light remaining ON continuously. The battery pack is fully
charged and may be used at this time or left in the charger.
To remove the battery pack from the charger, push the
battery release button20 on the batterypack.
NOTE: To ensure maximum performance and life of lithium-ion
battery packs, charge the battery pack fully before firstuse.
Charger Operation
Refer to the indicators below for the charge status of the
batterypack.
Charge Indicators
Charging
Fully Charged
Hot/Cold Pack Delay
Hot/Cold Pack Delay
When the charger detects a battery pack that is too hot or too
cold, it automatically starts a Hot/Cold Pack Delay, suspending
charging until the battery pack has reached an appropriate
temperature. The charger then automatically switches to the
pack charging mode. This feature ensures maximum battery
packlife.
A cold battery pack will charge at a slower rate than a warm
battery pack. Once the temperature has warmed, it will charge
at a higherrate.
Electronic Protection System
XR Li-Ion tools are designed with an Electronic Protection
System that will protect the battery pack against overloading,
overheating or deepdischarge.
The tool will automatically turn off if the Electronic Protection
System engages. If this occurs, place the lithium-ion battery
pack on the charger until it is fullycharged.
Charger/Radio Cleaning Instructions
WARNING: Shock hazard. Disconnect the charger
from the AC outlet before cleaning. Dirt and grease
may be removed from the exterior of the charger using a
cloth or soft non-metallic brush. Do not use water or any
cleaning solutions. Never let any liquid get inside the tool;
never immerse any part of the tool into aliquid.
Battery Packs
Important Safety Instructions for All
Battery Packs
When ordering replacement battery packs, be sure to include
catalogue number andvoltage.
The battery pack is not fully charged out of the carton. Before
using the battery pack and charger, read the safety instructions
below. Then follow charging proceduresoutlined.
READ ALL INSTRUCTIONS

6
ENGLISH
• Do not charge or use battery in explosive atmospheres,
such as in the presence of flammable liquids, gases or
dust. Inserting or removing the battery from the charger may
ignite the dust orfumes.
• Never force battery pack into charger. Do not modify
battery pack in any way to fit into a non-compatible
charger as battery pack may rupture causing serious
personalinjury.
• Charge the battery packs only in
DeWALT
chargers.
• DO NOT splash or immerse in water or otherliquids.
• Do not store or use the tool and battery pack in
locations where the temperature may reach or exceed
40 ˚C (104 ˚F) (such as outside sheds or metal buildings
insummer).
• Do not incinerate the battery pack even if it is severely
damaged or is completely worn out. The battery pack can
explode in a fire. Toxic fumes and materials are created when
lithium-ion battery packs areburned.
• If battery contents come into contact with the skin,
immediately wash area with mild soap and water. If
battery liquid gets into the eye, rinse water over the open eye
for 15 minutes or until irritation ceases. If medical attention
is needed, the battery electrolyte is composed of a mixture of
liquid organic carbonates and lithiumsalts.
• Contents of opened battery cells may cause respiratory
irritation. Provide fresh air. If symptoms persists, seek
medicalattention.
WARNING: Burn hazard. Battery liquid may be flammable
if exposed to spark orflame.
WARNING: Never attempt to open the battery pack for
any reason. If battery pack case is cracked or damaged,
do not insert into charger. Do not crush, drop or damage
battery pack. Do not use a battery pack or charger that
has received a sharp blow, been dropped, run over or
damaged in any way (i.e., pierced with a nail, hit with
a hammer, stepped on). Electric shock or electrocution
may result. Damaged battery packs should be returned to
service centre forrecycling.
WARNING: Fire hazard. Do not store or carry the
battery pack so that metal objects can contact
exposed battery terminals. For example, do not place
the battery pack in aprons, pockets, tool boxes, product kit
boxes, drawers, etc., with loose nails, screws, keys,etc.
CAUTION: When not in use, place tool on its side on
a stable surface where it will not cause a tripping
or falling hazard. Some tools with large battery packs
will stand upright on the battery pack but may be easily
knockedover.
Transportation
WARNING: Fire hazard. Transporting batteries can
possibly cause fire if the battery terminals inadvertently
come in contact with conductive materials. When
transporting batteries, make sure that the battery
terminals are protected and well insulated from materials
that could contact them and cause a shortcircuit.
DeWALT
batteries comply with all applicable shipping
regulations as prescribed by industry and legal standards which
include UN Recommendations on the Transport of Dangerous
Goods; International Air Transport Association (IATA) Dangerous
Goods Regulations, International Maritime Dangerous Goods
(IMDG) Regulations, and the European Agreement Concerning
The International Carriage of Dangerous Goods by Road (ADR).
Lithium-ion cells and batteries have been tested to section 38.3
of the UN Recommendations on the Transport of Dangerous
Goods Manual of Tests andCriteria.
In most instances, shipping a
DeWALT
battery pack will be
excepted from being classified as a fully regulated Class 9
Hazardous Material. In general, only shipments containing a
lithium-ion battery with an energy rating greater than 100 Watt
Hours (Wh) will require being shipped as fully regulated Class 9.
All lithium-ion batteries have the Watt Hour rating marked on
the pack. Furthermore, due to regulation complexities,
DeWALT
does not recommend air shipping lithium-ion battery packs
alone regardless of Watt Hour rating. Shipments of tools with
batteries (combo kits) can be air shipped as excepted if the Watt
Hour rating of the battery pack is no greater than 100Whr.
Regardless of whether a shipment is considered excepted
or fully regulated, it is the shipper's responsibility to consult
the latest regulations for packaging, labeling/marking and
documentationrequirements.
The information provided in this section of the manual is
provided in good faith and believed to be accurate at the time
the document was created. However, no warranty, expressed or
implied, is given. It is the buyer’s responsibility to ensure that its
activities comply with the applicableregulations.
Transporting the FLEXVOLTTM Battery
The
DeWALT
FLEXVOLTTM battery has two modes: Use
andTransport.
Use Mode: When the FLEXVOLTTM battery stands alone or is in
a
DeWALT
18V product, it will operate as an 18V battery. When
the FLEXVOLTTM battery is in a 54V or a 108V (two 54V batteries)
product, it will operate as a 54Vbattery.
Transport Mode: When the cap is attached to the FLEXVOLTTM
battery, the battery is in Transport mode. Keep the cap
forshipping.
When in Transport mode, strings
of cells are electrically
disconnected within the pack
resulting in 3 batteries with a
lower Watt hour (Wh) rating as compared to 1 battery with a
higher Watt hour rating. This increased quantity of 3 batteries
with the lower Watt hour rating can exempt the pack from
certain shipping regulations that are imposed upon the higher
Watt hour batteries.
For example, the Transport
Wh rating might indicate
3x36 Wh, meaning 3
batteries of 36 Wh each.
The Use Wh rating might
indicate 108Wh (1batteryimplied).

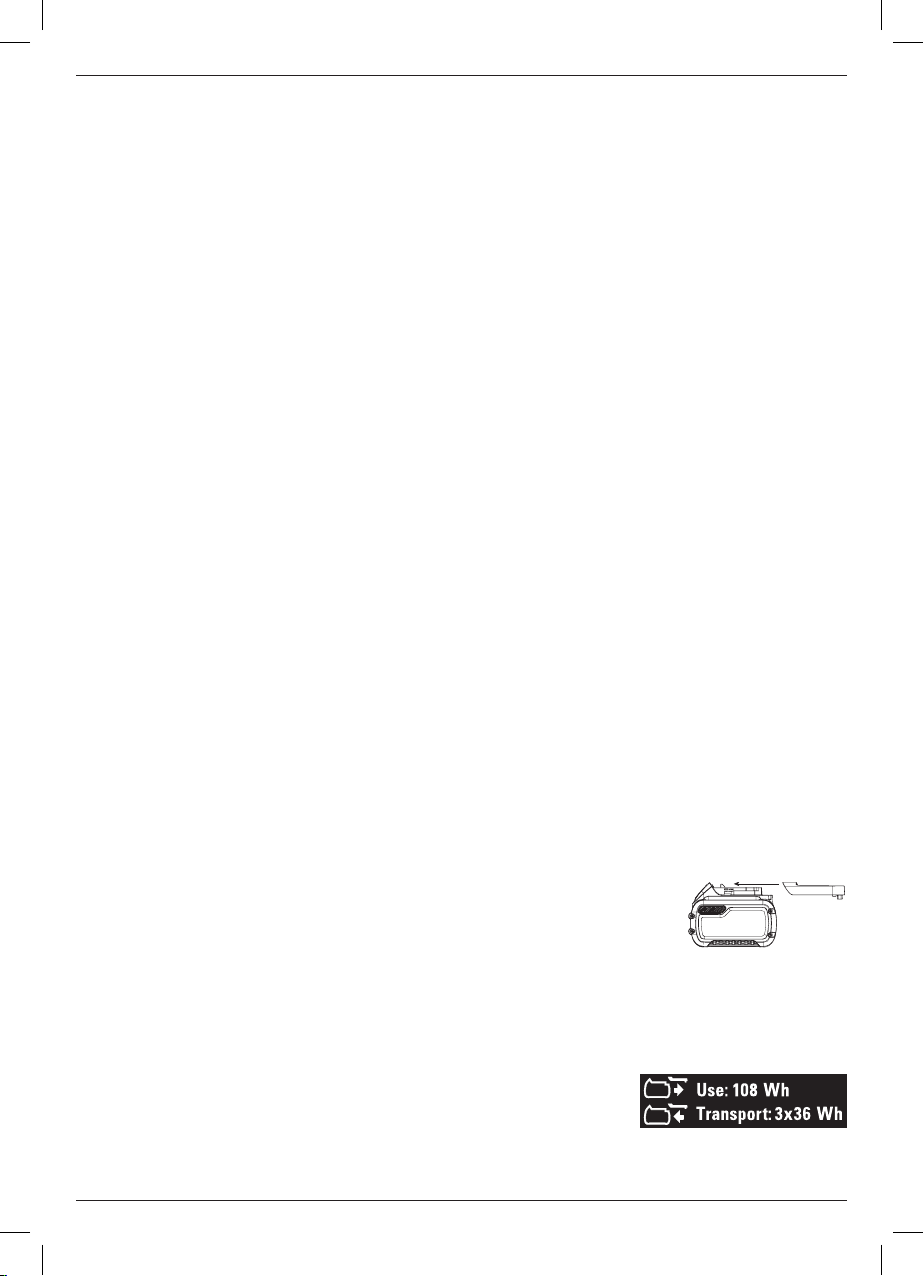

Example of Use and Transport Label Marking

7
ENGLISH
Storage Recommendations
1. The best storage place is one that is cool and dry away
from direct sunlight and excess heat or cold. For optimum
battery performance and life, store battery packs at room
temperature when not inuse.
2. For long storage, it is recommended to store a fully charged
battery pack in a cool, dry place out of the charger for
optimalresults.
NOTE: Battery packs should not be stored completely
depleted of charge. The battery pack will need to be recharged
beforeuse.
Labels on Charger and Battery Pack
In addition to the pictographs used in this manual, the labels
on the charger and the battery pack may show the following
pictographs:
Read instruction manual beforeuse.
See Technical Data for chargingtime.
Do not probe with conductiveobjects.
Do not charge damaged batterypacks.
Do not expose towater.
Have defective cords replacedimmediately.
Charge only between 4 ˚C and 40 ˚C.
Only for indooruse.
Discard the battery pack with due care for
theenvironment.
Charge
DeWALT
battery packs only with designated
DeWALT
chargers. Charging battery packs other
than the designated
DeWALT
batteries with a
DeWALT
charger may make them burst or lead to
other dangeroussituations.
Do not incinerate the batterypack.
USE (without transport cap). Example: Wh rating
indicates 108 Wh (1 battery with 108Wh).
TRANSPORT (with built-in transport cap). Example:
Wh rating indicates 3 x 36 Wh (3batteries of 36Wh).
Battery Type
The DCR027 operates on a 18 volt batterypack.
These battery packs may be used: DCB181, DCB182, DCB183,
DCB183B, DCB184, DCB184B, DCB185, DCB546, DCB547. Refer to
Technical Data for moreinformation.
Package Contents
The package contains:
1 Charger/Radio
1 Instruction manual
• Check for damage to the tool, parts or accessories which may
have occurred duringtransport.
• Take the time to thoroughly read and understand this manual
prior tooperation.
Markings on Tool
The following pictograms are shown on the tool:
Read instruction manual beforeuse.
Date Code Position (Fig. B)
The date code24, which also includes the year of manufacture,
is printed into thehousing.
Example:
2017 XX XX
Year of Manufacture
Description (Fig. A)
WARNING: Never modify the power tool or any part of it.
Damage or personal injury couldresult.
1 ON/OFF button
2 Volume knob
3 Antenna
4 Device storage
compartment
5 Seek/tuner/arrow buttons
6 Mode button
7 Enter/display button
8 Radio preset/memory
buttons
9 Mute button
10 Menu button
11 LCD display
12 Charging indicator light
13 Bluetooth® button
14 AC outlet
15 AUX audio port
16 USB charging port
17 Carry handle
18 Roll cage
Intended Use
Your Bluetooth® Work Site Charger/Radio is an FM radio. The
DCR027 can be powered by 230V AC power source as well
as all
DeWALT
14.4V, 18V/54V Li-Ion battery packs. Batteries
soldseparately.
DO NOT use under wet conditions or in the presence of
flammable liquids orgases.
DO NOT let children come into contact with the tool.
Supervision is required when inexperienced operators use
thistool.

8
ENGLISH
• Young children and the infirm. This appliance is not
intended for use by young children or infirm persons
withoutsupervision.
• This product is not intended for use by persons (including
children) suffering from diminished physical, sensory or
mental abilities; lack of experience, knowledge or skills
unless they are supervised by a person responsible for their
safety. Children should never be left alone with thisproduct.
ASSEMBLY AND ADJUSTMENTS
WARNING: Use only
DeWALT
battery packs andchargers.
Inserting and Removing the Battery Pack
from the Charger/Radio (Fig. B)
NOTE: Make sure your battery pack19 is fullycharged.
To Install the Battery Pack into the Unit
1. Align the battery pack19 with the rails inside the charger/
radio's battery port (Fig.B).
2. Slide it in until the battery pack is firmly seated and ensure
that you hear the lock snap intoplace.
To Remove the Battery Pack from the Unit
1. Press the release button20 and firmly pull the battery pack
out of the toolhandle.
2. Insert battery pack into the charger as described in the
charger section of thismanual.
Fuel Gauge Battery Packs (Fig. B)
Some
DeWALT
battery packs include a fuel gauge which
consists of three green LED lights that indicate the level of
charge remaining in the batterypack.
To actuate the fuel gauge, press and hold the fuel gauge
button21. A combination of the three green LED lights will
illuminate designating the level of charge left. When the level
of charge in the battery is below the usable limit, the fuel gauge
will not illuminate and the battery will need to berecharged.
NOTE: The fuel gauge is only an indication of the charge left on
the battery pack. It does not indicate tool functionality and is
subject to variation based on product components, temperature
and end-userapplication.
To Install Coin Cell Battery (Fig. B)
WARNING:Danger of explosion if battery is incorrectly
replaced. When replacing battery, replace it with the
same or equivalent type CR2032. Observe correct polarity
(+ and –) when replacing batteries. Do not store or carry
batteries so that metal objects can contact exposed
batteryterminals.
1. On the battery door on the back of the unit, turn the
screw 22 anti-clockwise to remove. Screw will remain
captive in thedoor.
2. Press down on the battery door latch and pull toopen.
3. Install the coin cell battery23 according to the diagram
inside the coin cell batteryarea.
4. Replace the battery door, insert the screw andtighten.
NOTE: To reset the LCD display, clock, and pre-sets remove
the coin cell battery and re-install. Follow this procedure if the
screen seems to lock inplace.
DANGER: DO NOT INGEST BATTERY; CHEMICAL
BURN HAZARD. This product contains a coin/button cell
battery. If the coin/button cell battery is swallowed, it can
cause severe internal burns in just 2hours and can lead
todeath.
Keep new and used batteries away from children. If the
battery compartment does not close securely stop using
the product and keep it away fromchildren.
If you think batteries might have been swallowed or
placed inside any part of the body, seek immediate
medicalattention.
OPERATION
Instructions for Use
WARNING: Always observe the safety instructions and
applicableregulations.
Your Bluetooth® charger/radio is equipped with memory
capacity in order to store the time and your selected memory
channels. When the radio is in the OFF position, this memory
capacity is powered by one coin cell battery that is included
with the charger/radio.
Power/Volume Adjustment
1. To turn the radio on, press the power button1.
NOTE: When the radio is first used it will enter 'DAB' mode
and automatically scan for stations. It will then set the time
and start playing the first station it finds. If there is no time
signal available please refer to To Program the Clock to
manually set thetime.
2. Turn the dial2 clockwise to increase the volume. To
decrease the volume, turn anti-clockwise.
Mode Function
To choose one of the mode functions('DAB', 'FM', or 'AUX' or
Bluetooth®) push the mode button6 until the desired function
isfound.
NOTE: Pressing the Bluetooth® button13 also puts the radio
into Bluetooth®mode.
DAB Mode
Tuning
When the unit is first switched on the unit will start in
'DAB'/'DAB+' mode and will 'Auto Scan' to find broadcast
stations in the local area. Once 'Auto Scan' is complete, use the
left or right arrow buttons 5 to scroll through thestations.
NOTE: When moving locations or if reception was poor
in the original scan(possible if the antenna was not up),
this may result in an empty or incomplete list of available
stations. Manually running an 'Auto Scan' will find all available
broadcaststations.
To Perform an Auto Scan:
1. Press the menu button10, scroll through the options by
pressing the right arrow button5 until you reach 'Auto

9
ENGLISH
Scan' and select this option by pressing the Enter/Display
button7.
2. Press the right arrow button to select the Yesoption.
3. Press the Enter/Display button7 to perform the
'AutoScan'.
Once 'Auto Scan' is complete the radio will play the first station
itfinds.
Display
Press the Enter/Display Button7 to alternate between scrolling
text, date and stationinformation.
Station Prune
Some stations once received by your radio which are no longer
available may display with a ?after the stationname.
To remove these stations from the station list, use the
'Prune'function:
Press Menu10 and scroll right to the 'Prune'option.
1. Press Enter/Display7 toselect.
Dynamic Range Compression(DRC)
This function reduces the difference between the loudest
and quietest audio being broadcast. Effectively, this makes
quiet sounds comparatively louder, and loud sounds
comparativelyquieter.
The following options are available:
• 0 - broadcast 'DRC' will be ignored
• 1/2 - sets 'DRC' at half the level transmitted
• 1 - uses the 'DRC' level transmitted
• 2 - doubles the 'DRC' level transmitted
NOTE: DRC only works if it is enabled by thebroadcaster.
To Adjust:
1. Press Menu 10 and scroll right to the 'DRC' option.
2. Press Enter/Display 7 to select.
3. Select the desired number displayed on the LCD 11 using
the arrow buttons 5 .
4. Press Enter/Display 7 toconfirm.
Tune or Seek Function (FM)
There are two tuning methods and one seek method for finding
the desiredfrequency.
To tune:
Press and release the right or left arrow button5. Repeat until
the desired frequency isfound.
To seek:
Press and hold the right or left arrow button5 for 2 seconds.
The tuner frequency will change to the first radio station with
acceptable clarity and stop at thatstation.
NOTE: When the charger/radio is paired to a Bluetooth® device
the right and left arrow buttons5 can be used to skip or go to
previous tracks on the audiodevice.
To Program the Clock
In 'DAB' mode the time/date automatically synchronises
with national time signals. If the time/date does not update
automatically it can be updatedmanually.
To Adjust the Clock Manually:
1. Press the Menu button10.
2. Use the arrow buttons5 to scroll to 'Clock Adjust' on the
LCDdisplay and press the Enter/Display button7.
3. Scroll to ''Date & Time' and press the Enter/Display button7.
4. Set the date and time using left and right arrowbuttons.
5. Once the desired time is set press the Enter/Display button
tocommit.
Other Clock Adjust menu options:
• Time format: Select a 12h or 24h time display format
• Date format: Select the date display format, MM/DD/YYYY,
YYYY/MM/DD or DD/MM/YYYY.
To Program the Preset/Memory Buttons
Ten 'DAB' and ten 'FM' radio stations may be independently set.
After programming the buttons, pressing 1-2, 3-4, 5-6, 7-8 or
9-10 will instantly change the frequency to the presetstation.
1. Set the radio to desired station (see Tune or SeekFunction).
2. Press and hold one of the desired memory buttons 8 until
the preset number begins flashing in the LCD display11.
Release the button and wait for the preset display to
stopflashing.
Each memory button can store two presetstations.
To Store a Second Preset:
1. Manually set the radio to desired station (see Tune or
SeekFunction).
2. Press and hold one of the desired memory buttons until the
preset number begins flashing in the LCDdisplay.
3. Press the preset button a second time so that the next
preset number displays.
4. Release the button and wait for the preset display to
stopflashing.
To Adjust the EQ
Bass and treble can be adjusted by changing the
Equalisation(EQ) settings of theradio.
1. Press the Menu button 10 and use the arrow keys to select
'Sound EQ'.
2. Press the right arrow button to increase the bass or the left
arrow button to decreaseit.
3. Once desired adjustment is achieved, press the
Enter/Display button 7 .
4. Repeat steps 2 and 3 for trebleadjustment.
Playing Audio Through an External
Device (Fig. A)
Audio can be played through the charger/radio via a wireless
Bluetooth® connection to a compatible Bluetooth® device or by
connecting audio device or mobile phone using a 3.5 mm audio
cable to the audio port15 located inside the device storage
compartment4.
Pairing Charger/radio with a Bluetooth® Audio Device
1. Place the charger/radio and the Bluetooth® audio source
within 1m of eachother.
2. Turn charger/radio on by pressing the power button1.

10
ENGLISH
3. Press the Bluetooth® button13 or use the mode button
to put the unit into Bluetooth® (BT) mode. This will cause
the Bluetooth® button to blink slowly. During this time, the
radio is trying to find a previously paired device. If found the
Bluetooth® button will stay lit without anyblinking.
4. If another device is to be paired, press the Bluetooth® button
and it should begin a fast blink pattern. While the radio is
displaying the fast blink, it is in paringmode.
5. Confirm pairing on your device. (Please consult your device's
instruction manual for specific pairing instructions.)
NOTE: If pairing is not confimed within 2 minutes, the LED
will stop flashing and the charger/radio will return to half
second interval blinkpattern.
6. Once pairing is successful the Bluetooth® indicator/
button13 will turn solid. The charger/radio will now play
music from yourdevice.
Bluetooth® Status Indicator
LED indicator Status/Mode
Steady blinking (half
second interval)
charger/radio is unpaired or in
connectingmode.
Rapid Blinking charger/radio is in pairing mode and
discoverable by yourdevice.
Solid light charger/radio is connected with
adevice.
No light charger/radio has timed out and/
or isoff.
Connecting a Previously Paired Bluetooth® Audio Device
If a Bluetooth® device has been previously paired to the
charger/radio it should automatically reconnect when charger/
radio is powered on. After 4 seconds the charger/radio will
go into connecting mode. This is indicated by the Bluetooth®
indicator/button13 blinking steady. Once the previously paired
Bluetooth® device is recognized and connected, the LED will go
solid. If connection does not occur and you are unable to stream
music please follow the instructions for Pairing Charger/radio
with a Bluetooth® AudioDevice.
Timeout Functionality (Fig. A)
To conserve battery life the charger/radio is designed to power
off automatically after an hour of inactivity. This inactivity could
be due to the device being unpaired for an hour or in the case
of the Bluetooth® connection being broken for the same period
of time. If the charger/radio powers off due to inactivity of
any kind refer to Connecting a Previously Paired Bluetooth®
AudioDevice.
NOTE: Optimum Bluetooth® streaming range is roughly 9m
(line of sight) to the charger/radio but distances up to 30m
are possible. Physical obstacles, other wireless devices or
electromagnetic devices may affect the connectionquality.
If Bluetooth® connection is lost due to exceeding time of
separation, exceeding the optimum distance, obstacles or
otherwise, reconnecting your device with the charger/radio may
benecessary.
Charging a Cell Phone or Audio Device Via
USB (Fig. A)
Your audio device or mobile phone can be charged (up to
2.1AMPS) using the USB power port16 on the charger/radio.
This charging is possible when unit is on, running off of AC plug
power or the batterypack.
AC Outlets (Fig. A)
The charger radio is equipped with 2 AC outlets14 (10amp
maximum) for powering additional tools orappliances.
Factory Reset
A Factory Reset will remove all presets and restore the radio to
its defaultsettings.
To perform a factory reset press Menu10 and use arrow keys5
to scroll to 'System'. Press Enter Display7 to select. Use arrow
keys5 to scroll to 'Factory Reset'. Press Enter Display7 toselect.
Important Radio Notes
1. Reception will vary depending on location and strength of
radiosignal.
2. Running the radio while connected to certain generators
may cause backgroundnoise.
MAINTENANCE
Your
DeWALT
power tool has been designed to operate
over a long period of time with a minimum of maintenance.
Continuous satisfactory operation depends upon proper tool
care and regularcleaning.
The charger and battery pack are notserviceable.
Lubrication
Your power tool requires no additionallubrication.
Cleaning
WARNING: Blow dirt and dust out of the main housing
with dry air as often as dirt is seen collecting in and around
the air vents. Wear approved eye protection and approved
dust mask when performing thisprocedure.
WARNING: Never use solvents or other harsh chemicals
for cleaning the non-metallic parts of the tool. These
chemicals may weaken the materials used in these parts.
Use a cloth dampened only with water and mild soap.
Never let any liquid get inside the tool; never immerse any
part of the tool into aliquid.
WARNING: Shock hazard. Disconnect the charger/
radio from the AC outlet before cleaning. Dirt and
grease may be removed from the exterior of the charger
using a cloth or soft non-metallic brush. Do not use water
or any cleaning solutions. Never let any liquid get inside
the unit; never immerse any part of the unit into aliquid.

11
ENGLISH
Optional Accessories
WARNING: Since accessories, other than those offered
by
DeWALT
, have not been tested with this product, use
of such accessories with this tool could be hazardous.
To reduce the risk of injury, only
DeWALT
recommended
accessories should be used with thisproduct.
Consult your dealer for further information on the
appropriateaccessories.
Protecting the Environment
Separate collection. Products and batteries marked
with this symbol must not be disposed of with normal
householdwaste.
Products and batteries contain materials that can
be recovered or recycled reducing the demand for raw
materials. Please recycle electrical products and batteries
according to local provisions. Further information is available at
www.2helpU.com.
Rechargeable Battery Pack
This long life battery pack must be recharged when it fails
to produce sufficient power on jobs which were easily done
before. At the end of its technical life, discard it with due care for
our environment:
• Run the battery pack down completely, then remove it from
thetool.
• Li-Ion cells are recyclable. Take them to your dealer or a
local recycling station. The collected battery packs will be
recycled or disposed ofproperly.

Belgique et
Luxembourg België en Luxemburg
DeWALT - Belgium BVBA
Egide Walschaertsstraat 16
2800 Mechelen
Tel: NL 32 15 47 37 63
Tel: FR 32 15 47 37 64
Fax: [phone]
www.dewalt.be
[email protected]
Danmark DeWALT (Stanley Black&Decker AS)
Roskildevej 22
2620 Albertslund
Tel: [phone]
Fax: [phone]
www.dewalt.dk
[email protected]
Deutschland DeWALT
Richard Klinger Str. 11
65510 Idstein
Tel: [phone]
Fax: [phone]
www.dewalt.de
[email protected]
Ελλάς DeWALT (Ελλάς) Α.Ε.
EΔΡΑ-ΓΡΑΦΕΙΑ : Στράβωνος 7
& Λ. Βουλιαγμένης, Γλυφάδα 166 74, Αθήνα
SERVICE : Ημερος Τόπος 2 (Χάνι Αδάμ) – 193 00 Ασπρόπυργος
Τηλ: 00302108981616
Φαξ: 00302108983570
www.dewalt.gr
[email protected]
España DeWALT Ibérica, S.C.A.
Parc de Negocios “Mas Blau”
Edificio Muntadas, c/Bergadá, 1, Of. A6
08820 El Prat de Llobregat (Barcelona)
Tel: [phone]
Fax: [phone]
www.dewalt.es
[email protected]
France DeWALT
5, allée des Hêtres
BP 60105, 69579 Limonest Cedex
Tel: [phone]
Fax: [phone]
www.dewalt.fr
[email protected]
Schweiz
Suisse
Svizzera
DeWALT
In der Luberzen 42
8902 Urdorf
Tel: 044 - 755 60 70
Fax: 044 - 730 70 67
www.dewalt.ch
[email protected]
Ireland DeWALT
Building 4500, Kinsale Road
Cork Airport Business Park
Cork, Ireland
Tel: [phone]
Fax: [phone]
www.dewalt.ie
[email protected]
Italia DeWALT
via Energypark 6
20871 Vimercate (MB), IT
Tel: [phone]
39 039-9590200
Fax: [phone]
www.dewalt.it
Nederlands DeWALT
Netherlands BVPostbus 83,
6120 AB BORN
Tel: [phone]
Fax: [phone]
www.dewalt.nl
Norge DeWALT
Postboks 4613
0405 Oslo, Norge
Tel: [phone]
Fax: [phone]
www.dewalt.no
[email protected]
Österreich DeWALT
Werkzeug Vertriebsges m.b.H
Oberlaaerstrasse 248, A-1230 Wien
Tel: 01 - 66116 - 0
Fax: 01 - 66116 - 614
www.dewalt.at
[email protected]
Portugal DeWALT
Ed. D Dinis, Quina da Fonte
Rua dos Malhoes 2 2A 2º Esq.
Oeiras e S. Juliao da Barra, paço de Arcos e Caxias
2770 071 Paço de Arcos
Tel: [phone]
Fax: [phone]
www.dewalt.pt
[email protected]
Suomi DeWALT
PL47
00521 Helsinki, Suomi
Puh: 010 400 4333
Faksi: 0800 411 340
www.dewalt.fi
[email protected]
Sverige DeWALT
BOX 94
43122 Mölndal
Sverige
Tel: [phone]
Fax: [phone]
www.dewalt.se
[email protected]
Türkiye Sanayi ve Ticareet Bakanlığı tebliğince kullanim ömrü 7 yıldır.
Stanley Black & Decker Turkey Alet Üretim San. Tic. Ltd.Şti.
Kozyataği Mh Değirmen Sk.
Nida Kule No: 18 Kat: 6, 34742
Kadıköy, İstanbul, Türkiye
Tel: [phone]
Faks: [phone]
www.dewalt.com.tr
[email protected]
United
Kingdom
DeWALT, 210 Bath Road;
Slough, Berks SL1 3YD
Tel: [phone]
Fax: [phone]
www.dewalt.co.uk
[email protected]
Australia DeWALT
810 Whitehorse Road Box Hill
VIC 3103 Australia
Tel: Aust 1800 338 002
Tel: NZ 0800 339 258
www.dewalt.com.au
www.dewalt.co.nz
Middle East Africa DeWALT
P.O. Box - 17164,
Jebel Ali Free Zone (South), Dubai, UAE
Tel: [phone]
Fax: [phone]
www.dewalt.ae
[email protected]
N555760 08/17
