Diesse VES-MATIC 20 User manual

DIESSE DIAGNOSTICA SENESE S.P.A.
VES-MATIC 20
VES-MATIC 20 PLUS
Service Manual
Release 1.00 - English
Automatic instrument for the determination of the erythrosedimentation rate (ESR)
(patent pending)

2
The information contained in this manual can be subject to modification without notice. Any of the parts of this manual can
be reproduced in any way or media electronic or mechanical, for any use, without the written authorisation of Diesse
Diagnostica Senese S.p.a.
Copyright © October 2001. Diesse Diagnostica Senese S.p.a. All rights reserved.

3
TABLE OF CONTENTS
1. VES MATIC 20 / VES MATIC 20 PLUS
INTERVENTION PROCEDURES (TROUBLE SHOOTING) ............................................p.5
1.1. Approach to the VES MATIC 20 / VES MATIC 20 PLUS instrument
1.2. Analysis of the faults
1.2.1. The instrument does not switch on
1.2.2. The instrument switches on / Self test
1.2.3. The instrument switches on / Display
1.2.4. The instrument switches on / Printer
1.2.5. The instrument switches on / Check Device
2. PROCEDURE TO DISMOUNT
THE ROTATION MOTOR GROUP - SAMPLE HOLDER PLATE.................................p.11
3. PROCEDURE TO REASSEMBLE
THE ROTATION MOTOR GROUP - SAMPLE HOLDER PLATE.................................p.12
4. PROCEDURE TO CALIBRATE THE VES MATIC 20 / 20 PLUS INSTRUMENT
FOLLOWING DISMOUNTING OR FOLLOWING A PERIODICAL CHECK-UP ......p.13
5. PROCEDURES TO FOLLOW FOR INTERVENTIONS ON THE DIFFERENT
MODULES ................................................................................................................................p.19
5.1. SERVICE MANUAL THE POWER SUPPLY MODULE...................................................p.19
5.1.1. General
5.1.1.1. Aim
5.1.1.2. Applicability
5.1.2. Relative documentation
5.1.3. Relative instrumentation
5.1.4. Trouble shooting
5.1.4.1. Description of the module
5.1.5. Flow Chart no. 2
5.1.6. Access to the module
Appendix A: Examination of the faults
5.2. SERVICE MANUAL CPU MODULE ...................................................................................p.33
5.2.1. General
5.2.1.1. Aim
5.2.1.2. Applicability
5.2.2. Relative documentation
5.2.3. Relative instrumentation
5.2.4. Trouble shooting
5.2.4.1. Description of the module
5.2.5. Flow Chart no. 3
5.2.6. Access to the module
Appendix B: Examination of the faults

4
5.3. SERVICE MANUAL DISPLAY/KEYBOARD MODULE..................................................p.47
5.3.1. General
5.3.1.1. Aim
5.3.1.2. Applicability
5.3.2. Relative documentation
5.3.3. Relative instrumentation
5.3.4. Trouble shooting
5.3.4.1. Description of the module
5.3.5. Flow Chart no. 4
5.3.6. Access to the module
Appendix C: Examination of the faults.
5.4. SERVICE MANUAL PRINTER INTERFACE MODULE .................................................p.59
5.4.1. General
5.4.1.1. Aim
5.4.1.2. Applicability
5.4.2. Relative documentation
5.4.3. Relative instrumentation
5.4.4. Trouble shooting
5.4.4.1. Description of the module
5.4.5. Flow Chart no. 5
5.4.6. Access to the module
Appendix D: Examination of the faults.
5.5. SERVICE MANUAL MOTORS AND CONTROLS BOARD MODULE .........................p.73
5.5.1. General
5.5.1.1. Aim
5.5.1.2. Applicability
5.5.2. Relative documentation
5.5.3. Relative instrumentation
5.5.4. Trouble shooting
5.5.4.1. Description of the module
5.5.5 Flow Chart no. 6
5.5.6. Access to the module
Appendix E: Examination of the faults.
Appendix F: CONNECTION TO A HOST COMPUTER AND SPECIFICATIONS OF THE
COMMUNICATIONS PROTOCOL FOR VES-MATIC 20 / VES MATIC 20 PLUS
Appendix G: CONNECTION OF A BARCODE READER TO INSTRUMENTS OF THE VES LINE
Appendix H: FIRMWARE UPGRADE FOR THE VES MATIC 20 AND VES MATIC 20 PLUS
INSTRUMENT

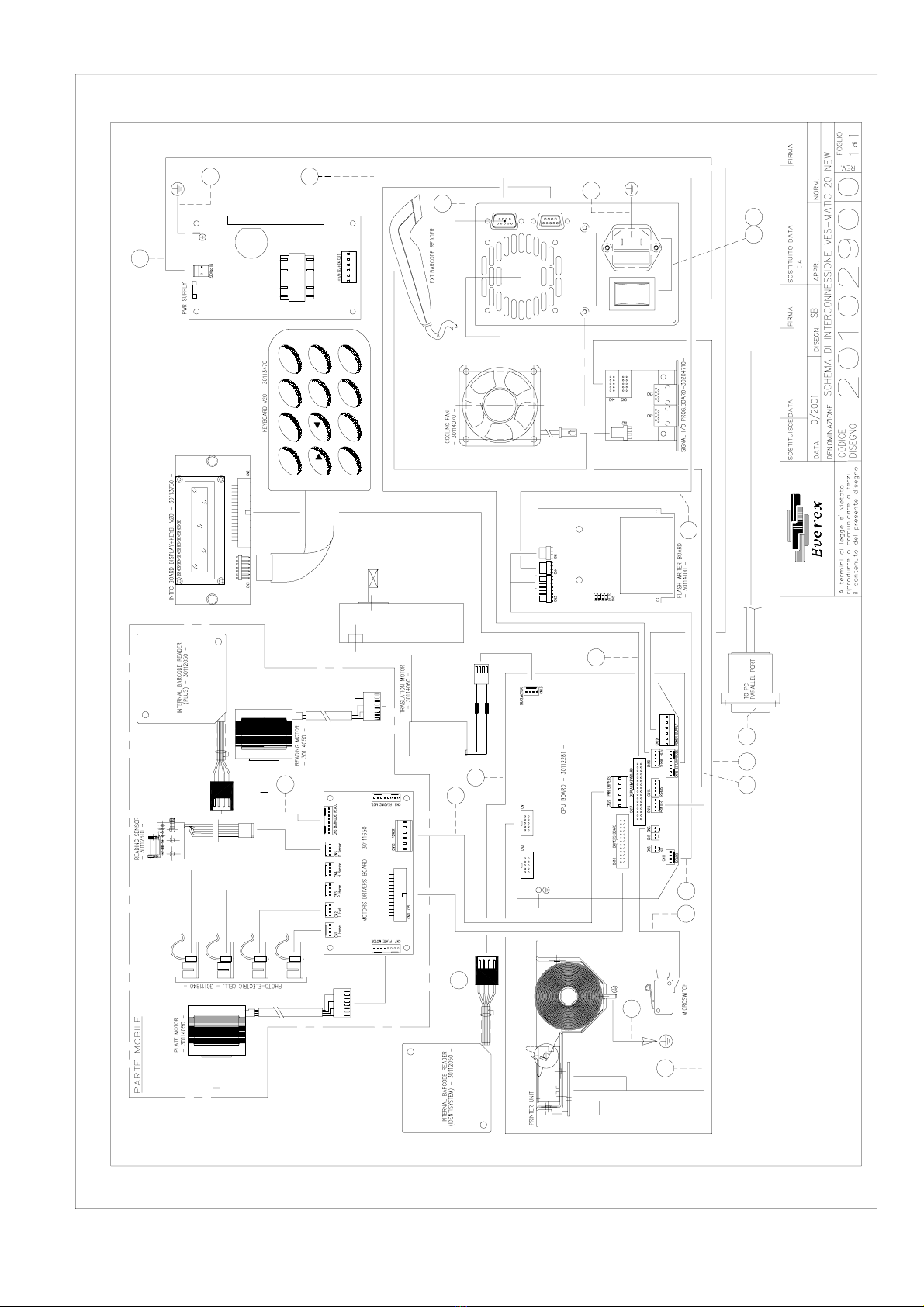

Appendix I: LAYOUT FOR ELECTRONIC CONTROL BOARD AND SCHEMATICS

5
1. VES MATIC 20 / VES MATIC 20 PLUS - INTERVENTION PROCEDURES
(TROUBLE SHOOTING)
Before performing any type of intervention on the instrument:
a) SWITCH OFF THE ON/OFF SWITCH ON THE VES MATIC INSTRUMENT.
b) DISCONNECT THE INSTRUMENT FROM THE POWER SUPPLY IN ORDER TO
AVOID ANY RISK OF CONTACT WITH ELECTRICAL OR MECHANICAL PARTS
UNDER LINE VOLTAGE.
IF THESE BASIC RULES ARE NOT FOLLOWED, THE MANUFACTURER OF THE
VES MATIC 20 / VES MATIC 20 PLUS INSTRUMENT WILL ACCEPT NO
FURTHER RESPONSABILITY.
1.1. APPROACH TO THE VES MATIC 20 / VES MATIC 20 PLUS INSTRUMENT
1. Observe the recommendations reported in paragraph 1.
2. Open the outer covering of the instrument.
3. Gain access to the module of interest, as described in the procedures reported
hereafter (see Flow Chart no. 1).

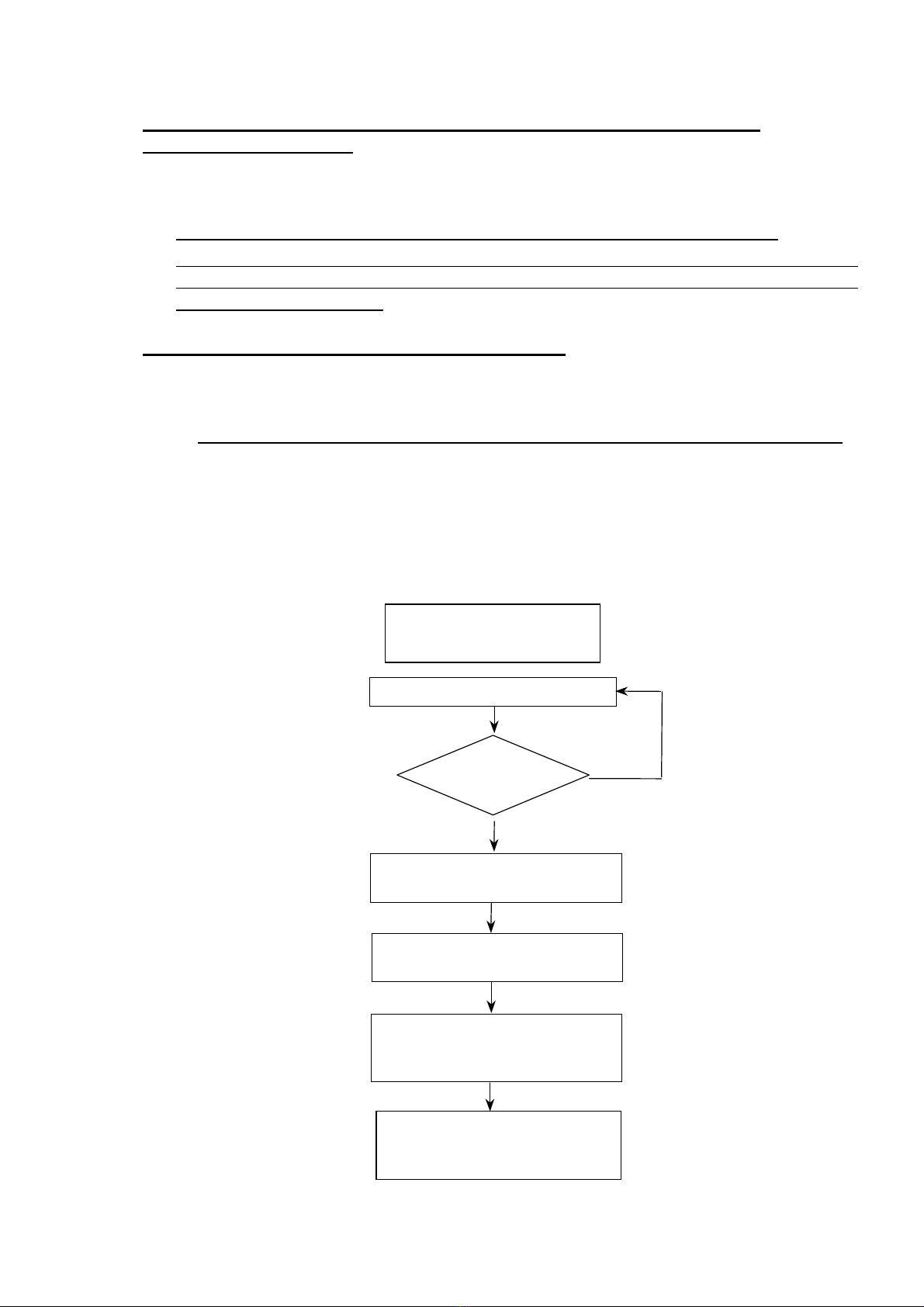

Flow-chart n°1
VES MATIC 20
VES MATIC 20 PLUS
Type of Fault
Analisys of
fault OK
Dissasembly of the module
(Dismounting Procedures)
Intervention on the Module of
Interest (Trouble Shooting)
Reassembly of the Module of
Interest
( Reassembly Procedures )
Retesting of the Module of
Interest
(Calibration Procedures)
N
S

6
1.2. ANALYSIS OF THE FAULTS
The faults reported in the following paragraphs make reference to the Trouble Shooting
procedures described for the individual modules, in order to demonstrate the type of
approach to follow in these situations.
1.2.1. The instrument does not switch on
a) Check that the mains power supply is working.
b) Check the power cable.
c) Check the fuses at the back of the instrument.
d) Check the ON/OFF switch on the back of the instrument.
e) Check the Power supply module (see procedure regarding Power supply).
1.2.2. The instrument switches on / Self Test
The instrument is switched on but the Self-Test is performed incorrectly, gives Error
codes, or is not performed at all.
a) The Self-Test is not performed
Check that the cover is closed - Close the cover.
Check the I/O board (see 5.5. procedure).
Check the CPU board (see CPU procedure).
b) The Self-Test is performed incorrectly - Error codes are visualized.
During the Self-Test the following Error Messages may appear on the display:
1) Error reading Error in reading of the Motor
Error in reading of the Home sensor (see 5.5. procedure)
Check the Home Sensor (see 5.5. procedure).
Check the Motors and Controls Board (see 5.5. procedure).
2) Error plate The sample plate holder does not move up and down
Check the UP/DOWN Sensor controlling the plate position (see 5.5. procedure)
Check the cabled Motor-reducer (see 5.5. procedure)
Check the Motors and Controls Board (see 5.5. procedure)
3) Error Mixing The Sample holder plate does not rotate
Check the Plate Motor (see 5.5. procedure)
Check the Plate Home Sensor (see 5.5. procedure)
Check the Home sensor stirrup (see 5.5. procedure)
Check the Motors and Controls Board (see 5.5. procedure)
4) Check Device exhausted The Check Device is not working
Check the Check Device (see 5.5. procedure)
Check the Motors and Controls Board (see 5.5. procedure)

7
1.2.3. The unit is on/display
a) The display visualizes but does not illuminate (backlighting )
b) The display does not visualize but illuminate
c) The display does not visualize and does not illuminate
d) The display visualize but the data can not be entered with the keyboard
See Display/Keyboard module procedure (5.3.).
1.2.4. The instrument switches on / Printer
a) The paper is not fed in; the printer does not print.
b) The paper advances but the printer does not print.
c) The printer prints but the paper does not advance correctly.
d) The printer prints in the compressed form.
e) The printer prints the wrong characters (see Printer procedure 5.4).
1.2.5. The instrument switches on / Check Device
a) The Check Device does not charge
Check that the Check Device is inserted correctly:
- Switch off the instrument
- Insert a new Check Device in the Check Device holder with the label facing the
operator (see operator manual, Check device procedure)
- Switch on the instrument.
If all is KO, check the Motors end Controls Board (see 5.5. procedure).

8
EXPLODED VIEW AND PART LIST TABLE

10
033
034
035
081
161
046
044
045
095
157
084
159
043
158
160
042
156
041
065
154
155
039
151
095
150
149
037
149
082
038
153
095
152
064
036
040
066
083
037
085
Esploso Meccanica V ES-M A TIC 20 New - Pag.1/4

11
093
001
072
002
092
054
093
003
104
005
103
073
074
105 106
056
008 109
108
107
090
091
075
053
006
203
094
097
202 007
100
101
102
096
047
048
049
050
051
052
055
092
104
094
099
099
137
Esploso Meccanica V ES-M A TIC 20 New - Pag.2/4

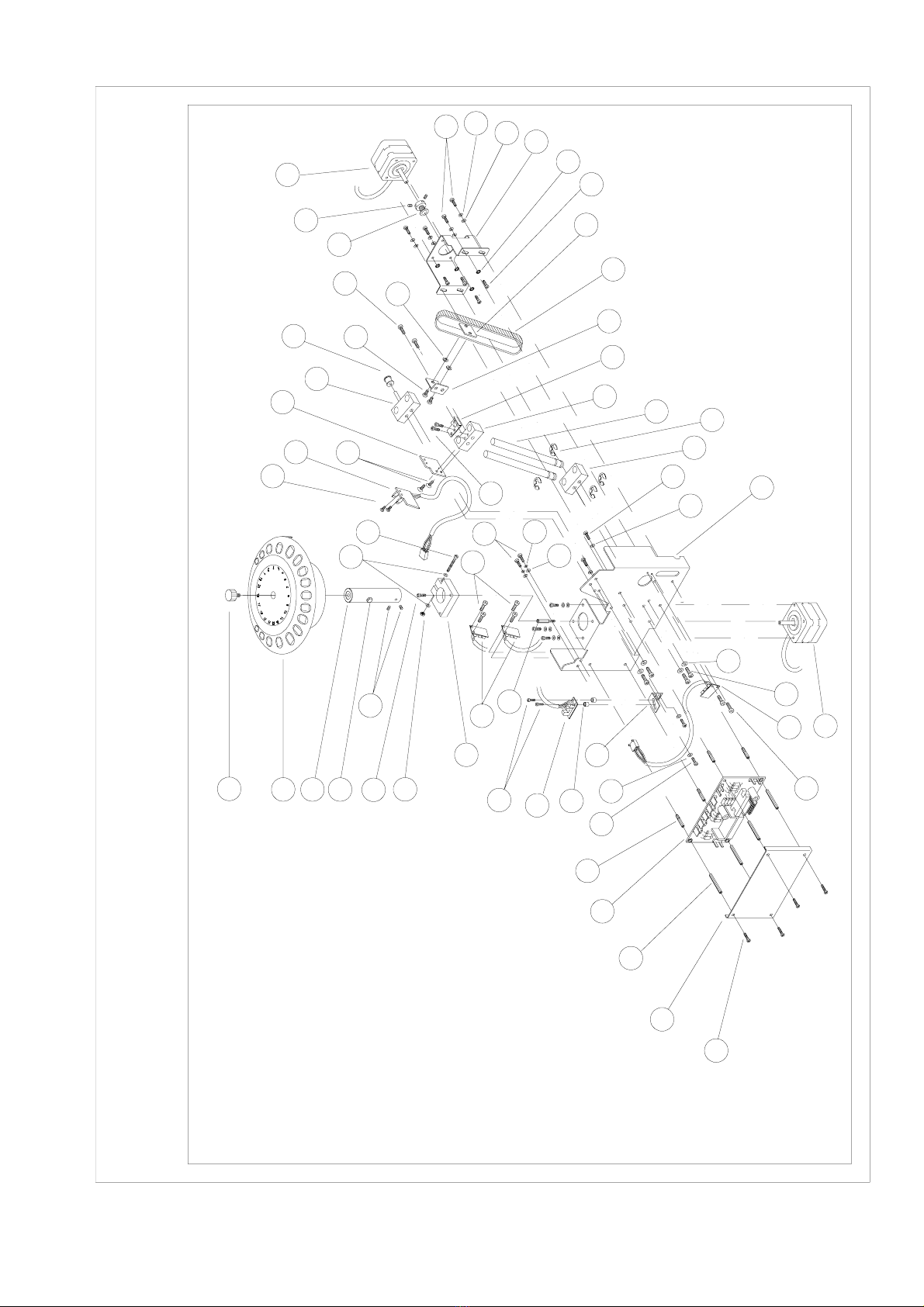

12
077
016
017
147
146
018
141
145
139
063
138
032
031
030
139
144
095
137
027
080
026
025
024
023
079
022
139
095
028
141
142
029
143
062
130
127
060
128
129
135
136
021
062
060 124
131
132
125
060
078
019
095
098
123
061
122
020
098
126
148
004
140
Esploso Meccanica VES-M ATIC 20 New - Pag.3/4

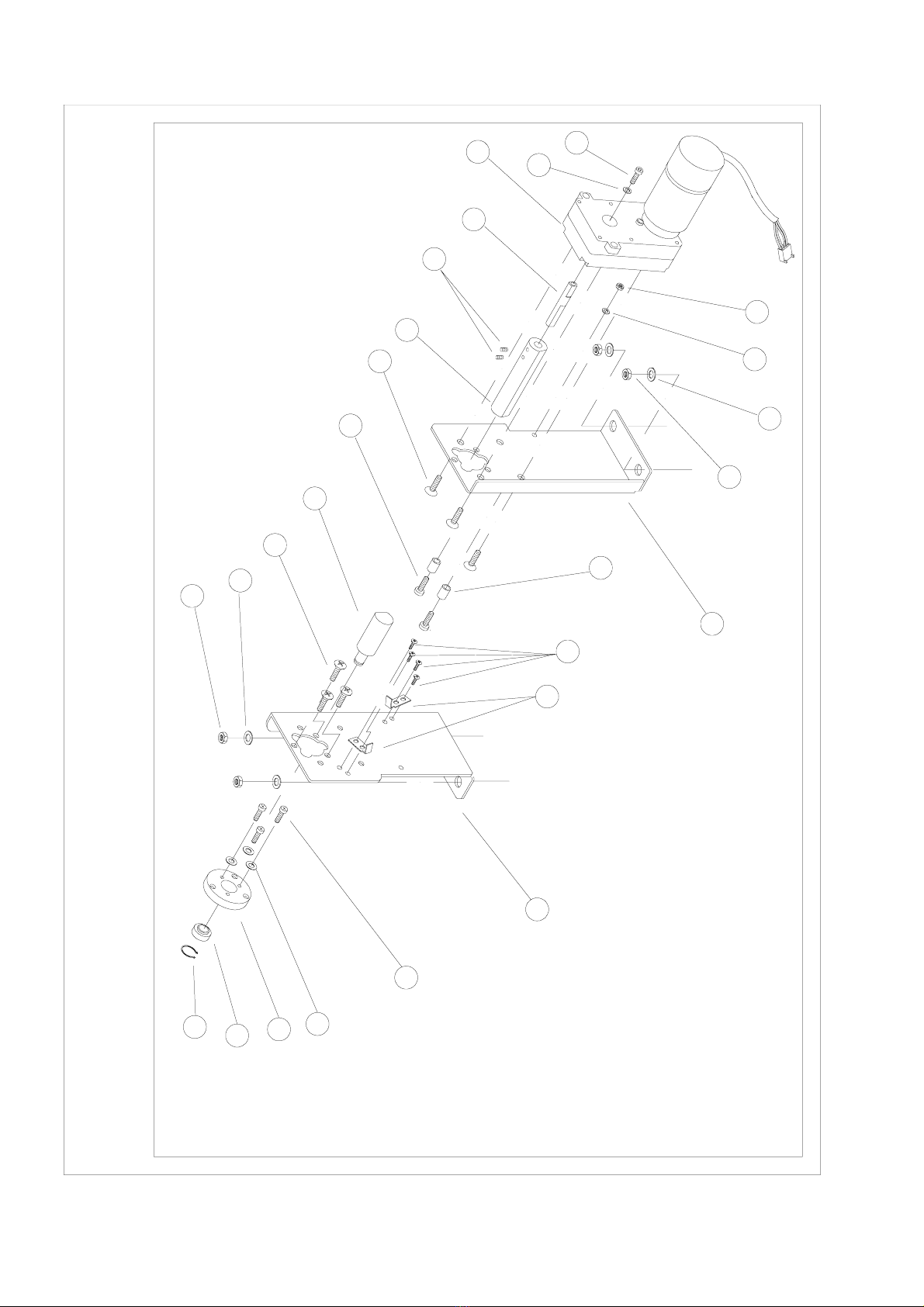

13
009
010
095
110
011
076 111
112
113
015
116
115
117
014
059 059
118
119
120
121
112
111
011
086
114
012
Esploso M eccan ica VES-M ATIC 20 New - Pag.4/4

14
FEED
6
5
ESC
9
1
2
PRINT
8
7
CLOCK
0
DISP
OK
3
TEST
4
MENU
205
211
207
208
217
206
201
200 212
203
204
202
209
216
210
213
215
214
218
219

15
30002870 – Ves-Matic 20 New
30002570 – Ves-Matic 20 Identisystem
30002830 – Ves-Matic 20 Plus
Part list
Position Code Description Note
001 10325860 Case power supply
002 10128470 Insulator pad for power supply
003 10301290 Ves20 painted tray
004 10126400 V20 pivot plate
005 10327500 Ves20 new base plate
006 10325871 Support for power supply
007 10327880 Carter riser in/out
008 10323970 Card support oxy/opto
009 11504520 Spheric bearing SKF GE 8 C
010 10325530 Upsetting pivot bush
011 10325521 Ves20 fixed stirrup
012 10118881 Square photocell activation
013 30401950 Motorid. TRIAL mod.
014 10330790 Mechanical axis support
015 10330790 Mechanical axis support
016 30204440 Ves20 complete plate
017 10325581 Rotation pivot plate
018 10127530 V20 friction plate
019 10125590 Reset plate photocell support
020 10327540 Cover drive card
021 10325551 Moving mechanic support
022 10327850 Support guide reading
023 10119081 Group guide reading
024 30204660 Group slide reading
025 10125610 Read_home square
026 10118941 Square fixing belt
027 10118951 Plate belt clamp
028 10325571 Motor reading supprt
029 30401731 Tractor pulley undercarriage resding
030 30204650 Pulley group
031 30204680 Group support reading guide
032 10325630 Reading sensor fixing plate
033 10601340 Ves20 plastic bubble
034 10127240 Bubble’s zipper V20
035 10328100 Bubble’s strapV20
036 10802110 Ves20 adhesive product

16
Position Code Description Note
037 10127270 V20 bubble zipper guide
038 10325840 Half-case/microswitch support
039 10127910 V20 glass display
040 1110F35Z Würth 0683-284-3 (single) self-adhesive
buffer
041 10301330 Ves20 painted up case
042 10328090 V20 painted box printer
043 10126750 Paperbreaking
044 30204720 Assembly fulcrum zipper printer cover
045 10127260 Printer cover zipper
046 10301280 V20 painetd printer cover
047 10325850 CPU protection case
048 30112281 CPU board Ves30/Ves20 Rev.01
049 1110030Z Hexagonal spacer
050 1110F56Z STEAB 5021/3////06 spacer
051 11141172 Screw M3x6 UNI 7687 inox
052 30112050 Cabled bar-code reader
053 30114070 Fun cooler V30/V20 new
054 30114100 Flash board writer rev.01vers.V30&V20new
055 10328490 Flash writer fixing plate
056 30113480 Signals board IN/OUT RS485/prog
057
058
059 30114060 Motoreducer. cabl.traslation V30/V20 new
060 30111640 Ves 20 Cabled photocell board
061 30111650 Motors diver board
062 30114050 Cabled Reading motor./agitat. V30/V20 new
063 30112310 Reading sensor board
064 30113470 Ves20 keyboard
065 30113750 Interf. board display+keyb. Ves20
066 30111340 Small printer board. WT01
067
068
069
070
071
072 21440230 Supply. Mean-Well PT65-D (+5/+12/+24)
073 21200540 Black bip.int OMEGA I4700 16A/250V
074 20892130 Mains input plug ACTRONIC AR-09-2F-6A
075 1110010Z STEAB 5021/5////05 spacer
076 1110584R Seeger ring E 8 UNI 7435
077 1110008Z ELESA B193/15P-M4x10 knob

17
Position Code Description Note
078 1110010Z STEAB 5021/5////05 spacer
079 1110675Z Benzing ring 6 UNI 7434-75
080 11712010 1056 MXL 025 (svil. 268,386) belt
081 12500290 Zipper art. 101 30x30 nikel.
082 21200680 Microswitch Honeywell V5C010BG1L
083 21430120 PrinterPANAS.EPL-1902S2AE(PAN-MEC000200)
084 12300010 Termal printer roll l=58 mm
085 10326070 Plate microswitch
086 10125620 Bush of beat
…
…
089 11141394 Screw M4x10 UNI 5931 inox
090 1110023Z Hexagonal spacer F-F M3x30
091 1110024Z Hexagonal spacer M-F M3x20
092 1114473L Nut M3 UNI 5588 inox
093 11141394 Screw M4x10 UNI 5931 inox
094 1114544Z Rosetta 4x12 inox
095 1114499Z Rosetta 3,2x7 UNI 6592 inox
096 1110H65Z DIST.ESAG. F-F M2 E.ZUB. FF10 H 2040 12
097 1110F30Z Hexagonal spacer M-F M3x12
098 11141182 Screw M3x8 UNI 7687 inox
099 11160971 Screw M2x5 UNI 6109 Ot
100 11141934 Screw M6x10 UNI 5931 inox
101 1114B39Z Rosetta A6,4 UNI 1751 grover inox
102 1114505Z Rosetta 6,4x12,5 UNI 6592 inox
103 1114B62Z Rosetta dentellata A4,3 DIN 6798 inox
104 1114474L Nut M4 UNI 5588 inox
105 11141183 Screw M3x8 UNI 7688 inox
106 11141183 Screw M3x8 UNI 7688 inox
107 20814070 Kit col.fiss.conn.vasch. M/F nikel L=7
108 11141272 Screw M3x30 UNI 7687 inox
109 11141182 Screw M3x8 UNI 7687 inox
110 11141172 Screw M3x6 UNI 7687 inox
111 1114476L Nut M6 UNI 5588 inox
112 1114549Z Washer 6x18 inox
113 11141394 Screw M4x10 UNI 5931 inox
114 11141183 Screw M3x8 UNI 7688 inox
115 11141424 Screw M4x16 UNI 5931 inox
116 11141383 Screw M4x8 UNI 7688 inox
117 11141376 Screw M4x6 UNI 5923 inox
118 1114501Z Washer 4,3x9 UNI 6592 inox

18
Position Code Description Note
119 11141394 Screw M4x10 UNI 5931 inox
120 1114474L Nut M4 UNI 5588 inox
121 1114501Z Washer 4,3x9 UNI 6592 inox
122 1110026Z Hexagonal spacer M-F M3x30
123 1110027Z Hexagonal spacer M-F M3x10
124 11141404 Screw M4x12 UNI 5931 inox
125 11141192 Screw M3x10 UNI 7687 inox
126 1110021Z Hexagonal spacer M-F M3x15
127 11141402 Screw M4x12 UNI 7687 inox
128 1114B37Z Washer A4,3 UNI 1751 grover inox
129 1114501Z Washer 4,3x9 UNI 6592 inox
130 11141174 Screw M3x6 UNI 5931 inox
131 1114501Z Washer 4,3x9 UNI 6592 inox
132 1110389G Screw PZAB 2,9x6,5 UNI 6954 Zn
133
134
135 11141402 Screw M4x12 UNI 7687 inox
136 1114501Z Washer 4,3x9 UNI 6592 inox
137 11141173 Screw M3x6 UNI 7688 inox
138 11141173 Screw M3x6 UNI 7688 inox
139 11141174 Screw M3x6 UNI 5931 inox
140 1114501Z Washer 4,3x9 UNI 6592 inox
141 1114B37Z Washer A4,3 UNI 1751 grover inox
142 11141394 Screw M4x10 UNI 5931 inox
143 11141176 Screw M3x6 UNI 5923 inox
144 11141092 Screw M2,5x6 UNI 7687 inox
145 11141484 Screw M4x30 UNI 5931 inox
146 1110460Z Nut autoblocking M4 UNI 7473 Zn
147 11141242 Screw M3x20 UNI 7687 inox
148 11141376 Screw M4x6 UNI 5923 inox
149 1110459Z Nut autoblocking M3 UNI 7473 Zn
150 11141242 Screw M3x20 UNI 7687 inox
151 11141192 Screw M3x10 UNI 7687 inox
152 11141224 Screw M3x16 UNI 5931 inox
153 1110389G Screw PZAB 2,9x6,5 UNI 6954 Zn
154 1110F42Z Hexagonal spacer M-F M4x15
155 1110009Z Washer STEAB 5015/4/1//16
156 11141182 Screw M3x8 UNI 7687 inox
157 1110391H Screw PZAB 2,9x13 UNI 6955 Zn
158 1110383G Screw PZAB 2,2x6,5 UNI 6954 Zn
159 1110381G Screw PZAB 2x5 UNI 6954 Zn

19
Position Code Description Note
160 11141172 Screw M3x6 UNI 7687 inox
161 11141183 Screw M3x8 UNI 7688 inox
162
163
164
165
166
167
168
169
170
…
…
…
-------------------- Cables list---------------------------------
Position Code Description Note
200 30113870 Signals motors driver cable V30/V20 new
201 30114280 Flash writer cable Ves20
202 30114270 Seriale cable RS232C V20
203 30114260 Barcode reading cable ext. V20
204 30114250 Seriale connection cable RS485 V20
205 30114240 Internal programm. Cable ISP V20
206 30114300 Ground cable L=400 O/O
207 30114080 External programming cable V30&V20 e Optional
208 30113840 Printer cable V30/V20 new
209 30114000 Power supply cable 90/264Vac Ves30/Ves20
new
210 30113990 Power supply cable CPU/fan V30/V20 new
211 30114290 Interface cable display+keyb. V20
212 30113890 Power supply cable motors drivers V30/V20
new
213 30114020 Neutral cable pin/filter Ves30/Ves20 new
214 30114010 Fase cable pin/filer Ves30/Ves20 new
215 30114190 Ground cable L=150 O/F
216 30114230 Ground cable L=250 O/F
217 30113930 Microswitch cover cable Ves30
218 30113940 Internal cable connection bar code reader
V30 new
219 30113980 External cable connection barcode reader
V30/V20 new

20
2. PROCEDURE TO DISMOUNT
THE ROTATION GROUP-SAMPLE HOLDER PLATE (see figure of exploded views)
Proceed step by step as reported below
a) Follow the recommendations in paragraph 1 points a) and b)
b) Unscrew the 5 screws (pos. 089) on the base’s external sides.
c) Open the outer covering (Pos. 041), lifting the front part and rotating it towards, be carefull
to don’t damage the internal cables.
d) Unscrew with a key the screw (Pos. 077) that bolcks the sample holder plate ( pos. 016)
e) Remove the sample holder plate (Por. 016)
e) Now we have at totally disposition the instrument’s mechanics for any intervention
3.PROCEDURE FOR REASSEMBLY OF THE ROTATION GROUP-SAMPLE
HOLDER PLATE
Follow the procedure reported below:
3. To go backward in the procedure reported at the point N 2.

21
4. CALIBRATION PROCEDURE OF THE UNIT VES MATIC 20 /VES MATIC 20
PLUS AFTER THE DISASSEMBLY OR FOR THE PERIODICAL PROTOCOL.
When the unit is assemblied back keeping the carter opened:
Access to the instrument keeping pressed the button “0” of the keyboard, the instrument
pages to automatically in “TEST FACTORY”.
With this menù we can do test and calibration of the instrument.
Test Factory
On the diplay appears :
VES MATIC 20 NEW
TEST FACTORY
and the printer makes the print below:
* * * * * * * * * * * * * * * * * *
* FACTORY TEST *
* * * * * * * * * * * * * * * * * *
- CONTROLS –
(1) = SERIAL RS232
(2) = TEMPERATURE
(3) = CLOCK
(4) = TRANSLATOR
(5) = PLATE
(6) = SENSOR READING
(7) = ID. SETTING
(8) = CARD
(9) = BARCODE
(OK) = STRESS PLATE
-select pressing the button “1” the voice “SERIAL RS232”
Serial Protocol
1= OLD 2= NEW
