Directed DS3+ User manual

DS3+ / DS4+ 933.CHRYSLER15
v1.16.198.9
2018 Jeep Wrangler (Smart Key)
THCHN3-REV3+ Compatible
(Sold Separately)

Introduction 3
Vehicle function compatibilities 4
Pre-installation and application warnings 5
Installation 6
Wiring diagram with T-Harness (THCHN3 Rev. 4+) 6
Wiring diagram with T-Harness (THCHN3 Rev. 3) 7
Wiring diagram 8
Locating components in the vehicle 9
Vehicle connections 10
Module programming 13
For Security-Only and Convenience-Only programming, see next sections. 13
Module programming for security-only installations 14
Pairing remotes 15
Connecting the module 15
8556T Temperature Sensor 15
8504D Combo Sensor 15
RF Systems 15
When used in conjunction with SmartStart 16
D2D port configuration 16

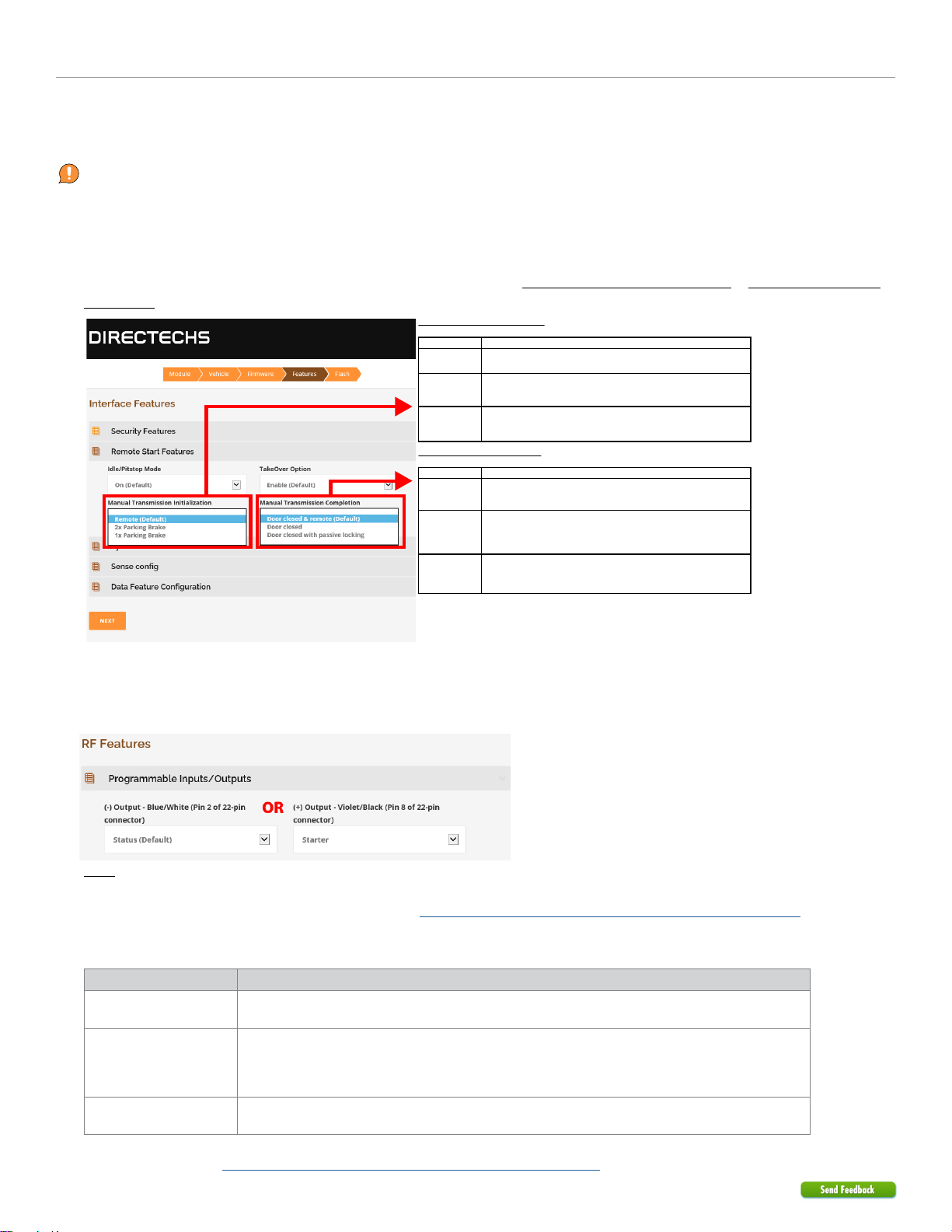

Manual transmission 17
LED diagnostics and troubleshooting 18
Soft reset 20
Hard reset 20
Tach learning procedure (not needed with Virtual Tach) 21
Initializing Virtual Tach (not needed with hardwired or data tach applications) 21
Limited lifetime consumer warranty 22
Quick Reference Guide 23
Contents

3933.CHRYSLER15 1.16.198.9 2018 Jeep Wrangler (Smart Key)
©2023 Directed. All rights
Introduction
This guide provides information on the installation of the DS3/DS3+ and DS4/DS4+ modules as a digital solution. Using these modules in a
digital configuration requires the module to be flashed with vehicle-specific firmware. Refer to our website (www.directechs.com) and click
on the DIRECTLINK text in the header for additional information.
DS3/DS3+ and DS4/DS4+ modules provide an all-in-one solution for most modern vehicles, and include remote start, keyless entry, security,
and immobilizer bypass capabilities. T-harnesses may also be used in many applications for easy installation.
The following methods are available to configure modules:
• Web: www.directechs.com (DS3/DS3+ and DS4/DS4+)
• Desktop application: Directlink DT (DS3/DS3+ and DS4/DS4+)
• Mobile device: Directlink App (DS4/DS4+ only)
When flashing via Directlink DT (desktop app) or via the Web, an XKloader2 will be required.
To configure via Web or DirectLink DT (desktop app):
1. Disconnect the main module from any (+) 12V power source.
2. Connect the module to your computer using the XKLoader2.
3. Follow the steps in the pop-up window that will be displayed when the module is detected.
Notes:
•Flashing via web is only possible using Internet Explorer on Windows 8, 8.1, and 10.
•This method is not compatible with any other browser (Edge, Chrome, Firefox, etc.).
•When using Windows 11 or newer, Directlink DT is mandatory.
The DS4/DS4+ module is designed to be configured using the DirectLink application through mobile devices.
To download the DirectLink mobile application, visit the Google Play or Apple store. They can also be
configured via Web and DirectLink DT. The DS4/DS4+ features are built in Bluetooth® 4.0, allowing you to
configure and control your system. The DS3/DS3+ module is not equipped with Bluetooth®, therefore is not
compatible with the DirectLink app for mobile devices.
To configure via DirectLink mobile app (Android/iOS):
1. Follow and complete the wiring diagram(s) related to your installation through the app.
2. When installation is complete, select Configure DS4/DS4+.
3. Follow the on-screen instructions.
FLASH REQUIRED!
FLASH REQUIRED!
4 White

4933.CHRYSLER15 1.16.198.9 2018 Jeep Wrangler (Smart Key)
©2023 Directed. All rights
Vehicle function compatibilities
This section lists all the functions compatible with this vehicle for the installation illustrated in this guide.
Note: The telematics features listed below (with an asterisk) ONLY apply when using SmartStart.
Arm Factory Security
Disarm Factory Security
Door Lock Control
Door Unlock
Control of aftermarket alarm with OEM remote
Fuel level/EV battery level
Key2GO
* Odometer
Immobilizer Bypass-Data No Key Req'd
3x LOCK START (Start control using OEM Remote)
3x LOCK STOP (Stop control using OEM Remote)
Accessory Activation
Ignition Activation
RAP Shut Down (Retained ACC Power)
Remote Start Takeover
SmartStart
Start (Crank) Activation
Tach / RPM Output
Entry Monitoring ALL Door Pins
Entry Monitoring Hood Pin
Entry Monitoring Trunk/Hatch Pin
Brake Status (foot brake)
Door Locks Status
E-Brake Status
Ignition Status

5933.CHRYSLER15 1.16.198.9 2018 Jeep Wrangler (Smart Key)
©2023 Directed. All rights
Pre-installation and application warnings
START HERE This section highlights important information for this specific firmware and will assist in pricing accordingly, as
well as bringing awareness to any operational or vehicle limitations.
Compatibilities and Requirements
T-Harness
compatible THCHN3 (Rev. 3+)
AUX
Keys
required for
programming 1Keys required
for operation 0
Vehicle Takeover Refer to the Quick Reference Guide section for more details.
Firmware notes
Warning! This product should not be installed in any convertible vehicles, soft or hard top with a manual transmission. Installation on
such vehicles may pose certain risks and will not be supported by VOXX•DEI LLC.
Doors: All vehicle doors must be installed and closed for remote start to operate.
RAP: Retained Accessory Power (RAP) will keep radio on up to 10 minutes depending on vehicle settings selected by the customer.
T-Harness THCHN3 (Rev. 3+):
•All T-Harness wires not listed in the diagram are not required for the installation. Loose wires such as Siren Output and
Hood Input may need to be pulled from the tapped section of the T-harness. Refer to the "wiring diagram with T-Harness"
for more information on connections and installation instructions.
•The optional Plug & Play THCHN3 (Rev. 3+) T-Harness is sold separately.
•The OBDII Diagnostic Connector features will remain the same even when the T-Harness is installed.
•All T-Harness wires not listed in the diagram are not required for the installation.
Fuses: It is important to check that the fuses are positioned correctly in the module. Proper fuse positioning is displayed on each wiring
diagram.
Unless specified otherwise, all connectors are displayed from the wire side, with the exception of the OBDII diagnostic connector.
Refer to the "Vehicle connections" following the installation diagram.
Footnotes
[1] Hood pin: The installation of an aftermarket hood pin is only required on vehicles that are not equipped with a factory hood pin or if
not supported in data.
[2] Siren: Only required when enabling the security features during module flashing.

6933.CHRYSLER15 1.16.198.9 2018 Jeep Wrangler (Smart Key)
©2023 Directed. All rights
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).
Insert connector into any
available slot at the Green
CAN Junction.
Cut CAN connector and
extend wire to reach
behind vehicle glove box.
HS CAN 2 High: Orange/Green
HS CAN 2 Low: Orange/Brown
HS CAN 3 High: Tan/Black
HS CAN 3 Low: Tan
Wiring diagram with T-Harness (THCHN3 Rev. 4)
(MUX)
Parking Lights:
White/Brown, pin 1
4
987
32
106
15
Headlight Switch
(black 10-pin conn.)
Hood Pin
OBDII
Diagnostic Connector
male
male
female
THCHN3 Rev. 4
(optional T-Harness)
OR
male
Use the style of
OBDll connector that
fits the best.
(-) GWA Output: Blue/White
8-pin White Connector
12-pin Black Connector
CAN Junction
(green CAN junction connector
behind glove box)
HS CAN 2 Connector
(white 2-pin connector)
HS CAN 3 Connector
(white 2-pin connector)
2
1
3
Siren
CAN Junction
(white CAN junction connector
behind glove box)
1
2
3
22-pin White Connector
(MUX) Parking Light Output: Violet/Brown
Cut the
Tan, Tan/Black,
Orange/Brown and
Orange/Green loops
.
Insert connector into any
available slot at the White
CAN Junction.
T-01
6-pin Black
Connector
male
Ignition Node
(black connector
at Ignition switch)
Connect the
T-Harness male
connector into
the ignition
switch
Security Only
Mandatory Connections
Remote Start Only
Legend:
Remote Start + Security
22 812
4 2442
Slide to open
A module can also be used for
this installation.
IMPORTANT:
Position the
fuses correctly!
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
MAIN (5A) (+)
(-) RLY3/PK LIGHT(15A) (+)
5
5
30
20
20
Refer to the Optional starter
disable connection section for
relay and connection details.

7933.CHRYSLER15 1.16.198.9 2018 Jeep Wrangler (Smart Key)
©2023 Directed. All rights
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).
Wiring diagram with T-Harness (THCHN3 Rev. 3)
(MUX)
Parking Lights:
White/Brown,
pin 1
4
987
32
106
15
Headlight Switch
(black 10-pin conn.)
Hood Pin
OBDII
Diagnostic Connector
T-01
6-pin Black
Connector
T-02
6-pin
White
Connector
Not Used
Not Used
male
male
male
female
THCHN3 Rev.3
(optional T-Harness)
OR
male Ignition Node
(black connector
at Ignition switch)
Use the style of
OBDll connector that
fits the best.
Connect the
T-Harness male
connector into
the ignition
switch
(-) GWA Output: Blue/White
8-pin White Connector
12-pin Black Connector
CAN Junction
(green CAN junction connector
behind glove box)
2
1
2
1
3
3
Siren
2
3
1
CAN Junction
(white CAN junction connector
behind glove box)
1
2
3
HS CAN 2 High: Orange/Green
HS CAN 2 Low: Orange/Brown
HS CAN 3 High: Tan/Black
HS CAN 3 Low: Tan
(MUX) Parking Light Output: Violet/Brown
8-pin White Connector
12-pin Black Connector
22-pin White Connector
CAN C Low:
Yellow, pin 2
CAN C High:
Tan/White, pin 1
CAN IHS High:
Orange,
pin 1
CAN IHS Low:
White/Orange,
pin 2
Cut the
Tan, Tan/Black,
Orange/Brown and
Orange/Green loops
.
Security Only
Mandatory Connections
Remote Start Only
Legend:
Remote Start + Security
22 812
4 2442
Slide to open
A module can also be used for
this installation.
IMPORTANT:
Position the
fuses correctly!
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
MAIN (5A) (+)
(-) RLY3/PK LIGHT(15A) (+)
5
5
30
20
20
(-) Hood Input: Gray
(+) Siren Output: Brown/Red
Refer to the Optional starter
disable connection section for
relay and connection details.

8933.CHRYSLER15 1.16.198.9 2018 Jeep Wrangler (Smart Key)
©2023 Directed. All rights
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).
Wiring diagram
Immo. Data Interrupt (conn. side): Blue/White: 1
Immo. Data Interrupt (veh. side): Blue: 3
(-) Ground: Black: 10
HS CAN 3 Low: Tan: 1
(+) Push-to-Start Output: Violet/Black: 8
HS CAN 3 High: Tan/Black: 2
HS CAN 2 High: Orange/Green: 4
HS CAN 2 Low: Orange/Brown: 3
Siren
(+) 12V Input: Red: 6 & 12
(+) PTS: Violet/Lt. Blue or Violet/Blue, pin 4
CUT
Hood Pin
(-) GWA Output: Blue/White: 2
CAN Junction
(green CAN junction connector
behind glove box)
Immobilizer Data: White/Green, pin 5
Keyless Ignition Node
(black conn. at
Start-Stop button)
2
1
(MUX) Parking Lights:
White/Brown, pin 1
4
987
32
106
15
Headlight Switch
(black 10-pin conn.)
(MUX) Parking Light Output: Violet/Brown: 6
2
1
3
CAN C Low:
Yellow, pin 2
CAN C High:
Tan/White, pin 1
3
CAN Junction
(white CAN junction connector behind glove box)
CAN IHS Low:
White/Orange,
pin 2
(+) 12V: Gray/Red, pin 16
(-) Ground:
Black or Black/Violet,
pin 4
2
3
1
1
2
OBDII
Diagnostic 16
8
9
1
3
Security Only
Mandatory Connections
Remote Start Only
Legend:
Remote Start + Security
22 812
4 2442
Slide to open
A module can also be used for
this installation.
IMPORTANT:
Position the
fuses correctly!
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
MAIN (5A) (+)
(-) RLY3/PK LIGHT(15A) (+)
5
5
30
20
20
Warning! Only 10A
(-) Hood Input: Gray: 21
(+) Siren Output: Brown/Red: 11
CAN IHS High:
Orange, pin 1
Refer to the Optional starter
disable connection section for
relay and connection details.

9933.CHRYSLER15 1.16.198.9 2018 Jeep Wrangler (Smart Key)
©2023 Directed. All rights
Locating components in the vehicle
Optional starter disable connection
When using an external relay, use a 1N4002 diode or larger.
22 812
4 2442
Refer to the
Vehicle connections
section for wire
and connector
details.
(-) Ground When Armed (GWA) Output: Blue/White: 2
(+) Ignition
Security Only
Mandatory Connections
Remote Start Only
Legend:
Remote Start + Security
1A Diode (1N4002+)
Starter (connector side)
Starter (vehicle side)
Cut
86 85
30
87a
87

10 933.CHRYSLER15 1.16.198.9 2018 Jeep Wrangler (Smart Key)
©2023 Directed. All rights
Vehicle connections
The connection information listed below is specific to the 2018 Jeep Wrangler (Smart Key). Refer to “Pre-installation and application warnings” for a list of important notes.
Data harness, 8-pin white connector (H1)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color Connection
H1/1 Tan (Data) HS CAN Low 3 White CAN Junction Block behind glove box, green 3 pin plug, pin 2 Data White/Orange (CAN IHS) Mandatory
H1/2 Tan/Black (Data) HS CAN High 3 White CAN Junction Block behind glove box, green 3 pin plug, pin 1 Data Orange (CAN IHS) Mandatory
H1/3 Orange/Brown (Data) HS CAN Low 2 Green CAN Junction Block behind glove box, white 3 pin plug, pin 2 Data Yellow (CAN C) Mandatory
H1/4 Orange/Green (Data) HS CAN High 2 Green CAN Junction Block behind glove box, white 3 pin plug, pin 1 Data Tan/White (CAN C) Mandatory
H1/5 Lt. Green No Connection No Connection
H1/6 Violet/Brown (MUX) Parking Light Output Headlight Switch, black 10 pin plug, pin 1 MUX White/Brown Mandatory
H1/7 Orange/Black No Connection No Connection
H1/8 Yellow/Black No Connection No Connection
Analog input/output harness, 22-pin white connector (H2)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color Connection
H2/1 Lt. Green/Black (-) Factory Alarm Arm Output No Connection
H2/2 Blue/White (-) Ground When Armed (GWA) Output Starter:
Passenger Fender behind battery, black 34 pin plug, pin 8 (A/T); gray
2 pin plug, pin 1 (M/T)
Igntion:
BCM above passenger kick, black 48 pin plug (E), pin 27
Must use a relay.
Must use a 1N4002 diode or larger.
+
+
Yellow/Gray
Pink/White
Security Only
H2/3 Dk. Green/Black (-) Lock Output No Connection
H2/4 Red/White (-) Trunk Release Output No Connection
H2/5 Brown/Black (-) Horn Output Driver Kick, gray 34 pin plug, pin 10 --or-- BCM above passenger kick,
white 48 pin plug (F), pin 29
- Dk. Green/Violet Optional
H2/6 Brown/White (-) AUX 1 Output No Connection
H2/7 White (+) AUX 1 Output No Connection
H2/8 Violet/Black (+) PTS Output Keyless Ignition Node (Start Stop Button), black 6 pin plug, pin 4 + Violet/Blue Remote Start
Only
H2/9 Dk. Blue/Black (-) Unlock Output No Connection
H2/10 Lt. Blue/Black (-) Factory Alarm Disarm Output No Connection
H2/11 Brown/Red (+) Siren Output [2] The siren is only required when enabling the security features during
module flashing.
Security Only
H2/12 Pink (+) Ignition Sense Input No Connection
H2/13 Violet (+) Door Trigger Input No Connection
H2/14 Brown (+) Brake Input No Connection
H2/15 White/Blue (-) Activation Input No Connection
H2/16 Red/Blue (-) No Connection No Connection
