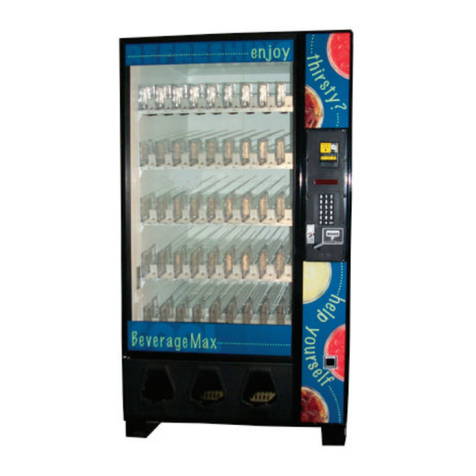

Dixie Narco 55 Series User manual

Glassfront Beverage Vender
Models DN 55##, DN 54##, DN 35##, DN 2145
First Production 0001-8000BW (April 1, 1998)
Manufactured by
Dixie-Narco, Inc.
P.O. Drawer 719
Williston, SC 29853-0719
800-688-9090
803-266-5001
fax: [phone]
Visit us on the web: www.dixienarco.com
Version 030.11 and higher
803,902,680.41
Operation
Service
Parts
Troubleshooting
Manual

1
Table of Contents
GENERAL INFORMATION......................................................................................................... 3
Vender Safety Precautions ............................................................................................. 3
Product Identification ...................................................................................................... 3
Physical Characteristics.................................................................................................. 3
INSTALLATION & SETUP..................................................................................................... 4 -8
Receiving Inspection....................................................................................................... 4
Unpacking The Vender................................................................................................... 4
Electrical Requirements.................................................................................................. 4
Installation & Setup Instructions...................................................................................... 4
Placing the Vender On Location...................................................................................... 5
Leveling the Vender........................................................................................................ 5
Spacing the Vender ........................................................................................................ 5
Installing Labels & Flavor Cards...................................................................................... 5
Coin Changers And Other Accessories........................................................................... 6
Set Temperature Control ................................................................................................ 6
Loading the Vender ........................................................................................................ 7
Loading the Coin Changer.............................................................................................. 7
Power Distribution Box ................................................................................................... 7
VMC............................................................................................................................... 7
Keypad........................................................................................................................... 7
Digital Display................................................................................................................. 7
Refrigeration System ...................................................................................................... 8
Shelf Assembly............................................................................................................... 8
Shelf Stabilizer ............................................................................................................... 8
Gate Assembly............................................................................................................... 8
Slide / Pusher Assembly................................................................................................. 8
PROGRAMMING................................................................................................................. 9 -23
General .......................................................................................................................... 9
External Display Items.................................................................................................... 9
Normal Operation Messages .......................................................................................... 9
Initial Programming................................................................................................ 10 -11
Quick Reference Menu Items........................................................................................ 12
Service Mode ....................................................................................................... 13 – 15
Test Mode ............................................................................................................ 16 – 18
Setup Mode.......................................................................................................... 19 – 21
Setup Mode 2........................................................................................................ 22 -23
MAJOR COMPONENT DESCRIPTION ............................................................................. 24 -25
AC Distribution Box ............................................................................................... 24 -25
Refrigeration Unit................................................................................................... 24 -25
GENERAL MAINTENANCE ..................................................................................................... 26
Power........................................................................................................................... 26
Cleaning....................................................................................................................... 26
Eprom Replacement..................................................................................................... 26
ELECTRICAL DIAGRAMS & SCHEMATICS..................................................................... 27 -38
MDB Controller Connections......................................................................................... 27
Dual Sensor Board ....................................................................................................... 28
TROUBLESHOOTING...................................................................................................... 29 – 38
Coin Acceptance .......................................................................................................... 29
Bill Acceptors................................................................................................................ 29
Control Board ............................................................................................................... 29
All Coins Rejected ........................................................................................................ 30
All Bills Rejected........................................................................................................... 31
Incorrect Change Dispensed......................................................................................... 32
Selection Will Not Vend ................................................................................................ 33
Ice / Frost on Evaporator .............................................................................................. 34
Condensate on Outside of Product Door....................................................................... 34
Compressor Will Not Stop............................................................................................. 34
Compressor Will Not Start ............................................................................................ 35
Machine Not Cooling .................................................................................................... 36

2
Selection Will Not Vend ......................................................................................... 37 -38
ELECTRICAL DIAGRAMS & SCHEMATICS.................................................................... 39 – 51
Vender Wiring Diagram ......................................................................................... 39 -40
Compressor Wiring Diagram.................................................................................. 41 -42
Right Side MDB System Schematic (ECC).................................................................... 43
Left Side MDB System Schematic (ECC)...................................................................... 44
Domestic AC Distribution Box Schematic DN55##/2145 ............................................... 45
Export AC Distribution Box Schematic DN55##/2145.................................................... 46
Domestic AC Distribution Box Schematic T8 Electronic................................................. 47
AC Distribution Box J2 Port Voltages............................................................................ 48
Assembly, Export AC Distribution Box .......................................................................... 49
Assembly, Domestic AC Distribution Box ...................................................................... 50
Assembly, Domestic AC Distribution Box T8 Electronic................................................. 51
PARTS LIST AND DIAGRAMS ........................................................................................ 53 – 77
Machine Front View.............................................................................................. 53 – 56
Cabinet Detail....................................................................................................... 57 – 60
Refrigeration Unit DN55##/DN54##/DN2145 Roll Up Condenser .......................... 61 – 62
Refrigeration Unit DN35## Fin & Tube Condenser ................................................ 63 – 64
Service Door Front ............................................................................................... 65 – 68
Service Door Back................................................................................................ 69 – 70
Tall Gate Tray Detail............................................................................................. 71 – 72
Domestic AC Box ................................................................................................. 73 – 74
Export AC Box...................................................................................................... 75 – 76
Miscellaneous............................................................................................................... 77
COMPATIBLE CURRENCY / CREDIT UNITS .......................................................................... 78
MDB Coin Mechanisms ................................................................................................ 78
MDB Bill Validators....................................................................................................... 78
MDB Card Readers ...................................................................................................... 78
Peripheral Interface Harness ........................................................................................ 78

GENERAL INFOR
MATION
3
VENDER SAFETY PRECAUTIONS
Please read this manual in its entirety. This service
information is intended for use by a qualified service
technician who is familiar with proper and safe
procedures to be followed when repairing, replacing or
adjusting any Dixie-Narco vender components. All
repairs should be performed by a qualified service
technician who is equipped with the proper tools and
replacement components, using genuine Dixie-Narco
factory parts.
REPAIRS AND/OR SERVICING
ATTEMPTED BY UNQUALIFIED
PERSONS CAN RESULT IN
HAZARDS DEVELOPING DUE TO
IMPROPER ASSEMBLY OR
ADJUSTMENTS WHILE
PERFORMING SUCH REPAIRS.
PERSONS NOT HAVING A PROPER
BACKGROUND MAY SUBJECT
THEMSELVES TO THE RISK OF
INJURY OR ELECTRICAL SHOCK
WHICH CAN BE SERIOUS OR EVEN
FATAL.
IMPORTANT NOTE: This machine should not be
used to vend perishable
products without the Health
Control Kit (622,010,200.04)
installed. If you wish to vend
perishable products, please
contact Dixie-Narco for
assistance.
PRODUCT IDENTIFICATION
The age of Dixie-Narco products is determined by the
date code incorporated in the serial number.
The vender serial number takes the form xxxx-yyyy
zz. The first 4 digits (xxxx) identify the specific
vender. The next 4 digits (yyyy) identify the
manufacturing run that the vender was built in. The
last two alpha characters (zz) identify the quarter and
the year the vender was built. The first alpha
character identifies the quarter as follows:
A= 1st Quarter
B= 2nd Quarter
C= 3rd Quarter
D= 4th Quarter
The second alpha character identifies the year:
W = 1998
X = 1999
Y = 2000
Z = 2001
A = 2002
B = 2003
C = 2004
PHYSICAL CHARACTERISTICS
DN 2145
HEIGHT
72” (1828.8 mm)
WIDTH
42” (1066.8 mm)
DEPTH
32” (812.8 mm)
BASE
6” (152.4 mm)
SHIPPING WEIGHT
622 lbs. (282 kg)
Glass door is 30” (762 mm) wide, 52” (1320.8 mm)
high
DN 55##
HEIGHT
72” (1828.8 mm)
WIDTH
43” (1092.2 mm)
DEPTH
32” (812.8 mm)
BASE
4.5” (114.3 mm)
SHIPPING WEIGHT
694 lbs. (314.8 kg)
Glass door is 33” (838.2 mm) wide, 56” (1422.4 mm)
high
DN 35##
HEIGHT
72” (1828.8 mm)
WIDTH
32.5” (825.5 mm)
DEPTH
32” (812.8 mm)
BASE
4.5” (114.3 mm)
SHIPPING WEIGHT
545lbs. ( 246.9 kg)
Glass door is 23.08” (586.23 mm) wide, 56” (1422.4
mm) high

INSTALLATION AND SETUP
4
RECEIVING INSPECTION
DO NOT STORE THE VENDER OUTSIDE.
Upon receipt, inspect the vender for any shipping
damage. If there is any damage, have the delivery
driver note the damage on the bill of lading and notify
Dixie-Narco. Although the terms of sale are FOB
shipping point, which requires the consignee to
originate shipping damage claims, Dixie-Narco will
gladly help if you must file a claim.
UNPACKING THE VENDER
Remove the stretch wrap, fiberboard edge protectors
and corrugated front protector from the outside of
vender.
Do not store the vender with stretch
wrap on. Stretch wrap could bond to
the vender’s surface, which could
damage the finish.
Remove the shipping boards from the bottom of the
vender. The shipping boards are attached by the
leveling legs. To avoid unnecessary damage to the
leveling legs or base, remove the shipping boards by
using a 1-1/2 inch socket type wrench to unscrew the
leveling legs. Be sure to replace the legs after
removing the shipping boards.
Once the vender is unpacked, check the recovery unit
for any additional parts, price/ product labels,
service/operation manual or other information
concerning factory-equipped accessories such as coin
mech and validator.
WARNING: TO AVOID THE
POSSIBILITY OF A FIRE
HAZARD, DO NOT STORE
ANYTHING OR ALLOW DEBRIS
OF ANY KIND TO ACCUMULATE
IN THE BOTTOM OF THE
SERVICE AREA, IN AND
AROUND THE REFRIGERATION
COMPARTMENT OF THE
CABINET, OR IN FRONT OF
THE EVAPORATOR AND
CONDENSER COILS.
ELECTRICAL POWER NEEDED
Refer to the cabinet serial number plate to determine
the proper voltage and frequency the machine
requires (domestically, this requirement is 120 VAC,
60 Hz). The cabinet serial plate also indicates the
amperage of the vender. The vender must be
plugged into its own properly rated single phase,
alternating current outlet with its own circuit protection
(fuse/circuit breaker).
DO NOT USE AN EXTENSION CORD.
GROUND THE VENDER
The vender is equipped with a three-wire power
supply cord and MUST be plugged into a properly
grounded outlet.
DO NOT REMOVE THE GROUND
PIN OR IN ANY WAY BYPASS,
MODIFY, DEFEAT, OR DESTROY
THE GROUNDING SYSTEM OF
THE VENDER.
If the outlet will not accept the power cord plug,
contact an electrician to install a proper AC outlet.
FAILURE TO COMPLY WITH
THESE INSTRUCTIONS MAY
SUBJECT THE USER TO THE RISK
OF INJURY OR ELECTRICAL
SHOCK WHICH CAN BE SERIOUS
OR FATAL.
INSTALLATION AND SETUP
INSTRUCTIONS
Open the service door on the right side using the key
provided in the coin return cup, or if shipped with a
locking clip, remove the clip and install the lock.
Ensure there is no power to the AC Distribution Box.
On venders with a main power switch on the AC
Distribution Box the switch needs to be in the OFF
position. On venders with a main power quick
disconnect plug on the AC Distribution Box the quick
disconnect plug needs to be unplugged. Check that
all connectors are firmly seated on the control board
and at the various components on the service door
(coin mech, keypad, etc.).
Retrieve the main power plug from the hole in the rear
of the vender and plug the cord in a properly
grounded 120VAC, 15 Amp receptacle (U.S. and
Canada).
Open the service door and apply power to the AC
distribution Box (if equipped with a bill acceptor, the
acceptor should cycle twice). The display on the door
should scroll the message “USE EXACT CHANGE”,
the fluorescent lamp should be lit and the cooling unit
should start.
If the display scrolls “OUT OF SERVICE”, or the
cooling unit fails to start, refer to the
TROUBLESHOOTING FLOWCHARTS beginning on
page 29.
SERVICE NOTE
Battery Backup
The battery backup is used to retain information
programmed in the system (pricing, time, date, etc.).
in case of power interruptions, or any time the main
power is off. When the vender is shipped, the battery
is connected and memory is being maintained. If the
vender is to be stored for long periods of time,
disconnecting the battery is recommended. The
following steps will guide you through this procedure:

INSTALLATION AND SETUP
5
Open the service door and unplug the main power
harness located on the front of the power box.
1. Locate the main control board mounted on the
right side wall.
2. On controllers with a cover, remove the screw
securing the cover to the board.
3. The backup system jumper is located just
below the battery near the center of the board
(refer to figure 1, page 26).
4. Remove the jumper covering the pins and
place it on only one pin for storage.
5. Reinstall the cover, if used, and tighten the
screw.
6. Reverse this procedure to connect the battery.
PLACING THE VENDER ON
LOCATION
!! CAUTION !!
DO NOT TRANSPORT THE
VENDER TO OR FROM THE
LOCATION LOADED WITH
PRODUCT OR DAMAGE TO THE
VENDER MAY RESULT.
The vender is intended for INDOOR USE ONLY. It
should be kept out of direct sunlight and away form
any heat source.
The vender must be on a solid, flat and level surface.
Ensure the flooring can bear the weight load of a fully
loaded vender (approximately 1150 lbs.). The vender
must be positioned close enough to an electrical outlet
so that an extension cord is not required. If the
machine will be subject to user misuse or vandalism, it
is recommended that the vender be secured to the
floor or wall as described in Dixie-Narco Technical
Bulletin 344. Due to the large size and weight of the
Vender, never attempt to move the Vender with a
Hand Truck or Stair Climber. Use a pallet jack or
Vender/Cooler Dollies at all times when moving the
Vender. The vender should never be slid or pushed in
place. Never side load the leveling legs; doing so will
cause damage to the legs. Do not transport the
vender to or from customer locations loaded with
product, as damage may rtesult due to excessive
weight. Call the Dixie-Narco Technical Service
Department or your Dixie-Narco Representative for
assistance.
LEVEL THE VENDER
Adjust the front leveling legs, ensuring that an even
gap exists between the glass door and the top
security angle and receiver box, and then level the
cabinet front to rear. A carpenter’s level will help
verify that the vender is level. Leveling legs are
adjusted using a wrench or socket 1 ½” in size. If the
vender is to be used in a bank of equipment, check
the top and sides for proper alignment. If you are
unable to properly level the vender, select an alternate
location. NEVER PLACE OBJECTS UNDER THE
LEVELING LEGS OF THE VENDER
DANGER
THE VENDER MUST BE
PROPERLY LOCATED AND
LEVELED. IF THE MACHINE WILL
BE SUBJECT TO USER MISUSE
OR VANDALISM IT IS
RECOMMENDED THAT THE
VENDER BE SECURED TO THE
FLOOR OR WALL AS DESCRIBED
IN DIXIE-NARCO TECHNICAL
BULLETIN 344 TO MINIMIZE THE
RISK OF INJURY OR DEATH
FROM TIPPING. CALL THE DIXIE-
NARCO TECHNICAL SERVICE
DEPARTMENT OR YOUR DIXIE-
NARCO REPRESENTATIVE FOR
ASSISTANCE.
SPACE THE VENDER
Do not block the rear of the vender. Maintain a
minimum of 4 inches (10 cm) from the wall to ensure
adequate airflow to the condenser and compressor.
At the front of the vender, make sure that nothing
obstructs the air intake at the bottom of the service
door and cabinet. At the rear of the vender, make
sure nothing obstructs the air exhaust at the bottom of
the cabinet.
WARNING
TO AVOID THE POSSIBILITY OF A
FIRE HAZARD, DO NOT STORE
ANYTHING OR ALLOW DEBRIS OF
ANY KIND TO ACCUMULATE IN
THE BOTTOM OF THE DOOR, IN
THE BOTTOM OF THE SERVICE
AREA, IN AND AROUND THE
REFRIGERATION COMPARTMENT
OF THE CABINET, OR IN FRONT
OF THE EVAPORATOR AND
CONDENSER COILS.
INSTALLING PRICE LABELS
There are 2 sheets of pricing labels included in the
service manual package. They are double sided and
range in price from .25 to 9.95. The price labels are
inserted at the top of the front knuckle of each release
mechanism.
Remove the pricing label sheets from the service
manual package and gently remove the label
corresponding to the vend price of each selection by
tearing at the perforation. The label is inserted
between the grooves at the top of the front knuckle by

INSTALLATION AND SETUP
6
slightly bending sides of the label toward the front of
the vender being careful not to crease the label. Once
inserted, push the label firmly against the front of the
knuckle. This will insure the label is locked in place
and will not fall out during normal operation of the
vend mechanism.
INSTALLING FLAVOR CARDS
For problem free vending, it is necessary to load the
vender consistently with same product every time the
vender is filled. To ensure consistent loading, flavor
cards are included with every vender and should be
installed into the product pusher to designate to the
route driver which product the column is set for.
To install the flavor card, simply detach it from the
sheet at the perforation and slide it into the slots in the
product pusher .
COIN CHANGERS & OTHER
ACCESSORIES
The vender must have an MDB coin changer installed
and can have an MDB bill acceptor installed as well.
If the MDB coin changer and other MDB accessories
are not factory installed, refer to the instructions
received form the manufacturer of the MDB coin
changer and other MDB accessories for proper set-up
and installation.
The vender will support the following Domestic MDB
coin changers:
Coinco 9302GX, USG-701 Quantum
Mars TRC-6510, TRC-6512, TRC-4010
Conlux CCM-5G
The vender will support the following domestic MDB
Bill validators:
Coinco BA-30 B ,BA-50B
Coinco Mag 50
Mars VN 2512
Conlux NBM-3000 Series
The vender will support the following MDB card
readers:
Debitek Danyl Smartcard
Danyl Schlumberger
Diebold Systems
AT&T Campus Wide
VMC LTD
Fage
Jofemar
Evend.net
The above listed peripherals indicate units that have
been tested by Dixie-Narco at the time of printing of
this manual and are not all-inclusive. For information
regarding other types not listed here, please contact
Dixie-Narco Technical Service Department.
SETTING THE TEMPERATURE
CONTROL
This vender is equipped with a manual thermostat. It
is located on the power distribution box inside the
service area. This thermostat is factory pre-set to
maintain a cabinet temperature of 33 to 38 degrees
Fahrenheit (1 to 3 degrees centigrade), however,
occasional adjustment may become necessary. It is
also a good practice to ensure the proper operating
temperature prior to installing the vender on location.
To set the temperature, apply power to the vender
and allow it to run for several hours with the glass
door closed or until the minimum cabinet temperature
is achieved. Then, using one of the methods below,
verify the temperature inside the cabinet:
1. If your vender is equipped with an electronic
temperature sensor, use the keypad on the
service door to show cabinet temperature in
Fahrenheit by pressing the F key followed by
the asterisk (*) key or in Centigrade by
pressing the C key followed by the asterisk
key. The temperature will be shown on the
digital display located on the front of the
service door.
2. If your vender is not equipped with a
temperature sensor, place a thermometer in
the center of the C shelf when vender is first
powered up. Make sure the thermometer is
placed in a location that permits reading the
temperature with the glass door closed. This
will prevent the introduction of warm, ambient
air.
Adjustments are made by turning the screw in the
center of the control (Shown in fig. 1) clockwise for
colder product or counterclockwise for warmer
product. It is recommended that the control screw be
adjusted in very small increments allowing the
refrigeration unit to cycle off and then verifying the
temperature again using one of the methods listed
above prior to further adjustment.
fig. 1
Temperature control adjustment
(Arrow shows location of adjustment screw)

INSTALLATION AND SETUP
7
LOADING THE VENDER
All venders are shipped with an assortment of
spacers. Please contact a Service Representative or
refer to the proper Technical Publication for spacer
settings.
Load product in each column one package at a time
insuring that the package being loaded is in front of
the product pusher. If the package is narrower than
the column, use the correct spacer to insure a snug
(not tight) fit against the left side of the column. Test
the column spacing by pulling firmly on the front
package. If the package pulls out of the column
easily, recheck the spacer being used. Also insure
that the package is stable within the column (doesn’t
move excessively from side to side). Some packages
are wider at the base than in the center. These
packages will have the tendency to lean forward on
the front of the gate assembly and create a jam if not
properly set up. A properly loaded column will allow
the product to slide freely into the gate area but not
allow the product to squeeze past the front knuckle of
the release mechanism. After loading the vender, test
vend each column to insure proper operation.
LOADING CHANGE TUBES
The changer tubes can be loaded using one of the
following methods:
1. Load the coin mechanism with coins to the
desired level by inserting coins in the loading
slots on the coin tube front.
Minimum coin tube levels are:
6-8 nickels
7-8 dimes
5-6 quarters
Note: A low coin level in the coin tubes will
interfere with operation of the bill validator.
2. For exact cash accountability and to insure
maximum dollar bill acceptance, load the
mechanism utilizing the coin insert slot on the
front of the vender while in the coin tube
fill/dispense mode in the test menu. (see
page 17 in the programming section for more
information)
(For additional information about coin mechanism,
refer to the manufacturer’s instructions.)
POWER DISTRIBUTION BOX
The power distribution box is where the 120VAC input
voltage is broken down to the main operating voltages
of the vender (24 VAC and 12 VAC) by a transformer.
Those voltages are sent to the controller via the JI (12
pin) connector. It also contains 3 fuses that protect
the VMC, transformer, and solenoids. The power
distribution box also distributes AC power to the lights,
evaporator fan, and refrigeration system, which are
always energized when the vender is powered up. It
is located inside the service area, mounted to the
back wall.
VENDING MACHINE CONTROLLER
(VMC)
The vending machine controller is the heart of the
Glass Front Vender and is located on the right side
wall inside the service area. It contains the program
chip (EPROM), which controls all aspects of the
vender with the exception of the refrigeration unit and
lighting. It also contains the power supply which
regulates the voltages required to operate the vend
solenoids as well as the changer, coin mechanism,
digital display and all logic functions in the vender.
Keypad
The keypad is located on the front of the service door.
It consists of a 6X3 matrix, membrane switch pad and
a rubberized actuator pad. The pad utilizes the letters
A thru F on the left side and numbers 1 thru 0 along
with the * symbol and Clr to the right. The keypad is
where all of the vender programming is accomplished
and where the customers make their selections.
DIGITAL DISPLAY
The digital display is located directly above the
keypad on the front of the service door. It is an 8 digit
14-segment alphanumeric display. It is used to
convey information to the consumer as well as to the
person programming the vender. The backside of the
digital display, inside the service door, contains the
service mode switch. It is a blue button that is
depressed a number of times in order to access
different programming menus.

INSTALLATION AND SETUP
8
REFRIGERATION SYSTEM
The refrigeration system is a single piece unit and is
hermetically sealed. In the DN55##/54##/2145
models it consists of a ½ horsepower compressor, two
roll up style condensing units with separate fans, the
condensation overflow pan and the evaporator. In the
DN35## models it consists of a ½ horsepower
compressor, with a single fin and tube style
condensing unit with one fan, the condensation
overflow pan and the evaporator. The evaporator is
located behind the panel on the right side of the
cooling compartment directly adjacent to the bottom
shelf. The remainder of the unit is located behind the
delivery bin, mounted to the bottom of the cabinet.
This unit is designed for easy removal and
replacement from the front of the vender as a
complete assembly. A mechanical thermostat
regulates the cabinet temperature. The bulb of the
thermostat is attached to the evaporator coils and
reads the temperature of the refrigerant inside the coil.
SHELF ASSEMBLY
Typically, there are 5 shelf assemblies in every
vender; however, this can vary depending upon the
configuration specified at the time of ordering. Each
shelf consists of either 6, 8, or 9 columns. Each shelf
is capable of holding a variety of products. The shelf
assembly consists of the tray, where all of the
following parts are mounted: Gate assembly, shelf
stabilizers and the slide/pusher assembly. These
items are discussed in detail below.
SHELF STABILIZERS
Some packages will have the tendency to become
unstable or bounce to the delivery bin when vended
due to the design of the bottom of the package. This
can lead to a product jam. The shelf stabilizer (the
clear Lexan tab at the front of the tray) is used to
prevent this from occurring by acting as an extension
of the shelf.
Unless otherwise specified at the time of ordering,
shelf stabilizers are installed on the C and D shelves
of the vender. The stabilizers that are installed on the
C shelf can also be used on the A and B shelves as
needed for product stability. The stabilizers installed
on the D shelf must be used only on that shelf as they
are longer and may interfere with the proper vending
of a column. Do not use shelf stabilizers on the
bottom tray as product jams may occur.
To install the stabilizers, the slide assembly must first
be removed from the column. The stabilizer is
inserted on the bottom of the slide assembly by firmly
pushing the square hole in the stabilizer onto the front
locking tabs of the slide. The slide is then installed
back into the column.
GATE ASSEMBLY
The gate assembly is mounted on the front portion of
the tray assembly and contains the vending
mechanism. Incorporated in the gate assembly are
the front and rear knuckle assemblies as well as the
product kicker.
In standby operation, the front knuckle is in the
blocking position, which holds the front (displayed
product) in position to be vended. The rear knuckle
assembly is in a flat position, which allows product to
enter the gate area, and the kicker is flush to the rear
knuckle assembly. A stainless steel pin is inserted
through the rear most portion of the front knuckle
assembly and connects to a solenoid plunger below
the tray. When a selection is made, the solenoid
energizes pulling the plunger toward the back of the
tray. At the same time the front knuckle is opened
into a flat position, the rear knuckle is closed to a
blocking position, holding the remaining product out of
the gate area, and the kicker is extended to firmly
push the front (displayed product) off of the tray. The
solenoid is energized for approximately 1-½ seconds
to allow ample time for the displayed product to be
ejected from the shelf. The solenoid is then released
and the front knuckle returns to the blocking position,
the rear knuckle and kicker return to their standby
position and the next product slides into the vend
(display) position.
SLIDE/PUSHER ASSEMBLY
The slide/pusher is located on the bottom of each
product column. Its purpose is to provide a slick,
friction resistant surface for the product to rest on.
The product pusher is mounted on the top of the slide
and incorporates a coil spring in the body that
attaches to the bottom of the slide through a slit. This
spring adds needed tension to insure that all products
in the column remain tight against each other and are
allowed to progress into the gate area.
Although these pushers reduce the effects of dirt and
grime, periodic cleaning and lubrication of the slides is
recommended. NEVER USE PETROLEUM BASED
CLEANERS OR LUBRICANTS ON THE
SLIDE/PUSHER ASSEMBLIES AS THEY MAY
BECOME BRITTLE OR DISCOLORED.

PROGRAMMING
9
GENERAL INFORMATION
In order to fully utilize the many features of your
vender it is important that you first understand the
options available and procedures for programming the
vending controller unit (control board).
All programming, testing, and service functions are
accomplished by using the keypad in an easy to
follow, display prompted format. There are four modes
of operation for servicing, testing, and setting up your
vender. The modes of operation are accessed by,
opening the service door, and pressing the service
button (blue button on back of display module or the
service button on the control board).
The service button will cycle through each of the four
modes in turn: Service Mode, Test Mode, Set-Up
Mode and Setup Mode 2. In each of these modes,
the “A” key is used to scroll through the available
options/settings within that mode/selection. (Note: In
each of the mode selections, pressing the character
key next to the listed option will take you directly to
that feature -see menu items chart on page 12.), the
“*” key is used as an enter key to select the currently
displayed item/feature, and the “CLR” key is used as a
done or exit key. Closing the service door or pushing
the service door switch will exit the function you are
currently in and place the vender back in service.
EXTERNAL DISPLAY ITEMS
(HOT KEYS)
Allows the service technician to view several items via
the display without opening the vender. There are four
options that can be viewed externally:
1. Display temperature in degrees “C”. To
view, press the “C” then press the * key. The
display will then show the vender’s inside
temperature in degrees “C”. Note: The
temperature will only display if temperature
sensor hardware kit is installed.
2. Display date/time. To view, press the “D”
key, then press the “*” key. The display will
then show the current date and time.
3. Display power condition as a number value.
Typical value ranges between 30V and 34V.
To view, press the “E” key, then press the “*”
key. The display will show the vender’s
current power condition.
4. Display temperature in degrees “F”. To
view, press the “F” key, then press the “*” key.
The display will show the vender’s inside
temperature in degrees “F”. Note: This will
only display if temperature sensor hardware
kit is installed.
5. Selection status messages. When selecting
an item that can not be vended the display will
show one of the following:
a. “Not Available Until HHMM” –The
selection is blocked under the Not
Available setting and will become
available at the indicated time.
b. “Select Another Item <code>” –
The selection can not vend due to the
error code indicated. The code can
be one or more of the following:
i. “N” –Controller has
determined the solenoid is
missing.
ii. “V” –Controller detected a
solenoid fault on this
selection.
iii. “H” –Selection has been
blocked under Health Guard.
iv. “D” –Selection has been
blocked by Enabled Item
mode.
v. “Sold Out” –Product was
not detected after previous
vend and controller has
marked selection as sold out.
vi. “Cool In ### Minutes” –
Selection has been placed
under cool down control and
will be available at the
indicated time.
6. DEX status messages. The controller will
display the result of a DEX transfer for 2
seconds upon completion.
a. “DEX OK” –No communication
errors occurred, the DEX transfer was
completed successfully. Some
handheld devices may perform their
own processing of DEX data after a
transfer. The success of such
operations is independent of this
status indication.
b. “DEX ERR” –A communication error
occurred. This can include a
handshake error, an incorrect
response, or no response from the
audit device.
c. “DEX PW” –A DEX operation was
attempted with out a valid DEX
password. The operation did
complete successfully.
7. Error Alert. When the service door is
opened, the controller will beep 3 times and
display “CHK ERRS” to alert service
personnel to the presence of error conditions.
The service personnel should proceed to the
List Errors function in Test Mode to determine
the failure.
NORMAL OPERATION MESSAGES
At initial power-up, the program will start and the
display will briefly show the software version in use as
VER###.## (i.e. 030.41), followed by the default idle
message, “ENJOY A REFRESHING DRINK NOW”, or
the user entered point of sale message unless these
are overridden by a higher priority status message.

PROGRAMMING
10
INITIAL PROGRAMMING
DATE/TIME
Proper setting of items such as Happy Hour and Not
Available Times, as well as obtaining information
regarding Door Openings, Power Outages, etc.
depend on a correct DATE/TIME setting. This setting,
while set at the factory, should be checked and
changed if necessary. Enter “SETUP MODE” by
opening the service door and pressing the Service
Button 3 times. Press the number 5 key; the day,
date, and time will scroll across the display in the
following format: SUN 09/08/02 1330. To change
press the “*” key and the display will read “SAT”. Use
the “A” key to scroll through the days. When the
desired day is displayed, press the “*” key. The
display will read “MONTH”. Enter the 2 digits for the
month and press the “*” key. The display will read
“DAY”. Enter the date (2 digits) and press the “*” key.
The display will read “YEAR”. Enter the year (last 2
digits) and press the “*” key. The display will read
“HOUR”. Enter the hour (00 –23) and press the “*”
key. The display will read “MIN”. Enter the minutes
(00 –59) and press the “*” key. The date/time is now
set and the display will return to “SETUP MODE”.
REGULAR PRICES
To set the prices enter the “SERVICE MODE” by
opening the service door and pressing the Service
Button once. Press the number 7 key; the display will
scroll “SET REGULAR PRICES”. Then “$0.00” will be
displayed. As the prices are entered the numbers will
shift in from the right on the display. When the
desired price is displayed it may be assigned to an
individual selection, an entire tray (shelf), or to all
selections in the machine. When setting prices for
individual selections DO NOT press the “*” key. The
“*” key is only used to assign a price to an entire tray
or to all selections in the machine. When setting one
price for an entire tray the “*” key is pressed after
designating the tray (display reads $1.00 A), when the
“*” key is pressed the display will read “$1.00 A”
momentarily, then will return to just the price. When
setting one price for an entire machine the “*” key is
pressed after entering the price (display reads $1.00),
when the “*” key is pressed the display will read
“$1.00 **” momentarily, then will return to just the
price. When setting prices for individual selections the
tray and column (A1) is entered following the price.
As soon as the column number is pressed, the price
and selection will be displayed momentarily (“$1.00”),
then the display will return to just the price. Always
check the setting for “MAX CREDIT” before setting
prices (not applicable to International machines).
POINTS TO REMEMBER:
•Prices entered must not exceed the “MAX
CREDIT” set in the system’s program.
•DO NOT press the “*” key when setting prices
for individual selections.
HAPPY HOUR TIMES
Password protected. Before entering or changing this
setting you must enter the password. To set Happy
Hour Times enter the “SETUP MODE” by opening the
service door and pressing the Service Button 3 times.
Press the number 2 key; the display will scroll “SET
HAPPY HOUR”. Press the “*” key and the display will
show ”PW”. Enter the password and the display will
flash “OK”. Then “HH START TIME 00 00” will scroll
across display.
POINTS TO REMEMBER:
•Before setting Happy Hour times and days, it
is recommended you check the DATE/TIME
settings.
•All times entered must be in 24 hour format.
HAPPY HOUR PRICES
To set Happy Hour Prices enter the “SERVICE
MODE” by opening the service door and pressing the
Service Button once. Press the number 8 key; the
display will scroll “SET HAPPY HOUR PRICES”.
Then “$0.00” will be displayed. As the prices are
entered the numbers will shift in from the right on the
display. When the desired price is displayed it may be
assigned to an individual selection, an entire tray
(shelf), or to all selections in the machine. When
setting prices for individual selections DO NOT press
the “*” key. The “*” key is only used to assign a price
to an entire tray or to all selections in the machine.
When setting one price for an entire tray the “*” key is
pressed after designating the tray (display reads
$1.00 A), when the “*” key is pressed the display will
read “$1.00 A” momentarily, then will return to just the
price. When setting one price for an entire machine
the “*” key is pressed after entering the price (display
reads $1.00), when the “*” key is pressed the display
will read “$1.00 **” momentarily, then will return to just
the price. When setting prices for individual selections
the tray and column (A1) is entered following the
price. As soon as the column number is pressed, the
price and selection will be displayed momentarily
(“$1.00”), then the display will return to just the price.
Always check the setting for “MAX CREDIT” before
setting prices (not applicable to International
machines).
POINTS TO REMEMBER:
•Prices entered must not exceed the “MAX
CREDIT” set in the system’s program.
•DO NOT press the “*” key when setting prices
for individual selections.

PROGRAMMING
11
SET NOT AVAILABLE TIMES
Password protected. Before entering or changing this
setting you must enter the password if one has been
assigned. This mode allows up to 4 different time
periods that use of the machine may be restricted.
To set Not Available Times enter the “SETUP MODE”
by opening the service door and pressing the Service
Button 3 times. Press the number 3 key; the display
will scroll “SET NOT AVAILABLE TIME”. Press the “*”
key and the display will show ”SHUTDOWN”. Press
the “A” key and the display will show “BLOCK 1”
which allows selection set up. Press the “*” key and
the controller will begin displaying selections currently
belonging to block until all have been displayed or the
“*” key is pressed and display will show “ITEM”. There
are now three (3) choices:
1) ALL SELECTIONS. Press the “*” key and
all selections in the vender will be set for
not available.
2) ONE TRAY. Pressing the letter of the
shelf (tray) followed by the “*” key will set
control for all selections on that shelf.
3) SINGLE SELECTION. Press the desired
selection number or numbers
corresponding to the selections that
require the set not available times.
Press the key buttons again and the display will flash
“DISABLED” and return to “ITEM”. Priority will be
given to the higher ranked method If one selection on
the A tray was set to “ENABLE” using option 3 above
and you wish to change the remaining selections on
that tray using option 2, the Setting for the entire tray
would take precedence. Conversely, if the tray was
set using option 2 first followed by the single selection
using option 3, the setting for the remainder of the
shelf would remain and the new set not available
setting would take affect. If “DISABLED” the selection
will be blocked during the scheduled time period.
Press the “CLR” key will exit the selection setup &
start the schedule setup. “START TIME” will scroll on
display once and change to “HOUR 00”. Enter the
hour (00 –23) and press the “*” key. The display will
read “MIN 00”. Enter the minutes (00 –59) and press
the “*” key. “END TIME” will scroll on display once
and change to “HOUR 00”. Enter the hour (00 –23)
and press the “*” key. The display will read “MIN 00”.
Enter the minutes (00 –59) and press the “*” key.
“DAY” will show on the display. To change press the
“*” key and the display will read “SAT”. Use the “A”
key to scroll through the days. When the desired day
is displayed, press the “*” key. Press the “CLR” key to
move to “BLOCK 2”.
POINTS TO REMEMBER:
•Before setting Not Available times and days, it
is recommended you check the DATE/TIME
settings.
•All times entered must be in 24 hour format.

PROGRAMMING
12
SERVICE MODE MENU ITEMS
SERVICE MODE
A Next Item
B Cash Box
C Sales
D Display Temperature
E Set Cool Down
F Clear Totals
1 Number Sold
2 Enable Item
3Sales by Column
4 Escrow
5 Force Vend
6 Audio Feedback
7Set Regular Prices
8Happy Hour Prices
9 Test Vend
0 Clear Errors
TEST MODE
A Next Item
B List Errors
C Self Test
DDisplay Test
EKeypad Test
FAuto Sequence
1Tube Fill/Dispense
2Daylight Savings Time
3Set Not Available Mode
4Set Credit Timer Mode
5Door Open
6Power Out
7Test Health Guard
8Display Health Guard
9Test Vend
0Clear Errors
SETUP MODE
A Next Item
BEnter Message
C Clear Message
D Enable/Disable $
E Clear Cool Down
F Master Reset
1 Machine Number
2 Set Happy Hour
3 Set Not Avail. Time
4 Winner Mode
5 Date/Time
6 Total Sales
7 Health Control Enabled/Disabled
8 Drop Sensor Enabled/Disabled
9 Set Cool Time
0 Enter New Password
SETUP MODE 2
ANext Item
BSTS Enabled/Disabled
CCustom STS Configuration
D Default STS Configuration
E Display STS Configuration
F Set Vend Limit
1 Health Recheck Enabled/Disabled
2 Set Retry Limit
3 Sold Out Enable Enabled/Disabled
4 Price Display Enabled/Disabled
5Sensor Override Enabled/Disabled
6Interval Clearing Is On/Is Off
Note: all items in Italics under SETUP MODES require password entry for access if one has been assigned.
FACTORY DEFAULT REQUIRES NO PASSWORD UNTIL NEW PASSWORD OTHER THAN 0000 IS ENTERED.
Menu items shown above reflect software revision 804,917,030.61 and higher
Service Mode Pages 13 through 15
Test Mode Pages 16 through 18
Setup Mode Pages 19 through 21
Setup Mode 2 Pages 22 through 23

PROGRAMMING
13
SERVICE MODE MENU ITEMS
SERVICE MODE
Enter SERVICE MODE by opening the service door
and pressing the Service button once. The display
will read “SERVICE MODE”. The following choices
are now available:
NEXT ITEM -Press key “A”
CASH BOX -Press key “B”
Shows the amount inserted into the bill validator and
the change diverted to the cash box from the coin
mechanism since the last CLEAR TOTALS or
MASTER RESET. To view the cash box totals, press
the letter “B” on the keypad and the display will scroll
“CASH BOX”, then display #.##.
Press the “CLR” key to return to “SERVICE MODE”
or press the “A” key to advance to the next menu
item below.
SALES -Press key “C”
Shows total sales since last CLEAR TOTALS or
MASTER RESET. This total includes change not
diverted to the cash box and still being held in coin
mechanism escrow tubes To view the total sales
press the letter “C” on the keypad and the display
will scroll “SALES”, then display #.##.
Press the “CLR” key to return to “SERVICE MODE”
or press the “A” key to advance to the next menu
item below.
DISPLAY TEMP (if temperature sensor hardware
kit is installed) -Press key “D”
Shows the cabinet temperature in degrees Celsius
or degrees Fahrenheit. Press the letter “D” on the
keypad. The display will scroll ”Display
Temperature”. Pressing the letter “C” on the keypad
will display the temperature in degrees Celsius.
Pressing the letter “F” on the keypad will display
temperatures in degrees Fahrenheit. If no sensor is
installed, “TEMP SEN” will appear on the display.
NOTE: THIS SETTING DOES NOT CHANGE THE
APPEARANCE OF THE DIGITAL DISPLAY IN THE
STANDBY OR OPERATION MODE.
Press the “CLR” key to return to “SERVICE MODE”
or press the “A” key to advance to the next menu
item below.
SET COOL DOWN -Press Key “E”
Allows the service technician to set the cool down
period for each selection that is warm after
restocking. This feature may be set on an individual
item, a complete tray, or the entire machine. Once
set, the cool down period duration is the time
entered by the service technician in SET COOL
TIME, or the default time of 240 minutes if no time
was entered. Press the letter “E” on the keypad and
display will scroll “SET COOL DOWN”. Press the “*”
key on the keypad and the display will read “ITEM”.
There are now three choices:
1. Pressing the “*” key will place the entire
machine in cool down.
2. Pressing a tray selection followed by “*” will
place that tray in cool down. For example,
pressing “A*” will place the “A” tray in cool
down.
3. Pressing an item selection will place just that
item in cool down. For example, pressing
“A1” will place that selection only in cool
down.
After making any of the above selections, an audible
tone will be heard and the display will change
momentarily to “OK” then back to the price.
The larger of the settings will carry a priority in the
programming sequence. For example, if you first
programmed “A1” for cool down then pressed “A*”,
the “A*” setting would take precedence. Conversely,
if “A*” was programmed first followed by “A1”, the
“A*” setting would still take precedence but the “A1”
selection will be disabled from the cool down cycle.
After the COOLDOWN is set and the vender is
returned to the operating mode, the display will
prompt the consumer via the digital display as to
how many minutes remain in the cool down cycle
(for example, the A tray was programmed for cool
down and the customer tried to purchase item A6.
The display would read “product cool in ###
minutes” were ### represents the time remaining for
the cool down cycle.
Press the “CLR” key to return to “SERVICE MODE”.

PROGRAMMING
14
CLEAR TOTALS -Press key “F”
Allows the service technician to clear totals in CASH
BOX, SALES, NUMBER SOLD, DOOR OPENINGS,
POWER OUTAGES, and SALES BY COLUMN.
Press the letter “F” on the keypad and the display
will scroll “CLEAR TOTALS”. Press the “*” key, the
display will read OK momentarily and an audible
tone will be heard. The totals are cleared and the
display returns to “SERVICE MODE”.
NUMBER SOLD -Press key “1”
Shows the total number of items sold since the last
CLEAR TOTALS OR MASTER RESET. Press the
number “1” on the keypad and the display will scroll
“NUMBER SOLD”, then change to ##.
Press the “CLR” key to return to “SERVICE MODE”
or press the “A” key to advance to the next menu
item below.
ENABLE ITEM -Press key “2”
Allows an individual selection, a complete tray, or
the entire machine to be enabled or disabled. This is
most commonly used when a selection is out of
order and you are awaiting parts and do not want
the customer to utilize that selection. Press the
number “2” on the keypad and the display will scroll
“ENABLE ITEM”. Press the “*” key and the display
will read “ITEM”. There are now three choices:
1. Pressing the “*” key will toggle between
enabled and disabled for the entire machine,
the display will show the new state i.e.
enabled or disabled.
2. Pressing a tray selection followed by “*” will
show the new state of that tray. (For
example, pressing “A*” will show the new
state for the A tray. Pressing “A*” again will
toggle the state.)
3. Pressing an item selection will show the
current state of that item; for example,
pressing “A1” will show the new state of that
item, pressing “A1” again will toggle the
state.
After making any of the above selections, an audible
tone will be heard and the display will read OK
momentarily.
If a selection has been disabled in this mode and the
customer tries to purchase from the programmed
selection(s), the vender will display “SELECT
ANOTHER ITEM”.
Press the “CLR” key to return to “SERVICE MODE”.
SALES BY COLUMN -Press key “3”
Shows the total number sold from each selection
since the last CLEAR TOTALS or MASTER RESET.
Press the number “3” on the keypad and the display
will scroll “SALES BY COLUMN”. Press the “*” key
and the display will read “ITEM”. Select the item to
be checked (the total number sold from that
selection will be on the right side of the display and
the item number will be on the left side of the
display). Press the “CLR” key to return to service
mode.
ESCROW -Press key “4”
Allows a bill to be returned if the change return lever
is pressed before a selection is made. Factory
setting is ESCROW N.
Press the number “4” on the keypad and the display
will read “ESCROW Y” or “ESCROW N”, depending
on the current state. Pressing the “*” key toggle the
vender from ESCROW Y to ESCROW N. Example:
If “ESCROW Y” is showing on the display, pressing
the “*” key will disable the escrow function and the
display will read ESCROW N.
This feature only affects those machines with a bill
validator installed. Press the “CLR” key to return to
“SERVICE MODE”.
FORCE VEND -Press key “5”
Forces the customer to make a vend by inhibiting
the coin return lever once the minimum vend price
line has been met or exceeded The coin return lever
will not be inhibited if there is not enough credit to
vend the lowest priced item or if a vend failure has
occurred. Factory setting is “FORCE N”.
Press the number “5” on the keypad the display will
read “FORCE Y” or “FORCE N”, depending on the
current state. Pressing the “*” key will toggle the
state. Press the “CLR” key to return to “SERVICE
MODE”.
AUDIO FEEDBACK ENABLED/DISABLED -Press
key “6”
Allows an audible tone to be turned on and off. If
enabled, an audible tone is heard when keys are
pressed when making a selection and when
programming the vender.
Press the number “6” on the keypad and the display
will scroll “ENABLE AUDIO FEEDBACK” or
“DISABLE AUDIO FEEDBACK”. The factory setting
is disabled. Press the “*” key with the setting you
wish to use showing on the display. An audible tone
will be heard and the display will change to “OK”,
then return to Service mode.

PROGRAMMING
15
SET REGULAR PRICES -Press key “7”
Allows the setting of regular prices for an individual
item, a complete tray, or the entire machine. Factory
setting is $99.95.
Press the number “7” on the keypad and the display
will scroll “SET REGULAR PRICES”. Press the “*”
key and “$00.00” will be displayed. Prices are
entered using the numbers on the keypad and will
shift in from the right as numbers are pressed. Once
the desired price is showing on the display, use one
or all of the options listed below for setting the price
to the desired selection:
1. All selections. Press the * key after
entering desired price and all selections in
the vender will now be set
2. One tray. Pressing the letter of the shelf
followed by the * key will price that shelf to a
single price. For example, to price the A
shelf for $1.25, first dial in the price then
choose A followed by *.
3. Single selection. Press the desired
selection number or numbers corresponding
to the selections that require changing.
Priority will be given to the higher ranked method.
For example, If one price on the A tray was set to
$1.50 using option 3 above and you wish to change
the remaining selections on that tray using option 2,
the pricing for the entire tray would take precedence.
Conversely, if the price was set using option 2 first
followed by the single selection using option 3, the
pricing for the remainder of the shelf would remain
and the new price for the single selection would
change to the new value.
Press the “CLR” key to return to “SERVICE MODE”.
SET HAPPY HOUR PRICES -Press key “8”
Allows the setting of Happy Hour prices for an
individual item, a complete tray, or the entire
machine. Press the number “8” on the keypad and
the display will scroll “SET HAPPY HOUR PRICES”.
Press the “*” key and “$00.00” will be displayed.
Happy Hour prices are entered in the same way as
regular prices. Refer to price setting above.
Press the “CLR” key to return to “SERVICE MODE”.
TEST VEND -Press key “9”
Allows the service technician to test vend any item.
Press the number “9” on the keypad and the display
will scroll “TEST VEND”. Press the “*” key and the
display will read “ITEM”. Select the item/column to
be tested by pressing the corresponding keys on the
keypad (i.e. A6) and the corresponding solenoid will
cycle. Ensure that the glass door is closed if utilizing
this function when product is loaded in vender.
Press the “CLR” key to return to “SERVICE MODE”.
CLEAR ERRORS -Press key “0”
Allows the service technician to clear any recorded
errors. Press the number “0” on the keypad and the
display will scroll “CLEAR ERRORS”. Press the “*”
key and the display will read “OK” momentarily and
an audible tone will be heard. The errors are
cleared and the display returns to “SERVICE
MODE”.

PROGRAMMING
16
TEST MODE
Enter TEST MODE by opening the service door and
pressing the blue Service button twice. The display
will read” TEST MODE”.
NEXT ITEM -Press key “A”
LIST ERRORS -Press key “B”
Allows the service technician to view a list of all
recorded errors. Press the letter “B” on the keypad
and the display will scroll “LIST ERRORS”, then
change to “NO ERROR” if no errors exist or, if errors
are present, one of the error prompts below will be
displayed. If an error code is displayed, press the “*”
key to view the next error until “END LIST” is
displayed. With “END LIST” showing on the display,
press the “CLR” key to clear errors. When the “CLR”
key is pressed, an audible tone will be heard and the
display will change momentarily to “OK” then back to
TEST MODE. If you wish to exit the list without
clearing errors, simply push the “*” key and the
display will return to list errors. If the CLR key is
pressed prior to reaching the end of the list, the
display will jump to END LIST.
Explanations for the error codes are listed below.
Note: The prompts listed will only show on the
display if an error has occurred.
NO ERROR No errors have occurred.
COIN ERR Indicates a fault message from the coin
mechanism.
BILL ERR Indicates a fault message from the bill
validator.
CARD ERR Indicates a fault message from the card
reader.
MDB ERR Indicates a communication error between
the control board and peripherals.
MEM ERR Indicates a problem with the program
memory or associated components. This is a fatal
error and will shutdown the machine. This error will
usually occur if the battery on the controller is in
need of replacement or if a “MASTER RESET”
occurred due to changing the controller EPROM or
by manually doing a MASTER RESET. After
clearing this error, the vender will have to be
reprogrammed, as all options will have been reset.
VEND ERR Indicates one or more
channels/solenoids are out of service. When the
display reads “VEND ERR”, press the “A” key and
the first channel/solenoid with a problem will be
displayed. Continue pressing the “A” key to display
additional vend errors (if any) until the display
returns to “VEND ERR”. NOTE: IF THIS ERROR IS
SHOWN, ALL PROBLEMS MUST BE REPAIRED
AND A “SELF TEST” (see below) MUST BE
PERFORMED IN ORDER TO RETURN THE
LISTED CHANNEL/SOLENOID TO SERVICE.
PWR OUT Indicates an interruption of the power to
the controller board. When the display reads PWR
OUT, press the “A” key and the date and time of the
last power interruption will be displayed. Continue
pressing the “A” key and the display will show the
time and date of the last 5 power outages, starting
with the most recent.
LOW 28V Indicates a problem with the controller
board’s 28 Volt power supply. This is a fatal error
and will put the vender out of service until resolved.
ROW aERR The a represents the letter of the row
drive that failed (A-F ie. ROWBERR) and gives the
indication that the B row failed during the last test
firing. This error will only occur while performing the
“SELF TEST” (see explanation below) and the
controller board has encountered a short or a very
high current condition.
COLnERR The n indicates the number of a column
driver (1-9, i.e. COL1ERR). This error is displayed if
the controller has detected a short or a very high
current condition during the last test firing.
This is a fatal error and will put the vender out of
service until resolved.
OVER CUR Indicates an over current condition has
occurred (i.e. a shorted component or a low power
condition). This error is serious. If it reoccurs after
CLEAR ERRORS, further troubleshooting will be
required.
TEMP SEN Indicates a temperature sensor failure
while health control is enabled.
HEALTH T Indicates the temperature in the vender
did not reach 45 degrees F within 30 minutes after
the door was closed.
*HEALTH”C” Indicates the temperature in the
vender went above 45 degrees F since the last door
closure or remained above 41 degrees F for longer
than 15 minutes.
NO KEYPAD Indicates a failure of the keypad or
associated cable (will show on display on power up
and stay there until problem is resolved).
BAD RAM Indicates a problem with the control
board.
END LIST Indicates you have scrolled through the
list of all present errors. Press the “CLR” key and
display will change to “OK”, an audible tone will be
heard and the display will change to “NO ERRORS”.
Press the “CLR” key to return to “TEST MODE”, or
the “A” key to proceed to “SELF TEST”

PROGRAMMING
17
SELF TEST -Press key “C”
Allows the service technician to run a quick
diagnostics of all solenoids and their associated
harnesses and control board drivers.
Press the letter “C” on the keypad and the display
will scroll “SELF TEST”. Press the “*” key and the
display will change to “TESTING” as the controller
sends a low current pulse to each of the solenoids.
The display will then change to “ERRS ##”. Normal
error indications are based on the machine’s
configuration. The normal indication for a 5 tray
vender is “ERRS 9”. The display will then change to
“SELF TEST”. The service technician should list
errors (item B in test mode) after Self Test. Press the
“CLR” key to return to “TEST MODE” or the “A” key
to proceed to “DISPLAY TEST”.
DISPLAY TEST -Press key “D”
Allows the service technician to check all segments
of the LED display unit. Press the letter “D” on the
keypad and the display will scroll “DISPLAY TEST”.
Press and hold the “*” key and the display will
alternate between all *’s and all “0.” with decimal
points. Releasing the “*” key will return to “TEST
MODE”.
KEYPAD TEST -Press key “E”
Allows the service technician to test any or all
keypad keys. Press the letter “E” on the keypad and
the display will scroll “KEYPAD TEST”. Press the “*”
key and the display will go blank, and then press
each key on the keypad. After each entry the
characters will shift into the display from right to left
until the “CLR” key is pressed. The display will
return to “TEST MODE”.
AUTO SEQUENCE -Press key “F”
Allows the service technician to put the machine into
automatic vend. An item will be vended every
second, starting from A1 and running through the
ninth selection on the bottom tray of the machine,
then repeating until the service technician stops it by
pressing the “CLR” key. Press the letter “F” on the
keypad and the display will scroll “AUTO
SEQUENCE”. Press the “*” key, automatic vend will
start and the display will show selection currently
being tested. Press the “CLR” key to stop and return
to “TEST MODE”.
CAUTION: It is strongly recommended this feature
only be used to check channels/solenoids on empty
machines.
TUBE FILL/DISPENSE -Press key “1”
Allows the service technician to inventory currency in
the coin mechanism escrow tubes and “Teach” the
controller how many coins of each denomination are
in that inventory. This allows for the maximum
number of dollar bills to be accepted prior to
enabling the “USE EXACT CHANGE” function. This
also provides for exact cash accountability in the
audit functions. This function can also be used as a
diagnostic tool to insure the coin mechanism is
responding properly. Press the number “1” on the
keypad and the display will read
‘TUBEFILL/DISPENSE”.. Press the “*” key and the
display will show the lowest denomination accepted
and the number of these coins inventoried (i.e. $.05
-6). Press the letter “A” on the keypad to scroll
through the denominations available. With a given
denomination displayed (i.e. $.05 -6), an inserted
coin of this denomination via the coin chute will
increase the inventory shown. Press the “*” key and
the denomination displayed will be dispensed to the
coin return cup and the inventory will be decreased.
Note: When you insert any denomination the display
will change to show the denomination inserted.
DAYLIGHT SAVINGS TIME -Press key “2”
Allows the service technician to enable daylight
savings time to be set as it applies to the selected
Daylight Savings Rules Setting. Press the “*” key to
show the current DST setting. Press the “A” key to
scroll through the different DST settings that are
available. With the setting you wish to use showing
on the display, press the “*” key.
•DST OFF –No Daylight Savings Time
•DST AMER -American Rules. If enabled,
the VCU will set the clock back one hour on
the last Sunday of October (2:00 AM), set
the clock ahead one hour on the first
Sunday in April (2:00 AM).
•DST EURO –European Rules. If enabled,
the VCU will set the clock back one hour on
the last Sunday of October (1:00 AM), set
the clock ahead one hour on the last
Sunday in March (1:00 AM).
•DST AUS –Australian Rules. If enabled,
the VCU will set the clock back one hour on
the last Sunday of March (1:00 AM), set the
clock ahead one hour on the first Sunday in
October (1:00 AM).

PROGRAMMING
18
SET NOT AVAILABLE MODE -Press key “3”
This setting works in conjunction with the “SET NOT
AVAILABLE TIME” (option 3 in setup mode). This
setting must be showing “Cancel N” in order for the
Not Available times to function as programmed.
This mode can also be used to manually disable the
times established in ‘SET NOT AVAILABLE TIME”
mode as long as the function is set to “CANCEL Y”
before the “SET NOT AVAILABLE TIME” starts.
Press the number “3” on the keypad and the display
will scroll “SET NOT AVAILABLE MODE” and then
change to “CANCEL Y” or “CANCEL N”, depending
on the current state. Factory default for this setting is
“CANCEL N” Pressing the “*” key will toggle the
state and set the controller to the new condition
shown on the display (pushing the * key with
CANCEL Y on the display will ALLOW the not
available mode to function as programmed). Press
the “CLR” key to return to “TEST MODE”.
SET CREDIT TIMER MODE -Press key “4”
Allows the service technician to set the vender to
cancel a credit or keep a credit showing on the
display after 5 minutes. Press the number “4” on the
keypad and the display will scroll ‘SET CREDIT
TIMER MODE” once, then the display will read
“CANCEL Y” or “CANCEL N” depending on the
current state. Pressing the “*” key will toggle the
state. “CANCEL N” will save a credit indefinitely.
“CANCEL Y” will only save a credit for five minutes.
Press the “CLR” key to return to “TEST MODE”.
DOOR OPEN -Press key “5”
Shows number of times the service door has been
opened since last “CLEAR TOTALS” or “MASTER
RESET”. Press the number “5” on the keypad and
“DOOR OPEN” will scroll across the display and
then change to a #, which is the number of times the
service door has been opened since the last
“CLEAR TOTALS” or “MASTER RESET”. Use the “*”
key to view the day, date, and time of the last
opening. Press the “A” key to scroll through the last
5 openings. Press the “CLR” key to return to “TEST
MODE”.
POWER OUT -Press key “6”
Shows the number of times the machine has lost
power since last “CLEAR TOTALS” or “MASTER
RESET”. (This is a power outage for any reason
including the machine being unplugged or the
machine’s master power switch being turned off).
Press the number “6” on the keypad and “POWER
OUT” will scroll across the display, then the display
will show a #, which is the number of times power
has been lost to the control board since the last
“CLEAR TOTALS” or “MASTER RESET”. Use the “*”
key to view the day, date, and time of the most
recent power outage. Once the date is showing on
the display, press the “A” key to scroll through the
last five outages. Press the “CLR” key to return to
“TEST MODE”.
TEST HEALTH GUARD -Press key “7”
This setting is in place to test the functioning of the
health guard system by simulating a Health Code
Error. Once activated, any selections programmed
in “ENABLE HEALTH CONTROL” in the setup mode
will be disabled. To test health guard, press the
number 6 on the keypad and the display will scroll
“TEST HEALTH GUARD”. Push the “*” key and the
display will change to OK and an audible tone will be
heard and the display will return to “TEST MODE”.
Within one minute of returning the vender to service,
items that were set in “ENABLE HEALTH
CONTROL” setting in the SETUP MODE will be put
out of service. Additionally, a “HEALTH G” error will
be displayed in ‘LIST ERRORS. Errors must be
cleared before programmed items can be returned
to service. Note:. A Temperature Sensor must be
installed for this function to work.
DISPLAY HEALTH GUARD -Press key “8”
Allows the service technician to view the selections
that are listed under the “ENABLE HEALTH
CONTROL” in the SETUP MODE. Press the number
“8” on the keypad and the display will read
“DISPLAY HEALTH GUARD”. Press and hold the
“*” key and the selection(s) that are listed under the
health control will be displayed or “END LIST” if no
selections are listed. Releasing the “*” key will
return to “DISPLAY HEALTH GUARD”.
TEST VEND -Press key “9”
Allows the service technician to test vend any item.
Press the number “9” on the keypad and the display
will read “TEST VEND”. Press the “*” key and the
display will read “ITEM”. Select the item/column to
be tested by pressing the corresponding keys on the
keypad (i.e. A6) and the corresponding solenoid will
cycle. Ensure that the glass door is closed if utilizing
this function when product is loaded in vender.
Press the “CLR” key to return to “SERVICE MODE”.
CLEAR ERRORS -Press key “0”
Allows the service technician to clear any recorded
errors. Press the number “0” on the keypad and the
display will scroll “CLEAR ERRORS”. Press the “*”
key and the display will read “OK” momentarily and
an audible tone will be heard. The errors are
cleared and the display returns to “SERVICE
MODE”.

PROGRAMMING
19
SETUP MODE
Enter SETUP MODE by opening service door and
pressing the Service button three times. The display
will read “SETUP MODE”.
NOTE: Several areas in the SETUP MODE are
password protected. When entry into one of these
areas is attempted the display will read “PW” if a
password has been entered in the SETUP MODE.
The password must be entered at this point before
the service technician is allowed to proceed. The
password need only be entered once during a
service call provided the service door is not closed. If
the door is closed and then re-opened, the password
must be entered again before accessing a protected
area. The factory default password is 0000. If the
password is set at 0000 you will not be required to
enter a password to access password protected
modes. The display will show *’s as the password is
entered. When the last character is entered, the
display will read “OK”, and then will shift into the
requested area. If the display reads “BAD” after the
last character is entered this means the password
was not accepted.
NEXT ITEM -Press key “A”
ENTER MESSAGE -Press key “B”
(PASSWORD REQUIRED)
Allows the entry of a custom idle message to replace
the default idle message. Press the letter “B” on the
keypad and “ENTER MESSAGE” will scroll across
the display. Press the “*” key and the letter “A” will
be displayed on the right side of the display. The
program is now ready to accept the new message.
The “A” key will move forward through the alphabet,
numbers, space, punctuation marks, $, AND a “L”.
The “B” key will move backwards through the same
list. When the desired character is displayed on the
right hand side of the display, press the “*” key.
That character is now entered and the display
moves to the left one space as the new message is
built. Pressing the “*” key with the “L” character
present will erase the last character entered. When
the new message is complete press the “CLR” key.
This will return to “SETUPMODE”.
CLEAR MESSAGE -Press key “C”
(PASSWORD REQUIRED)
Allows the service technician to clear any custom
idle message and return to the default idle message.
Press the letter “C” on the keypad and the display
will show “CLEAR MESSAGE”. Press the “*” key and
the display will read “OK” momentarily, an audible
tone will be heard, and then will return to “SETUP
MODE”.
ENABLE DOLLAR SIGN -Press key “D”
(PASSWORD REQUIRED)
Allows the service technician to remove the dollar
sign ($) from the display when a product price,
customer credit, or change due is displayed. When
enabled, the dollar sign will appear in the display;
when disabled it will not appear. Press the letter “D”
on the keypad; the display will scroll “ENABLE
DOLLAR SIGN” or “DISABLE DOL-LAR SIGN”.
Pressing the “*” key will enable the state shown on
the display, i.e. if the dollar sign is desired, and the
display is reading “ENABLE DOLLAR SIGN”, push
the “*” key to enable dollar sign. Once the “*” key is
pressed, the display will change to “OK” and an
audible tone will be heard. The display will then
change to “SETUP MODE”. To return to “SETUP
MODE” without changing state, press the “CLR” key.
CLEAR COOL DOWN -Press key “E”
(PASSWORD REQUIRED)
Allows the service technician to stop a cool down
period prior to the set time duration. Previously set in
the service mode. Press the letter “E” on the keypad
and “CLEAR COOL DOWN” will scroll on the
display. Press the “*” key, the display will read “OK”
momentarily, an audible tone will be heard and the
display will return to “SETUP MODE”. Note: All
selections set to “COOL DOWN” are cleared.
MASTER RESET -Press key “F”
(PASSWORD REQUIRED)
Allows the service technician to restore factory
defaults to the machine or reset the Controller
Board’s memory after reconfiguring a tray or
installing a new EPROM. Since this feature resets
resettable sales data, care should be taken prior to
using. Press the letter “F” on the keypad and
“MASTER RESET” will scroll across the display.
Press the “*” key and the display will read “OK”
momentarily and audible tones will be heard. The
display will then return to the idle message. Please
see table on next page for programming options
effected by MASTER RESET. NOTE: A power out
error message will be generated when a master
reset is performed, however, the time and date will
not be listed with it.
