OVERVIEW
MAIN FEATURES
SAFETY
COLLAR PACKAGE CONTENTS
DESCRIPTION OF TRANSMITTER PARTS
DESCRIPTION OF COLLAR PARTS
BATTERY CHARGER
CHARGING THE BATTERIES
TESTING YOUR
COLLAR
OPERATING INSTRUCTIONS
ACCESSORIES
WARRANTY AND REPAIR
INFORMATION
3
5
6
7
8
15
20
21
2
26
30
31
1
CONTENTS

3
OVERVIEW
training collars give you the
ability to communicate with your dog in a
timely manner even when the dog is at a
distance from you. This makes it much easier
for the dog to learn its lessons because late
corrections are very confusing to the dog.
remote collars offer
three different kinds of stimulation:
Pressing the “Nick” button causes a very
short single pulse of electrical stimulation. It
automatically shuts off in a fraction of a
second, no matter how long the button is held
down.
The “Nick” is used as a substitute for leash
corrections when the dog is off lead.
It is mild but motivating!
OVERVIEW

5
COLLAR RECEIVER - Newly designed to
make adjusting the collar strap easy.
WATERPROOF HOUSING - The trainer's
transmitter is water-resistant and the dog's
collar is waterproof.
NON - CLUMSY FEEL - Ergonomic
trainer's transmitter is small but fits the
hand well.
NON - EXPOSED ANTENNA - The dog's
collar is lightweight and non - obtrusive in
appearance.
EFFECTIVE RANGE - Very efficient
penetration power up to 00- plus yards.
GLOVE - USE BUTTONS - A no-look feel
during inclement weather.
ONE CHARGER SYSTEM - Charges both
the trainer’s transmitter and the dog’s collar
at the same time.
MAIN FEATURES
•
•
•
•
•
•
•
MAIN FEATURES
Pressing the “Constant” button causes the
collar to emit electrical stimulation that stays
on for up to twelve seconds as long as the
button is held down. “Constant” stimulation is
used for low level applications for guiding
dogs into the desired behavior or as a reserve
high to stop unsafe behaviors such as chasing
animals or cars.
Pressing the Pager button causes the
dog s collar to vibrate like a phone pager. It
allows you to train with a non-electrical type
stimulation. It’s a great attention getter.
All collars come complete with
a handheld transmitter, dog collar with
receiver, battery charger, owner’s manual.
4
OVERVIEW

7
PACKA E INCLUDES
•
•
•
•
Transmitter
Receiver
Battery charger and splitter cable
Owner’s manual
COLLAR
PACKA E CONTENTS
6
SAFETY
collars use state-of-the-art micro-
computer technology. Both the transmitter and
receiver have an automatic control which
limits the stimulus to twelve seconds when
used in the “Constant” mode. The nick mode
gives the dog a momentary burst of
stimulation. A filtering system prevents
reception from sources other than your
transmitter.
SAFETY

8
TRANSMITTER
DESCRIPTIONOF
TRANSMITTERPARTS
transmitter
9
TRANSMITTER
Transmitter Antenna
A short 2 antenna is supplied with the
.
The antenna should be screwed into the top of
the transmitter to ensure that the signals are sent
properly to the collar receiver and that maximum
range is attained.
2Antenna
Antenna
Indicator Light
“Nick” Button
“Pager” Button
“Constant” Button
Intensity
Selection Dial
Battery Charging
Receptacle
and Co er

10
TRANSMITTER
Intensity Selection Dial
The intensity selection dial is located on the
top of the transmitter. One is the lowest level and
one hundred is the highest.
11
TRANSMITTER
Transmitter Battery Char in Receptacle
Located on the side of the transmitter, the
receptacle is covered by a rubber plug. Insert one
end of the battery charging cable into the
receptacle to charge the battery.
(See Battery Charging Procedure.)
After charging is completed, close the
receptacle with its rubber plug to make sure dirt
does not get inside.
Transmitter
Charging
Receptacle

13
BUTTON FUNCTION
The transmitter for has three
buttons (two on the face of the transmitter and one
on the side.)
On the face of the transmitter the top button gives
a pre-measured “Nick” of stmulation when pressed.
The bottom or “Constant” button gives
stmulation for as long as you hold down the button
for up to twelve seconds.
The button on the side is the “Pager” button.
When pressed, the “Pager” button causes the collar
receiver to vibrate. The pager mode does not
implement any electrical stimulation.
BUTTON FUNCTION
12
TRANSMITTER
Transmitter Indicator Li ht (LED)
The transmitter indicator light is located
between the antenna and the intensity selection
dial.
When a button on the transmitter is pushed,
the red light comes on to indicate that the
transmitter is being activated.
When the battery needs to be recharged the
indicator light will emit a blink every 0.5
seconds.
LED
Constant
Pager
Nick

15

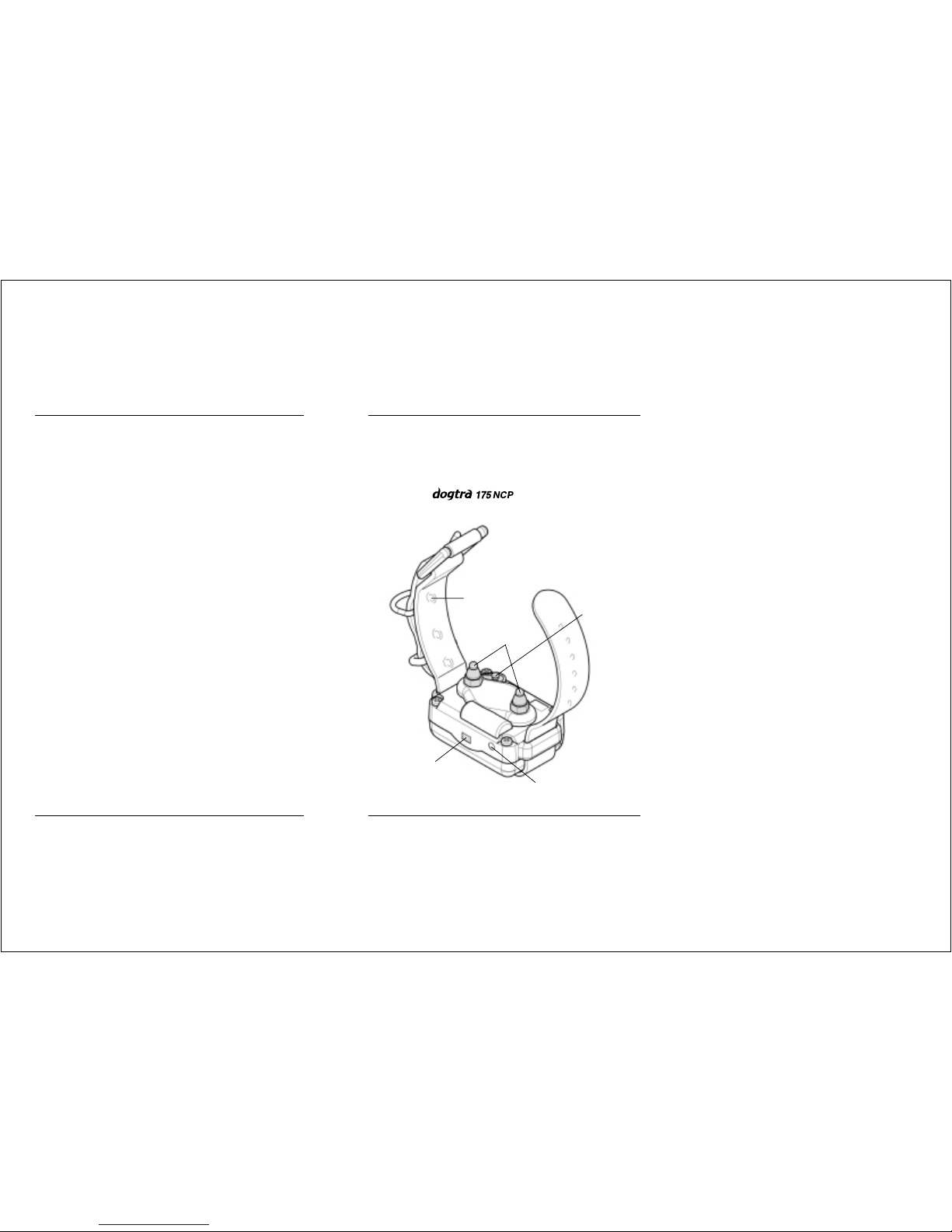

COLLAR
DESCRIPTION OF
COLLAR PARTS
Collar
14
BUTTON FUNCTION
“Nick” Button
When the “Nick” button is pushed, the
receiver emits an extremely short pulse of
electrical stimulation that automatically shuts off
no matter how long you leave your finger on the
button. The “Nick” is mild but motivating!
“Constant” Button
Pressing the “Constant” button gives
stimulation for up to twelve seconds, at which
time, the collar will turn off. The collar will
reactivate, when you push the button again.
“Pa er” Button
Pressing the “Pager” button on the side of the
transmitter causes the collar to vibrate.
It’s a great way of communicating with your
dog using non-electrical stimulation. It is useful
as an attention-getter, giving you added training
finesse.
On/Off Magnetic Switch
Contact Points
Indicator
Light
Battery
Charging
Receptacle
and Co er
Collar strap

17
COLLAR
Receiver Indicator Li ht (LED)
Located on the front of the collar, the indicator
light comes on and blinks once every 2 seconds
after the collar is turned on.
The blinking will change from a single flash to
a double flash when the collar needs to be
recharged.
When the Constant button on the transmitter
is pushed, the collar indicator light will glow
steadily for as long as you hold the button down,
for up to twelve seconds. When the Nick button
is pushed, the light comes on for a fraction of a
second.
16
COLLAR
On/Off Ma netic Switch
To activate the place the
red dot on the back of the transmitter to the red dot
on the collar.
Hold the two red marks together for a moment
until the LED indicator light comes on.
The indicator light will blink every two seconds
showing the unit is charged and ready to use.
(If the red indicator light emits a double blink
every two seconds, the batteries need to be
charged.)
To deactivate the hold the
red dot on the transmitter to the red dot on the
collar for a moment.
The led light will stop blinking, the unit is now
shut off. To attain maximum battery life,
deactivate the unit when not in use.
On/Off Magnetic Switch LED

19
COLLAR
Receiver Battery Char in Receptacle
On the inside of the collar, next to the collar
strap, is a battery charging receptacle with a
rubber cover plug.
Internal Antenna
The has no external
antenna on the collar. The Antenna is inside the
collar receiver.
18
COLLAR
Contact Points
The collar should be fitted so that the
stainless steel contact points press firmly against
the dog’s skin.
A loose fit can allow the collar to move
around on the dog’s neck. When this happens,
the contact points may rub the skin and cause
irritation. If the collar is too loose, electrical
contact will be inconsistent and your corrections
will be inconsistant also.
Recei er
Charging
Receptacle

21
CHAR IN THE BATTERIES
uses Ni-MH (Nickel-Metal-
Hydride) batteries that do not set a memory and
can be charged on a regular basis without harm
to the battery. There is no need to completely
drain the batteries between charges.
1. Charge the batteries for 1 hours before using
the collar for the first time.
2. Do not charge the batteries near any
flammable substances.
CHAR IN THE BATTERIES
20
BATTERY CHAR ER
The battery charger and charging cables allow
you to charge both the transmitter and receiver at
the same time.
The battery charger is designed for a 110 volt
wall outlet. (European 220 volt AC chargers and
12-volt field charger for your automobile are also
available).
BATTERY CHAR ER
Charging Cable
110 olt
Charger

23
CHAR IN THE BATTERIES
Battery Char in Procedure
1. Attach the charging cables to both the
transmitter and receiver(s), as shown on page 21.
2. Plug the charger into a 110-volt wall outlet or,
if using the accessory field charger, plug into a
cigarette lighter.
(Use 220-volt European charger for Europe)
When properly plugged in, all indicator lights
should glow red.
The receiver automatically turns off, when you
insert the charging cable into the battery
charging receptacle on the receiver.
3. After charging, cover the battery charging
receptacles with the rubber plugs on the
transmitter and receiver.
. Battery is fully charged with a 1 -hour charge.
22
CHAR IN THE BATTERIES
3. Fully charge the batteries for 1 hours if the
collar is to be stored without use for a period
of a month or more.
. Recharge the battery if
- the indicator light on the collar is emitting a
double blink every 2 seconds,
- the indicator light on the transmitter or
receiver will not come on,
- the indicator light on the transmitter or
receiver comes on momentarily but will not
stay on, when the “Constant” button is
pushed.

25
TESTIN
2. As a safety feature the will
automatically shut off if the constant
stimulation button is depressed for twelve
seconds or longer. To reset the unit, release
the button for three seconds.
24
TESTIN
1. To activate the place the red dot
on the back of the transmitter to the red dot on
the collar.
Hold the two red marks together for a moment
until the LED indicator light comes on.
The indicator light will blink every two seconds
showing the unit is charged and ready to use.
(If the red indicator light emits a double blink
every two seconds, the batteries need to be
charged.)
TESTIN YOUR
COLLAR

27
OPERATIN
Intensity selection
To select the intensity level, start on “zero”
setting. Gradually increase the level until you get
a response from the dog that would be equivalent
to a quick pull or “jerk” with a leash.
Remember that you will need to adjust the
setting (upward or downward) as the dog’s
attitude changes, especially during times of
increased excitement or distraction.
Intermittent use of the Pager (3 second
intervals) will extend the units battery life
between charges.
Prolonged use of the Pager (12 senconds or
longer) will drain the batteries faster.
26
OPERATIN
Fittin the collar
The collar strap should be adjusted so that the
contact points are held firmly against the dog’s
skin. If the collar is too loose, it can cause
irritation from the contacts rubbing against the
skin.
If the dog has a heavy coat, move the receiver
up and down to work the contact points down
into the coat.
ATTENTION!
Avoid havin the do wear the collar with
the contact points in the same place for more
than two hours at a time. Leavin the points
on the same spot for extended periods of time
can cause skin irritation. If the do is to wear
the e-collar for lon periods, occasionally
reposition the collar so that the contact points
are moved to a different spot on the do ’s
neck.
OPERATIN INSTRUCTIONS

29
MAINTENANCE
Reception
The collar has a range of
300-plus yards. Depending on the way you use
your transmitter, the transmitting range may
vary. different.
Hold the transmitter away from your body
and avoid touching the antenna to get the greatest
range.
Maximum Range
Typical Range
Minimum Range
If your finger touches the antenna near the
dial on the top of the transmitter, the actual
range may be reduced.
28
OPERATIN
Maintenance
Always clean and rinse the collar thoroughly
with tap water after use in salt water.
The receiver and collar strap should be
periodically cleaned with detergent and water to
prevent malfunction.

30
ACCESSORIES
The following items may be purchased
separately
European Char er
Designed for use with 220V AC electrical
outlets in Europe.
Field Auto Char er
Designed for use with the 12-volt cigarette
lighter in your car.
ACCESSORIES
31
WARRANTY
Warranty Repair
provides the original
purchaser a one year limited warranty on parts and
labor from the date of the original purchase. The
warranty does not cover failure resulting from
damage, abuse or loss of parts. The warranty is void
if the unit has been altered or an unauthorized person
has attempted work.
A copy of the sales receipt showing purchase
date is required before warranty work is begun.
Write a note briefly explaining the problem and
include your name, address, city/state/zip code,
daytime and evening phone numbers.
Ship to :
1250 E. 223rd Street, Suite 119
Carson, CA 907 5
For any questions concerning your dogtra products
call us Toll Free at 1-888-811-9111.
WARRANTY AND
REPAIR INFORMATION

32
REPAIR
Send equipment to:
Out of Warranty Repair
For repair work that is no longer covered by
warranty, the cost of repair will include parts,
labor and shipping. Write a note briefly
explaining the problem. Include your name,
address, city/state/zip code, daytime phone
number and evening phone number.
1250 E. 223rd Street, Suite 119
Carson, CA 907 5
Tel :[phone]
Fax :[phone]
Toll Free:1-888-811-9111
