Dogtra 2300NCP EXPANDABLE User manual

1
2300NCP EXPANDABLE
EXPANDABLE UP TO 2-DOG SYSTEM:
2300NCP ADDITIONAL RECEIVER
Owner's Manual
Please read this manual thoroughly before operating
the 2300NCP EXPANDABLE training collar.

2
WARNING
Please read all safety and product information below
before using your Dogtra product. Failure to follow these
safety instructions could result in injury to you, your dog
and others, or it could result in damage to your Dogtra
product or other property.
PRODUCT SAFETY
Training Methods
Dogtra products may be used with a variety of training
methods. However, each dog may have a different reaction
to training methods and to Dogtra products. Closely
observe your dog when determining the right training
method to use with your Dogtra product.
Aggressive Dogs
Do not use Dogtra products with aggressive dogs as such
dogs may react adversely and cause injury to people or
other dogs. Seek the assistance of a dog-training specialist
or veterinarian when dealing with aggressive dogs.
Children
Dogtra products are not toys. Adult supervision and close
attention are necessary when Dogtra products are used by
or near children.
PRODUCT DAMAGE
Electrical Product
Your Dogtra product contains electrical components and
batteries. Do not use or keep your product near heat or
flammable sources. Such use or storage may damage your
IMPORTANT SAFETY AND PRODUCT
INFORMATION

3
product and/or cause fire, explosion, injury, or property
damage.
Medical Device Interference
Dogtra products contain electrical and magnetic
components that emit low level electromagnetic waves and
radio frequencies. These electromagnetic waves or radio
frequencies may interfere with pacemakers, defibrillators,
or other medical devices. Consult your physician or medical
device maker before using your medical device with a
Dogtra product. If you think that your Dogtra product is
interfering with your pacemaker, defibrillator, or other
medical device, stop using the Dogtra product.
INADVERTENT ACTIVATION
The digital microprocessor offers thousands of unique
codes to eliminate frequency match-up with other Dogtra
e-collars. The Constant button will automatically shut down
after being held down for 12 seconds or more as a safety
feature.
UNAUTHORIZED USE
Your Dogtra product should be used only in a humane
manner to train and educate your dog. Dogtra products
are not intended for use in any other manner nor are they
intended for use with other animals or with humans.
BATTERY
Your Dogtra product contains batteries. Take care when
removing and installing batteries as your fingers may get
caught. Dispose of batteries as provided by your local
regulations. Do not disassemble, crush, heat, or otherwise
alter the battery as it may cause fire, injury or property
damage.

4
CONTENTS
MAIN FEATURES ............................................................
PACKAGE CONTENTS ...................................................
DESCRIPTION OF TRANSMITTER PARTS ...............
BUTTON FUNCTION ......................................................
DESCRIPTION OF RECEIVER/COLLAR PARTS ......
BATTERY CHARGER ......................................................
USING THE TEST LIGHT ...............................................
COLLAR FITTING ............................................................
RECEPTION ......................................................................
ACCESSORIES .................................................................
MAINTENANCE ...............................................................
TROUBLESHOOTING GUIDE .......................................
WARRANTY AND REPAIR INFORMATION ..............
5
6
7
13
15
18
21
23
25
26
27
28
30

5
• Easy-to-use, ergonomically fitted transmitter
• Rheostat Dial allows for gradual adjustments in
stimulation intensity with no jumps between levels
(0-127)
• Expandable to a 2-dog system
• 3/4-mile range
• High output
• Two different stimulation types - Nick & Constant
• Pager vibration
• 2-hour rapid charge lithium polymer batteries
• Fully waterproof receiver/collar and transmitter
• No external antenna on the receiver/collar
• One-charger system allows the transmitter and
receiver(s) to be charged at the same time
• Over 8000 different identity codes to prevent signal
match-up with other e-collars
• Easily visible blue LCD screen displays exact level of
stimulation and can be seen in the dark or low light
conditions
• Three bar battery life indicator and LED colored
indicator to show remaining battery life
• For dogs as small as 35 pounds
MAIN FEATURES

6
PACKAGE CONTENTS
• Transmitter
• Receiver/collar
• Battery charger and splitter cable
• Test light
• Owner’s manual
• Carrying case

7
DESCRIPTION OF
TRANSMITTER PARTS
Antenna
Rheostat Dial
LED
Indicator
Light
Constant
Pager
LCD
Screen
On/Off
Switch
On/Off
Magnetic
Red Dot
Battery Charging
Receptacle &
Rubber Plug
2300NCP EXPANDABLE
Transmitter
Nick
1-Dog/2-Dog
Toggle
Switch

8

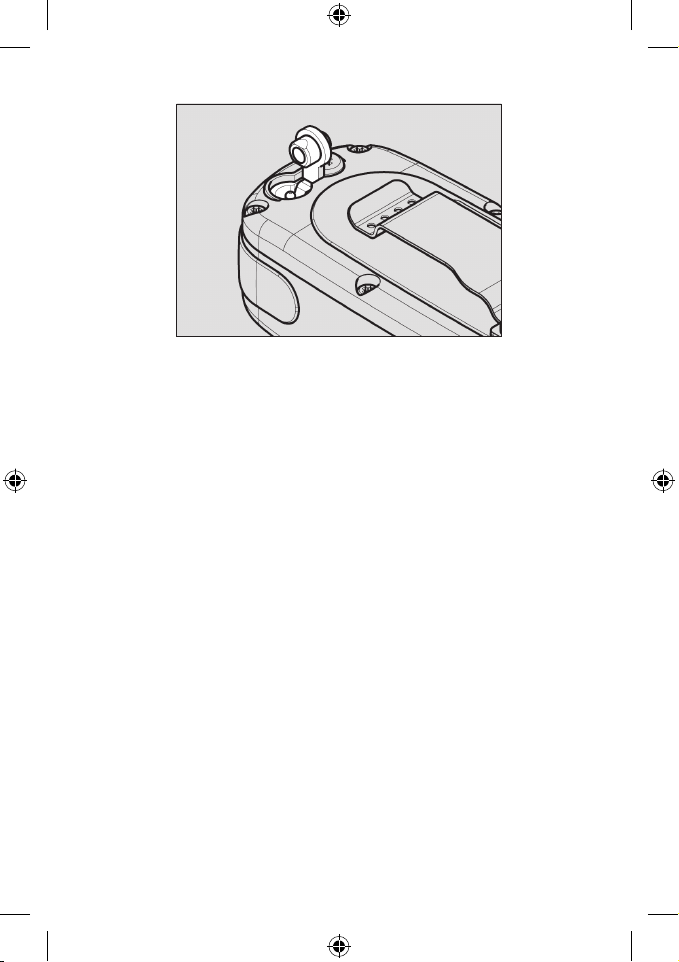

Transmitter Antenna
A 2” antenna is supplied with the 2300NCP
EXPANDABLE transmitter. The antenna must be fastened
to the transmitter before using the unit.
Rheostat Dial
The Rheostat Dial is located on the top of the transmitter:
(0) being the lowest level and (127) being the highest.
The LCD screen shows the intensity level during
operation.

9
LCD Screen
The LCD screen indicates the stimulation level (0-127) on
the screen. The battery life indicator shows: 3 bars = full
charge, 2 bars = medium charge, 1 bar = needs charge.
The battery life indicator only shows the remaining
charge of your transmitter. To find the remaining charge
for your receiver/collar, observe the LED indicator light
on the receiver/collar.

10
Care for LCD Transmitters in Cold Temperature
In cold temperatures (10°F or below), the Liquid Crystal
Display (LCD) on your transmitter may be dim or slow to
respond. Wait until the display becomes visible before
selecting any training level.
Even though the LCD screen might be dim or slow to
respond, when you push the Nick or Constant button,
the transmitter will still function properly. In the
occurrence of extremely cold weather, the LCD screen
might take a moment to respond causing the intensity
level to freeze at that current level.
If you turn the Rheostat Dial, the level on the screen may
not change but the actual intensity from the receiver/
collar will change in agreement with the dial.
In this situation, it is ideal to either wait until your
transmitter is back to working order before emitting a
correction or while holding the Constant button down,
slowly turn the Rheostat Dial while watching your dog’s
reaction.
Do not turn the Rheostat Dial rapidly because the receiver/
collar will emit a static correction based on the level of
the Rheostat Dial, which might not be correctly reflected
on the LCD screen.
Attention!
When using the unit in cold temperatures, it is
recommended that the transmitter is placed under
your jacket next to your body. The warmth of your
body will greatly improve the battery life and usage.

11
Transmitter Indicator Light
The transmitter LED indicator light is located near the
Rheostat Dial. It will flash every 5 seconds when the
transmitter has been turned on.
The LED indicator color indicates the battery life level.
Green = Full charge
Amber = Medium charge
Red = Needs charge
If the unit is used while the LED indicator is red, it may
shut down automatically.

12
Transmitter Battery Charging Receptacle &
Rubber Plug
Located on the backside of the transmitter, the charging
receptacle is covered by a rubber plug. Insert one end
of the battery charging cable into the receptacle to
charge the battery (See Battery Charging Procedure on
page 19).
After charging is complete, close the receptacle with
its rubber plug to make sure dirt or water does not get
inside.

13
BUTTON FUNCTION
The transmitter for the 2300NCP EXPANDABLE
unit has four buttons and a toggle switch on the
transmitter (one on the face of the transmitter, two on
the left side, and one on the right side).
Nick
Constant
Pager
1-Dog/
2-Dog
Toggle
Switch
On/Off
Switch
2300NCP EXPANDABLE
1-Dog/2-Dog Toggle Switch
The 1-Dog/2-Dog Toggle Switch is located on the front
of the transmitter. Use the toggle switch to control up
to 2 dogs when 2 collars are coded to the handheld

14
transmitter. When the toggle switch is set to the up
position, the transmitter will control the black collar.
When the toggle switch is set to the down position, the
transmitter will control the orange collar.
Nick Button
The Nick button is located on the top left side of the
handheld transmitter. When the Nick button is pressed,
the receiver emits a single rapid pulse of electrical
stimulation.
Constant Button
The Constant button is located on the bottom of the left
side of the handheld transmitter. Pressing the Constant
button gives continuous stimulation as long as the
button is pushed, for up to 12 seconds. If the button
is not released after 12 seconds, the stimulation will
automatically turn off as a safety feature. The collar will
be ready to be reactivated once the button has been
released.
Pager Button
The Pager button is located on the face of the transmitter.
Pressing it will give a vibration as long as the button is
pressed, for up to 12 seconds.
On/Off Button
The on/off button is located on the right side of the
transmitter.

15
DESCRIPTION OF
RECEIVER / COLLAR PARTS
Collar
Strap
Contact
Points
Battery
Charging
Receptacle
and Cover
LED Indicator
Light
On/Off Magnetic Switch
(Red Dot)
2300NCP EXPANDABLE
Receiver/Collar

16
Receiver On/Off Magnetic Red Dot
To turn on the receiver/collar, place the magnetic
red dot on the back of the transmitter to the red dot on
the receiver/collar. Hold the two red dots together for
a moment until the LED light on the receiver/collar
comes on.
To turn off the unit, repeat the same procedure holding
the two red dots together momentarily. The LED light will
turn red for a brief moment indicating that the receiver/
collar has now shut off.

17
Receiver Indicator Light
Located on the front of the receiver/collar, the indicator
light comes on and blinks once every 5 seconds after the
collar has been turned on. The color of the LED indicates
the battery life of the receiver.
Green = Full charge
Amber = Medium charge
Red = Needs charge
When the Constant button on the transmitter is pushed,
the collar indicator light will glow steadily (either green,
amber, or red based on the remaining battery life), as
long as you hold the button down, for up to 12 seconds.
When the Nick button is pushed, the light comes on for a
fraction of a second.

18
BATTERY CHARGER
Charging Cable
Two-dog unit only
120 volt
Charger
Wall
Outlet
The battery charger and charging cables allow you to
charge both the transmitter and receiver at the same
time. The battery charger is designed for a 120-volt
wall outlet (European 230-volt AC chargers and 10-
volt auto chargers for lithium polymer batteries for your
automobile are also available).
To use the battery charger for the two-dog unit, combine
both sets of battery charging (splitter) cables as shown.
This enables you to charge the transmitter and both
receivers at the same time.
Note: Only use Dogtra-approved lithium polymer
batteries and chargers for your Dogtra e-collar. This
will prevent any damage that can be incurred from
attempting to use a different charger.

19
Charging the Batteries
The 2300NCP EXPANDABLE uses lithium polymer
batteries.
1. Charge the unit before using the unit for the first time.
2. Do not charge the batteries near any flammable
substances.
3. Fully charge the batteries if the unit is to be stored
without use for a period of 3 months or more.
Recharge the Unit if :
• The indicator light on the collar is emitting a red color.
• If the 3 bar indicator on the transmitter LCD shows just
1 bar.
• The indicator light on the transmitter or receiver will
not come on.
• The indicator light on the transmitter or receiver comes
on momentarily, but will not stay on when the Constant
button is pushed.

20
Battery Charging Procedure
Note: The unit has a partial charge when it leaves the
Dogtra facility. Upon receipt of the collar, be sure to give
it a full 2-hour initial charge before the first use.
1. Attach the charging cables to both the transmitter and
receiver(s).
2. Plug the charger into a 120 volt wall outlet or, if using
the auto charger, plug into a cigarette lighter only for
lithium polymer batteries (use a 230 volt European
charger for Europe). All indicator lights should glow
red when properly plugged in and the unit will
automatically shut off during the charging process.
You will need to turn the unit on again before use once
the unit is fully charged and unplugged from
the battery cable.
3. The lithium polymer battery is fully charged within
2 hours. The lights will stay red during the charging
process. The red light will turn green once the unit is
fully charged.
4. After charging, cover the battery charging receptacles
with the rubber plugs on the transmitter and receiver.
