DAB402 Explanation of symbols
EN
5
Please read this instruction manual carefully before installation and first use, and store
it in a safe place. If you pass on the product to another person, hand over this instruc-
tion manual along with it.
Table of contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2 Safety instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
6 Mounting DAB 402 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
7 Using the receiver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
8 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
9 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
10 Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
1 Explanation of symbols
!
!
A
I
WARNING!
Safety instruction: Failure to observe this instruction cancause fatal or serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair the function
of the product.
NOTE
Supplementary information for operating the product.
DAB402--IO--16s.book Seite 5 Mittwoch, 22. März 2017 1:59 13

Safety instructions DAB402
EN
6
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
•Faulty assembly or connection
•Damage to the product resulting from mechanical influences and excess voltage
•Alterations to the product without express permission from the manufacturer
•Use for purposes other than those described in the operating manual
!WARNING!
•This device may only be repaired by qualified personnel. Inadequate repairs may
cause serious hazards.
•This device can be used by children aged 8 years or over, as well as by persons
with diminished physical, sensory or mental capacities or a lack of experience and
knowledge, providing they are supervised, or have been taught how to use the
device safely and are aware of the resulting risks.
!CAUTION!
•Mount the receiver in such a way that it cannot work its way loose under any
circumstances (sudden braking, accidents) and cause injuries to the occupants
of the vehicle.
•Do not mount the receiver in the airbag deployment path, as this could cause injury
if the airbags are triggered.
3Scopeofdelivery
4Intendeduse
The DAB+ receiver DAB402 is used for the reception of digital radio stations and is intended for
direct connection to a DAB compatible playback device.
No. in
fig. 1,
page 3
Quantity Label

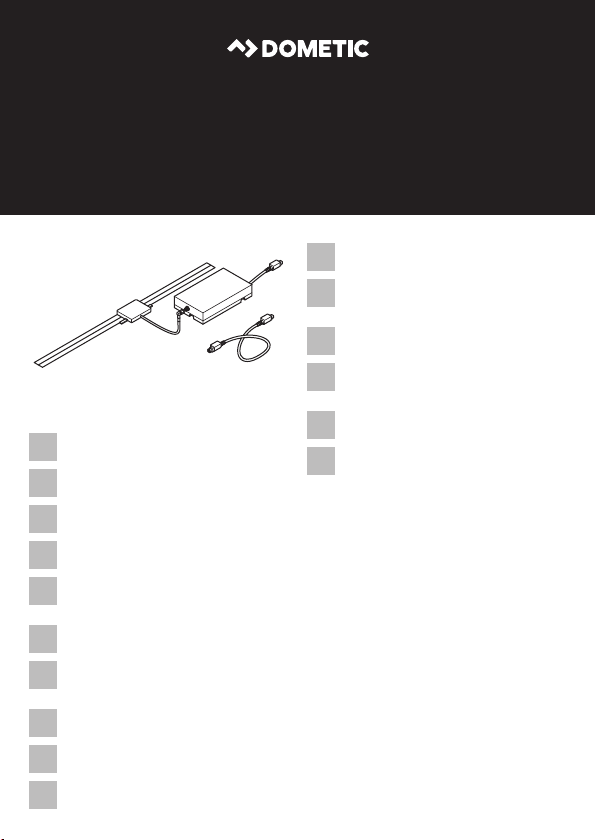

1 1 DAB antenna with connecting cable to receiver (3 m)
2 1 DAB+ receiver DAB402
3 1 Connecting cable to DAB BUS (3 m)
DAB402--IO--16s.book Seite 6 Mittwoch, 22. März 2017 1:59 13

DAB402 Technical description
EN
7
5 Technical description
5.1 Function description
The DAB+ receiver consists of an antenna and a receiver. The antenna can receive a so-called
ensemble of digital stations for each frequency. The receiver converts the ensembles into
individual radio stations.
5.2 Playback menu controls
No. in
fig. 3,
page 4
Description

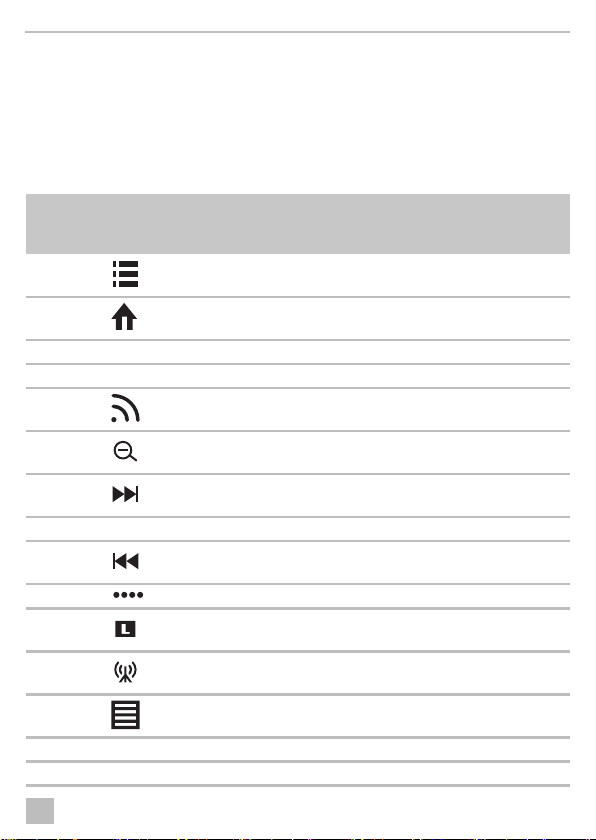

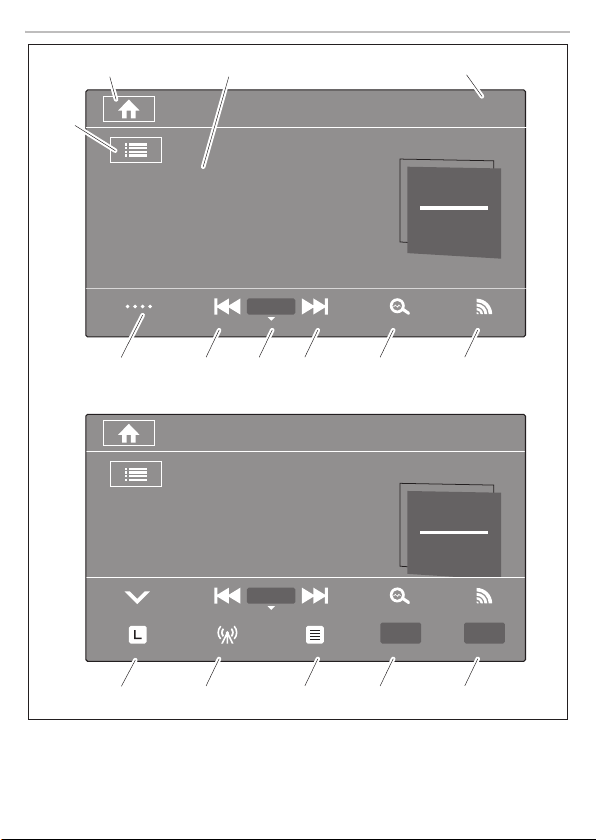

1 Shows list of radio services
2 Change to main menu
3 Information area
4Time
5 Changes the frequency band
6 “Intro” search function: Each stored radio station is automatically played
for 10 seconds
7 Manually calls up next radio service
8Currentsearchmode:[All Service]-[Manual]-[Preset]-[Current]
9 Manually calls up previous radio service
10 Opens submenu
11 Switch L-frequency band on or off
12 Automatically searches for stations and stores them
13 Searches for program type
14 Switches radio traffic announcement on or off
15 Selects service link: [DAB-DAB]-[DAB-RDS]-[DAB-ALL]-[OFF]
DAB402--IO--16s.book Seite 7 Mittwoch, 22. März 2017 1:59 13

Mounting DAB 402 DAB402
EN
8
6 Mounting DAB 402
I
6.1 Mounting receiver
➤Fix the receiver in place behind the instrument panel or in the glove compartment, e.g. using
a cable tie.
➤Connect the receiver to the DAB connection on the main unit.
6.2 Mounting antenna
!
Observe the following mounting instructions:
•Choose a mounting environment with ambient temperature and normal air humidity.
•Mount the antenna in an upright position.
•Maintain a distance of at least 50 mm to other antennas.
•Do not mount the antenna on ceramic lines, heating filaments or AM/FM antennas in the glass.
•Try not to mount the antenna more than once, as it may be damaged by doing so.
•Do not use any glass cleaning agents or solvents immediately after attaching the antenna.
•Route the antenna cable so that it does not impair vehicle operation.
•Make use of existing holes and passages.
•Do not roll up the antenna cable.
•Make sure that the antenna cable or the antenna are not detached when you are cleaning or
maintaining the antenna.
•Make sure that fluid is not sprayed onto the antenna branching area.

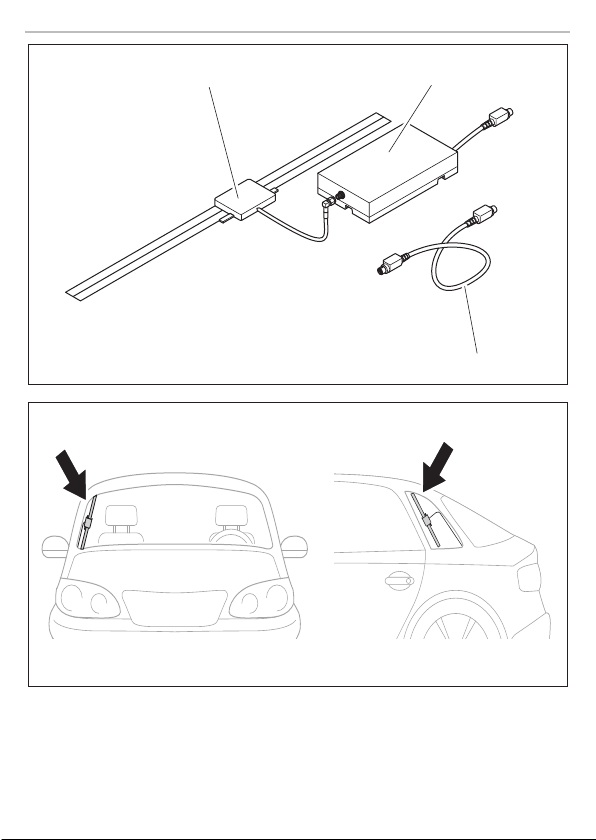

➤Choose a suitable position for the antenna (fig. 2, page 3).
➤Remove any dirt or dust fro the window.
➤Fasten the antenna temporarily into place on the window using adhesive tape.
➤Route the antenna cable.
➤Connect the antenna cable to the DAB+ receiver.
➤Stick the antenna onto the window.
NOTE
•Only install the device, if you already have some previous experience in fitting
car radios, if this is not the case, have the device installed by an expert instead.
•The device should be installed behind the instrument panel or in the glove
compartment.
•If a DAB window-integrated antenna is stuck onto a metallic dampened window
pane, then reception quality may be impaired.
WARNING!
Mount the antenna so that it does not impair the driver's field of view.
DAB402--IO--16s.book Seite 8 Mittwoch, 22. März 2017 1:59 13

DAB402 Using the receiver
EN
9
7 Using the receiver
I
7.1 Selecting DAB playback menu
➤In the main device, select the menu item [DAB].
7.2 Selecting DAB band
➤Press .
✓The frequency ranges are called up in the following sequence: DAB1 - DAB2 - DAB3.
7.3 Searching for radio services
➤Press the [Search mode] control panel (fig. 38,page 4), to switch between the search
modes:
–[Preset] mode: Actuates the radio services stored in Preset one after the other.
–[Current] mode: Actuates the radio services in the currently selected ensemble one after
the other.
–[All Service] mode: Actuates ensembles one after the other.
–[Manual] mode: Actuates radio services throughout all the ensembles one after the other.
➤Press / , to change to the previous/next radio service.
7.4 Intro search
➤Press .
✓Stored radio services are played for 10 seconds each, before automatically moving on to the
next radio service.
➤Press again.
✓The current radio service is played permanently.
NOTE
•When you switch on the car radio for the first time after connecting the DAB402
receiver, it may take a few minutes before the DAB button appears in the main
menu.
•In contrast to conventional radio, in DAB more and more radio and data services
are being broadcast on a frequency. These services are then grouped to form a
so-called ensemble. In some instances, the same radio and data service may be
receivable in different ensembles.
•You should also observe the instructions for the car radio that you wish to use
together with the DAB 402 receiver.
DAB402--IO--16s.book Seite 9 Mittwoch, 22. März 2017 1:59 13

Using the receiver DAB402
EN
10
7.5 Automatically saving radio service
I
➤Press , to change to the submenu.
➤Press .
✓All available radio services are automatically stored.
To interrupt the automatic storage procedure
➤Select another radio function.
7.6 PTY search function
The PTY search function enables you to choose a type of program and by doing so search
specifically for radio services such as, e.g. rock music or sport broadcasts.
➤Press , to change to the submenu.
➤Press , to show the program types.
➤Press or , to scroll through the list of program types.
➤Choose a program type.
➤Press , to start the search.
✓If a service broadcasts a station with the chosen type of program, the service is played back.
7.7 L-BAND reception on/off
If L-Band reception is switched on, L-Band ensembles are also received.
➤Press , to change to the submenu.
➤Press , to switch L-Band reception on or off.
7.8 Selecting service link
➤Press , to change to the submenu.
➤Press the [Service Link] control panel.
✓The service links are called up in the following sequence:
[DAB-DAB]-[DAB-RDS]-[DAB-ALL]-[OFF].
7.9 Receiving traffic announcement messages
If the priority for traffic announcement messages is switched on, a traffic announcement message
is automatically issued, even when you are listening to another source.
➤Press , to change to the submenu.
➤Activate priority for traffic announcement messages (fig. 314,page 4).
NOTE
In the automatic saving mode, all previously stored radio services are overwritten.
DAB402--IO--16s.book Seite 10 Mittwoch, 22. März 2017 1:59 13
