Dometic SINEPOWER DSP1312T User manual

1
INPUT(+)
INPUT(-)
CIB
LNA
OUTPUT INPUT
STATUS
S4
S3
S2
S1
BREAKER
TN
IT
LNB
LNA
OUTPUT INPUT
CN1
1
N.O
2
COM
3
N.C
4
ENB+
5
ENB-
INPUT(+)INPUT(-)
CN1
LINBLINA
12345
S4
S3
S2
S1
OUTPUT INPUT
ON OFF RE
CN1
12345
STATUS
S4
S3
S2
S1
ON
OFF
REMO.
OUTPUT INPUT
BREAKER
STATUS
BREAKER
CIBLNA
INPUT(+)
INPUT(-)
CIB
LNA
INPUT(+)
INPUT(-)
LNB
LNA
LNB
LNA
OUTPUT INPUT
LNB
LNA
OUTPUTINPUT
1.
2.
A
C
B
D
DSP 13xxT, DSP 18xxT, DSP 23xxT
INPUT(+)
INPUT(-)
LNB
LNA
1.
2.
INPUT(+)
INPUT(-)
LNB
LNA
CLICK
1.
2.
A
C
B
DSP 35xxT
LNB
LNA
OUTPUT INPUT
1.
1.
INPUT(+)
INPUT(-)
CIBLNA
rd
bk
CIB
LNA
OUTPUT INPUT
rd
bk
OUTPUT INPUT
STATUS
S4
S3
S2
S1
BREAKER
TN
IT
LNB
LNA
OUTPUT INPUT
DSP 13xxT, DSP 18xxT, DSP 23xxT DSP 35xxT
DSP 13xxT, DSP 18xxT, DSP 23xxT
DSP 35xxT
2.
3.
2.
3.
DSP 13xxT, DSP 18xxT, DSP 23xxT
DSP 35xxT
DSP 13xxT, DSP 18xxT, DSP 23xxT DSP 35xxT
11210 11
12
10 11
13
13
2
1
2
4
4
3
3
7 56
56
8
8 79
9
1
1
3
2
1
5 cm
5 cm
AB
WAGO
ACI NPUT
ACO UTPUT
WAGO
ACI NPUT
ACO UTPUT
DSP1312T, DSP1324T, DSP1812T,
DSP1824T, DSP2312T, DSP2324T,
DSP3512T, DSP3524T
1
2
4
5
6
3
7
bk rd bk rd bk rd
EN Black Red NL Zwart Rood PL Czarny Czerwony
DE Schwarz Rot DA Sort Rød SK Čierna Červená
FR Noir Rouge SV Svart Röd CS Černá Červená
ES Negro Rojo NO Svart Rød HU Fekete Piros
PT Preto Vermelho FI Musta Punainen
IT Nero Rosso RU Черный Красный
leaflet_figures.fm Seite 1 Freitag, 1. Dezember 2017 8:59 08

2
Dometic WAECO International GmbH
Hollefeldstrasse 63
D-48282 Emsdetten
dometic.com
T
STATUS
S4
S3
S2
S1
TN
IT
L
B
H
OUTPUT INPUT
STATUS
S4
S3
S2
S1
BREAKER
TN
IT
LNB
LNA
OUTPUTINPUT
INPUT(+)
INPUT(-)
CIB
LNA
CIB
LNA
OUTPUTINPUT
DC
BA
INPUT(+)
INPUT(-)
LNBLNA
LNB
LNA
OUTPUTINPUT
DSP 13xxT
BLH
284 mm
DSP 18xxT
DSP 23xxT
DSP 35xxT
284 mm
284 mm
324 mm
405 mm
405 mm
481 mm
490 mm
118 mm
118 mm
118 mm
122 mm
DSP 13xxT, DSP 18xxT, DSP 23xxT
DSP 35xxT
INPUT
OUTPUT
INPUT OUTPUT
LINB
LINA
DSP 13xxT, DSP 18xxT, DSP 23xxT
LINB
LINA
DSP 35xxT
DSP 13xxT, DSP 18xxT, DSP 23xxT DSP 35xxT
CN1
12345
N.O
COM
N.C
ON
OFF
ENB–
GND
OFF
ON
OFF:INV.
ON:INV. HI:INV. ON
(TR ON)
LOW:INV. OFF
(TR OFF)
TR
ENB–
GND
ENB
BAT+
BAT–
OFF
ON
OFF:INV.
ON:INV. DC POWER
GND
ENB
+
–
OFF
ON
OFF:INV.
ON:INV.
RCD RCD
INPUT(+)
INPUT(-)
LNB
LNA
OUT
IN
230 V
230 V
230 V
TN
S5
IT
MCB
RCD
INPUT(+)
INPUT(-)
LNB
LNA
OUT
IN
230 V
TN
S5
IT
230 V
230 V
Charging
2A
4A
Full
Reverse
Connection
Charging
2A
4A
Full
Reverse
Connection
MCB
9
8
0
a
c
d
e
b
4445102440 L 11/2017
leaflet_figures.fm Seite 2 Freitag, 1. Dezember 2017 8:59 08

DSP1312T, DSP1324T, DSP1812T, DSP1824T,
DSP2312T, DSP2324T, DSP3512T, DSP3524T
Sine wave inverter
Installation and Operating Manual. . . . . . . .3
Sinus-Wechselrichter
Montage- und Bedienungsanleitung. . . . .27
Onduleur sinusoïdal
Instructions de montage
et de service . . . . . . . . . . . . . . . . . . . . . . . . .52
Convertidor de ondas seno
Instrucciones de montaje y de uso . . . . . . .76
Conversor sinusoidal
Instruções de montagem e manual de
instruções . . . . . . . . . . . . . . . . . . . . . . . . . .100
Inverter sinusoidale
Istruzioni di montaggio e d’uso . . . . . . . . 124
Sinus ondulator
Montagehandleiding en
gebruiksaanwijzing . . . . . . . . . . . . . . . . . .148
Sinus ensretter
Monterings- og betjeningsvejledning . . . 171
Sinus växelriktare
Monterings- och bruksanvisning . . . . . . . 193
Sinus vekselretter
Monterings- og bruksanvisning . . . . . . . . 215
Sinus -vaihtosuuntaaja
Asennus- ja käyttöohje . . . . . . . . . . . . . . . 237
Синусоидальный инвертор
Инструкция по монтажу и эксплуатации 259
Przetwornica sinusoidalna
Instrukcja montażu i obsługi. . . . . . . . . . . 283
Sínusový menič napätia
Návod na montáž a uvedenie
do prevádzky. . . . . . . . . . . . . . . . . . . . . . . 306
Sinusový měnič
Návod k montáži a obsluze . . . . . . . . . . . 329
Szinuszos inverter
Szerelési és használati útmutató . . . . . . . 351
OUTPUTINPUT
STATUS
S4
S3
S2
S1
BREAKER
TN
IT
LNB
LNA
OUTPUTINPUT
EN
DE
FR
ES
PT
IT
NL
DA
SV
NO
FI
RU
PL
SK
CS
HU
ENERGY & LIGHTING
SINEPOWER
DSP1300T-3500T--IO-16s.book Seite 1 Freitag, 1. Dezember 2017 8:54 08

DSP1300T-3500T--IO-16s.book Seite 2 Freitag, 1. Dezember 2017 8:54 08

EN
SinePower
3
Please read this instruction manual carefully before installation and first
use, and store it in a safe place. If you pass on the product to another
person, hand over this instruction manual along with it.
Table of contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
2 General safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
5 Target group for this manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
6 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
7 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
8 Fitting the inverter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
9 Connecting the inverter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
10 Using the inverter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
11 Cleaning and caring for the inverter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
12 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
13 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
14 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
15 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
DSP1300T-3500T--IO-16s.book Seite 3 Freitag, 1. Dezember 2017 8:54 08

EN
Explanation of symbols SinePower
4
1 Explanation of symbols
D
!
A
I
2 General safety instructions
2.1 General safety
The manufacturer accepts no liability for damage in the following cases:
•Faulty assembly or connection
•Damage to the product resulting from mechanical influences and excess voltage
•Alterations to the product without express permission from the manufacturer
•Use for purposes other than those described in the operating manual
Note the following basic safety information when using electrical devices to protect
against:
•Electric shock
•Fire hazards
•Injury
DANGER!
Safety instruction: Failure to observe this instruction will cause fatal or
serious injury.
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
DSP1300T-3500T--IO-16s.book Seite 4 Freitag, 1. Dezember 2017 8:54 08

EN
SinePower General safety instructions
5
2.2 General safety
DDANGER!
•In the event of fire, use a fire extinguisher which is suitable for electrical
devices.
!WARNING!
•Only use the device as intended.
•Ensure that the red and black terminals never come into contact.
•Disconnect the device from the mains:
– Before cleaning and maintenance
•If you disassemble the device:
– Detach all connections
– Make sure that no voltage is present at any of the inputs and out-
puts
•The device may not be used if the device itself or the connection cable
are visibly damaged.
•If this power cable for this device is damaged, it must be replaced by
the manufacturer, customer service or a similarly qualified person in
order to prevent safety hazards.
•This device may only be repaired by qualified personnel. Inadequate
repairs may cause serious hazards.
•This device can be used by children aged 8 years or over, as well as by
persons with diminished physical, sensory or mental capacities or a
lack of experience and/or knowledge, providing they are supervised
or have been taught how to use the device safely and are aware of the
resulting risks.
•Electrical devices are not toys.
Always keep and use the appliance out of the reach of children.
•Children must be supervised to ensure that they do not play with the
device.
ANOTICE!
•Before start-up, check that the voltage specification on the type plate
is the same as that of the power supply.
•Ensure that other objects cannot cause a short circuit at the contacts
of the device.
•Never pull the plug out of the socket by the connection cable.
•Store the device in a dry and cool place.
DSP1300T-3500T--IO-16s.book Seite 5 Freitag, 1. Dezember 2017 8:54 08

EN
General safety instructions SinePower
6
2.3 Safety when installing the device
DDANGER!
•Never mount the device anywhere where there is a risk of gas or dust
explosion.
!CAUTION!
•Ensure that the device is standing firmly.
The device must be set up and fastened in such a way that it cannot tip
over or fall down.
ANOTICE!
•Do not expose the device to a heat source (such as direct sunlight or
heating). Avoid additional heating of the device in this way.
•Set up the device in a dry location where it is protected against splash-
ing water.
2.4 Safety when connecting the device electronically
DDANGER! Danger of electrocution
•If you are working on electrical systems, ensure that there is somebody
close at hand who can help you in emergencies.
!WARNING!
•Make sure that the lead has a sufficient cross-section.
•Lay the cables so that they cannot be damaged by the doors or the
bonnet.
Crushed cables can lead to serious injury.
!CAUTION!
•Lay the cables so that they cannot be tripped over or damaged.
DSP1300T-3500T--IO-16s.book Seite 6 Freitag, 1. Dezember 2017 8:54 08

EN
SinePower General safety instructions
7
ANOTICE!
•Use ductwork or cable ducts if it is necessary to lay cables through
metal panels or other panels with sharp edges.
•Do not lay the 230 V mains cable and the 12 V DC cable in the same
duct.
•Do not lay the cable so that it is loose or heavily kinked.
•Fasten the cables securely.
•Do not pull on the cables.
2.5 Operating the device safely
DDANGER! Danger of electrocution
•Do not touch exposed cables with your bare hands.
!WARNING!
•Only use the device in closed, well-ventilated rooms.
!CAUTION!
•Do not operate the device
– In salty, wet or damp environments
– In the vicinity of corrosive fumes
– In the vicinity of combustible materials
– In areas where there is a danger of explosions.
•Before starting the device, ensure that the power supply line and the
plug are dry.
•Always disconnect the power supply when working on the device.
•Please observe that parts of the device may still conduct voltage even
if the fuse has blown.
•Do not disconnect any cables when the device is still in use.
ANOTICE!
•Make sure the air inlets and outlets of the device are not covered.
•Ensure good ventilation.
DSP1300T-3500T--IO-16s.book Seite 7 Freitag, 1. Dezember 2017 8:54 08

EN
Scope of delivery SinePower
8
3Scopeofdelivery
4Accessories
5 Target group for this manual
The electrical installation (chapter “Connecting the inverter” on page 14) is intended
for professionals who are familiar with the applicable regulations of the country in
which the equipment is to be installed and/or used.
All other chapters are intended for the users.
No. in
fig. 1Designation
1 Sine wave inverter
2 Connection cable with safety coupling (for 230 Vwoutput)
3 Connection cable with safety plug (for 230 Vwsupply)
– Operating manual
Designation Ref. no.
Remote control 9600002564
Energy monitor 9600002565
DSP1300T-3500T--IO-16s.book Seite 8 Freitag, 1. Dezember 2017 8:54 08

EN
SinePower Intended use
9
6 Intended use
!
The wave inverter converts direct current into a 230 – 240 V AC supply of 50 Hz or
60 Hz:
•12 Vg:DSP1312T, DSP1812T, DSP2312T, DSP3512T
•24 Vg:DSP1324T, DSP1824T, DSP2324T, DSP3524T
7 Technical description
The inverters can be operated wherever a DC connection is available:
•12 Vg:DSP1312T, DSP1812T, DSP2312T, DSP3512T
•24 Vg:DSP1324T, DSP1824T, DSP2324T, DSP3524T
The light-weight and compact construction of this device allows for easy installation
in mobile homes, commercial vehicles or motor and sailing yachts.
The output voltage corresponds to the household voltage from the socket (pure sine
wave, THD < 3 %).
Please observe the values for constant output power and peak output power as
indicated in chapter “Technical data” on page 23. Never connect devices that have
a higher power requirement.
I
WARNING!
Never use the inverter on vehicles where the positive terminal of the
battery is connected to the chassis.
NOTE
Note when connecting devices with an electrical drive (such as power
drills and refrigerators), that they often require more power than is
indicated on the type plate.
DSP1300T-3500T--IO-16s.book Seite 9 Freitag, 1. Dezember 2017 8:54 08

EN
Technical description SinePower
10
The inverter has various protective mechanisms.
•Overvoltage shutdown: The inverter shuts itself off when the voltage exceeds
the cut-off value. It restarts when the voltage returns to the restart value.
•Undervoltage shutdown: The inverter shuts itself off when the voltage sinks
below the cut-off value. It restarts when the voltage rises to the restart value.
•Excess temperature shutdown: The inverter switches off when the tempera-
ture inside the device or the temperature on the cooling element exceeds a cut-
off value. It restarts when the voltage rises to the restart value.
•Overloading and short circuit shutdown: The LED on the inverter indicates
an operating fault when an excess load is connected or a short circuit has
occurred. The fuse in the device must be pressed in again by hand after it is
triggered by excess current.
I
The inverter can be operated in the following network configurations:
•TN network:
The neutral conductor of the inverter is grounded. A downstream safety switch
(RCD) must be installed.
•IT network:
Both phases are insulated. This is suitable for operating one load. If more than
one load will be connected a protection plan has to be set up (e. g. insulation
monitor).
The network configuration is set via a DIP switch at the device.
The inverters DSP13xxT, DSP18xxT, DSP23xxT have a connection cable with socket
and plug. The inverter DSP35xxT is directly connected at the terminals via the PG
glands.
Due to the phase synchronisation the inverter adapts to the phase of the AC input
voltage. Thereby voltage peaks are prevented when switching from battery to
mains.
The inverter is suitable for operating sensitive consumers because the output voltage
is a pure sinus wave.
The inverter is fitted with a priority circuit. If an external 230 Vwvoltage is available,
this will have priority. If no external 230 Vwvoltage is connected, then the con-
nected battery will be used as the power supply.
NOTE
The individual values are found in the chapter “Technical data” on
page 23.
DSP1300T-3500T--IO-16s.book Seite 10 Freitag, 1. Dezember 2017 8:54 08

EN
SinePower Technical description
11
The inverter can be switched to an energy-saving mode to prevent the connected
battery from discharging too quickly.
The inverter can be turned on or off using the remote control (accessory).
Additionally, the inverter can be controlled using the energy monitor (accessory).
7.1 Control elements
No. in
fig. 2Description Description
1 Main switch 0: Switches the device permanently off
I: Switches the device permanently on
II: The device can be switched on or off via a
remote control (accessory)
2 Status LED See chapter “Status indications” on page 17
3 Fuse Protects the inverter from overload.
The fuse can be pressed in again once it has
triggered.
4 Dip switch Makes settings on the inverter
See chapter “Configuring the inverter” on
page 18
DSP1300T-3500T--IO-16s.book Seite 11 Freitag, 1. Dezember 2017 8:54 08

EN
Fitting the inverter SinePower
12
7.2 Connections
I
8 Fitting the inverter
I
8.1 Tools required
For the electrical connection you will need the following tools:
•Crimping tool
•3 multi-coloured, flexible connection cables. Determine the necessary thickness
from the table in chapter “Connecting the inverter” on page 14.
•Cable lugs and conductor sleeves
For fastening you will require the following tools:
•Machine bolts (M4) with washers and self-locking nuts or
•self-tapping screws or wood screws.
NOTE
The version for continental Europe is depicted.
No. in
fig. 2Description
5 AC input (DSP35xxT: PG fitting)
6 AC output (DSP35xxT: PG fitting)
7 Ground terminal (Earthing on the vehicle bodywork)
8 Positive terminal
9 Negative terminal
10 CI/LIN BUS connections (LINA)
11 Remote control connection (LINB)
12 Connection of remote switch
13 Fan (backside)
NOTE
Before fitting the inverter, you should connect all cables because all
connections are freely accessible.
DSP1300T-3500T--IO-16s.book Seite 12 Freitag, 1. Dezember 2017 8:54 08

EN
SinePower Fitting the inverter
13
8.2 Mounting instructions
When selecting the installation location, observe the following instructions:
•The inverter can be mounted horizontally or vertically.
•The inverter must be installed in a place that is protected from moisture.
•The inverter may not be installed in the presence of flammable materials.
•The inverter may not be installed in a dusty environment.
•The place of installation must be well ventilated. A ventilation system must be
available for installations in small, enclosed spaces. The minimum clearance
around the inverter must be at least 5 cm (fig. 3).
•The ventilation holes on the front and back of the inverter must remain clear.
•For ambient temperatures higher than 40 °C (such as in engine or heating
compartments, or direct sunlight), the inverter may shut down although the
connected load is below the rated load (derating).
•The device must be installed on a level and sufficiently sturdy surface.
A
8.3 Mounting the inverter

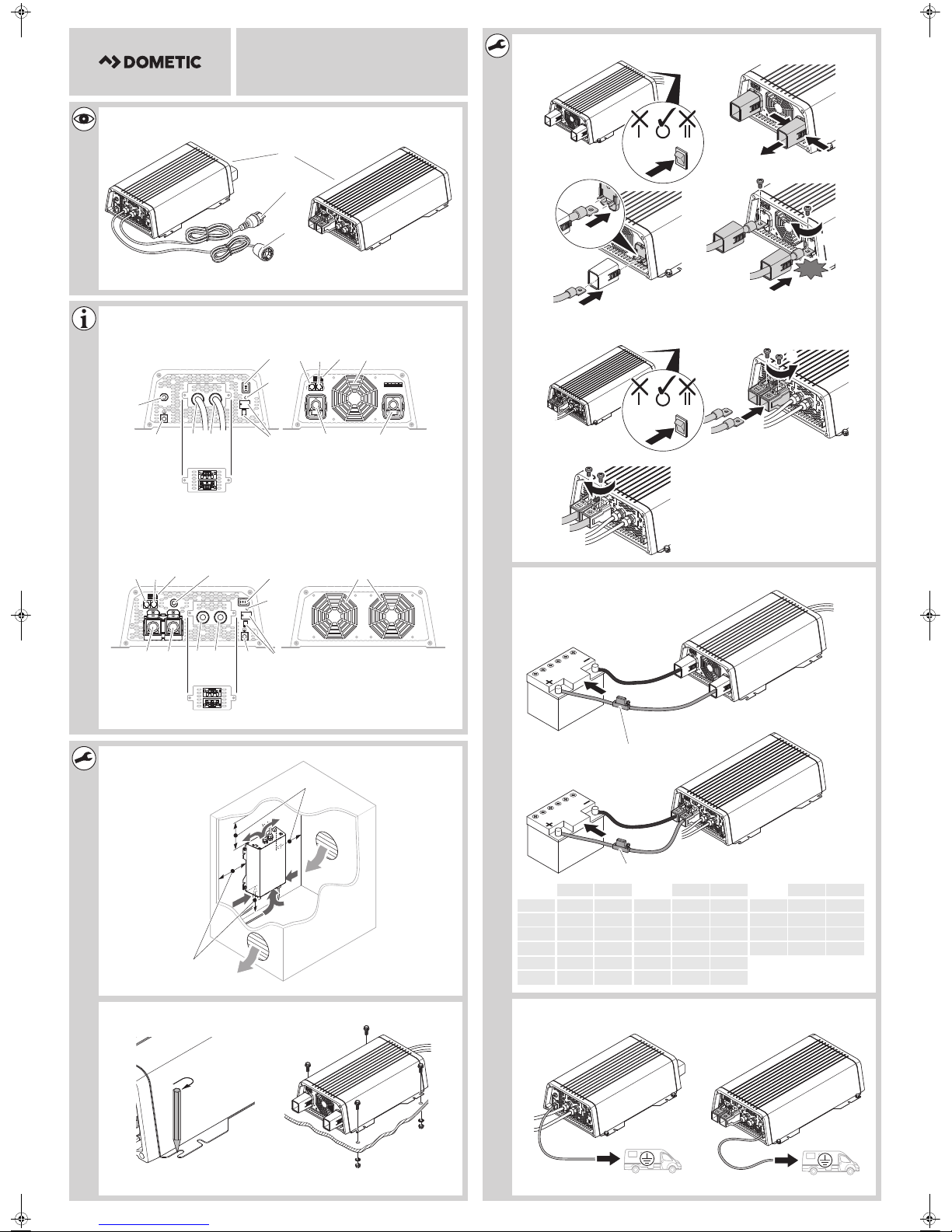

➤Mount the inverter as shown (fig. 4).
NOTICE!
Before drilling any holes, make sure that no electrical cables or other
parts of the vehicle can be damaged by drilling, sawing and filing.
DSP1300T-3500T--IO-16s.book Seite 13 Freitag, 1. Dezember 2017 8:54 08

EN
Connecting the inverter SinePower
14
9 Connecting the inverter
9.1 General instructions
!
•When installed in vehicles or boats, the inverter must be connected to the chassis
or earth.
•When setting up a socket distribution circuit (mains setup), comply with the
applicable regulations.
•Only use copper cables.
•Keep the cables as short as possible (< 1 m).
•For grounding use a cable with a minimum cross section of 4 mm².
•Keep to the specified cable cross section and fit a cable fuse (fig. 61) as close
to the battery as possible on the positive cable (see the table).
WARNING!
•The inverter may only be connected by a qualified workshop. The
following information is intended for technicians who are familiar
with the guidelines and safety precautions to be applied.
•Never use the inverter on vehicles where the positive terminal of the
battery is connected to the chassis.
•If you do not fit a fuse to the positive cable, the cables can over-
load, which might result in a fire.
Device Required cable
cross section Cable fuse
DSP1312T 35 mm² 200 A
DSP1324T 25 mm² 150 A
DSP1812T 50 mm² 250 A
DSP1824T 25 mm² 150 A
DSP2312T 70 mm² 300 A
DSP2324T 35 mm² 200 A
DSP3512T 2 x 50 mm² 2 x 250 A
DSP3524T 50 mm² 250 A
DSP1300T-3500T--IO-16s.book Seite 14 Freitag, 1. Dezember 2017 8:54 08

EN
SinePower Connecting the inverter
15
9.2 Connecting the inverter
!
A
I
➤Connect the inverter as shown:
– Connecting the battery: fig. 5and fig. 6
– Connecting the ground terminal fig. 7
– Connecting the 230 V power cable: fig. 8(INPUT)
– Connecting the 230 V output cable: fig. 8(OUTPUT)
9.3 Connecting multiple appliances
The device is equipped at delivery with galvanic isolation. For the safe operation of
multiple appliances, it is essential that a circuit breaker (residual current circuit
breaker) is built into the socket distribution circuit.
➤Install a residual current circuit breaker in the socket distribution circuit.
9.4 Connecting the remote control (accessory)
A
➤Connect the remote control as shown (fig. 9).
WARNING!
Before connecting the AC output cable, make sure the inverter is
switched off at the main switch.
NOTICE!
Make sure that you do not reverse the polarity. Incorrect polarity can
damage the inverter.
NOTE
Tighten the nuts and bolts to a maximum torque of 15 Nm. Loose
connections may cause overheating.
NOTICE!
Only plug in the connection to the remote control in the remote port.
The device can be damaged by connecting it incorrectly.
DSP1300T-3500T--IO-16s.book Seite 15 Freitag, 1. Dezember 2017 8:54 08

EN
Connecting the inverter SinePower
16
9.5 Connecting external switch to turn device on and off
I
You can use the following as an external switch:
•External switch, voltage supply from the inverter: fig. 0A
•Control unit with relay or transistor circuit (TR): fig. 0B
•External switch with voltage supply from the battery (BAT) of the vehicle:
fig. 0C
•External switch with its own voltage supply (DC POWER) e.g. from the ignition:
fig. 0D
➤Set the main switch (fig. 21) to “OFF”.
➤Make sure that the connection for the remote control (fig. 211) is not assigned.
➤Set the main switch (fig. 21) to “REMO.”.
➤Connect the external on/off switch with the connection cable to the terminal
(fig. 212).
9.6 Connecting the fault display relay
You can install a relay which monitors whether the 230 V input is connected.
Thereby you can, for example, implement an immobiliser so that the vehicle cannot
be started when the 230 V input is connected.
➤Connect the relay as shown (fig. a):
– NO: normally open contact
– COM: common contact
– NC: normally closed contact
Relay specification:
NOTE
Use cables with a cable cross section of 0.25 – 0.75 mm².
Maximum voltage Load Current consumption
NO NC
250 VwOhmic 0.5 A 0.5 A
12 V/24 VgOhmic 1 A 1 A
