Dometic TEC29 User manual

TEC29, TEC29LPG
Generator
Operating manual . . . . . . . . . . . . . . . . . . . . 10
Generator
Bedienungsanleitung . . . . . . . . . . . . . . . . .33
Générateur
Notice d’utilisation . . . . . . . . . . . . . . . . . . .57
Generador
Instrucciones de uso . . . . . . . . . . . . . . . . . .82
Gerador
Manual de instruções . . . . . . . . . . . . . . . . 107
IGeneratore
Istruzioni per l’uso . . . . . . . . . . . . . . . . . . .130
Generator
Gebruiksaanwijzing. . . . . . . . . . . . . . . . . .153
Generator
Betjeningsvejledning . . . . . . . . . . . . . . . .176
Generator
Bruksanvisning. . . . . . . . . . . . . . . . . . . . . .199
Generator
Bruksanvisning. . . . . . . . . . . . . . . . . . . . . 222
Generaattori
Käyttöohje . . . . . . . . . . . . . . . . . . . . . . . . . 245
Генератор
Инструкция по эксплуатации . . . . . . . . . 268
Generator
Instrukcja obsługi . . . . . . . . . . . . . . . . . . . 292
Generàtor
Návod na obsluhu. . . . . . . . . . . . . . . . . . . 316
Generàtor
Návod k obsluze . . . . . . . . . . . . . . . . . . . . 339
Generátor
Használati utasítás. . . . . . . . . . . . . . . . . . . 362
EN
DE
FR
ES
PT
IT
NL
DA
SV
NO
FI
RU
PL
SK
CS
HU
ENERGY & LIGHTING
TEC
TEC29-B-16s.book Seite 1 Donnerstag, 21. Juli 2016 8:09 08

TEC29-B-16s.book Seite 2 Donnerstag, 21. Juli 2016 8:09 08

TEC29, TEC29LPG
3
1
4
5
3
2
1
4
5
3
2
TEC 29
TEC 29LPG
1
TEC29-B-16s.book Seite 3 Donnerstag, 21. Juli 2016 8:09 08

TEC29, TEC29LPG
4
TEC 29 TEC 29LPG
2
1
3
4
1
2
5
3
2
1
6
4
7 8
109
3
TEC29-B-16s.book Seite 4 Donnerstag, 21. Juli 2016 8:09 08

TEC29, TEC29LPG
5
23
4
1
TEC 29LPG
TEC 29
4
1
1
3
2
5
TEC29-B-16s.book Seite 5 Donnerstag, 21. Juli 2016 8:09 08

TEC29, TEC29LPG
6
1
6
234 1
7
TEC29-B-16s.book Seite 6 Donnerstag, 21. Juli 2016 8:09 08

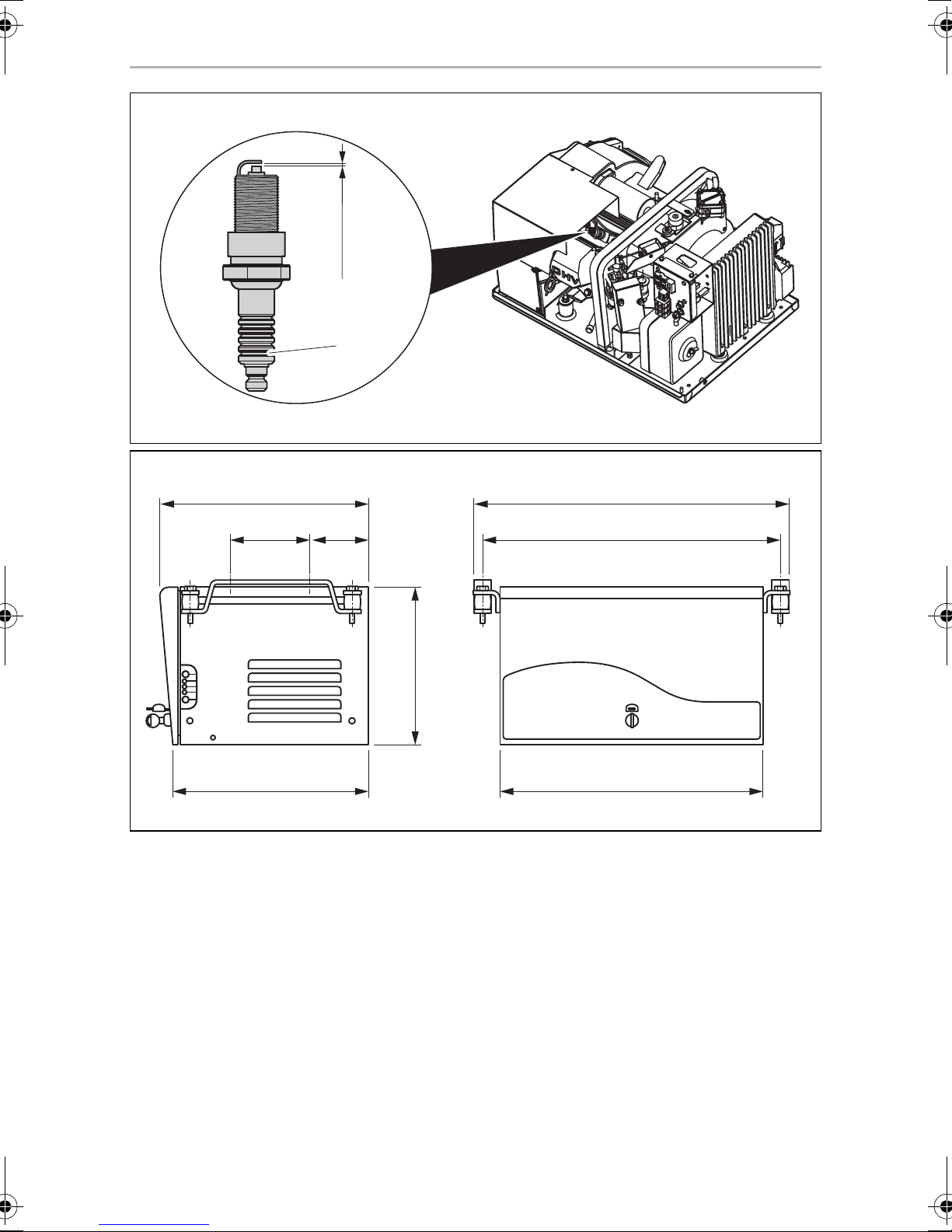

TEC29, TEC29LPG
7
0,7 – 0,8 mm
0,7 – 0,8 mm
1
8
385 580
548
480360
290
160 100
9
TEC29-B-16s.book Seite 7 Donnerstag, 21. Juli 2016 8:09 08

TEC29, TEC29LPG
8
0
TEC29-B-16s.book Seite 8 Donnerstag, 21. Juli 2016 8:09 08

TEC29, TEC29LPG
9
a
TEC29-B-16s.book Seite 9 Donnerstag, 21. Juli 2016 8:09 08

EN
TEC29, TEC29LPG
10
Please read this instruction manual carefully before first use, and store it in
a safe place. If you pass on the product to another person, hand over this
instruction manual along with it.
Table of contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3 Target group for this manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
4 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
5 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
6 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
7 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
8 Operating the generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
9 Cleaning the generator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
10 Servicing the generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
11 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
12 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
13 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
14 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
TEC29-B-16s.book Seite 10 Donnerstag, 21. Juli 2016 8:09 08

EN
TEC29, TEC29LPG Explanation of symbols
11
1 Explanation of symbols
!
!
A
I
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
•Damage to the product resulting from mechanical influences and excess voltage
•Alterations to the product without express permission from the manufacturer
•Use for purposes other than those described in the operating manual
In particular, the manufacturer will not be liable for any consequential damage, espe-
cially consequential damage caused by failure of the generator.
Note the following basic safety information when using electrical devices to protect
against:
•Electric shock
•Fire hazards
•Injury
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
TEC29-B-16s.book Seite 11 Donnerstag, 21. Juli 2016 8:09 08

EN
Safety instructions TEC29, TEC29LPG
12
2.1 General safety
!WARNING!
•Electrical devices are not toys
Keep electrical devices out of reach of children or infirm persons. Do
not allow them to use electrical devices without supervision.
•People (including children) whose physical, sensory or mental capac-
ities prevent them from using this device safely may not be allowed to
operate it without the supervision of a responsible adult.
•Only use the device as intended.
•Do not make any alterations or conversions to the device.
•Installation, maintenance and repairs of the generator may only be car-
ried out by qualified personnel who are familiar with the risks involved
when handling generators as well as the relevant regulations. Inade-
quate repairs may cause serious hazards. For repair service, please
contact the manufacturer's branch officein your country (addresses on
the back page).
•Exhaust fumes contain carbon monoxide which is a highly toxic,
odourless and colourless gas. Do not inhale any exhaust fumes. Do
not leave the generator motor running in a closed garage or in a room
without windows.
!CAUTION!
•The generator may only be used with the front door closed.
•Remove all flammable materials such as petrol, paints, solvents, etc.,
from the vicinity of the generator.
•Ensure that hot parts of the generator do not come in contact with any
flammable materials.
•Only refuel the generator when it is switched off and in a well-venti-
lated area. Petrol and liquid gas are highly flammable and can
explode.
•Do not refuel the generator when the vehicle engine is running if the
tank is in the vicinity of the generator.
•TEC29 only: If petrol is spilled, wipe it up properly and wait until the
fumes have cleared before turning on the engine.
•TEC29LPG only: Compare the pressure information on the type
plate with the pressure information on the liquid gas cylinder.
•TEC29LPG only: Never store liquid gas cylinders in unventilated
areas or below ground level (funnel shaped holes in the ground).
TEC29-B-16s.book Seite 12 Donnerstag, 21. Juli 2016 8:09 08

EN
TEC29, TEC29LPG Target group for this manual
13
•TEC29LPGonly:Keep liquid gas cylinders away from direct sunlight.
The temperature may not exceed 50 °C.
•Do not touch the generator and the cables with wet hands.
•Replace the fuses or thermo switch using only those with the same
technical data.
•Do not switch the generator to automatic mode near any ignition
sources (such as petrol stations, dry areas with risk of forest fires).
ANOTICE!
•TEC29 only: Do not fill up the tank too full. Petrol must not be
allowed to fill up to the neck of the tank. Check the lid is on properly.
2.2 Operating the device safely
!WARNING!
•Always disconnect the power supply when working on the device.
ANOTICE!
•Only operate the device if you are certain that the housing and the
cables are undamaged.
3 Target group for this manual
This operating manual is for the user of the generator.
TEC29-B-16s.book Seite 13 Donnerstag, 21. Juli 2016 8:09 08

EN
Scope of delivery TEC29, TEC29LPG
14
4Scopeofdelivery
TEC29
TEC29LPG
5Accessories
Available as accessories (not included in the scope of delivery):
Designation Reference
number
TEC29 generator 9102900200
AG 102, changeover relay for making priority circuits 9102900013
Installation manual
Operating manual
Designation Reference
number
TEC29LPG generator 9102900179
AG 102, changeover relay for making priority circuits 9102900013
Installation manual
Operating manual
Part designation Reference
number
TEC29 only: AG 101, tank 15 l, plastic 9102900009
TEC29 only: AG 100, tank 20 l, stainless steel 9102900011
TEC29 only: AG 150, pipe set for AG 100 / AG 101 9102900003
AG 125, flexible metal pipe for extending exhaust pipe, 5 m 9102900138
AG 128, seal for TEC29 9102900040
TEC29-B-16s.book Seite 14 Donnerstag, 21. Juli 2016 8:09 08

EN
TEC29, TEC29LPG Intended use
15
6 Intended use
The TEC29 (reference no. 9102900200) and TEC29LPG (reference no.
9102900179) generators are designed for use in motor homes, camper vans and
vehicles for commercial use.
The generator is not suitable for installation in water vessels.
The generator produces a pure sine wave voltage of 230 V/50 Hz which can be con-
nected to the consumer with a total continuous load of 2600 W. The power quality
is also suitable for sensitive consumers (such as PCs).
The generator can charge a 12 V battery.
7 Technical description
The TEC29 and TEC29LPG generators consist of the following main parts (fig. 1,
page 3):
•Combustion engine (1)
•Alternator (2) with permanent magnets
•Inverter (3)
•Internal control panel (4)
•Remote control (5)
The combustion engine (1) drives the alternator (2) connected to it, which in turn
generates AC voltage.
The inverter (3) transforms this AC voltage into a stable voltage of 230 V and 50 Hz.
The terminals, the socket for the connection cable to the remote control (5) and the
main switch are installed in the internal control panel (4).
Overview of the components:
•TEC29: fig. 0, page 8.
•TEC29LPG: fig. a, page 9
The generator has the following features:
•Integrated battery charger for charging the connected battery
•Automatic mode for charging the connected battery automatically (must be con-
figured accordingly when installed)
TEC29-B-16s.book Seite 15 Donnerstag, 21. Juli 2016 8:09 08

EN
Technical description TEC29, TEC29LPG
16
Control elements in the control panel
The control panel is located on the generator behind the cover.
Control elements in the remote control
The remote control is installed in the vehicle interior.
No. in
fig. 2,
page 4
Description
1 Main switch Switches the generator to standby or no func-
tion.
2TEC29 only: Cut-out switch Electromechanical protection against over-
load.
3TEC29LPG only:
Main fuse
Triggers if the AC voltage overloads. Fuse
needs to be replaced if it has triggered.
4TEC29LPG only:
Battery charger fuse
Triggers if the AC voltage overloads. Fuse
needs to be replaced if it has triggered.
No. in
fig. 3,
page 4
Description
1 Display Shows the status reports.
2 On/Off switch PSwitches the remote control on and off if the
main switch is at “I” or “1”.
Stops the generator.
3 START button Starts the generator if the remote control is
switched on and the main switch is at “I” or
“1”.
4TEC29 only:
Petrol gauge
Lights up if the petrol goes into reserve.
5 Oil gauge Lights up if the oil level is too low in the
engine.
TEC29-B-16s.book Seite 16 Donnerstag, 21. Juli 2016 8:09 08

EN
TEC29, TEC29LPG Operating the generator
17
Displays
8 Operating the generator
A
I
8.1 Basic notes on operation
!
Please note the following basic information:
•Always check the oil level before use (chapter “Checking the oil level” on
page 21).
•TEC29LPG only: Check there are no leaks from the gas supply using a leak
detection spray before every use.
•Even small overloads in the long-run will cause the cut-out switch (TEC29) or the
fuses (TEC29LPG) to trigger.
No. in
fig. 3,
page 4
Description
6 AC supply Actual voltage output
7 Constant output Current capacity of connected consumer
8 Operating hours Time the generator is in operation
9 DC voltage Battery voltage
10 Messages Status reports of the generator (see chapter
“Display messages” on page 19)
NOTICE!
Do not run the generator over 70 % of the maximum constant output for
the first 50 operating hours (run-in phase).
NOTE
Run the generator at a maximum of approx. 75 % of the maximum con-
tinuous load after the run-in phase.
By doing this you can prolong the service life of the generator and max-
imise its efficiency.
CAUTION! Beware of injury
Do not insert your fingers or objects into the air nozzles or the intake
grille.
TEC29-B-16s.book Seite 17 Donnerstag, 21. Juli 2016 8:09 08

EN
Operating the generator TEC29, TEC29LPG
18
•Leave the generator running for a few minutes after use without any consumers
before stopping it.
•Abrupt braking, accelerating and driving round bends in the vehicle can cause
problems in the generator's pump system and lead to unwanted shutdown.
•If you are not using your generator for a longer period of time, start it up at least
every 30 days and leave it running for 15 minutes or more.
8.2 Switching the generator to standby or no function
The generator can be switched to standby or no function with the main switch
(fig. 21, page 4) in the control panel.
8.3 Switching the remote control on and off
This switch on the remote control (fig. 32, page 4) is for switching the remote con-
trol on and off.
➤Switch the remote control on with the on/off switch.
✓The display shows: GEN OFF.
The display switches off automatically after 5 minutes if the start button is not
touched within this time.
Press the start button to switch on the display again.
✓The generator can now be started.
8.4 Starting the generator
The generator can only be started if it is in standby and the remote control is switched
on.
I
➤Start up the generator with the start button (fig. 33, page 4).
NOTE
If the generator is still warm, press the start button briefly to start it; press
longer for a cold generator.
TEC29-B-16s.book Seite 18 Donnerstag, 21. Juli 2016 8:09 08

EN
TEC29, TEC29LPG Operating the generator
19
8.5 Stopping the generator
➤Stop the generator with the on/off switch (fig. 32, page 4).
If the generator does not stop: switch it off with the main switch (fig. 21,
page 4).
8.6 Display messages
Display message
Description Generator behaviour Measures
LOW BATTERY
The battery voltage has fallen
below the minimum value for
starting up (9V).
The generator does not start. Charge the battery.
OIL CHANGE
The number of prescribed oper-
ating hours has been reached for
changing the engine oil.
The generator continues to run. Change the oil (see chapter
“Changing the oil (fig. 6,
page 6)” on page 26), then
restart the generator by pressing
and holding down the start but-
ton.
NO FUEL
The fuel in the tank is in reserve.
The generator continues to run. Refuel.
OIL ALERT
Insufficient engine oil.
The generator stops. Fill up with oil (see chapter
“Checking the oil level” on
page 21).
GENERATOR ALERT!
General alarm message
Example: The control ring on the
throttle valve of the carburettor
(stepper motor) is faulty.
The generator stops. Check the system by referring to
the troubleshooting table.
If the problem persists, contact
the manufacturer's branch office
in your country (addresses on the
back page).
OVERLOAD!
The consumers generate an
overload at the output.
The inverter switches off, there-
fore no voltage is supplied but
the engine carries on running
until it goes off.
Reduce the connected load and
start the generator again.
SHORT CIRCUIT
The consumers cause a short cir-
cuit at the output.
The inverter switches off, there-
fore no voltage is supplied but
the engine carries on running
until it goes off.
Check the connected consum-
ers then start the generator
again.
TEC29-B-16s.book Seite 19 Donnerstag, 21. Juli 2016 8:09 08

EN
Operating the generator TEC29, TEC29LPG
20
OVER TEMPERATURE
Overheating
The inverter switches off so no
voltage is supplied to cool the
generator, but the engine car-
ries on running.
Leave the engine to cool down
for a few minutes then start the
generator again.
LOW POWER ENGINE
The inverter supply voltage has
dropped.
The generator stops. Reduce the connected load and
start the generator again.
RESTART GEN?
Message appears after the gen-
erator has stopped due to over-
heating.
The generator is switched off. Press the start button to restart
the generator.
GEN CAL
Message appears when the gen-
erator is started up; it shows the
calibration phase which takes
place before each start-up. The
generator does not supply any
voltage.
The generator is running but
does not supply any voltage.
Wait a moment.
GEN WAIT
Message appears while you are
waiting for the generator to start
again.
The generator is switched off. Wait until the message has disap-
peared then attempt ignition
again.
GEN ON
The generator is operating nor-
mally.
Normal mode –
GEN OFF The generator is in stand-by and
can be started.
–
AUTO?
Message appears when the
automatic mode is switched on.
Controls are waiting for user
input
Press the start button within
20 seconds and hold down for
3seconds.
AUTO
Automatic mode
The automatic mode is switched
on
–
Display message
Description Generator behaviour Measures
TEC29-B-16s.book Seite 20 Donnerstag, 21. Juli 2016 8:09 08
