Dometic ProSafe MD283 User manual

MD283, MD363, MD383,
MD408, MD493
Electronic safe for hotels
Installation and Operating Manual. . . . . . . .5
Elektronischer Hotelsafe
Montage- und Bedienungsanleitung . . . . .33
Coffre-fort électronique pour hôtels
Instructions de montage
et de service . . . . . . . . . . . . . . . . . . . . . . . . . 61
Caja fuerte electrónica para hoteles
Instrucciones de montaje y de uso . . . . . . .89
Cofre eletrónico para hotéis
Instruções de montagem e manual de
instruções . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Cassaforte elettronica per hotel
Istruzioni di montaggio e d’uso . . . . . . . .145
Elektronische kluis voor hotels
Montagehandleiding en
gebruiksaanwijzing . . . . . . . . . . . . . . . . . . 173
Elektronisk safe til hoteller
Monterings- og betjeningsvejledning . . .201
Elektroniskt kassaskåp för hotell
Monterings- och bruksanvisning . . . . . . .229
Elektronisk safe for hoteller
Monterings- og bruksanvisning. . . . . . . . 257
Elektroninen tallelokero
hotellikäyttöön
Asennus- ja käyttöohje . . . . . . . . . . . . . . . 285
Электронные сейфы для отелей
Инструкция по монтажу и эксплуатации 313
Elektroniczny sejf dla hoteli
Instrukcja montażu i obsługi. . . . . . . . . . . 341
Elektronický trezor pre hotely
Návod na montáž a uvedenie
do prevádzky. . . . . . . . . . . . . . . . . . . . . . . 369
Elektronický trezor pro hotel
Návod k montáži a obsluze . . . . . . . . . . . 397
Elektronikus hotelszéfek
Szerelési és használati útmutató . . . . . . . 425
EN
DE
FR
ES
PT
IT
NL
DA
SV
NO
FI
RU
PL
SK
CS
HU
SAFETY SOLUTIONS
PROSAFE
MD-IO-16s.book Seite 1 Freitag, 4. August 2017 9:25 09

proSafe
3
1234
CLOSE ENTER
PIN 4X
PIN 4X + CLOSE
1
2
3
4
5
6
7
1
Ø 10
L1L1 L2
H
H
2
Ø10
Ø4,2
L4L4 L3
L1L2L1
P
P
3
MD-IO-16s.book Seite 3 Freitag, 4. August 2017 9:25 09

proSafe
4
CLOSE ENTER
PIN 4X
PIN 4X + CLOSE
4
3
2
1
5
2
1
3
6
MD-IO-16s.book Seite 4 Freitag, 4. August 2017 9:25 09

EN
proSafe
5
Please read this instruction manual carefully before installation and first
use, and store it in a safe place. If you pass on the product to another
person, hand over this instruction manual along with it.
Table of contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
7 Installing safe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
8 Using the safe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
9 Replacing the batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
10 Display messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
11 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
12 Maintaining and cleaning the safe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
13 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
14 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
15 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
MD-IO-16s.book Seite 5 Freitag, 4. August 2017 9:25 09

EN
Explanation of symbols proSafe
6
1 Explanation of symbols
!
!
A
I
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
•Damage to the product resulting from mechanical influences
•Alterations to the product without express permission from the manufacturer
•Use for purposes other than those described in the operating manual
!WARNING!
•This device can be used by childrenaged 8 years or over, as well as by
persons with diminished physical, sensory or mental capacities or a
lack of experience and knowledge, providing they are supervised, or
have been taught how to use the device safely and are aware of the
resulting risks.
•Only use the product as intended.
•Do not make any modifications or alterations to the product.
ANOTICE!
•No unauthorised persons should have access to the master key and
the master code. Store the master key very carefully in a safe location.
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
MD-IO-16s.book Seite 6 Freitag, 4. August 2017 9:25 09

EN
proSafe Scope of delivery
7
3Scopeofdelivery
•Safe
•Knob key (delivered separately)
•Master key (delivered separately)
•Installation and operating manual (on request)
I
4Accessories
Available as accessories (not included in the scope of delivery):
5 Intended use
Dometic proSafe is a hotel safe in which guests can securely lock away their
valuables.
NOTE
Knob key and master key will be delivered separately.
Description Ref. no.
Fixing kit 9106601492
MD-IO-16s.book Seite 7 Freitag, 4. August 2017 9:25 09

EN
Technical description proSafe
8
6 Technical description
The control panel has a display and a key pad for entering the code. A master key and
a master code are available for opening in an emergency.
The model can be identified from the type plate.
The optional remote emergency opening system (R.E.O.S.) allows functions to be
used such as transmission of the entry code via a website.
As an option the safe can be delivered with a socket fitted on the inside.

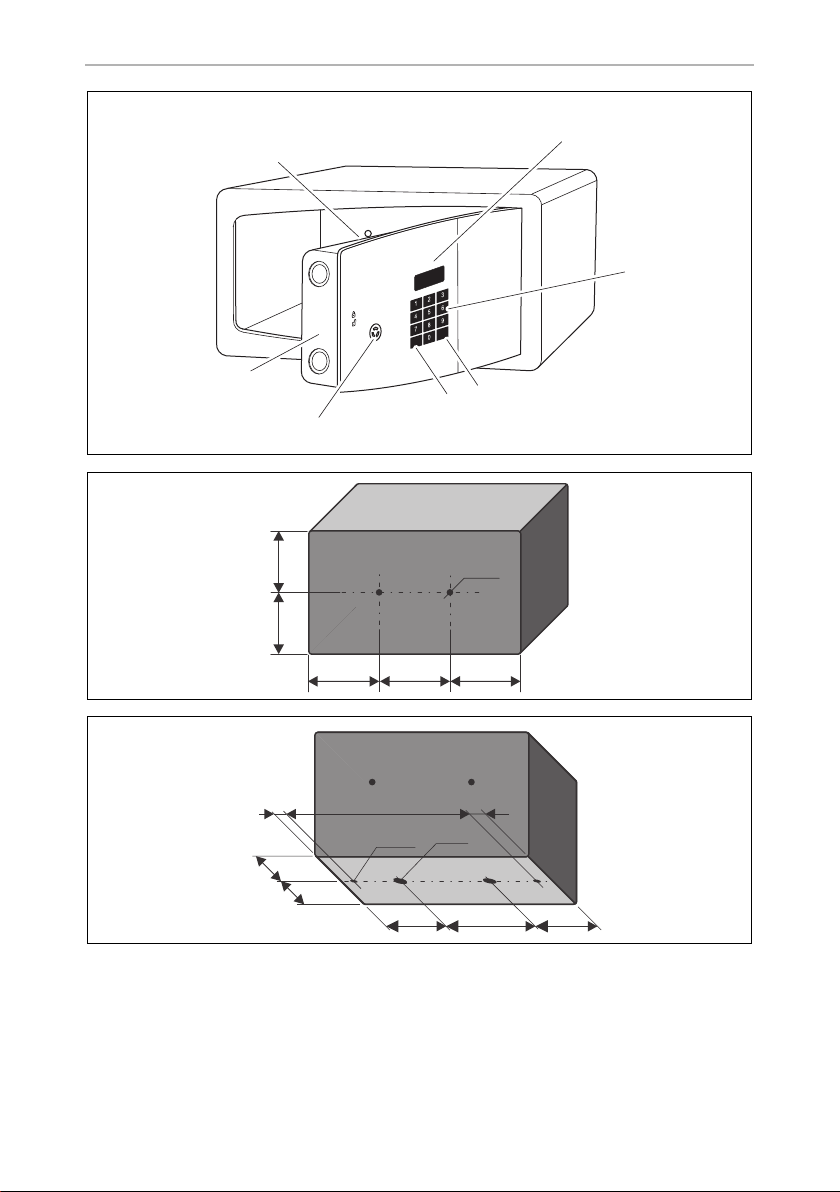

6.1 Control elements
No. in
fig. 1,
page 3
Description
1 Display
2Numberkeys
3ENTER button Confirms the code entered
4CLOSE button •Closes the safe after code is entered
•Cancels the code entered
5 Lock for master key (behind cover)
6 Locking mechanism cover
7 Socket (optional) (hidden)
MD-IO-16s.book Seite 8 Freitag, 4. August 2017 9:25 09

EN
proSafe Installing safe
9
7 Installing safe
7.1 Notes on installation
A
Follow the instructions when installing.
•Carefully check the safe for damage once you have removed it from the
packaging. If there is visible damage, contact the manufacturer (see back for
addresses).
•Install the safe on a flat and even surface.
•Select a location for installation which is a sufficient distance from heat sources
(e.g. radiators). Avoid installing in locations with temperatures of under 0 °C and
over 45 °C.
•Avoid damp ambient conditions (e.g in the bathroom and swimming pool) in
order to avoid condensation forming in the device.
•Select a fastening material (screws with plugs, if necessary) which is appropriate
for the base.
•For safes with sockets (optional), ensure that they are located close to a socket to
which the safe can be attached.
•For safes with sockets (optional) there must be a clearance of 20 mm at the back
for the connection cable.
NOTICE!
The safe must only be installed by qualified specialists.
MD-IO-16s.book Seite 9 Freitag, 4. August 2017 9:25 09

EN
Installing safe proSafe
10
7.2 Attaching the safe
➤Select a suitable installation location.
➤Select an appropriate method for installation (attachment on the rear or on the
underside).
➤Mark the drill holes according to the table below:
Drilling on the rear (fig. 2, page 3)
Drilling on the underside (fig. 3, page 3)
➤Pre-drill the hole in the mounting location (e.g. in the wall or cupboard).
➤Attach the safe with a suitable fastening material.
➤Only for safes with an optional interior socket: Plug the connection cable into the
socket.
Model MD283 MD363 MD383 MD408 MD493
H 82.5 mm 95 mm 95 mm 95 mm 94 mm
L1 35 mm 75 mm 85 mm 97.5 mm 140 mm
L2 210 mm 210 mm 210 mm 210 mm 210 mm
Model MD283 MD363 MD383 MD408 MD493
L1 35 mm 75 mm 85 mm 97.5 mm 140 mm
L2 210 mm 210 mm 210 mm 210 mm 210 mm
L3–––378mm463mm
L4 – – – 13.5 mm 13.5 mm
P 117.5 mm 205 mm 225 mm 175 mm 185 mm
MD-IO-16s.book Seite 10 Freitag, 4. August 2017 9:25 09

EN
proSafe Using the safe
11
8 Using the safe
8.1 Operating functions for guests

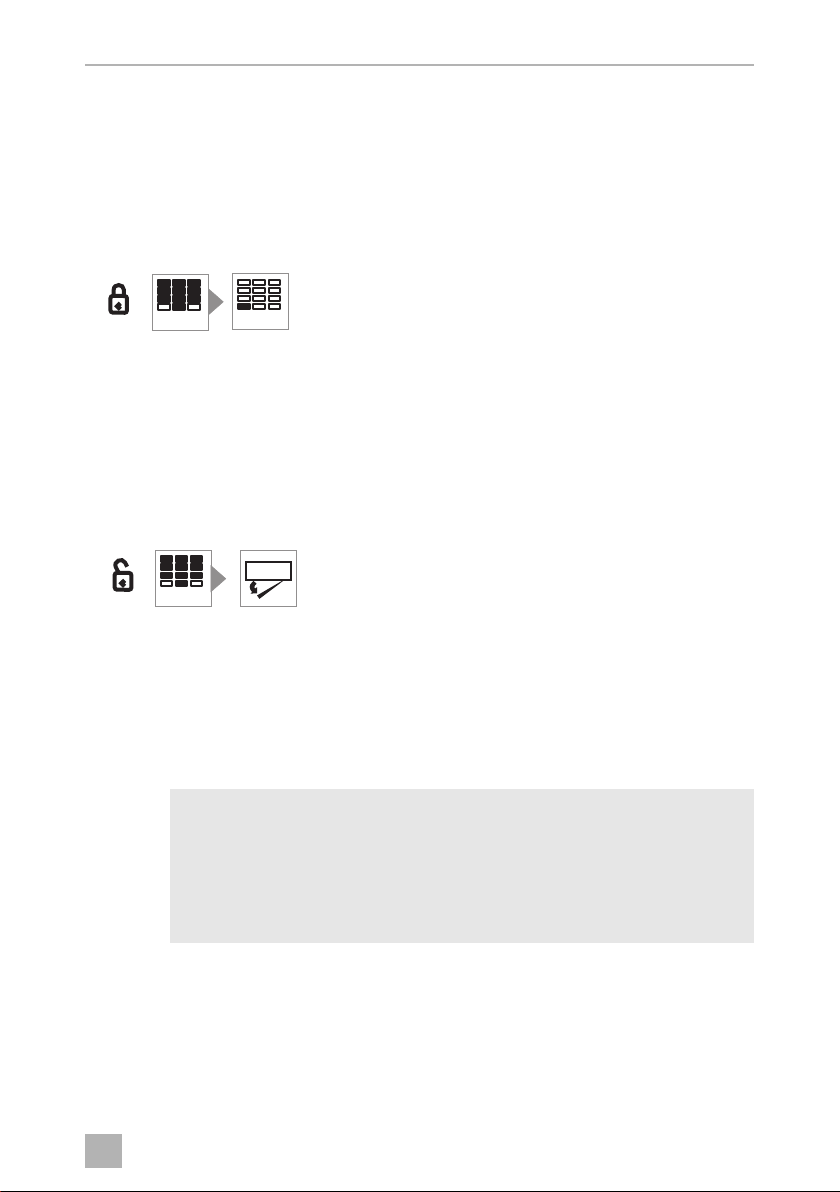

Closing the safe
➤Enter a four digit code.
➤Press the CLOSE button.
✓CLOSED appears on the display.
Opening the safe
➤Enter the correct four digit code.
✓The code entered is shown in the display.
✓The safe will open.
✓OPEN appears on the display.
INOTE
If an incorrect code is entered, the message ERROR appears on the dis-
play.
After five incorrect attempts, the safe will remain blocked for six minutes
and no further entries are possible. As soon as a button is pressed, the
message ERROR5 appears on the display.
PIN 4X CLOSE
PIN 4X
MD-IO-16s.book Seite 11 Freitag, 4. August 2017 9:25 09

EN
Using the safe proSafe
12
8.2 Emergency opening using master code
The master code is necessary if guests have left the safe locked or have forgotten
their code.
Opening safe with the master code
➤Press the ENTER button twice.
➤Enter the correct six digit master code.
➤Press the ENTER button.
✓The display shows the message DELAY.The door opens automatically after ten
seconds.
Changing the master code
A
You can change the factory-set master code (210104). The safe must be locked for
this.
NOTICE!
•If you forget your master code, nobody can access the safe any
more (not even the manufacturer). No resetting, or similar action, is
possible.
•Therefore note down the master code and store it very carefully in a
safe location.
•The safe has a factory-set master code. Change this code for security
reasons.
ENTERENTER PIN 6X ENTER
DELAY
CURRENT
PIN 6X
ENTER
NEW
PIN 6X
ENTER
ENTER
NEW
PIN 6X
ENTER
ENTER
REPEAT
ENTER2X
MD-IO-16s.book Seite 12 Freitag, 4. August 2017 9:25 09

EN
proSafe Using the safe
13
➤Press the ENTER button twice.
➤Enter the correct six digit master code.
➤Press the ENTER button.
✓The display shows the message DELAY.
➤Press the ENTER button.
➤Enter a new six digit master code within ten seconds.
➤Press the ENTER button.
✓The display shows the message REPEAT.
➤Press the ENTER button.
➤Repeat the entry of the new six digit master code within ten seconds.
➤Press the ENTER button again.
✓The safe confirms the change of the master code with an audio tone.
MD-IO-16s.book Seite 13 Freitag, 4. August 2017 9:25 09

EN
Using the safe proSafe
14
8.3 Emergency opening using R.E.O.S. (optional)
I
The remote emergency opening system (R.E.O.S.) gives a new four digit code in
case that the guest has forgotten the code used to close the safe.
Open the safe with R.E.O.S. code
➤Press the ENTER button twice.
➤Enter the six digit R.E.O.S. code.
I
➤Press the ENTER button.

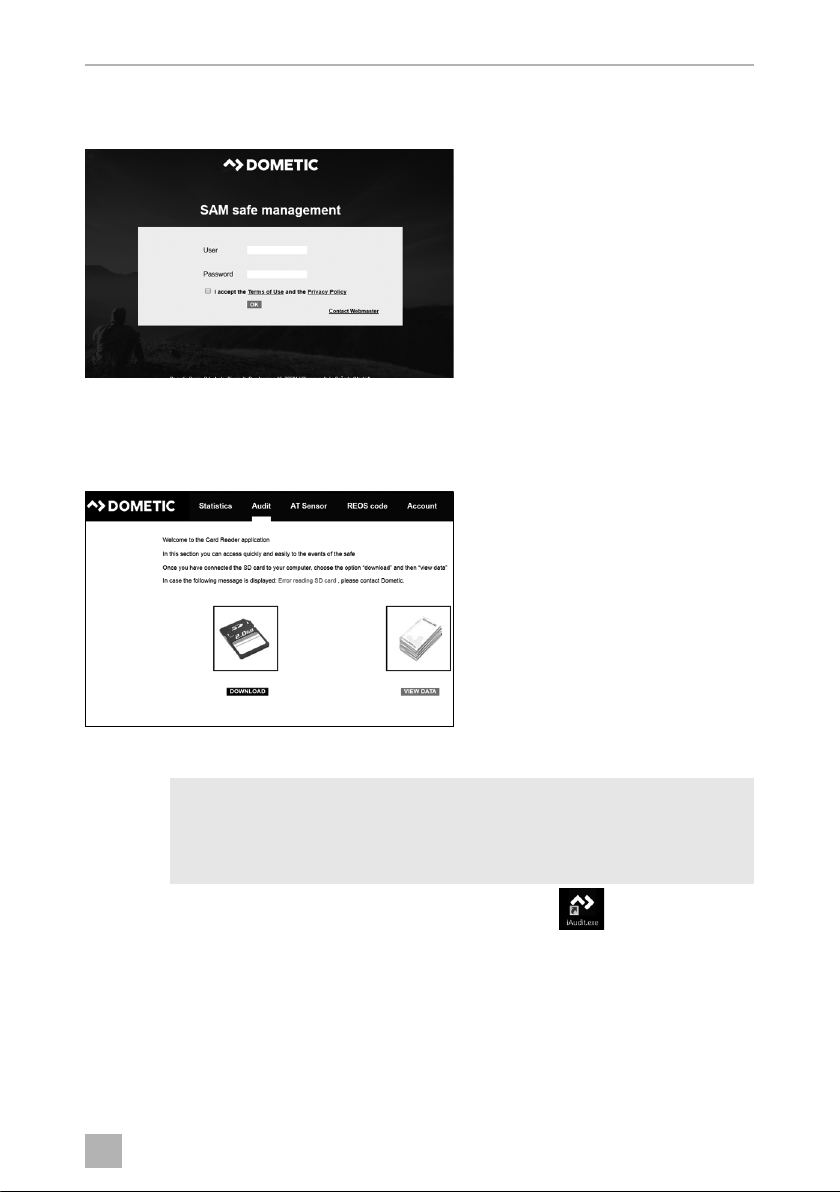

✓After five seconds, a ten digit alphanumeric code will be shown on the display.
I
NOTE
•You need access to the Internet to use R.E.O.S.
•You must be registered on the internet at
www.sam.dometic.com to be able to use the functions available
there.
•The safe must be preconfigured accordingly to be able to use the
R.E.O.S. function. Please contact the manufacturer if you have any
questions (see back for addresses).
NOTE
You can change the factory-set R.E.O.S. code (210104) (see chapter
“Changing R.E.O.S. code” on page 16).
NOTE
The alphanumeric code will be shown in two parts.
Example: 52115 – Ab271.

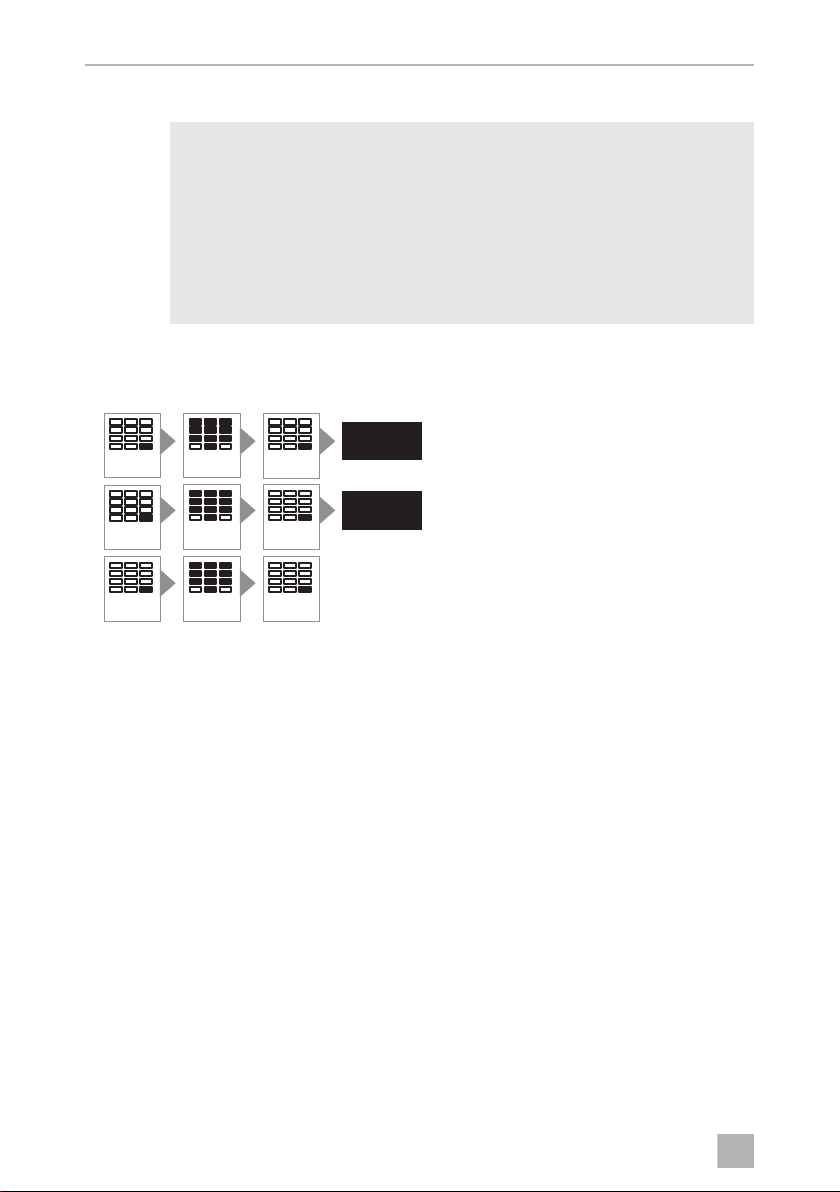

ENTERENTER PIN 6X ENTER
MD-IO-16s.book Seite 14 Freitag, 4. August 2017 9:25 09

EN
proSafe Using the safe
15
➤Go to the www.sam.dometic.com page on the internet.
➤Enter your login data.
➤Select R.E.O.S. code from the menu.
➤Enter the number of the safe (e.g. room number) and the ten digit alphanumeric
code.
➤Click Get code.
✓A new code will be displayed for one minute.
➤Enter the generated four digit code to open the safe.
MD-IO-16s.book Seite 15 Freitag, 4. August 2017 9:25 09

EN
Using the safe proSafe
16
Changing R.E.O.S. code
A
You can change the factory-set R.E.O.S. code (210104). The safe must be locked for
this.
➤Press the ENTER button twice.
➤Enter the six digit R.E.O.S. code.
➤Press the ENTER button.
✓The display shows the message DELAY.
➤Press the ENTER button.
➤Enter a new six digit R.E.O.S. code within ten seconds.
➤Press the ENTER button.
✓The display shows the message REPEAT.
NOTICE!
•If you forget your R.E.O.S. code, nobody can access the safe any
more (not even the manufacturer). No resetting, or similar action, is
possible.
•Therefore note down the R.E.O.S. code and store it very carefully in
a safe location.
•The safe has a factory-set R.E.O.S.code. Change this code for secu-
rity reasons.
CURRENT
PIN 6X
ENTER
NEW
PIN 6X
ENTER
ENTER
NEW
PIN 6X
ENTER
ENTER
ENTER2X
DELAY
REPEAT
MD-IO-16s.book Seite 16 Freitag, 4. August 2017 9:25 09

EN
proSafe Using the safe
17
➤Press the ENTER button.
➤Repeat the entry of the new six digit R.E.O.S. code within ten seconds.
➤Press the ENTER button again.
✓The safe confirms the change of the R.E.O.S. code with an audio tone.
8.4 Emergency opening with the master key
A
Opening the safe with the master key
The safe can be opened in all eventualities with the master key, even in the event of
an electronic fault.
➤Remove the plastic cover which covers the key hole with the knob key.
➤Put the master key into the key hole (fig. 4, page 4).
➤Open the safe by turning the master key 180° to the right.
✓The bolts extend mechanically.
Change guest code with the master key
The safe can be opened with the master key in case that the guest forgot his code.
➤Open the safe with the master key.
➤Keep the master key in this position and open the door.
➤Enter a new four digit code.
➤Turn the master key 180° to the left and remove the master key.
✓The safe can be opened with the new code.
NOTICE!
No unauthorised persons should have access to the master key.
Store the master key very carefully in a safe location.
MD-IO-16s.book Seite 17 Freitag, 4. August 2017 9:25 09

EN
Using the safe proSafe
18
8.5 Reading the memory (Audit)
I
The safe has a permanent memory which records the last 1000 events.
Transferring data to an SD card

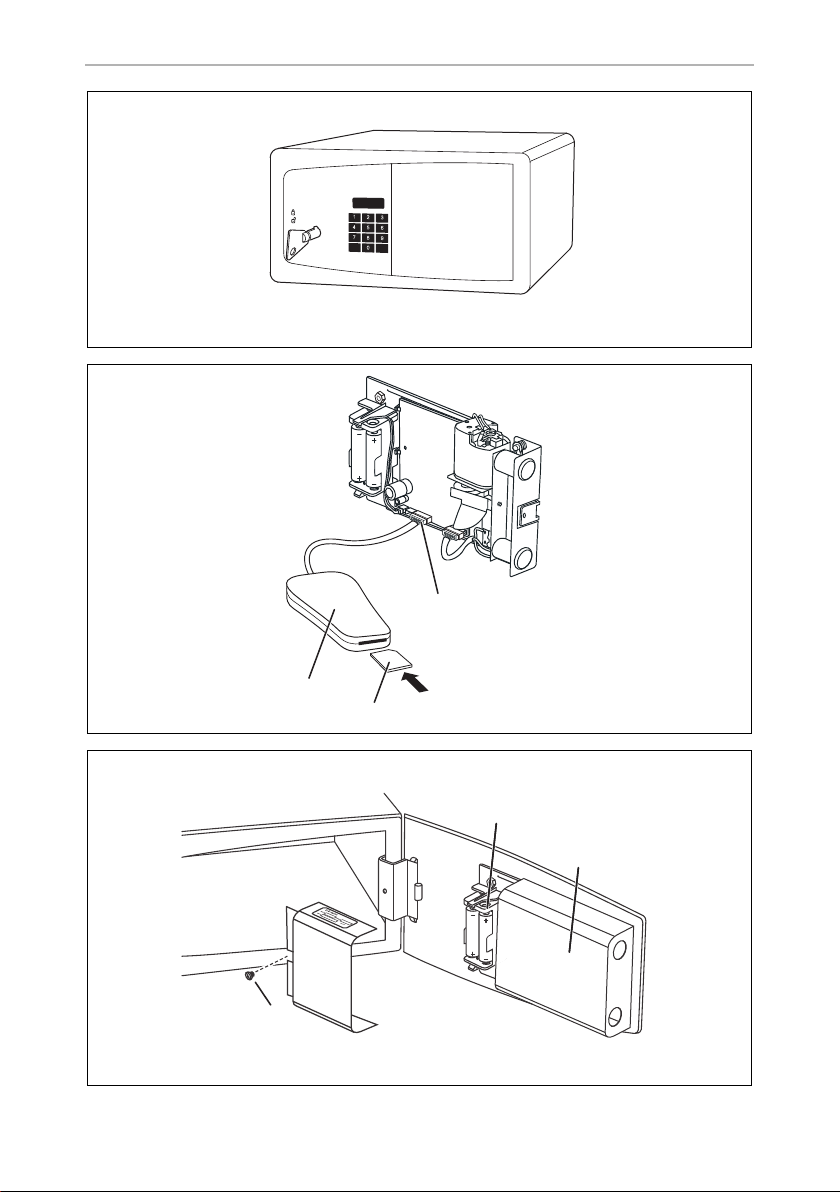

➤Insert an SD card (fig. 51, page 4) into the SD card reader (fig. 52, page 4)
(not included in scope of delivery).
➤Remove the screw on the cover (fig. 61, page 4).
➤Take off the two covers.
➤Connect the SD card reader device to the slot on the circuit board (fig. 53,
page 4).
➤Press the ENTER button twice.
➤Enter the code: 0141497167
➤Press the ENTER button.
✓The display shows the message DATE.
➤Enter the date in the format dd/mm/yy.
✓The display shows the message HOUR.
➤Enter the time in the format hh/mm.
✓The display shows the message ROOM.
➤Enter the lock number (e.g room number).
➤Press the ENTER button.
✓The transfer of data to the SD card begins.
✓The data transfer is complete when the display goes out and three acoustic
signals sound.
NOTE
•You require access to the Internet to use the audit function.
•You must be registered on the internet at
www.sam.dometic.com.
MD-IO-16s.book Seite 18 Freitag, 4. August 2017 9:25 09

EN
proSafe Using the safe
19
Reading data on the computer
➤Go to the www.sam.dometic.com page on the internet.
➤Enter your login data.
➤Select AUDIT from the menu.
➤Click DOWNLOAD.
➤Follow the program instructions.
I
➤Run the “iAudit.exe” file by double-clicking on the icon .
NOTE
The installation wizard starts automatically. The executable file
“iAudit.exe” is saved on your computer. After the installation is
completed, a link is generated on your desktop.
MD-IO-16s.book Seite 19 Freitag, 4. August 2017 9:25 09

EN
Using the safe proSafe
20

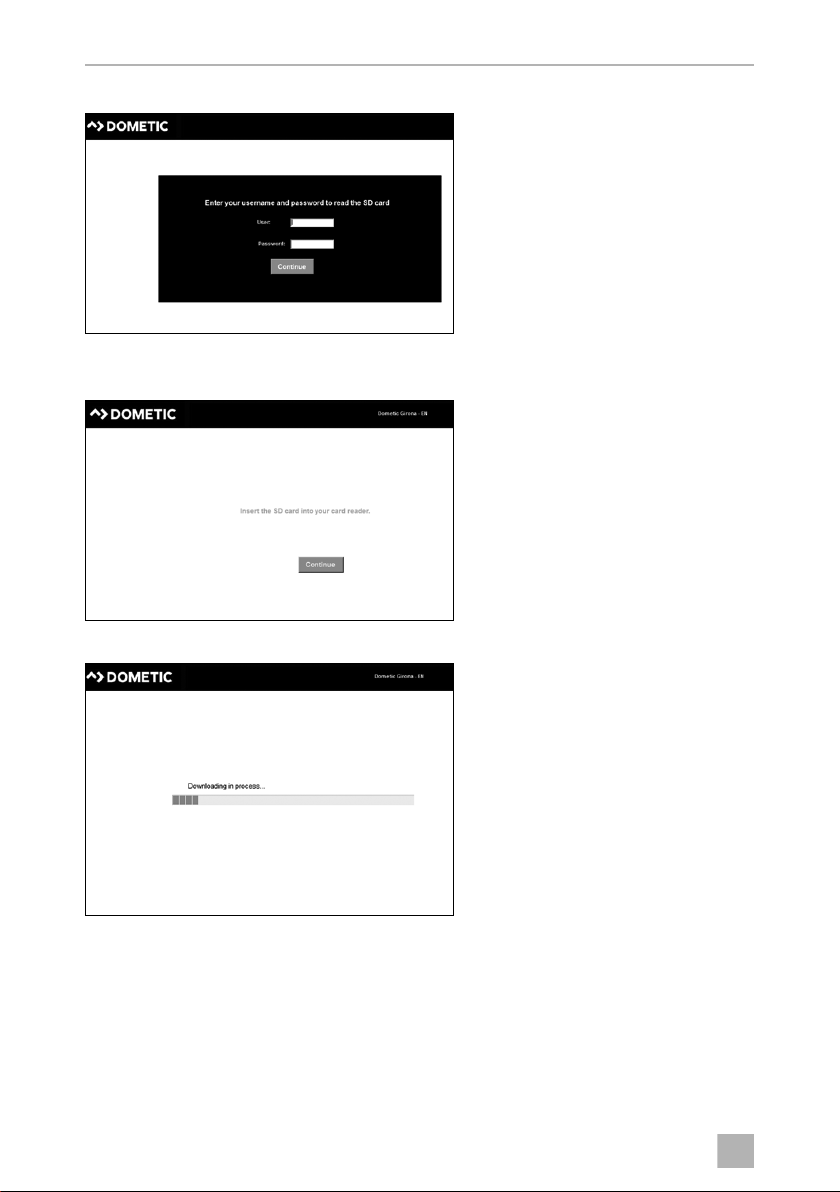

➤Enter your login data and click on CONTINUE.
➤Insert the SD card into the SD card reader slot on your computer and click on
CONTINUE.
✓The transfer of data to the internet begins.
MD-IO-16s.book Seite 20 Freitag, 4. August 2017 9:25 09

EN
proSafe Using the safe
21

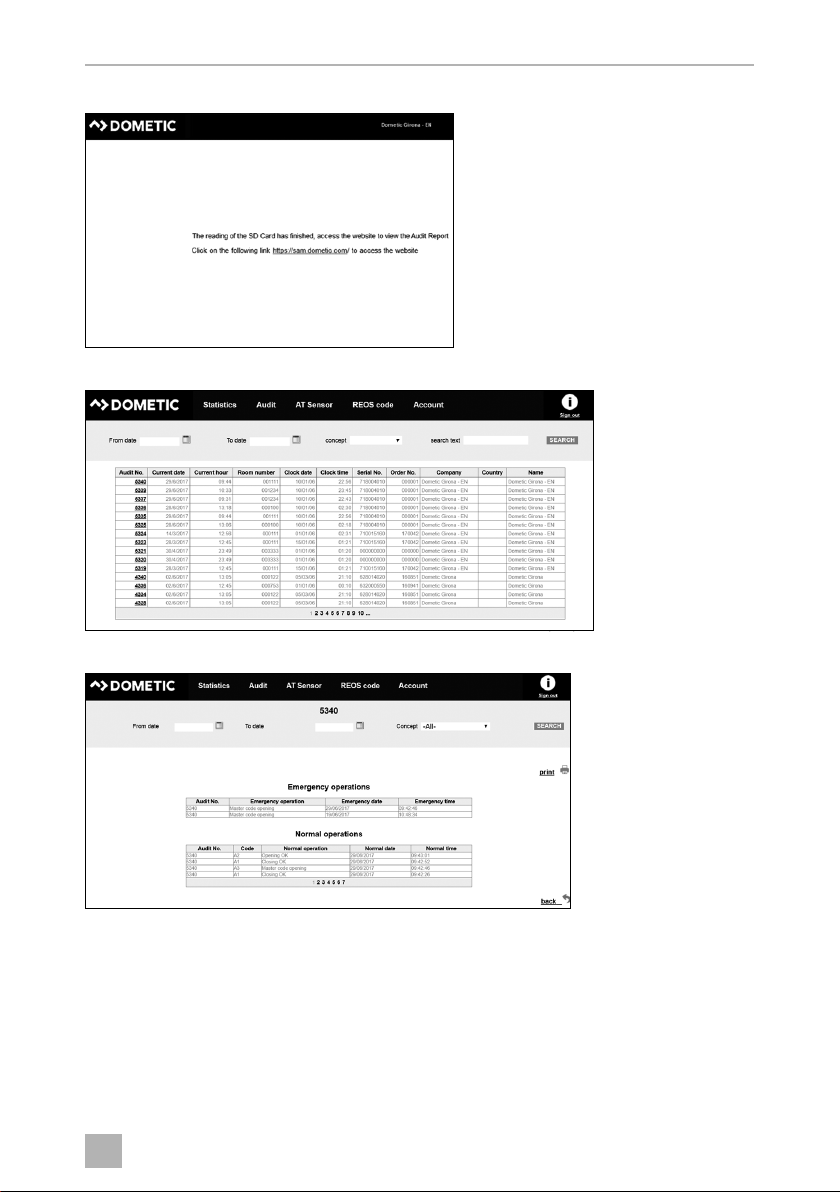

➤Click the link.
✓The stored reports are displayed.
➤Click the requested line to generate a print view for each audit report.
MD-IO-16s.book Seite 21 Freitag, 4. August 2017 9:25 09
