Doro PHONEEASY 410GSM User manual

PhoneEasy
410gsm

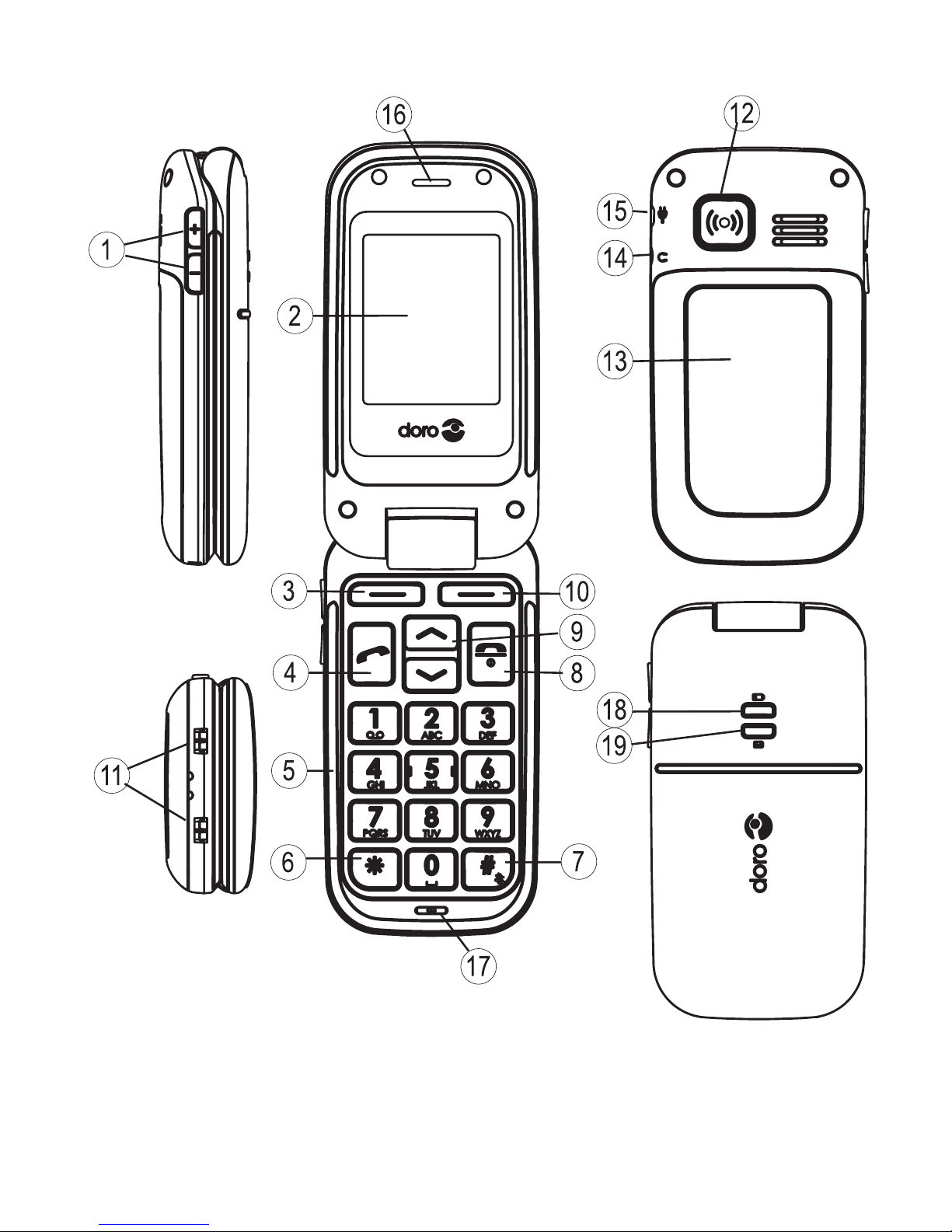

Side key (volume)
Display
Left soft key
Call key
Numeric keypad
*
# / Change prole
End call/Power on/off
Arrow keys
Right soft key
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Charging contacts, for use
with charging stand (not
included)
Emergency call key
Battery cover
Headset socket
Charging socket
Loudspeaker
Microphone
Led light (Battery level low)
Led light (New message)
11.
12.
13.
14.
15.
16.
17.
18.
19.
English

Disclaimer and limitation of liability
Doro AB and its afliates, licensees and retailers assume no responsibility for any
damage or loss resulting from the use of this guide. Doro AB and its afliates,
licensees and retailers assume no responsibility for any loss or claims by third parties
that may arise through the use of this software. Doro AB and its afliates, licensees
and retailers assume no responsibility for any damage or loss caused by deletion of
data as a result of malfunction, dead battery, or repairs. Be sure to make backup
copies of all important data on other media to protect against data loss.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, UNDER NO
CIRCUMSTANCES SHALL DORO AB OR ANY OF ITS AFFILIATES, LICENSEES
AND RETAILERS BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME
OR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES
HOWSOEVER CAUSED. THE CONTENTS OF THIS DOCUMENT ARE PROVIDED
“AS IS.” EXCEPT AS REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF ANY
KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY, OR
CONTENTS OF THIS DOCUMENT. DORO AB RESERVES THE RIGHT TO REVISE
THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE.
FCC Notice
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Doro has not approved any changes or modications to this device by the user. Any
changes or modications could void the user’s authority to operate the equipment.
© 2009 Doro AB. All rights reserved.
•
•
•
•

1
English
Contents
Installation .................................... 3
Installing the SIM card and battery .................. 3
Charging .................................... 4
Phoneindicators............................... 4
Operation...................................... 5
Activatingthephone............................ 5
Makingacall................................. 6
Making a call from the Phonebook .................. 6
Receivingacall ............................... 6
Volumecontrol................................ 6
Displaysymbols................................. 7
Additionalfunctions.............................. 8
Calloptions .................................. 8
Callwaiting .................................. 9
Callinformation ............................... 9
Calllog ..................................... 9
Phonebook .................................. 10
Silentmode................................. 12
Headset.................................... 12
SOScalls................................... 13
EmergencyCallkey............................ 13
Alarm...................................... 14
Games..................................... 14
Calendar ................................... 15
Calculator................................... 15
FMradio ................................... 16
Textinput................................... 18
SMSmessaging................................ 19
Creating and sending SMS . . . . . . . . . . . . . . . . . . . . . . . 19
Incoming SMS (Inbox).......................... 19
Outgoing SMS (Outbox) ......................... 20

2
English
MMSmessaging................................ 22
Creating and sending MMS . . . . . . . . . . . . . . . . . . . . . . 22
Outgoing MMS (Outbox)......................... 24
Incoming MMS (Inbox) ......................... 24
Managing les and folders ......................... 26
Settings...................................... 27
Timeanddate................................ 27
Usersetup.................................. 28
Tone settings (rings & tones) . . . . . . . . . . . . . . . . . . . . . 29
Bluetoothsettings............................. 31
Blockingfunctions ............................ 32
Emergency.................................. 32
Voicemail .................................. 34
Speeddial.................................. 35
Callsetup................................... 35
Messages................................... 37
Networksetup ............................... 39
Services.................................... 40
Securitysettings.............................. 40
Safetyinstructions.............................. 41
Troubleshooting ................................ 44
Careandmaintenance ........................... 46
Warranty and technical data . . . . . . . . . . . . . . . . . . . . . . . 47

3
English
Installation
Warning!
Turn off the phone and disconnect the charger before
removing the battery cover.
Installing the SIM card and battery
The SIM card holder is located behind the battery.
Remove the battery cover by pressing it carefully down and
sliding away from the emergency call key.
Remove the battery if it is already installed.
Press lightly on the cardholder and carefully slide it towards
the emergency call key.
The SIM card holder can now be folded into an upright position.
Placing the SIM-card on the marked area of the
compartment. Make sure that the SIM card’s contacts are
facing downwards and that the cut-off corner is placed
accordingly with the marked area. See picture. Take care not
to scratch or bend the contacts on the SIM card.
Fold the SIM-card holder down and carefully slid it away from
the emergency call key until it “clicks” into place.
Insert the battery by sliding it into the battery compartment
with the contacts facing towards the emergency call key.
Replace the battery cover until it “clicks” into place.
1.
2.
3.
4.
5.
6.
7.
8.

4
English
Charging
Warning!
Only use batteries, charger and accessories that have been
approved for use with this particular model. Connecting
other accessories may be dangerous and may invalidate the
phone’s type approval and guarantee.
When the battery is running low, is displayed and a warning
signal is heard. To charge the battery, connect the mains adapter
to the wall socket and to the charging socket y.
is displayed briey when the charger is connected to the
phone, and when it is disconnected.
The battery charge indicator will be animated while charging.
It takes approximately 3 hours to fully charge the battery.
is displayed when charging is completed.
Note!
Full battery capacity will not be reached until the battery has
been charged 3–4 times.
The ambient temperature must be in the range 32°–104°F
when charging.
Batteries degrade over time, which means that call time and
standby time will normally decrease with regular use.
Phone indicators
When 5 ash you have a new message or a missed call.
When ] ash the battery is running low.

5
English
Operation
Activating the phone
Press and hold the red button on the phone to turn it on/off.
The following messages may be displayed:
SIM card missing or
incorrectly inserted.
SIM card damaged or not
valid.
If the SIM card is valid but protected with a PIN code (Personal
Identication Number), PIN: is displayed. Enter the PIN code
and press OK. Delete with Clear.
Note!
If PIN and PUK codes were not provided with your SIM card,
please contact your network operator.
Trials: # shows the number of PIN attempts left. When no
more attempts remain, SIM blocked is displayed. The SIM
card must now be unlocked with the PUK code (Personal
Unblocking Key).
OK.
OK.
Changing the language, time and date
On rst use, the phone language, time and date must be set. The
default language is determined by the SIM card. See Settings on
how to change language, time and date.
If the operator supports automatic time/date setting, you
might get a question upon installation if you want to update
to the suggested time. Press Yes to accept or No to reject the
suggested time.

6
English
Making a call
Enter the phone number. Delete with Clear.
Press qto dial. Press Abort to cancel dialing.
Press Lto end the call.
Note!
When making international calls, press *twice for the
     
code (instead of 00 or similar) for best operation.
Making a call from the Phonebook
Press Name to open the phonebook.
Use the arrow keys /to scroll through the
phonebook, or quick search by pressing the key corresponding
to the rst letter of the entry, see .
Press Call to dial the selected entry, or press Back to return
to standby mode.
Receiving a call
Press qto answer, or press Silent to switch off the ring
signal and then Reject to reject the call (busy signal).
Alternatively, press L to reject the call directly.
Press Lto end the call.
See also Call options.
Volume control
Use the side keys +/– to adjust the sound volume during a call.
The volume level is indicated on the display.
1.
2.
3.
1.
2.
3.
1.
2.

7
English
Display symbols
Signal strength Headset connected
Ring only Bluetooth on
Ring + vibration Bluetooth connected
Vibration only Battery level
Alarm active New SMS
Roaming (in other network) New MMS
Silent
SIM card missing Charger connected
SIM card error Charger disconnected
Mute Headset connected
New MMS message Headset disconnected
New SMS message Handsfree on
SOS calls only Handsfree off
OK (conrmed) Warning
Query Error
Battery level low Charging (animated)
Calling Call ended
Incoming call Missed call
Searching Call on-hold
Progressing (animated) Incoming picture

8
English
Additional functions
Call options
During a call the soft keys1give access to additional functions:
Options (left soft key)
A menu with the following options is displayed:
Hold single call Hold the current call
End single call End the current call (same as L)
New call Call another number (three-party call)
Phonebook Search the phonebook
Msg centre Write or read SMS messages. And access File
manager
Mute Disable the microphone (mute)
SPK on (right soft key)
Activates handsfree mode, which allows you to speak without
holding the phone.
Speak clearly into the microphone at a maximum distance of 1
meter (3 feet). Use the side keys +/– to adjust the loudspeaker
volume.
Press SPK off to return to normal mode.
Note!
The handsfree function allows only one person at a time
to talk. Switching between talk/listen is triggered by the
sound of the person talking. Loud noises (music, etc.) in the
background may interfere with the handsfree function.
1 Soft keys have multiple functions. The current key function is shown
above the soft key on the display.

9
English
Call waiting
An alert tone will be heard if there is an incoming call while
talking. To put the current call on hold and answer the incoming
call, press Options.
This service must be activated, see Settings/Call setup.
Call information
During a call, the called or calling phone number and the elapsed
call time is displayed.
If the identity of the caller is withheld, Unknown is displayed.
Call log
Answered, missed, and outgoing calls are saved in a combined
call log. 20 calls of each type can be stored in the log. For
multiple calls related to the same number, only the most recent
call is saved.
Retrieving and dialing
Press q.
Alternatively presspress Menu, scroll to and press OK.
Use the arrow keys /to scroll through the call list.
= Incoming call
= Outgoing call
= Missed call
Press q to dial the number or press Options for the
following settings:
View Show details for the selected call
Delete Delete the call
Delete all Delete all calls in the call log
Save Save the number in the Phonebook
1.
2.
3.

10
English
Phonebook
The phonebook can store 100 entries with 3 phone numbers in
each entry.
Creating a phonebook entry
Press Menu, scroll to and press OK.
Select -New contact- and press Add.
Enter a name for the contact, see . Delete with Clear.
Use /to select Mobile, Home number or Ofce
number, and enter the phone number(s), then press Save.
Press L (repeatedly) to return to standby mode.
Note!

country code (instead of 00 or similar) for best operation.
Managing phonebook entries
Press Menu, scroll to and press OK.
Select an entry and press Options.
Select one of the following options and press OK.
View
Show details for the selected call.
Edit
Use /to move the cursor. Delete with Clear.
Press Save.
Add new
See Creating a phonebook entry.
Call
Press OK to call the contact.
Send SMS
Press OK to write a SMS message, see SMS messaging.
1.
2.
3.
4.
5.
1.
2.
3.
1.
2.

11
English
Send MMS
Press OK to write a MMS message, see MMS messaging.
Top 10 setting
Press OK then Add to set the entry as one of the rst 10
numbers in the phonebook. To delete a Top 10 entry, select the
entry in the Top 10 list and press Options, then Delete.
Delete
Press OK to delete the selected phonebook entry. Press Yes to
conrm or No to abort.
Delete all
Select From SIM or From Phone and press OK to delete all
phonebook entries from the SIM card or phone memory.
Enter the SIM-/phone code and press OK to conrm.
Copy all
Select From SIM and press OK to copy all phonebook entries
from the SIM card to the phone memory. Press Yes to conrm or
No to abort.
Select From Phone and press OK to copy all phonebook entries
from the phone memory to the SIM card. Press Yes to conrm or
No to abort.
Storage
Select SIM or Phone and press OK to select the default storage
for new phonebook entries.

12
English
Send vCard
Select Send by SMS and press OK to send the selected
phonebook entry as a vCard via SMS. Enter the phone number of
the recipient (or press Search) and press OK to send.
Select Send Bluetooth and press OK to send the selected
phonebook entry as a vCard via Bluetooth. See Settings/Bluetooth
on how to connect with Bluetooth.
Silent mode
Silent mode is a xed prole with SMS and ring signals disabled,
while vibration and key tone settings are unchanged. Press and
hold #to activate/deactivate Silent mode.
See also Settings.
Headset
When a headset is connected, the internal microphone in the
phone is automatically disconnected.
When receiving a call you can use the answer key on the headset
cable to answer and end calls.
Warning!
Using a headset at high volume can damage your hearing.
Adjust the sound volume carefully when using a headset.

13
English
SOS calls
When the phone is turned on, the right soft key shows SOS
before the SIM card is activated or if the phone lock is on.
Press SOS and then press Yes to automatically call 112. Press
No to return to the activation screen. If you pressed Yes by
mistake, press Abort immediately to abort.
As long as the phone is switched on, it is always possible to place
an emergency call by entering 112 followed by q.
Most – but not all – networks accept calls to 112 or 911 without a
valid SIM card. Contact your network operator for more information.
Emergency Call key
To make an emergency call, press and hold the Emergency Call
key on the back of the phone for 3 seconds, or press it two times
within 1 second. The phone will send an emergency SMS text
message to all phone numbers in the Emergency numbers list.
The phone will then dial the rst number on the list. If the call
is not answered within 30 seconds, the next number is dialed.
Dialing is repeated 3 times or until the call is answered, or until
Lis pressed.
The Emergency Call function must be activated before use. See
Settings on how to activate this function as described above or
with 3 key presses, how to enter Emergency Numbers, and how to
edit the emergency SMS message.
Note!

this number in the list of numbers to be called automatically.
Some private security companies can accept automatic calls

programming in its number.

14
English
Alarm
Press Menu, scroll to and press OK.
Select On and press OK.
Enter the alarm time using the keypad, then press OK.
For a single occurrence, select Single and press Save.
For a repeated alarm, select Repeated and press OK.
Scroll through the list of weekdays and press On/Off to
enable/disable the alarm for each weekday, then press Save.
To edit an alarm, press Edit, then press OK.
To stop the alarm, press Off. The alarm is now deleted.
Note!
The alarm function will work even when the phone is switched off.
When the alarm goes off a signal will sound.
Press Stop to turn off the alarm or press Snooze to repeat
the alarm after 9 minutes.
Games
Press Menu, scroll to and press OK.
Select a game (e.g. Robot) then press OK for the following
settings:
Start game Press OK to start a new game.
Game level Select difculty level and press OK.
Best grades Shows your best results. Press Back to return to the
menu or Reset to reset the scores.
Help Shows instructions for the game. Press Back to
return to the menu.
1.
2.
3.
4.
5.
6.
7.
1.
2.

15
English
Calendar
Press Menu, scroll to and press OK.
Select Options.
Select one of the following options and press OK.
View tasks
Show tasks for the selected date.
Add task
Enter a date for the task, then press .
Enter a time for the task, then press .
Press Edit, enter a description for the task (see ),
then press Done.
Press Save to save the task.
At the recorded date/time, an alert tone will be played and the
task description will be shown on the display.
Jump to date
Enter the date and press OK.
Note!
The tasks function will work even when the phone is switched off.
Calculator
The Calculator can perform basic math operations.
Press Menu, scroll to and press OK.
Enter the rst number. Use #to enter decimal points.
Use the arrow keys to select an operation (+, -, x, ÷) and
press OK.
Enter the next number and press OK.
Repeat steps 2–4 as necessary.
Select =and press OK to calculate the result.
1.
2.
3.
1.
2.
3.
4.
1.
2.
3.
4.
5.

16
English
FM radio
The FM radio has a frequency range from 87.5 to 108.0 MHz
and 9 preset channels.
Note!
The FM Radio and its settings are only available when a headset
is connected. The headset also works as a radio antenna.
Turning the radio on
Connect the headset to the headset socket .
Press Menu, scroll to and press OK.
The radio is now turned on. The currently tuned frequency is
displayed. Use the side keys +/– to adjust the volume.
Press L to return to standby mode. The radio will
continue to play.
Selecting channels
Press keys 1– 9to quick-select a preset channel while the
radio is playing.
Setting channels manually
Press Menu, scroll to and press OK.
Select channel using or .
When a station has been found, select Options.
Select Save frequency and press OK.
Enter a name for the new channel (See ).
Press Save.
Turning the radio off
Press Menu, scroll to and press OK.
Press Options, and then press Switch off.
Disconnecting the headset will also turn off the radio.
1.
2.
3.
1.
2.
3.
4.
5.
6.
1.
2.
