Draper Paragon Manual

Caution
➀Read instructions through completely before proceeding.
➁Follow instructions carefully. Installation contrary to instructions invali-
dates warranty.
➂Pick up screen case from ends only. Picking case up at other
points will damage case and may damage fabric.
➃Entire bottom of screen case should be unobstructed to permit
access to bottom panel for making electrical connections or servicing.
➄Screen should be installed level (using a carpenter’s level).
➅Operating switch(es) packed separately in screen carton. Do not
discard with packing material.
➆ Screen operates on 220 V AC, 50 Hz., 1ph. current.
NOTE: Screen has been thoroughly inspected and tested at factory and found
to be operating properly prior to shipment.
Mounting Screen
Regardless of mounting method used, the following points apply:
➀ Screen should be lifted into position only by the end mounting brackets.
Draper provides eyebolts to use in hoisting the screen. Keep case
level by lifting end plates simultaneously to prevent surface damage.
Never attempt to lift screen along its length.
➁ Screen should be positively and securely supported so that vibration or
even abusive pulling will not weaken installation.
➂ Installer must insure that fasteners used are of adequate strength and
suitable for the mounting surface chosen. Installer must also insure that
wall or ceiling structure are of adequate strength. Supporting hardware
(chains, cables, rods, etc.) must be essentially vertical.
➃Entire bottom of case must be readily accessible after installation is
complete.
➄ Front, back and top of case must be straight—not forced to warp or bow.
Use threaded rod and support brackets to keep large cases from warping.
➅ Do not use case to support adjacent sections of ceiling.
➆ If optional ceiling flange trim kits are attached, use hardware provided.
➇ If case is painted, slots on bottom of case should be shielded to protect
viewing surface from paint splatters or overspray.
➈ Do not seal unit in ceiling until electrical connections have been made and
screen has been operated successfully.
Electrical Connections
Screen operates on 220 V AC, 50 Hz., 1ph. current.
Junction box is located just above the closure panel, at the motor end of
screen. To properly remove closure panel, two people should follow the steps
on page two of these instructions. The junction box access plate is held
closed with pan head screws and may be opened with a Phillips screwdriver.
Removal of access plate exposes red, black and white pigtail leads and green
internal ground wire per wiring diagram attached.
Screen is shipped with internal wiring complete and control switch(es) fully
boxed. Wire connecting shade to switch(es) and switch(es) to power supply
should be furnished by installer. Connections should be made in accordance
with attached wiring diagram, and wiring should comply with national and
local electrical codes.
All operating switches should be “off” before power is connected.
Installation/Operating Instructions

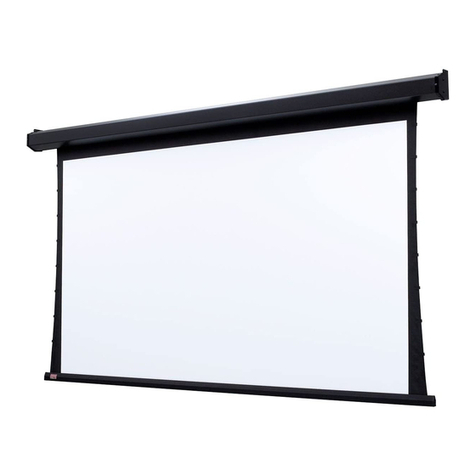

220V Paragon Electric Screen by Draper
Copyright © 2009 Draper Inc. Form Paragon220V_Inst09 Printed in U.S.A.
®
Eyebolts for hoisting screen
(do not lift screen by center of case).
Case support brackets.
Knockouts for electrical connections
(two per end) with plastic plugs
1
/ 2 " (12.7 mm) threaded
rod (for suspending
screen) by others.
3
/ 8 " (9.5 mm) -16 threaded rod
(use for adjusting
deflection in extremely
long units) by others.
8"
337 mm
305 mm
Please see back page for dimensional diagrams of case and op-
tional wall mounting bracket, wiring diagrams and instructions on
removing and replacing the bottom closure.
These Installation/Operating Instructions are available in the official language
of the country where you purchase the product. Please contact your distributor
to request a copy.
Vous pourriez demander les instructions d’installation et d’opération traduises
dans la langue officielle du pays ou vous achetez le produit. Veuillez
demander à votre distributeur.
Die Gebrauchsanweisung für Installation und Konstruktion sind in der
offiziellen Sprache des Landes, indem Sie das Produkt gekauft haben,
vorhanden. Fragen Sie die jeweilige Verkaufs-Abteilung.
Operation
When screen is first operated, be cautious! Cycle unit down and up several
times to confirm satisfactory operation.
220 V AC Single Station Control—3-position up-off-down switch permits
operation to be stopped at any point. Factory adjusted limit switches
automatically stop screen when fully down or fully up.
220 V AC Multiple Station Control (Not CE approved)—Switches are similar
in appearance to 220 V a.c. Single Station Control. Screen stops when switch
is released and may be restarted in either direction. Factory adjusted limit
switches stop screen automatically when fully up or fully down.
24V Control—Three-button up-stop-down switch(es) stop at any point
desired, operate in any sequence. Factory adjusted limit switches
automatically stop screen when fully up or fully down. Installer should
incorporate an all-pole disconnect in the fixed wiring.
Key Operated Switching (Not CE approved)—Two kinds of key-operated
switches are optionally available with this unit. ➀The key-operated power
supply switch controls power to the screen and switches. When it is “off”,
the switches will not operate screen. Key may be removed from the switch in
either “on” or “off” position. ➁A three-position key switch permits the screen
to be operated directly by key. In this case, the screen’s operator must always
have a key.
RS232/Ethernet—Serial communication and network communication
optionally available with wall switches, RF or IR remote.
Adjustments
Screen has been factory set and should not normally require further
adjustment. However, if you desire to change the “up” and “down” stopping
positions, proceed as follows:
CAUTION: Be sure all switches are in “off” position before adjusting limit
switches. Always be prepared to shut screen off manually when new
adjustment is being tested. Screen may be severely damaged if viewing
surface is allowed to run too far up or too far down.
ADJUSTING “FULLY UP” POSITION—Put a small screw driver in the groove
of the yellow button on the motor and press vertically until hearing a "click".
Raise the shade by pressing the "up" switch on unit. Press the "stop" switch
when the screen is at the desired position. Then press the yellow button on
motor until you hear a "click", then release.
ADJUSTING “FULLY DOWN” POSITION—Put a small screw driver in the
groove of the white button on the motor and press vertically until hearing a
"click". Lower the screen by pressing the "down" switch on unit. Press the
"stop" switch when the screen is at the desired position. Then press the white
button on motor until you hear a "click", then release.
AT NO TIME SHOULD SCREEN BE UNROLLED ENOUGH TO EXPOSE
ANY PART OF SCREEN ROLLER.
If you encounter any difficulties installing or servicing your Paragon screen, call your
dealer or Draper, Inc., Spiceland, Indiana, [phone] or fax [phone].

Case Dimensions*
Paragon by Draper Page 2 of 2
Wiring Diagrams
Bottom Closure Removal/Replacement
Step 1
Step 2
Step 3
Step 4 Step 5
Removal and replacement of the bottom closure panel
requires two people positioned about 152 cm from each end
of the panel. Closure should be handled as shown in Step 5
below to prevent bowing of the closure during handling.
Screwand washer
Before removing bottom
closure, you must first remove
screws at each end of case
(see drawing at right).
305 mm
337 mm
127
mm
203 mm
51 mm
35 mm
*
* - Case support brackets provided on screens over 96" wide
will be evenly spaced along the case
83 mm
83 mm
73 mm
25 mm
3
/ 8 " (9.5 mm) dia.
1
/ 2 " (12 mm) dia.
73 mm
73 mm
Optional Wall Mounting Bracket
*Please Note: Optional wall brackets add 4.5 cm per bracket to case
length. Wall mounting bracket hole location is 2.54 cm from end of case.
Single Station Control
CE Approved
Terminal strip in
junction box at left
end of screen
Dashed wiring
by electrician
Neutral
L1
230V,
50 Hz.
Terminal strip in
junction box at left
end of screen
Dashed wiring
by electrician
Neutral
Hot
Multiple Station Control
Not CE Approved
Cap off with wire
nut & tape
Red
Red
Red
Blue
Blue
Blue
Black
Black
230V, 50 Hz.
Control
switch
Black
PE
www.draperinc.com (765) 987-799
9
MC1
See separate Se-
rial Communication-
RS232 Instruction
sheet for enabling
RS232 with the MC1.
3 Button Wall Switch
DOWN - Black
COM - White
UP - Red
Eye Port for IR Eye, RF Receiver or LED
Switch For more than one of these,
a splitter is required.
Aux Port for connecting additional
LVC-III modules (up to six total-
connect from Aux to Eye).
Red-to screen (directional)
Brown-to screen (directional)
White-Common to screen, 230V AC
Black-to 230V AC
Yellow-to 230V AC
Green-Ground
Dashed wiring by electrician
Low voltage wiring by others
Terminal strip in
junction box at left
end of screen
230V, 50 Hz.
Neutral
Hot
All-Pole Disconnect
by Others
STOP
Control
Switches
24v DC
STOP
RS232 Data FROM Control System
RS232 Data TO Control System
Signal Ground & Manual Switch Common
Manual Switch Down
Manual Switch Up
Red-to Screen (directional)
Black-to Screen (directional)
Blue-Common
Brown-Hot to 230V AC
Green/Yellow-Ground
Fuse
Program LED
Eye Port for IR Eye. For RF Receiver
or LED Wall Switch, a Splitter and a
Power Supply is required. Plug RF
Receiver or LED Wall Switch and
Power Supply into splitter, then run
cable from Splitter to MC1 Eye Port.
Low Voltage Wiring by others
AC Wiring by electrician
MC1
Terminal strip in
junction box at left
end of screen
230V, 50 Hz.
Neutral
Hot
All-Pole Disconnect
by Others
STOP
Control
Switches
24v DC
STOP
Low Voltage and Remote Control
