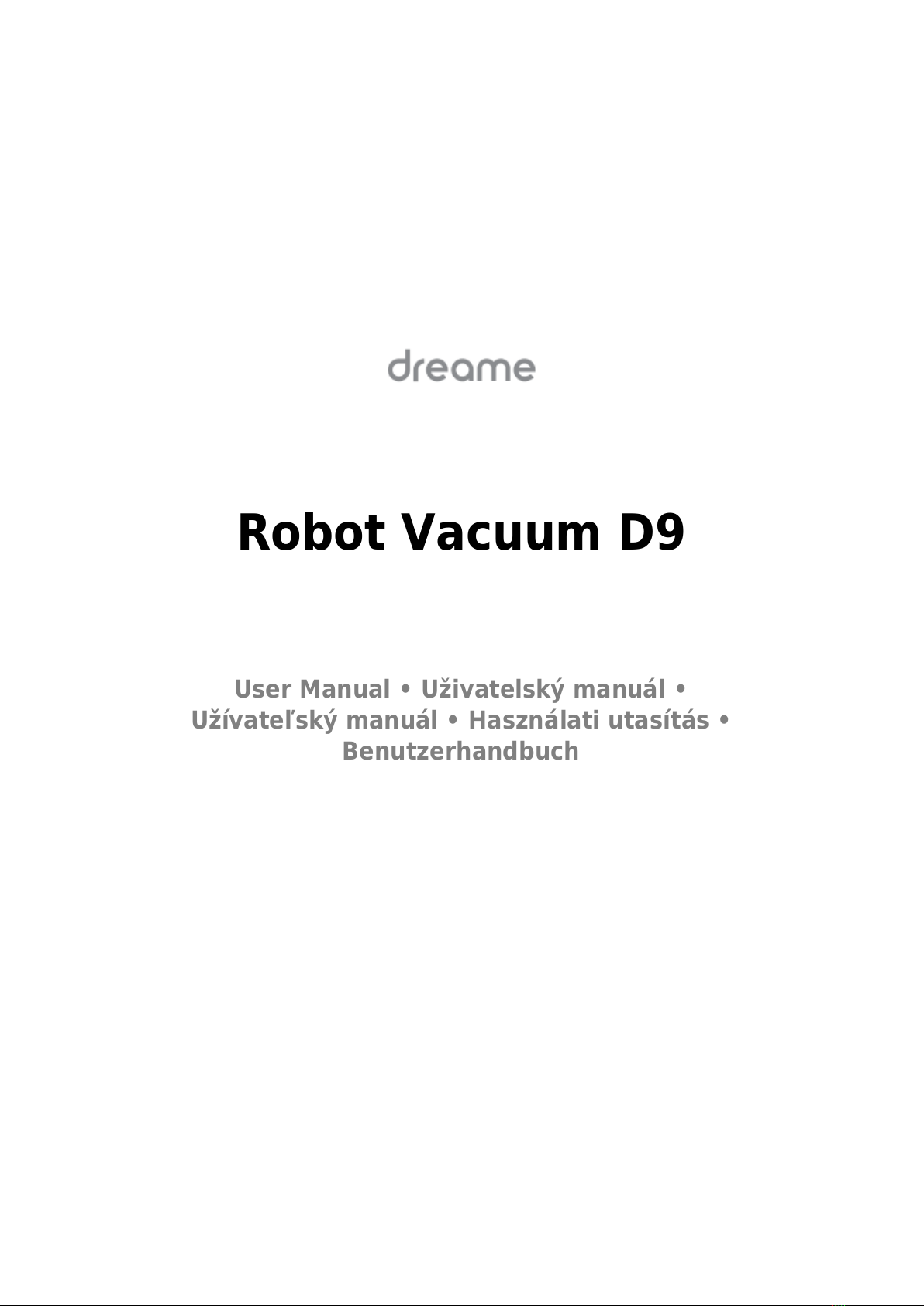

Dreame D9 User manual

Robot Vacuum D9
User Manual • Uživatelský manuál •
Užívateľský manuál • Használati utasítás •
Benutzerhandbuch

2
English
3 –26
Čeština
27 –50
Slovenčina
51 –74
Magyar
75 –98
Deutsch
99 –123

3
Dear customer,
Thank you for purchasing our product. Please read the following instructions carefully
before first use and keep this user manual for future reference. Pay particular attention to
the safety instructions. If you have any questions or comments about the device, please
contact the customer line.
✉www.alza.co.uk/kontakt
✆[phone]
Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Prague 7, www.alza.cz

4

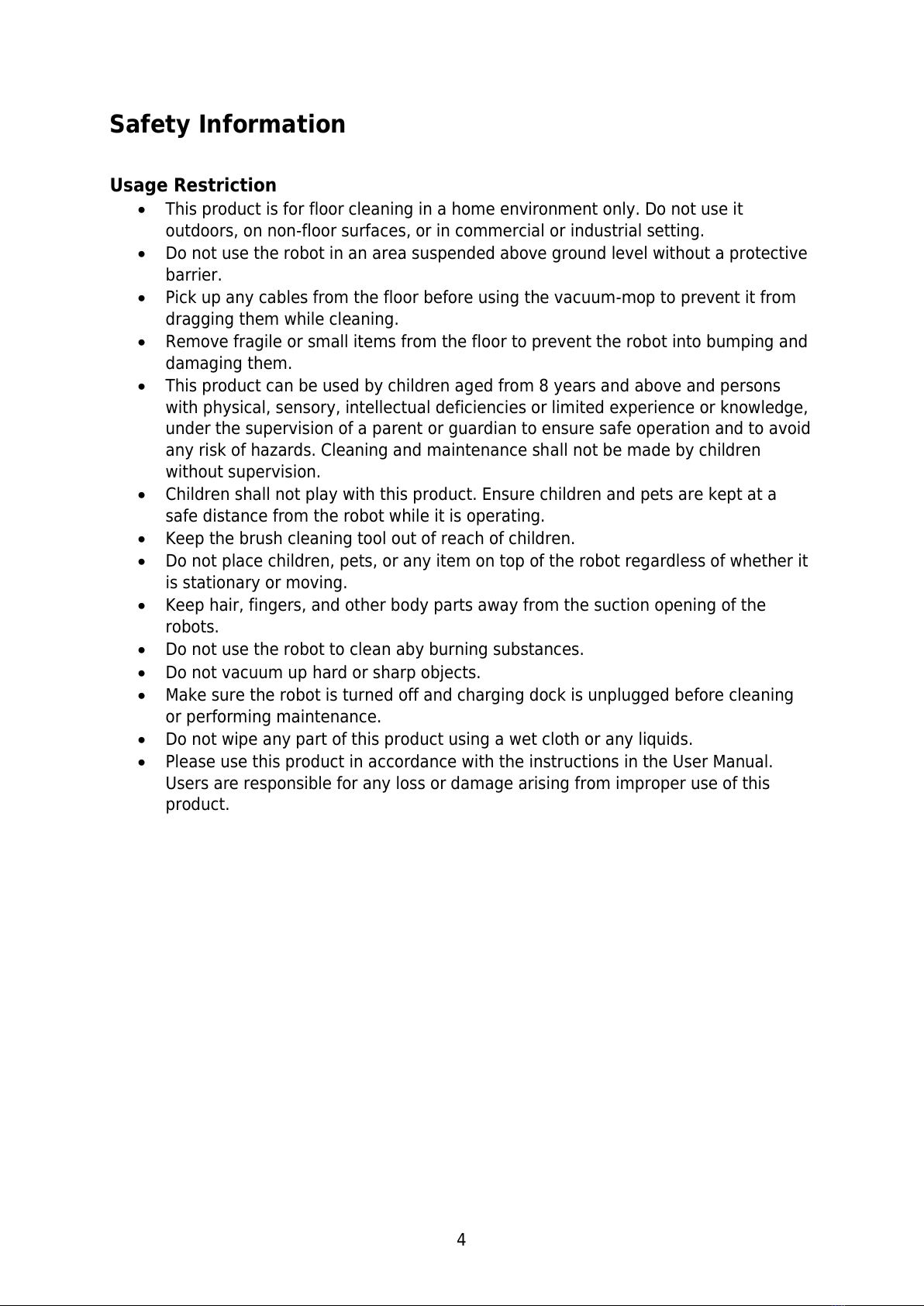

Safety Information
Usage Restriction
This product is for floor cleaning in a home environment only. Do not use it
outdoors, on non-floor surfaces, or in commercial or industrial setting.
Do not use the robot in an area suspended above ground level without a protective
barrier.
Pick up any cables from the floor before using the vacuum-mop to prevent it from
dragging them while cleaning.
Remove fragile or small items from the floor to prevent the robot into bumping and
damaging them.
This product can be used by children aged from 8 years and above and persons
with physical, sensory, intellectual deficiencies or limited experience or knowledge,
under the supervision of a parent or guardian to ensure safe operation and to avoid
any risk of hazards. Cleaning and maintenance shall not be made by children
without supervision.
Children shall not play with this product. Ensure children and pets are kept at a
safe distance from the robot while it is operating.
Keep the brush cleaning tool out of reach of children.
Do not place children, pets, or any item on top of the robot regardless of whether it
is stationary or moving.
Keep hair, fingers, and other body parts away from the suction opening of the
robots.
Do not use the robot to clean aby burning substances.
Do not vacuum up hard or sharp objects.
Make sure the robot is turned off and charging dock is unplugged before cleaning
or performing maintenance.
Do not wipe any part of this product using a wet cloth or any liquids.
Please use this product in accordance with the instructions in the User Manual.
Users are responsible for any loss or damage arising from improper use of this
product.

5
Batteries and Charging
WARNING: Do not use any third-party battery. Use only with RCS0 charging dock.
Do not attempt to disassemble, repair, or modify the battery or charging dock on
your own.
Do not place the charging dock near a heat source.
Do not use a wet cloth or wet hands to wipe or clean the dock’s charging contacts.
Do not improperly dispose of old batteries. Unneeded batteries should be discarded
at an appropriate recycling facility.
If the power cord becomes damaged or broken, stop using it immediately and
contact after-sales service.
Make sure the robot is turned off when being transported and kept in its original
packaging if possible.
If the robot will not be used for an extended period, fully charge it, then turn it off
and store is a cool, dry place.
Recharge the robot at least once every 3 months to avoid over-discharging the
battery.
This product contains batteries that can only be replaced by qualified technicians
or after-sales service.
Product Overview
Accessories
Charging Dock
Cleaning Tool
Power Cord
Water Tank
Mop Pad
Side Brush
Note: The illustrations in this manual are for reference only. Please refer to the actual
product for the actual appearance.

6
Product Overview
Robot
Robot
Spot Clean Button
Press briefly to start Spot Clean Mode
Power/Clean Button
Press and hold for 3 seconds
Press to start cleaning after the robot is powered on
Status Indicator
White: Cleaning or cleanup is completed
Blinking orange: Error
Dock Button
Press to send robot back to charging dock
Cover
Reset Button
Press and hold for 3 seconds to restore factory
settings
Wi-Fi Indicator
Blinking slowly: To be connected
Blinking quickly: Connecting
On: Wi-Fi connected
Cleaning Tool
Air Outlet/Speker

7
Robot Sensors
Dust Bin
Cliff Sensor
Omnidirectional
Wheel
Main Brush
Brush Guard Clips
Cliff Sensor
Charging Contacts
Side Brush
Cliff Sensor
Main Wheels
Laser Distance Sensor
Returning to Dock Sensor
Bumper
Edge Sensor
Bin Clip
Bin Cover
Filter

8
Mopping Module
Charging Dock
Clearing Home Environment
To prevent your robot from getting tangled or trapped, tidy up any loose cord (including
power cord of charging dock), dishcloth, slipper, toy, etc.
Water Inlet
Water Tank
Water Tank Release Clip
Mop Pad
Attaching Area
Signaling Area
Power Port
Charging Contacts

9

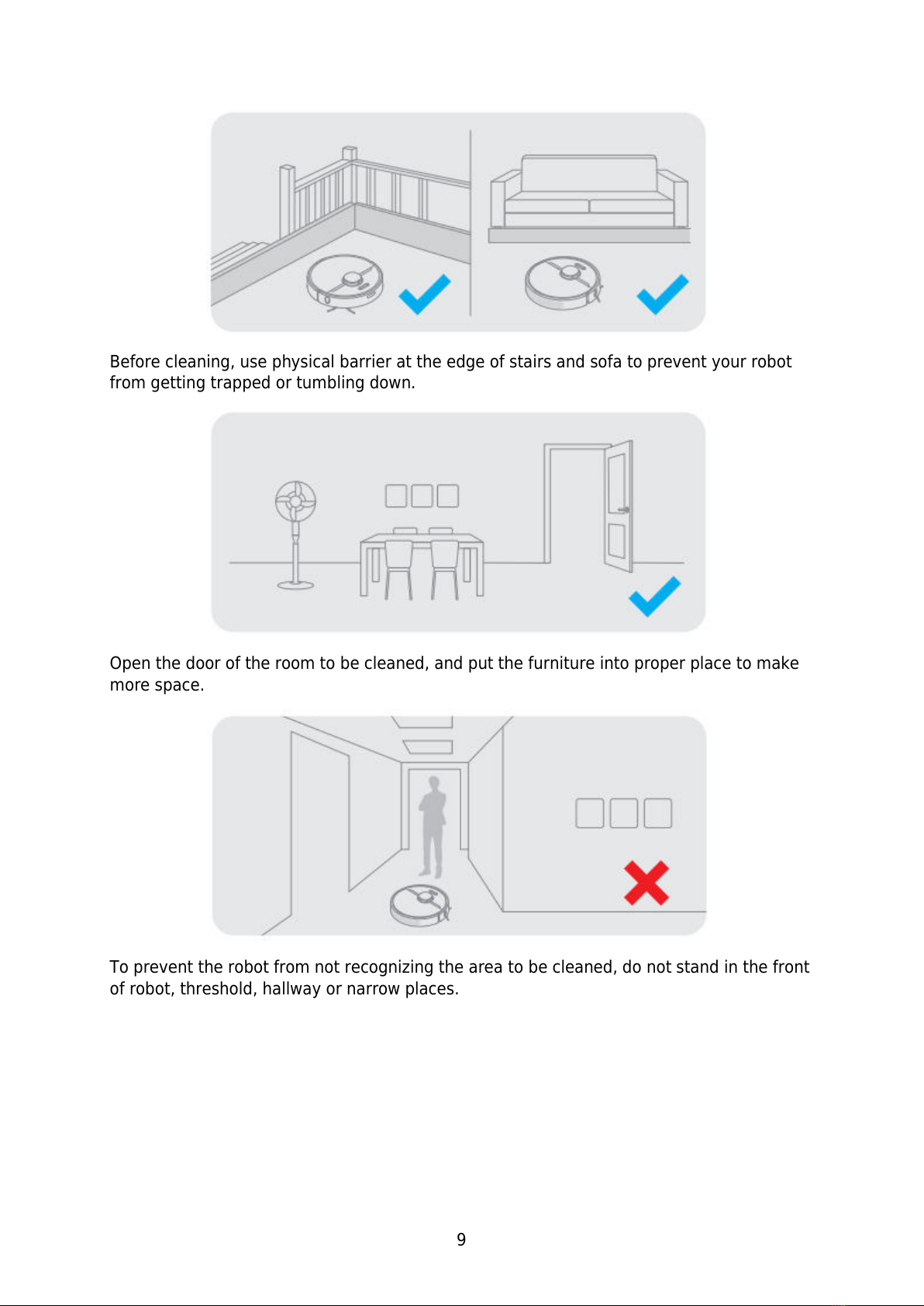

Before cleaning, use physical barrier at the edge of stairs and sofa to prevent your robot
from getting trapped or tumbling down.
Open the door of the room to be cleaned, and put the furniture into proper place to make
more space.
To prevent the robot from not recognizing the area to be cleaned, do not stand in the front
of robot, threshold, hallway or narrow places.

10

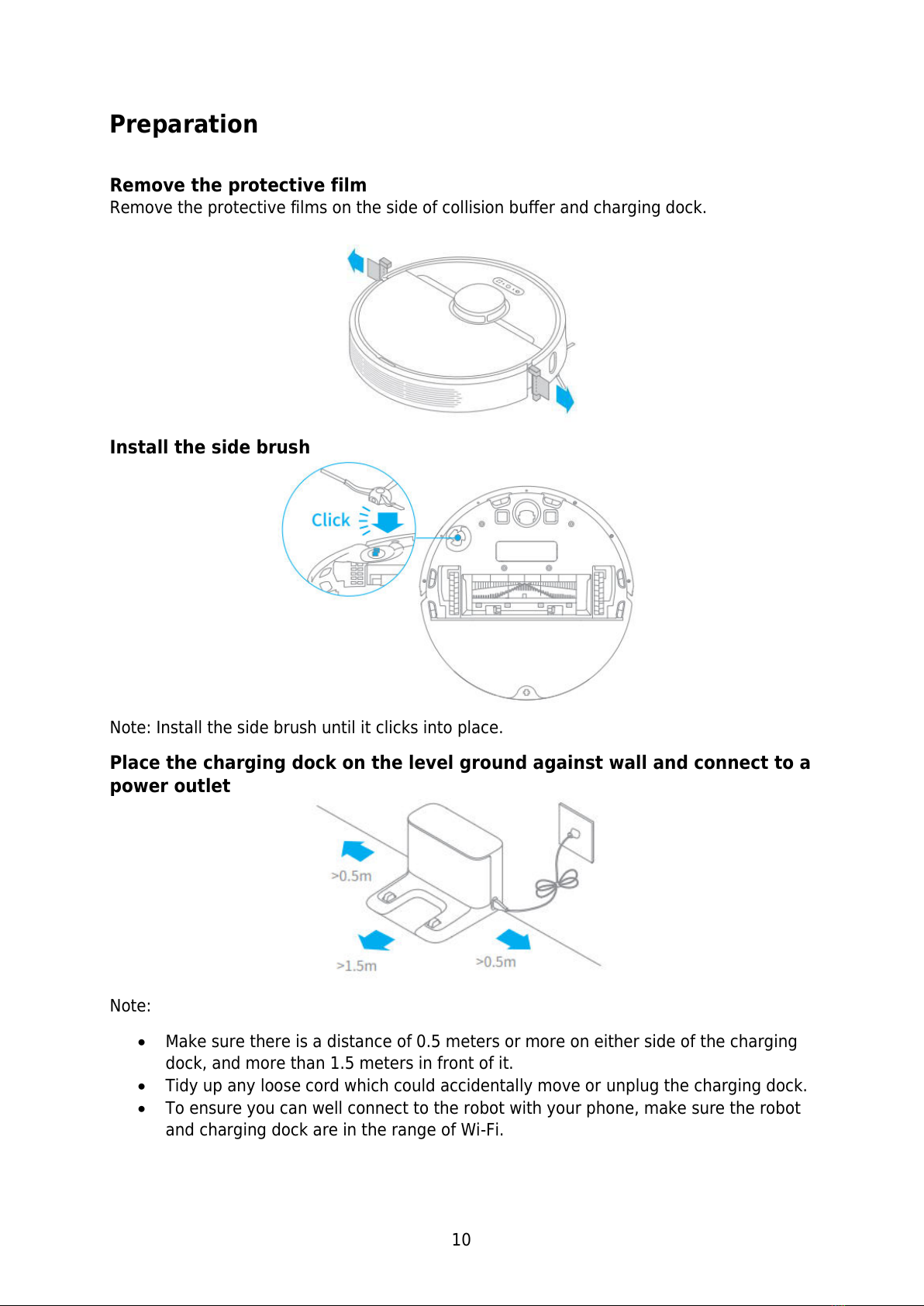

Preparation
Remove the protective film
Remove the protective films on the side of collision buffer and charging dock.
Install the side brush
Note: Install the side brush until it clicks into place.
Place the charging dock on the level ground against wall and connect to a
power outlet
Note:
Make sure there is a distance of 0.5 meters or more on either side of the charging
dock, and more than 1.5 meters in front of it.
Tidy up any loose cord which could accidentally move or unplug the charging dock.
To ensure you can well connect to the robot with your phone, make sure the robot
and charging dock are in the range of Wi-Fi.

11
Do not place the charging dock in an area with direct sunlight or where other
objects could block its signalling area, as this may hinder the robot from returning
to the charging dock.
Place the robot onto the charging dock to recharge. The robot will turn on
automatically and charge
Battery Level Indicator
White: Battery level is more than 15%
Orange: Battery level is less than 15%
Note:
Fully charge before first use.
Don’t install the mopping module while charging. Ensure the charging is in a safe
environment to prevent floor damage caused by wet dishcloth.
Connecting with Mi Home/Xiaomi Home App
This product works with Mi Home/Xiaomi Home app
Download Mi Home/Xiaomi Home App
Scan the QR code to download and install the app. You will be directed to the connection
setup page if the app is installed already. Or search “Mi Home/Xiaomi Home”in the App
Store to download and install it.
Add Device
Open Mi Home/Xiaomi Home app, and tap “ ” on the upper right. Then tap top right
cornet “ ”, scan the QR code, add “Dreame Robot Vacuum D9”and follow prompts to
finish the connection.

12

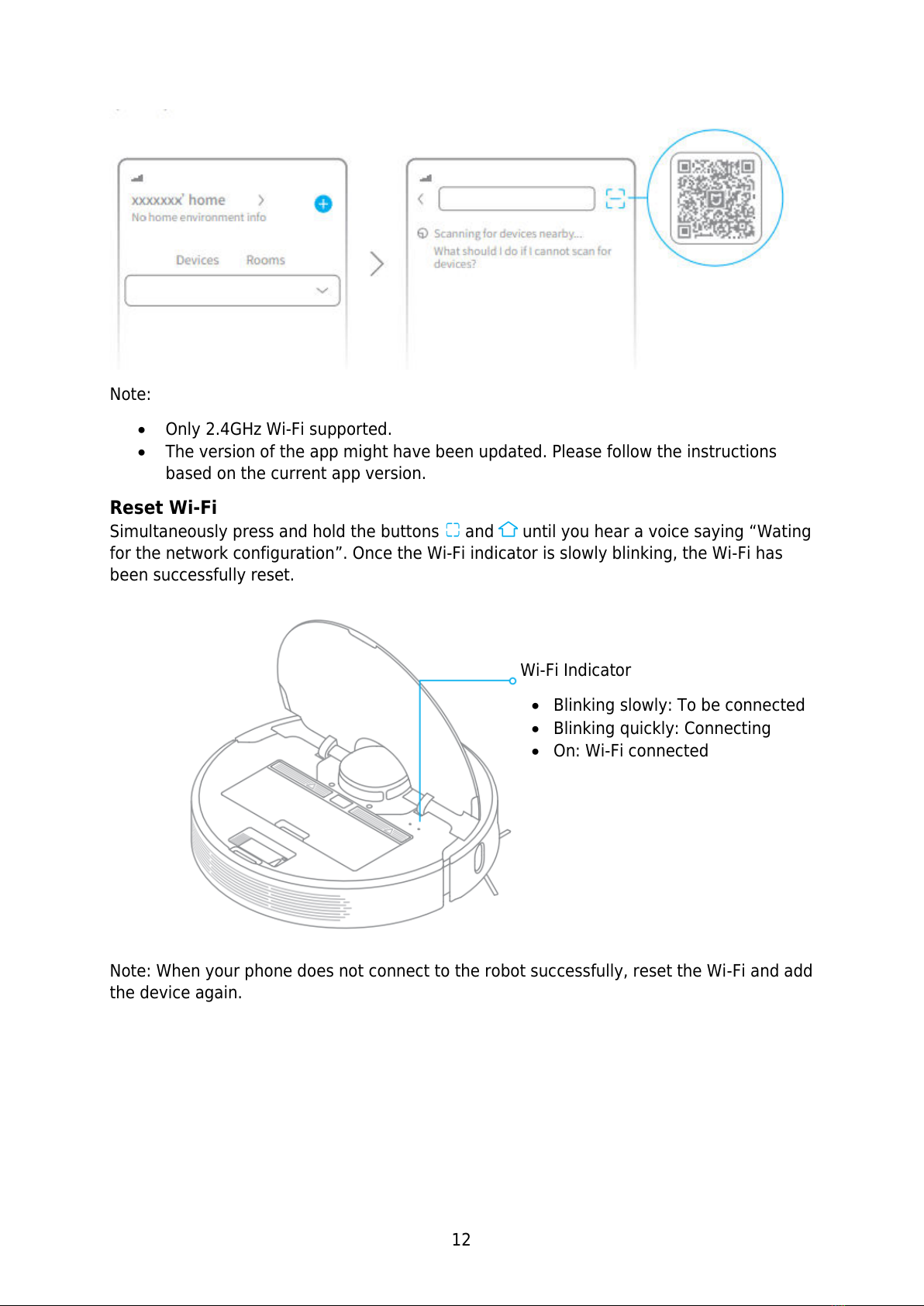

Note:
Only 2.4GHz Wi-Fi supported.
The version of the app might have been updated. Please follow the instructions
based on the current app version.
Reset Wi-Fi
Simultaneously press and hold the buttons and until you hear a voice saying “Wating
for the network configuration”. Once the Wi-Fi indicator is slowly blinking, the Wi-Fi has
been successfully reset.
Note: When your phone does not connect to the robot successfully, reset the Wi-Fi and add
the device again.
Wi-Fi Indicator
Blinking slowly: To be connected
Blinking quickly: Connecting
On: Wi-Fi connected

13

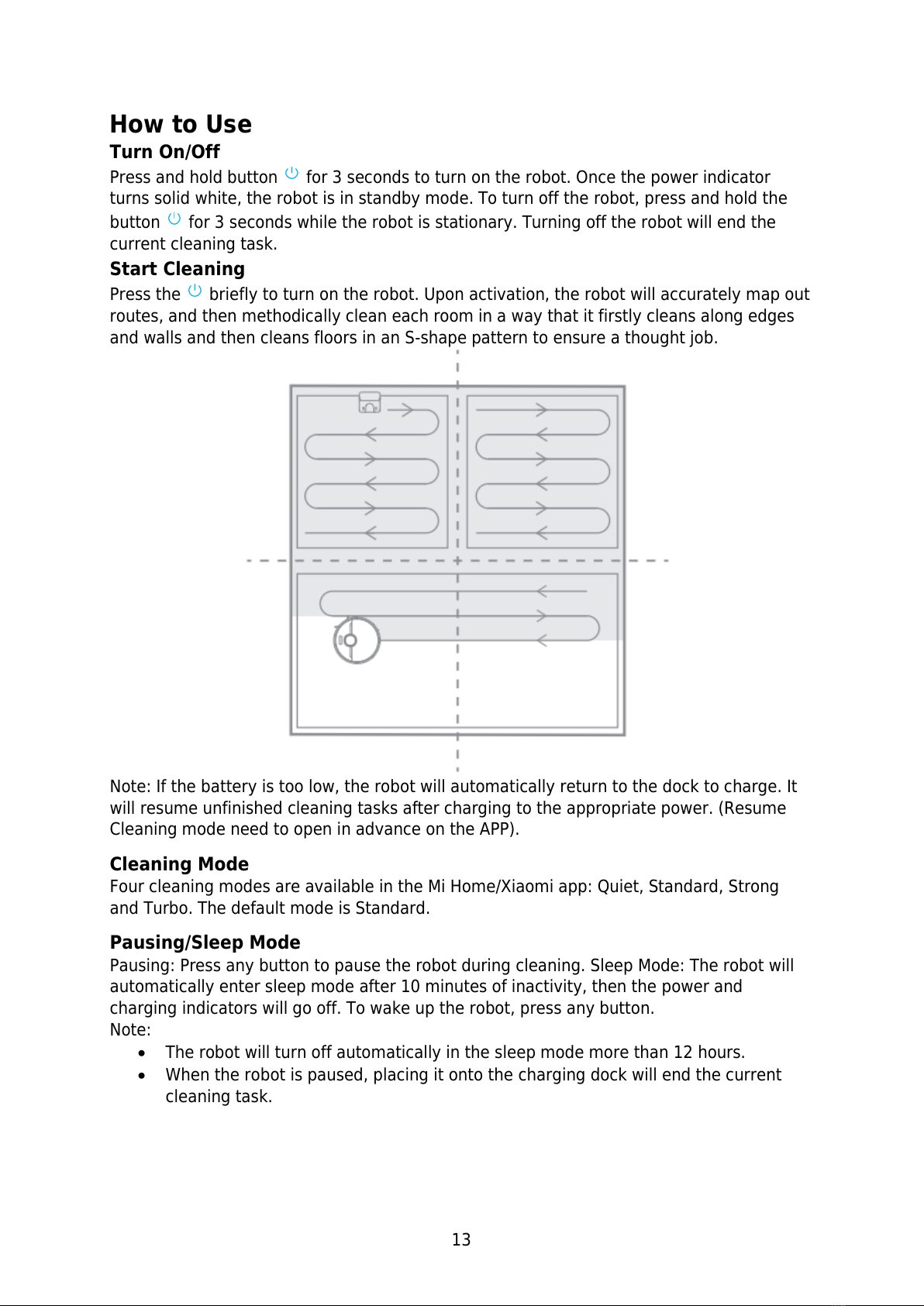

How to Use
Turn On/Off
Press and hold button for 3 seconds to turn on the robot. Once the power indicator
turns solid white, the robot is in standby mode. To turn off the robot, press and hold the
button for 3 seconds while the robot is stationary. Turning off the robot will end the
current cleaning task.
Start Cleaning
Press the briefly to turn on the robot. Upon activation, the robot will accurately map out
routes, and then methodically clean each room in a way that it firstly cleans along edges
and walls and then cleans floors in an S-shape pattern to ensure a thought job.
Note: If the battery is too low, the robot will automatically return to the dock to charge. It
will resume unfinished cleaning tasks after charging to the appropriate power. (Resume
Cleaning mode need to open in advance on the APP).
Cleaning Mode
Four cleaning modes are available in the Mi Home/Xiaomi app: Quiet, Standard, Strong
and Turbo. The default mode is Standard.
Pausing/Sleep Mode
Pausing: Press any button to pause the robot during cleaning. Sleep Mode: The robot will
automatically enter sleep mode after 10 minutes of inactivity, then the power and
charging indicators will go off. To wake up the robot, press any button.
Note:
The robot will turn off automatically in the sleep mode more than 12 hours.
When the robot is paused, placing it onto the charging dock will end the current
cleaning task.

14
Do Not Disturb Mode
Do Not Disturb mode prevents the robot from automatically starting cleaning tasks, and
the power indicator remains off. You can enable Do Not Disturb or modify its hours in the
app. (The mode is opened by default from 22:00 to 08:00.)
Note:
Scheduled clean-ups will still be carried out during the DND period.
The robot will continue cleaning after this period ends.
Spot Clean Mode
When the robot is in standby mode or paused, press and hold the button for 3 seconds
to start Spot Clean mode. In this mode, it will clean a square-shaped area of 1.5 x 1.5
meters directly around the robot. When the spot cleaning is done, the robot will
automatically return to its original location and shut off.
Note: Activating Spot Clean mode will end the current cleaning task of the robot.
1.5 meter
1.5 meter

15
Scheduled Cleaning
You can schedule cleaning time in the Mi Home/Xiaomi app. The robot will automatically
start cleaning at the designated time and then return to the charging dock to recharge
when the cleaning is done.
More APP Functions
Follow the instructions on the APP interface to use more functions. The version of the app
might have been updated, and please follow the instructions based on the current app
version.
Use the Mopping Function
It is recommended that all floors are vacuumed at least three times before the first
mopping session to achieve better cleaning effect.
1. Dampen the mop pad and wiring out excess water. Slide the pad all the way into
the slot of the water tank until it is securely in place.
2. Open the water tank lid, fill the tank with water, then securely close the lid.
Note: Do not use non-designated detergents or disinfectants.

16
3. Align the mopping module is indicated by the arrow, then slide it into the back of
the robot until it clicks into place. Press the button or use Mi Home/Xiaomi Home
app to start cleaning.
Note:
It is not recommended to use the mopping function on the carpets.
Use the app to adjust the water flow as required.
4. Press the two slide clips inwards and slide the water tank backwards to separate it
from the robot.
Note: When the robot is charging or not in use, remove the mopping module, pour out all
remaining water in the tank, and clean the mop pad to prevent mildew or lingering odors.
Click
Click

17
Routine Maintenance
Clean the Dust Bin and Filter
1. Open the robot cover, then press the dust bin clip to remove the dust bin.
2. Open the dust bin cover as indicated by the diagram.
3. Remove the filter and tap it basket gently.
Note: Do not attempt to clean the filter with a brush or finger.
4. Rinse the dust bin and filter with water until it is clean. Thoroughly dry the filter
before re-installing.

18

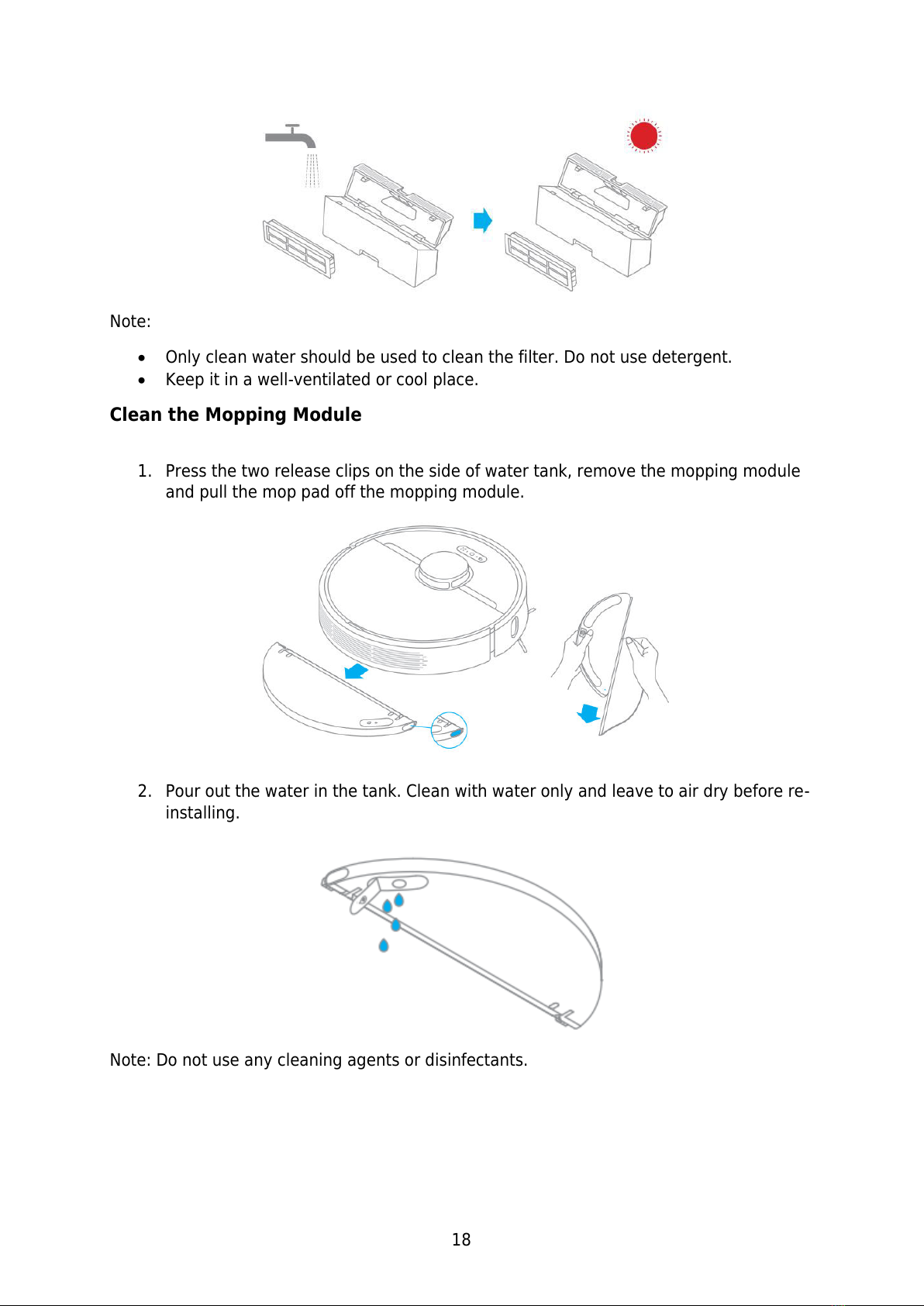

Note:
Only clean water should be used to clean the filter. Do not use detergent.
Keep it in a well-ventilated or cool place.
Clean the Mopping Module
1. Press the two release clips on the side of water tank, remove the mopping module
and pull the mop pad off the mopping module.
2. Pour out the water in the tank. Clean with water only and leave to air dry before re-
installing.
Note: Do not use any cleaning agents or disinfectants.

19
3. Clean the mop pad with water only and leave to air dry before re-installing.
Note:
Remove the pad from the mopping module before cleaning it, and make sure dirty
water does not flow back into the water outlet to avoid clogging.
For optimal performance, it is recommended to replace the mop pad every 3 to 6
months.
4. If slow water flow occurs, or the volume is not well-distributed, please clean the air
hole in the cover of the water tank.
Routine Maintenance
Clean the Main Brush
Press the brush guard clips inwards to remove the brush guard and lift the brush out of the
robot.
Pull out the brush covers as indicated by the diagram. Use the included cleaning tool to
remove any hairs tangled on the brush.

20

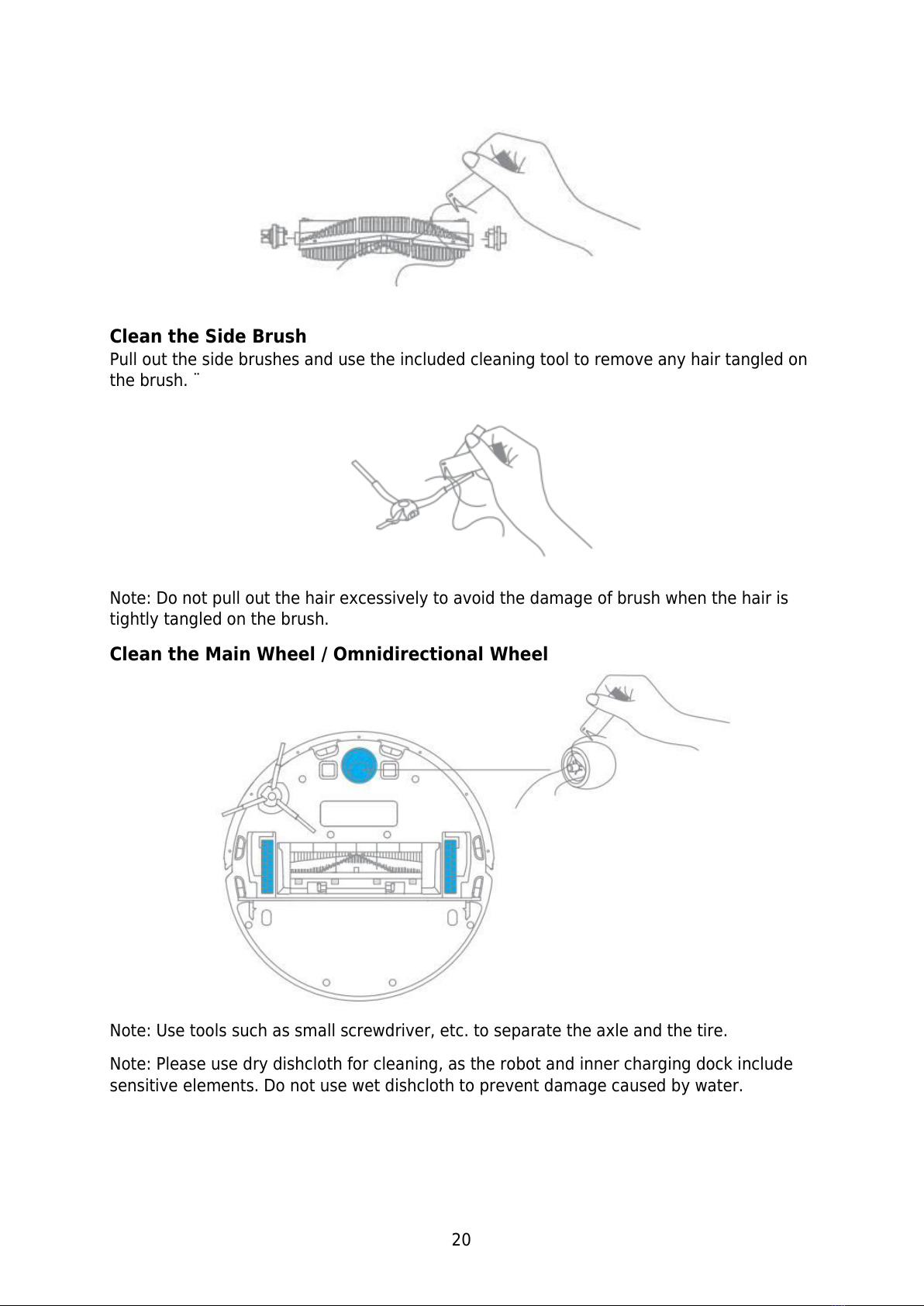

Clean the Side Brush
Pull out the side brushes and use the included cleaning tool to remove any hair tangled on
the brush. ¨
Note: Do not pull out the hair excessively to avoid the damage of brush when the hair is
tightly tangled on the brush.
Clean the Main Wheel / Omnidirectional Wheel
Note: Use tools such as small screwdriver, etc. to separate the axle and the tire.
Note: Please use dry dishcloth for cleaning, as the robot and inner charging dock include
sensitive elements. Do not use wet dishcloth to prevent damage caused by water.
