DREAMS DRIFT TV BED User manual

Two person
assembly
1.5 hour approx
assembly time
MK1 220422
DRIFT TV BED
WHEN THE OTTOMAN UPGRADE IS SELECTED - PLEASE USE THIS AI -- IGNORE THE STANDARD BED AI IN PACK 3

Drift TV Bed - Assembly guide - Page 2
Assembly tips
Before you begin, it’s best to identify all parts and fittings to build your bed.
We advise laying these out on the floor to check you have everything, and
familiarising yourself before building.
Top tip
We recommend that you build your new bed in the room you’d like it to be
located in - this will help prevent any risk of damage to your newly built bed
whilst moving it.
Safety and care
It’s really important to ensure children and animals are kept away from the
assembly area, as there are small components used in this bed which could
present a choking hazard. All plastic and wrapping materials should also be
To keep your little ones busy, there is a colouring page inside the back cover.
Help and support
At Dreams, it’s our mission to give the whole nation a great night’s sleep - this
means that the quality of our products is of utmost importance to us. If there
are any issues with your product or any missing parts, please contact our Help
Centre on 0800 652 6750, where a member of our team will be happy to help.
(For customers based in Northern Ireland, please call 028 9050 8300).
Recycling
Please ensure that packaging is disposed of in a safe and environmentally
friendly way, and recycle where possible. Our assembly instructions are
printed on recycled paper. Please keep your assembly instructions safe
to refer back to in the future.
Thank You
Dear Customer, Thank you for choosing to purchase your bed from Dreams - we hope it brings you
your best ever night’s sleep. Before you begin building your bed, please take a moment to read
through the instructions and make sure that you've got all the relevant parts listed on the following
pages.

Drift TV Bed - Assembly guide - Page 3
Warning
You must ensure that the mattress is on the bed frame before operating the lift mechanism,
failure to do so could result in injury.
Keep hands clear of the mechanism when opening or closing the ottoman.
Beware of entrapment – Never reach in through the mechanism to access the storage area.
Always ensure that the ottoman is FULLY opened before accessing the storage area.
Do not exceed the maximum weight as specified in the table below:
•
•
•
•
•
Use caution when operating, always use the handle when lifting.
Note: This bed uses a pressurised mechanism.
To be operated by adults only
Please ensure that children and pets are kept away from the bed when operating the lift mechanism.
Keep children and pets away from the storage area.
Do not overload the internal storage base.
Do not stand inside the internal storage area of the bed.
Before removing the mattress secure the frame to ensure it does not open unexpectedly.
Do not attempt to lie on the mattress when the ottoman is in the raised position.
•
•
•
•
Bed Bed Size Min Weight (kg) Max Weight (kg)
Drift
Double
3060
King
Small Double
30
30
60
60
Don’t lift without mattress Ensure mattress is on before lifting
SAFETY WARNING
PLEASE DO NOT ALLOW CHILDREN
OR PETS INSIDE THE STORAGE AREA.
SAFETY WARNING
PLEASE BE CAREFUL WHEN LIFTING.
ONLY LIFT WITH MATTRESS ON TOP.
TO BE OPERATED BY ADULTS ONLY.
WARNING: ONLY USE THE HANDLE TO LIFT &
LOWER THE BED FRAME TO
AVOID TRAPPING FINGERS!
TO AVOID ACCIDENTS
TO ACCESS THE STORAGE AREA THE OTTOMAN FRAME
MUST BE FULLY OPENED AND THEN FULLY CLOSED AFTERWARDS
•
•
•
•
•
•

1
1
1
1
1
C. RH Wing
D. Footboard
E.
F. 1
2
1
1
G.
H.
K.
M.
O.
2
Q.
4
2
1R.
S. 1
D
E
G
Q
Q
R
P x2
O x4
I
B
CH
Parts list
2
L.
1
I.
2J.
T. 1
U. 1
1
1
W .
1
2
8
5
X.
Y.
Z.
AA.
1
N.
TV
Installation
Kit
K
L
M
N x2
S
T
U
V
Pack ed inside
accessory box
in footboard
Pack (2).
F
Parts
Important information
The bed you have purchased comes with a metal slat frame lifting from the side. You can
configure this to open from left side or right side to make it convenient for the layout of the
room it will be located in - please follow the instructions below in their current order.
The media tray can also be fitted on left or right.
2
P. Slat Frame Wooden Support Rail
Drift TV Bed - Assembly guide - Page 4

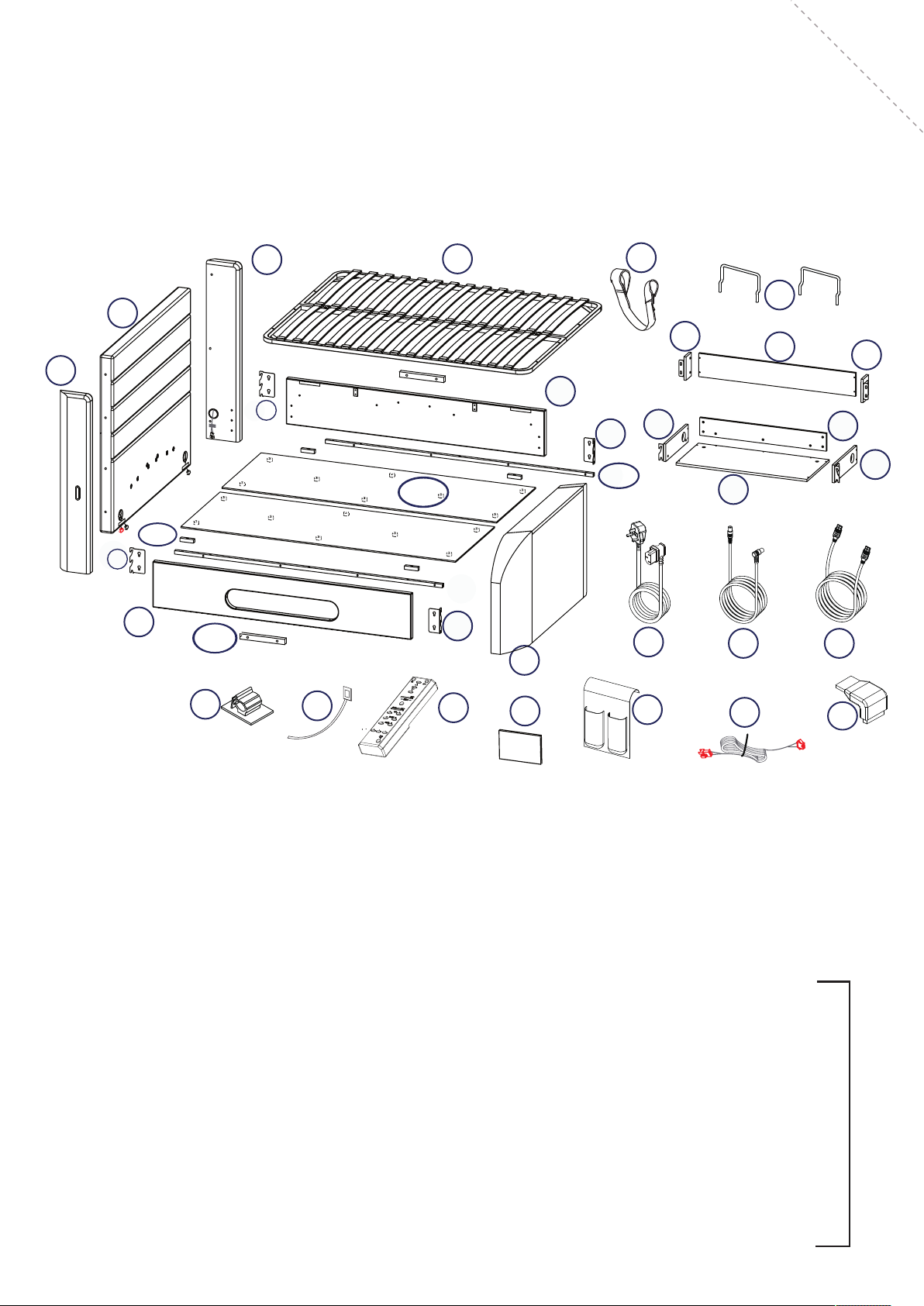

A
WX Y
ZAA AB AD AE AF
AC
A. Headboard
B. LH Wing
V.
1
AB.
1
AC.
1
AD.
1
AE.
1
AF.
J x2
Side Rail - with Media Tray
Side Rail - without Media Tray
Mattress Stoppers
Metal Slat Frame
Fabric Hand Strap
Storage Base Boards
Flat hook bracket - Headend
Angled hook bracket - Footend LH
Angled hook bracket - Footend RH
Metal Slat Support Rail
Cushion Block
Cable Guard Side Panel Cable
Guard Front Panel
Media Tray Back Panel
Media Tray Base Panel
Media Tray Side Panel - Left
Media Tray Side Panel - Right
Mains Power Lead - 3.5 mt
Aerial Lead - 4 mt
HDMI Lead - 2.8 mt
Cable Clip
Cable Tie
Audio_TV Lift Remote Control
TV Installation Kit
Remote Control Holster
USB Connection Cable
HDMI 90° Adapter
K

Drift TV Bed - Assembly guide - Page 5
Spring washer for M8 bolts
Bolts (M8x30mm) for
fitting side rails to
headboard & footboard
a x20 b x26
Flat washer for M8 bolts
c x26
Allen key for M8 bolt
d x1 j x6
Fittings

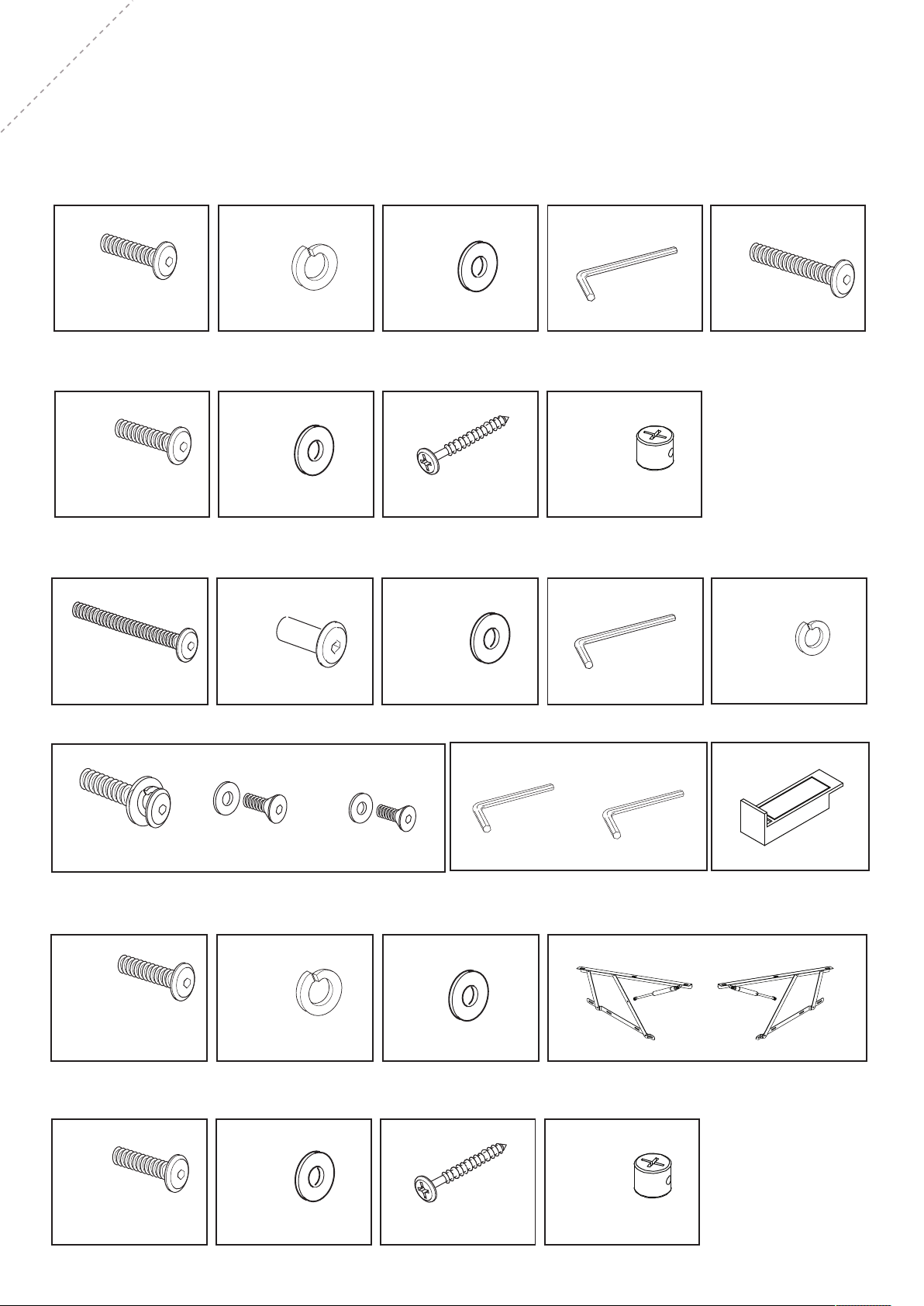

Please check you have all the parts listed below with your product:
Hardware needed for assembly headboard and fitting side rails to headboard & footboard
Packed in side rail Pack 3 - hardware Pack (A)
TV Support slide
M8 x 25mm
Bolt sets Countersunk Screw
sets (M6x12mm)
Countersunk screw
sets (M4x12mm) Allen key (4mm)
Allen key (2.5mm)
o x2

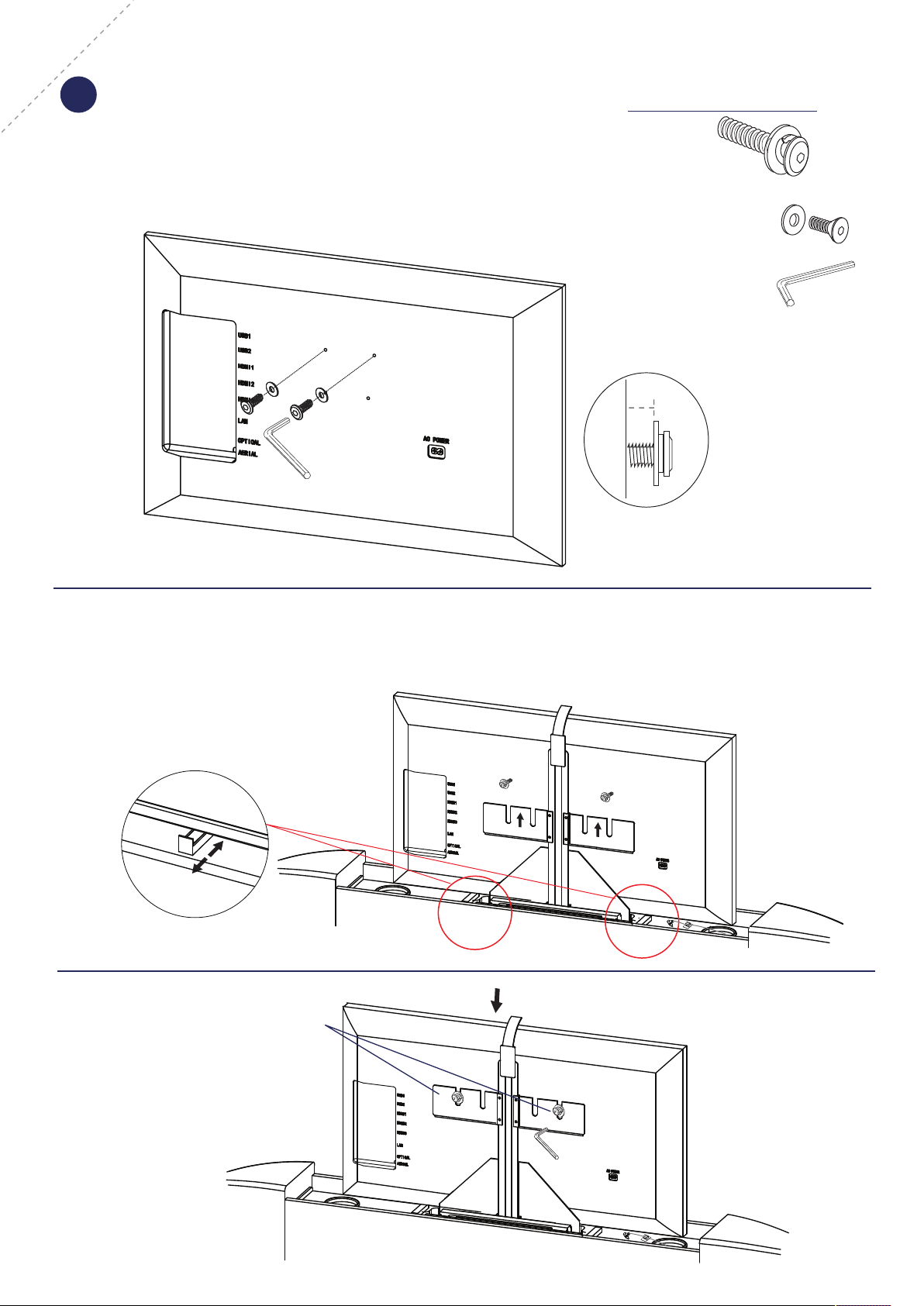

Hardware needed for installation of the TV is packed in the accessory box in footboard Pack 2
(z) choose a suitable Allen key
(y) choose a pair of suitable bolt sets
Hardware needed for fitting gas-lift mechanisms to headboard & footboard
Packed in ottoman Pack 5 - hardware pack (D)
Spring washer for M8 bolts
a x8
Bolts (M8x30mm) for
fitting gas-lift mechanisms
p(a) & p(b) to headboard and
footboard
b x8
Flat washer for M8 bolts
c x8 p(a) p(b)
Hardware needed for assembling and fitting cable guard to base of footboard
Packed in ottoman Pack 5 - hardware pack (D)
a x4
Flat washer for M8 bolts
c x4 m x4 n x4
Gas-Lift Mechanisms
Screws (5x50mm) for
assembling cable guard
Bolts (M8x30mm) for fitting
cable guard to footboard
Bolts (M8x40mm) for
fitting wings (B&C) to
main headboard (A)
Spring washer for M6 bolts
Hardware needed for fitting cushion blocks (O) to metal slat supports
Packed in side rail Pack 3 - hardware pack (C)
f x4 g x4
Allen key for M6 bolt
h x1 k x4
Sleeve nut for M6 bolts Flat washer for M6 bolts
e x4
Bolts (M6x40mm)
for fitting the wooden
Cushion Blocks to metal
slat support rails.
Plastic barrel nuts
for bolts (m)

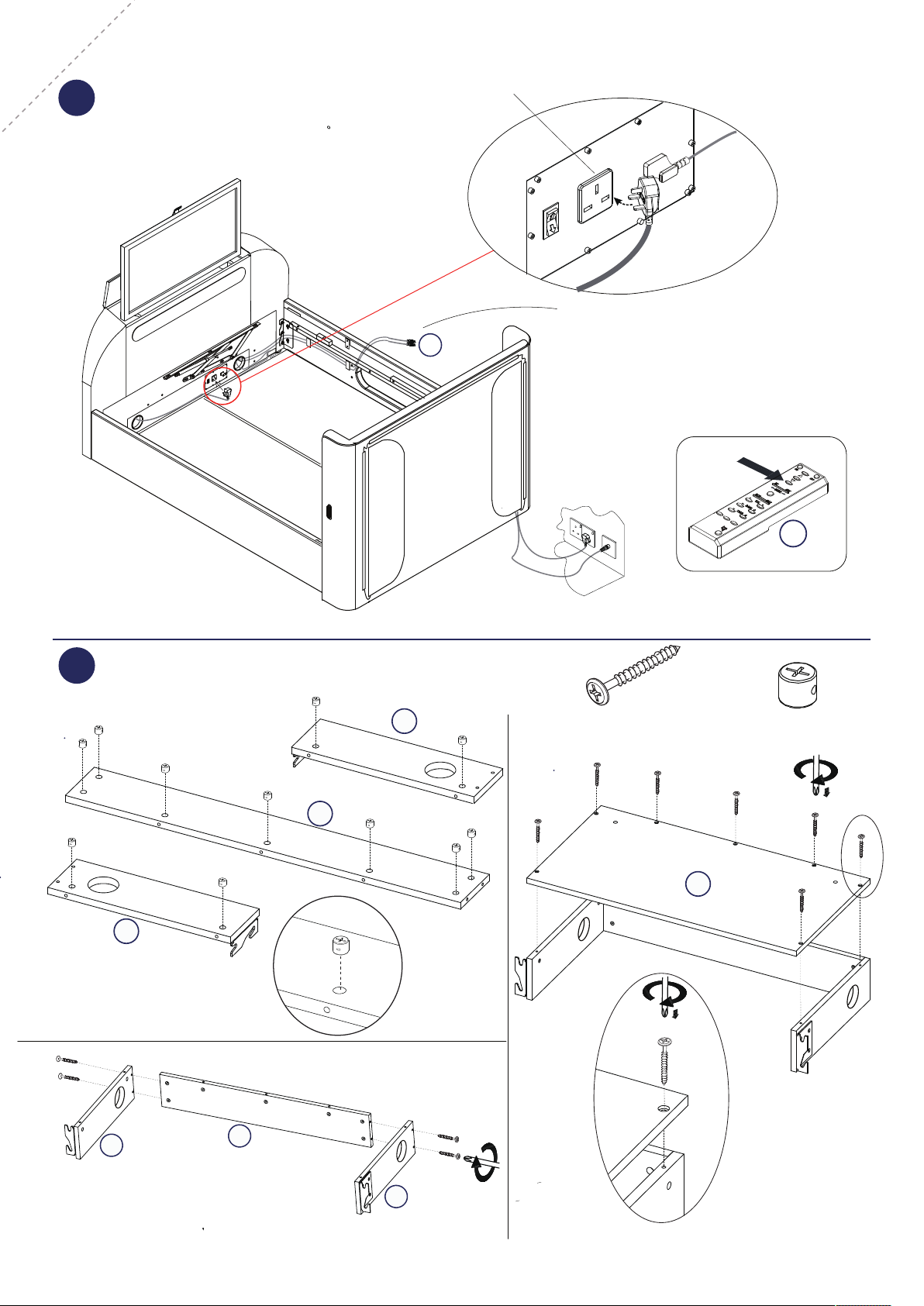

Hardware needed for assembling and fitting media tray to side rail
Packed in media tray Pack 4 - hardware pack (B)
Flat washer for M8 bolts
c x4 m x11n x11
Screws (5x50mm) for
assembling media tray panels
a x6
Bolts (M8x30mm) for
fitting media tray to side rail
(C) (there are two spare bolts)
Plastic barrel nuts
for bolts (m)

Tools required
Tape measure Cross head screwdriver
817161514131211101019876543210cm
Drift TV Bed - Assembly guide - Page 6
Spring washer for M8 bolts
Bolt (M8x45mm) for fitting
metal slat frame (G) to gas-
lift mechanisms (p)
Hardware needed for fitting metal slat frame & gas-lift mechanisms
Packed in ottoman Pack 5 - hardware Pack (D)
q x18b x18
Flat washer for M8 bolts
c x28 r x4
t x2 u x1 v x2
s x6
Spanner for M8 nuts
Nut for M8 slat frame bolts
Flanged lock-nut (M8)
for gas-lift pistons
Metal connection plate
for slat frame
Bolts (M8x20mm) for
fitting metal connection
plates (v) to slat frame (G)
i)
ii)
A
C
B
B
&
C

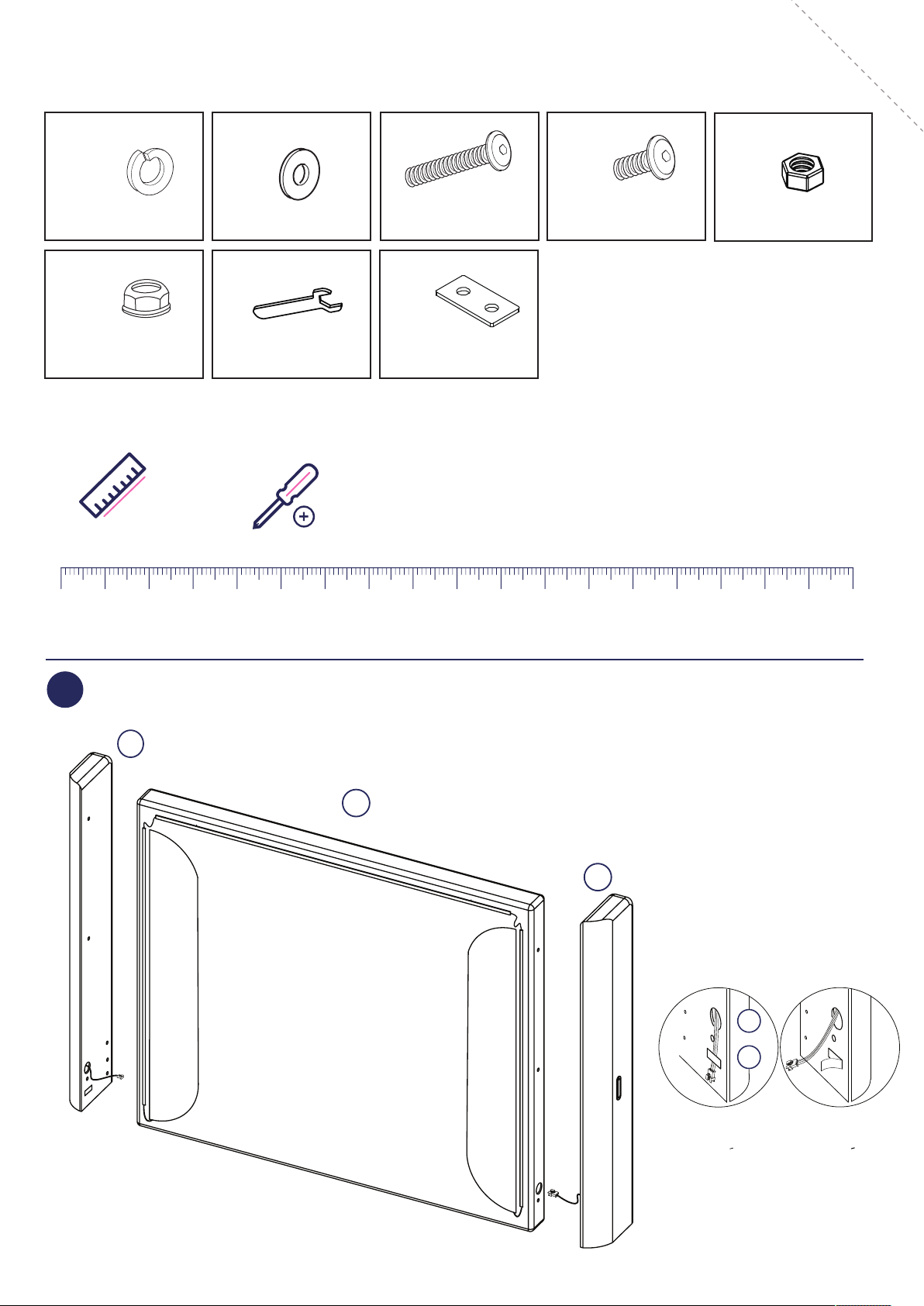

1
Unzip both access
compartments.

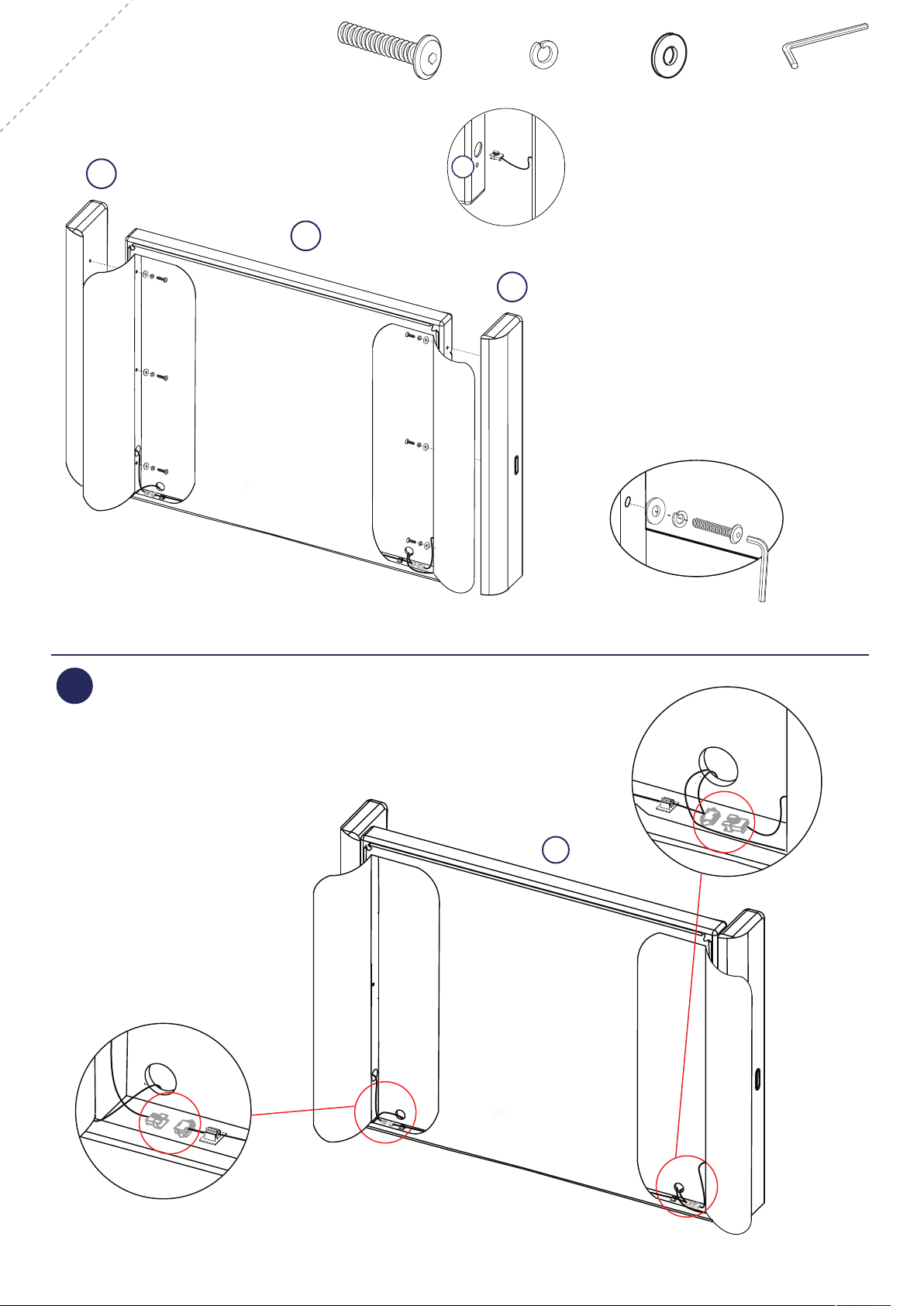

Fit wings to the headboard one at a time.
Release USB cables
from bottom of the
wings.
Put first wing close
to the headboard.
iii)

Drift TV Bed - Assembly guide - Page 7
Connect the the two USBs to the ‘Y’ cable.
jx6 x1
b x6 c x6 d
b
c
jd x3 sets
B
C
A
Using three bolt sets (j, b & c),
fit the wing to the headboard
bolting into the three pre-
tapped holes on inner side of
each wing - tighten with Allen
key (d).
Repeat on the other side.
vi)
A
A
iv) Pass the USB cable through the
hole in the bottom of the headboard.
v) Making sure cable is not
trapped, tug through from inside
HB but do not pull too hard. Align
edges of the wing with headboard
.
2
Each Side

Drift TV Bed - Assembly guide - Page 8
ax20 x1
3a
p(a) x1 p(b) x1
b x20 c x20 d
Bolts should be
in centre of long holes
b
a
c
d
R
F
I
T
H
E
R
E
p(b)
p(a)
The mechanisms are labeled p(a) & p(b). Please carefully follow the
diagram below and if access is needed from left side of the bed, fit
both mechanisms to right side of the headboard & footboard.
Bolt into the centre of the blue labeled holes marked (R), tighten x8
bolt sets 100%.
Align with Blue labels
A
D
K
K
L
M
d
a
b
c
10mm
Fit the brackets (K, L & M) using x12
bolt sets tightening them 90%.

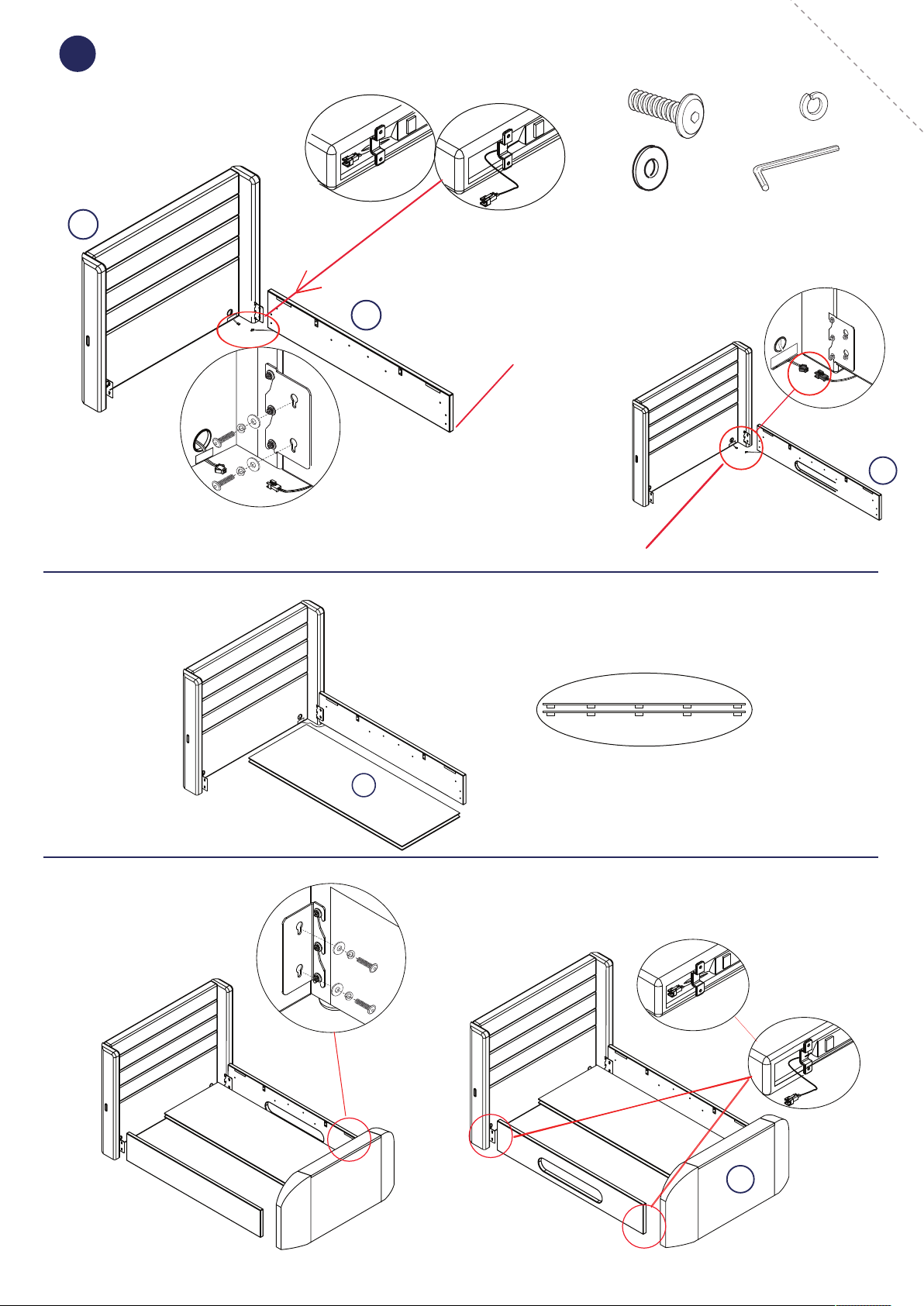

Prepare headboard & footboard choosing from which side to lift up the ottoman.
Follow these instructions if you want to lift the frame up from the LEFT side.

Drift TV Bed - Assembly guide - Page 9
A
3b
b
a
c
d
L
F
I
T
H
E
R
E
p(b)
p(a)
Bolts should be
in centre of long holes
Align with Red labels
D
K
K
L
M
d
a
b
c
10mm
The mechanisms are labeled p(a) & p(b). Please carefully follow the
diagram below and if access is needed from left side of the bed, fit
both mechanisms to right side of the headboard & footboard.
Bolt into the centres of the red labeled holes marked (L), tighten x8
bolt sets 100%
Fit the brackets (K, L & M) using x12
bolt sets tightening them 90%.
Follow these instructions if you want to lift the frame up from the RIGHT side.
a x20 b x20 c x20 d x1
p(a) x1 p(b) x1

E
Drift TV Bed - Assembly guide - Page 10
4
a x4 b x4
c x4 d x1
J x2
F
A
b
ac
Side
Rail
Head
Board
Stand headboard close to
it's final position. Choose
which side rail to fit on
the right side: (E or F).
i)
ii)
iv)
The LED strip situated at the
headboard end, needs to be
carefully pulled out as shown.
Using two of the four
bolt sets (a, b, & c) fit
side rail to headboard
tightening bolts 90%.
iii)
Connect LED at the headend

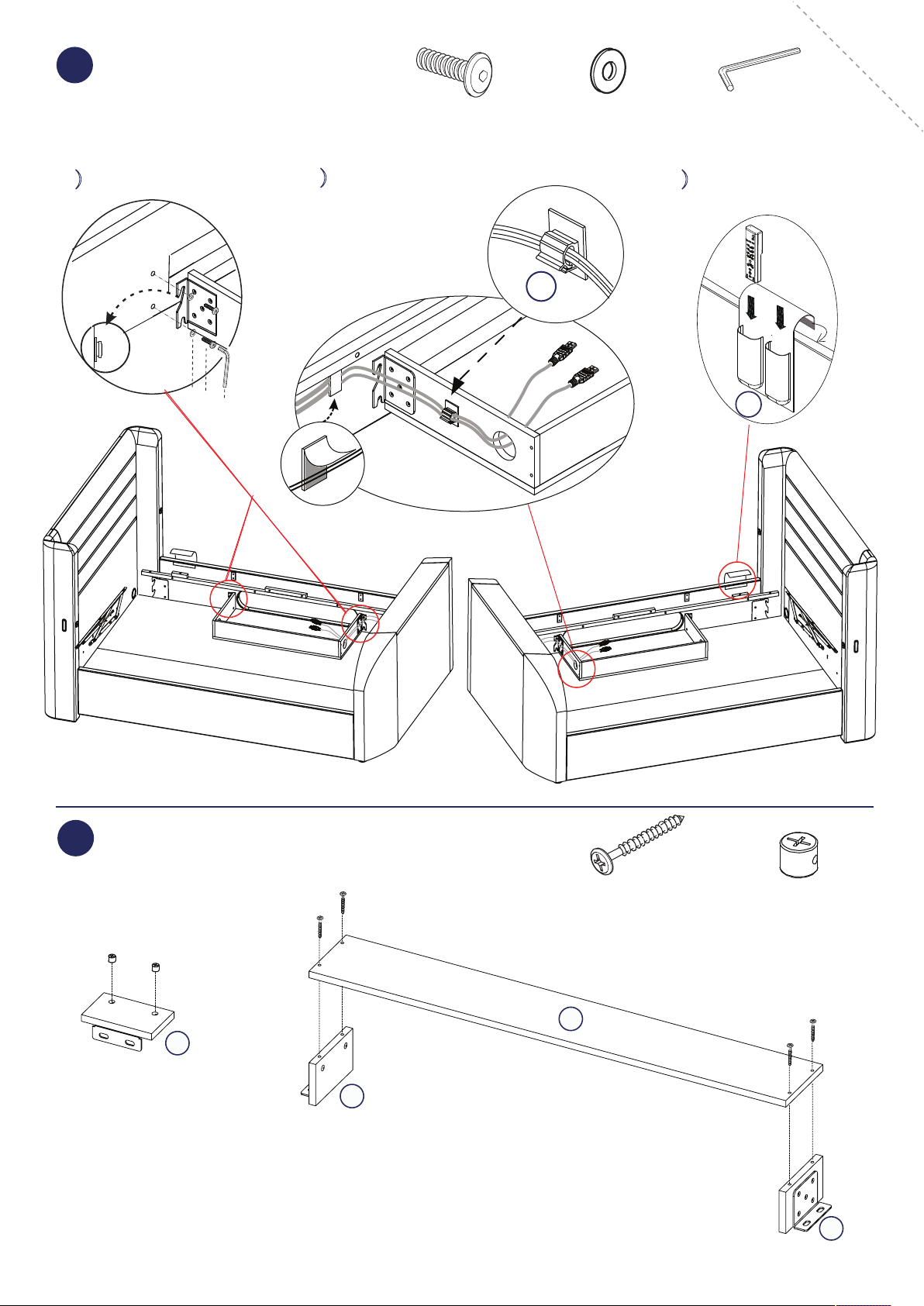

Put baseboards (J) in place one on top of the other as
shown then put them up into the corner between RH side
rail and headboard - make sure cables do not get trapped.
v)
Right
Put footboard in
position and using
the other two bolt
sets, fix to RH side
rail as shown.
vi)
Side
Rail
a
b
c
Foot
Board
D
vii)
Fit the RH side rail and placebase boards inside the storage area.
The LED cable tails at both ends of the LH side rail
need to be carefully pulled out as shown then the
rail put into position, take care not to snag them.
There is no need to withdraw
the cable next to the footboard,
there is no connection here.

Drift TV Bed - Assembly guide - Page 11
Make sure the bed is
squared up as shown
in the diagram.
Check the bolts on the
side rails are sitting
down in the keyhole
slots then tighten all
x20 bolt sets 100%.
x)
ix)
100%
AE
AE
Using four bolt sets (a, b, & c) fit
LH side rail to headboard and
footboard tightening bolts 90%.
viii)
Side
Rail
abc
Foot
Board
a x4 b x4 c x4 d x1
ba
c
Side
Rail
Head
Board
Headboard
Footboard
Left hand
side rail
Left hand
side rail
LH Wing

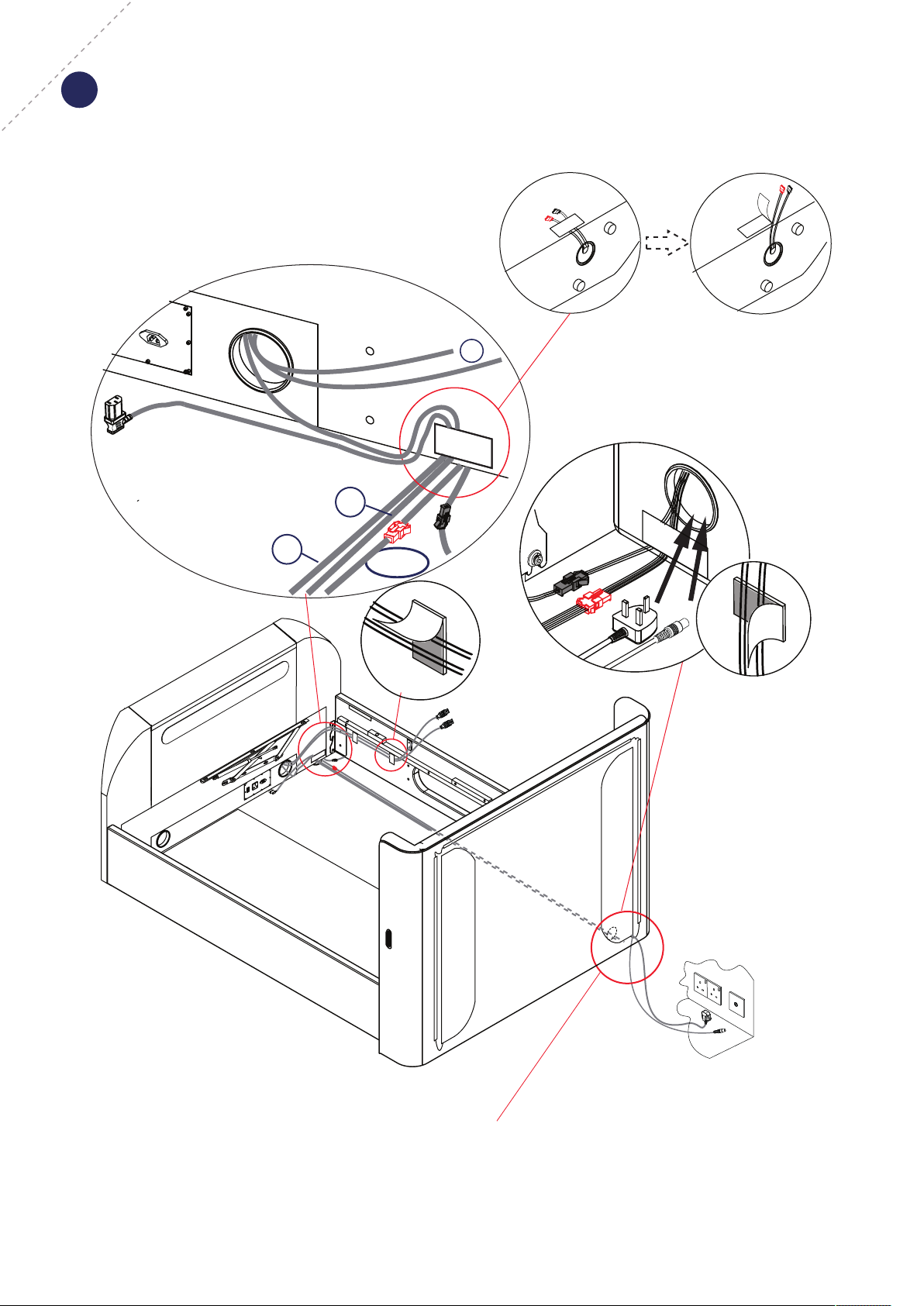

5 Lay out and connect the USB interconnecting cable (AE) between
headboard & footboard, this has red connections at each end.
Connect the black LED connections at each end of the side rail.

Drift TV Bed - Assembly guide - Page 12
6
x1
g
x4
hx1
kx4
c
d
e
x4
x4
qx4
f
x4
f
e
k
gO
x4
x2
d
qx2
cx2
P
N
N
N
x1
cd
qx8 b x8 x8
b x8
15mm
Left
side rail
Right
side rail
10mm
q x8
c x8
10mm
Please note:
The small distance X (10mm) is to be on the
inside of the bed.
Large distance Y (15mm) is to be next to the
side rail itself
15mm
Inside the bed
Birds Eye View of the support bars (N)
Footend
X
Y
X
Y

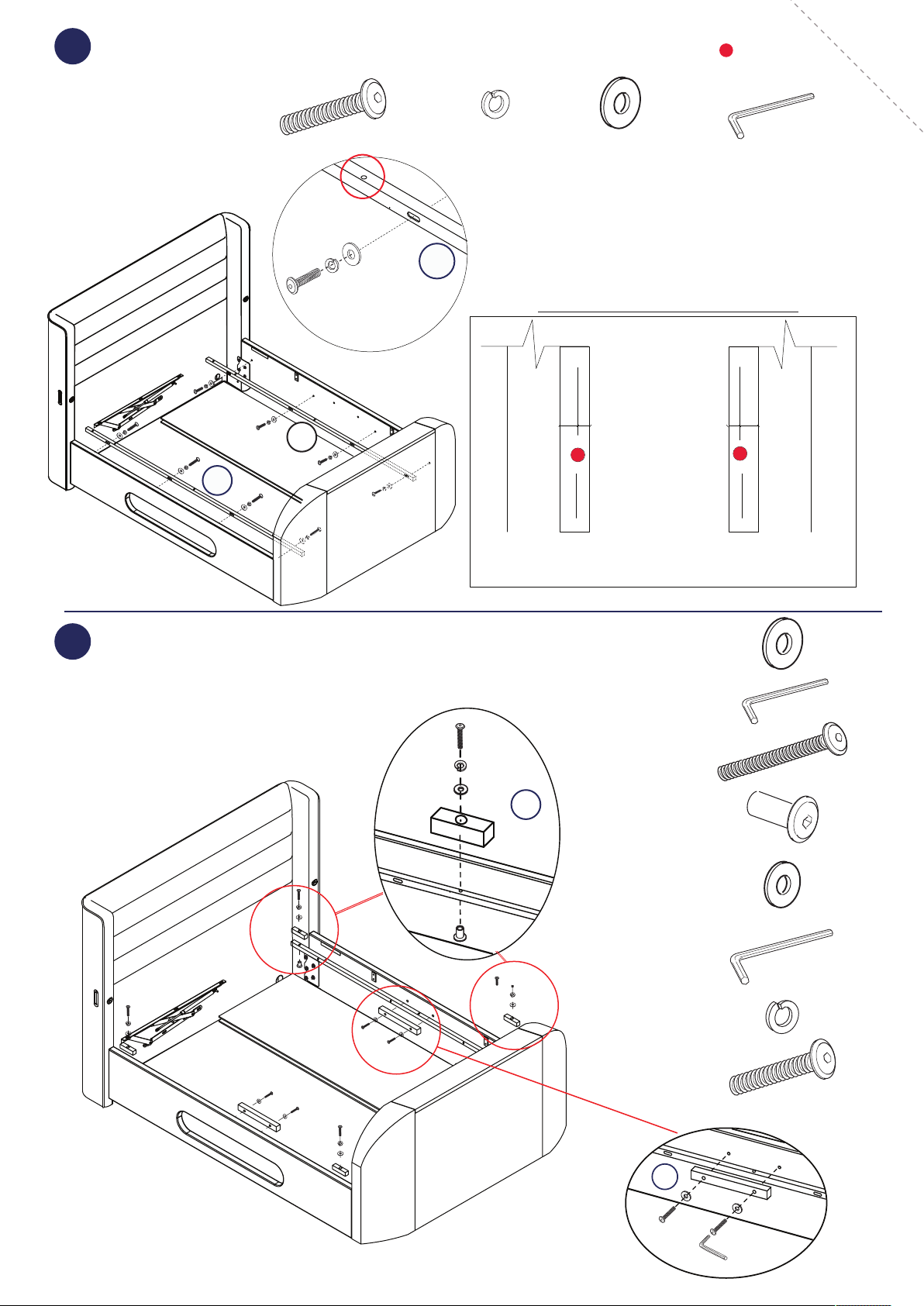

Fit each slat support rail - note the hole position is off-center.
Left
Right
7Fit the four cushion pads (O) and
the two central supports (P).

Drift TV Bed - Assembly guide - Page 13
8
USB AE
X
Footboard
Velcro tab
W
Bring all three leads (W, X & AE )
across from footboard to headboard
in a straight line.
Left hand
wing
Y
Pass aerial cable and 3 pin plug-top through the hole
in left side of the headboard and route to the outside
through the corner of the access flap zipper.
At each end, fix the cables neatly to the velcro tabson
the facesof the headboard & footboard.
i)
Velcro
tab
LED
Route the cables together as shown - make sure there
are no ends left loose to get trapped or snagged.
Head
board
Aerial
Power
iii)
ii)

Drift TV Bed - Assembly guide - Page 14
10
Connect mains power
lead (W) to your wall
socket - for safety this
must have an earthed
power supply.
W
Press the “UP” button
to raise the TV lift.
AB

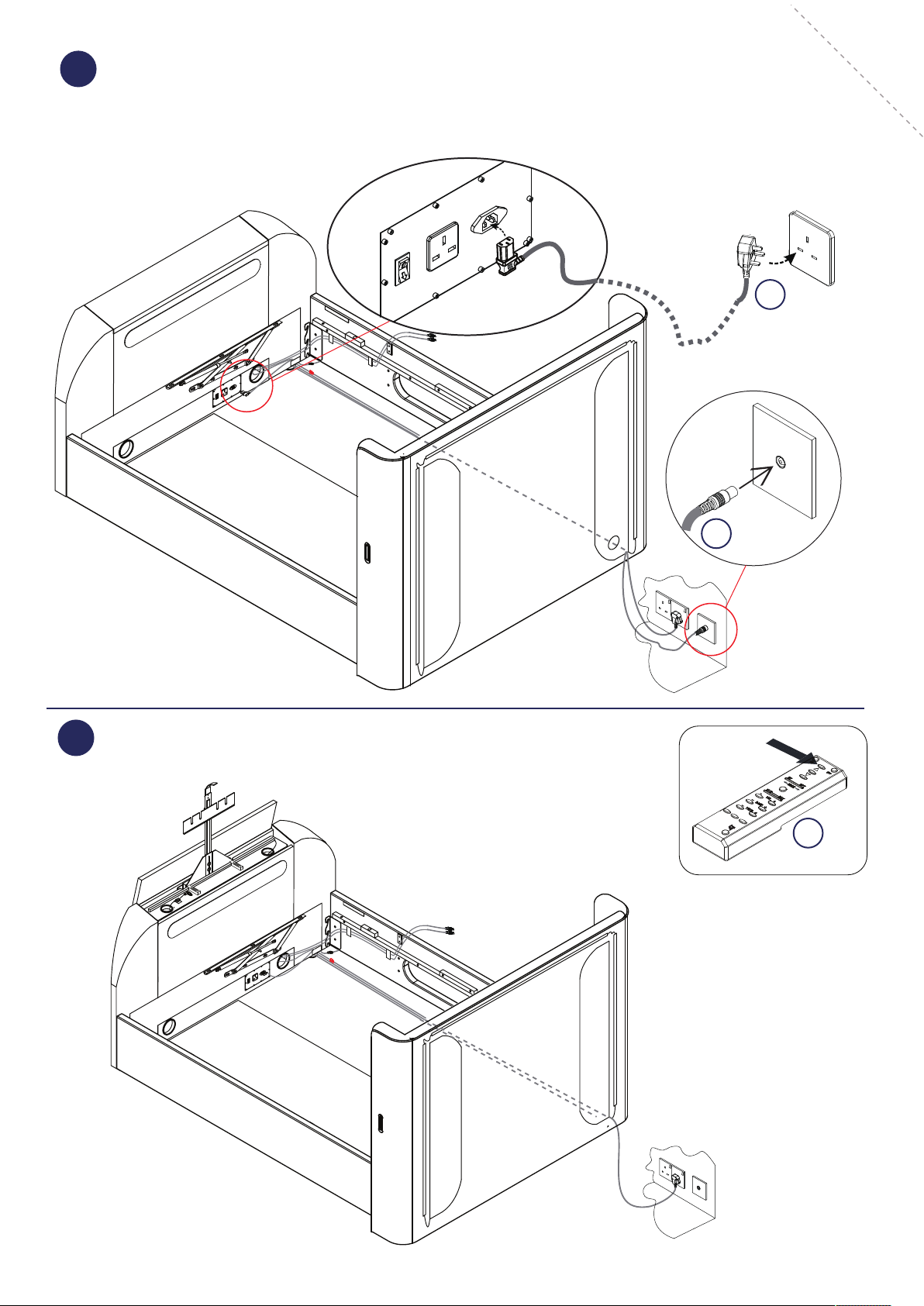

Prepare to fit the television.
9 Connect to the mains power socket.
X
Connect
aerial lead (X).
i)
ii)

Drift TV Bed - Assembly guide - Page 15
11
Mains power lead
Aerial lead
USB connection cable
X Aerial lead
TV power lead
supplied with the TV
Before fitting the TV, push cables through each duct from the
top choosing the best side to use depending on where the
connection ports are on back of your TV.
If optical socket is on RH side of TV, looking from the rear,
the plug is in the correct position (see red circle below).
If socket is on the opposite side, gently extract the cable out
of the duct, take across behind TV to the new position.
Adhere cable to back of TV with clips (Z). Please make sure
there are no loose ends to get snagged.
YHDMI leads
Right side rail
J
a.
b.
c.
ii)
i)
Once the three cables are lined up and all
connected, slide the upper base board across
into position making sure the cables are not
trapped underneath the glides.
Note: For illustration purposes only, connections to the TV may vary.
W
X
AE

Drift TV Bed - Assembly guide - Page 16
12
5mm
Max TV Height
570mm

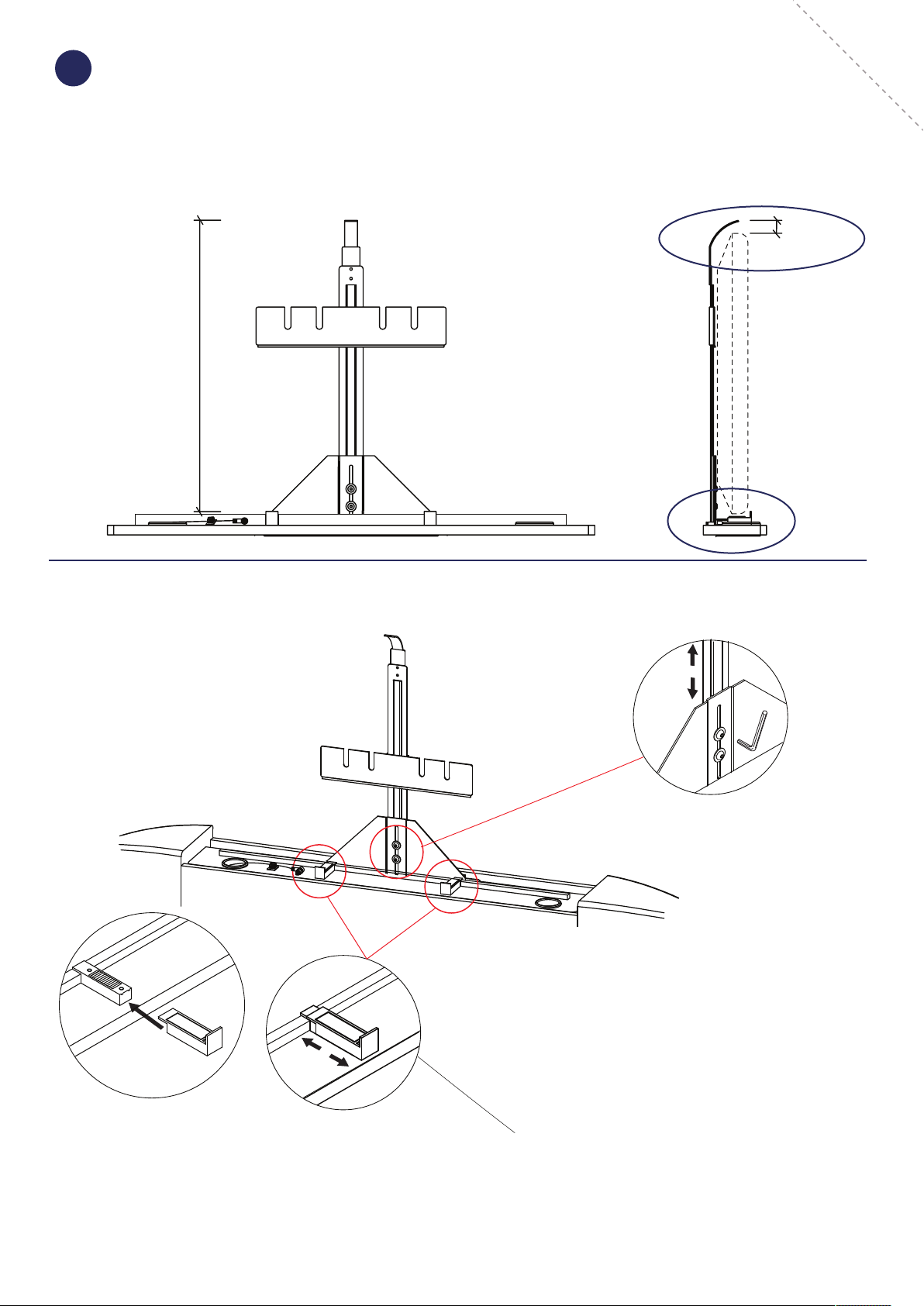

Height of TV is normally pre-set - follow this guide if it needs to be changed.
i) Measure the height of the TV.
Add 5mm to it's height then adjust the column to suit.
z
o
iii) The upper part of each support (o) slides to hold front of TV in place.
Please follow the instructions on how to correctly set these supports in Step 13.
ii) Loosen the two column adjustment bolts, slide column so
curved lid lifter is just above the TV and re-tighten the two bolts.

Drift TV Bed - Assembly guide - Page 17
13
yy
z
IF SCREWS ARE SUPPLIED WITH TV, PLEASE USE THOSE IN PREFERENCE
10mm
ii)
iii)
z
Stand TV vertically in position.
Each slider (o) should be set to
just touch the front bezel.
To make sliding each support
easier, lift respective end of the
TV a small amount.
Once set, lightly push down
on top of centre of the TV
and tighten the two Vesa
bolts 100%, these should be
in the centre of the long
holes as shown.
Fitting the television.
Select suitable fixing bolts (y), if Vesa bolts and
spacers are supplied with TV please use those
instead - leave a gap so TV can slide over the bracket.
i) y
z
Bolt sets
(M8 x 25mm)
Countersunk screw
sets (M6x12mm).
Countersunk screw
sets (M4x12mm).
Allen Key (4mm).
Allen Key (2.5mm).
Choose suitable hardware

Drift TV Bed - Assembly guide - Page 18
14
TV Power Lead
supplied with the TV
PLUG IN - KEEP ALL CABLES
TIGHT - USE CLIPS & TIES
PROVIDED.
Z
A
A
Y
OPTICAL
SOCKET

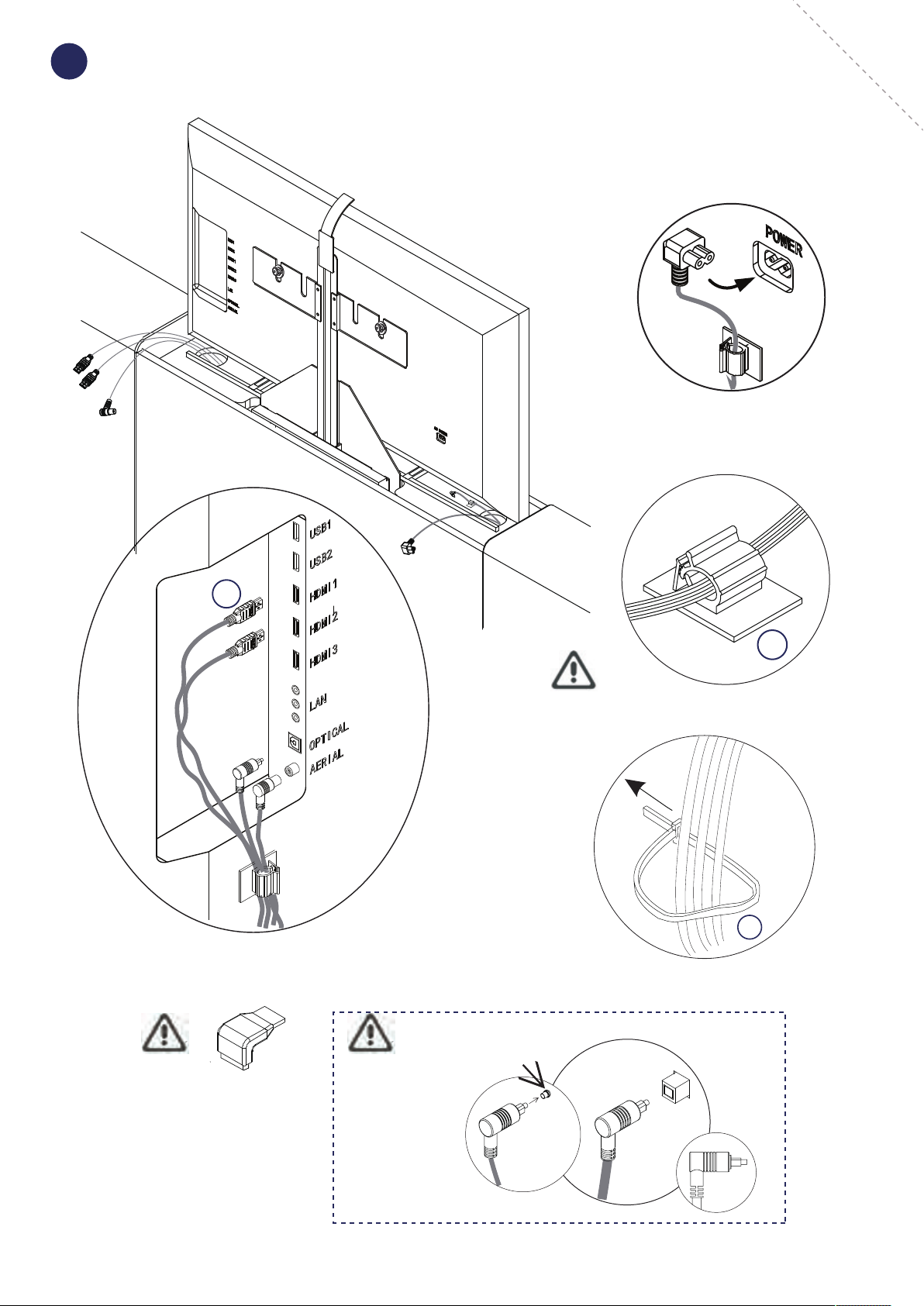

Optical connection detail..
REMOVE DUST-CAP
Note: For illustration purposes only, connections to the TV may vary.
Keep wires tight - peel off cover
and adhere clips to back of the TV
When the HDMI socket
is on the back of the TV,
this 90º adapter (AF)
must be used or cable
may be damaged by the
TV compartment lid.

Drift TV Bed - Assembly guide - Page 19
n x7
n x2
n x2
nx11
m x4
m x7
m
mx11
U
L
V
i)
ii)
iii)
M
S
J
T
16
Y
HDMI cables for media
equipment, pass cables down
the port on left or right side of
the footboard that best suits the
connections on the television.
15
This three pin socket is not continuously
live so only use to connect the power
lead supplied with the TV.
AB
Connect power to the television.
Press the “DOWN”
button to lower the TV lift
Assemble the media tray.
n

Drift TV Bed - Assembly guide - Page 20
2x n
m x4
Q
Q
Q
x2
R
18
17
Assemble the cable guard. nx4
mx4
a d
cAD
x4 cx4 dx1
RC for TV
iii）Fix RC holster to left or
right side as required
100 %
Z
a
ii）Install the HDMI
cables using velcro tabs
on the side rail , use
clips (Z) to keep cables
neat.
Fit . the media tray.
i）Fix tray in position.
