DREAMS Haan Storage Bed User manual

Two person
assembly
1.5 hour approx
assembly time
MK1 230327
Bed Bed Size Min Weight (kg) Max Weight (kg)
Haan or Hild
Small Double 10 35
Double 10 40
King 15 45
Haan &Hild Storage Bed
Small Double, Double & King Size
with O.S.B.
IMPORTANT OTTOMAN SAFETY WARNINGS
IMPORTANT – READ CAREFULLY – RETAIN FOR FUTURE REFERENCE
You must ensure that the mattress is on the bed frame before operating the
lift mechanism – Failure to do so could result in injury.
Keep hands clear of the mechanism when opening or closing the ottoman.
Beware of entrapment – Never reach in through the mechanism to access
the storage area.
Always ensure that the ottoman is FULLY opened before accessing the
storage area.
Do not exceed the maximum weight as specified in the table below:
HildHaan

Haan & Hild Storage Bed - Assembly guide - Page 2
Don’t lift without mattress
Ensure mattress is on
before lifting
IMPORTANT OTTOMAN SAFETY WARNINGS Cont.
WARNING! HAZARD - DO NOT REACH INTO THE SPACE BELOW!
Note: Be very careful what you store under
the bed - the top of an item, like a suitcase
or a box, must not touch the underside of
the mattress base or it may get damaged.
Maximum item height is 295mm.
•Use caution when operating, always use the handle when lifting.
•Note: This bed uses a pressurised mechanism.
•To be operated by adults only.
•Please ensure that children and pets are kept away from the bed when
operating the lift mechanism.
•Keep children and pets away from the storage area.
•Do not overload the internal storage base.
•Do not stand inside the internal storage area of the bed.
•Before removing the mattress secure the frame to ensure it does not open
unexpectedly.
•Do not attempt to lie on the mattress when the ottoman is in the raised
position.
•When lifting the ottoman, remove all bedding except the fitted sheet.
WARNING!HA ZARD - DO NOT REACH INTO THE SPACE B ELOW!
WARNING
TO AVOID ACCIDENTS
To access the storage area, the ottoman frame
MUST BE FULLY OPENED and then
FULLY CLOSED afterwards.
CAUTION
To be operated by ADULTS ONLY.
Keep children and pets away from the storage area.
Avoid trapping your fingers by using the handle
to lift & lower the base.
Only lift when the mattress is in place.
Ensure the ottoman support bar is secure when the
base is open.
Regularty air internal storage area and contents.
!

Haan & Hild Storage Bed - Assembly guide - Page 3
Read all the instructions before using your Ottoman bed-frame and save the instruction booklet for future reference.
Ottoman Support Bar (O.S.B.)
For optimal safety during operation, always ensure the O.S.B. is engaged when accessing the
ottoman storage area.
Ottoman Beds - Important Safety Features
1 . Always raise the ottoman slat-frame to it's highest position before using the storage area.
Locate the end of the O.S.B and insert into the fixed retaining bracket on the bed frame.
2 . When you are ready to lower the ottoman platform, return the O.S.B to its original parking position.
3 . Always ensure that the O.S.B is in position when the ottoman is open, this prevents injury, or
damage to the product.
Location of the O.S.B
End-lift
:
O.S.B is on
the left
side of the
bed.
Side-lift: O.S.B is on either the
left side or right side of the
Footend.
WARNING! Risk of Entrapment
oThe pistons on the ottoman bed frame can support a maximum load (evenly spread) as indicated in
the Minimum and Maximum load table, on the first page of this Assembly Instruction.
oOverloading the sleeping platform may contribute to damage to the product resulting in potential
serious injury.
oDo not sit on the mattress whilst the platform is in motion or is in the raised position.
oUsers should only get in and out of bed when platform is in the flat (horizontal) position.
WARNING! HAZARD-DO NOT REACH INTO THE SPACE BELOW!
!
your comfort and safety. Please take time to look at these instruction as they will help remind you how to
operate your ottoman bed safely.
Here’s a few things you need to remember;
Pistons are already assembled in their correct orientation – this improves piston performance and
durability.
“Break in ” the piston seals on first use by raising & lowering the platform at least five times.
Recommended mattress weights - do not exceed the maximum relevant weight specified on the
Assembly Instruction.
Ottoman support bar – always engage the support bar when accessing the ottoman storage area.
L.
R.

Thank you
Hello, thanks for choosing to purchase your bed from Dreams - you're now on your way to your best
ever night's sleep. Before you begin building your bed, please take a moment to read through the
instructions and make sure that you've got all the relevant parts listed on the following pages.
Assembly tips
Before you begin, it’s best to identify all parts and fittings to build your bed.
We advise laying these out on the floor to check you have everything, and
familiarising yourself before building.
Help and support
At Dreams, it’s our mission to give the whole nation a great night’s sleep - this
means that the quality of our products is of utmost importance to us. If there
are any issues with your product or any missing parts, please contact our Help
Centre on 0800 652 6750, where a member of our team will be happy to help.
(For customers based in Northern Ireland, please call 028 9050 8300)
Safety and care
It’s really important to ensure children and animals are kept away from the
assembly area, as there are small components used in this bed which could
present a choking hazard. All plastic and wrapping materials should also be
To keep your little ones busy, there is a colouring page inside the back cover.
Recycling
Please ensure that packaging is disposed of in a safe and environmentally
friendly way, and recycle where possible. Our assembly instructions are
printed on recycled paper. Please keep your assembly instructions safe
to refer back to in the future.
We recommend that you build your new bed in the room you’d like it to be
located - this will help prevent any risk of damage to your newly built bed
whilst moving it.
Top tip
Haan & Hild Storage Bed - Assembly guide - Page 4

A
M
M
M
M
B
C
D
E
G
F
Parts
Important information
The bed you have purchased comes with an Ottoman lift up base, please follow the instructions in
the current order.
To prevent accidents carefully read the ottoman safety warnings for this bed, on pages 1 & 2 of
this guide.
1
1
1
1
1
1
A. Headboard (Haan or Hild)
B. Footboard
C. Side rail - Left
D. Side rail - Right
E. Mattress Base Board - Headend
F. Mattress Base Board - Footend
1
1
2
2
2
1
1
1
1
1
1
1
1
1
2
1
1
4
H. Fabric Base Cover
J.
K.
L. ‘U’ Shape Side Rail Cross Bar
M. Angled Corner Brackets
12N .
G. Support Bracket
817161514131211101019876543210cm
BoxQtyCode Description Box
Qty
Code
Parts list
2
2
2
1
1
Mattress Stopper
Ottoman support bar PACK (O.S.B.)
Ottoman support bar
Fixed retaining bracket - footboard
Parking bracket - mattress base board
O.
P.
Q. 1
O
PQ
H
J
J
K
L
Description
Support rail for Mattress Base Boards - End
Support rail for Mattress Base Boards - Centre
Haan & Hild Storage Bed - Assembly guide - Page 5
N

Spring Washer for M8 bolt
a x18
Flat Washer for M8 bolt
Spring Washer for M8 bolt Flat Washer for M8 bolt
b x16 c x22 d x1
h x2 j x1
Allen Key for M8 bolt
Flanged lock-nuts M8
for gas-lift pistons Spanner for M8 nut
Bolts (M8x25mm)
Fitting corner bracket (M) to
side rails (C&D) and
footboard (B)
a x8
Bolts (M8x25mm)
Fitting mattress base boards
(E & F) to gas-lift support bar
b x10 c x12
e x4
Bolts (M8x40mm)
fitting ‘U’ Shape Cross Bar
(L) to side rails(C&D)
e x2
Bolts (M8x40mm)
fitting end support bars(J) to
mattress base board (E&F)
Cross head screwdriverTape measure
Tools required
m x5
b x5 c x5
Bolts (M8x25mm) for fitting
ottoman support bar
Flat washer for M8 bolts
O x1
Q x1
P x1
Spring washer for M8 bolts

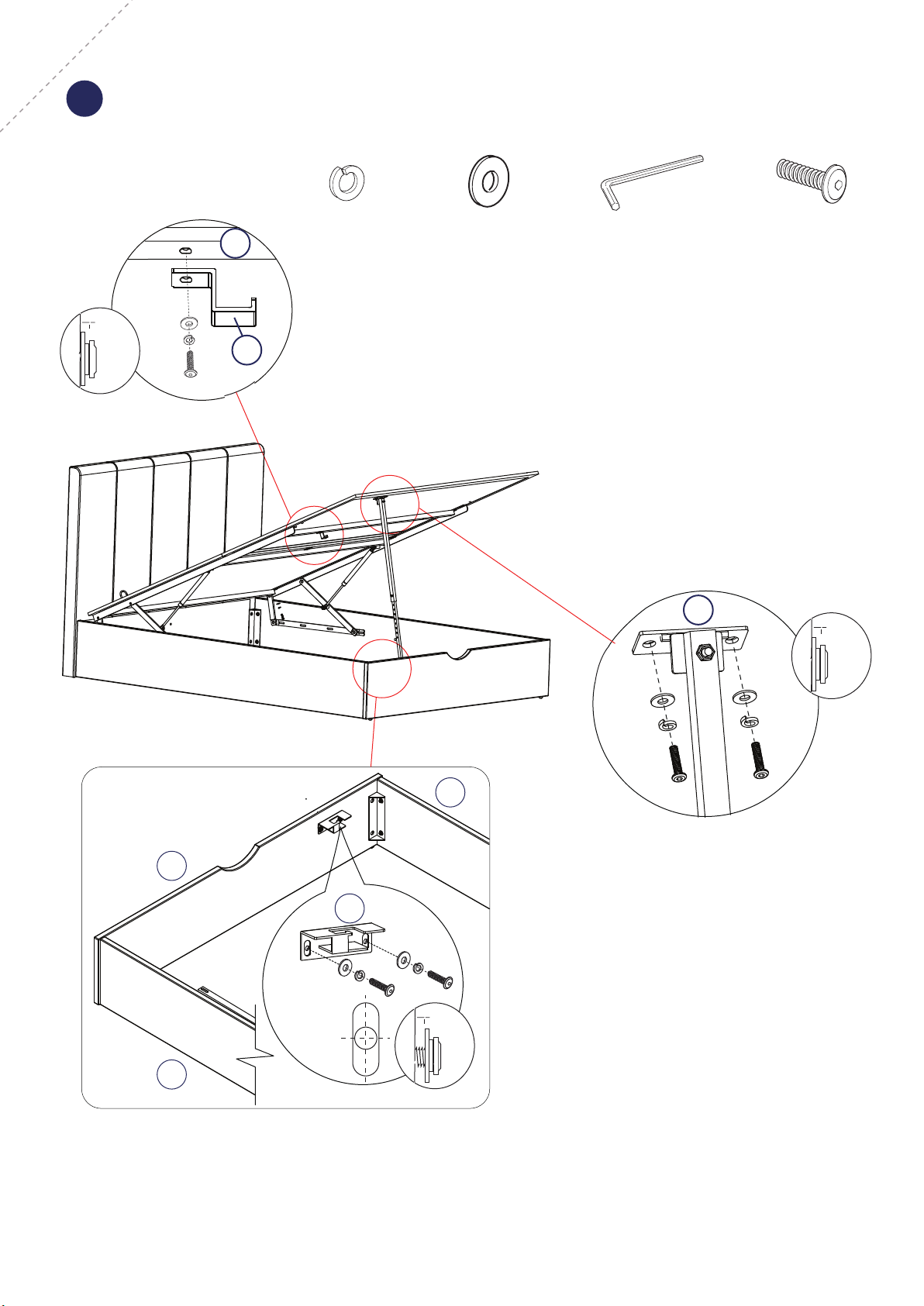

Hardware needed for fixing ottoman support bar (O.S.B) to the slat frame
packed in the side rail carton, inside Pack 2 - hardware pack (C)
Ottoman Support Bar
Fixed retaining bracket
- side rail Parking bracket - slat frame
f x2
Bolts (M8x15mm) for
fitting centre support bar (K)
to mattress base boards (E&F)
Fittings
Please check you have all the fittings listed below with your product:
Hardware needed for fixing side rails to headboard & footboard
Packed in the side rail carton, inside Pack 2 - hardware pack (A)
Hardware needed for fixing mattress base board
Packed in ottoman carton, inside Pack 3A - hardware pack (B)
g x4
Big Head Bolts (M8x20mm) for
fitting mattress stopper (N) to
mattress base boards (E)
Haan & Hild Storage Bed - Assembly guide - Page 6

Before assembly the bed, please open the compartment at the
back of the headboard and locate the following parts:
Support rails for the mattress base boards (J x2) & (K x1)
‘U’ shaped side rail cross bar (L x1)
Angled corner brackets (M x4)
Mattress stoppers (N x2).
Please note: The parts
(J, K, L, M & N) are
located inside.
1
L
K
J x2
M x4
N x4
Haan & Hild Storage Bed - Assembly guide - Page 7
Please note: The some
parts are located inside.

Hild
Haan
2 Prepare side railsfor assembly.
a
x8
b
x8
c
x8
d
x1
a x2
b x2
c x2
d
M x4
G
a x2
c x2
a
x2 c x2 d
x1
C
D
A
Haan & Hild Storage Bed - Assembly guide - Page 8
90%
3 Prepare headboard & footboard for assembly - fit support brackets (G).

a
x8
b
x8
c
x8
d
x1
a
b
c
A
B
C
D
4
5
Fit both side rails to headboard & footboard, tighten all bolts 90%.
Mattress Base Board Assembly - Use hardware pack 'B'
Haan & Hild Storage Bed - Assembly guide - Page 9
g
x4
d
x1
x2
g x2
E
N
100%
Make certain the bed is
squared up as shown in
the diagram then tighten
all bed assembly bolts 100%.
E

6
j
x2
hx1

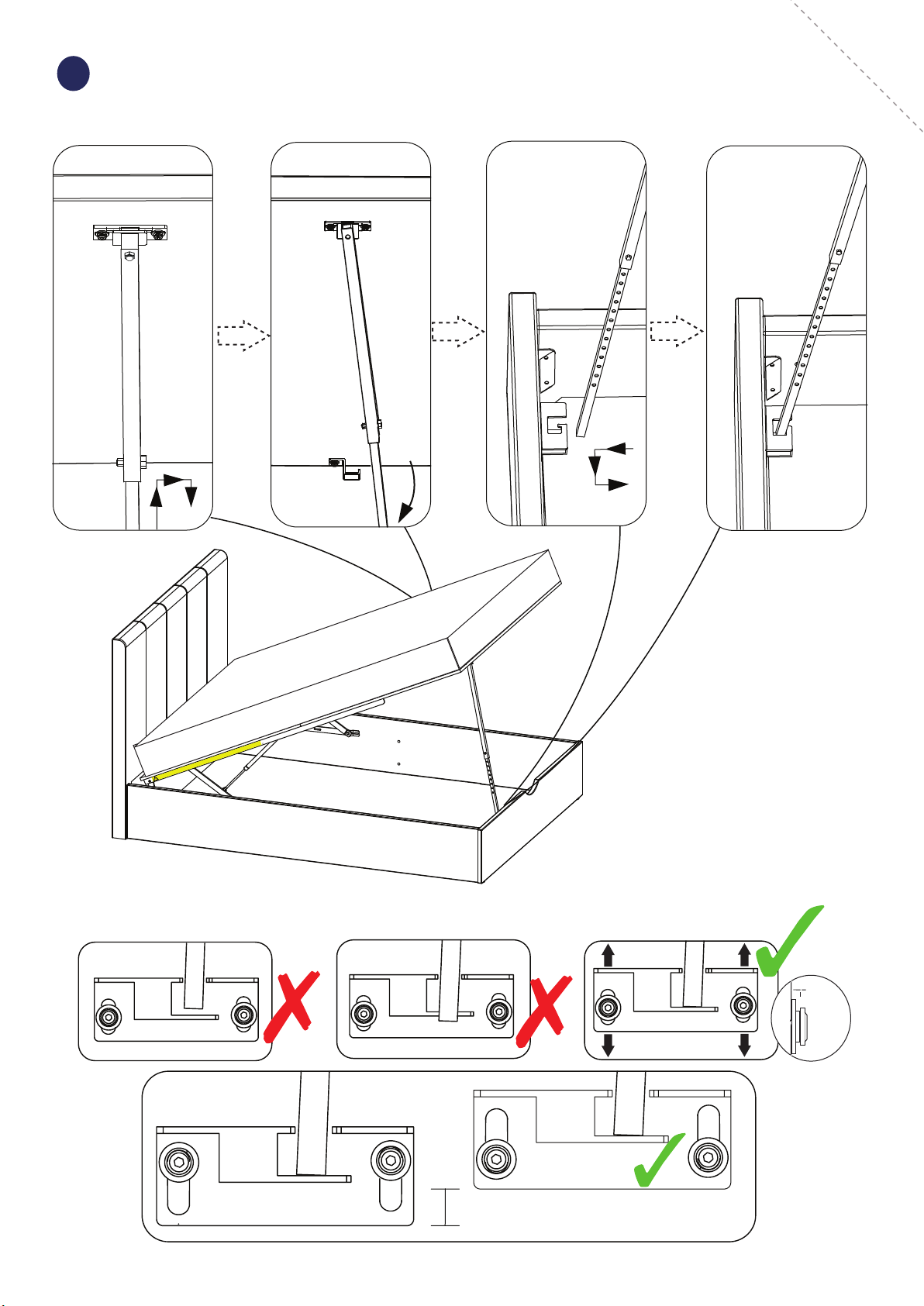

ii) Lift up mattress base board support bars.
i)
Untie the two mechanisms.
SMALL GAP
j
h
h

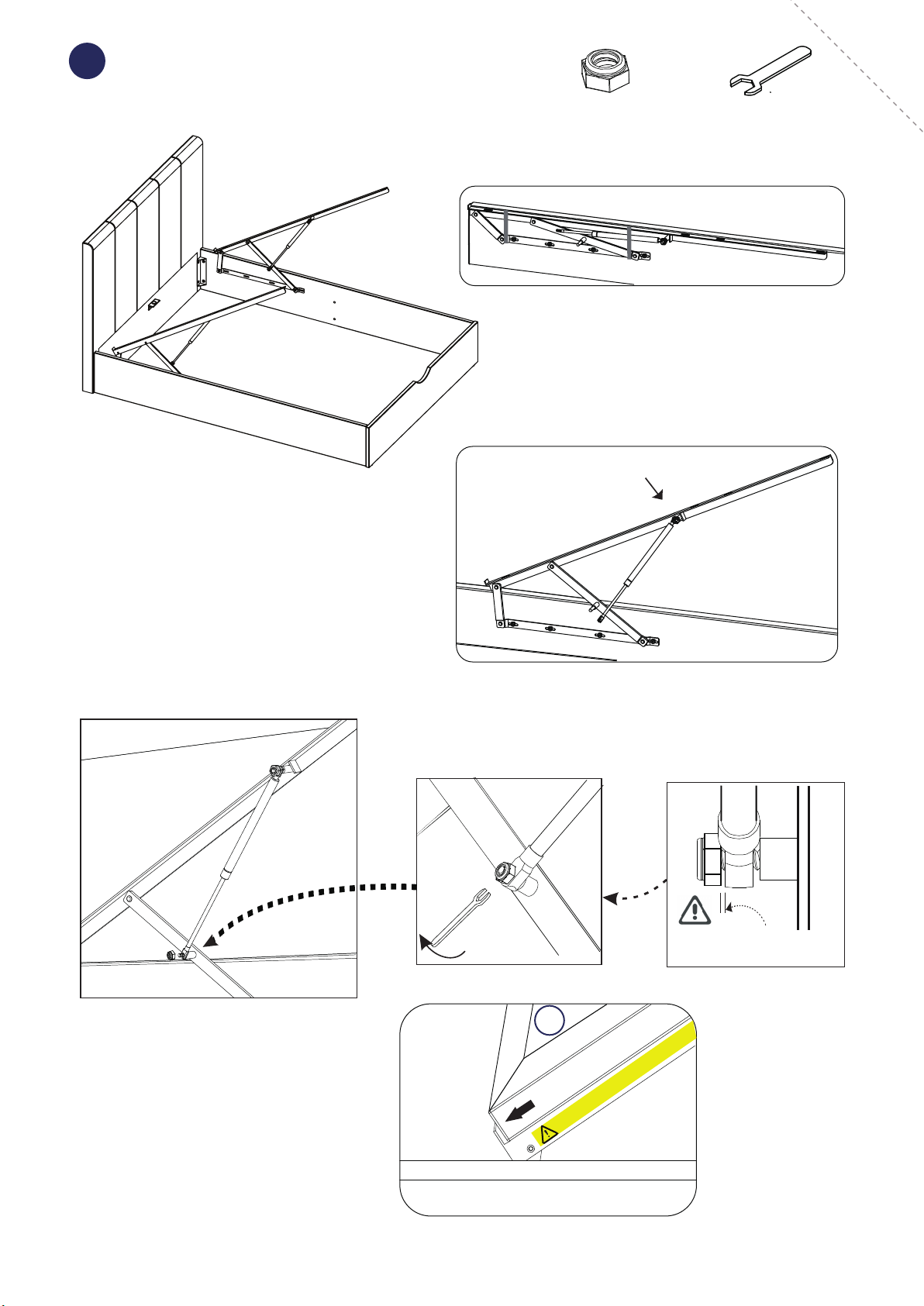

iv) Slide the piston stemsonto the lower threaded axles and fit the
lock-nuts (h) using spanner (j).
Please Note;
Do not over-tighten - a small gap needs to be left see sketch below.
iii) Hold up each support bar.
Slide the headend mattress base
board (E) into position up against the
support bar stops.
WARNING! HAZARD - DO
Haan & Hild Storage Bed - Assembly guide - Page 10
v)
E
Fit the piston stems to the lower axles.

7
ax4 bx5 cx6 dx1
e
x1
f
x1
i)
ii)
iii) iv)
a
b
c
a
b
c
e
c
f
b
c
E
E
E
E
J i
J i
K
K
Haan & Hild Storage Bed - Assembly guide - Page 11
Through the central hole in the lower
support rail (J i), carefully screw abolt set
(e & c) into the base board (E) as shown.
Do not tighten 100% yet.

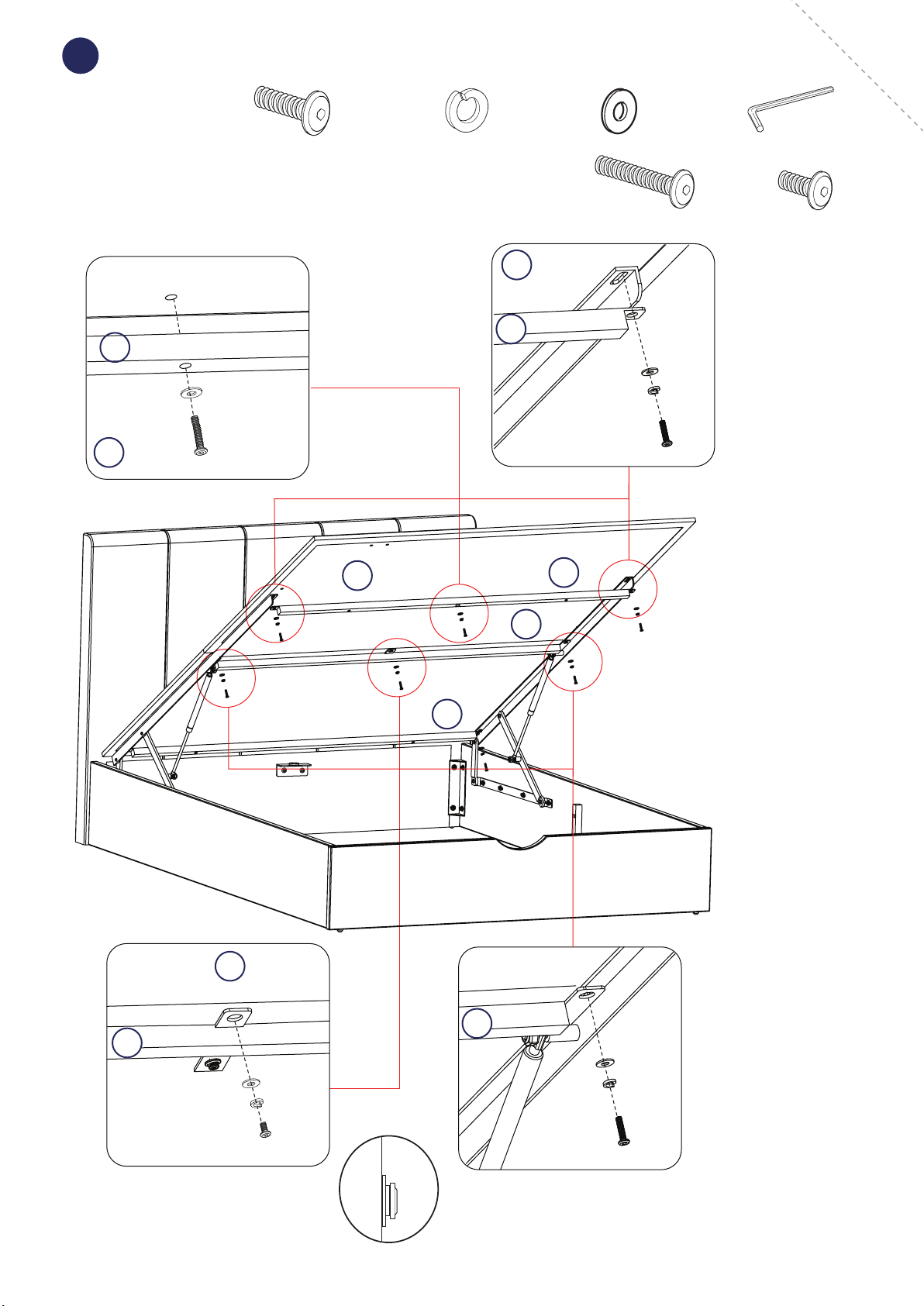

Fit the lower support rail (J i) and the central support rail (K) as shown.
K
J i
Through the end brackets in the lower
support rail (J i), carefully screw two bolt
sets (a, b & c) into the base board (E)
through the gas lift support arms as
shown.
Do not tighten 100% yet.
Through the bracket
holes in the central
support rail (K),
carefully screw abolt
set (f, b & c) into the
base board (E) as
shown.
Do not tighten 100%
yet.
Through the end
bracket hole in the
central rail (K),
carefully screw a
bolt set (a, b & c)
into the base board
(E) through the
gas-lift support
arms as shown.
Do not tighten
100% yet.

8
ax4 bx5 cx6 dx1
e
x1
f
x1
i)
ii)
iii)
e
c
F
J ii
f
b
c
F
J ii
a
b
c
a
b
c
F
J ii
K
100%
When all x12 bolt sets are in place, tighten all 100%.
Haan & Hild Storage Bed - Assembly guide - Page 12
iv)
Slide the footend mattress base board (F) into position.
Through centre of the upper support rail (J ii) Carefully
screw abolt set (e & c) into the base board as shown.
Do not tighten 100% yet.
Fit the second upper support rail (J ii) as shown.
J ii
K
J i
Through the end
brackets in the
upper support rail
(J ii), carefully
screw two bolt
sets(a, b & c) into
the base board
(F)through the
gas-lift support
arms as shown.
Do not tighten
100% yet.
Through the
remaining holes in
the support rails
(J ii & K), carefully
screw the other
bolts sets as
shown.
Do not tighten
100% yet.
F

9
c
m
b
P
b
x5
c
x5
d
x1
m
x5
90%
To the underneath of the mattress base board (F) fit the parking
bracket (Q). This is used to safely keep the support bar out of the
way when not in use. Use one bolt set (m, b & c) - please make sure
the bracket is fitted the correct way round as shown.
Screw into the threaded insert on the underside of the board.
i)
c
m
b
Q
100%
B
C
D
Unpack the contents of the Ottoman Support Bar (O.S.B.) from it's
carton - this is packed inside Pack 2.
The bolts should be in the centre of the
long holes and one may need to slide the
inner bar and the bracket, up or down so the
bottom of the O.S.B. stem just touches the
surface - better to do this AFTER the
mattress is fitted.
iii) Fit the fixed retaining bracket (P) to the
footboard using two bolt sets (m, b & c). Screw
the bolts into the threaded inserts in the
footboard. Make certain the bracket is level and
at the correct height.
Please do not tighten 100% yet.
iv)
O
c
m
b
ii) To the underneath of mattress base
board it the O.S.B. support bar (O) as shown.
Using two bolt sets (m, b & c) scr ew the
bolts into into the threaded inserts on the
underside of the frame. ,
100%
Haan & Hild Storage Bed - Assembly guide - Page 13
J

10
100%
Setting the inner stem of the support bar (O),
adjust the inner stem to the correct length.
Set the inner stem to the correct length so the end just touches
the retaining bracket - it needs to touch to hold it in position.
Adjust the retaining bracket (P) so
the stem end scrapes the surface.
Parking position
Haan & Hild Storage Bed - Assembly guide - Page 14
WARNING!HA ZARD - DO NOT REACH INTO THE SPACE B ELOW!

11
12
Haan & Hild Storage Bed - Assembly guide - Page 15
L
e
x4
c
x4
d
x1
e
c
d
H
Fit the fabric base cover evenly around the inside of the bed
Fit the 'U' shaped side rail cross bar.

Care and maintenance
Here are some tips to keep your new bed in tip-top condition
Haan & Hild Storage Bed - Care and maintenance guide - Page 16
L
80
W
H
305
From floor to top
of the mattress
base - 322
10
Cleaning
To clean your new bed, we'd advise using a warm damp cloth or if fabric,
remove dust using a low suction vacuum cleaner - please do not use abrasive
chemicals or bleach as this may damage the product.
Checking and moving
Periodically we recommend you check that the screws or fixtures haven't
become loose over time. To move your new bed, we recommend lifting it
where possible, as dragging or pushing it could cause damage to your flooring.
Wood
Please note each of our wooden pieces are unique, meaning that markings
and shade can vary slightly between beds. Over a period of time, the wood
might lighten or fade slightly due to light exposure.
Fabric
Please note depending on the lighting, positioning and surroundings of your
period of time the colour might lighten or fade slightly due to light exposure.
Metal
Metal tends to be more resilient to everyday wear and tear. We recommend to
gently dust your metal furniture and keep it dry to maintain its look.
Thank you for shopping with us - we hope you have
a great night's sleep
25
25
17
Technical Specifications
Overall Dimensions (LWH mm)
Double:
King:
Small Double:
Internal Dimensions (LWH mm)
Ottoman Piston Rating
Double:
Small Double: 750 N
Small Double:
2150 x 1240 x 1220
2100 x 1540 x 1220
2000 x 1390 x 1220
Double:
King:
1910 x 1160 x 295
1910 x 1310 x 295
2010 x 1460 x 295
King：1000 N
900 N

Little dreamers
Keep the little ones entertained while
you assemble your new purchase.
