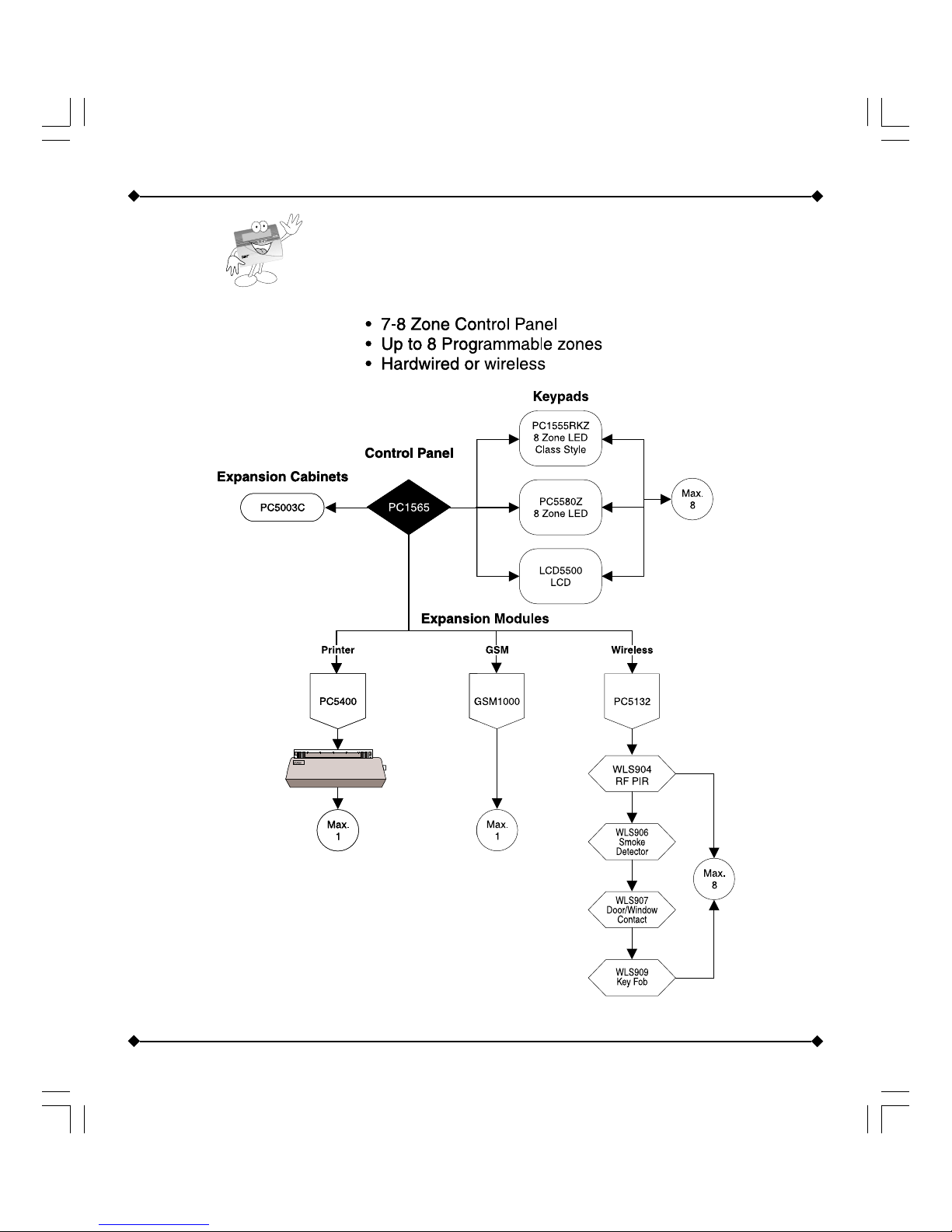

Features
Features
• 6 on-board zones
• Expandable to 8 zones via wireless
module or keypad input zones
• Supports up to 8 keypads
• LED and LCD versions available
• 2 programmable outputs
• All modules connected via 4-wire
Keybus
• Uses normal alarm cable
• Modules can be wired star or
daisy chain
• All modules are fully supervised
• 128 event log
•20
+zone types
• Zones can be configured as NC,
SEOL or DEOL
• 8 zone attributes
• 1 true partition
• Common zones
• Built-in multi-channel
communicator
• Private line dial option
• Selectable comms formats
including Contact ID, SIA, 4-8-1
and Pager
• Built-in modem for downloading
• Remote engineering (via DLS)
• 2 Separate entry delays
Technical Support:
01482 322228/329911
Features32
Using the Big Books
are the options that you need to
programme in order to have the
features work appropriately.
Now look at page 27. This is the
beginning of the Programming
Worksheets.
In the Programming Worksheets
beside every programme item is a
section/page number reference.
These numbers relate to sections in
the Installation Manual.
For example, you may not be sure
what “TLM Enable” means in pro-
gramming section 15. Beside the
option number is a reference number
(in this case 5.12) and also a page
number (22). If you turn to page 22
and locate section 5.12, you will see
that TLM stands for Telephone Line
Monitoring. There are several options
that require programming for the
telephone line monitor feature. These
are summarised at the end of the
description and include which section
the option can be programmed in.
Using the Big Books

Features
2Features
Installation
Installing the Classic PC1565
Control Panel
The following steps should be carried
out in the order described below. This
will help reduce the overall installation
time.
Before carrying out any installation
work, it is always advisable to walk the
site and check the proposed location
of all the equipment you are intending
to install.
1. Run all cables from the location
of the detectors or modules back
to the main control panel or zone
expander units.
2. Insert the five nylon studs through
the back of the steel cabinet and
mount the cabinet on the wall. Fit
the control panel to the wall.
Insert the PCB onto the nylon
studs until it locks into place.
Connect the two yellow leads
from the transformer into the AC–
in terminals on the PCB.
3. Fit the remote keypad, detectors
and internal & external sounders
in the areas described on the
specification.
4. Connect the mains cable to the
unswitched fuse spur and to the
control panel. DO NOT POWER
UP YET.
Installing the Classic PC1565 Control Panel 31
Using the Big Books
also includes a list of all additional
modules available with a brief descrip-
tion of what each module will do.
Section 2 refers to wiring the control
panel, including a description of the
main panel terminal strip, the connec-
tion and operation of the Keybus,
current ratings of modules, module
supervision and zone wiring.
Section 3 is a summary of all the user
keypad commands including arming,
disarming, auto bypass and all the
keypad commands. Also included is a
description of the operation of the
function keys and partition and global
keypads.
Section 4 is simply a description of
how to programme the panel.
Section 5 is broken down into subsec-
tions. Each contains a description of
how a particular feature works with
certain words in the description in
bold print. These bold-printed words

3
Installation
5. Connect all modules on the
Keybus using STAR or DAISY
chain, red to AUX+, black to
AUX–, yellow to yellow and green
to green.
6. Connect all detection devices.
7. Connect the external sounder.
8. Insert the lid tamper and wire to
the control panel.
9. Fit the battery into the control
panel and connect the RED to
RED and BLACK to BLACK.
10. Connect the control panel to the
telephone line if monitoring or
upload/download is required.
11. Close the cabinet lid securely and
apply mains power to the unit.
12. Programme the control panel
NOTE: The default settings of the
control panel will be suitable for
most installations and the mini-
mum of additional programming
will therefore be required.
13. Test the unit fully using Walktest
and communications if pro-
grammed.
Installing the Classic PC1565 Control Panel
Features
30 Features
Usin the Bi Books
How to use the Installation Manual
included with this panel:
The Installation Manual that accom-
panies the Classic PC1565 may
appear daunting to the first time user.
However, once you understand their
structure and how to find your way
through them, you’ll wonder what all
the fuss was about!
You will find inside the control panel
two manuals: one named Installation
Manual, one named Instruction
Manual.
Please take out the Installation
Manual.
Look at the Installation Manual;
turning the first page, you should see
the Table of Contents. In the Table of
Contents, you will see that the manual
is broken up into five major sections.
Section 1 is the basic overview of the
panel specifications including AUX,
Bell and PGM output current ratings,
battery and transformer requirements
and a quick description of some of
the more common features. Section 1

Features
4Features
Wirin
Wiring Keybus
The Keybus wiring is the most impor-
tant part of the installation process of
the Classic PC1565 and its associated
modules. The Keybus is a simple 4-
wire connection between the main
control panel and all modules con-
nected to it. Do not use the Keybus
cable for connection to any other
devices: e.g., do not try to repower
detectors or devices using the extra
cores in a multi core cable. The
Keybus is coloured RED, BLACK,
YELLOW, GREEN. All units can be
connected to the Keybus in a star or
daisy chain formation. All modules
have clearly marked terminal blocks
that identify the Keybus connection.
The Keybus must be run in a mini-
mum of 22- gauge, non shielded wire
(use shielded wire for intercom
stations only). Any module can be
connected anywhere to the Keybus
provided it is not more than 305
meters from the control panel.
Wiring Keybus 29
Features
Translation
The Language Barrier
(01) Delay 1 =Final Exit 1
(02) Delay 2 =Final Exit 2
(03) Instant =Normal Zone
(05) Interior Stay/Away = (Part Set)
Zone will be omitted if no Final exit
zone is activated. Zone arms if final
exit activated.
(06) Delay Stay/Away zone = Always
gives entry delay.
(25) Interior Delay = Entry Route/
Walk Through for domestic installa-
tions. Use for Hall PIR. In the Stay
Armed mode, this zone will give entry
delay when activated.
(04) Interior = Entry Route/Walk
Through for commercial installations
only. This zone type will not give an
entry delay when activated in Stay
Armed mode.
(27) Push to Set = Push to Set must
be double end of line resistors. Can
be o/c device but set to Force Arm,
display will read secure system or
enter code to set.
Another term that you may not be fully
familiar with is “Swinger Shut Down”.
This feature is a false alarm feature and
is used to control the number of times
a signal is transmitted to the central
station in a given set condition. This is
zone-linked and defaulted to three
transmissions per zone. What this
means is that if a zone goes faulty and
keeps triggering the communicator, the
transmission will only be sent a maxi-
mum of three times.
ranslation

5
Wiring
Wiring 24-hr De ices
The diagram below shows how to
connect door contacts, break glass
detectors and panic attack buttons to
the Classic PC1565 using double end
of line resistors (DEOL).
Always follow the manufacturer’s
instructions when installing such
devices.
Panic Button Door Contact (surface)
Break Glass Detector
Door Contact (flush) 5K6 Resistor Used in
All DEOL Connections
Wiring 24-hr Devices28
Basic Programming
Programming Examples:
Using a LCD Keypad
Programming Using a LCD Keypad

6
Wiring
Wiring PIRs

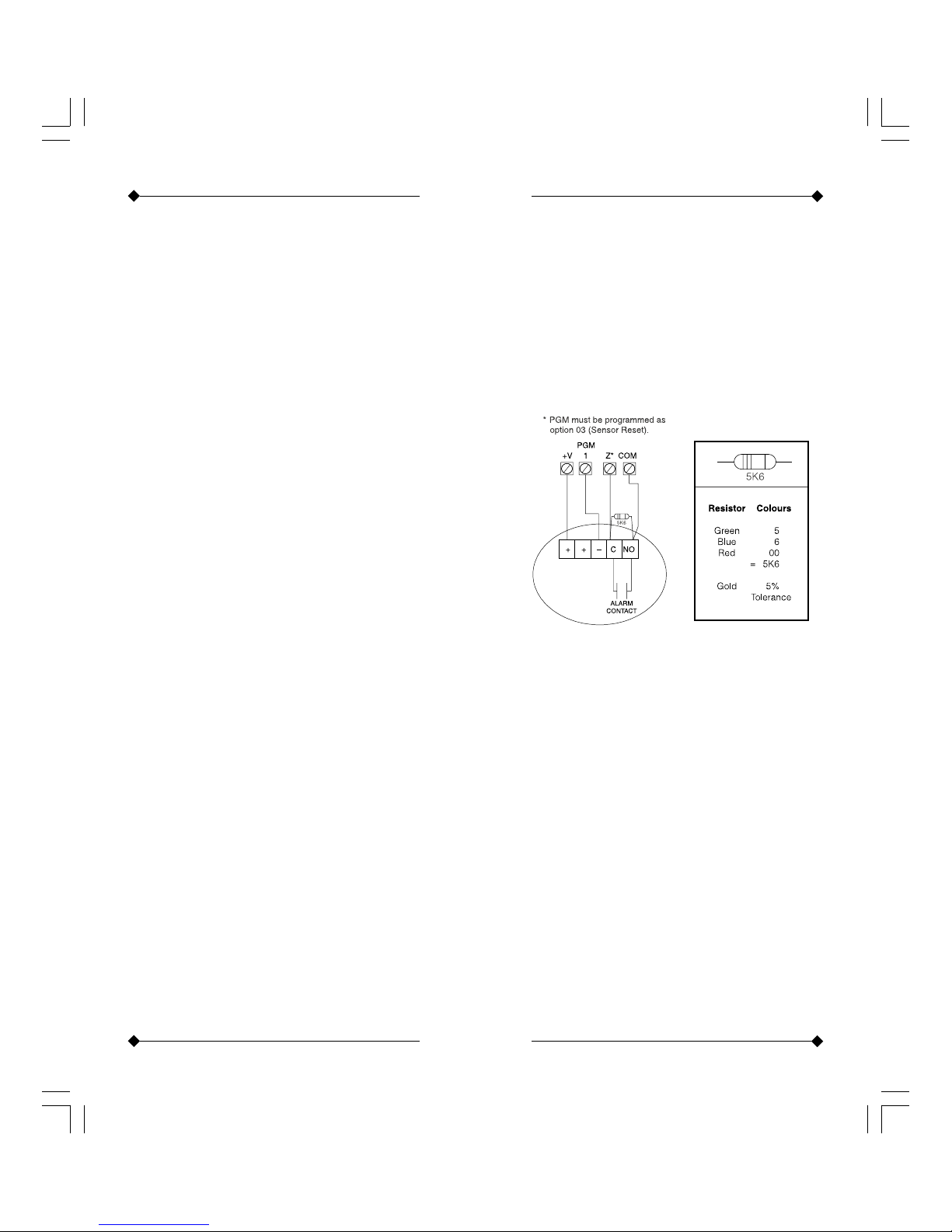

Although zones can be wired as
double end of line (DEOL), single end
of line (SEOL) or normally closed, we
recommend DEOL for all intrusion
sensors and contacts. The panel
actually comes defaulted as SEOL.
DEOL means that two 5.6K resistors
are installed at the sensor head as
shown in the diagram below. These
resistors are included with the panel.
The resistors measure a loss in
current caused by a tamper or other
fault condition. The result is greater
integrity and reduced wiring require-
ments. (4 core instead of 6)
Always repower the panel when
changing zone configurations from
DEOL to SEOL or NC loops. This will
involve disconnecting the battery and
AC from the control panel.
Remember, on repower, always enable
supervision and set the time and date.
Wiring PIRs 27
Basic Programming
Be sure to record your new Master
Code on the “System Information”
page in this booklet. NOTE: We
recommend that the factory default
or obvious codes such as [1111] or
[1234] not be used.
Additional Codes
Up to 32 additional access codes (01
through 32) may be programmed.
To program a new code:
Enter [✱][5][Master Code][code
number 01 to 32][new access code].
The code number is a double digit
from 01 to 32. Access codes must be
four digits unless otherwise indicated
by your installer. Enter digits 0
through 9 only. Press [#] to return to
the Ready state.
If an access code already exists for the
code number you have selected, it will
be replaced by the new code. Be sure
to record your new code(s) on the
“System Information” page in this
book.
To erase a code:
Enter [✱][5][Master Code][code
number 01 to 32][✱]. Press [#] to
return to the Ready state. The Master
code cannot be erased.
Programming Using a LED Keypad

7
Wiring
Wiring Fire Detectors
The diagram below shows how smoke
detectors should be connected to the
Classic PC1565 control panel.
Always check the manufacturer’s
instructions for the detector.
NOTE: Any zone which is pro-
grammed as fire will automatically be
configured as SEOL. Therefore only 1
resistor needs to be installed and the
contact should be normally open.
Wiring Fire Detectors26
Basic Programming
To toggle options “ON” or “OFF”
press the corresponding number on
the keypad. Press [2] and the dash is
replaced by the number, indicating
the option is now “ON”. Press [2]
again and the number is replaced with
a dash, indicating the option is now
“OFF”.
Go through each of the options in the
section and determine if the option
should be “ON” or “OFF”. Once all
the options are selected correctly,
press the [#] key.
The keypad again displays “Enter
Section” followed by the three dashes.
To exit from engineer mode simply
press the [#] once more and the
keypad will revert to normal mode.
That’s all you need to get you started
programming the Classic PC1565
control panel.
For complete details of all program-
ming options, refer to the Installation
Manual.
Programming Using a LED
Keypad:
The Master Code
To program the Master Code, enter
[✱][5][current Master Code][40][new
Master Code]. The Master Code must
be four digits unless otherwise indi-
cated by your installer. Enter digits 0
through 9 only. Press [#] to return to
the Ready state.
Basic Programming

8
Wiring
Wiring SAB
These bell diagrams indicate how to
connect various bells to the Classic
PC1565. Take note that the strobe
should be connected to PGM 1 and
this is programmed as default for your
strobe connection.
The bell circuit on the Classic PC1565
is always supervised with a 1K resistor.
Bell/Panel Tamper Connections
Using a Relay
Wiring SAB 25
Basic Programming
Once you press [#] to exit section
005, the keypad will again display
“Enter Section” followed by three
dashes.
If you want to make changes to
another section, then enter that new
section number. If you want to exit
engineering mode, simply press [#]
once more and the keypad will revert
to normal mode.
Let’s look at changing the default
setting of single end of line resistors
to our recommended double end of
line resistors.
Open the Installation Manual to page
29/30, and find section 013, First
System Option Code; section 013 is a
toggle option section. Section 013 will
be displayed on the LCD keypad as 2
lines, the first line displays “Toggle
Option” and the second line displays
which options are toggled “ON” or
“OFF”. If a number appears, that
option is “ON”. If a dash is displayed it
means that option is “OFF”. If you are
using the LED keypad this will be
illustrated by the zone LEDs “ON” or
“OFF”. We see that option 2 is “OFF”
because we see a dash, not a number.
Looking at section 013 in the
worksheets we see option 2 “OFF” in
section 013. This means that the
panel is set up for single end of line
resistors. If the option were “ON”, the
number 2 would appear and the panel
would be set for double end of line
resistors.
Basic Programming

9
Wiring
Wiring SAB
Connecting A NOVAGARD 2+T
Connecting A NOVAGARD Delta
Economy
Features
24 Features
Basic Pro rammin
Now let’s look at how to change some
of the default settings listed on the
previous page. If you are using the
Classic PC1565 as a “bells only”
system, this could be the only pro-
gramming you need to do.
For example, let’s look at changing
the entry delay from default 30 sec-
onds to 45 seconds. Entry delay is in
section 005, “System Times”, on
page 29 of the Installation Manual.
All entries in section 005 require 3
digits.
To get into engineering programming
mode you must press [*][8] followed
by your engineering code. At default
this will be [5555]. At this point the
keypad will display “Enter Section”
followed by three dashes. Enter the
three-digit number of the section you
want to program, in this case [005].
You will see the digits 030 displayed
indicating the default time of 30
seconds. Enter [045] for the new entry
delay time. If this is the only change
you want in section 005, you can now
press [#] to exit this section and save
the change. If you want to make
another change, (“Exit Delay”, for
example), then use the arrow keys
until 120 is displayed (the default
setting).
Basic Programming

Features
10 Features
Telephones
Telephone Connections
The Classic PC1565 is a powerful
communications device and it is
important that you make the correct
connections to the telephone line.
The line may be connected in differ-
ent ways for different applications.

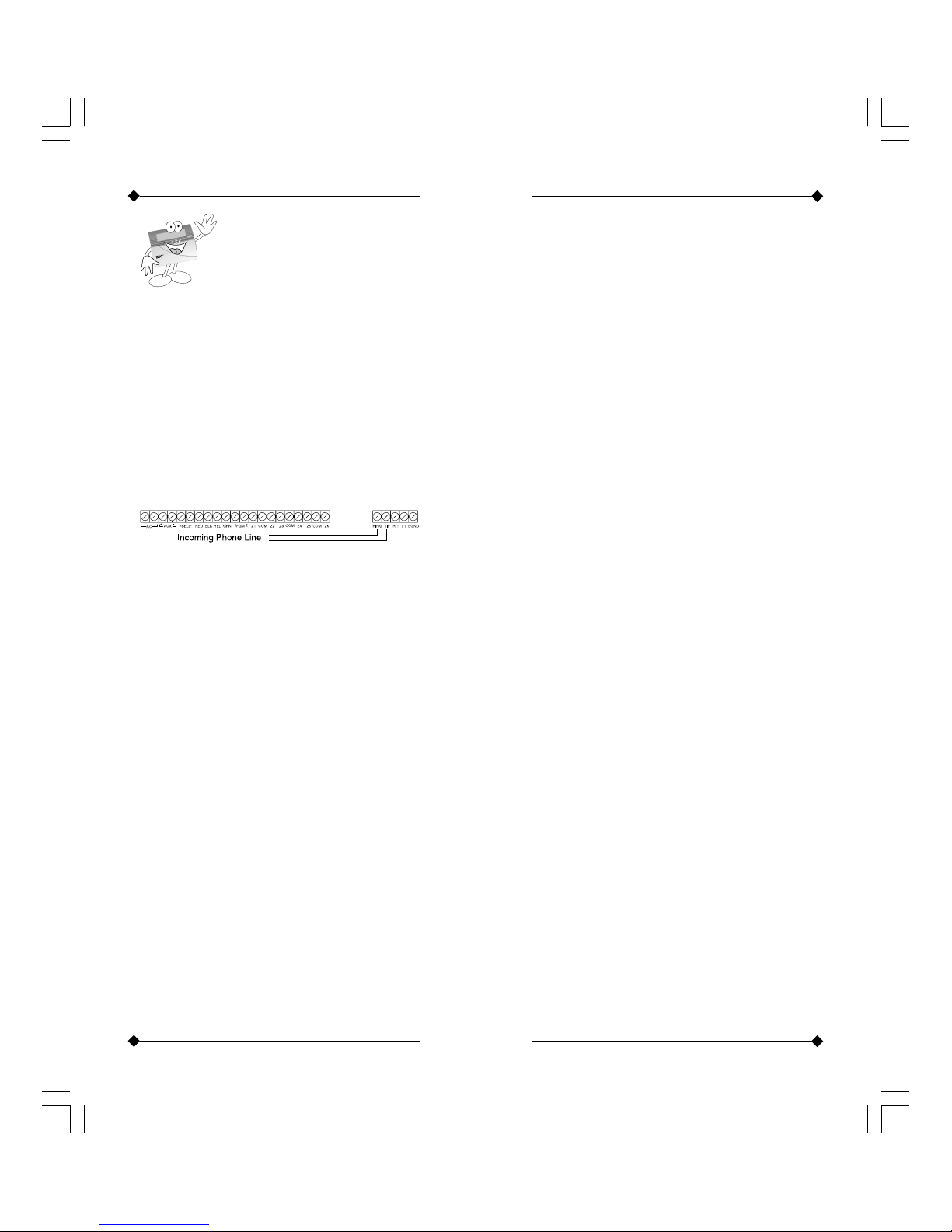

Connecting the Phone Line
NOTE: The control panel should
always be the first device on the line.
This is to ensure various features work
correctly such as line seizure.
elephone Connections 23
Clearing roubles
[1] Further Sub-Menu of
Troubles
If [1] comes ON, push [1] again for
specific trouble present. LED lit
after pushing [1] again will indicate
type of trouble.
[1] Low Battery
Check Battery. May be ON if battery
is below 11.5 volts.
[2] Bell Circuit Trouble
Panel senses open condition on bell
circuit.
[3] General System Troubles
Only generated if PC5204 or
PC5400 have fault conditions.
[4] General System Tamper
Tamper on module. [*][6][Master
Code][*] to view which module is in
tamper via the event buffer.
[5] General Supervisory
Trouble
Loss of communication with
module. [*][6][Master Code][*] to
view event buffer for details. Also try
[*][8][Engineer Code][902].
Clearing roubles

11
Features
Initial Start Up
Power Up
Initial Start Up
Before turning on the mains power,
make sure that all electrical connec-
tions are completed and all devices
are connected correctly to the main
PCB. The two YELLOW leads on the
transformer should be securely
terminated in the two terminals
marked AC.
Before turning ON the mains power,
ensure you have the battery con-
nected to the control panel, then
insert the fuse into the terminal block
using the holder provided.
The control panel keypad will beep on
power up and the LCD version shows
the software version on the screen.
This is normal.
The Keybus voltage should read 12.0
volts to 13.8 volts in the normal state.
If a low Keybus error occurs, the
reading should be around 11.0 volts
to 11.5 volts. A critical condition on
the Keybus is anything between 10.0
volts and 10.3 volts. This will result in
a shutdown.
If you have a Keybus problem, you
should carry out the following: check
the connections on all Keybus-
connected devices; check the cable
run distance; check that cable type is
22
Clearing roubles
[4] Failure to Communicate
Panel unable to send information to
central station. Check telephone
line, telephone number of Central
Station, format and reporting
codes. Dial number from handset
and listen for tones to ensure
number correct.
[5] Zone Fault
The trouble will be indicated if any
zone on the system is in a trouble
condition, i.e. if it could not send
an alarm to the panel if required to
do so. Press [5] to view the zone
number.
[6] Zone Tamper
This condition will only be gener-
ated for zones with DEOL resistor
supervision. This trouble is gener-
ated when a tamper is present.
Press [6] whilst in trouble mode to
view zone with a tamper condition.
[7] Device Low Battery
Generated when a wireless device
exhibits a low battery. Press [7]
again to view which devices have
low battery.
[8] Loss of System Time
This condition occurs when the
control unit is powered up and the
internal clock has not been set up.
[*][6][Master Code][1] to put in new
date and time.
Clearing roubles

12
Power Up
correct; and check voltage at the far
end. Disconnect furthest item on
Keybus and work back measuring
voltage. The panel will provide around
550mA of current for powering
modules and detection devices.
Always keep this in mind when ex-
panding a system.
You may be using a wireless module
with the Classic PC1565. Always
repower the control panel after adding
them onto the system. You will also
need to enable supervision, [*][8]
[Engineer Code][902[. Wait one
minute then enter [903]. The added
modules should now be displayed.
Push the [#] key when you have
finished. If a unit is not displayed in
the [903], check all of the connec-
tions for the unit.
Initial Start Up 21
Features
Clearin Troubles
If the orange “Trouble” LED is lit,
there is trouble on the system. To
view, press [*][2].
The trouble condition will be dis-
played on the LCD keypad. Scroll
through the display using the [<][>]
keys to see if more than one trouble
condition is present.
On the LED keypads, the trouble
condition will be indicated by a lit LED
zone.
NOTE: Zone 1 LED gives a further
sub-menu of troubles. Therefore, if [1]
is lit, push [1] again for specific
information on the trouble condition.
Keypad Display After Pressing [*][2]
LED Lit LCD Display
[2] AC Failure
AC no longer supplied to control
unit. To inhibit reporting of short
power-out durations, programme
delay in section [370].
[3] Telephone Line Trouble
Telephone connection to control
panel reporting problem with
connection. Check telephone line
voltage and connection. Power
down with phone line connected.
Clearing roubles

13
Power Up
If the keypad is showing the orange
“Trouble” LED, there is a problem
with the panel. To find more detail on
the problem, press [*][2]. The default
Master Code is [1234] and the default
engineer code is [5555].
Initial Start Up
Ready Armed Trouble
20
[*] Commands
[*][8] Access to Engineering Functions
Press [*][8][Engineer Code] to enter
engineering functions (Installation
Manual, page 12).
[*][9] Arming without Entry Delay
Press [*][9][Access Code] the panel
will remove the entry delay from the
partition.
[*][0] Quick Arm/Quick Exit
Press [*][0] to quick arm the system.
Ensure section 015, light 4, is pro-
grammed ON for this to work. Press
[*][0] when system armed to give
quick exit without unsetting the
system. Momentary bypass.
[*] Commands

14
Power Up
Common Start-Up Problems
Loss of Clock – Panel needs to have
time and date set. To do this press
[*][6][Master Code][1], then enter
time/date as: HH:MM/MM/DD/YY.
TLM – Panel has no phone line
connected. To cure this fault, enter
programming [*][8][Engineer Code]
and enter section 015. Turn off option
7.
Zone Fault/Tamper – Incorrect zone
supervision selected. Enter program-
ming [*][8][Engineer Code] and enter
section 013. Select correct options
from 1 and 2.
Common Start-Up Problems 19
[*] Commands
[*][5] Programming Access Codes
Press [*][5][Master Code]. The keypad
will flash the program light and turn
on the zone light for any codes
already programmed.
Enter the two-digit user number for
the code you want to program. The
corresponding zone light will flash.
Enter the four-digit code. The zone
light will then turn on steady. Do not
use [*] or [#] in user codes. Push the
[#] when you have finished.
To enable the code, press [*][5][Mas-
ter Code][9], and make sure that light
1 is turned on.
To allow the user to bypass zones,
turn on light 3. When you are finished,
push [#].
[*][6] User Functions
Press [*][6][Master Code]
[*] to view event buffer;
[1] to set the time and date;
[4] for system test;
[5] to enable DLS window.
[*][7] Output Functions
[*][7][Access Code] to activate Utility
Output.
[*][7][2] to activate smoke detector or
shock sensor reset.
[*] Commands

15
Features
Default Settings
Default Settin s
001 Zone Definitions
Zone 1 01 Entry/Exit
Zone 2 25 Interior Delay
Zone 3 03 Instant
Zone 4 03 Instant
Zone 5 03 Instant
Zone 6 05 Stay/Away
Zone 7 00 Null Zone
Zone 8 00 Null Zone
005 System Times
Entry Delay 1 030 Seconds
Entry Delay 2 045 Seconds
Exit Delay 030 Seconds
Bell Cut-Off 020 Minutes
006 Engineer Code
Default 5555
007 Master Code
Default 1234
013 First System Option Codes
Double End Of Line Resistors
164 Bell Delay
Default 000 Minutes
Features
18 Features
[*] Commands
The Classic PC1565 allows for the
access of information and outputs by
using [*] commands. These com-
mands are very similar on all DSC
products.
[*][1] Zone Bypass Features
Enter [*][1]. Bypass light flash. Enter
two-digit zone number to bypass.
Zone light ON; push [#] key.
[*][2] Display Troubles
Press [*][2] to view trouble conditions.
Keypad will flash trouble light and
LED keypad zone light(s) to indicate
troubles. See Installation Manual,
page 13 for detailed explanation.
[*][3] Alarm Memory
Press [*][3]; the keypad will flash the
memory light and light up zones
according to alarms or tampers that
occurred during last armed period. To
clear, arm and disarm system.
[*][4] Door Chime ON/OFF
Press [*][4] to turn on chime. The
keypad will beep three times to
indicate ON and one long beep to
indicate it is OFF. If you have a
problem with chime on other zones
check the zone attributes and turn
OFF option 03.
[*] Commands

Features
16 Features
Classic PC1565 Expansion Flowchart
Classic PC1565 Expansion Flowchart 17
Features
