DSE 8860 User manual

ACCESSING THE MAIN FRONT PANEL CONFIGURATION EDITOR
•Ensurethegenerator(s)isatrestandthemoduleis in STOP mode by pressing the Stop/Reset
button.
•Pressandholdthe Stopbuttonand Tickbuttontogether.
•IfamodulesecurityPINhasbeenset,thePINnumber request is then shown.
•Press ,thefirst‘#’changesto‘0’.Press (up)or (down) button to adjust it to the correct
value.
•Press (right)buttonwhenthefirstdigitiscorrectly entered. The digit you have just entered will
now show ‘#’ for security.
•TheotherdigitsofthePINnumber.Youcanpress (left) button if you need to move back to
adjust one of the previous digits.
•When ispressedaftereditingthefinalPINdigit, the PIN is checked for validity. If the number is
not correct, you must re-enter the PIN.
•IfthePINhasbeensuccessfullyentered(orthemodule PIN has not been enabled), the editor is
displayed.
EDITING A PARAMETER
•Entertheeditorasdescribedabove.
•Pressthe (up), (down), (left)and (right)tocycle to the section you wish to
view/change.
•Thenpress (up)or (down)tocycletotheparameter within the section you have chosen.
•Toedittheparameter,press toentereditmode.The parameter is highlighted blue to indicate
that you are editing the value.
•Presstheupordownbuttonstochangetheparameter to the required value.
•Press tosavethevalue.Theparameterceasesflashing to indicate that it has been saved.
•Toexittheeditoratanytime,pressandholdthe or button.
N
NNNO OOOT TTTE EEE: ::: T TTTh hhhe eee P PPPI IIIN NNN n nnnu uuum mmmb bbbe eeer rrr i iiis sss n nnno ooot ttt s ssse eeet ttt b bbby yyy D DDDS SSSE EEE w wwwh hhhe eeen nnn t ttth hhhe eee m mmmo oood dddu uuul llle eee l llle eeea aaav vvve eees sss t ttth hhhe eee f fffa aaac ccct ttto ooor rrry yyy. ... I IIIf fff t ttth hhhe eee m mmmo oood dddu uuul llle eee
has a PIN
has a PIN has a PIN
has a PIN c
ccco oood ddde eee s ssse eeet ttt, ,,, t ttth hhhi iiis sss h hhha aaas sss b bbbe eeee eeen nnn i iiim mmmp pppl llle eeem mmme eeen nnnt ttte eeed ddd b bbby yyy y yyyo ooou uuur rrr g ggge eeen nnne eeer rrra aaat ttto ooor rrr s sssu uuup pppp pppl llli iiie eeer rrr w wwwh hhho ooo s sssh hhho ooou uuul llld ddd b bbbe eee
c
ccco ooon nnnt ttta aaac ccct ttte eeed ddd i iiif fff y yyyo ooou uuu r rrre eeeq qqqu uuui iiir rrre eee t ttth hhhe eee c ccco oood ddde eee. ... I IIIf fff t ttth hhhe eee c ccco oood ddde eee h hhha aaas sss b bbbe eeee eeen nnn ‘ ‘‘‘l lllo ooos ssst ttt’ ’’’ o ooor rrr ‘ ‘‘‘f fffo ooor rrrg gggo ooot tttt ttte eeen nnn’ ’’’, ,,, t ttth hhhe eee m mmmo oood dddu uuul llle eee m mmmu uuus ssst ttt b bbbe eee
returned to the DSE factory to have the module’s code removed. A charge will be
returned to the DSE factory to have the module’s code removed. A charge will be returned to the DSE factory to have the module’s code removed. A charge will be
returned to the DSE factory to have the module’s code removed. A charge will be m
mmma aaad ddde eee f fffo ooor rrr t ttth hhhi iiis sss
procedure.
procedure.procedure.
procedure. T
TTTh hhhe eee P PPPI IIIN NNN n nnnu uuum mmmb bbbe eeer rrr i iiis sss a aaau uuut ttto ooom mmma aaat ttti iiic ccca aaal llll llly yyy r rrre eees ssse eeet ttt w wwwh hhhe eeen nnn t ttth hhhe eee e eeed dddi iiit ttto ooor rrr i iiis sss e eeex xxxi iiit ttte eeed ddd ( (((m mmma aaan nnnu uuua aaal llll llly yyy o ooor rrr
automatically) to ensure security.
automatically) to ensure security.automatically) to ensure security.
automatically) to ensure security.
NOTE: The editor automatically exits after 5 minutes of inactivity to ensure security.
NOTE: The editor automatically exits after 5 minutes of inactivity to ensure security.NOTE: The editor automatically exits after 5 minutes of inactivity to ensure security.
NOTE: The editor automatically exits after 5 minutes of inactivity to ensure security.
DEEP SEA ELECTRONICS
DSE8860 INSTALLATION INSTRUCTIONS
053-139
ISSUE 1
TYPICAL WIRING DIAGRAM
A larger version of the diagram is available in the products operators manual. DSE Part No: 057-173
DIMENSIONS AND MOUNTING
For flat surface mounting in a Type 1 enclosure to meet UL requirements
DIMENSIONS
24
5
mm x 18
4
mm x
50
mm
(9.
6
” x 7.
2
” x
2.0
”)
PANEL CUTOUT
220mm x 160mm (8.7” x 6.3”)

2

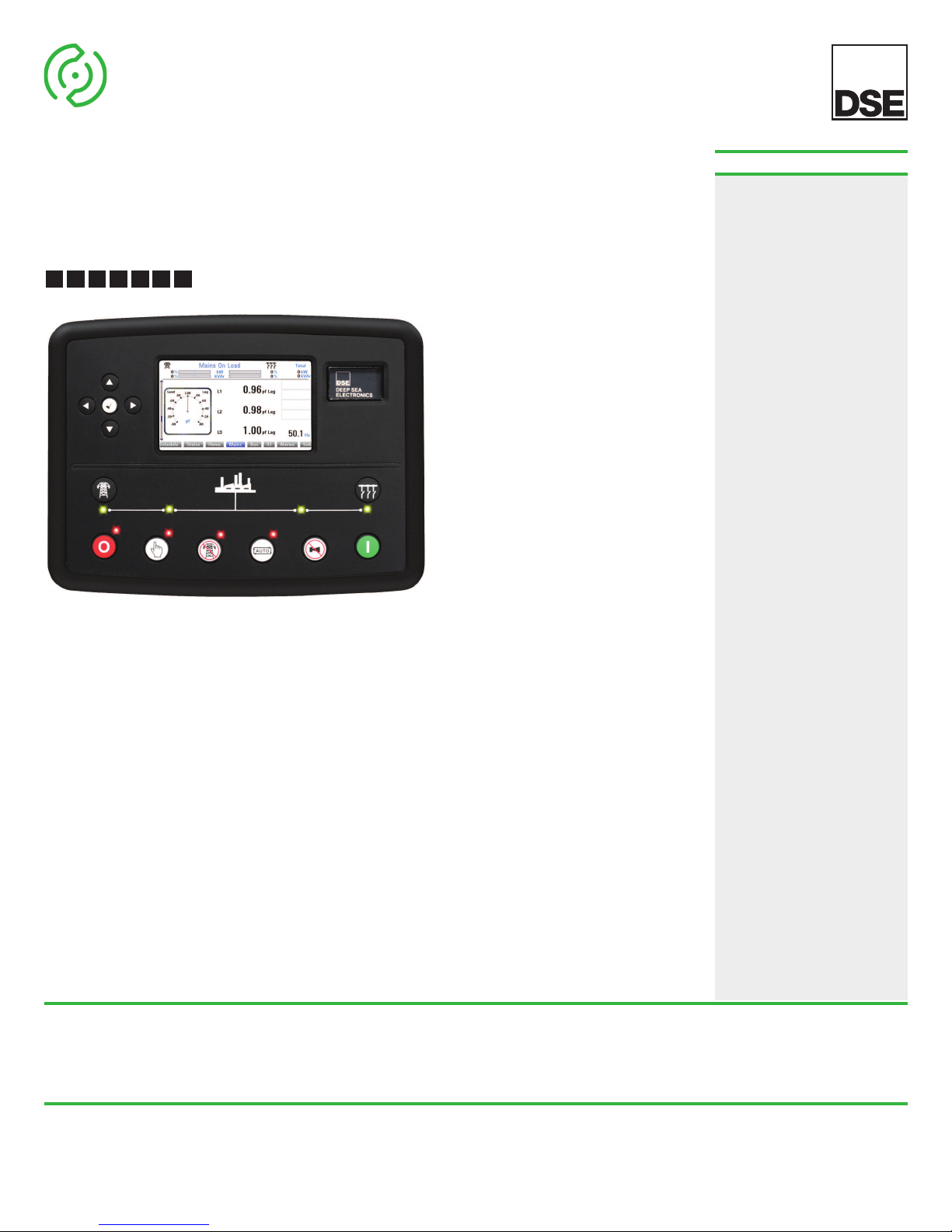

DSE8860
AUTO TRANSFER SWITCH & MAINS
COLOUR CONTROL MODULE
DSEGenset
®
The DSE8860 is an easy-to-use
single or multi-mains controller with
automatic transfer switch capability.
Designed to synchronise single or
multiple DSE8810s with single or
multiple mains (utility) supplies, the
DSE8860 will automatically control
the change over from mains (utility)
to generator supply or run generators
in synchronisation with the mains
(utility) to provide no-break, peak
lopping and peak shaving power
solutions.
The module can indicate operational
status and fault conditions on the
LCD screen (multiple languages
available), by illuminated LED,
audible sounder and SMS
messaging.
Comprehensive communications
are also available via RS232, RS485
& Ethernet for remote PC control
and monitoring, and integration into
building management systems.
The comprehensive event log will
record up to 250 events to facilitate
maintenance.
An extensive number of fixed and
flexible monitoring and protection
features are included. Easy
alteration of the sequences, timers
and alarms can be made using the
DSE PC Configuration Suite
Software. Selected configuration is
also available via the module’s front
panel.
With all communication ports
capable of being active at the same
time, the DSE8000 Series is ideal for
a wide variety of demanding load
share applications.
KEY LOAD SHARE FEATURES:
•Peak lopping
•Sequential set start
•Manual voltage/frequency
adjustment
•R.O.C.O.F. and vector shift
•Generator load demand
•Automatic hours run balancing
•Mains (Utility) de-coupling
•Mains (Utility) de-coupling
test mode
•Bus failure detection
•Volts and frequency matching.
FEATURES
ENVIRONMENTAL TESTING STANDARDS
ELECTRO MAGNETIC COMPATIBILITY
BS EN 61000-6-2
EMC Generic Immunity Standard for the
Industrial Environment
BS EN 61000-6-4
EMC Generic Emission Standard for the
Industrial Environment
ELECTRICAL SAFETY
BS EN 60950
Safety of Information Technology Equipment,
including Electrical Business Equipment
TEMPERATURE
BS EN 60068-2-1
Ab/Ae Cold Test -30oC
BS EN 60068-2-2
Bb/Be Dry Heat +70oC
VIBRATION
BS EN 60068-2-6
Ten sweeps in each of three major axes
5Hz to 8Hz @ +/-7.5mm, 8Hz to 500Hz @ 2gn
HUMIDITY
BS EN 60068-2-30
Db Damp Heat Cyclic 20/55oC @ 95% RH 48
Hours
BS EN 60068-2-78
Cab Damp Heat Static 40oC @ 93% RH 48
Hours
SHOCK
BS EN 60068-2-27
Three shocks in each of three major axes
15gn in 11mS
DEGREES OF PROTECTION
PROVIDED BY ENCLOSURES
BS EN 60529
IP65 - Front of module when installed into the
control panel with the supplied sealing gasket.
COMPREHENSIVE FEATURE LIST TO SUIT A WIDE
VARIETY OF LOAD SHARE APPLICATIONS
DSE2130
DSE2131
DSE2133
DSE2157
DSE2152
DSE2548
1ph
2ph
3ph
1ph
2ph
3ph
N
RS232 AND
RS485
DSENET®
EXPANSION
USB
PORT
USB
HOST
CONFIGURABLE
INPUTS
DC POWER
SUPPLY 8-35V
7
OTHER
ETHERNET
12
232 2 x 485
8
PCMODBUSMODEM
+
N/C VOLT FREE
OUTPUTS
BUS
SENSING
N/O VOLT
FREE OUTPUT
MAINS (UTILITY) SENSING
VOLTSCURRENT
1ph
2ph
3ph
N
1ph11
ISSUE 1
DSE8860
ANALOGUE
SENDERS
DC OUTPUTS
LOAD
CURRENT
MSC
8x60 8x10 8x80 8x10 8x60

DEEP SEA ELECTRONICS PLC UK
Highfield House, Hunmanby Industrial Estate, Hunmanby YO14 0PH
TELEPHONE [phone] FACSIMILE [phone]
EMAIL [e-mail] WEBSITE www.deepseaplc.com
DEEP SEA ELECTRONICS INC USA
3230 Williams Avenue, Rockford, IL 61101-2668 USA
TELEPHONE [phone] FACSIMILE [phone]
EMAIL [e-mail] WEBSITE www.deepseausa.com
055-139/7/12 (1)
KEY FEATURES
•Colour LCD graphical display
•Configurable digital inputs (12)
•Configurable outputs (10)
•Configurable flexible sender inputs
(2)
•Comprehensive electrical
protection
•Comprehensive loadshare
capabilities
•Mains (utility) fail sensing
•Multiple mains (utility) monitoring,
when using multiple DSE8860s
•Peak lopping
•Peak shaving
•RS232, RS485 & Ethernet remote
communications
•Modbus RTU/TCP support
•Configurable display languages
•Audible alarm
•Reduced file transfer time
•Fault condition notification to
a designated PC
•Compatible with DSE8700 &
DSE8600 Series
•Front panel editing with PIN
protection
•Configurable timers and alarms
•Multiple date and time scheduler
•Configurable event log (250)
•Easy access diagnostic page
•kW overload protection
•Reverse power protection
•Power monitoring (kW h, kV Ar, kV
A h, kV Ar h)
•USB connectivity
•Backed up real time clock
•Fully configurable via DSE
Configuration Suite PC software
•Advanced SMS messaging
(additional external modem
required)
•Start & stop capability via SMS
messaging
•Additional display screens to help
with modem diagnostics
•DSENet®expansion compatible
•Integral PLC editor
KEY BENEFITS
•Dual processor for improved
response
•RS232, RS485 & Ethernet can be
used at the same time
•High number of inputs and outputs
•Worldwide language support
•Data logging & trending
•Harmonics display for clear
monitoring
•Modules can be integrated into
building management systems
(BMS)
•Licence-free PC software
•IP65 rating (with supplied gasket)
offers increased resistance to
water ingress
•PLC editor allows user
configurable functions to meet
specific application requirements
RELATED MATERIALS
TITLE PART NO’S
DSE8860 Installation Instructions 053-139
DSE8860 Operator Manual 057-173
DSE8860 PC Configuration Suite Software Manual 057-174
DSE8810 Data Sheet 055-116
DSE8860
AUTO TRANSFER SWITCH & MAINS
COLOUR CONTROL MODULE
®
DSEGenset
FEATURES
Registered in England & Wales No.01319649
VAT No.316923457
Deep Sea Electronics Plc maintains a policy of continuous development and reserves the right to change the
details shown on this data sheet without prior notice. The contents are intended for guidance only.
SPECIFICATION
DC SUPPLY
CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous
CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing
supply was at least 10 V before dropout
and supply recovers to 5 V. This is achieved
without the need for internal batteries.
LEDs and backlight will not be maintained
during cranking.
MAXIMUM OPERATING CURRENT
600 mA at 12 V, 300 mA at 24 V
MAXIMUM STANDBY CURRENT
330 mA at 12 V, 160 mA at 24 V
MAINS (UTILITY) AND BUS
VOLTAGE RANGE
15 V to 333 V AC (L-N)
FREQUENCY RANGE
3.5 Hz to 75 Hz
OUTPUTS
OUTPUTS C & D
8 A at 250 V AC (Volt free)
AUXILIARY OUTPUTS E,F,G,H,I,J,K & L
2 A DC at supply voltage
DIMENSIONS
OVERALL
245 mm x 184 mm x 50 mm
9.6” x 7.2” x 2”
PANEL CUT-OUT
220 mm x 160 mm
8.7” x 6.3”
MAXIMUM PANEL THICKNESS
8 mm
0.3”
STORAGE TEMPERATURE RANGE
-40 oC to +85 oC

DSE8860 Operators Manual ISSUE 1
DEEP SEA ELECTRONICS PLC
DSE8860 Controller Operators Manual
Document Number: 057-173
Author: Ashley Senior

DSE8860 Operators Manual
2
DEEP SEA ELECTRONICS PLC
Highfield House
Hunmanby
North Yorkshire
YO14 0PH
ENGLAND
Sales Tel: [phone]
Sales Fax: [phone]
E-mail : [e-mail]
Website : www.deepseaplc.com
DSE8860 Operators Manual
© Deep Sea Electronics Plc
All rights reserved. No part of this publication may be reproduced in any material form (including
photocopying or storing in any medium by electronic means or other) without the written permission of
the copyright holder except in accordance with the provisions of the Copyright, Designs and Patents
Act 1988.
Applications for the copyright holder’s written permission to reproduce any part of this publication
should be addressed to Deep Sea Electronics Plc at the address above.
The DSE logo is a UK registered trademarks of Deep Sea Electronics PLC.
Any reference to trademarked product names used within this publication is owned by their respective
companies.
Deep Sea Electronics Plc reserves the right to change the contents of this document without prior
notice.
Amendments List
Issue Comments Minimum Module
Version Required
1 Initial release
Typeface: The typeface used in this document is Arial. Care should be taken not to mistake the upper case letter I with the numeral 1. The numeral
1 has a top serif to avoid this confusion.
Clarification of notation used within this publication.
NOTE:
NOTE:NOTE:
NOTE:
High
HighHigh
Highlights an essential element of a procedure to ensure correctness.
lights an essential element of a procedure to ensure correctness.lights an essential element of a procedure to ensure correctness.
lights an essential element of a procedure to ensure correctness.
CAUTION!
CAUTION!CAUTION!
CAUTION!
Indicates a procedure or practice, which, if not strictly observed, could
Indicates a procedure or practice, which, if not strictly observed, could Indicates a procedure or practice, which, if not strictly observed, could
Indicates a procedure or practice, which, if not strictly observed, could
result in damage or destruction of equipment.
result in damage or destruction of equipment.result in damage or destruction of equipment.
result in damage or destruction of equipment.
WARNING!
WARNING! WARNING!
WARNING!
Indicates a procedure or practice, which co
Indicates a procedure or practice, which coIndicates a procedure or practice, which co
Indicates a procedure or practice, which could result in injury to
uld result in injury to uld result in injury to
uld result in injury to
personnel or loss of life if not followed correctly.
personnel or loss of life if not followed correctly.personnel or loss of life if not followed correctly.
personnel or loss of life if not followed correctly.

DSE8860 Operators Manual
3
TABLE OF CONTENTS
Section Page
1 BIBLIOGRAPHY .............................................................................................. 7
1.1 INSTALLATION INSTRUCTIONS....................................................................................... 7
1.2 TRAINING GUIDES ............................................................................................................. 7
1.3 MANUALS ........................................................................................................................... 8
1.4 THIRD PARTY DOCUMENTS............................................................................................. 8
2 INTRODUCTION .............................................................................................. 9
3 SPECIFICATIONS.......................................................................................... 10

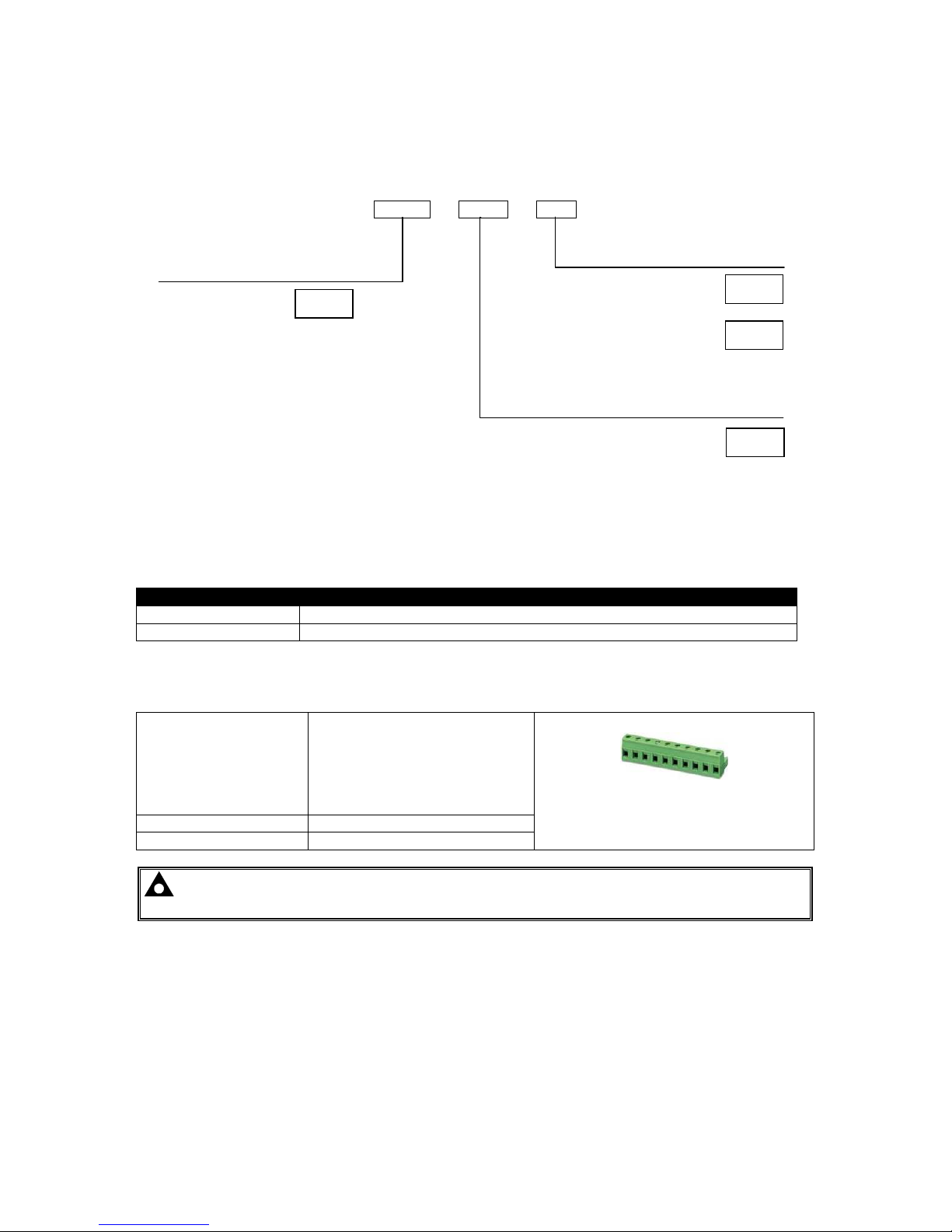

3.1 PART NUMBERING .......................................................................................................... 10
3.1.1 SHORT NAMES.......................................................................................................... 10
3.2 TERMINAL SPECIFICATION............................................................................................ 10
3.3 POWER SUPPLY REQUIREMENTS ................................................................................ 11
3.3.1 PLANT SUPPLY INSTRUMENTATION DISPLAY ..................................................... 11
3.4 VOLTAGE / FREQUENCY SENSING ............................................................................... 11
3.5 CURRENT SENSING ........................................................................................................ 12

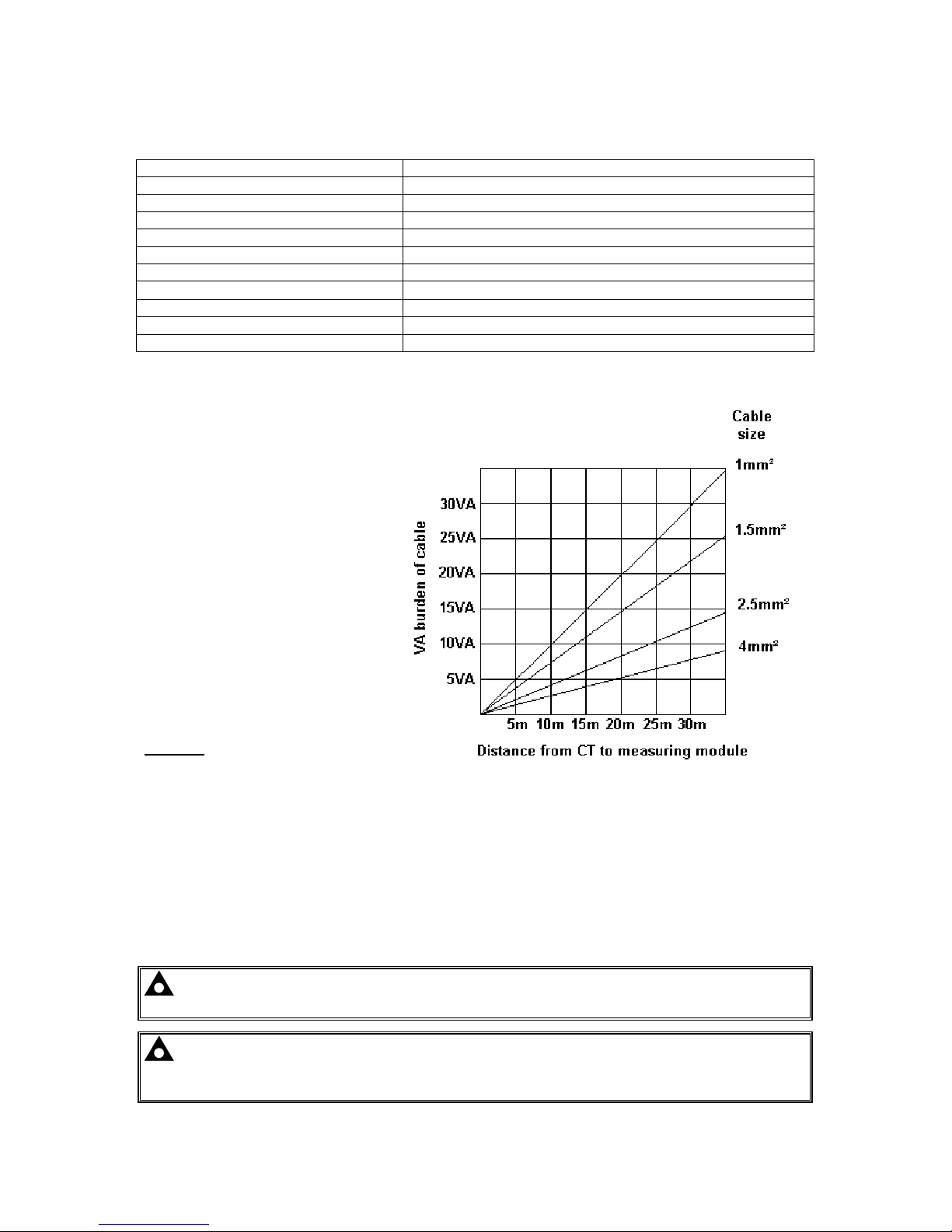

3.5.1 VA RATING OF THE CTS .......................................................................................... 12
3.5.2 CT POLARITY ............................................................................................................ 13
3.5.3 CT PHASING .............................................................................................................. 13
3.5.4 CT CLASS .................................................................................................................. 13
3.6 INPUTS .............................................................................................................................. 14
3.6.1 ANALOGUE INPUTS C & D ....................................................................................... 14
3.6.1.1 CONFIGURED AS DIGITAL INPUTS ................................................................. 14
3.6.1.2 CONFIGURED AS RESISTIVE SENSOR INPUTS ............................................ 14
3.6.1.3 CONFIGURED AS 0-10V INPUTS...................................................................... 14
3.6.1.4 CONFIGURED AS 4-20MA INPUTS................................................................... 14
3.6.2 DIGITAL INPUTS A, B, C, D, E, F, G, H, I, J, K & L ................................................... 1 5
3.7 OUTPUTS .......................................................................................................................... 15
3.7.1 VOLT FREE OUTPUTS C & D (LOAD SWITCHING)................................................ 15
3.7.2 DIGITAL OUTPUTS E, F, G, H, I, J, K & L ................................................................. 15
3.8 COMMUNICATION PORTS .............................................................................................. 16
3.8.1 USB CONNECTION ................................................................................................... 17
3.8.2 USB HOST-MASTER (USB DRIVE CONNECTION) ................................................. 17
3.8.3 RS232 ......................................................................................................................... 18
3.8.3.1 RECOMMENDED PC RS232 SERIAL PORT ADD-ONS ................................... 18
3.8.3.2 RECOMMENDED EXTERNAL MODEMS: ......................................................... 19
3.8.4 RS485 ......................................................................................................................... 20
3.8.4.1 RECOMMENDED PC RS485 SERIAL PORT ADD-ONS ................................... 20
3.8.5 ETHERNET................................................................................................................. 21
3.8.5.1 DIRECT PC CONNECTION ................................................................................ 22
3.8.5.2 CONNECTION TO BASIC ETHERNET .............................................................. 23
3.8.5.3 CONNECTION TO COMPANY INFRASTRUCTURE ETHERNET..................... 24
3.8.5.4 CONNECTION TO THE INTERNET ................................................................... 25
3.8.5.5 FIREWALL CONFIGURATION FOR INTERNET ACCESS................................ 26
3.9 DSENET® FOR EXPANSION MODULES ....................................................................... 27
3.10 SOUNDER...................................................................................................................... 28
3.10.1 ADDING AN EXTERNAL SOUNDER TO THE APPLICATION.................................. 28
3.11 ACCUMULATED INSTRUMENTATION........................................................................ 28
3.12 DIMENSIONS AND MOUNTING ................................................................................... 29
3.12.1 DIMENSIONS ............................................................................................................. 29
3.12.2 PANEL CUTOUT ........................................................................................................ 29
3.12.3 WEIGHT ..................................................................................................................... 29
3.12.4 FIXING CLIPS............................................................................................................. 29
3.12.5 CABLE TIE FIXING POINTS ...................................................................................... 30
3.12.6 SILICON SEALING GASKET ..................................................................................... 30

DSE8860 Operators Manual
4
3.13 APPLICABLE STANDARDS ......................................................................................... 31
3.13.1 BS, UL AND IEEE CLASSIFICATIONS...................................................................... 3 1
3.13.2 ENCLOSURE CLASSIFICATIONS............................................................................. 33
3.13.3 NEMA CLASSIFICATIONS......................................................................................... 34
4 INSTALLATION ............................................................................................. 35
4.1 USER CONNECTIONS...................................................................................................... 35
4.2 TERMINAL DESCRIPTION............................................................................................... 36
4.2.1 DC SUPPLY, FUEL AND START OUTPUTS, OUTPUTS E-J................................... 36
4.2.2 ANALOGUE SENSOR................................................................................................ 36
4.2.3 MAGNETIC PICKUP, CAN AND EXPANSION .......................................................... 37
4.2.4 LOAD SWITCHING AND V1 MAINS VOLTAGE SENSING....................................... 38
4.2.5 V2 BUS VOLTAGE SENSING .................................................................................... 38
4.2.6 MAINS CURRENT TRANSFORMERS....................................................................... 39
4.2.7 BUS/LOAD CURRENT TRANSFORMER .................................................................. 40
4.2.7.1 ADVANTAGES OF BUS/LOAD CT ..................................................................... 40
4.2.8 CONFIGURABLE DIGITAL INPUTS .......................................................................... 41
4.2.9 PC CONFIGURATION INTERFACE CONNECTOR.................................................. 41
4.2.10 RS232 CONNECTOR................................................................................................. 42
4.2.11 RS485 CONNECTOR................................................................................................. 42
4.2.12 ETHERNET................................................................................................................. 42
4.3 TYPICAL WIRING DIAGRAM (3 PHASE, 4 WIRE STAR)................................................ 43
4.3.1 ALTERNATE TOPOLOGIES ...................................................................................... 44
4.3.1.1 SINGLE PHASE, 2 WIRE.................................................................................... 44
4.3.1.2 2 PHASE (L1 & L2), 3 WIRE DELTA................................................................... 45
4.3.1.3 2 PHASE (L1 & L3), 3 WIRE DELTA................................................................... 45
4.3.1.4 3 PHASE, 3 WIRE DELTA .................................................................................. 46
4.3.1.5 3 PHASE, 4 WIRE DELTA .................................................................................. 46
4.3.2 BUS AND LOAD CURRENT TRANSFORMER POSITION ....................................... 47
4.3.2.1 3 PHASE, 4 WIRE WITH A BUS CURRENT TRANSFORMER ......................... 47
4.3.2.2 3 PHASE, 4 WIRE WITH A LOAD CURRENT TRANSFORMER....................... 48
4.3.3 TYPICAL SYSTEM SCHEMATICS............................................................................. 49
4.3.3.1 SINGLE MAINS, MULTIPLE GENERATORS ..................................................... 49
4.3.3.2 DUAL MAINS, MULTIPLE GENERATORS......................................................... 50
4.3.3.3 MULTIPLE MAINS, MULTIPLE GENERATORS................................................. 51
4.4 EARTH SYSTEMS............................................................................................................. 52
4.4.1 NEGATIVE EARTH..................................................................................................... 52
4.4.2 POSITIVE EARTH ...................................................................................................... 52
4.4.3 FLOATING EARTH..................................................................................................... 52
4.5 TYPICAL ARRANGEMENT OF DSENET® ...................................................................... 53
5 DESCRIPTION OF CONTROLS .................................................................... 54
5.1 DSE8860 AUTO START CONTROL MODULE ................................................................ 54
5.2 QUICKSTART GUIDE ....................................................................................................... 55
5.2.1 STARTING THE GENERATOR(S)............................................................................. 55
5.2.2 STOPPING THE ENGINE .......................................................................................... 55
5.3 VIEWING THE INSTRUMENT PAGES ............................................................................. 56
5.3.1 DISPLAY OVERVIEW ................................................................................................ 56
5.3.2 PAGE INDICATORS................................................................................................... 56
5.3.3 SIDE SCROLL BAR.................................................................................................... 57
5.3.4 SUMMARY AREA ....................................................................................................... 57
5.3.4.1 WHEN CONFIGURED TO SHOW LOAD SWITCH ........................................... 57
5.3.4.2 WHEN CONFIGURED TO SHOW BAR GRAPHS ............................................. 57
5.3.4.3 DURING SYNCHRONISING ............................................................................... 57
5.3.5 HOME ......................................................................................................................... 58
5.3.6 MAINS......................................................................................................................... 60
5.3.7 BUS............................................................................................................................. 62
5.3.8 I/O ............................................................................................................................... 64
5.3.9 ALARMS ..................................................................................................................... 65
5.3.10 SCHEDULE ................................................................................................................ 66
5.3.11 STATUS...................................................................................................................... 66

DSE8860 Operators Manual
5
6 FACIA OPERATION....................................................................................... 71
6.1 CONTROL ......................................................................................................................... 71
6.2 CONTROL PUSH-BUTTONS............................................................................................ 72
7 OPERATING PROCEDURE .......................................................................... 74
7.1 STOP MODE...................................................................................................................... 74
7.2 AUTOMATIC MODE .......................................................................................................... 75
7.2.1 WAITING IN AUTO MODE......................................................................................... 75
7.2.2 STARTING SEQUENCE............................................................................................. 75
7.2.3 BUS AVAILABLE (GENERATOR(S) RUNNING) ....................................................... 76
7.2.3.1 BUS MODE.......................................................................................................... 76
7.2.3.2 MAINS MODE...................................................................................................... 76
7.2.4 STOPPING SEQUENCE ............................................................................................ 76
7.3 MANUAL MODE................................................................................................................ 77
7.3.1 WAITING IN MANUAL MODE.................................................................................... 77
7.3.2 BUS AVAILABLE (GENERATOR(S) RUNNING) ....................................................... 77
7.3.3 STOPPING SEQUENCE ............................................................................................ 77
7.4 TEST MODE ...................................................................................................................... 78
7.4.1 WAITING IN TEST MODE.......................................................................................... 78
7.4.2 BUS AVAILABLE (GENERATOR(S) RUNNING) ....................................................... 78
7.5 MULTIPLE MAINS OPERATION ...................................................................................... 79
7.5.1 DSE8X60 PRIORITY .................................................................................................. 79
7.5.2 DSE8860 BUS/LOAD CT............................................................................................ 80
8 PROTECTIONS.............................................................................................. 81
8.1 INDICATIONS .................................................................................................................... 81
8.2 WARNINGS ....................................................................................................................... 82
8.3 ELECTRICAL TRIPS ......................................................................................................... 84
8.4 ROCOF / VECTOR SHIFT................................................................................................. 86
9 SCHEDULER ................................................................................................. 87
9.1.1 STOP MODE .............................................................................................................. 87
9.1.2 MANUAL MODE ......................................................................................................... 87
9.1.3 AUTO MODE .............................................................................................................. 87
10 FRONT PANEL CONFIGURATION ............................................................ 88
10.1 ACCESSING THE MAIN FRONT PANEL CONFIGURATION EDITOR . . . . . . . . . . . . . . . . . . . . . . . 8 9
10.1.1 EDITING A PARAMETER........................................................................................... 89
10.1.2 ADJUSTABLE PARAMETERS ................................................................................... 90
10.2 ACCESSING THE ‘MAINTENANCE’ CONFIGURATION EDITOR .............................. 91
10.2.1 EDITING A PARAMETER........................................................................................... 91
10.2.2 ADJUSTABLE PARAMETERS ................................................................................... 91
10.3 ACCESSING THE ‘RUNNING’ CONFIGURATION EDITOR ........................................ 92
10.3.1 EDITING A PARAMETER........................................................................................... 92
10.3.2 ADJUSTABLE PARAMETERS ................................................................................... 92
11 COMMISSIONING....................................................................................... 93
11.1 PRE-COMMISSIONING................................................................................................. 93
12 FAULT FINDING ......................................................................................... 94
12.1 STARTING ..................................................................................................................... 94
12.2 LOADING ....................................................................................................................... 94
12.3 COMMUNICATIONS...................................................................................................... 95
12.4 INSTRUMENTS ............................................................................................................. 96
12.5 MISCELLANEOUS ........................................................................................................ 96
13 DSE 4 STEPS TO SUCCESSFUL SYNCHRONISING ............................... 97
13.1 CONTROL...................................................................................................................... 97
13.2 METERING..................................................................................................................... 97
13.3 COMMUNICATIONS...................................................................................................... 97
13.4 SYNC CHECKS ............................................................................................................. 97

DSE8860 Operators Manual
6
14 MAINTENANCE, SPARES, REPAIR AND SERVICING ............................. 98
14.1 PURCHASING ADDITIONAL CONNECTOR PLUGS FROM DSE............................... 98
14.1.1 PACK OF PLUGS ....................................................................................................... 98
14.1.2 INDIVIDUAL PLUGS................................................................................................... 98
14.2 PURCHASING ADDITIONAL FIXING CLIPS FROM DSE............................................ 98
14.3 PURCHASING ADDITIONAL SEALING GASKET FROM DSE ................................... 98
14.4 DSENET EXPANSION MODULES................................................................................ 99
15 WARRANTY.............................................................................................. 100
16 DISPOSAL ................................................................................................ 100
16.1 WEEE (WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT) ........................... 100
16.2 ROHS (RESTRICTION OF HAZARDOUS SUBSTANCES)........................................ 100

Bibliography
7
1 BIBLIOGRAPHY
This document refers to and is referred to by the following DSE publications which can be obtained
from the DSE website: www.deepseaplc.com
1.1 INSTALLATION INSTRUCTIONS
Installation instructions are supplied with the product in the box and are intended as a ‘quick start’
guide only.
DSE PART DESCRIPTION
053-137 DSE8810 Installation Instructions
053-139 DSE8860 Installation Instructions
053-032 DSE2548 LED Expansion Annunciator Installation Instructions
053-033 DSE2130 Input Expansion Installation Instructions
053-034 DSE2157 Output Expansion Installation Instructions
053-125 DSE2131 Ratiometric Input Expansion Installation Instructions
053-126 DSE2133 RTD/Thermocouple Input Expansion Installation Instructions
053-134 DSE2152 Ratio-metric Output Expansion Installation Instructions
1.2 TRAINING GUIDES
Training Guides are produced to give ‘handout’ sheets on specific subjects during training sessions
DSE PART DESCRIPTION
056-005 Using CTs With DSE Products
056-006 Introduction to Comms
056-010 Overcurrent Protection
056-013 Load Demand Scheme
056-018 Negative Phase Sequence
056-019 Earth Fault Protection
056-020 Loss of Excitation
056-021 Mains Decoupling
056-022 Breaker Control
056-024 GSM Modem
056-026 kW & kVAr
056-030 Module PIN Codes
056-032 xx60 With No Bus Breaker
056-042 Bus or Mains Mode
