DSE Genset DSEA109 PMG User manual

ISSUE: 1
DEEP SEA ELECTRONICS
DSEA109 Operator Manual
Document Number: 057-295
Author: Matt Simpson

DSEA109 Operator Manual
057-295 ISSUE: 1
Page 2 of 60
Deep Sea Electronics Ltd
Highfield House
Hunmanby
North Yorkshire
YO14 0PH
ENGLAND
Sales Tel: [phone]
E-mail: [e-mail]
Website: www.deepseaelectronics.com
DSEA109 Operator Manual
© Deep Sea Electronics Ltd
All rights reserved. No part of this publication may be reproduced in any material form (including
photocopying or storing in any medium by electronic means or other) without the written permission of
the copyright holder except in accordance with the provisions of the Copyright, Designs and Patents
Act 1988.
Applications for the copyright holder’s written permission to reproduce any part of this publication
should be addressed to Deep Sea Electronics Ltd at the address above.
Any reference to trademarked product names used within this publication is owned by their respective
companies.
Deep Sea Electronics Ltd reserves the right to change the contents of this document without prior
notice.
Amendments Since Last Publication
Amd. No.
Comments
1
First release
Typeface. The typeface used in this document is Arial. Care should be taken not to mistake the upper
case letter I with the numeral 1. The numeral 1 has a top serif to avoid this confusion.

DSEA109 Operator Manual
Page 3 of 60
057-295 ISSUE: 1
Table of Contents
SECTION
PAGE
1INTRODUCTION..................................................................................................6
1.1 CLARIFICATION OF NOTIFICATION................................................................................. 6
1.2 GLOSSARY OF TERMS..................................................................................................... 7
1.3 BIBLIOGRAPHY................................................................................................................. 8
2SPECIFICATIONS ...............................................................................................9
2.1 TERMINAL SPECIFICATION.............................................................................................. 9
2.2 PMG / AUXILIARY WINDING / SHUNT SUPPLY................................................................9
2.3 GENERATOR VOLTAGE AND FREQUENCY SENSING....................................................9
2.4 GENERATOR CURRENT MEASUREMENT ..................................................................... 10
2.5 EXTERNAL VOLTAGE BIAS............................................................................................ 10
2.6 EXCITER FIELD OUTPUT ................................................................................................ 10
2.6.1 CONTINUOUS RATINGS........................................................................................... 10
2.6.2 PEAK CONDITIONS................................................................................................... 10
2.7 OUTPUT POWER LIMITATION CURVES......................................................................... 11
2.8 DIMENSIONS.................................................................................................................... 12
2.9 TEMPERATURE............................................................................................................... 12
2.10 WEIGHT ........................................................................................................................ 12
2.11 COMMUNICATIONS...................................................................................................... 13
2.11.1 CAN ........................................................................................................................... 13
2.11.2 CONFIGURATION PORT........................................................................................... 14
3INSTALLATION.................................................................................................15
3.1 USER CONNECTIONS ..................................................................................................... 15
3.1.1 CONNECTOR A –GENERATOR CONNECTIONS..................................................... 15
3.1.2 CONNECTOR B –EXTERNAL VOLTAGE BIAS INPUT............................................. 16
3.1.3 CAN CONNECTOR.................................................................................................... 16
3.2 TYPICAL WIRING DIAGRAMS......................................................................................... 17

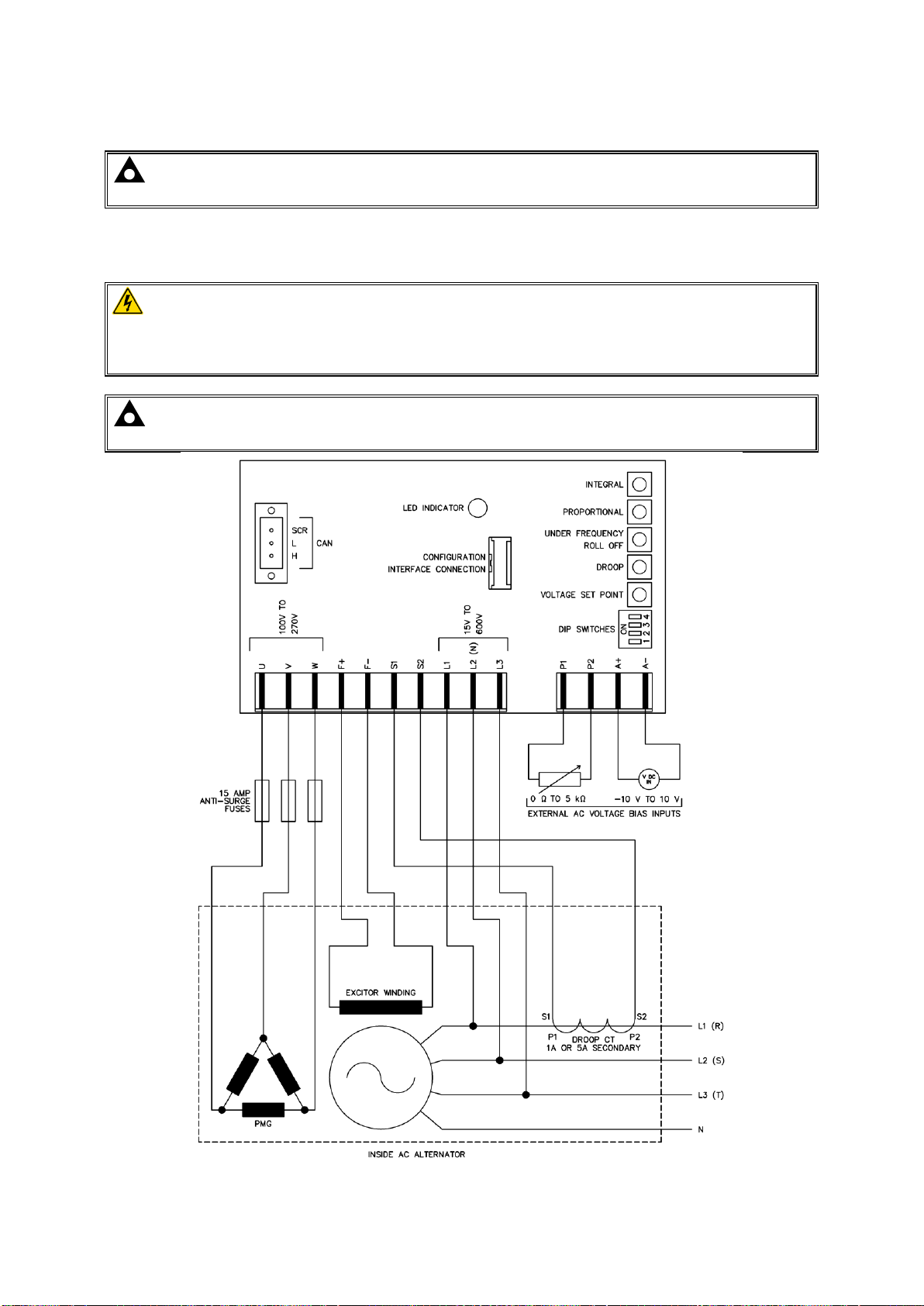

3.2.1 PMG WINDING CONNECTION.................................................................................. 17

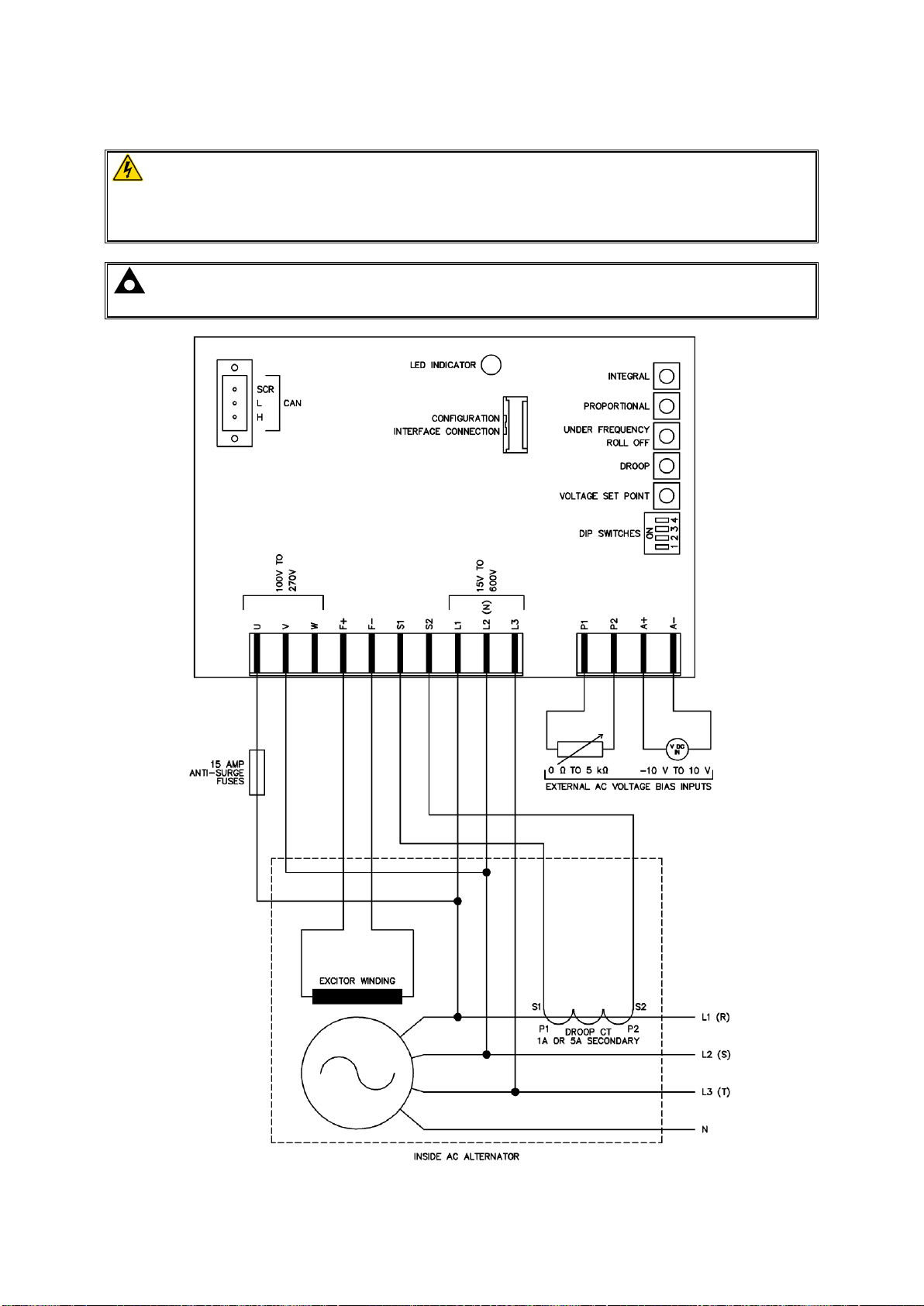

3.2.2 SHUNT CONNECTION .............................................................................................. 18
3.2.3 AUX WINDING CONNECTION................................................................................... 19
4SETUP PROCEDURE .......................................................................................20
4.1 AVR INITIAL SETTINGS................................................................................................... 20
4.2 FIRST START................................................................................................................... 24
4.2.1 AVR TRIPS AFTER FIRST START............................................................................. 24
4.2.2 LOW OUTPUT VOLTAGE AFTER FIRST START....................................................... 25
4.3 AFTER A SUCCESSFUL START...................................................................................... 25
4.3.1 OFF LOAD DUTY CYCLE SETTING .......................................................................... 25
4.3.2 PID CALIBRATION..................................................................................................... 26
4.3.2.1 PROPORTIONAL................................................................................................ 26
4.3.2.2 INTEGRAL .......................................................................................................... 26
4.3.2.3 DERIVATIVE....................................................................................................... 27
4.3.2.4 VOLTAGE SET POINT STEP.............................................................................. 27
4.3.2.5 SOFT START RAMP........................................................................................... 29
4.3.3 DROOP SETTING...................................................................................................... 30
4.3.3.1 USER CONFIGURED DROOP SETUP................................................................ 30
4.3.3.2 OBTAINING AND CONFIGURING CT PHASE SHIFT ......................................... 31
4.3.3.3 PRE-DEFINED DROOP SETUP.......................................................................... 31
4.3.4 EXTERNAL BIAS SETTING ....................................................................................... 32
4.3.4.1 EXTERNAL POTENTIOMETER........................................................................... 32
4.3.4.2 DC VOLTAGE INPUT.......................................................................................... 33
4.4 FINALISING SETUP ......................................................................................................... 34
4.4.1 PRESETS................................................................................................................... 34
4.4.1.1 VOLTAGE PRESET............................................................................................. 35
4.4.1.2 DROOP PRESET................................................................................................ 35

DSEA109 Operator Manual
057-295 ISSUE: 1
Page 4 of 60
4.4.1.3 UNDER FREQUENCY ROLL OFF (UFRO) PRESET........................................... 35
4.4.2 ALTERNATE CONFIGURATIONS.............................................................................. 36
4.4.3 ALTERNATE STABILITIES......................................................................................... 36
4.4.4 PROTECTIONS.......................................................................................................... 36
4.5 FINAL CHECK.................................................................................................................. 37
5OPERATION......................................................................................................38
5.1 CONTROLS AND INDICATIONS...................................................................................... 38
5.1.1 PRESETS................................................................................................................... 39
5.1.1.1 VOLTAGE SET POINT........................................................................................ 39
5.1.1.2 DROOP............................................................................................................... 39
5.1.1.3 UNDER FREQUENCY ROLL OFF (UFRO).......................................................... 41
5.1.1.4 PROPORTIONAL................................................................................................ 42
5.1.1.5 INTEGRAL .......................................................................................................... 42
5.1.2 DIP SWITCHES.......................................................................................................... 43
5.1.2.1 DIP SWITCH 1 .................................................................................................... 43
5.1.2.2 DIP SWITCH 2 AND 3......................................................................................... 43
5.2.1 STATUS LED............................................................................................................. 44
5.3 EXTERNAL AC VOLTAGE BIAS...................................................................................... 45
6ALARMS............................................................................................................46
6.1 START-UP TRIP............................................................................................................... 46
6.2 LOSS OF FEEDBACK...................................................................................................... 46
6.3 OVER EXCITATION.......................................................................................................... 46
6.4 UNDER FREQUENCY....................................................................................................... 46
6.5 POTENTIOMETER FAULT ............................................................................................... 46
7FAULT DIAGNOSIS ..........................................................................................47
8CAN INTERFACE SPECIFICATION .................................................................48
8.1 INSTRUMENTATION AND CONTROL ............................................................................. 48
8.1.1 BROADCAST MESSAGES......................................................................................... 48
8.1.1.1 VREP –VOLTAGE REGULATOR EXCITATION STATUS................................... 48
8.1.1.2 VROM –VOLTAGE REGULATOR OPERATING MODE...................................... 49
8.1.1.3 GAAC –GENERATOR AVERAGE BASIC AC QUANTITIES ............................... 49
8.1.1.4 GPAAC - GENERATOR PHASE A BASIC AC QUANTITIES................................ 49
8.1.1.5 GPBAC - GENERATOR PHASE B BASIC AC QUANTITIES................................ 49
8.1.1.6 GPCAC - GENERATOR PHASE C BASIC AC QUANTITIES............................... 50
8.1.1.7 DM1 (DIAGNOSTIC MESSAGE 1)....................................................................... 50
8.1.1.8 PROPB 01 –AVR SETTINGS ............................................................................. 50
8.1.1.9 PROPB 02 –AVR EXTERNAL BIAS.................................................................... 50
8.1.1.10 PROPB 03 –AVR STATUS AND VERSION........................................................ 51
8.1.1.11 PROPB 04 –AVR EXCITATION VALUES ........................................................... 51
8.1.1.12 CONFIGURABLE CAN MESSAGE 1................................................................... 51
8.1.1.13 CONFIGURABLE CAN MESSAGE 2................................................................... 52
8.1.2 RECEIVED MESSAGES............................................................................................. 52
8.1.2.1 VOLTAGE BIAS................................................................................................... 52
8.1.3 ALTERNATIVE CONFIGURATION............................................................................. 52
8.1.4 STABILITY SELECTION............................................................................................. 52
8.2 PROPRIETARY COMMANDS........................................................................................... 53
8.2.1 CONFIGURATION...................................................................................................... 53
8.2.2 MESSAGE FORMAT.................................................................................................. 53
8.2.3 DATA BYTE FORMAT................................................................................................ 53
8.2.3.1 WRITE COMMAND ............................................................................................. 53
8.2.3.2 READ COMMAND............................................................................................... 54
8.2.3.3 STORE CONFIGURATION COMMAND .............................................................. 54
8.2.3.4 ALARM RESET COMMAND................................................................................ 54
8.2.4 ERROR CODES......................................................................................................... 55
8.2.5 DATA ADDRESSES................................................................................................... 55
8.2.5.1 STATUS FLAG LIST............................................................................................ 56
8.2.5.2 DIP SWITCH POSITION LIST ............................................................................. 57

DSEA109 Operator Manual
Page 5 of 60
057-295 ISSUE: 1
9MAINTENANCE, SPARES, REPAIR AND SERVICING ...................................58
9.1 WARRANTY ..................................................................................................................... 58
9.2 DISPOSAL........................................................................................................................ 58

Introduction
057-295 ISSUE: 1
Page 6 of 60
1 INTRODUCTION
WARNING!: LIVE PARTS exist within the AVR. To avoid damage to persons and/or
property, only qualified personnel, having full understanding of the application must install the
product.
This document details the installation requirements of the DSEA109 PMG powered Digital Automatic
Voltage Regulator. The manual forms part of the product and should be kept for the entire life of the
product. If the product is passed or supplied to another party, ensure that this document is passed to
them for reference purposes.
This is not a controlled document. You will not be automatically informed of updates. Any future
updates of this document will be included on the DSE website at www.deepseaelectronics.com
For details on configuring the DSEA109 using a PC, refer to the relevant configuration software
manual.
1.1 CLARIFICATION OF NOTIFICATION
NOTE:
Highlights an essential element of a procedure to ensure correctness.
CAUTION!
Indicates a procedure or practice, which, if not strictly observed, could result in
damage or destruction of equipment.
WARNING!
Indicates a procedure or practice, which could result in injury to personnel or
loss of life if not followed correctly.

Introduction
Page 7 of 60
057-295 ISSUE: 1
1.2 GLOSSARY OF TERMS
Term
Description
AVR
Automatic Voltage Regulator.
A device that automatically adjusts alternator excitation, to maintain the desired
generator output voltage and reactive power levels.
CAN
Controller Area Network
Vehicle standard to allow digital devices to communicate to one another.
CT
Current Transformer
An electrical device that takes a large AC current and scales it down by a fixed
ratio to a smaller current.
DM1
Diagnostic Message 1
A DTC that is currently active.
DM2
Diagnostic Message 2
A DTC that was previously active on the module’s internal memory.
DTC
Diagnostic Trouble Code
The name for the entire fault code sent by a J1939 CAN device.
FMI
Failure Mode Indicator
A part of DTC that indicates the type of failure, e.g. high, low, open circuit etc.
PGN
Parameter Group Number
A CAN address for a set of parameters that relate to the same topic and share
the same transmission rate.
PMG
Permanent Magnet Generator
A Generator that controls the alternator excitation voltage via a Permanent
Magnet type alternator (typically attached the shaft of the main alternator).
SPN
Suspect Parameter Number. A part of DTC that indicates what the failure is, e.g.
oil pressure, coolant temperature, turbo pressure etc.

Introduction
057-295 ISSUE: 1
Page 8 of 60
1.3 BIBLIOGRAPHY
This document refers to, and is referred by the following DSE publications which are obtained from
the DSE website: www.deepseaelectronics.com or by contacting DSE technical support:
[e-mail].
1.3.1 INSTALLATION INSTRUCTIONS
DSE Part
Description
053-296
DSEA109 Installation Instructions
1.3.2 MANUALS
DSE Part
Description
057-294
DSEA109 Configuration Suite PC Software Manual
1.3.3 THIRD PARTY DOCUMENTS
The following third party documents are also referred to:
Reference
Description
ISBN 1-55937-879-4
IEEE Std C37.2-1996 IEEE Standard Electrical Power System Device
Function Numbers and Contact Designations. Institute of Electrical and
Electronics Engineers Inc
ISBN 0-7506-1147-2
Diesel generator handbook. L.L.J. Mahon
ISBN 0-9625949-3-8
On-Site Power Generation. EGSA Education Committee.

Specifications
Page 9 of 60
057-295 ISSUE: 1
2 SPECIFICATIONS
2.1 TERMINAL SPECIFICATION
Connection Type
Description
Specifiction
CAN port
Terminal Block
Two-part connector. Male
part fitted to module.
Female part supplied in
module packing case.
Minimum Wire Size
0.25 mm2 (AWG 24)
Maximum Wire Size
3.0 mm2 (AWG 12)
Tightening Torque
(Wire Clamp)
0.5 Nm
(4.42 lbf.in)
Tightening Torque
(Connector to Connector)
0.5 Nm
(4.42 lbf.in)
All other connections
Spade Terminals
6.3 mm male spade
terminal fitted to module
2.2 PMG / AUXILIARY WINDING / SHUNT SUPPLY
NOTE: The DSEA109 AVR is suitable for alternators with PMG, Auxiliary Winding or Shunt
connections.
CAUTION!: The source powering the AVR must have inrush protection if it’s internal
impedance is less than 3 Ω. This is typically the case when using a bench power supply.
Failure to do so may result in the power source becoming damaged.
Parameter
Description
Arrangement
Single phase or phase to phase voltage.
Voltage
100 V AC to 270 V AC between terminals U, V & W
Frequency
40 Hz to 400 Hz.
2.3 GENERATOR VOLTAGE AND FREQUENCY SENSING
Parameter
Description
Arrangement
Single phase or phase to phase voltage.
Measurement Method
True RMS up to 11th harmonic.
Primary To Ground Resistance
>4 MΩfrom each phase to A- and P2 (internally
connected).
Phase to Phase Resistance
600 kΩbetween terminals.
Voltage
15 V AC to 600 V AC between terminals.
Voltage Accuracy
±0.5 % of full scale.
Maximum Common Mode Voltage
500 V.
Frequency
40 Hz to 65 Hz.
Frequency Accuracy
±0.2 Hz.

Specifications
057-295 ISSUE: 1
Page 10 of 60
2.4 GENERATOR CURRENT MEASUREMENT
The AVR measures current in a chosen phase for the purposes of quadrature droop using terminals
S1 and S2. For further details, refer to the section entitled Quadrature Droop elsewhere in this
document.
Parameter
Description
Arrangement
Single phase on any phase.
Measurement Method
True RMS up to 11th harmonic.
Maximum Continuous Current
5 A
Burden on the CT
0.25 VA
Common Mode Offset
±1 V peak from S2 terminal to A- and P2 (internally
connected).
Accuracy
±1 % of Nominal (5 A) excluding CT error.
Droop Adjustment
0% to 10%
2.5 EXTERNAL VOLTAGE BIAS
External voltage bias inputs allow an external circuit to influence the output of the generator.
Parameter
Description
Potentiometer Bias Input
(terminals P1 and P2)
0 Ω to 5 kΩ
DC Voltage Bias Input Range
(terminals A1 and A2)
-10 V to 10 V
DC Voltage Bias Input Impedance
> 10 kΩ
Resistive Bias Range
±1% to ±16% of Nominal Voltage set using PC software
DC Voltage Bias Range
±1% / V to ±16% / V of Nominal Voltage set using PC
software
2.6 EXCITER FIELD OUTPUT
Parameter
Description
Exciter Winding Impedance
5 Ωto 50 Ω.
Exciter Winding Inductance
0.3 H to 1.2 H
2.6.1 CONTINUOUS RATINGS
Continuous rating is subject to output power being 500 W or below.
Parameter
Description
Output Voltage
0 V DC to 100 V DC.
Output Current
0 A DC to 7 A DC.
2.6.2 PEAK CONDITIONS
Peak conditions are for a maximum of 10 seconds.
Parameter
Description
Output Voltage (Overload)
150 V DC for 10 seconds.
Output Current (Overload)
15 A DC for 10 seconds.

Specifications
Page 11 of 60
057-295 ISSUE: 1
2.7 OUTPUT POWER LIMITATION CURVES
0
20
40
60
80
100
120
140
160
180
012345678910 11 12 13 14 15 16
Output Voltage (V)
Output Current (A)
Output Voltage vs Current
0
1
2
3
4
5
6
7
8
0
100
200
300
400
500
600
700
800
010 20 30 40 50 60
Output Current (A)
Output Power (W)
Exciter Resistance (Ω)
Exciter Power & Current vs Resistance
Peak Conditions
(Maximum 10 seconds)
Continuous
Conditions
(Subject to
maximum power
output of 500 W)
Output Current (A)
Output Power (W)

Specifications
057-295 ISSUE: 1
Page 12 of 60
2.8 DIMENSIONS
Parameter
Description
Overall Size
180 mm x 145 mm x 61 mm
(7.0 “ x 5.7 “ x 2.4 “)
Mounting Type
Screw Mounting to Chassis.
Mounting Holes
Suitable for M5 bolts/screws. Outside diameter 5.5 mm
(Outside diameter 0.2 “)
Mounting Hole Centres
150 mm x 120 mm
(5.9 “ x 4.7 “)
2.9 TEMPERATURE
Parameter
Description
Operating Temperature
-40 ºC to +70 ºC
(-40 ºF to +158 ºF)
Storage Temperature
-40 ºC to +85 ºC
(-40 ºF to + 185 ºF)
2.10 WEIGHT
Parameter
Description
Shipped Weight
0.68 kg
Module Weight
0.62 kg

Specifications
Page 13 of 60
057-295 ISSUE: 1
2.11 COMMUNICATIONS
2.11.1 CAN
NOTE: For further details of CAN communication, see the section entitled CAN Interface
Specification elsewhere in this document.
Parameter
Description
Protocol
S.A.E. J1939.
Bit Rate
250 kb/s
Isolation
±2.5 kVrms
Termination
External 120 Ωtermination resistor required.

Specifications
057-295 ISSUE: 1
Page 14 of 60
2.11.2 CONFIGURATION PORT
NOTE: For further details of module configuration, refer to DSE Publication: 057-283
DSEA109 Configuration Suite PC Software Manual.
Caution: Do not disconnect the USB from DSE815 whilst it is connected to the AVR. Doing
so results in loss of voltage control and potential damage to the generator.
WARNING! As the AVR is isolated from ground it is possible that the configuration is live
during operation.
In conjunction with the DSE815 Configuration Interface, the Configuration Port is provided to give a
simple means of connection between a PC and the controller.
Using the DSE Configuration Suite Software, the operator is then able to monitor the device and
perform reset operations.
Additionally, the various operating parameters are available to be viewed or changed.
To connect a module to a PC by USB, the following items are required:
•DSEA109
•DSE815 Configuration Interface
•DSE Configuration Suite PC Software (available from www.deepseaelectronics.com).

Installation
Page 15 of 60
057-295 ISSUE: 1
3 INSTALLATION

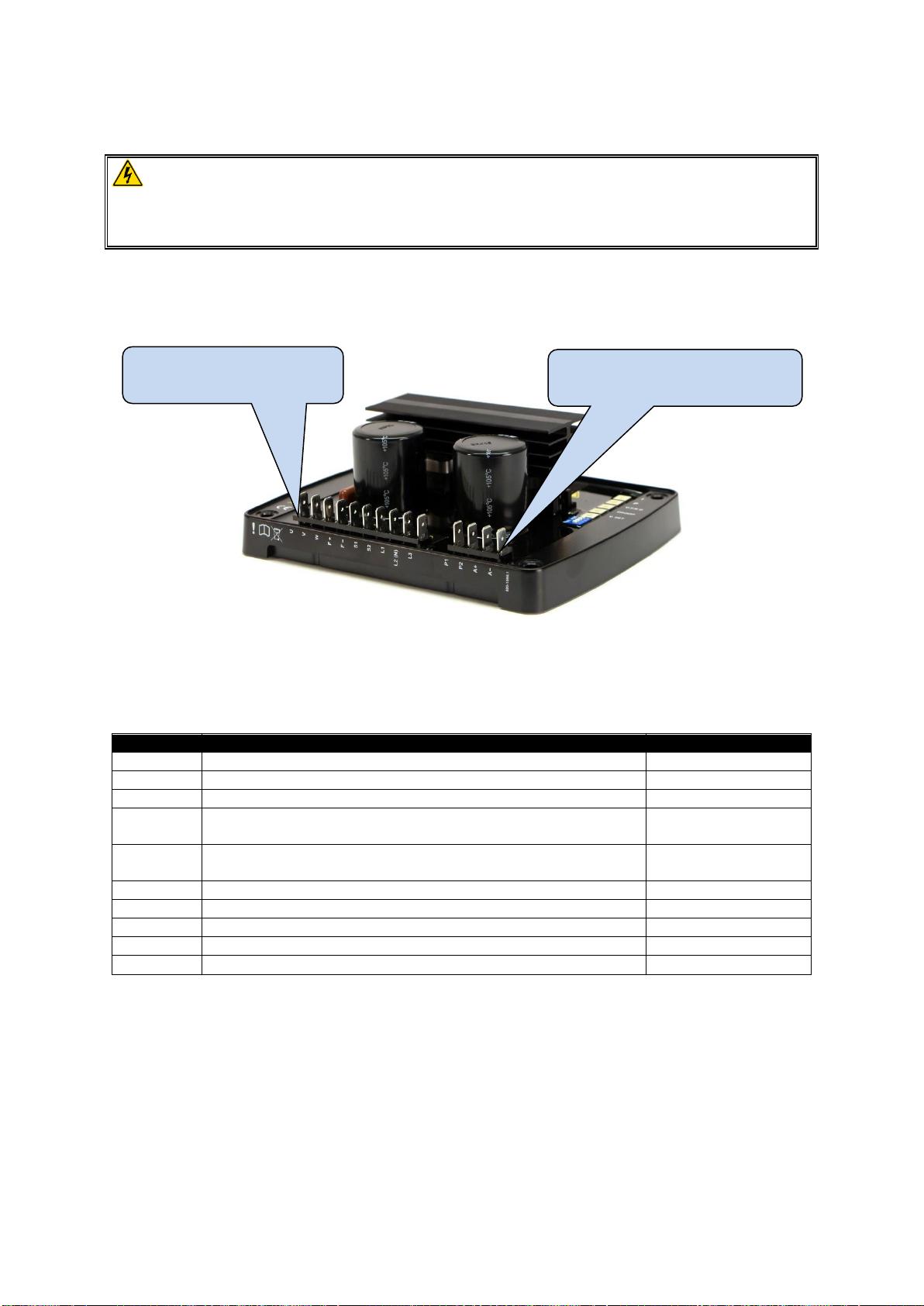

WARNING!: LIVE PARTS exist within the AVR. When powered avoid contact with
components and terminals. Terminals remain live for up to 70 seconds after shutdown. Do not
touch during this time. Only qualified personnel, having full understanding of the application
must install the product.
The AVR is designed to be mounted on the control panel chassis or within the alternator housing
utilising the integral mounting holes. For dimension and mounting details, see the section entitled
Specifications>Dimensions elsewhere in this document.
3.1 USER CONNECTIONS
3.1.1 CONNECTOR A –GENERATOR CONNECTIONS
Terminal
Function
Recommended Size
U
Connection to the L1 terminal of the PMG Winding.
2.5 mm² (AWG13)
V
Connection to the L2 terminal of the PMG Winding.
2.5 mm² (AWG13)
W
Connection to the L3 terminal of the PMG Winding.
2.5 mm² (AWG13)
F+
Connection to the positive terminal of the generator Exciter
Field Winding.
2.5 mm² (AWG13)
F-
Connection to the negative terminal of the generator Exciter
Field Winding.
2.5 mm² (AWG13)
S1
Connection to the Droop CT S1 terminal.
2.5 mm² (AWG13)
S2
Connection to the Droop CT S2 terminal.
2.5 mm² (AWG13)
L1
Connection to L1 of the generator AC output phase.
2.5 mm² (AWG13)
N (L2)
Connection to N or L2 of the generator AC output phase.
2.5 mm² (AWG13)
L3
Connection to L3 of the generator AC output phase.
2.5 mm² (AWG13)
Connector A
Generator Connections
Connector B
External Voltage Bias Inputs

Installation
057-295 ISSUE: 1
Page 16 of 60
3.1.2 CONNECTOR B –EXTERNAL VOLTAGE BIAS INPUT
Terminal
Function
Recommended Size
P1
Connection to one side of a remote 5 kΩadjustment
potentiometer.
1.0 mm² (AWG18)
P2
Connection to one side of a remote 5 kΩ adjustment
potentiometer.
1.0 mm² (AWG18)
A+
-10 V to 10 V remote adjustment input positive
terminal.
1.0 mm² (AWG18)
A-
-10 V to 10 V remote adjustment input negative
terminal.
1.0 mm² (AWG18)
3.1.3 CAN CONNECTOR
NOTE: Screened 120 impedance cable specified for use with CAN must be used for the
CAN link.
DSE stock and supply Belden cable 9841 which is a high quality 120 impedance cable
suitable for CAN use (DSE part number 016-030)
NOTE: As a termination resistor is internally fitted to the controller, the controller must be
the ‘first’ unit on the DSENet®link. A termination resistor MUST be fitted to the ‘last’ unit on
the DSENet®link. For connection details, refer to section entitled Typical Wiring Diagram
elsewhere in this document.
Terminal
Function
Recommended Size
CAN Port
H
Connection to the CAN H connection of the AVR
0.5 mm²
AWG 20
CAN Port
L
Connection to the CAN L connection of the AVR
0.5 mm²
AWG 20
CAN Port
Screen
Connection to the CAN SCR connection of the AVR
Shield

Installation
Page 17 of 60
057-295 ISSUE: 1
3.2 TYPICAL WIRING DIAGRAMS
NOTE: The DSEA109 AVR is suitable for alternators with a Permanent Magnet Generator
(PMG), Auxiliary Winding or Shunt connections.
3.2.1 PMG WINDING CONNECTION
WARNING!: LIVE PARTS exist within the AVR. When powered avoid contact with
components and terminals. Terminals remain live for up to 70 seconds after shutdown. Do not
touch during this time. Only qualified personnel, having full understanding of the application
must install the product.
NOTE: A suitably located and easily reached switch or circuit breaker must be fitted and
clearly marked as the disconnecting device for the AVR.

Installation
057-295 ISSUE: 1
Page 18 of 60
3.2.2 SHUNT CONNECTION
WARNING!: LIVE PARTS exist within the AVR. When powered avoid contact with
components and terminals. Terminals remain live for up to 70 seconds after shutdown. Do not
touch during this time. Only qualified personnel, having full understanding of the application
must install the product.
NOTE: A suitably located and easily reached switch or circuit breaker must be fitted and
clearly marked as the disconnecting device for the AVR.

Installation
Page 19 of 60
057-295 ISSUE: 1
3.2.3 AUX WINDING CONNECTION
WARNING!: LIVE PARTS exist within the AVR. When powered avoid contact with
components and terminals. Terminals remain live for up to 70 seconds after shutdown. Do not
touch during this time. Only qualified personnel, having full understanding of the application
must install the product.
NOTE: A suitably located and easily reached switch or circuit breaker must be fitted and
clearly marked as the disconnecting device for the AVR.

Setup Procedure
057-295 ISSUE: 1
Page 20 of 60
4 SETUP PROCEDURE
CAUTION: To protect the alternator, ‘De-excite’ the alternator as described by the
alternator manufacturer before commisioning the engine governor. Only re-enable the
alternator after successful governor comissioning.
WARNING!: LIVE PARTS exist within the AVR. When powered avoid contact with
components and terminals. Terminals remain live for up to 70 seconds after shutdown. Do not
touch during this time. Only qualified personnel, having full understanding of the application
must install the product.
NOTE: A suitably located and easily reached switch or circuit breaker must be fitted and
clearly marked as the disconnecting device for the AVR.
CAUTION: Do not disconnect the USB from DSE815 whilst it is connected to the AVR.
Doing so results in loss of voltage control and potential damage to the generator.
NOTE: For further details of module configuration, refer to DSE Publication: 057-271
DSEA109 Configuration Suite PC Software Manual.
The engine must be commissioned as far as possible before this procedure is carried out, in particular
the governor must be setup to produce stable speed control at 1500 RPM / 1800 RPM.
Use DSE Configuration Suite PC Software to upload the factory default configuration to the AVR if
required.
4.1 AVR INITIAL SETTINGS
NOTE: For further details of module configuration, refer to DSE Publication: 057-271
DSEA109 Configuration Suite PC Software Manual.
Before commencing the setup procedure, ensure all DIP switches are in the correct position to enable
to appropriate Stability and Main/Alternative Configuration to be calibrated.
Function
DIP Switch 1
Stability Configuration 1
Off
Stability Configuration 2
On
DIP Switch 2, 3 & 4 Functionality
Function
DIP Switch 2
DIP Switch 3
DIP Switch 4
Main Configuration
Off
Off
Off
Alternative Configuration 1
Off
Off
On
Alternative Configuration 2
Off
On
Off
Alternative Configuration 3
Off
On
On
Alternative Configuration 4
On
Off
Off
Alternative Configuration 5
On
Off
On
