Dyness PowerDepot H5B User manual

1
User Manual
PowerDepot H5B

PowerDepot H5B series User Manual
2
Contents
Statement of Law ....................................................................................................4
Safety Precautions and maintenance instructions .................................................. III
Preface .................................................................................................................. III
1 Introduction ...................................................................................................... 1
1.1 Brief Introduction .................................................................................................1
1.2 Product Properties ............................................................................................... 1
1.3 Product identity definition ....................................................................................2
2 Product Specification .........................................................................................3
2.1 Size and Weight ....................................................................................................3
2.2 Performance Parameter ........................................................................................3
2.3 Interface Definition .............................................................................................. 3
2.4 Battery Management System(BMS) ...................................................................... 5
2.4.1 Voltage Protection.................................................................................................................5
2.4.2 Current Protection.................................................................................................................6
2.4.3 Temperature Protection........................................................................................................6
2.4.4 Other Protection ................................................................................................................... 6
3 Installation and Configuration ...........................................................................7
3.1 Preparations for installation ................................................................................. 7
3.1.1 Environmental requirements................................................................................................ 7
3.1.2 Tools and data....................................................................................................................... 8
3.1.3 Technical preparation............................................................................................................8
3.1.4 Unpacking inspection............................................................................................................8
3.1.5 Engineering coordination....................................................................................................10
3.2 Equipment installation ........................................................................................10

3
3.2.1 Floor installation..................................................................................................................11
3.2.2 Mounted on the wall...........................................................................................................12
3.2.3 Electrical installation........................................................................................................... 14
3.2.4 Battery module DIP switch definition and description.......................................................18
3.2.5 Battery parameter settings on the inverter ........................................................................22
3.2.6 Register on the website after installation...........................................................................22
4 Use, maintenance and troubleshooting ........................................................... 24
4.1 Battery system usage and operation instructions .................................................24
4.2 Alarm description and processing ....................................................................... 25
4.2.1 Alarm and countermeasure for affecting system output..................................................25
4.2.2 Alarm and countermeasure for un-affecting system output.............................................. 25
4.3 Analysis and treatment of common faults ........................................................... 25

PowerDepot H5B series User Manual
4
Statement of Law
Copyright of this document belongs to Daqin New Energy Tech (Taizhou) Co., Ltd.
No part of this documentation maybe excerpted, reproduced, translated, annotated
or duplicated in any form or by any means without the prior written authorization of Daqin New
Energy Tech (Taizhou) Co., Ltd. All Rights Reserved.
This product complies with the design requirements of environmental protection and personal
safety. The storage, use and disposal of the products shall be carried out in accordance with the
product manual, relevant contract or relevant laws and regulations.
Customer can check the related information on the website of Daqin New Energy Tech (Taizhou)
Co., Ltd when the product or technology is updated. Web URL：http://www.dyness-tech.com.cn
Please note that the product can be modified without prior notification.
Manual Version: V1.0
Revision History
Revision NO.
Revision Date
Revision Reason
1.0
2021.10.28
First Published

PowerDepot H5B series User Manual
III
Safety Precautions and maintenance instructions
Warning
Please do not put the battery into water or fire, in case of explosion or any other situation
that might endanger your life.
Please connect wires properly while installation, do not reverse connect.
To avoid short circuit, please do not connect positive and negative poles with conductor on
the same device.
Please avoid any form of damage to battery, especially stab, hit, trample or strike.
Please shut off the power completely when removing the device or reconnecting wires
during the daily use or it could cause the danger of electric shock.
Please use dry powder extinguisher to put out the flame when encountering a fire hazard,
liquid extinguisher could result in the risk of explosion.
For your safety, please do not arbitrarily dismantle any component in any circumstances.
The maintenance must be implemented by authorized technical personnel or our company’s
technical support. Device breakdown due to unauthorized operation will not be covered
under warranty.
Caution
Our products have been strictly inspected before shipment. Please contact us if you find any
abnormal phenomena such as device outer case bulging.
The product shall be grounded properly before use in order to ensure your safety.
To assure the proper use please make sure parameters among the relevant device are
compatible and matched.
Please do not mixed-use batteries from different manufacturers, different types and models,
as well as old and new together.
Ambient and storage method could impact the product life span, please comply with the
operation environment instruction to ensure device works in proper condition.
For long-term storage, the battery should be recharged once every 6 months, and the
amount of electric charge shall exceed 80% of the rated capacity.
Please charge the battery in 18 hours after it fully discharged or over-discharging protection
mode is activated.
Formula of theoretical standby time: T=C/I (T is standby time, C is battery capacity, I is total
current of all loads).
The surface of the PowerDepot cabinet is affixed with a torn invalid label. Therefore, before
opening the cover to change the DIP switch mode, you need to contact DYNESS and inform
the product ID. DYNESS will record this battery ID and authorize the opening operation to be
performed. Except for changing the DIP switch mode, no other operations are allowed. In
the next stage, you can log in to apply for operations directly on the DYNESS website.
Contact the authorized dealer or distributor of DYNESS for a new torn invalid sticker after
tearing the original invalid label. When the operation is completed, paste the new one at a
different position.

PowerDepot H5B series User Manual
IV
Preface
Manual Description
PowerDepot H5B Lithium Iron Phosphate Battery is external battery module which can store the
electricity for home use. When you apply the grid or photovoltaic system as your powers supply,
the product can collect electricity to charges the battery. When grid or photovoltaic system is
power off , the product can supply electricity itself for your home loads.
PowerDepot H5B User manual included the device structure, parameters, basic procedure and
method of installation, operation, maintenance.
Safety Statement
Only qualified and trained professionals are qualified to install, operate, maintain the
device.
Please comply with local safety regulations and operational rules during installation,
operation and maintenance, or it could cause unexpected injury or device damage.
The safety declaration mentioned in the manual are only supplement context for your local
safety regulations.
The seller does not undertake any responsibility for device operations or usage of violating
general safety requirements and safety standards.
Sign explanation
User should clear the meaning of the caution sign below when configuring or operating
PowerDepot H5B series products.
Caution
Neglecting the warnings might cause equipment failure.

PowerDepot H5B series User Manual
1
1 Introduction
1.1 Brief Introduction
PowerDepot H5B series is equipped with lithium iron phosphate battery for family use .
We base on customer needs and market requirement to develop cutting-edge battery
storage technology and offer this high quality product to supply stable electricity for all
kind of user ’ s devices. The products have long life span and can be applied in high
temperature environment and take less space for installation.
PowerDepot H5B series carries self-developed battery management system. When you
apply the grid or photovoltaic system as your powers supply, the products can collect
electricity to charges the battery. When grid or photovoltaic system is power off , the
products can supply electricity itself for your home loads. Products also can be paralleled
to build a multi-module system with more capacity to satisfy the longtime energy storage
demand.
1.2 Product Properties
PowerDepot H5B series energy storage product’s anode materials are lithium iron
phosphate, battery cells are managed effectively by BMS with better performance.
The systems features as below:
Comply with European ROHS, Certified SGS, employ non-toxic, non-pollution
environment-friendly battery.
Anode materials are lithium iron phosphate (LiFePO4), high safety performance, longer
life span.
Equipped with BMS (battery management system) mode, with protection function like
over-discharge, over-charge, over-current, abnormal temperature.
Self-management on charging and discharging, Single core balancing function.
Intelligent design configures integrated inspection module.
Flexible configurations, allow parallel of multi-battery for longer standby time.
Self-ventilation, lower system noise.
Less battery self-discharge, then recharging period can be up to 10 months during the
storage.
No memory effect so that battery can be charged and discharged shallowly.
With wide range of temperature for working environment, -20oC ~ +55 oC, products’ life
span and discharging performance are well under high temperature.
Less volume, lighter weight, seal grade up to IP65 embedding design for easier
installation and maintenance.

PowerDepot H5B series User Manual
2
1.3 Product identity definition
FIG1-1 Battery Energy Storage System nameplate
Battery voltage is higher than safe voltage, direct contact may cause
electric shock hazard.
Be careful with your actions and be aware of the dangers.
Read the user manual before using.
The scrapped battery cannot be put into the garbage can and must
be professionally recycled.
After the battery life is terminated, the battery can continue to be
used after it recycled by the professional recycling organization and
do not discard it at will.
This battery product meets European directive requirements.
This battery product passed the TUV certification test.

PowerDepot H5B series User Manual
3
2 Product Specification
2.1 Size and Weight
Table 2-1 PowerDepot H5B series device model
Specification
Model
Nominal
Voltage
Nominal
Capacity
Dimension
(mm)
Weight
(kg)
IP Level
PowerDepot
H5B
51.2V
100Ah
574*228*600mm
55kg
IP65
2.2 Performance Parameter
Table 2-2 PowerDepot H5B performance parameter
Item
PowerDepot H5B
Nominal Voltage(V)
51.2
Work Voltage Range(V)
44.8~57.6
Nominal Capacity(Ah)
100Ah
Nominal Energy(kWh)
5.12
Nominal Power(kW)
2.56
Max Charging/Discharge Current(A)
90/100
Charging Current(A)
50
Discharge Current(A)
50
2.3 Interface Definition
This section elaborates on interface functions of the front panel of the device.

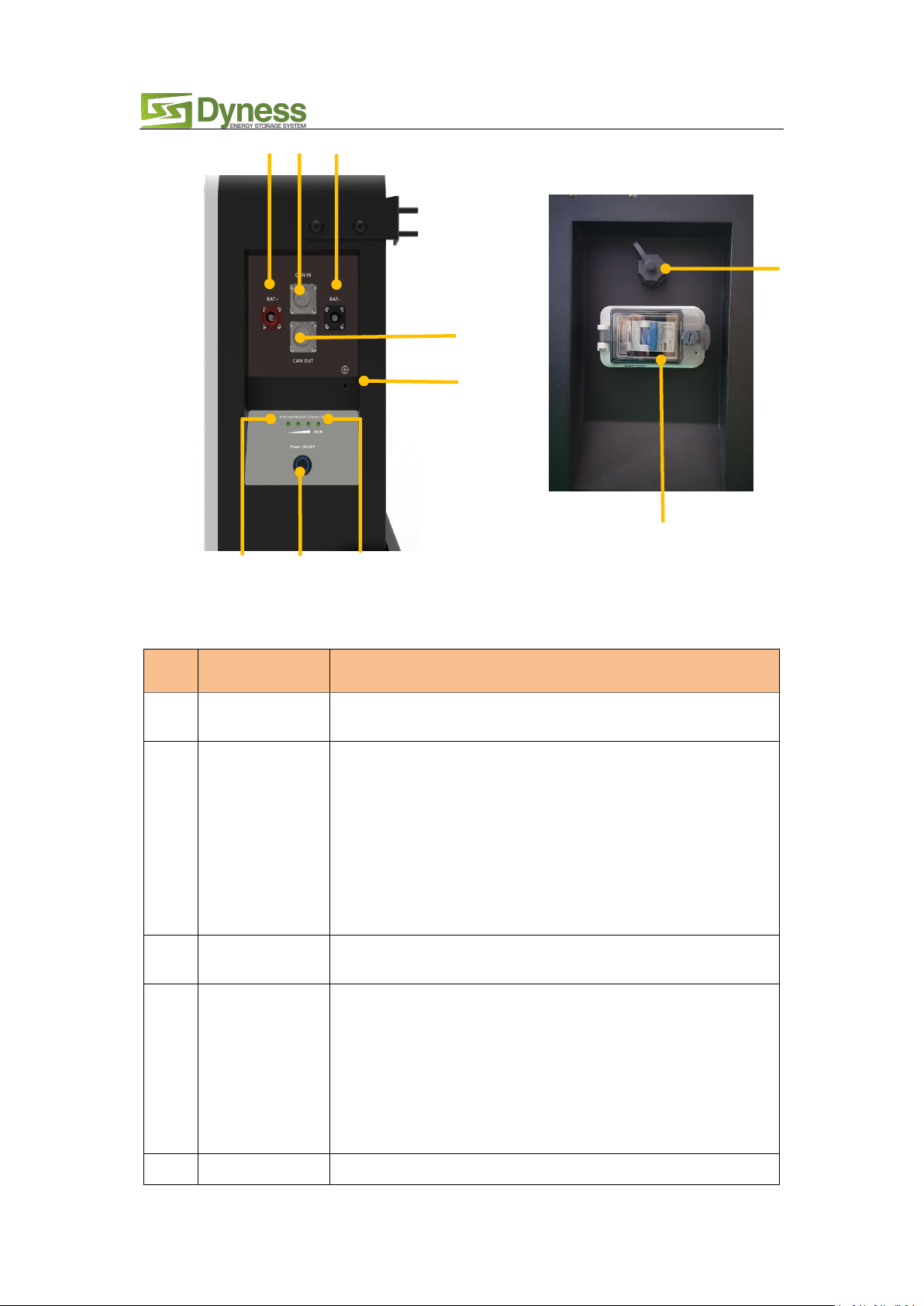

Figure2-1 PowerDepot H5B the sketch of front interface.

PowerDepot H5B series User Manual
4
Table 2-3 Interface Definition
Item
Name
Definition
1
Positive socket
The battery DC output positive pole, which is connected to the
positive pole of the inverter through the cable
2
COM IN
When the system is used independently:
The CAN/RS485 socket is connected to the inverter CAN/RS485
interface through the communication cable.
When the system is used in parallel:
This CAN/RS485 communication socket is connected to the COM
OUT interface of the previous PowerDepot H5B through
communication cable.
(Factory default CAN communication mode)
3
Negative socket
The battery DC output negative pole, which is connected to the
negative pole of the inverter through the cable
4
COM OUT
When the system is used independently:
This CAN/RS485 socket is a reservation interface
When the system is used in parallel:
This CAN/RS485 communication socket is connected to the COM IN
interface of the next PowerDepot H5B through communication
cable.
(Factory default CAN communication mode)
5
SOC
The number of green lights on shows the remaining battery
9
5
4
7
6
8
1
2
3
10

PowerDepot H5B series User Manual
5
Item
Name
Definition
power,details in table2-4
6
ALM
Red light flashing when an alarm occurs, red light always on
during protection status. After the condition of trigger protection
is released, it can be automatically closed,details in table2-4
7
Reset switch
Press the switch and the battery system turn on.
When the battery is in the non-use state such as storage,
transportation etc., it needs to be turn off by pressing the Reset
switch button, and the battery system will automatically sleep after
the device without external load and power for 72 hours. Or if you
need to shut down the system,firstly swich off the DC breaker
between the battery with the inverter, then press the switch for 3s
8
Ground
connection point
Shell ground connection
9
DC circuit breaker
Circuit protection
10
COM
Communication cascade port, support RS232
Table2-4 SOC/ALM Light instructions
Battery State
SOC
LED1
LED2
LED3
ALM
Shut down
off
off
off
off
Standby
66%＜SOC≤100%
On
On
On
On
33%＜SOC≤66%
On
On
Off
On
20%＜SOC≤33%
On
Off
off
On
10%＜SOC≤20%
On
off
off
On
0%≤SOC≤10%
On
off
off
On
2.4 Battery Management System(BMS)
2.4.1 Voltage Protection
Low Voltage Protection in Discharging：
When any battery cell voltage or total voltage is lower than the rated protection value during
discharging, the over-discharging protection is activated, and the battery buzzer makes an alarm
sound. Then battery system stops supplying power to the outside. When the voltage of each cell
back to rated return range, the protection is over.
Over Voltage Protection in Charging：
During charging stage, the system will stop charging when the total voltage of the battery pack is
higher than rated value or the voltage of any single cell reaches the protection value. When total
voltage or all cell back to rated range, the protection is over.

PowerDepot H5B series User Manual
6
2.4.2 Current Protection
Over Current Protection in Charging：
When the charge current of each module ＞90A, current limit protection mode is activated,
current will be limited to 1A，protection is removed after rated time delaying 10S. Circulate like
this until the current is lower than 90A.
Over Current Protection in Discharging：
When the discharge current is higher than 100A, the battery buzzer alarms and the system stops
discharging after 15s. After protection, the discharging will restore in 60s delay or immediately
when there is charging current.
Note:
The buzzer sound alarm setting can be turned off on the background software manually, and the
factory default is on.
2.4.3 Temperature Protection
Low/Over temperature protection in charging：
When battery ’s temperature is beyond range of 0 ℃~+55 ℃during charging, temperature
protection be activated, device stops charging. The protection is released when it back to rated
range of working temperature.
Low/Over temperature protection in discharging：
When battery’s temperature is beyond range of -20℃~+55℃during discharging, temperature
protection be activated, device stops supplying power to the outside. The protection is released
when it back to rated range of working temperature.
2.4.4 Other Protection
Short Circuit Protection：
When the battery is activated from the off state, if a short circuit occurs, the DC circuit breaker
will respond first. If the DC circuit breaker does not operate, the short circuit protection function
of BMS will be activated automatically and cut off the device’s output.
Self Shutdown：
When device have no connection of external loads, power supply and communication equipment
for over 72 hours, the device will go into hibernation automatically.
Caution
The maximum operating current required for the electrical load shall be less than the maximum
discharge current capacity of the battery.

PowerDepot H5B series User Manual
7
3 Installation and Configuration
3.1 Preparations for installation
Safety Requirement
The product can only be installed by personnel who have been trained in the power-supply
system and have sufficient knowledge of the electrical power system.
The safety regulations and local safety regulations listed below should always be followed during
the installation.
All circuits connected to this power system with an external voltage of less than 48V
must meet the SELV requirements defined in the IEC60950 standard.
If operating within the power system cabinet, make sure the power system is not
charged. Battery devices should also be switched off.
Distribution cable wiring should be reasonable and has the protective measures to
avoid touching these cables while operating power equipment.
when installing the battery system, must wear the protective items below:

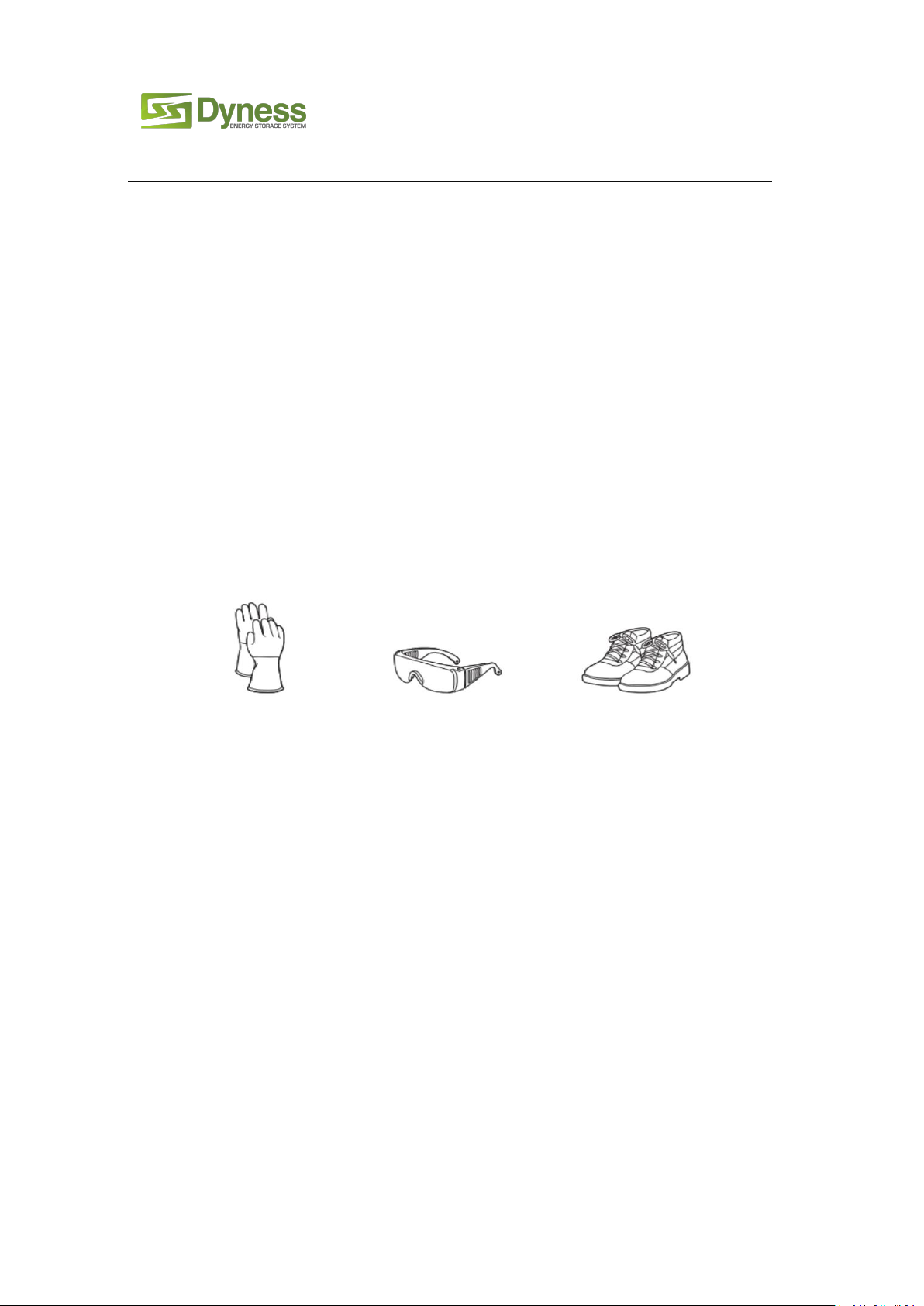

The isolation gloves Safety goggles Safety shoes
3.1.1 Environmental requirements
Working temperature: -20 oC ~ +55 oC
Charging temperature range is 0oC~+55 oC,
Discharging temperature range is -20 oC ~+55 oC
Storage temperature: -10 oC ~ +35 oC
Relative humidity: 5% ~ 85%RH
Elevation: no more than 4000m
Operating environment: Indoor or outdoor installation should avoid the sunlight and
wind, no conductive dust and corrosive gas.
The following conditions shall be met:
Installation location should be away from the sea to avoid corrosion from brine or
high humidity environment.
The ground for product arrangement shall be flat and level.
Ensure there is no flammable explosive materials near to the installation places.
The optimal ambient temperature is 15oC ~ 30 oC
Keep away from dust and messy zones

PowerDepot H5B series User Manual
8
3.1.2 Tools and data
Tools and meters that may be used for installation are shown in table 3-1.
Table 3-1 Tool instrument
Name
Screwdriver（Slotted、Phillips）
Multimeter
Torque wrench
Clamp current meter
Diagonal pliers
Insulation tape
Pointed nose pliers
Temperature meter
Pliers to hold the wire
Anti-static bracelet
Stripping pliers
Cable tie
Electric drill
Tape measure
3.1.3 Technical preparation
Electrical interface check
Devices that can be connected directly to the battery can be user’s equipment, power
supplies , or other power supply equipment.
Confirm whether the user’s equipment, the PV equipment or other power supply
equipment has the DC output interface, and measure whether the output voltage
of the interface meets the requirements of the voltage range of table 2-2
Verify the maximum discharge current capacity of the user’s equipment, the PV
equipment or other power supply equipment. The DC standby interface, and the
maximum discharge current shall be higher than the maximum charging current of
the products used in table 2-2.
If DC interface maximum discharge capacity of the user’s equipment is less than the
maximum charging current of products using in table 2-2, the user’s interface
should have the power equipment of DC current limiting function to ensuring the
normal work of user equipment.
The security check
Firefighting equipment should be arranged near the equipment, such as portable
dry powder fire extinguisher.
Automatic fire fighting system shall be provided for the case where necessary.
Flammable, explosive and other dangerous materials placed beside the battery are
prohibited.
3.1.4 Unpacking inspection
When the equipment arrives at the installation site, loading and unloading should
be carried out according to the rules and regulations, so as to prevent from being
exposed to sunlight and rain.
Before unpacking, the total number of packages shall be indicated according to the
shipping list attached to each package, and the case shall be checked for good
condition.

PowerDepot H5B series User Manual
9
In the process of unpacking, handle with care and protect the surface coating of the
object.
Open the package, the professional installation personnel should read the technical
documents, verify the list, according to the configuration table and packing list,
ensure objects are complete and intact. If the internal packaging is damaged, it
must be inspected and recorded in detail.
Packing list is as follows:
Battery×1
Battery bottom bracket ×1
Support bracket ×2
M6 bolt ×8
Fixing battery box with battery
bracket
Power cable ×2
connect battery with DC
breaker
Standard
Communication cable ×1
User manual ×1
Positioning cardboard×2
Expansion screw ×8
120ΩCAN resistor ×1
RJ45 Waterproof connector ×2
Power cable ×1
connect DC breaker with
inverter

PowerDepot H5B series User Manual
10
3.1.5 Engineering coordination
Attention should be paid to the following items before construction:
Power cable specification.
The power cable specification shall meet the requirements of maximum discharge
current for each product.
Mounting space and bearing capacity.
Make sure that the battery has enough space to install, and that the battery rack
and bracket have enough load capacity.
Wiring.
Make sure the power cable and ground wire are reasonable. Not easy to
short-circuit, water and corrosion.
3.2 Equipment installation
The wall for battery installation shall be solid brick or cement wall with strong bearing capacity
and wall thickness no less than 100mm.
Mounting space requirements：
Floor installation Wall installation
If the battery is installed indoors, please leave a certain gap during installation according to the
picture above, ventilation is required, combustible materials should not be placed around the
battery.
Table 3-2 Installation steps
Step1
System outage
1. Ensure that the battery is in a shutdown state
(Disconnect the battery power cable and press the Reset
button to turn it off)

PowerDepot H5B series User Manual
11
Step 2
Mechanical
installation
1. bracket check
2.Equipment installation
Step3
Electrical
installation
1. Connect the grounding cable
2 Electrical installation
3.Connect inverter
4.Communication interface connection

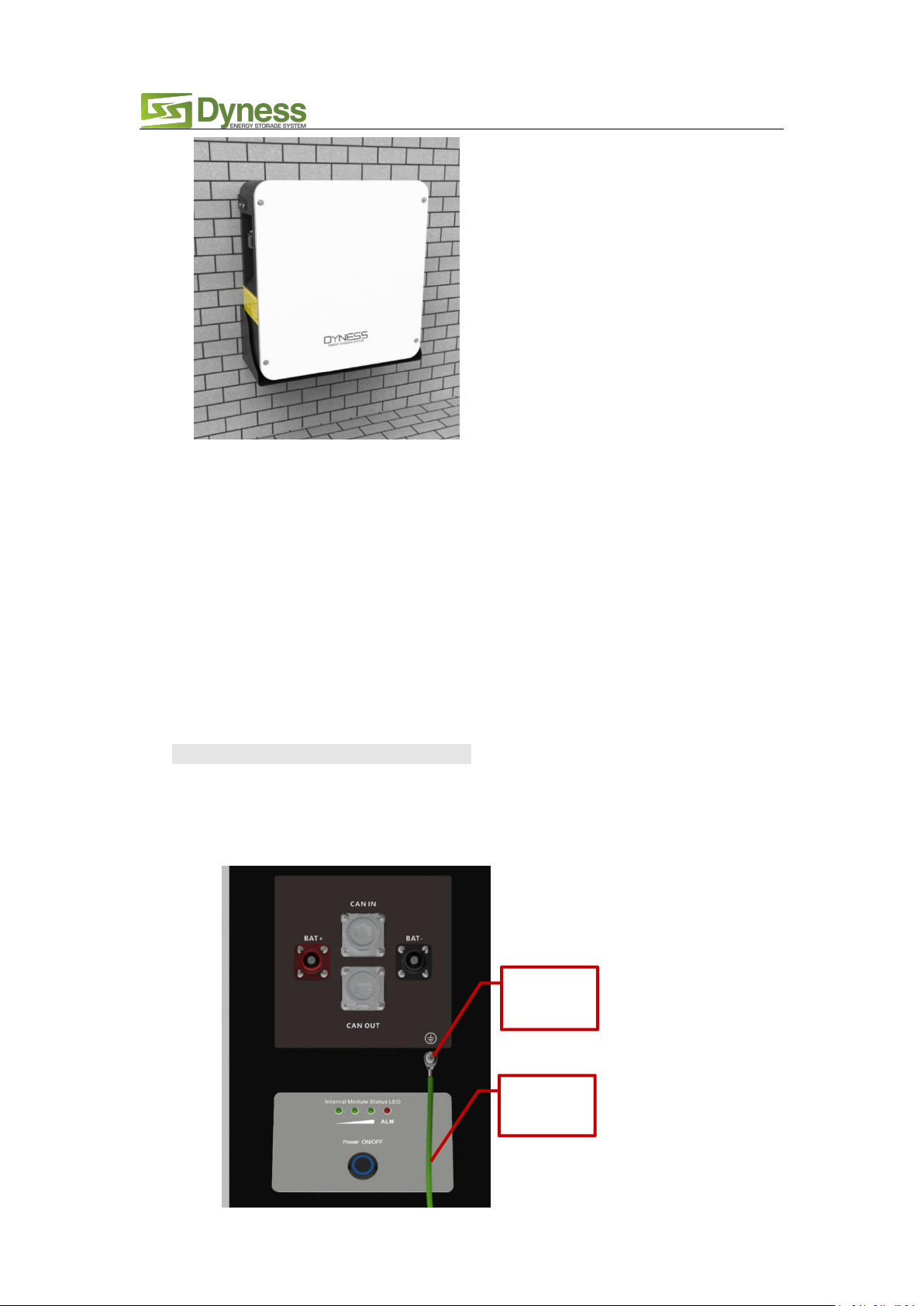

3.2.1 Floor installation
When the battery system is placed directly on the ground, a fixed support must be used to fix the
top of the battery box on the wall.

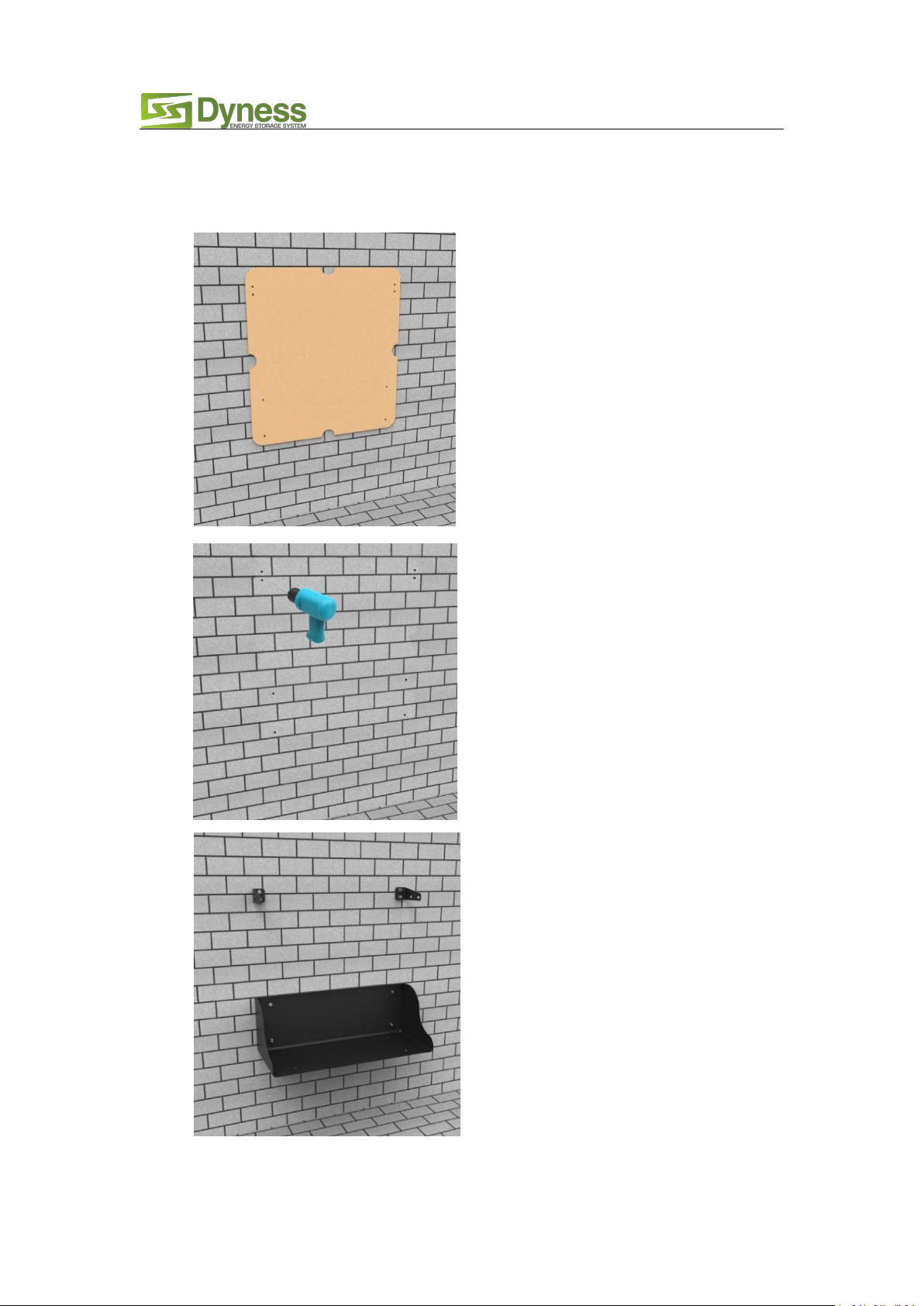

1．Use the positioning cardboard
(provided in accessory package) and
mark the screw hole positions on the
wall, as shown four holes in the
picture on the left.
2．The bottom of the board must be in
horizontal touch with the ground
while marking the holes.
3．According to the marked position, use
an electric drill to drill 4 holes with a
diameter of 10mm on the wall for
installing M6 expansion bolts. The
depth of the holes should be greater
than 70mm.

PowerDepot H5B series User Manual
12

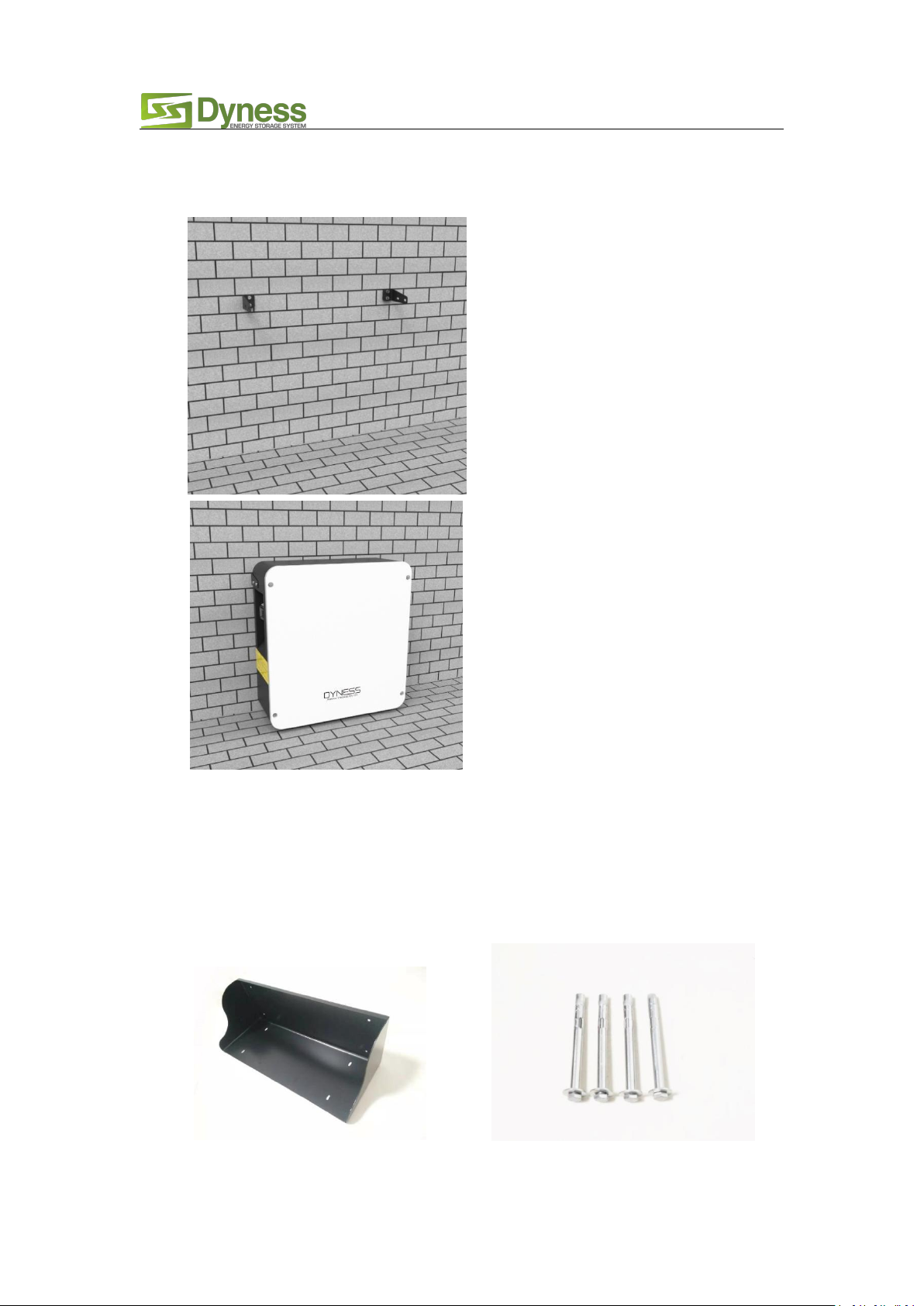

3.2.2 Mounted on the wall
The following accessories need to be added when install the battery on the wall.
Battery bottom bracket ×1 Expansion screw ×4
4．Fixing the expansion bolt M6
into the bottom of the hole on
the wall.
5．Use the M6 bolt to fixing the
Support bracket to the wall and
control the torque at 6NM.
6．Carry the battery box to the
installation site, and place it
about 15mm away from the wall
surface, fixing the Support
bracket and the

PowerDepot H5B series User Manual
13
Installation procedure：
1．Use the positioning cardboard
(provided in accessory package) and
mark the screw hole positions on the
wall, as shown eight holes in the picture
on the left.
2．The cardboard must be perpendicular
to the ground while marking the holes.
3．The bottom of the cardboard is about
300mm to the ground.
5. Fixing the shell of the M6 expansion
bolt into the hole on the wall, and fix
the Support bracket and Battery bottom
bracket on the wall with M6 bolts and
control the torque force 6NM.
4．According to the marked position, use an
electric drill to drill 8 holes with a
diameter of 10mm on the wall for
installing M6 expansion bolts. The depth
of the holes should be greater than
70mm.

PowerDepot H5B series User Manual
14
3.2.3 Electrical installation
Statement ：For Australian market, installations should be conducted in accordance with
AS/NZS 3000 and AS/NZS 5139”.
Use multimeter to measure the device before power cable connection procedure. Check
the cable continuity, confirm positive and negative and mark the cable labels.
Measuring methods：
Power cable check: select the buzzer mode of multimeter and detect the both ends
of the same color cable. If the buzzer calls, it means the cable is in good condition.
After visual testing of power line connection, the positive and negative poles of the
battery shall be connected respectively to the positive and negative poles of
another device (inverter).
Connect the battery box to the ground cable
Customer needs to prepare a M6 OT terminals and ground cables. Connect the battery
shell as shown below. The sectional area of the grounding cable shall be at least 6mm²
and the bolt locking torque is 6NM.
Grounding
point
Grounding
cable
6. Carry the battery box to the installed
Battery bottom bracket.
Use M6 bolts to connect the Support
bracket&bottom bracket with the box
and control the torque force 6NM.
