Preface
Manual description
The Wi-Fi module, also known as the serial wi-fi module, belongs to the Transmission
layer of the Internet of Things, and its function is to convert the serial port or TTL level
into an embedded module that complies with wi-fi wireless network communication
standards. It is equipped with ieEE802.11B.G.N protocol stack and TCP/IP protocol
stack. Traditional hardware devices embedded with Wi-Fi modules can directly use Wi-Fi
to connect to the Internet, which is an important part of the implementation of wireless
smart home, M2M and other Internet of Things applications, and is an important
component of intelligent hardware.
Dyness WiFI-M01 system is used together with the battery, and the user can monitor the
data through the Dyness Smart App, which is more convenient, efficient and intelligent.
This document describes in detail the basic structure, parameters, installation, and
operation of the device.

WIFI-M01 System User Manual
©Dyness reserves the copyright of this document.
4
1 Introduction
Brief Introduction
WiFi-M01 System is a very convenient product. The addition of WiFi System makes the
battery more intelligent. The users can monitor the battery data through Dyness Smart
APP anytime and anywhere, which is very convenient.
Product Properties
The WIFI-M01 System's features as below:
Built-in low power KM4 MCU, can also be used as application processor
Frequency 100 MHZ, Operating voltage: 4.5V-5.5V
Wi-Fi / Bluetooth connectivity
802.11B/G/N20,channel 1-14@2.4GHz (CH1-11forUS/CA,CH1-13for EU/CN)
support Bluetooth 4.2 Low Energy
+20dBm output power in 802.11b mode
SmartConfig (for Android and IOS devices)
External IPEX FPC antenna
CE,FCC certification
Product identity definition
Be careful with your actions and be aware of the
dangers
Read the user manual before using
The WIFI Systems cannot be put into the
garbage can and must be professionally
recycled
After theWIFI-M01 System life is terminated,
the WIFI-M01 System can continue to be used
after it recycled by the professional recycling
organization and do not discard it at will
This WIFI Systems product meets European
directive requirements
This WIFI Systems product meets USA
directive requirements

WIFI-M01 System User Manual
©Dyness reserves the copyright of this document.
5
2 Product Specification
Size and Weight
Table 2-1 WIFI-M01 Spec&Size
Product
Nominal
Voltage
Dimension
Weight
Protection
Level
WIFI-M01
DC5V
75mm*25mm*40mm
200g
IP20

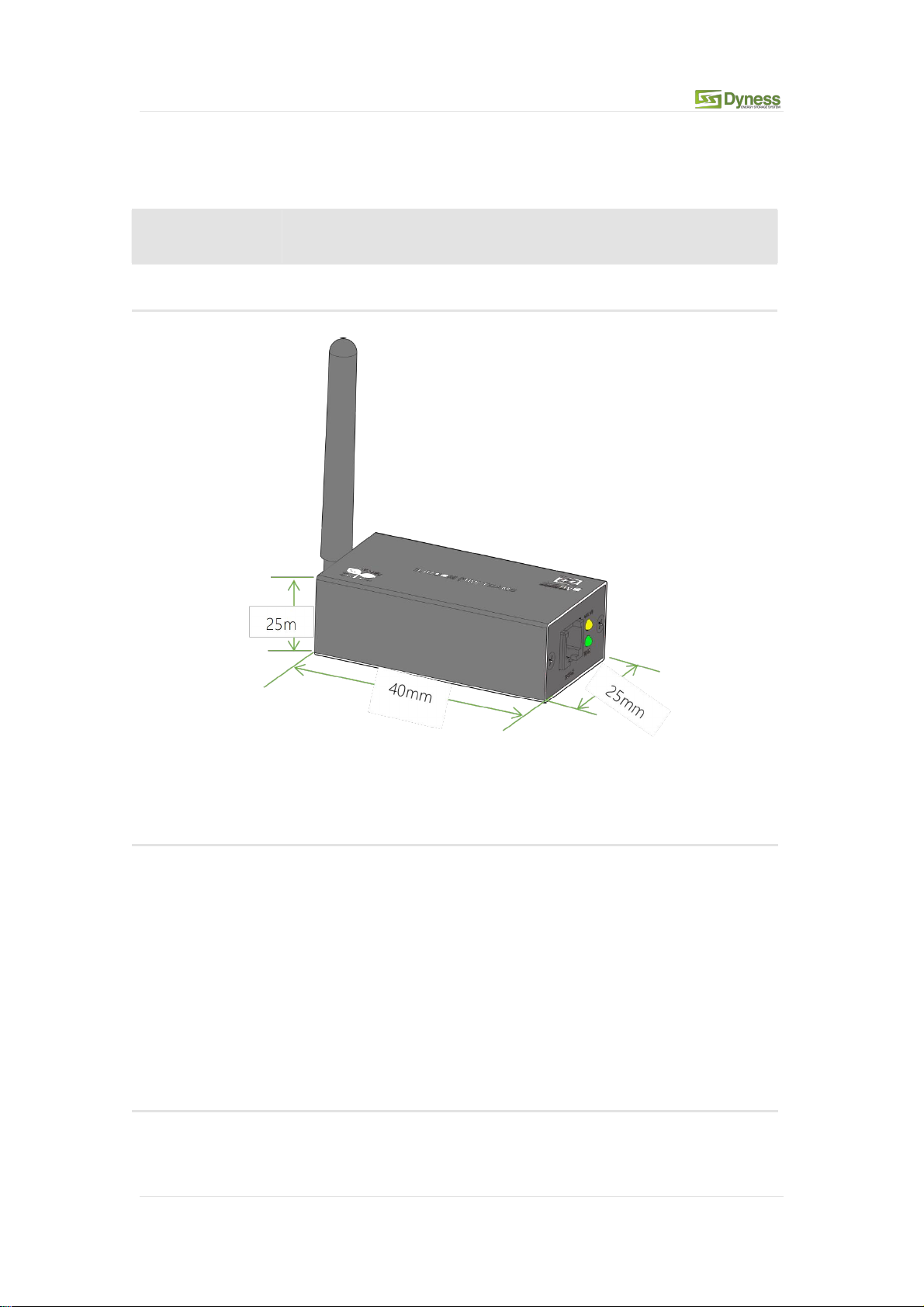

Figure 2-1 WIFI-M01 Module
Performance Parameter
Table 2-2 WIFI-M01 performance parameter
Nominal Voltage
5V
Operating Voltage Range
4.5~5.5V
Frequency
100MHZ
Connection Type
Wi-Fi/Bluetooth
Protocol
802.11 B/G/N20
Channel
[email protected] (CH1-11 for US/CA, CH1-13 for
EU/CN)
Output Power
+20dBm
Interface Definition
WIFI-M01 product panel interface configuration and function.
This section details the interface functions of the front panel of the device.

WIFI-M01 System User Manual
©Dyness reserves the copyright of this document.
6
Figure 2-2 WIFI-M01 Front Panel of battery module
Table 2-3 WIFI-M01 Front Panel of battery module definition
item
Name
Definition
1
Power display
Light on means WiFi module works
2
Distribution network
display
If the indicator blinks quickly, the network is
ready to be configured. If the indicator blinks
slowly, the network is ready to be connected. If
the indicator is steady on, the network is
configured successfully
3
RS232
Communication with the battery's COM port
enables monitoring of battery data and upgrades
4
WiFi
2.4g Bluetooth wifi antenna
5
RESET
Configuration button for network configuration
or resetting
6
Wifi interface
Used to connect wifi antenna rod
Figure 2-3 Communication port
Table 2-4 Pin Definition
Foot position
Definition
PIN1
5V
PIN2
GND
PIN3
RXD
PIN4
TXD
PIN5
GND
PIN6
5V
1
2
3
4
5
6

WIFI-M01 System User Manual
©Dyness reserves the copyright of this document.
7
3 Installation and Configuration
Ready for installation
Environmental requirements
Working temperature：-20oC～+85oC
Storage temperature：-10oC～+40oC
Relative humidity：5%～85% RH
Elevation: no more than 4000m
Operating environment: Indoor installation, sites avoid the sun and no wind, no
conductive dust and corrosive gas.
And the following conditions are met:Installation location should be away from the sea
to avoid brine and high humidity environment;The ground is flat and level;There is no
flammable explosive near to the installation places; The optimal ambient temperature
is 15~30oC.
Keep away from dust and messy zones.
Equipment preparation
Equipment that may be used are shown in table 3-1：
Table 3-1
Name
Dyness battery (with WiFi function)
WiFi module
network cable （both crystal heads are RJ11（6p6c）, wires pin to pin, Dyness
supply the cable）
mobile phone (the Dyness smart app has been downloaded)
WiFi （2.4GHz ）
Equipment connection
connection preparation
connection preparation
1.Download the Dyness Smart App from the App Store or Google Play.

WIFI-M01 System User Manual
©Dyness reserves the copyright of this document.
8
2.Register after the APP is installed, click ‘’Sign Up’’, choose ‘’ Local Region’’, Input ‘’Phone
number or email address’’, Click ‘’Get Verification Code, nput Verification Code,
Registration completed.After registration, use your account and password to Log In.
Steps of connection (AP Mode)
Steps of connection (AP Mode)
1.Connect the WiFi module and battery with the 6p6c network cable. One end of the
network cable is connected to the RS232 interface of the battery, and the other end is
connected to the RS232 communication port of the WiFi module. Then turn on the
battery, and confirm that the yellow LED of the WiFi module is always on.

WIFI-M01 System User Manual
©Dyness reserves the copyright of this document.
9

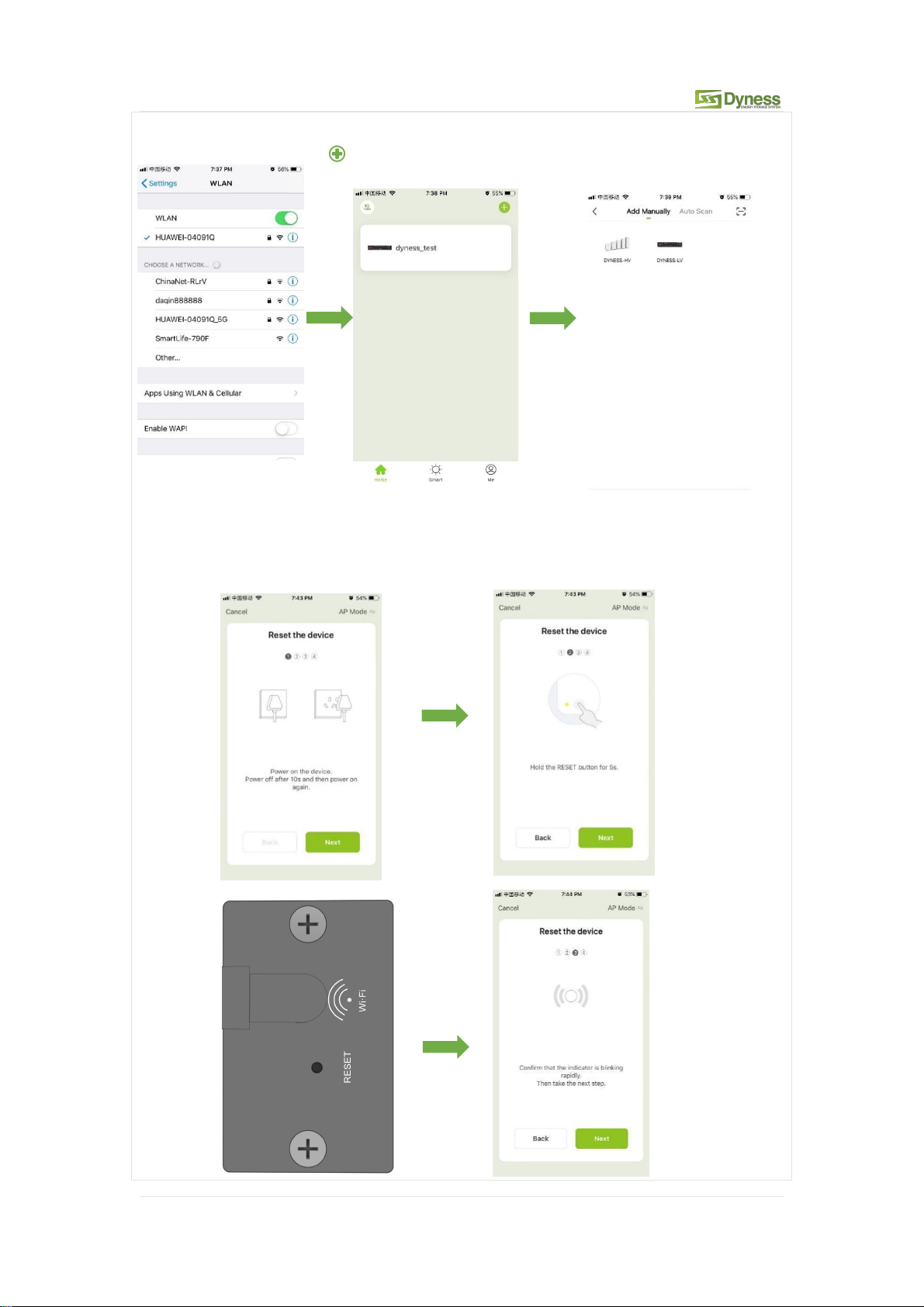

2. The mobile phone is connected to the 2.4GHz wireless network ,enter "home page" of
the app, then click the"
", "Add manually", "Dyness-HV".
3. Please choose device’s interface of the app in AP Mode, click the RESET Button of the
WiFi module once, waiting for the WiFi module green light is blinking rapidly, proceed
the next step.

WIFI-M01 System User Manual
©Dyness reserves the copyright of this document.
10
4. Click the RESET Button of the WiFi module again, waiting for the green light is blinking
slowly, click on the "confirm the indicator is blinking slowly" of the APP. Click "Next" to
continue...
5. Enter the WiFi name and password your mobile phone is using, then click "next". On
the page that pops up choose the WiFi which name is SmartLife-XXXX , then click "Go to
Connect".

WIFI-M01 System User Manual
©Dyness reserves the copyright of this document.
11
6. After connected to the WiFi " SmartLife-XXXX " , return to the APP interface and you
can see "Adding device..." is displayed. After a while, "Adding device succeeded" is
displayed, and the connection is successful.

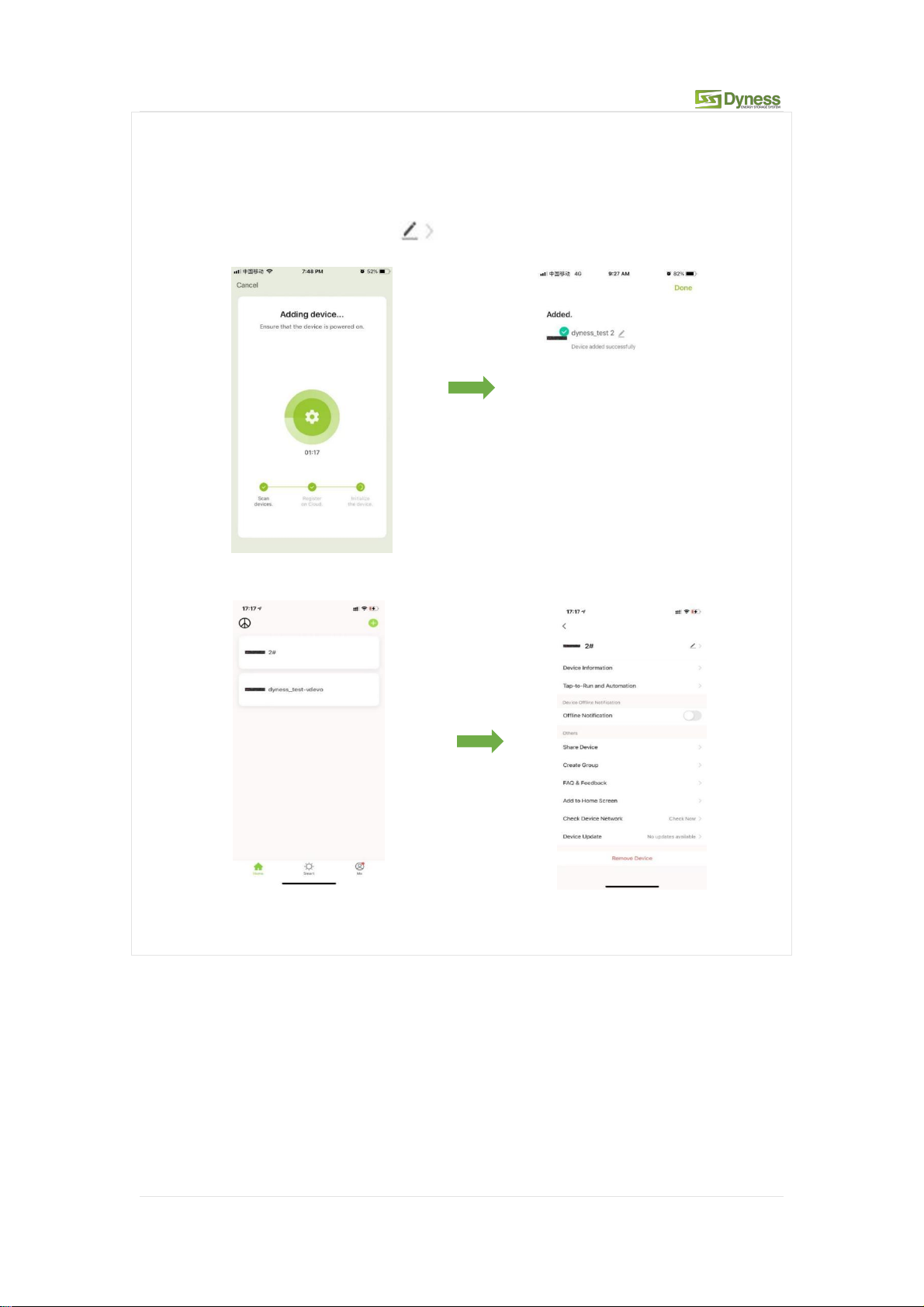

After the device is added successfully, the following is the operating page,You can user
define the device name by click "
" .

WIFI-M01 System User Manual
©Dyness reserves the copyright of this document.
12

WIFI-M01 System User Manual
©Dyness reserves the copyright of this document.
13

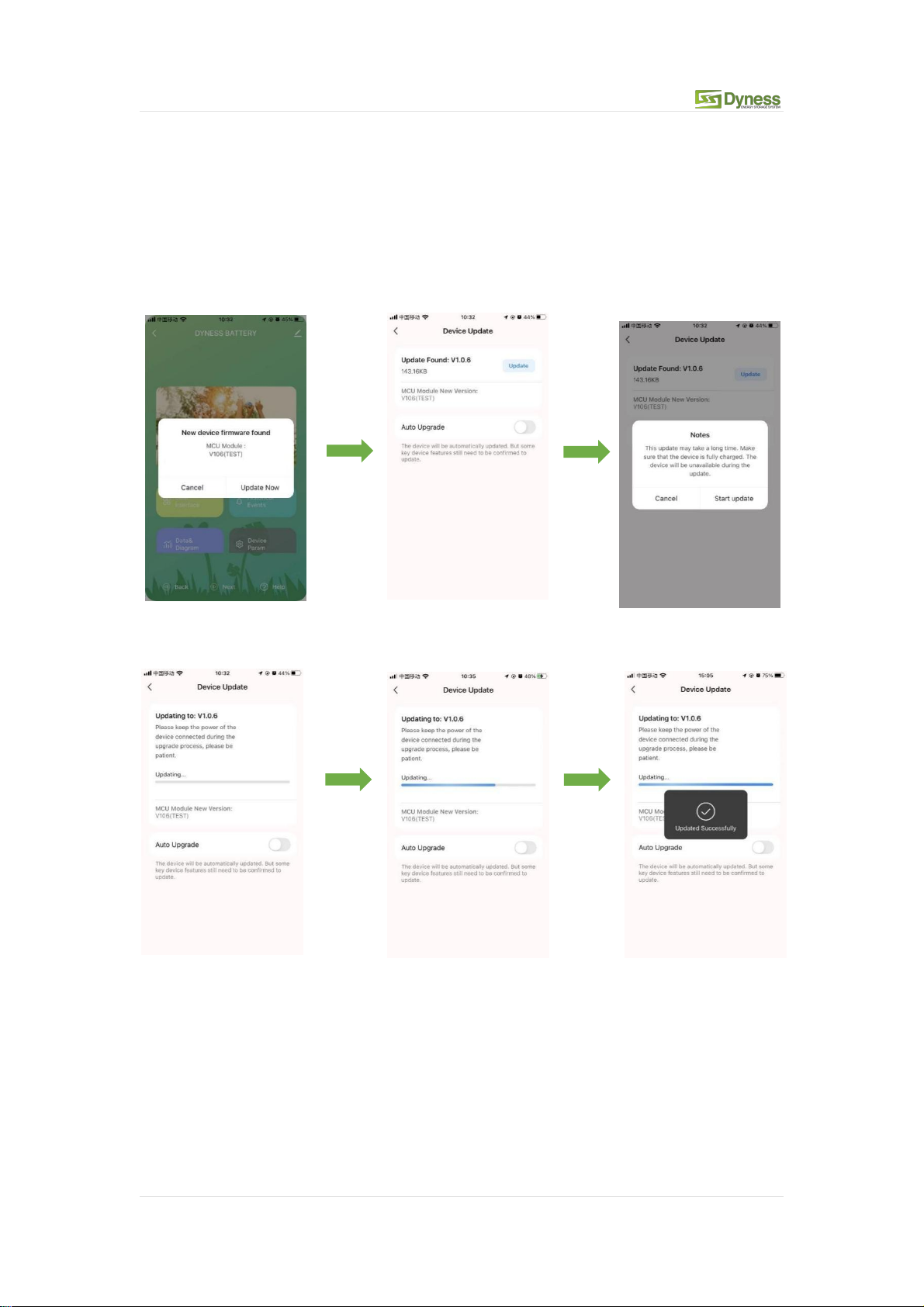

4 Device Update
Please contact Dyness engineer before firmware upgrade, Dyness engineer will upload
the corresponding files in the background. Then when you open the interface of the
mobile app, the window to discover the new device firmware will pop up, click "update",
the "notes" will appear, click "start update" to start the update, and the app will show that
the update is in progress. After the update is successful, it will display "Updated
successfully".

WIFI-M01 System User Manual
©Dyness reserves the copyright of this document.
14
5 Serial Number

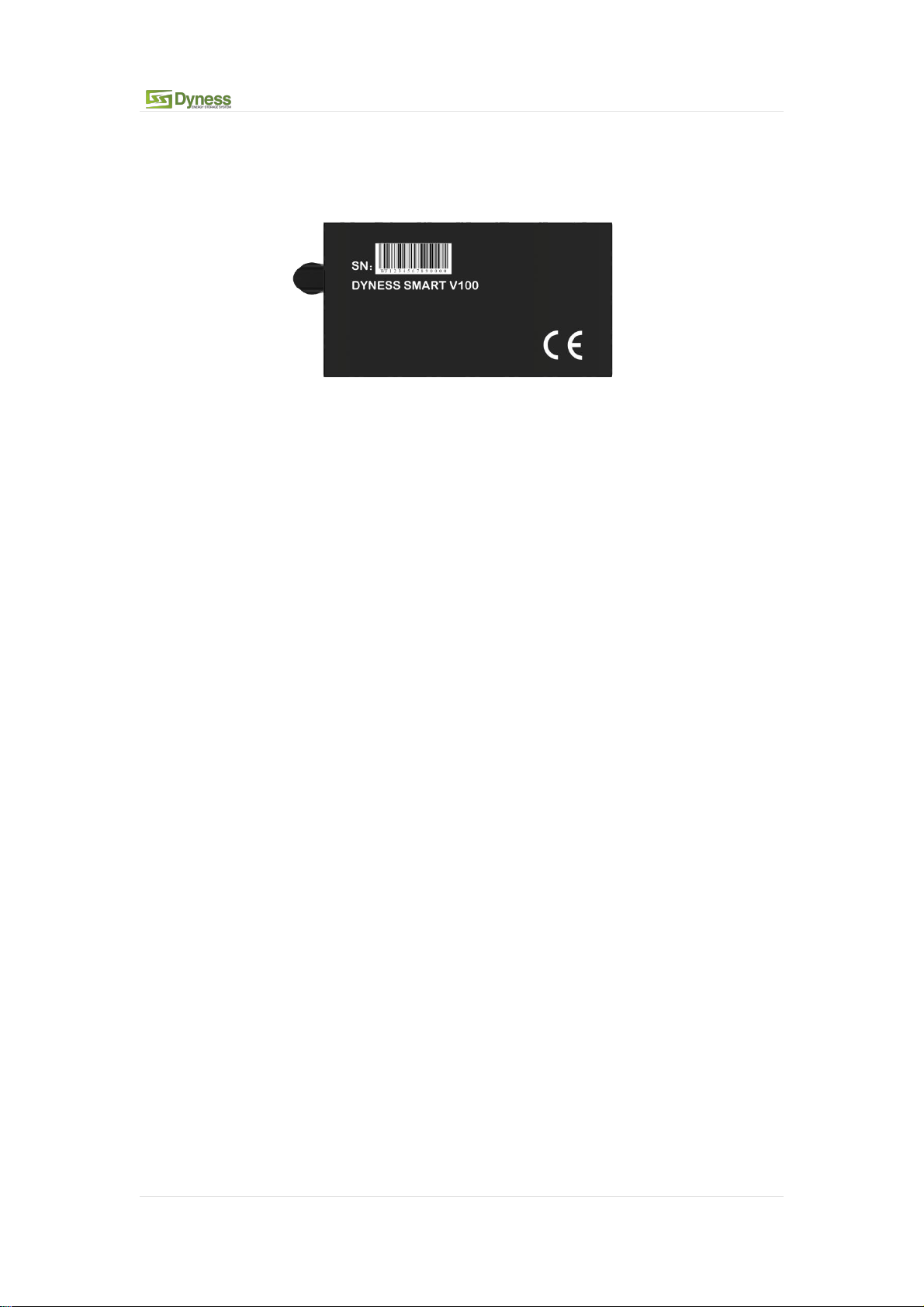

The SN code of the WIFI module is shown in the figure below.
Table 5-1 The SN code of the WIFI module

WIFI-M01 System User Manual
©Dyness reserves the copyright of this document.
15
6 Troubleshooting
Table 6-1 WIFI-M01 troubleshooting
Trouble
Indicate
Troubleshooting
STATUS LED is dark
WiFi module doesn’t work
Please check the 6p6c
network cable and RS232
port
The network connection
has timed out
the network isn’t
configured successfully
Make sure the device is
reset, the light is blinking
slowly,
Whether to connect to a
hotspot
3. Verify that the WIFI
password is correct
If you have any technical help or question, please contact DYNESS in time.

No. 511 Chenzhuang West Road, Sanshui Street, Jiangyan District,
Taizhou City
Address:
Email: ser[email protected]
Tel: [phone]
Web: www.dyness-tech.com
Power You Day and Night
Official Website Digital version access
