Eco-Systems ECO-1036 Manual

Locked layer contains
placeholder marks.
866.463.2611 • www.ecosystemsdisplays.com
Setups
Locked layer contains
placeholder marks.
Plan View
10’
10’
Order #XXXXX ECO-1036 with ECO-4C Podium - 10’x10’ Sustainable Exhibit

Locked layer contains
placeholder marks.
866.463.2611 • www.ecosystemsdisplays.com
Locked layer contains
placeholder marks.
= 1 sq foot
Grid View

Locked layer contains
placeholder marks.
866.463.2611 • www.ecosystemsdisplays.com
A7

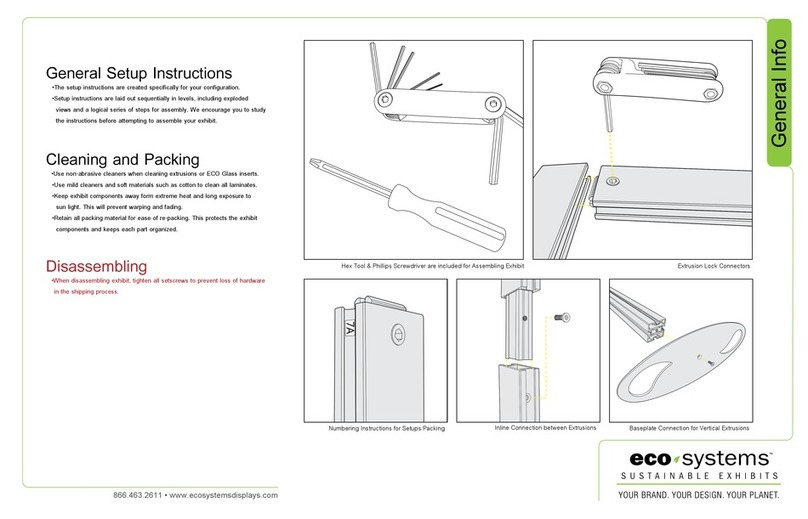

General Setup Instructions
•The setup instructions are created specifically for your configuration.
•Setup instructions are laid out sequentially in levels, including exploded
views and a logical series of steps for assembly. We encourage you to study
the instructions before attempting to assemble your exhibit.
Hex Tool for Assembling Exhibit Extrusion Lock Connectors
Numbering Instructions for Setups/Packing Inline Connection between Extrusions Baseplate Connection for Vertical Extrusions
Cleaning and Packing
•Use non-abrasive cleaners when cleaning extrusions or ECO Glass inserts.
•Use mild cleaners and soft materials such as cotton to clean all laminates.
•Keep exhibit components away form extreme heat and long exposure to
sun light. This will prevent warping and fading.
•Retain all packing material for ease of re-packing. This protects the exhibit
components and keeps each part organized.
Disassembling
•When disassembling exhibit, tighten all setscrews to prevent loss of hardware
in the shipping process.
General Info

Locked layer contains
placeholder marks.
866.463.2611 • www.ecosystemsdisplays.com
Case 1
Locked layer contains
placeholder marks.
Setup Hardware
Top View of Each Level
Level 1
(Bottom level)
Level 2 Level 3 Level 4
Base
Plate
Wings
(qty 4)
2A2 3 3A 4,4A Shelf
Shelf
Shelf
5,5A
Spline
connectors
Spline
connectors
Header
Graphic
Base
Plate
(Top level)
Level 5 Level 6

Locked layer contains
placeholder marks.
866.463.2611 • www.ecosystemsdisplays.com
Case 2
Locked layer contains
placeholder marks.
Top View of Each Level
Level 1
(Bottom level)
Level 2 Level 3 Level 4 Level 5
(Top level)
Counter Top
123
5B 7B 7A 5A
4
6A 6B
Infills
Shelf
Shelf
Shelf
Shelf
Graphics
Lights

Locked layer contains
placeholder marks.
866.463.2611 • www.ecosystemsdisplays.com
Step 1
Locked layer contains
placeholder marks.
*** KEEP TSP3 EXTRUSIONS
ATTACHED TO HORIZONTALs &
VERTICALS. DO NOT REMOVE ***
When assembled
Item
1
2/2A
3/3A
4/4A
5/5A
Qty.
2
1/1
1/1
1/1
1/1
Description
8” x 22” oval Base Plate
42”h OP91 Vertical Extrusion w/ TSP3
42”h OP91 Vertical Extrusion w/ TSP3
42.5”w Z45 Horizontal Extrusion w/ TPS3
42.5”w Z45 Horizontal Extrusion w/ TPS3
Steps:
1) Connect Base Plates [1] to bottom of verticals [2,3], using bolts.
2) Assemble verticals [2-2A], [3-3A] together.
3) Attach horizontals [4-5], [4A-5A] between vertical assemblies [2/2A], [3/3A].
4) Apply SEG Graphic to assembled frame.
SEG groove of attached TSP3
must face front of assembly.
TSP3
groove
Slide TSP3 extrusion into
groove of vertical & tighten
set screw to secure in place.
1
1
2
2A
3
3A
4A
TSP3
TSP3
TSP3
TSP3
TSP3 TSP3
TSP3 TSP3
5A
45
SEG Graphic Installation
Corner A
Corner D
Corner B
Corner C
It is important to first insert
graphic into each alternate
corner, then to the sides of
the frame. If this is not done,
graphic will not fit into the
frame correctly.
Step 1
Insert corner A. Turn edge of
graphic so silicon welt is
perpendicular to face of
graphic. Insert narrow side
of welt with fabric to outside
into the channel. Repeat for
other side of this corner.
Step 2
Repeat Step 1 for opposite
corner C, then insert corner
B, followed by corner D, to
complete the installation of
the corners.
Graphic Removal
To remove the graphic from
the frame, locate the fabric
pull tab. Gently pull up on
the tab to remove the fabric.
Step 3
Once all corners are inserted,
press one silicon edge into
channel from corners and
work toward the center.
Make sure welt is fully inserted
into channel. Continue until
all sides are done. Smooth
out edges of graphic.

Locked layer contains
placeholder marks.
866.463.2611 • www.ecosystemsdisplays.com
Step 2
Locked layer contains
placeholder marks.
*
*
*
Header Graphic
Wing
Wing
Wing
Shelf Attachment
Insert lock into groove
of vertical extrusion &
tighten setscrew.
Setscrews will face
outward for ease
of assembly
*
Lock Setscrew
Back of Shelf
1) Slide A10 connector
into groove of extrusion.
2) Tighten set screw to
secure A10 to extrusion.
3) Insert Wing into Clamp.
4) Tighten knob to secure
wing in place.
Wing Attachment
*
Wing
1
2
3
4
Steps:
1) Affix Header Graphic to top horizontals, using Velcro.
2) Connect Lights to top horizontals. See Light Attachment detail.
3) Attach Shelves to vertical [2/2A]. See Shelf Attachment detail.
4) Connect Wings to verticals [2/2A], [3/3A]. See Wing Attachment detail.
Completed Assembly
Shelf
Light
Light
Velcro
Shelf
Shelf
*
*
*
*
*
*
*
*
**
Use thumbscrew to
secure clamp of light to
horizontal extrusion.
Light Attachment
*

Locked layer contains
placeholder marks.
866.463.2611 • www.ecosystemsdisplays.com
Step 3
Locked layer contains
placeholder marks.
When assembled
Screw
Caps
Stand-off
Barrels
Counter Top
Front View
Back View
Clear Shelf
Clear Shelf
Clear Shelf
Pins
Solid
Shelf
1
2
4
3
5A
6A 7A
Pins
1
24
5
67
3
PLAN VIEW
Item
1
2
3
4
5A/5B
6A/6B
7A/7B
Qty.
1
1
1
1
1/1
1/1
1/1
Description:
40”h Q918 Vertical Extrusion
40”h Q918 Vertical Extrusion
40”h S44 Vertical Extrusion
40”h Q918 Vertical Extrusion
19.25” Z45 Curved Horizontal Extrusion
8”w Z45 Horizontal Extrusion
19.25” Z45 Curved Horizontal Extrusion
Steps:
1) Attach lower horizontal extrusions [5A,6A,7A] between vertical
extrusions [1,2,3,4] as shown.
2) Slide infills into place between verticals as shown except clear infills.
Note: Slide clear infills into place after three clear shelves are installed.
3) Attach upper horizontal extrusions [5B,6B,7B] between vertical
extrusions [1,2,3,4] as shown.
4) Place shelves on pins as shown.
5) Slide clear infills into place after three clear shelves are installed.
6) Attach stand-off barrels to curved extrusions [5B,7B].
7) Place counter top on barrels and secure with screw caps.
FRONT VIEW
5B
6B 7B
Clear Infill
Clear Infill
Frosted Infill
Solid Infill
Graphic Infill
FRONT VIEW
BACK VIEW
