ECS G41T-M12 User manual

Preface
Preface
Copyright
This publication, including all photographs, illustrations and software, is protected
under international copyright laws, with all rights reserved. Neither this manual, nor
any of the material contained herein, may be reproduced without written consent of
the author.
Version 1.0
Disclaimer
The information in this document is subject to change without notice. The manufac-
turer makes no representations or warranties with respect to the contents hereof and
specifically disclaims any implied warranties of merchantability or fitness for any
particular purpose. The manufacturer reserves the right to revise this publication and
to make changes from time to time in the content hereof without obligation of the
manufacturer to notify any person of such revision or changes.
Trademark Recognition
Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corp.
MMX, Pentium, Pentium-II, Pentium-III, Celeron are registered trademarks of Intel
Corporation.
Other product names used in this manual are the properties of their respective
owners and are acknowledged.
Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installa-
tion. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful inter-
ference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and the receiver
• Connect the equipment onto an outlet on a circuit different from that to
which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help
Shielded interconnect cables and a shielded AC power cable must be employed with
this equipment to ensure compliance with the pertinent RF emission limits govern-
ing this device. Changes or modifications not expressly approved by the system’s
manufacturer could void the user’s authority to operate the equipment.

ii
Preface
Declaration of Conformity
This device complies with part 15 of the FCC rules. Operation is subject to the
following conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received, including interfer-
ence that may cause undesired operation
Canadian Department of Communications
This class B digital apparatus meets all requirements of the Canadian Interference-
causing Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du Réglement sur
le matériel brouilieur du Canada.
About the Manual
The manual consists of the following:
Chapter 1
Introducing the Motherboard
Chapter 2
Installing the Motherboard
Chapter 3
UsingBIOS
Chapter 4
Using the Motherboard Software
Describes features of the
motherboard.
Go to Hpage 1
Describes installation of motherboard
components.
Go to Hpage 7
Provides information on using the
BIOSSetupUtility.
Go to Hpage 25
Describes the motherboard software.
Go to Hpage 43
Chatper 5
SettingUpeJIFFY
Describes the eJIFFY setting up
Go to Hpage 47
Chatper 6
TroubleShooting
Provides basic trouble shooting tips
page 57Go to H

iii
TT
TT
TABLE OF CONTENTSABLE OF CONTENTS
ABLE OF CONTENTSABLE OF CONTENTS
ABLE OF CONTENTS
Preface i
Chapter 1 1
IntroducingtheMotherboard 1
Introduction......................................................................................1
Feature...............................................................................................2
Specification......................................................................................5
MotherboardComponents.............................................................6
Chapter 2 77
77
7
Installing the Motherboard 7
SafetyPrecautions............................................................................7
ChoosingaComputerCase.............................................................7
Installingthe Motherboard in a Case............................................7
CheckingJumperSettings...............................................................8
Setting Jumpers...................................................................8
Checking Jumper Settings...................................................9
Jumper Settings...................................................................9
InstallingHardware........................................................................10
Installing the Processor.....................................................10
Installing Memory Modules...............................................12
Expansion Slots.................................................................15
Connecting Optional Devices............................................17
Installing a HardDisk Drive/CD-ROM/SATAHardDrive..19
ConnectingI/ODevices................................................................21
ConnectingCaseComponents.....................................................22
Front Panel Header...........................................................24
Chapter 3 2525
2525
25
UsingBIOS 25
AbouttheSetupUtility................................................................ 25
The Standard Configuration..............................................25
Entering the Setup Utility....................................................25
Resetting the Default CMOS Values...................................26

iv
Using BIOS......................................................................................27
Standard CMOS Setup..........................................................28
Advanced Setup..................................................................30
Advanced Chipset Setup.....................................................32
Integrated Peripherals........................................................33
Power Management Setup..................................................34
PCI/PnP Setup...................................................................35
PC Health Status................................................................35
Frequency/Voltage Control.................................................40
Load Default Settings.........................................................40
Supervisor Password.........................................................41
User Password...................................................................41
Save & Exit Setup................................................................42
Exit Without Saving.............................................................42
Updating the BIOS...............................................................42
Chapter 4 4343
4343
43
UsingtheMotherboardSoftware 43
AbouttheSoftware DVD-ROM/CD-ROM........................................43
Auto-installingunderWindows XP/Vista/7.....................................43
Running Setup....................................................................44
ManualInstallation...............................................................................46
UtilitySoftwareReference...................................................................46
Chapter 5 4747
4747
47
SettingUpeJIFFY 47
Introduction..........................................................................................47
InstallationandBIOSSetup.................................................................48
Entering eJIFFY.............................................................................................51
Features Icons...........................................................................................52
Usage FAQ.................................................................................................53
Chapter 6 5757
5757
57
TroubleShooting 57
Startupproblemsduringassembly.......................................................57
Start upproblems after prolong use.................................................58
Maintenanceandcaretips..................................................................58
BasicTroubleshooting Flowchart...................................................59

1
Introducing the Motherboard
Chapter 1
Introducing the Motherboard
Introduction
Thank you for choosing the G41T-M12 motherboard. This motherboard is a high
performance, enhanced function motherboard designed to support the LGA775 socket
for CoreTM 2 Quad/CoreTM 2 Duo/Pentium®Dual Core/Celeron®Dual Core/Celeron®
400 series processors for high-end business or personal desktop markets.
The ICH7 Southbridge supports two PCI slots which are PCI v2.3 compliant. In
addition, one PCI Express x1 slot is supported, fully compliant to the PCI Express
Base Specification revision 1.0a. It implements an EHCI compliant interface that
provides 480 Mb/s bandwidth for eight USB 2.0 ports (four USB ports and two USB
2.0 headers support additional four USB ports). One onboard IDE connector sup-
ports two IDE devices in Ultra ATA100/66/33 mode. The Southbridge integrates a
Serial ATA host controller, supporting two SATA ports with maximum transfer rate
up to 3.0 Gb/s each.
The motherboard is equipped with advanced full set of I/O ports in the rear panel,
including PS/2 mouse and keyboard connectors, one VGA port, four USB ports, one
LAN port, and audio jacks for microphone, line-in and line-out.
The motherboard incorporates the Intel®G41 Northbridge (NB) and Intel®ICH7
Southbridge (SB) chipsets. It supports a system bus (FSB) of 1333/1066/800 MHz.
The memory controller supports DDR3 memory DIMM frequencies of 1066/800*. It
supports two DDR3 sockets with up to maximum memory of 8 GB. DDR3 Maximum
memory bandwidth of 12.8 GB/s in dual-channel symmetric mode assuming DDR3
1066/800 MHz. One PCI Express x16 slot, intended for Graphics Interface, is fully
compliant to the PCI Express Gen 1.
Due to the chipset spec, this motherboard runs at DDR3 1066/800 MHz
memory speed.

2
Introducing the Motherboard
Feature
The motherboard uses an LGA775 type of CoreTM 2 Quad/CoreTM 2 Duo/Pentium®
Dual Core/Celeron®Dual Core/Celeron®400 series processors that carries the
following features:
Processor
• CoreTM 2 Quad/CoreTM 2 Duo/Pentium®Dual Core/Celeron®Dual Core/
Celeron®400 series processors
• Supports a system bus (FSB) of 1333/1066/800 MHz
• LGA775 socket for latest Intel®45nm Multi-Core processors
The Intel®G41 Northbridge (NB) and Intel®ICH7 Southbridge (SB) chipsets are
based on an innovative and scalable architecture with proven reliability and
performance.
Chipset
G41 (NB)
ICH7 (SB)
Memory
• Enhanced DMA Controller, interrupt controller, and timer
functions
• Compliant with PCI Express Base Specification, Revi-
sion 1.0a
• Compliant with PCI v2.3 specification
• Integrated SATA 3.0 Gb/s Host Controller
• Integrated USB 2.0 Host Controller supporting up to
eight USB 2.0 ports
• Integrated IDE controller supports Ultra ATA 100/66/
33
• Supports 36-bit host bus addressing, allowing the CPU to
access the entire 64 GB of the memory address space
• 2 GB/s point-to-point Direct Media Interface (DMI) to
ICH7 (1 GB/s each direction)
• Supports 2-GB, 1-Gb, 512 Mb DDR3 DRAM technolo-
gies for x8 and x16 devices
• One, 16-lane (x16) PCI Express port intended for exter-
nal device attach, fully compatible to the PCI Express
Gen 1
• An integrated graphics device (IGD) delivering cost com-
petitive 3D, 2D and video capabilities
• Microsoft DX10 and 128MB share memory are sup-
ported
• Supports DDR3 1066/800 DDR3 SDRAM with Dual-channel architecture.
• Accommodates two unbuffered DIMMs.
• 2 x 240-pin DDR3 DIMM sockets support up to 8 GB.

3
IntroducingtheMotherboard
Onboard LAN (optional)
The motherboard comes with the following expansion options:
• One PCI Express x16 slots for Graphic Interface
• One PCI Express x1 slot
• Two 32-bit PCI v2.3 compliant slots
• One IDE connector that supports two IDE devices
• Two 7-pin SATA connectors
Expansion Options
• Two PS/2 ports for mouse and keyboard
• One VGA port
• Four USB ports
• One LAN port
• Audio jacks for microphone, line-in and line-out
The motherboard has a full set of I/O ports and connectors:
Integrated I/O
• Compliants with PCI Express. 1.1
• Integrated 10/100 transceiver
• Supports Wake-on-LAN and remote wakeup
• Fullycompliant with IEEE802.3, IEEE802.3u
Audio
This motherboard may support either of the following Audio chipsets:
• 5.1 Channel High DefinitionAudio Codec
• Exceeds Microsoft Windows Logo Program (WLP) Requirements
• ADCs support 44.1K/48K/88.2K/96K/192KHz sample rate
• Power Support: Digital: 3.3V; Analog: 5.0V
1.Some hardware specifications and software items are subject to change
without prior notice.
2.Due to chipset limitation, we recommend that motherboard be oper-
ated in the ambiance between 0 and 50°C.
The firmware can also be used to set parameters for different processor clock
speeds.
• Power management
• Wake-up alarms
• CPUparameters
• CPUand memorytiming
BIOS Firmware
This motherboard uses AMI BIOS that enables users to configure many system
features including the following:
• Compliants with PCI Express. 1.1
• Integrated 10/100/1000 transceiver
• Supports Wake-on-LAN and remote wakeup
• Fullycompliant withIEEE 802.3, IEEE802.3u,IEEE802.3ab

4
Introducing the Motherboard
• Intel G41 & ICH7 Express Chipset
North Bridge: Intel G41 South Bridge: ICH7
• LGA775 socket for CoreTM 2 Quad/CoreTM 2 Duo/Pentium®
Dual Core/Celeron®Dual Core/Celeron®400 series proces-
sors
• Dual-channel DDR3 memory architecture
• 2 x 240-pin DDR3 DIMM sockets support up to 8 GB
• SupportsDDR31066/800 SDRAM
• 1 x PCI Express x16 slot
• 1 x PCI Express x1 slot
• 2 x PCI slots
• Supported by Intel ICH7 Express Chipset
• 2 x Serial ATA 3.0 Gb/s device
• 1 x Ultra DMA100/66 devices
• VIA VT1705 6-Ch High Definition audio CODEC
• Realtek 8105E 10/100 Lan (Realtek 8111E Giga Lan Op-
tional)
• 1 x PS/2 keyboard & PS/2 mouse connector
• 1 x VGA port
• 4 x USB ports
• 1 x RJ45 LAN connector
• 1 x Audio port (Line in, microphone in, line out)
Chipset
Memory
Expansion
Slots
Storage
Audio
LAN
RearPanel I/O
InternalI/O
Connectors &
Headers
• AMIBIOS with 8MbSPIROM
• Supports Plug and Play, STR(S3)/STD(S4), Hardware moni-
tor,Multi Boot,DMI
• Supports ACPI revision 1.0 specification
SystemBIOS
FormFactor • MicroATX Size, 244mm x 170mm
CPU
Specifications
• 1 x 24-pin ATX power supply connector
• 1 x 4-pin 12V Power connector
• 1 x Parallel port header (LPT)
• 1 x CLR_CMOS header
• 1 x 4-pin CPU_FAN connector
• 1 x IDE connector
• 2 x USB 2.0 headers
• 1 x Speaker header
• 1 x Front panel audio header
• 1 x Front panel switch/LED header
• 1 x Chassis detect header
• 2 x SATA 3Gb/s connectors
• 1 x SPDIF out header
• 1 x Serial port header (COM)

5
Introducing the Motherboard
MotherboardComponents

6
Introducing the Motherboard
Table of Motherboard Components
This concludes Chapter 1. The next chapter explains how to install the motherboard.
LABEL COMPONENTS
1. CPU Socket LGA775 socket for CoreTM 2
Q
uad
/
CoreTM 2 Duo
/
Pentium®Dual Core
/
Celeron®Dual Core
/
Celeron®400 series processors
2. CPU_FAN CPU cooling fan connector
3. DDR3_1~2 240-pin DDR3 SDRAM slots
4. ATX_POWER Standard 24-pin ATX power connector
5. IDE Primary IDE channel
6. SPK Speaker header
7. CLR_CMOS Clear CMOS jumper
8. USBPWR_F Front panel USB power select jumper
9. SATA1~2 Serial ATA connectors
10. F_USB1~2 Front panel USB headers
11. F_PANEL Front panel switch/LED header
12. COM Onboard serial port header
13. SPDIFO SPDIF out header
14. LPT Onboard parallel port header
15. F_AUDIO Front panel audio header
16. PCI1~2 32-bit add-on card slots
17. PCIE PCI Express x 1 slot
18. CASE Chassis detect header
19. PCIEX16 PCI Express x16 graphics card slot
20. USBPWR_R Rear panel USB/PS2 power select jumper
21. ATX12V 4-pin +12V power connector

7
Installing the Motherboard
Chapter 2
Installing the Motherboard
SafetyPrecautions
• Follow these safety precautions when installing the motherboard
• Wear a grounding strap attached to a grounded device to avoid dam-
age from static electricity
• Discharge static electricity by touching the metal case of a safely
grounded object before working on the motherboard
• Leave components in the static-proof bags they came in
• Hold all circuit boards by the edges. Do not bend circuit boards
Choosinga ComputerCase
There are many types of computer cases on the market. The motherboard complies
with the specifications for the Micro ATX system case. First, some features on the
motherboard are implemented by cabling connectors on the motherboard to indica-
tors and switches on the system case. Make sure that your case supports all the
features required. Secondly, this motherboard supports two enhanced IDE drives.
Make sure that your case has sufficient power and space for all drives that you intend
to install.
Most cases have a choice of I/O templates in the rear panel. Make sure that the I/O
template in the case matches the I/O ports installed on the rear edge of the
motherboard.
This motherboard carries a Micro ATX form factor of 244 x 170 mm. Choose a case
that accommodates this form factor.
Installingthe Motherboardina Case

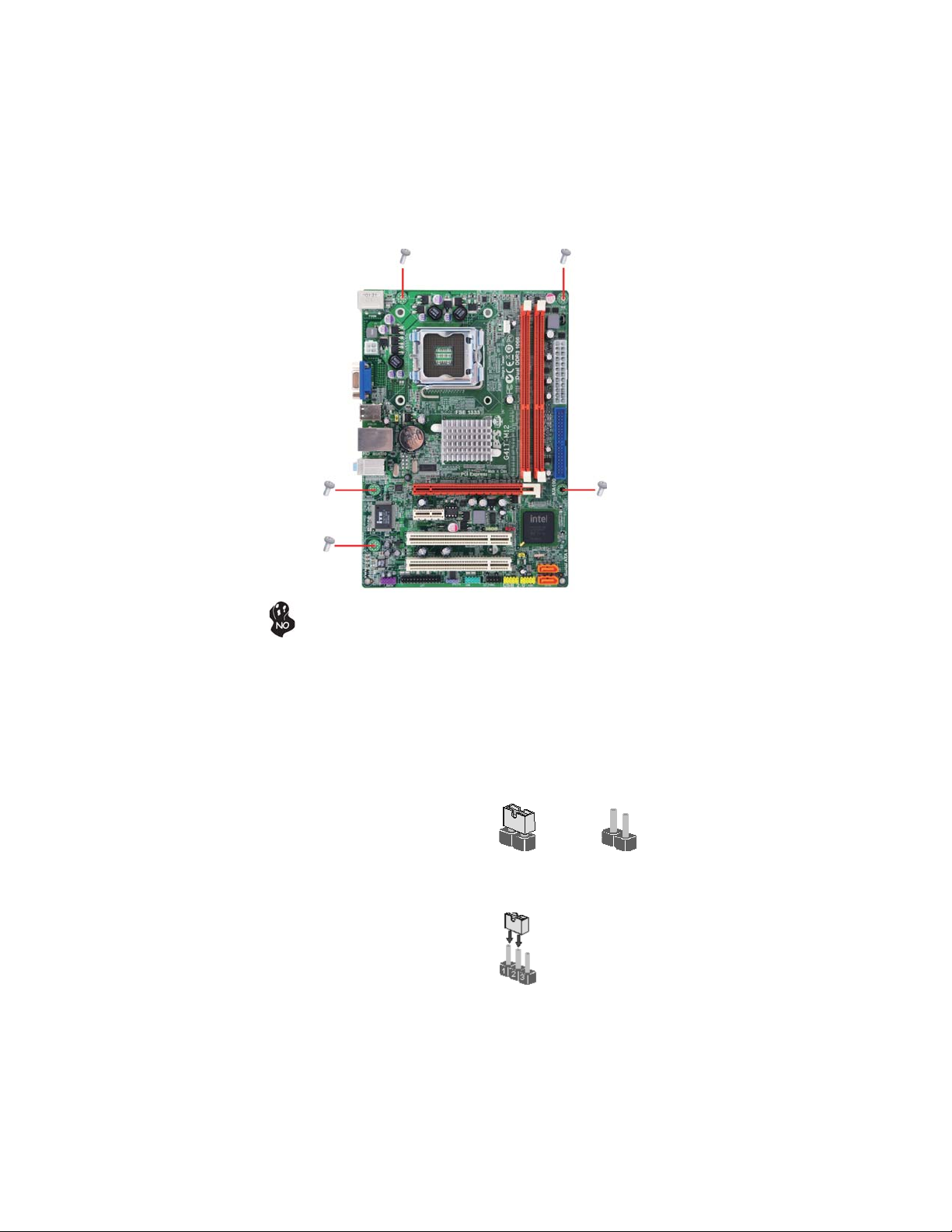

Refer to the following illustration and instructions for installing the motherboard in
a case.
Most system cases have mounting brackets installed in the case, which correspond
the holes in the motherboard. Place the motherboard over the mounting brackets
and secure the motherboard onto the mounting brackets with screws.
Ensure that your case has an I/O template that supports the I/O ports and expansion
slots on your motherboard.

8
Installing the Motherboard
CheckingJumperSettings
This section explains how to set jumpers for correct configuration of the motherboard.
SettingJumpers
Use the motherboard jumpers to set system configuration options. Jumpers with
more than one pin are numbered. When setting the jumpers, ensure that the jumper
caps are placed on the correct pins.
The illustrations show a 2-pin jumper.
When the jumper cap is placed on both
pins, the jumper is SHORT. If you re-
move the jumper cap, or place the jumper
cap on just one pin, the jumper is OPEN.
This illustration shows a 3-pin jumper.
Pins 1 and 2 are SHORT.
SHORT OPEN
Do not over-tighten the screws as this can stress the motherboard.

9
Installing the Motherboard
Checking Jumper Settings
The following illustration shows the location of the motherboard jumpers. Pin 1 is
labeled.
JumperSettings
Jumper Type Description Setting (default)
CLR_CMOS 3-pin CLEAR CMOS
1-2: NORMAL
2-3: CLEAR
Before clearing the
CMOS, make sure to
turn the system off.
3-pin
USBPWR_R 1-2: VCC
2-3: 5VSB
Rear USB/PS2
Power Select
Jumper
3-pinUSBPWR_F 1-2: VCC
2-3: 5VSB
Front Panel
USB Power
Select Jumper USBPWR_F
CLR_CMOS
USBPWR_R
1
1
1
To avoid the system instability after clearing CMOS, we recommend
users to enter the main BIOS setting page to “Load Default Settings”
and then “Save & Exit Setup”.
1.
2. Make sure the power supply provides enough 5VSB voltage before se-
lecting the 5VSB function.
3. It is required that users place the USBPWR_F & USBPWR_R cap onto
2-3 pin rather than 1-2 pin as default if you want to wake up the com-
puter by USB/PS2 KB/Mouse.

10
Installing the Motherboard
InstallingHardware
Caution: When installing a CPU heatsink and cooling fan make sure
that you DO NOT scratch the motherboard or any of the surface-
mount resistors with the clip of the cooling fan. If the clip of the cooling
fan scrapes across the motherboard, you may cause serious damage
to the motherboard or its components.
On most motherboards, there are small surface-mount resistors near
the processor socket, which may be damaged if the cooling fan is
carelessly installed.
Avoid using cooling fans with sharp edges on the fan casing and the
clips. Also, install the cooling fan in a well-lit work area so that you
can clearly see the motherboard and processor socket.
Before installing the Processor
This motherboard has an LGA775 socket. When choosing a processor, consider the
performance requirements of the system. Performance is based on the processor
design, the clock speed and system bus frequency of the processor, and the quantity
of internal cache memory and external cache memory.
2. Always remove the AC power by unplugging the power cord from
the power outlet before installing or removing the motherboard or
other hardware components.
Warning:
1. Over-clocking components can adversely affect the reliability of the
system and introduce errors into your system. Over-clocking can per-
manently damage the motherboard by generating excess heat in com-
ponents that are run beyond the rated limits.
Fail-Safe Procedures for Over-clocking
Installing the Processor
This motherboard automatically determines the CPU clock frequency and system
bus frequency for the processor. You may be able to change the settings in the system
Setup Utility. We strongly recommend that you do not over-clock processors or
other components to run faster than their rated speed.
When end-users encounter failure after attempting over-clocking, please take the
following steps to recover from it.
1. Shut down the computer.
2. Press and hold the “Page Up Key (PgUp)” of the keyboard, and then boot the PC
up.
3. Two seconds after the PC boots up, release the “Page Up Key (PgUp)”.
4. The BIOS returns to the default setting by itself.

11
Installing the Motherboard
A. Read and follow the instructions shown
on the sticker on the CPU cap.
B. Unload the cap
· Use thumb & forefinger to hold the
lifting tab of the cap.
· Lift the cap up and remove the cap
completely from the socket.
C. Open the load plate
· Use thumb & forefinger to hold the
hook of the lever, pushing down and
pulling aside unlock it.
· Lift up the lever.
· Use thumb to open the load plate. Be
careful not to touch the contacts.

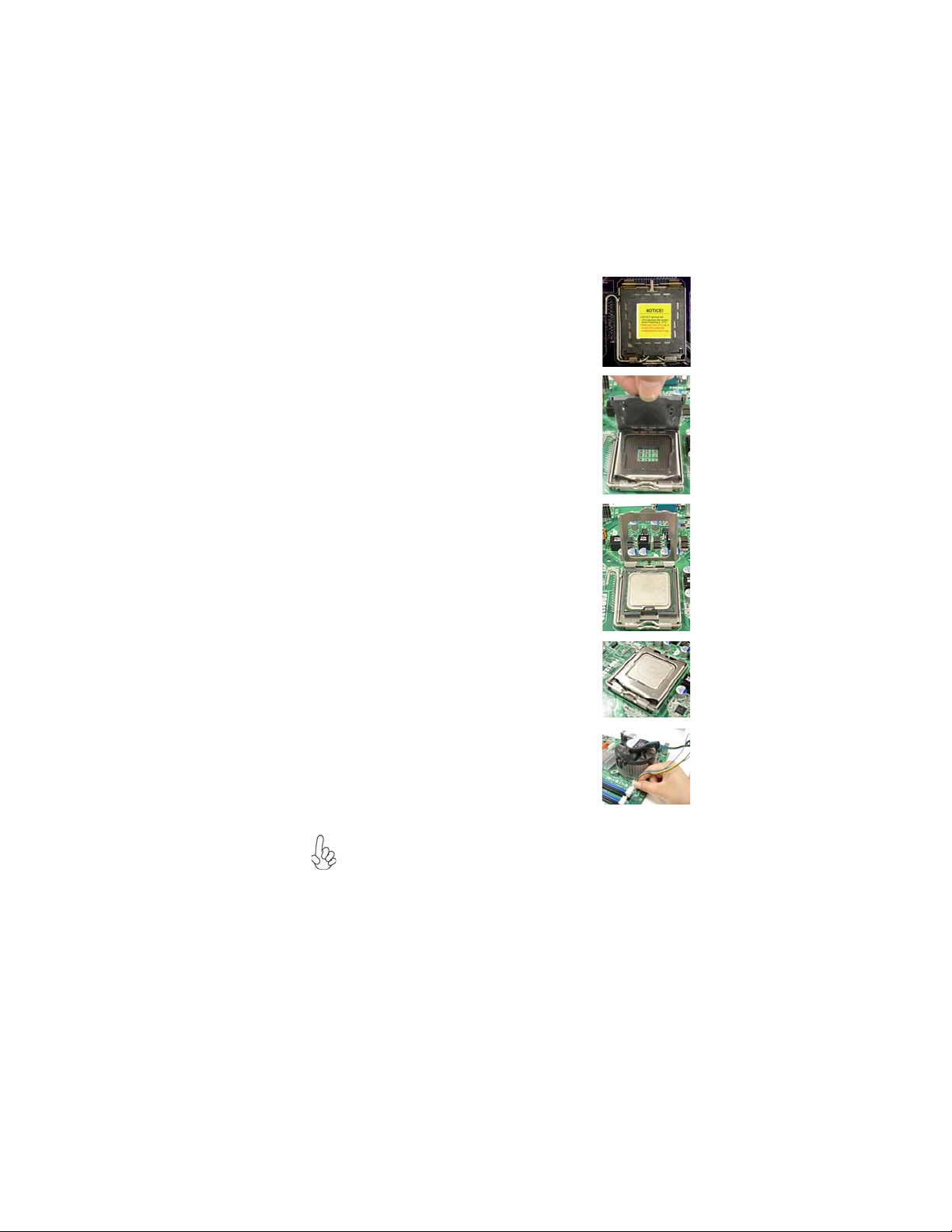

D. Install the CPU on the socket
· Orientate CPU package to the socket.
Make sure you match triangle marker
to pin 1 location.
E. Close the load plate
· Slightly push down the load plate onto
the tongue side, and hook the lever.
· CPU is locked completely.
F. Apply thermal grease on top of the CPU.
G. Fasten the cooling fan supporting base
onto the CPU socket on the motherboard.
H. Make sure the CPU fan is plugged to the
CPU fan connector. Please refer to the
CPU cooling fan user’s manual for more
detail installation procedure.
CPU Installation Procedure
The following illustration shows CPU installation components.
1. To achieve better airflow rates and heat dissipation, we suggest
that you use a high quality fan with 3800 rpm at least. CPU fan and
heatsink installation procedures may vary with the type of CPU fan/
heatsink supplied. The form and size of fan/heatsink may also vary.
2. DO NOT remove the CPU cap from the socket before installing a
CPU.
3. Return Material Authorization (RMA) requests will be accepted
only if the motherboard comes with the cap on the LGA775 socket.

12
Installing the Motherboard
Installing Memory Modules
This motherboard accommodates two memory modules. It runs at dual-channel
DDR3 1066/800MHz memory speed. The total memory capacity is 8 GB.
You must install at least one module in any of the two slots.
Do not remove any memory module from its antistatic packaging until
you are ready to install it on the motherboard. Handle the modules
only by their edges. Do not touch the components or metal parts.
Always wear a grounding strap when you handle the modules.
Installation Procedure
Refer to the following to install the memory modules.
1 This motherboard supports unbuffered DDR3 SDRAM .
2 Push the latches on each side of the DIMM slot down.
3 Align the memory module with the slot. The DIMM slots are keyed with
notches and the DIMMs are keyed with cutouts so that they can only be
installed correctly.
4 Check that the cutouts on the DIMM module edge connector match the
notches in the DIMM slot.
5 Install the DIMM module into the slot and press it firmly down until it
seats correctly. The slot latches are levered upwards and latch on to
the edges of the DIMM.
6 Installany remaining DIMM modules.
DDR3 SDRAM memory module table
DDR3 800 400 MHz
Memory module Memory Bus
DDR3 1066 533 MHz

13
Installing the Motherboard
Table A: DDR3 (memory module) QVL (Qualified Vendor List)
The following DDR3 1333/1066 memory modules have been tested and qualified for
use with this motherboard.
NO. Vendor Module part number IC Brand IC Chip Number SS/D Size
1 Qimonda IMSH51U03A1F1C-08EQimonda IDSH51-03A1F1C-OBESS 512MB
NO. Vendor Module part number IC Brand IC Chip Number SS/D Size
1Elixi
r
M2Y2G64CB8HC9N-BE DS 2GB
2Elixi
r
M2Y2G64CB8HC5N-BE elixi
r
N2CB1G80CN-BE DS 2GB
3 Hynix HMT112U6AFP8C-G7N0 AA Hynix H5TQ1G83AFP G7C SS 1GB
4 Hynix HMT125U6AFP8C-G7N0 AA Hynix H5TQ1G83AFP G7C DS 2GB
5 Kingston KVR1066D3N7 Elpida J5308BASE-AE-E 07500W220 DS 1GB
6 Micron MT8JTF12864AY-1G1D1 Micron 7UD22D9JNL SS 1GB
7 Micron MT8JTF12864AY-1G1D1 Micron 8TD22 D9JNL SS 1GB
8 Micron MT16JTF25664AY-1G1D1 Micron 8WD22 D9JNL DS 2GB
9 Micron MT16JTF25664AZ-1G1F1 Micron 9EF22 D9KPV DS 2GB
10 Micron MT8JTF12864AZ-1G1F1 Micron 9NF22 D9KPT SS 1GB
11 Ramaxel RMR1810NA48E7F-1066-LF NANYA NT5CB128H8AN-DE SS 1GB
12 Kingston KVR1066D3N7/512

Elpida

J5308BASE-AE-E 07340W065

SS 512MB
13 Qimonda IMSH1GU03A1F1C-10F Qimonda IDSH1G-03A1F1C-10F FSS15085 SS 1GB
14 Qimonda IMSH1GU03A1F1C-10G Qimonda IDSH1G-03A1F1C-10G FSS14526 SS 1GB
15 Qimonda IMSH2GU13A1F1C-10F Qimonda IDSH1G-03A1F1C-10F FSS15085 DS 2GB
16 Qimonda IMSH2GU13A1F1C-10G Qimonda IDSH1G-03A1F1C-10G FSS13467 DS 2GB
17 Hynix HYMT112U64ZNF8-G8 AA

Hynix HY5TQ1G831ZN FP-G8

SS 1GB
18 Micron MT16JTF25664AY-1G1D1 Micron 7UD22D9JNL DS 2GB
19 Samsung M378B2873EH1-CF8 SEC HCF8K4B1G0846E SS 1GB
20 Samsung M378B2873DZ1-CF8 SEC HCF8 K4B1G0846D SS 1GB
21 Samsung M378B5673DZ1-CF8 SEC K4B1G0846D HCF8 DS 2GB
22 Aeneon AEH760UD00-10FA98
X
Aeneon AEH93R10F 0737 SS 1GB
23 Elpida EBJ10UE8BDF0-AE-F Elpida J1108BDSE-DJ-F SS 1GB
24 Elpida EBJ21UE8BDF0-AE-F Elpida J1108BDSE-DJ-F DS 2GB
25 Elpida PC3-8500U-7-00-AP Elpida J53088ASE-AC-E SS 512MB
NO. Vendor Module part number IC Brand IC Chip Number SS/D Size
1 A-DATA AD3U1333B1G9-B Hynix H5TQ1G83BFR SS 1GB
2 A-DATA AD3U1333B2G9-B Hynix H5TQ1G83BFR DS 2GB
3Apace
r
78.A1GC6.9L1 Apace
r
AM5D5808ADWSBG DS 2GB
4Elixi
r
M2F2G64CB8HA4N-CG Elixi
r
N2CB1G80AN-CG 0903 DS 2GB
5Elixi
r
M2Y2G64CB8HC9N-CG DS 2GB
6 Hynix HMT112U6AFP8C-H9N0 AA Hynix H5TQ1G83AFP H9C SS 1GB
7 Hynix HMT125U6AFP8C-H9N0 AA Hynix H5TQ1G83AFP H9C DS 2GB
8 Hynix HMT112U6TFR8C-H9N0 Hynix H5TQ1G83TFRH9C SS 1GB
9 G.SKILL F3-10666CL9D-4GBRL DS 2GB
10 G.SKILL F3-10666CL8D-4GBECO 1.35V DS 2GB
11 G.SKILL F3-10666CL9D-4GBN
Q
DS 2GB
12 Kingston KVR1333D3N9/4G Hynix Hynix/H5TQ2G83AFR DS 4GB
13 Nanya NT2GC64B8HAONF-CG Elixi
r
N2CB1G80AN-CG DS 2GB
14 Micron MT8JTF12864AY-1G4D1 Micron 8UD22 D9JNM SS 1GB
15 Micron MT16JTF25664AY-1G4D1 Micron 8WD22 D9JNM DS 2GB
16 Micron MT8JTF12864AZ-1G4F1 Micron 9MF22 D9KPT SS 1GB
17 Samsung M378B2873FHS-CH9 SEC K4B1G0846F SS 1GB
18 Samsung M378B5673FH0-CH9 SEC K4B1G0846F DS 2GB
19 Samsung M378B5273CH0-CH9 SEC K4B2G0846C DS 4GB
20 Nanya M2Y2G64TU8HD5B-BD elixi
r
N2CB1G80AN-CG DS 2GB
DDR3 800
DDR3 1333
DDR3 1066

14
InstallingtheMotherboard
DDR3 1333
NO. Vendor Module part number IC Brand IC Chip Number SS/DS Size
1 Aeneon AXH760UD00-13GA98X

SS 1GB
2 KingMax FLFD45F-B8KG9 NAUS

KingM ax KFB8FNGXF-ANX-15U

SS 1GB
3 KingMax FLFE85F-B8KG9 NEUS

KingM ax KFB8FNGXF-ANX-15U

DS 2GB
4 KingMax FLFD45F-B8KG9 NAES KingMax KFB8FNGXF-ANX-15A SS 1GB
5 KingMax FLFE85F-B8KG9 NEES KingMax KFB8FNGXF-ANX-15A DS 2GB
6 KingMax FLFE85F-B8KL9 KingMax KFB8FNLXF-BNF-15A DS 2GB
7 KingMax FLFD45F-B8KL9 KingMax KFB8FNLXF-BNF-15A SS 1GB
8 Kingston KVR1333D3N9 Kingston 128X8DDR3 SL0931 DS 2GB
9 Kingston KVR1333D3N9K2/2G Elpida J1108BASE-DJ-E SS 2GB
10 Kingston KVR1333D3N9/2G Qimonda IDSH1G-03A1F1C-13H

DS 2GB
11 Kingston KVR1333D3N9 Elpida J1108BASE-DJ-E SS 1GB
12 Kingston KVR1333D3N9 Elpida J1108BABG-DJ-E DS 2GB
13 Elixir M2Y1G64CB88A5N-CG

Elixir N2CB1G80AN-CG

SS 1GB
14 Elixir M2Y2G64CB8HA5N-CG

Elixir N2CB1G80AN-CG

DS 2GB
15 PSC AL7F8G73D-DG1 PSC A3P1GF3DGF SS 1GB
16 PSC AL8F8G73D-DG1 PSC A3P1GF3DGF DS 2GB
17 Nanya NT1GC64B88A0NF-CG

Nanya NT5CB128M8AN-CG

SS 1GB
18 Qimonda IMSH1GU13A1F1C-13H Qimonda 0734 IDSH51-03A1F1D DS 1GB
19 Qimonda IMSH2GU13A1F1C-13H Qimonda IDSH1G-03A1F1C-13H FSS08244 DS 2GB
20 Samsung M378B2873DZ1-CH9 SEC K4B1G0846D SS 1GB
21 Samsung M378B2873EH1-CH9 SEC K4B1G0846E HCH9 SS 1GB
22 Samsung M378B5673EH1-CH9 SEC K4B1G0846E HCH9 DS 2GB
23 Silicon Power SP001GBLTU133S01 Nanya NT5CB128M8AN-CG SS 1GB
24 Silicon Power SP002GBLTU133S01 Nanya NT5CB128M8AN-CG DS 2GB
25 Unifosa

GU502203EP0201

Elpida J1108BDBG-DJ-F

SS 1GB
26 Unifosa

GU512303EP0202

Elpida J1108BDBG-DJ-F

DS 2GB
27 Ramaxel RMR1810E7F-1333 Elpida J1108BDBG-DJ-F SS 1GB
28 Elpida EBJ10UE8BDF0-DJ-F Elpida J1108BDSE-DJ-F SS 1GB
29 Elpida EBJ21UE8BDF0-DJ-F Elpida J1108BDSE-DJ-F DS 2GB
30 A-data Game A-DATA 8-8-8-24 DS 2GB
31 Hynix HMT351U6BFR8C-H9 Hynix H5TQ2G83BFR DS 4GB
32 Hynix HMT351U6BFR8C-H9 Hynix H5TQ2G83BFR SS 2GB
33 Micron MT8JTF25664AZ-1G4D1 Micron 0BD12 D9LCK SS 2GB
34 Micron MT16JTF51264AZ-1G4D1 Micron 0FD12 D9LCK DS 4GB
NO. Vendor Module part number IC Brand IC Chip Number SS/DS Size
1 A-DATA Extreme speed dragon DS 2GB
2 A-DATA AX3U1600GB2G9-AG DS 2GB
3 G.SKILL F3-12800CL9D-4GBNQ DS 2GB
4 G.SKILL F3-12800CL9D-4GBECO DS 2GB
5 G.SKILL F3-12800CL7D-4GBECO DS 2GB
6 G.SKILL F3-12800CL9D-4GBRL DS 2GB
7 Apacer 78.AAGD0.9KD DS 2GB
8 KingMax FLGD45F-B8KG9 NEES

KingM ax KFB8FNGXF-ANX-12A

SS 1GB
9 KingMax FLGE85F-B8KG9 NEES

KingM ax KFB8FNGXF-ANX-12A

DS 2GB
NO. Vendor Module part number IC Brand IC Chip Number SS/DS Size
1 Corsair TR3X6G1866C9D DS 2GB
2 Kingston KHX1800C9D3K3/3GX SS 1GB
NO. Vendor Module part number IC Brand IC Chip Number SS/DS Size
1 Kingston KHX2133C9D3T 1K2/4GX DS 2GB
NO. Vendor Module part number IC Brand IC Chip Number SS/DS Size
1 KingMax FLKE85F-B8KJA FEIH DS 2GB
2 G.SKILL F3-17600CL7D-4GBPIS DS 2GB
NO. Vendor Module part number IC Brand IC Chip Number SS/DS Size
1 G.SKILL F3-19200CL9D-4GBPIS DS 2GB
DDR3 1600
DDR3 1800
DDR3 2400
DDR3 2200
DDR3 2133

15
Installing the Motherboard
Installing Add-on Cards
The slots on this motherboard are designed to hold expansion cards and connect
them to the system bus. Expansion slots are a means of adding or enhancing the
motherboard’s features and capabilities. With these efficient facilities, you can in-
crease the motherboard’s capabilities by adding hardware that performs tasks that are
not part of the basic system.
Before installing an add-on card, check the documentation for the card
carefully. If the card is not Plug and Play, you may have to manually
configure the card before installation.
This motherboard is equipped with two standard PCI slots. PCI
stands for Peripheral Component Interconnect and is a bus standard
for expansion cards, which for the most part, is a supplement of the
older ISA bus standard. The PCI slot on this board is PCI
v2.3compliant.
PCI1~2
Slots

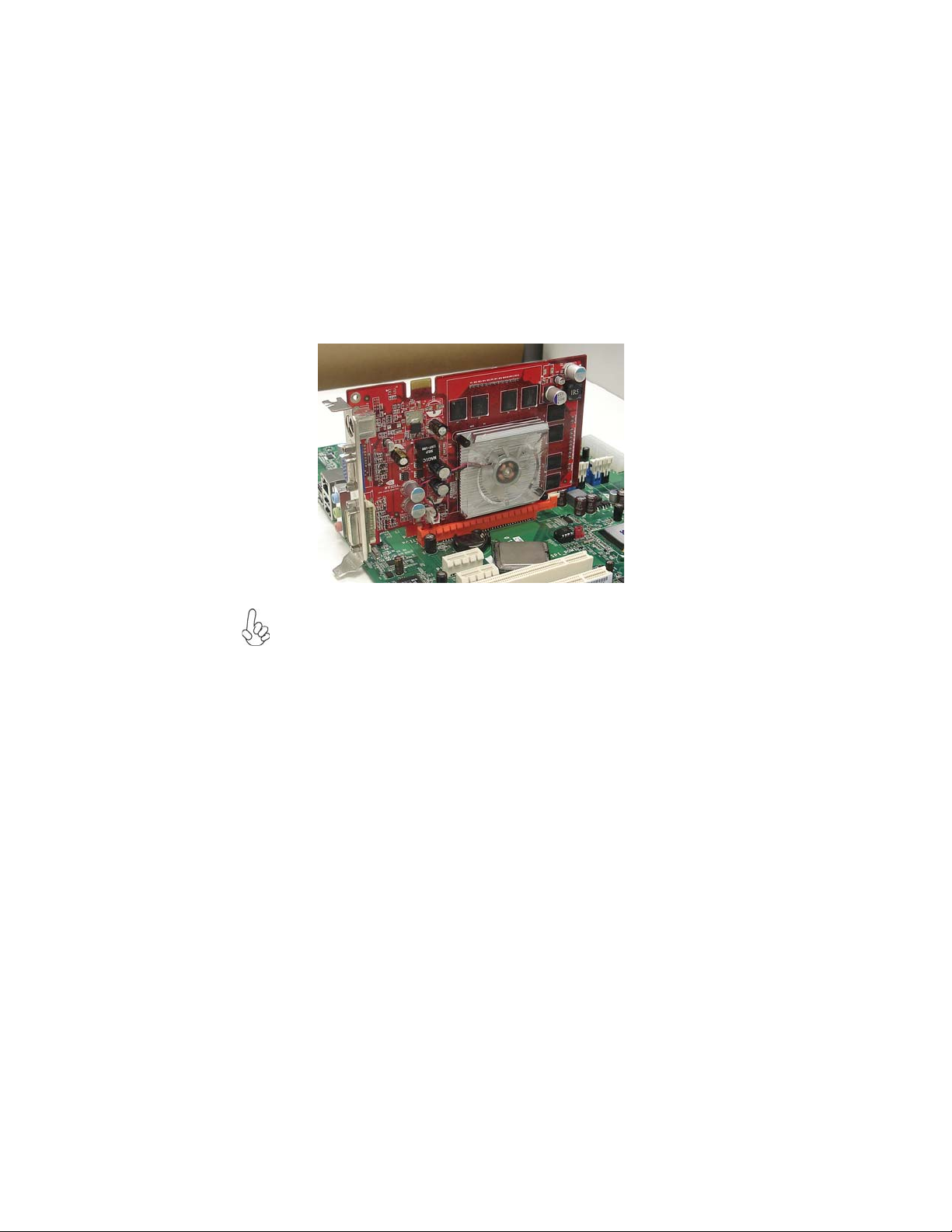

PCIEX16 Slot
The PCI Express x1 slot is fully compliant to the PCI Express Base
Specification revision 1.0a.
The PCI Express slot is used to install an external PCI Express
graphics card that is fully compliant to the PCI Express Gen 1.
PCIE Slot
Expansion Slots

16
Installing the Motherboard
Follow these instructions to install an add-on card:
1 Remove a blanking plate from the system case corresponding to the
slot you are going to use.
2 Install the edge connector of the add-on card into the expansion slot.
Ensure that the edge connector is correctly seated in the slot.
3 Secure the metal bracket of the card to the system case with a screw.
2. The onboard PCI interface does not support 64-bit SCSI cards.
1. For some add-on cards, for example graphics adapters and network
adapters, you have to install drivers and software before you can begin using
the add-on card.
