ECS H110I-C4P User manual

H110I-C4P USER MANUAL
Preface
Copyright
This publication, including all photographs, illustrations and software, is protected
under international copyright laws, with all rights reserved. Neither this manual, nor
any of the material contained herein, may be reproduced without written consent of
the author.
Version 1.0
Disclaimer
The information in this document is subject to change without notice. The manufac-
turer makes no representations or warranties with respect to the contents hereof
and specifically disclaims any implied warranties of merchantability or fitness for
any particular purpose. The manufacturer reserves the right to revise this publica-
tion and to make changes from time to time in the content hereof without obligation
of the manufacturer to notify any person of such revision or changes.
TrademarkRecognition
Windows®10/8.1/7 are registered trademarks of Microsoft Corp.
Other product names used in this manual are the properties of their respective owners
and are acknowledged.
FederalCommunicationsCommission(FCC)
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential instal-
lation. This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interfer-
ence will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
•Reorient or relocate the receiving antenna
•Increase the separation between the equipment and the receiver
•Connect the equipment onto an outlet on a circuit different from that to
which the receiver is connected
•Consult the dealer or an experienced radio/TV technician for help
Shielded interconnect cables and a shielded AC power cable must be employed with
this equipment to ensure compliance with the pertinent RF emission limits govern-
ing this device. Changes or modifications not expressly approved by the system’s
manufacturer could void the user’s authority to operate the equipment.

ii
H110I-C4P USER MANUAL
DeclarationofConformity
This device complies with part 15 of the FCC rules. Operation is subject to the
following conditions:
•This device may not cause harmful interference, and
•This device must accept any interference received, including interference
that may cause undesired operation.
CanadianDepartmentofCommunications
This class B digital apparatus meets all requirements of the Canadian Interference-
causing Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du Réglement
sur le matériel brouilieur du Canada.
The manual consists of the following:
Describes features of the
motherboard.
page 1
Describes installation of
motherboard components.
page 7
page 27
page 61
Installing the Motherboard
Introducing the Motherboard
Provides information on
using the BIOS Setup Utility.
Describes the motherboard
software.
Limits and methods of mesurement of radio disturbance
characteristics of information technology equipment
EN 55022
EN 61000-3-2 Disturbances in supply systems caused
EN 61000-3-3 Disturbances in supply systems caused by household appli-
ances and similar electrical equipment “ Voltage fluctuations”
EN 55024 Information technology equipment-Immunity characteristics-
Limits and methods of measurement
EN 60950 Safety for information technology equipment including
electrical business equipment
CE marking
AbouttheManual






This device is in conformity with the following EC/EMC directives:
Chapter 4
Chapter 1
Chapter 2
Chapter 3
Using BIOS
Using the Motherboard Software
Chapter 5
Trouble Shooting
Provides basic trouble
shooting tips.
page 65


iii
H110I-C4PUSERMANUAL
Chapter 2 7
Installing the Motherboard 7
Safety Precautions.............................................................................7
Installing the Motherboard in a Chassis......................................7
Checking Jumper Settings.................................................................8
Installing Hardware.................................................................10
Installing the Processor...........................................................10
Installing the CPU Cooler.........................................................12
Installing Memory Modules....................................................13
Installing Add-on Cards...........................................................14
Connecting Optional Devices..................................................17
Installing a SATA Hard Drive...................................................22
Connecting Case Components.......................................................23
Front Panel Header.................................................................25
TABLE OF CONTENTS
Preface i
Chapter 1 1
Introducing the Motherboard 1
Introduction...................................................................................1
Pakage Contents............................................................................1
Specifications................................................................................2
Motherboard Components..........................................................4
I/O Ports..............................................................................................5
Chapter 3 27
Using BIOS 27
About the Setup Utility................................................................27
The Standard Configuration....................................................27
Entering the Setup Utility........................................................27
Resetting the Default CMOS Values.....................................28
Using BIOS........................................................................................28
BIOS Navigation Keys..............................................................29
Main Menu.............................................................................30
Advanced Menu......................................................................31
Chipset Menu..........................................................................44
Tweak Menu............................................................................51
Security Menu..........................................................................57
Boot Menu...............................................................................58
Exit Menu................................................................................59

iv
H110I-C4P USER MANUAL
Chapter 4 61
Using the Motherboard Software 61
Auto-installing under Windows 10/8.1/7.....................................61
Running Setup.........................................................................61
Manual Installation..........................................................................63
ECS Utility Software (Intelligent EZ Utility).....................................63
Chapter 5 65
Trouble Shooting 65
Start up problems during assembly..............................................65
Start up problems after prolong use............................................66
Maintenance and care tips..............................................................66
Basic Troubleshooting Flowchart...................................................67
Updating the BIOS.........................................................................60

1
H110I-C4P USER MANUAL
Chapter1
Chapter 1
Introducing the Motherboard
Introduction
Thank you for choosing the H110I-C4P motherboard. This motherboard is a high
performance, enhanced function motherboard designed to support the LGA1151
socket for Intel®Skylake processor.
This motherboard is based on Intel®®
®®
®H110 Express Chipset for best desktop platform
solution. It supports up to 32 GB of system memory with dual channel DDR4 2133
MHz. High resolution graphics via one PCIe x16 Gen3 slot.
It integrates USB 2.0 and USB 3.0 interface, supporting up to five USB 2.0 ports (two
USB 2.0 ports at the rear panel, one 10-pin USB 2.0 header supports additional two
USB 2.0 ports and one 5-pin USB 2.0 header supports additional one USB 2.0 port)
and four USB 3.0 ports (two USB 3.0 ports at the rear panel and one USB 3.0 header
supports additional two USB 3.0 ports) .
The motherboard is equipped with advanced full set of I/O ports in the rear panel,
including PS/2 keyboard and mouse combo connector, two USB 2.0 ports, one RJ45
LAN connector, two USB 3.0 ports, one Display port, one HDMI 1.4 port, one type L
WiFi anttena connector (optional), and audio jacks for line-in, line-out and micro-
phone.
In addition, this motherboard supports four SATA 6Gb/s connectors for expansion.
Your motherboard package ships with the following items:
Package Contents
H110I-C4P Motherboard
Quick Installation Guide
User Manual
DVD
I/O Shield
2 SATA 6Gb/s cable






The package contents above are for reference only, please take the actual package items as
standard.

Chapter1
2
H110I-C4P USER MANUAL
Specifications
CPU
• Intel®H110 Chipset
Chipset
• Dual-channel DDR4 memory architecture
• 2 x 288-pin DDR4 LONG-DIMM sockets support up to 32 GB
• Supports DDR4 2133 MHz DDR4 SDRAM
Memory
• Supported by Intel®H110 Express Chipset
- 4 x Serial ATA 6Gb/s devices
Storage
• 1 x PS/2 keyboard and mouse combo connector
• 2 x USB 2.0 ports
• 1 x RJ45 LAN connector
• 2 x USB 3.0 ports
• 1 x DP port
• 1 x HDMI 1.4 port
• 1 x type L WiFi antenna connector (optional)
• 1 x Audio port (1x Line in, 1x Line out, 1x Mic_in Rear)
Rear Panel I/O
• Realtek RTL8111H
- 10/100/1000 Fast Ethernet Controller
- Wake-on-LAN and remote wake-up support
• LGA1151 socket for Intel®Skylake Processor
• Supports CPU up to 65W TDP
Note: Please go to ECS website for the latest CPU support list.
• 1 x 24-pin ATX Power Supply connector
• 1 x 4-pin 12V Power connector
• 1 x 4-pin CPU_FAN connector
• 1 x 4-pin SYS_FAN connector
• 1 x 10-pin USB 2.0 header supports additional two USB 2.0
ports & 1 x 5-pin USB 2.0 header supports additional one
USB 2.0 port
• 1 x USB 3.0 header supports additional two USB 3.0 ports
• 4 x Serial SATA 6Gb/s connectors
• 1 x COM header
• 1 x Front Panel audio header
• 1 x Front Panel switch/LED header
• 1 x CLR_CMOS jumper
• 1 x Buzzer
• 1 x Case open header
• 1 x COM voltage setting jumper (JP1)
Internal I/O
Connectors &
Headers
• Realtek ALC662-VD0-GR 48P
- 6 Channel High Definiton Audio Codec
- Compliant with HD audio specification
Audio
LAN
• 1 x PCI Express x16 Gen3 slot
• 1 x M.2 slot for 2230 WiFi/BT card
Expansion
Slots

3
H110I-C4P USER MANUAL
Chapter1
• AMI BIOS with 64Mb SPI Flash ROM
- Supports Plug and Play, STR(S3)/STD(S4)
- Supports Hardware Monitor
- Supports ACPI & DMI
- Supports Audio, LAN, can be disabled in BIOS
- F7 hot key for boot up devices option
- Supports Dual Display (depends on display output)
- Add the function of copying BIOS parameters to USB flash
drive
System BIOS
• Mini-ITX 170mm x 170mm
- Supports Pgup clear CMOS Hotkey (Has PS2 KB Model only)
Form Factor
• ECS Exclusive AP: Supports eBLU*1/eDLU/eSF*1
• 3rd Party Bundled software: Cyberlink Media Suite*2
AP/Bundled
Software
Support Note: *1Microsoft .NET Framework 3.5 is required.
*2Free bundle software including ECS DVD: Cyberlink Media
Suite.

Chapter1
4
H110I-C4P USER MANUAL
Motherboard Components

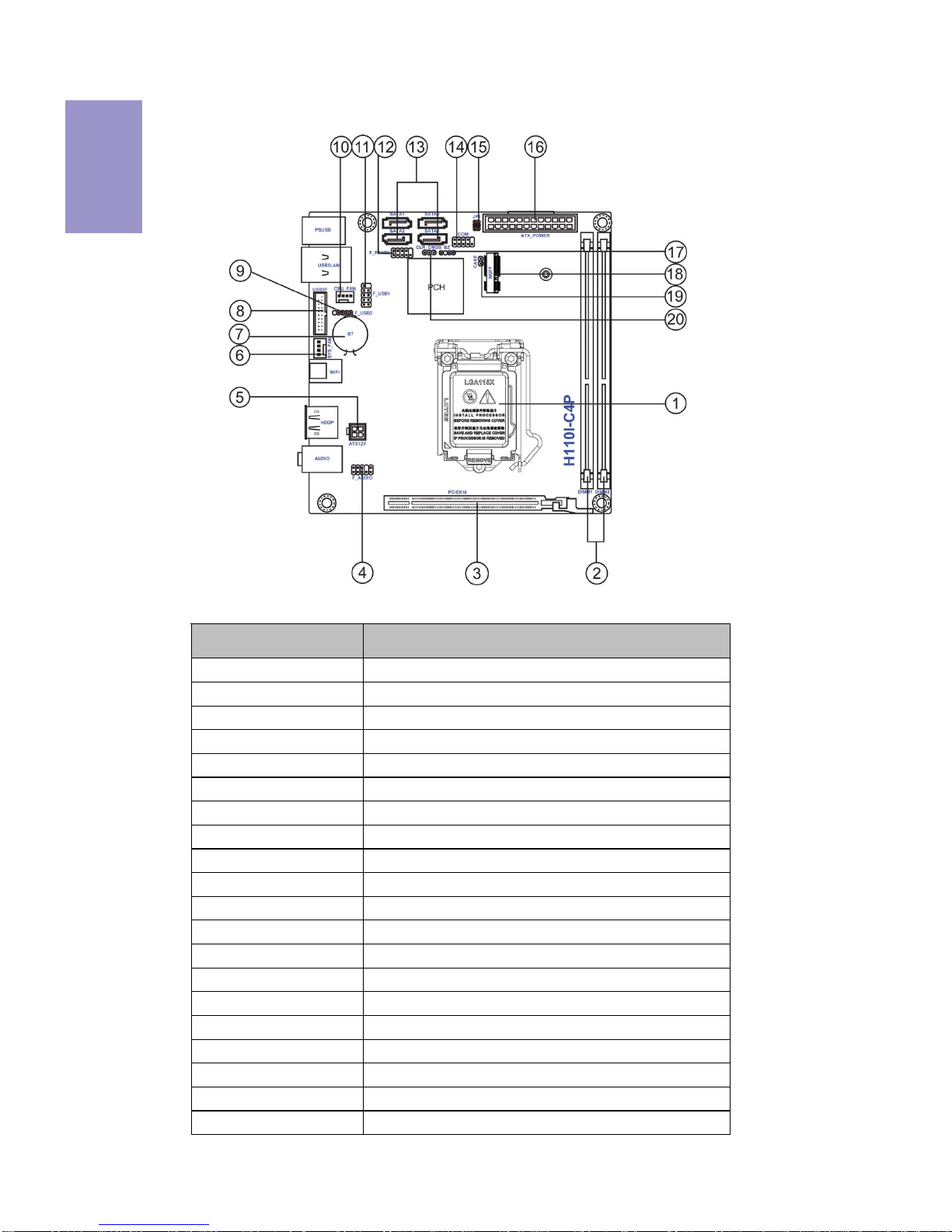

Table of Motherboard Components
LABEL COMPONENTS
1. CPU Socket LGA1151 socket for Intel® Skylake Processor
2. DIMM_1~2 288-pin DDR4 Module slots
3. PCIEX16 PCI Express slot for graphics interface
4. F_AUDIO Front panel audio header
5. ATX12V 4-pin +12V power connector
6. SYS_FAN 4-pin system cooling fan connector
7. BT Battery
8. USB3F Front panel USB 3.0 header
9. F_USB2 5-pin Front panel USB 2.0 header
10. CPU_FAN 4-pin CPU cooling fan connector
11. F_USB1 10-pin Front panel USB 2.0 header
12. F_PANEL Front panel switch/LED header
13. SATA1~4 Serial ATA 6Gb/s connectors
14. COM Onboard serial port header
15. JP1 COM voltage setting jumper
16. ATX_POWER Standard 24-pin ATX power connector
17. BZ Buzzer header
18. NGFF M.2 slot for 2230 WiFi/BT card
19. CASE CASE open header
20. CLR_CMOS Clear CMOS jumper

5
H110I-C4P USER MANUAL
Chapter1
I/O Ports
1. PS/2 Mouse & Keyboard como port
Use the PS/2 mouse & keyboard port to connect a PS/2 mouse or keyboard.
2. USB 2.0 Ports
Use the USB 2.0 ports to connect USB 2.0 devices.
3. LAN Port
Connect an RJ-45 jack to the LAN port to connect your computer to the Network.
4. USB 3.0 Ports
Use the USB 3.0 ports to connect USB 3.0 devices.
5. Display Port
You can connect the display device to the display port.
6. HDMI Port
You can connect the HDMI device to the HDMI port.
7. Line-in(blue)
It can be connected to an external CD/DVD player, Tape player or other audio
devices for audio input.
8. Line-out(lime)
It is used to connect to speakers or headphones.
9. Microphone(pink)
It is used to connect to a microphone.
10. Wireless LAN Antenna Connector (optional)
Use this port to receive wireless signal.
LAN LED Status Description
OFF No data
Orange blinking Active
OFF No link
Green Link
Activity LED
Link LED
Link LED
LAN Port
Or
(Optional)

Chapter1
6
H110I-C4P USER MANUAL
Memo

Chapter2
7
H110I-C4P USER MANUAL
Chapter 2
Installing the Motherboard
2-1. Safety Precautions
2-2. Installing the motherboard in a Chassis
This motherboard carries a Mini ITX form factor of 170 x 170 mm. Choose a chassis
that accommodates this from factor. Make sure that the I/O template in the chassis
matches the I/O ports installed on the rear edge of the motherboard. Most system
chassis have mounting brackets installed in the chassis, which corresponds to the
holes in the motherboard. Place the motherboard over the mounting brackets and
secure the motherboard onto the mounting brackets with screws.
Follow these safety precautions when installing the motherboard:
• Wear a grounding strap attached to a grounded device to avoid damage
from static electricity.
• Discharge static electricity by touching the metal case of a safely grounded
object before working on the motherboard.
• Leave components in the static-proof bags.
• Always remove the AC power by unplugging the power cord from the power
outlet before installing or removing the motherboard or other hardware
components.
Do not over-tighten the screws as this can stress the motherboard.

Chapter2
8
H110I-C4P USER MANUAL
The following illustration shows the location of the motherboard jumpers. Pin 1 is
labeled.
To avoid the system instability after clearing CMOS, we recommend users to
enter the main BIOS setting page to “Load Default Settings” and then “Save
and Exit Setup”.
2-3. Checking Jumper Settings
1. CLR_CMOS: Clear CMOS Jumper
Connect a serial port extension bracket to this header to add a serial port to your
system.

Chapter2
9
H110I-C4P USER MANUAL

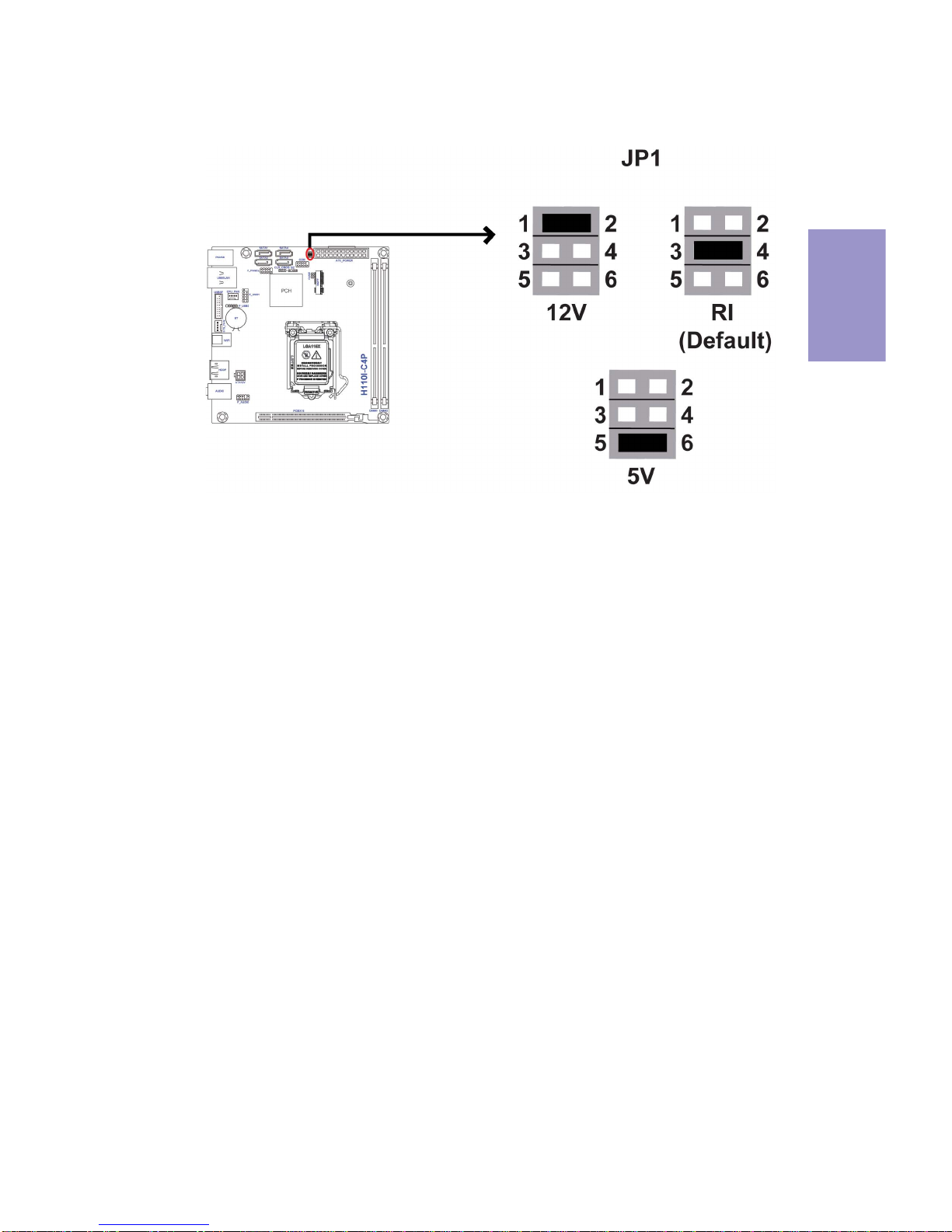

2. JP1: COM Voltage Setting Jumper

Chapter2
10
H110I-C4P USER MANUAL
2-4. Installing Hardware
2-4-1. Installing the Processor
• This motherboard has an LGA1151 socket.
• When choosing a processor, consider the performance requirements of
the system. Performance is based on the processor design, the clock speed
and system bus frequency of the processor, and the quantity of internal
cache memory and external cache memory.
• You may be able to change the settings in the system Setup Utility. We
strongly recommend you do not over-clock processor or other
components to run faster than their rated speed.
• The following illustration shows CPU installation components.
A. Press the hook of lever down with your thumb and pull it to the right
side to release it from retention tab.
B. Lift the tail of the load lever and rotate the load plate to fully open
position.
C. Grasp the edge of the package substrate. Make sure pin 1 indicator
is on your bottom-left side. Aim at the socket and place the package
carefully into the socket by purely vertical motion.

Chapter2
11
H110I-C4P USER MANUAL
D. Rotate the load plate onto the package IHS (Intergraded Heat
Spreader). Engage the load lever while pressing down lightly onto the
load plate. Secure the load lever with the hook under retention tab. Then
the cover will flick automatically.
Please save and replace the cover onto the CPU socket if processor is re-
moved.

Chapter2
12
H110I-C4P USER MANUAL
A. Apply some thermal grease onto the contacted area between the
heatsink and the CPU, and make it to be a thin layer.
B. Fasten the cooling fan supporting base onto the CPU socket on the
motherboard. And make sure the CPU fan is plugged to the CPU fan
connector.
C. Connect the CPU cooler power connector to the CPU_FAN connector.
2-4-2. Installing the CPU Cooler
• Install the cooling fan in a well-lit work area so that you can clearly see the
motherboard and processor socket.
• Avoid using cooling fans with sharp edges in case the fan casing and the
clips cause serious damage to the motherboard or its components.
• To achieve better airflow rates and heat dissipation, we suggest that you
use a high quality fan with 3800 rpm at least. CPU fan and heat sink instal-
lation procedures may vary with the type of CPU fan/heatsink supplied.
The form and size of fan/heatsink may also vary.
• DO NOT remove the CPU cap from the socket before installing a CPU.
• Return Material Authorization (RMA) requests will be accepted only if the
motherboard comes with the cap on the LGA1151 socket.
• The following illustration shows how to install CPU fan.

Chapter2
13
H110I-C4P USER MANUAL
2-4-3. Installing Memory Modules
• This motherboard accommodates two memory modules. It can support
two 288-pin DDR4 2133 MHz.
• Do not remove any memory module from its antistatic packaging until
you are ready to install it on the motherboard. Handle the modules only
by their edges. Do not touch the components or metal parts. Always wear
a grounding strap when you handle the modules.
• You must install at least one module in any of the two slots. Total memory
capacity is 32 GB.
• Refer to the following to install the memory modules.
C. The slot latches are levered upwards and latch on to the edges of the
DIMM.
A. Push the latches on each side of the DIMM slot down.
B. Install the DIMM module into the slot and press it firmly down until it
seats correctly. Check that the cutouts on the DIMM module edge
connector match the notches in the DIMM slot.

Chapter2
14
H110I-C4P USER MANUAL
2-4-4. Installing Add-on Cards
The slots on this motherboard are designed to hold expansion cards and connect
them to the system bus. Expansion slots are a means of adding or enhancing the
motherboard’s features and capabilities. With these efficient facilities, you can
increase the motherboard’s capabilities by adding hardware that performs tasks
that are not part of the basic system.
Before installing an add-on card, check the documentation for
the card carefully. If the card is not Plug and Play, you may have
to manually configure the card before installation.

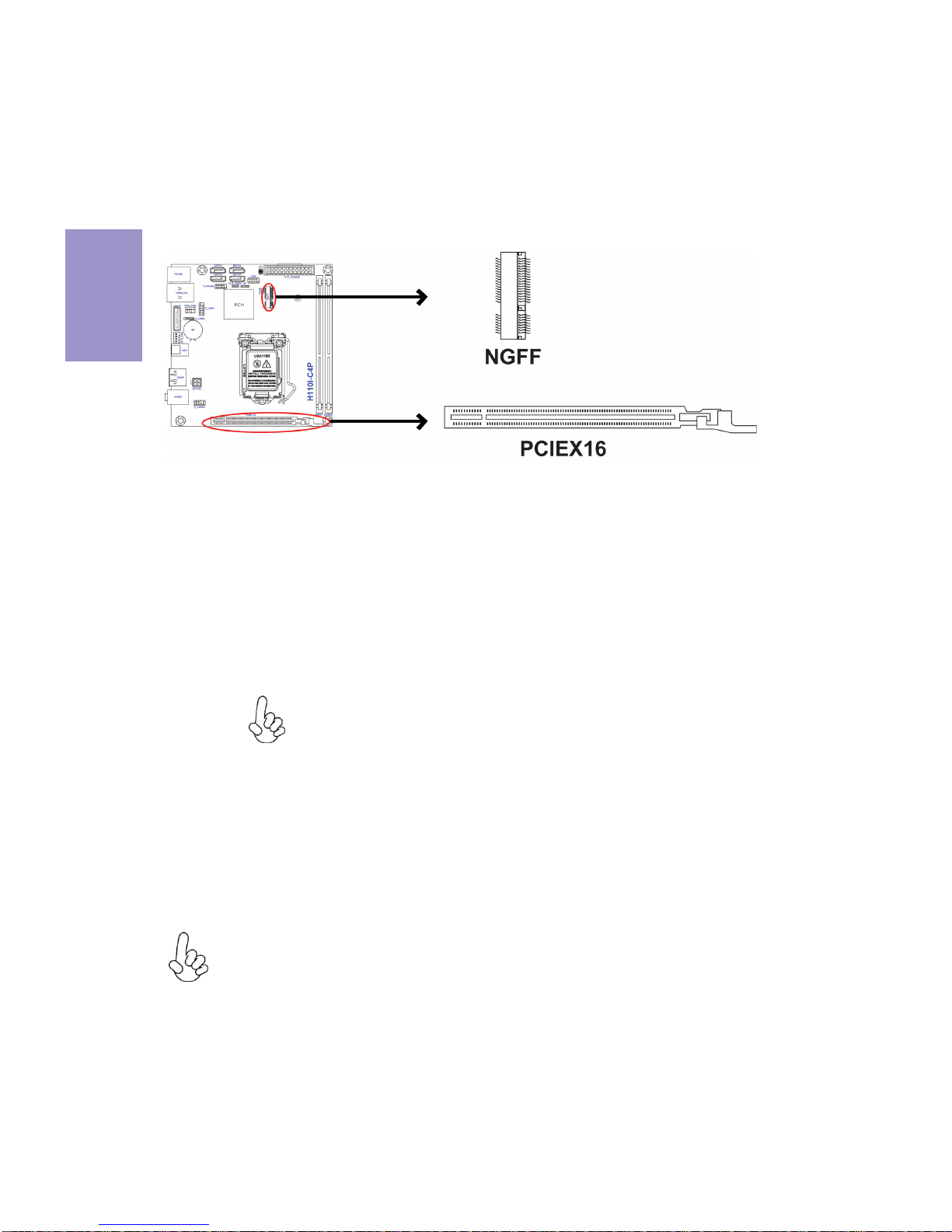

PCIEX16 Slot The PCI Express x16 slot is used to install an external PCI
Express graphics card that is fully compliant to the PCI Express
Base Specification revision 3.0.
This is M.2 slot for 2230 WiFi/BT card. It will provide high
transfer performance than original Mini PCIe interface.
NGFF Slot
Follow these instructions to install an add-on card:
1 Remove a blanking plate from the system case corresponding to the slot
you are going to use.
2 Install the edge connector of the add-on card into the expansion slot.
Ensure that the edge connector is correctly seated in the slot.
3 Secure the metal bracket of the card to the system case with a screw.
For some add-on cards, for example graphics adapters and network
adapters, you have to install drivers and software before you can begin using
the add-on card.

Chapter2
15
H110I-C4P USER MANUAL
Install the VGA Card in the PCIE X16 slot
Please refer the following illustrations to install the add-on card:
Please refer the following steps to install the M.2 WiFi/BT card:
1 Insert the M.2 WiFi/BT card into NGFF slot in the fool-proof way.
2 Lock the screw as the following picture shows to make sure the M.2 WiFi/
BT card is installed in place.

Chapter2
16
H110I-C4P USER MANUAL
Follow these instructions to install the WiFi antenna (Optional):
1 Fix the WiFi antenna connector with the two screws on the back side of
the motherboard.
2 Screw down the WiFi antennas on to the gold screws of the WiFi antenna
connector.
3 Press the two metal connectors of the WiFi antenna connector cables
into the connectors on the wireless card, and ensure that the metal
connectors are correctly seated.
