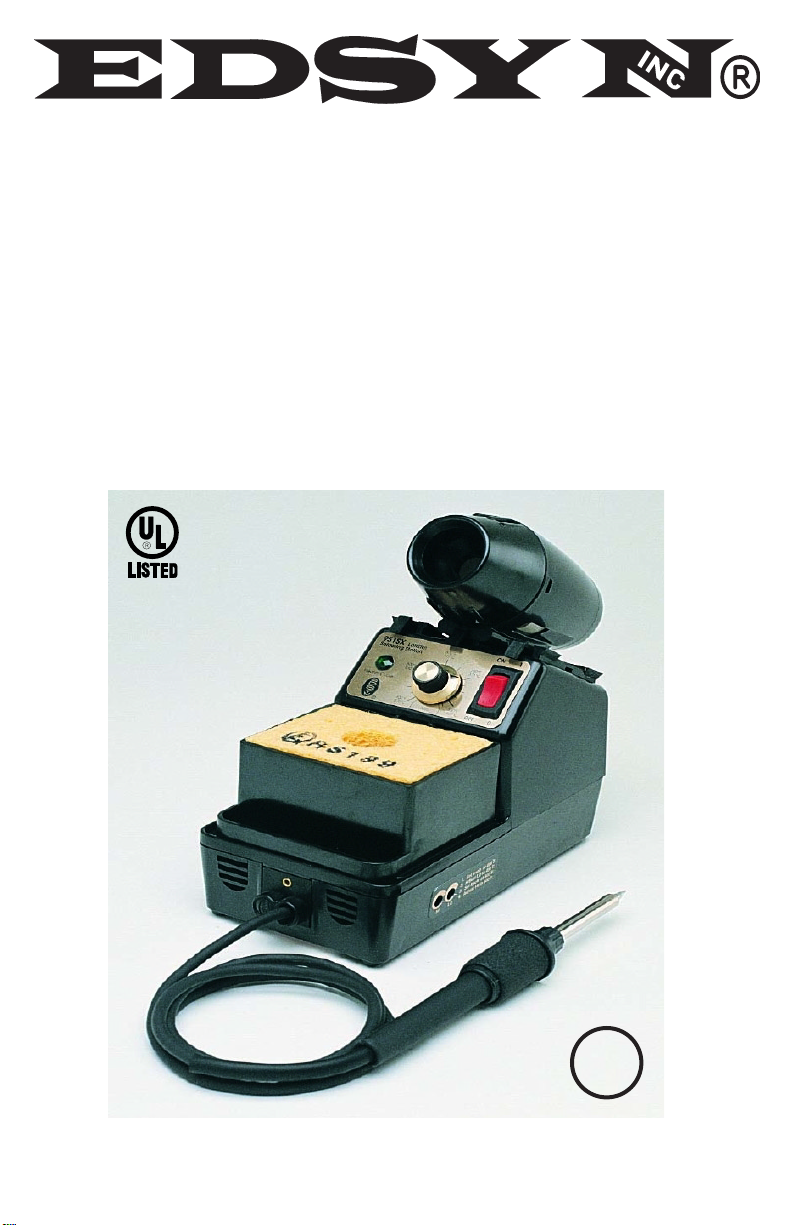

Edsyn LONER 951SX-H10 User manual

951SX-H10
LONER®
Temperature Controlled
Soldering Station
• COMPLIES WITH MIL-S-45743E, MIL-STD-2000-1B, WS6536E AND
ESD SPEC, DOD-STD-1686, DOD-HDBK-263
• UL listed
made
in
U S A
Instruction manual

Specications for Model 951SX
Power Requirements 120V, 60 Hz
Power Rating 15W - 220W
Heater Rating 120V, 95W
Temperature Range 400°F-1000°F/205°C-537°C
Temperature Regulation ±6°F/±3°C
Tip-to-Ground Voltage
Leakage/Resistance < 2mV/< 2 ohms
Overall Dimension 4.1"W x 8.2"H x 10"D
104 mm x 208 mm x 254 mm
Weight 2.5 lbs/1.1 kg
Contents
951SX includes 1 - LT441BC Soldering Tip
PD528 Tool Pod
SH230 Sponge Holder
(Includes RS199 Cleaning Sponge,
RS243 Leveling Pad, LN230 Liner)
WP556 WIGAPRY Low Static Computer Aid

WARNING:
DO NOT HIT OR TAP THE SOLDERING TOOL. THE HEATER ELEMENT WILL BREAK!!!
CAUTION:
Over-lling can cause thermal shock
to the tip or heating element during
tip cleaning.
• Replace RS199 Cleaning Sponge
1. Fill water only up to the top of the RS243
Leveling Pad.
2. Depress RS199 to moisten it completely.
• Replace SC581 Solder Collector
1. Hold the Housing rm and turn Cap
counter-clockwise and pull it away from the
Housing.
2. Remove used SC581 and replace with
a new one.
3. Reassemble Pod with TOP of the Cap in
proper position.
MAINTENANCE
Static Safe
Temp.
Regulation
Indicator
SH230
Sponge Holder
PD528 Tool
Pod
Power Switch
Calibration Pots for HI & LO Temp. Hollow Threadless Heater
LN230
SH230-1
RS243
RS199
SC581
Solder Col-
lector
SR043
Front Hous-
ing
SR042
Thermal
Housing

TEMPERATURE CALIBRATION
1. Turn on power and set Temperature Control Knob to 400°F (205°C).
2. Using a clean and well tinned Tip, apply a small amount of solder on the Tip, just enough
to form a bead on top of the Tip.
3. Place the center of the thermocouple wire of the SDS100 on top of the bead.
4. Again, apply a small amount of solder on the center of the thermo-couple wire, just enough
to embed the center.
5. Adjust LO-Temp. Calibration Pot so the Meter will read 400°F (205°C).
6. Set Temperature Control Knob to 800°F (427°C).
7. Adjust Hi-Temp. Calibration Pot so the Meter will read 800°F (427°C).
TIP CARE
1. Set desired temperature. Blinking Neon Lamp means Tool is ready.
2. TIN the Tip. (apply solder)
3. Do not rub, bend or reshape the Tip.
4. Always clean the Tip by wiping it against the saturated sponge and always RE-TIN.
TIP CLEANING
To maintain proper Tip to Ground resistance.
1. Remove Tip from Heater Assembly.
2. Using a ST707 Soldering Tool Maintenance Brush, clean Tip and Heater Barrel
at surfaces shown.
3. Install the tip and tighten RS372 Retaining Sleeve. Take note of the gap to ensure
proper tting.
MS412
TemperatureCalibration System
SDS100
METER
FX635
clean these areas gap
ST707

JUMBO
TIP
.03 (0.8 mm) .48 (12.2 mm)
.06 (1.5 mm) .48 (12.2 mm)
.02 (0.5 mm) 1.13 (28.8 mm)
.07 (2.0 mm) .93 (23.6 mm)
.03 (0.8 mm) .48 (12.2 mm)
.10 (2.5 mm) .74 (18.8 mm)
.06 (1.5 mm) 1.21 (30.7 mm)
.04 (1.0 mm) 1.21 (30.7 mm)
.20 (4.9 mm) .93 (23.6 mm)
.32 (8.3 mm) .97 (21.1 mm)
CHANGING TIP
1. MAKE SURE YOUR TOOL IS COOL!
2. Turn Retaining Sleeve counter-clockwise to remove.
3. Remove old Soldering Tip.
4. Insert new Tip.
5. Install Retaining Sleeve. (should be "nger" tight only.)

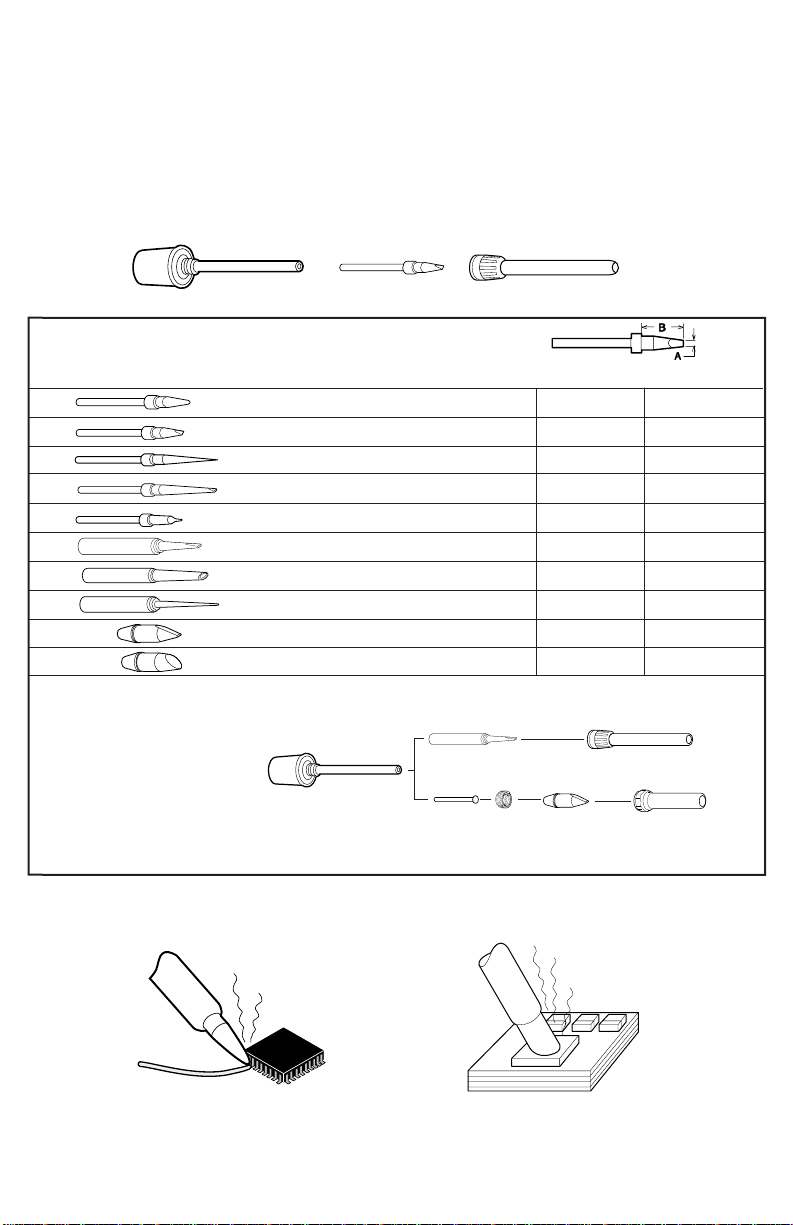

SOLDERING TIPS
Iron Plated for long life•Nickel and Chrome Plated for optimum heat transfer
CONTACT EDSYN FOR MORE SELECTIONS AB
Large and heavy tip for
heavy duty soldering.
Fine point tip for
SMD soldering.
LT374 Standard Probe
LT375 Standard Spade
LT392 Extra-Long Needle Point
LT394 Extra-Long Spade
LT446 SMD Probe
LT337BC Heavy Duty Terminal Spade
LT223BC Heavy Duty Fine Spade
LT222BC Extra long Needle Point
LT153BH Jumbo Spade
LT155BH Jumbo Angle Spade
SET-UP & REQUIRED ACCESSORIES FOR HEAVY DUTY AND JUMBO TIPS
Apply
AN112 or AN122* Anti-Seize
Compound
to Heater and area of Tip contact.
"BC"
HEAVY DUTY TIP
AC735
RS351
RS271
*AN122 Anti-Seize Compound comes in syringe dispenser.
DO NOT USE the soldering tool if soldering tip is loose. This will cause the heater element to break.
Retaining Sleeve
RS372- for General Purpose Tip
RS271- for Heavy Duty Tip
Soldering Tip

6
912
7
7
1B 1C
3
11
21
15
18
25
14
19
22J
22A
2C
2B
2A
1A
22D
22
24
16
23
22C
22B
22H
22G
22F
22I
22E
10
1
2
4
2D
9
951SX LONER® SOLDERING STATION
SPARE PARTS LIST
5
17
20
13
23

1 PD528 Tool Pod 1
1A SR042 Thermal Housing for Tool Pod 1
1B SC581 Solder Collector for Tool Pod 1
1C SR043 Front Housing for Tool Pod 1
2 SH230 General Purpose Sponge Holder 1
2A RS199 Cleaning Sponge 1
2B RS243 Leveling Pad for SH230 1
2C LN230 Liner for SH230 1
2D SH230-1 Sponge Holder Tray 1
3 SR302 Control Panel Label 1
4 SR065 Power Switch, Illuminated 1
5 SR045 Knob, Temperature Control 1
6 SR243 5K Potentiometer, Temperature Control 1
7 SR015 Flat Head Screw- Slotted #6 - 32 x 1/2 4
9 SR017 Hex Nut- #6 - 32 4
10 SR741* Top Case 1
11 SR019 Dove Tail Mount 1
12 15002W95 -H10 Circuit Board 1
13 SR573* LED Assy. 1
14 SR052 Bottom Base 1
15 SR011 Pan Head Screw- Phillip #6 - 18 x 5/8 5
16 SR054 Bottom Weight 1
17 SR252 Power Cord Assy. 1
18 SR251 Rubber Foot 4
19 SR037 A/C Receptacle 1
20 SR241 Strain Relief for Power Cord 1
21 SR249 Fuse, 250V, 1.6 A (5mm x 20 mm) 1
22 SR298 Soldering Tool, Complete Assembly 1
22A SR057 Handle for Tool 1
22B SR058 Cord Strain Relief 1
22C SR280 Tool Cord Assy., Burn Proof 1
22D SR060 Heater Element Assembly Kit (O-Ring (22E) & Collar (22g) Included 1
22E SR062 O-Ring 1
22F SR063 Vinyl Sleeve 1
22G SR064 Collar 1
22H LT441BC LONER® Standard Spade Tip 1
22I RS271 Retaining Sleeve 1
22J RB386 Retaining Bushing 1
22K SR525 Silicone Hose, Low Static (sold per foot) 5-1/4"
23 SR053 Strain Relief for Tool Cord 1
24 SR255 Spacer for Potentiometer 1
25 SR310 Label, Calibration Pot, Right Front or Left Rear 1
ITEM
NO. PART NO. DESCRIPTION QTY
REQ'D
*Only for stations with SERIAL NUMBERS ENDING WITH 98 & 99, otherwise use SR244 for Top Case and SR246 for LED Assembly

951SX-H10 instruction manual
THE NAMES LONER, SOLDAPULLT, SOLDAVAC, ATMOSCOPE
AUTO-VAC, IDLE-REST, PIXTER, FUMINATOR, OCTAVAC AND KLATCH
ARE REGISTERED TRADEMARKS OF EDSYN, INC.
MOST PRODUCTS ARE COVERED BY U.S. AND
FOREIGN PATENTS AND PENDING APPLICATIONS.
DESIGN, COLOR AND MATERIALS
SUBJECT TO CHANGE WITHOUT NOTICE.
TIP STYLE ON SOLDERING, DESOLDERING AND HOT AIR TOOLS MAY VARY.
PRINTED IN U.S.A.
ALL RIGHTS RESERVED.
NO PART OF THIS PUBLICATION INCLUDING THE INDIVIDUAL ICONS
MAY BE REPRODUCED OR UTILIZED IN ANY FORM OR BY ANY MEANS
WITHOUT THE PERMISSION OF EDSYN, INC.
951SXi .pdf
FORM.655 Rev G
