Edsyn LONER 971DF-230 User manual

instruction manual
COMPLIES WITH DOD-STD-2000-1B MIL-STD-2000A and
ESD SPEC. DOD-STD 1868, DOD HDBK-263
971DF-230
LONER ®
SOLDERING STATION
with fume extraction system
MADE IN THE
U.S.A.
Photo of US Model

Contents at a Glance
Page 3 Features & Specications
Page 4 Tip Care & Replacement
Page 5 Maintenance & Calibration
Page 6 - 7 Spare Parts List
& Trouble Shooting
971DF-230
LONER ®
SOLDERING STATION
with fume extraction system
For 971DF-230 For 971DF-230P
POWER CORD WIRING
BROWN to LINE
BLUE to NEUTRAL
GRN/YEL to GROUND

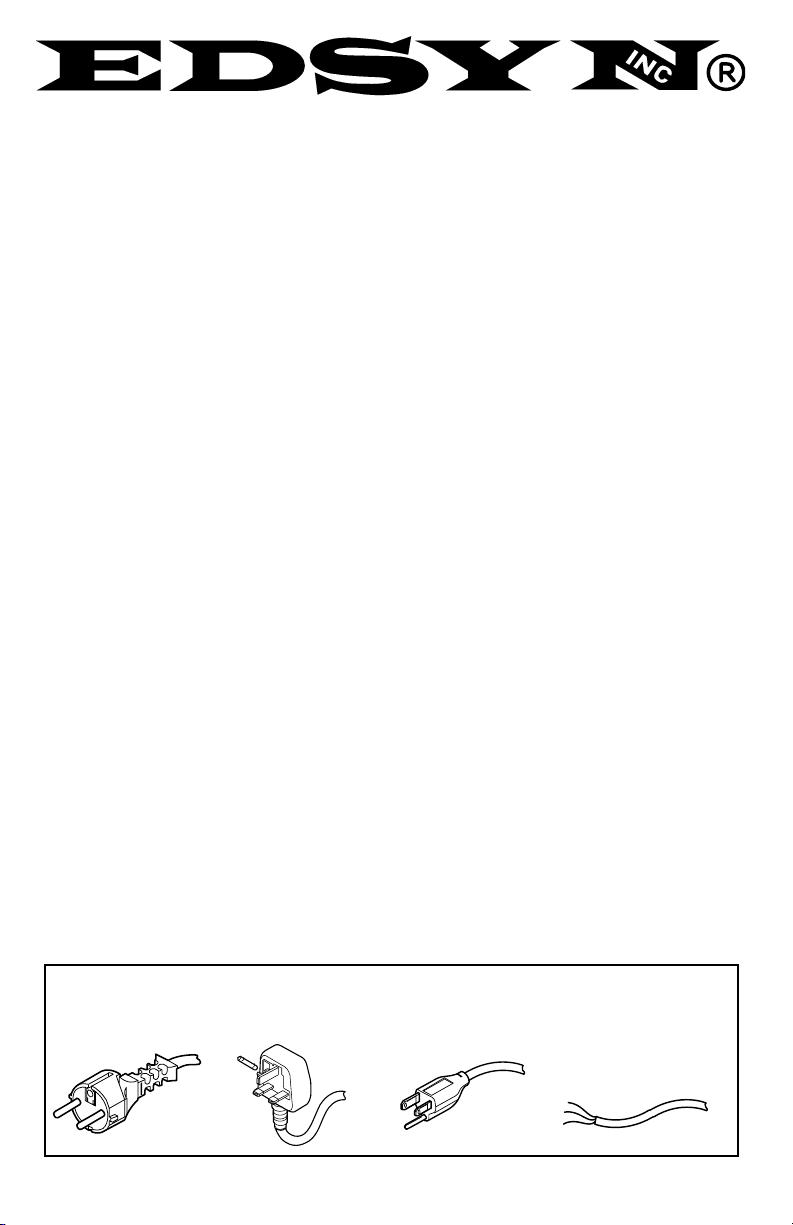

For 971DF-230B For 971DF-230I
Power Cords

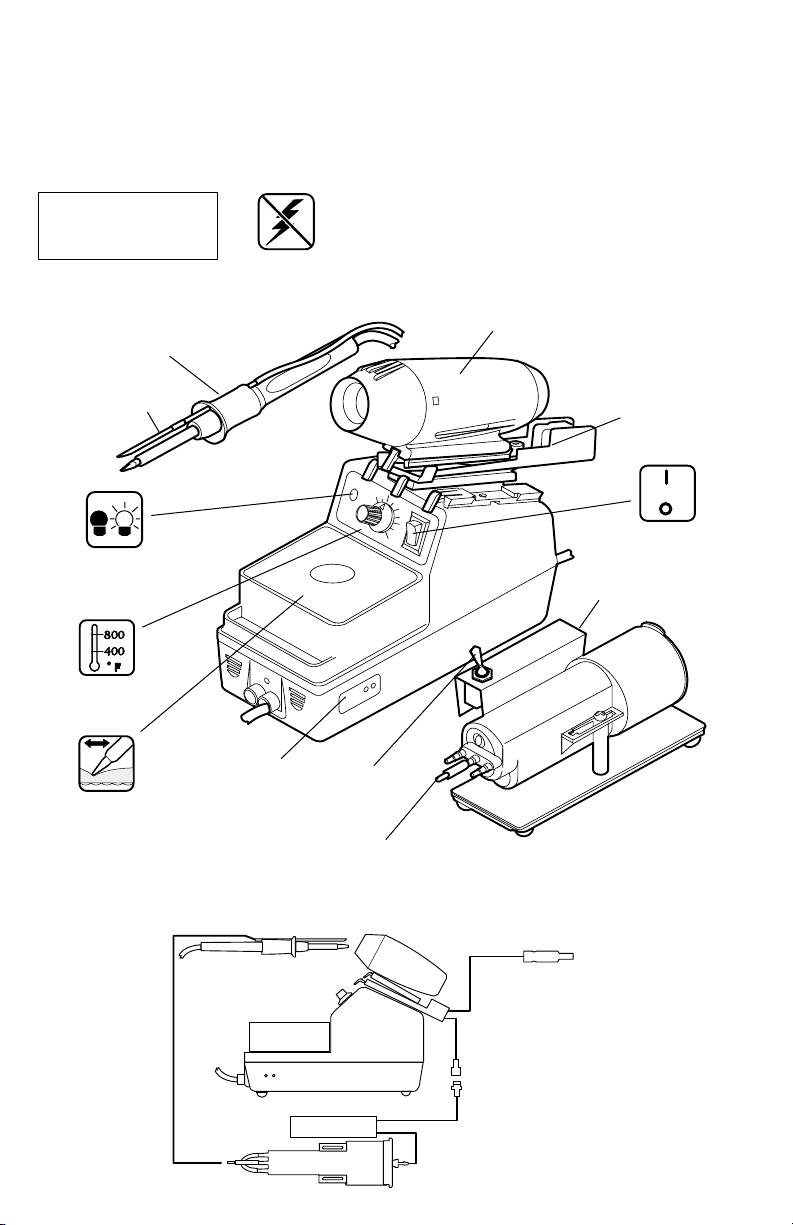

FEATURES
• High vacuum output
• Automatic vacuum shut-off
• Modular assembly
• Easily converted to hot air soldering system
• Efcient & easy to clean lter system
• Check valve equipped high pressure hose
RCS73 Retaining
Collar Sleeve
Assy.
fume pipe
PD533
Tool Pod
Sponge Holder
Temp. Regula-
tion Indicator
Temp. Control
Direct
Tip/Heater
Contact
Vacuum
Output
Hi/Lo Temp.
Calibration Pot Vacuum
Off/On
PAS53 pod
Air Switch
Power Switch
AF110S
Silencer
VS174 Vacuum
pump and lter
SPECIFICATIONS
• 230V, 50Hz, 15W - 220W, 2.5 lbs. (1.1 kg.)
• COMPLIES WITH DOD-STD-2000-1B, MIL-
STD-2000A and ESD SPEC. DOD-STD 1868,
DOD-HDBK-263
• TEMP. RANGE: 400°F - 800°F (205°C - 427°C)
• TEMP. REGULATION: ±6°F (±3°C)
• TIP TO GROUND LEAKAGE: < 2MV
• TIP TO GROUND RESISTANCE: < 2 OHMS
• UL LISTED
OPERATING REQUIREMENTS:
•230 V, 50 Hz
•Shop air 60 - 90 psi
(clean & dry)
Static Safe
HOSE DIAGRAM
Shop Air 60-90 psi
(must be clean & dry)

TIP CARE
1. Set desired temperature. Blinking Lamp means Tool is regulating.
2. TIN the Tip. (apply solder)
3. Do not rub, bend or reshape the Tip.
4. Always clean the Tip by wiping it against the saturated sponge and always RE-TIN.
LTC71 RCS73
Loosen RCS73 Collar by turning counter-clockwise
and pull the Tip straight out.
CAUTION
•Tool must be cool when changing tips.
•Do not twist or wiggle the tip.
REPLACING TIPS
AFTER TIP IS INSTALLED, TIGHTEN
COLLAR PROPERLY.
Adjust the
length of the
fume pipe
according to
tip length
RCS73 Retaining Collar Sleeve
OPTIONS
The 971DF can be converted to a Hot
Air soldering system. Ask for PR570 Air
Flow Regulator, RCS75 Retaining Collar
Sleeve, LTA75H Insert Accumulator and
LT428 Hot Air Tip.
WARNING: DO NOT HIT OR TAP THE TOOL. HEATER ELEMENT WILL BREAK!!!
Part No. & Description a b
LT374 Standard Probe .03 (0.8 mm) .48 (12.2 mm)
LT375 Standard Spade .06 (1.5 mm) .48 (12.2 mm)
LT376-7 SMD Channel .12 (3.0 mm) .48 (12.2 mn)
LT392 Extra-Long Needle .02 (0.5 mm) 1.13 (28.8 mm)
LT394 Extra-Long Spade .07 (2.0 mm) .93 (23.6 mm)
LT399 Large Face .17 (4.3 mm) .49 (12.4 mm)
LT444 SMD Mid-Length Fine Spade .04 (1.0 mm) .78 (19.8 mm)
LT446 SMD Probe .03 (0.8 mm) .48 (12.2 mm)
LT382 Long Cone .02 (0.5 mm) .62 (15.6 mm)
LT395 Mid-Length Stubby Spade .09 (2.3 mm) .74 (18.8 mm)
LT431 Mid-Length Spade .07 (1.8 mm) .74 (18.8 mm)
LT439 SMD Thin Probe .03 (0.8 mm) .50 (12.7 mm)
LT439-1 Same as LT439, Angled
LT445 SMD Angle Face .03 (0.8 mm) .48 (12.2 mm)
General Purpose Soldering Tips
Iron Plated for long life•Nickel and Chrome Plated for optimum heat transfer.
EDSYN has over a 100 varieties of standard and custom-made Tips. CONTACT EDSYN FOR MORE SELECTIONS.

Vac on
Tab
Vac off
PAS53 Pod Air Switch With tool out of the pod,
push in Tab to lock:
Vacuum on (continuous)
With tool in the pod,
push in Tab to lock:
Vacuum off (disable)
LN230
SH230-1
CAUTION:
Over-lling can cause thermal shock to the tip
or heating element during tip cleaning.
RS243
RS199
• Replace RS199 Cleaning Sponge
1. Fill water only up to the top of the RS243 Leveling Pad.
2. Depress RS199 to moisten it completely.
• Replace SC581 Solder Collector
1. Hold the Housing rm and turn Cap counter-clockwise
and pull it away from the Housing.
2. Remove used SC581 and replace with a new one.
3. Reassemble Pod with TOP of the Cap in proper position.
MAINTENANCE
SC581 SR457
Front Housing
SR042
Thermal Housing
1. Turn on power and set Temperature Con-
trol Knob to 400°F.
2. Using a clean and well tinned Tip, apply
a small amount of solder on the Tip, just
enough to form a bead on top of the Tip.
3. Place the center of the thermocouple wire
of the SDS100 on top of the bead.
4. Again, apply a small amount of solder on
the center of the thermo-couple wire, just
enough to embed the center.
5. Adjust LO-Temp. Calibration Pot so the
Meter will read 400°F.
6. Set Temperature Control Knob to 800°F.
7. Adjust Hi-Temp. Calibration Pot so the
Meter will read 800°F.
AIR MOVEMENT WILL AFFECT THE TEMPERATURE
READING. WORK IN AN AREA WHERE THIS IS MINIMAL.
METER
MS412
Temperature
Calibration System
SDS100
FX635
TEMPERATURE CALIBRATION
SR209
O-ring
VF134
Felt
Filter
AF174 Foam
Filter
SR596 Codenser Pad
• Replace VS174 Filters
1. Pull cap fom housing.
2. Replace lters as shown.
3. Replace O-ring if worn out.
AF040 Foam Filter

4
5
3
13
2B
24
6
20
21
17
16
19 23
7
9
15
18
14
10
12
1A 1B 1C
7
11
26
2A
2D
2C
22A
22C
22I
22D
22L 22J
22G
22E
22F
22H
22B
25
9
1
1 PD533 Tool Pod for Hot Air Tool 1
1A SR042 Thermal Housing for Tool Pod 1
1B SC581 Solder Collector for Tool Pod 1
1C SR457 Front Housing for Tool Pod 1
ITEM
NO. PART NO. DESCRIPTION QTY
REQ'D
27

971DF-230 LONER®
SOLDERING STATION
SPARE PARTS LIST
2 SH230 General Purpose Sponge Holder 1
2A RS199 Cleaning Sponge 1
2B RS243 Leveling Pad for SH230 1
2C LN230 Liner for SH230 1
2D SH230-1 Sponge Holder Tray 1
3 SR365 Control Panel Label 1
4 SR452 Power Switch 1
5 SR045 Knob, Temperature Control 1
6 SR243 5K Potentiometer, Temperature Control 1
7 SR015 Flat Head Screw- Slotted #6 - 32 x 1/2 4
9 SR467 Hex Nut, Square Cone- #6 - 32 4
10 SR578 Top Base 1
11 SR019 Dove Tail Mount 1
12 15242W53 Circuit Board 1
13 SR573 LED Assy. Front Panel Mount 1
14 SR365 Bottom Base 1
15 SR011 Pan Head Screw- Phillip #6 - 18 x 5/8 4
16 SR387 Transformer, Dual Prim. 1
17 Power Cord Assy. SR547 for -230P SR548 for -230 1
SR549 for -230B SR580 for -230I
18 SR251 Rubber Foot 4
19 SR481 Connector Assy. 1
20 SR241 Strain Relief for Power Cord 1
21 SR543 Fuse, 250V, 1. A (5mm x 20 mm) 1
22 SR818 Soldering Tool, Complete Assembly 1
22A SR579 Handle for Tool 1
22B SR058 Tool Cord Strain Relief 1
22C SR280 Tool Cord, Burn Proof (Connector Assy. on one end) 1
22D SR607 Heater Assembly 1
22E LTC71 Tip Collet 1
22F RCS73 Retaining Collar and Sleeve for Fume Extraction 1
22G LT375 LONER Standard Spade Tip 1
22H SR001 O-Ring, Silicone, .30 ID 1
22I SR240 O-Ring, For Handle, .50 ID 1
22J SR525 Hose, Low Static, 1/4 I.D. (sold per ft) 51/4"
22L HS307 Hose, Low Static Silicone, 1/8 I.D. (sold per ft.) 3 ft.
23 SR301 Plug, Covering for Strain Relief, Tool Cord Outlet 1
24 SR255 Spacer for Potentiometer 1
25 SR310 Label, Set Pot, Right Front or Left Rear 1
26 PAS53 Pod Air Switch 1
27 VS174 Vacuum and Filter System 1
ITEM
NO. PART NO. DESCRIPTION QTY REQ'D

971DF-230 instruction manual
