Elmdene INT600 User manual

INT600/INT600S Internal Sounder with Hi/Lo Feature
Note: This unit NOT suitable for external installation
EN50131-4: 2009 INT600 INT600S
ower Source Remote Self owered
Security Grade 3 2
Environmental Class II II
F EATURES
-108dB(A) siren output
-Independent low volume E/E, Keypad output
-12V dc voltage operation
-olycarbonate cover and backplate
-2 way tamper protection: cover, rear
-Volt Free Tamper Connection
-Hold-off supply failure detection
-Selectable sound auto cut-off timer
-Full SAB using internal battery (INT600S)
O PERATION
The INT600 sounder is used for notification of an alarm condition and entry/exit tone as generated within
an intruder, hold-up or other alarm system. In response to appropriate commands from the control panel,
the INT600 will emit a high intensity sound for alarm and an adjustable low level tone for
entry/exit/keypad.
The INT600 will detect any attempt to gain unauthorised access to the sounder by removal of the cover, or
any attempt to remove it away from its mounting surface. This will generate a tamper signal which is
normally fed back to the alarm control panel
The INT600 is classified as an internal remote powered sounder and is powered via an external power
source.
The INT600S is classified as an internal self powered sounder and has an on-board battery which is
recharged via the external power source. This battery is used to operate the sounder if the external power
to the sounder is removed.
F UNCTIONAL I NFORMATION
T AMPER C IRCUIT
Volt free tamper terminals ‘TS & TR’ open when front or rear tamper switch is open, or on loss of H+ or H-.
Elmdene International Ltd Tel: [phone]
3 Keel Close, Interchange Park, Fax: [phone]
Portsmouth, Hampshire, PO3 5QD, UK  Web: www.elmdene.co.uk

2
Technical Support: [phone] (option 3) AK200035_07A Oct 2014 ©2014 ELMDENE INTERNATIONAL LTD
J 1: Cut-off timer for alarm (R-)
Link = no cut-off (default)
No link = sounder cut-off after 15 minutes
VR1: Volume control for entry/exit/keypad low level tone (M-)

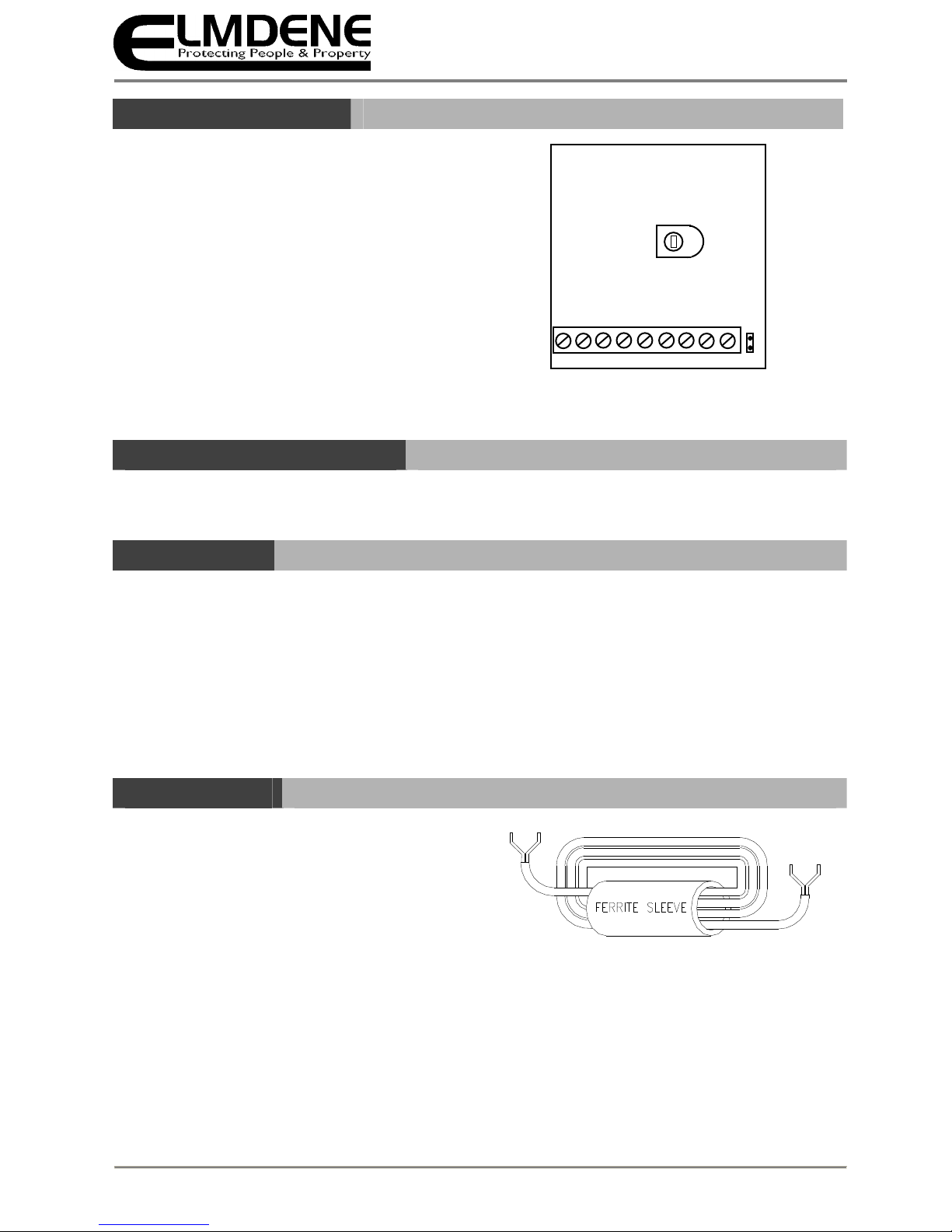

Figure 1. Connections and Timer Selection Jumper
With the cut-off timer link NOT fitted, the INT600(S) sounder will automatically stop sounding after 15
minutes, irrespective of the status of the sound trigger (R-) input.
SA M ODE (INT600S O NLY )
SAB mode is enabled if the internal battery is connected, the unit will then self-activate if the tamper is
activated or the supply cut.
C ONNECTIONS
R- Negative siren trigger for alarm. Apply 0V to activate sounder
M- Negative low volume trigger for entry/exit/keypad. Apply 0V to activate.
ST- Not applicable.
H+ ermanent positive hold-off supply, +12Vdc nominal
H- ermanent negative hold-off supply
TR Volt free tamper connection
TS Volt free tamper connection
T- SAB Battery negative
T+ SAB Battery positive
C OMMISSIONING
1) Remove cover.
2) Offer backplate to desired position on
mounting surface and drill holes to match
chosen fixing centres.
3) Fix backplate to mounting surface using
appropriate fixings for the mounting surface.
4) Set the required Cut-off Timer using J 1.
5) Loop the connection cable three times through the supplied ferrite as shown.
6) Connect +12V dc and 0V supply from the control panel to H+ and H- respectively.
7) Connect R- to Ring or Bell output of the control panel.
8) Connect TS to H- and TR to tamper return of panel for 0V tamper return, or use TS & TR as volt free
contacts without link between TS & H-.
9) If low output tone facility is used, connect M- to control panel ‘keypad follow’ or a programmable
output.
10) For SAB facility (INT600S only) connect the battery wires to BT+ and BT-, ensuring correct polarity.
NOTE: The unit will sound until the cover is replaced.
S OUND C UT -O FF T IMER
VR1
ST- M- R- H+ H- TR TS BT+ BT-
JP1

3
Technical Support: [phone] (option 3) AK200035_07A Oct 2014 ©2014 ELMDENE INTERNATIONAL LTD
T ESTING
1) Activate bell or ring output from control panel (R- to 0V). Check high volume sound activates.
2) If Lo facility is used, activate keypad on control panel and check low volume from sounder. Adjust VR1
for desired Lo volume level (see fig 1).
3) Remove cover and check high volume from sounder. (Tamper activation)
4) If Tamper connection is made to the control panel, check that the panel has detected a tamper
condition from step 4).
5) Replace the cover. Check that the sounder switches off and the tamper output has cleared.
6) INT600S: Remove H+ supply connection at the control panel. Check high volume from sounder and
tamper is detected at the control panel.
7) INT600S: Replace H+ supply. Check that the sounder switches off and the tamper output has cleared.
8) Fasten the cover to the backplate using the fixing screw supplied.
M AINTENANCE
This sounder should be tested for correct operation on a periodic basis. A minimum of one check every 12
months is recommended. The following features should be verified on each maintenance visit:
1) Correct operation of sounder from control panel signals
2) Correct operation of cover and rear tampers.
3) Remove the +ve power supply from the control panel and check internal battery voltage as
measured between BT+ and BT- is greater than 4.5V dc. If the battery voltage is less than this value
replace internal battery with similar of 6V 170mAh rating.
4) Check for signs of significant dust ingress. Clean as necessary.
SA ATTERY R EMOVAL
The SAB battery may be removed for disposal at end of product life. To remove the battery, disconnect
red and black leads from BT+ and BT- and unclip battery from holder. To fit a new battery, clip into holder
and reconnect positive (RED) lead to BT+ and negative (BLACK) lead to BT-.
IM ORTANT: Ensure correct polarity of connections and that exposed battery leads DO NOT accidentally
touch.
Dispose of used batteries in accordance with all national and local regulations

4
Technical Support: [phone] (option 3) AK200035_07A Oct 2014 ©2014 ELMDENE INTERNATIONAL LTD
F AULT F INDING
Symptom Fault Action
Sounder activated in non-alarm condition
and tamper shows at panel
Cover not closed correctly. Check cover closed and screw secure.
Cover or Rear tamper switch not
closed. Check cover and rear tamper switches fully closed.
Cannot SET control panel
(due to sounder tamper) No H+/H- connection Check power available on H+/H- connections
D ISPOSAL OF P RODUCT AT E ND OF L IFE
This product falls within the scope of EU Directives 2002/96/EC Waste Electrical and Electronic Equipment (WEEE) and 2006/66/CE
(Battery). At the end of life, the product must be separated from the domestic waste stream and disposed via an appropriate approved
WEEE disposal route in accordance with all national and local regulations.
Before disposal of the product, the SAB battery must be removed and disposed of separately via an appropriate approved battery disposal
route in accordance with all national and local regulations. ackage used batteries safely for onward transport to your supplier, collection
point or disposal facility.
Caution risk of fire or explosion if bare battery wires are allowed to touch.
See Specification for battery type information. The battery is marked with the crossed out wheelie bin symbol, which may include lettering
to indicate cadmium (Cd), lead ( b), or mercury (Hg).
For more information see: www.recyclethis.info
S PECIFICATION
Siren Output 108dBA peak @ 1m.
ower supply 10.0 – 14.0V dc, 12V dc nominal
Current Consumption 15mA standby
260mA maximum when sounding.
50mA maximum when strobing.
Cut-off Timer Selectable 15 minutes or no cut-off.
SAB Facility 1 x 6V 170mAh NiCd battery, trickle charged from H+ supply
Case Dimensions 160mm x 110mm x 40mm.
C OMPLIANCE
This product meets the essential requirements of the following EU Directives:
EMC: 2004/108/EC
RoHS: 2002/95/EC
WEEE: 2002/96/EC
Battery: 2006/66/EC
EN50131-4:2009 INT600 Security Grade 3
INT600S Security Grade 2
Environmental Class II
This product is suitable for use in systems designed to comply with D6662:2010 at:
Grade 2 (INT600S) or Grade 3 (INT600) and Environmental Class II.
The packaging supplied with this product may be recycled.
Please dispose o packaging accordingly.
