Emerson FieldQ QC4124 V DC User manual

Installation Guide FieldQ
DOC.IG.QC41.1 Rev. 4 April 2020
FieldQ Integrated Control Modules
QC4124 V DC
QC42115 V AC
QC43230 V AC
FieldQ
(Product Discontinued)

2
Installation Guide FieldQ
April 2020 DOC.IG.QC41.1 Rev. 4
2
1Control Module Type Label =
24 V DC
QC41..WP.. = Weather Proof
QC41..Px.. = Explosion-/Flame proof
115 V AC
QC42..WP.. = Weather Proof
QC42..Px.. = Explosion-/Flame proof
230 V AC
QC43..WP.. = Weather Proof
QC43..Px.. = Explosion-/Flame proof
Actuator Type Label =
QS xxxx = Single acting (Spring Return)
QD xxxx = Double acting
Fig. 2.2 Identication
1 Applicable Control modules:
QC41 - 24 V DC - Weather Proof
- Explosion Proof / Flame proof
QC42 - 115 V AC - Weather Proof
- Explosion Proof / Flame proof
QC43 - 230 V AC - Weather Proof
- Explosion Proof / Flame proof
Note:
Both executions can be equipped with one or two
pilot valves:
* One pilot valve is default and suitable for normal
operation of double acting or spring return
actuators.
* Two pilot valves are required for Fail in Last
Position function on double acting actuators.
The enclosures of both Weather Proof and Explosion
Proof / Flame proof modules, have a IP66 or NEMA
4X, ingress protected rating.

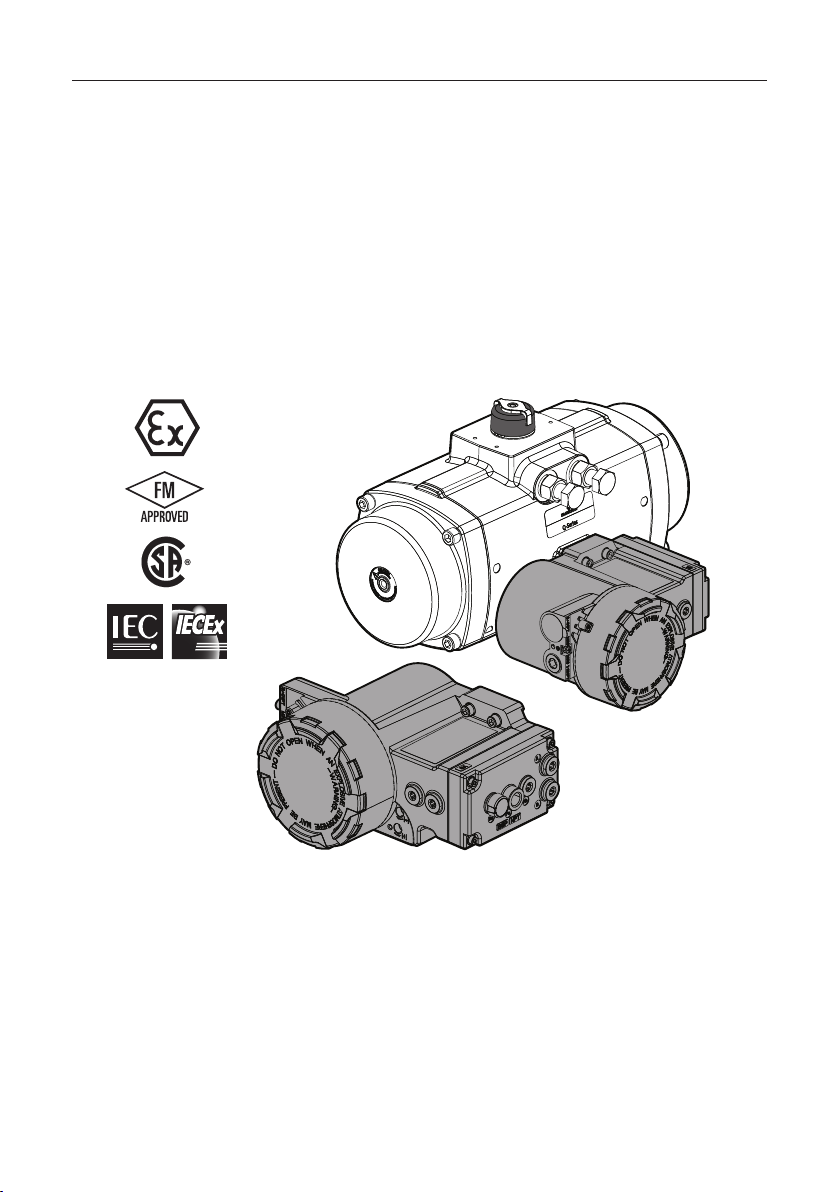

Fig. 2.1: Check proper mounting before connecting air
supply and electrical wiring
2 Before starting
* Actuator must be isolated both pneumatically
and electrically before any (dis)assembly is
begun.
* Installation, adjustment, putting into service,
use, assembly, disassembly and maintenance of
the control module must be done by qualified
personnel.
* Be sure that the actuator is correctly mounted
before connecting air supply and electrical
wiring (see Installation and Operation Manual
FieldQ Valve Actuator, DOC.IOM.Q.E)
* Check the module label for the right execution
(see Figure 2.2)
* Check the type of actuator: single or double
acting (see Figure 2.2).
* For mechanical installation of the module see
installation instruction leaflet DOC.QC4.MTI.1,
as shipped with the module.
2.1 Intended use
The FieldQ actuator is an integrated concept for
the automation of quarter turn valves, dampers or
other quarter turn applications. It consists of two
basic parts (see Figure 2.1):
1. Pneumatic actuator
2. Control Module
The control module allows operation of the
actuator and supplies position feedback signals.

3
Installation Guide FieldQ
DOC.IG.QC41.1 Rev. 4 April 2020
2.2 Mechanical alignment and mounting of
the control module
The control module is equipped with an alignment-
edge on top of the module. This allows easy
alignment and mounting of the control module on
to the actuator housing.
Procedure: (see Figure 2.3)
1. First take care that both mating faces from the
actuator and control module are clean and free
of dirt.
2. Check if the module has the required function
3. Remove the transparent film from the control
module.
4. Ensure seals are placed correctly.
5. Level the screws with the surface.
6. Place the alignment-edge (1) of the control
module at the top of the pneumatic interface.
7. Flip the module down taking care that the IPT
Probe (see Figure 5; nr.2) on the actuator fits
in the mating hole on the control module and
loosely place the screws.
8. Tighten screws according force in sequence.
Tightening moments
The Control Module should be fastened by using
an Allen key and applying the following tightening
moments:
- Allen Key No 5: 6.1 to 6.6 Nm
(54 - 58.4 In.lb)
Alignment-edge
Alignment-edge
Fig. 2.3 Alignment and mounting of control
module to actuator
IPT probe

4
Installation Guide FieldQ
April 2020 DOC.IG.QC41.1 Rev. 4
IMPORTANT
1 The actuator/valve combination can move
after connecting the air supply.
2 Ensure that the QC4x control modules are
mounted properly to the actuator to achieve
good functioning and the required ingress
protection, before connecting the air supply.
3 Check that the maximum supply pressure
Pmax = 8 bar/116 psi
4 Be sure that the minimum required supply
pressure for the application is available at the
actuator.
5 Take appropriate measures to prevent
condensation or moisture to entering the
actuator or the control module. Condensation
or moisture can damage these components
and can result in failures.
6 The exhaust ports Ra and Rb on the module
(see Figure 3.1) are shipped from the factory
with transport protection.
* If ingress protection IP66 or NEMA 4X is
required, appropriate connections must be
used in exhaust ports Ra and Rb.
3.1 Operating media :
* Air or inert gasses.
* Air filtered at 50 micron.
* Dew point 10 K below operating temperature.
* For subzero applications take appropriate
measures.
3.2 Single acting (spring return) or Double
acting actuator :
1 Remove the transport sticker from the air
supply (Ps).
2 Connect air supply to port (Ps).
Fig. 3.1: Pneumatic connections
Single acting
Control
Module cover
Ps
1/4” BSP or
1/4” NPT
Double acting
Ps
1/4” BSP or
1/4” NPT
Ra
Ra
Rb
3 Pneumatic connections

5
Installation Guide FieldQ
DOC.IG.QC41.1 Rev. 4 April 2020
4 Electric Connections
The conventional Control Module contains a pilot
valve for controlling the actuator and switches for
position feedback.
WARNING:
* If the Control Module is used in a manner not
specied by the manufacturer, the protection
provided by the equipment may be impaired.
* For electrical safety the marked protective
conductor terminal inside or outside the
Control Module housing shall be connected to
earth.
* If required, mount earth wire (1) between top
(2) and stainless steel washer (3) of earth wire
connection (see Figure 4.2).
* To fulll the electrical safety regulations
according IEC 61010-1, a switch and circuit-
breaker shall be included in the building
installation. It is advised to indicate the
location of the circuit breaker by means of a
label on or nearby the installed
FieldQ modules. The disconnection switch or
circuit breaker shall disconnect all current-
carrying conductors.
* Heat resistant cable and cable glands shall be
used, suitable for temperatures of at least 80°C
* Use and mount cable glands as required by
national or local legislation.
* If IP66 or NEMA 4X ingress protection is
required, then the electrical entries must be
tted with devices rated IP66 or NEMA 4X.
Electrical safety requirements:
Use In- and outdoor.
Altitude Operating full power available
up to 2000 meter (6000 feet).
Maximum rela-
tive humidity
80% for temperatures up to 31°C
(87.8°F) decreasing linearly to
50% relative humidity at 40°C
(104°F).
Mains supply
fluctuation up to ±10% of nominal voltage
Over voltage
category II
Pollution degree 2 (3 when the cover remains
closed)
Temperature see Table 4.1
Control Module
Type Label
Terminals
Pilot valve
terminals
Switch terminals
Option: Manual
control

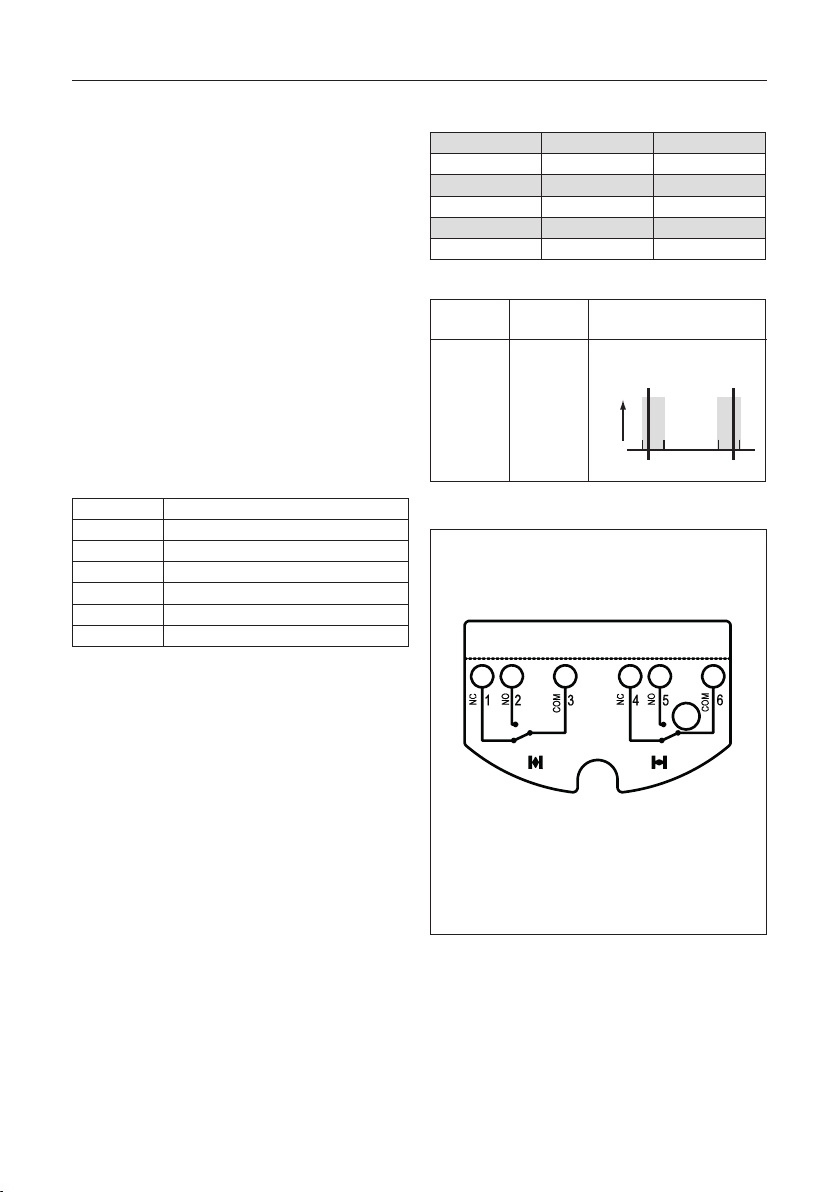

Fig. 4.1 Terminal connections behind cover
Fig. 4.2 Earth wire connection
Lockable
Module cover
Option: Additional
manual control for
“Fail in Last Position”
Electrical entries:
3/4”NPT
or M25
1/2”NPT
or M20
Caution! :
Risk of electric shock
* Installation, adjustment, putting into service,
use, assembly, disassembly and maintenance
of the control module is strictly reserved to
qualied personnel.
* Do not attempt to install or repair any electric
device without shutting off incoming power.

6
Installation Guide FieldQ
April 2020 DOC.IG.QC41.1 Rev. 4
4.1.2 Hazardous area Special safety instructions
for safe use
1. For ATEX, all installation, inspection,
maintenance and repair must be done by
suitably trained personnel. For information refer
to EN60079-14, EN60079-17, EN60079-19.
Control Module Type Label =
QC41·MP5MSA1·0040UQP000
Pneumatic action
Switch cartridge

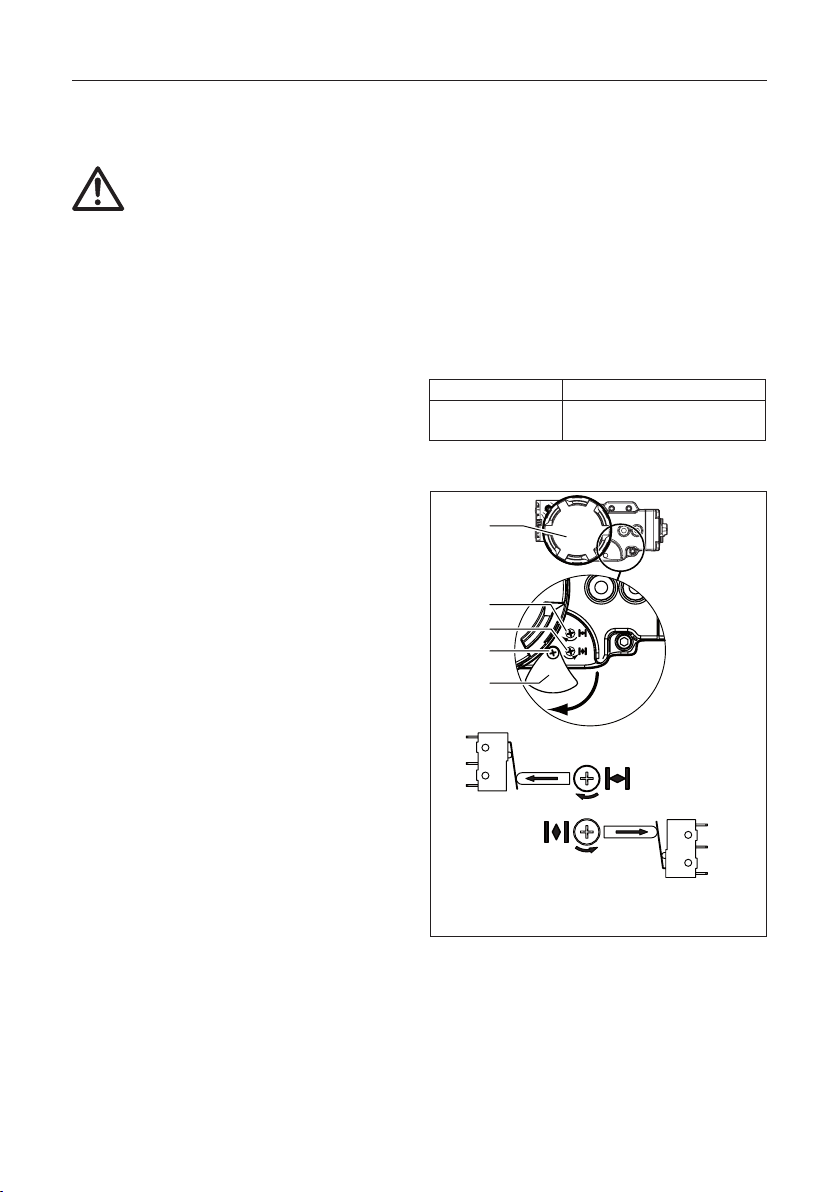

Fig. 4.4 Switch cartridge and pneumatic action
identication
4.1 FieldQ QC4x modules
Hazardous Area instructions
IMPORTANT
All installation, inspection, maintenance and
repair of the equipment should be performed by
suitably trained personnel.
The Control Modules must not be used in
atmospheres that contains acetone, ethyl acetate
or acetic acid vapors.
4.1.1 ATEX/IECEx Intended use
The Control Modules QC4x..P5.. of the
FieldQ pneumatic actuator is a Group II category 2
(ATEX) equipment with protection level Gb, Db
(IECEx) and intended for use in areas in which
explosive atmospheres caused by mixtures of air
and gases, vapors, mists or by air/dusts are likely to
occur. The pneumatic actuator part, together with
the pneumatic module part of the FieldQ pneumatic
actuators is a Group II category 2 equipment
and intended for use in areas in which explosive
atmospheres caused by mixtures of air and gases,
vapors, mists or by air/dusts are likely to occur.
Therefore it may be used in hazardous area classified
Zones 1, 2 (Gasses) and/or 21, 22 (Dust).
2. Substitution of component may impair
suitability for Zone 2 Increased Safety.
3. Do not open cover of terminal compartment
when an explosive atmosphere is present.
4. Cleaning this housing by rubbing should be done
in a non-hazardous area,
5. Potential electrostatic charging hazard, clean
only with a damp cloth - danger of propagating
discharge.
6. The apparatus shall be installed in such a way
that the risk from electrostatic discharges and
propagating brush discharges caused by rapid
flow of dust is avoided.
7. All grounding and bonding installation
requirements must be addressed.
8. The cable entry device and the closing elements
of unused apertures must be of a certified
flameproof type, suitable for the conditions of
use and correctly installed.
9 Blind plugs or cable gland shall be engaged
into the cable entries minimal 5.5 threads for
M20x1.5 entries and minimal 5 threads for NPT
entries.
10.Certified Ex t cable glands shall be use in a dust
environment.
11.Heat resistant cable and cable glands shall be
used, suitable for temperatures of at least 80°C
12.The maximum temperature of the supply
air must stay below the maximum ambient
temperature as marked on the control module
(see Table 4.1).
13.The maximum temperature of the base actuator
must stay below the maximum ambient
temperature as marked on the control module
(see Table 4.1).
14.Contact your local Emerson representative for
information on the dimensions of the flame
proof joints.
15.Precaution shall be taken to avoid danger of
ignition due to electrostatic charges on the
marking plate of the enclosure.
4.1.3 FM Special safety instructions
1. Metric entries are not allowed. Metric entries are
for IECEx or ATEX installations only.
2. Wiring must be done according NEC 500.

7
Installation Guide FieldQ
DOC.IG.QC41.1 Rev. 4 April 2020
Table 4.1 Ambient and maximum surface temperature rating.
Conguration Temperature (°C)
Module type Switch
cartridge
Pneumatic
action
Max. Power
dissipation
Min.
ambient
Max.
ambient
Max.
Surface Class
QC41 (24 V DC)
M, G
O,C,N,H (1
S,D,F 3.6W (1 -25°C /
-13°F
+60°C /
+140°F
+80°C /
176°F T6/T4
QC42, QC43
(115 or 230 V AC) S,D 3.6W (1 -25°C /
-13°F
+60°C /
+140°F
+80°C /
176°F T6/T4
QC42, QC43
(115 or 230 V AC) F 7.2W (2 -25°C /
-13°F
+60°C /
+140°F
+80°C /
176°F T6/T4
Notes:
1 1x or 2x 24 V DC pilot valves, or 1x 115/230 V AC pilot valve
2 2x 115 or 230 V AC pilot valves
Switch cartridge
M = Mechanical switches
G = Mechanical switches (gold contacts)
C = 3 wire PNP proximity switch
O = 3 wire NPN proximity switch
N = 2 wire proximity switch
H = 2 wire proximity switch
Pneumatic action
S = Spring-Return (Single acting)
D = Double-Acting
F = Double-Acting (Fail in Last Position)
4.1.4 Applied IECEx standards
For FieldQ Control Module:
- QC4x...P5... (x = 1, 2 or 3)
the following standards are applied:
- IEC 60079-0: 2017
- IEC 60079-1: 2014
- IEC 60079-31: 2013
4.1.5 Product marking;
Each control module is marked with the applicable ambient temperature marking (see Table 10.1).
IECEx hazardous or Classied Location:
Ex db IIB + H2 T4/T6 Gb
EX tb IIIC T80°C Db
IECEx DEK 11.0043X
ATEX hazardous or Classied Location:
II 2G Ex db IIB + H2 T4/T6 Gb
II 2D EX tb IIIC T80°C Db
DEKRA 11ATEX0092 X
FM hazardous or Classied Location:
CL I, II, III, DIV 1
Groups BCDEFG, T4/T6,
Type 4X/IP66
CL I, ZN 1, IIB+H2 T4/T6
FM17US0074X
CSA hazardous or Classied Location:
Class I, II, III, DIV 1
Groups CDEFG, T4/T6,
Type 4X/IP66
Ex d IIB+H2 T4/T6
DIP A21 TA 80°C
CSA 12.2489009

8
Installation Guide FieldQ
April 2020 DOC.IG.QC41.1 Rev. 4

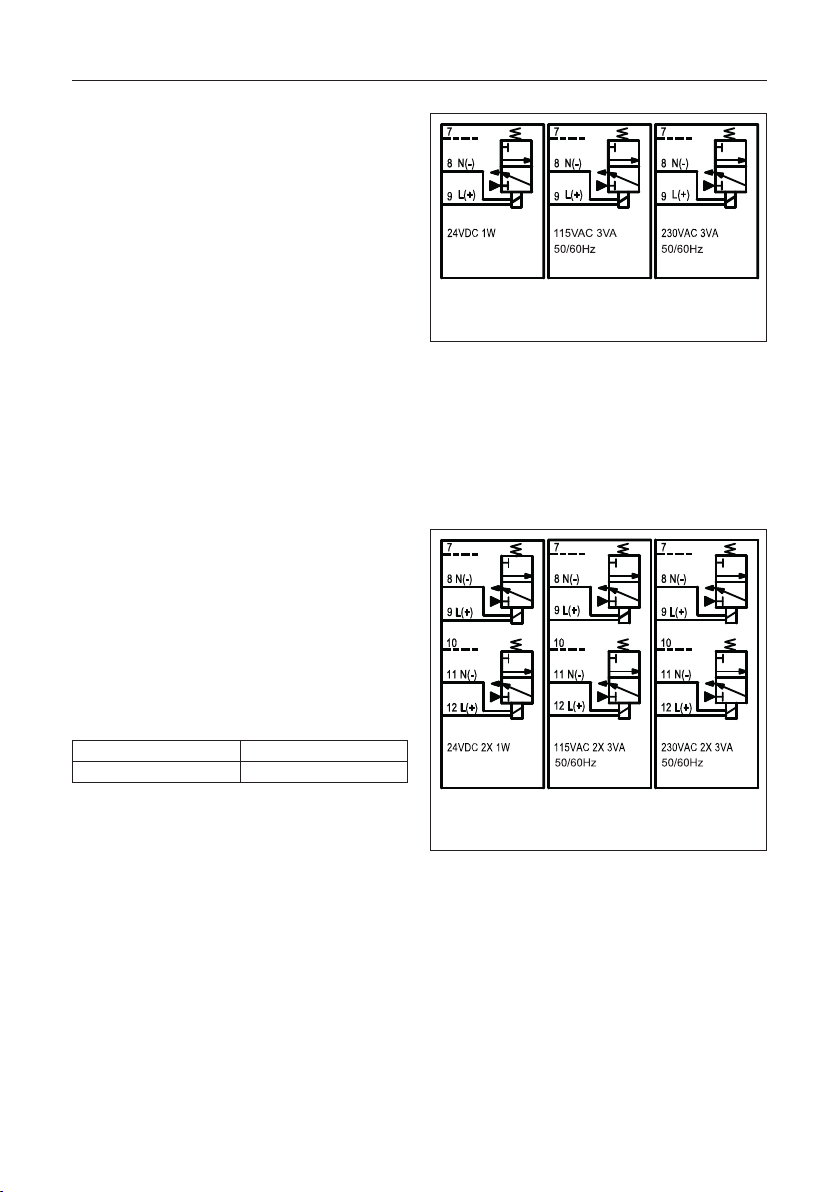

Fig. 4.5 Default Pilot valve wiring connections
4.2 Connecting Pilot valve(s)
The Control Module can be equipped with one or
two pilot valves:
* One pilot valve is default and suitable for normal
operation of double acting or spring return
actuators.
* Two pilot valves are required for Fail in Last
Position for double acting actuators.
IMPORTANT
For hazardous area installations see instructions in
paragraph 4.1
1. Before connecting the pilot valve, check the
voltage on the control module label.
2 Remove control module cover (see Figure 4.1).
3 Guide the cable(s) through the electrical
entry(ies).
- Use and mount cable glands as required by
national or local legislation.
4 For normal operation, make the electrical
connections as shown in Figure 4.5.
For double acting actuators with Fail in
Last Position function, make the electrical
connections as shown in Figure 4.6
5 Mount the control module cover to the housing
(see Figure 4.1) or continue with chapter 5. Take
care that the cover seal is in place to comply to
dust and water tightness according to IP66 or
NEMA4X.
6 Lock the cover in position by turning the lock
screw in, until it blocks.
4.2.1 Tools
Table 4.2 Tool Table
For terminals Screw driver 0.6 x 3.5
Cover lock screw Allen key nr 2
Cable range:
0.33 - 2.5mm2or
22 - 12AWG
Cable range:
0.33 - 2.5mm2or
22 - 12AWG
Fig. 4.6 Pilot valve wiring connections for
Fail in Last Position

9
Installation Guide FieldQ
DOC.IG.QC41.1 Rev. 4 April 2020
4.3 Connecting Mechanical Feedback switches
1. Before connecting the switches, check the
model code on the Control Module label.
QCXX.xxxMxx = Mechanical switches
QCXX.xxxGxx = Mechanical switches
(gold plated)
2 Guide the cable(s) through the electrical
entry(ies).
- Use and mount cable glands as required by
national or local legislation.
3. Make connections as shown in Figure 4.8 and
Table 4.3/4.4
4. Mount the Control Module cover. Take care that
the cover seal is in place to comply to dust and
water tightness according to IP66 or NEMA4X.
IMPORTANT
For hazardous area installations see instructions in
paragraph 4.1
Table 4.3 Mechanical switches
Option code M
Option code G (gold contacts)
Type Mechanical
Voltage M: 277 V AC or 250 V DC (maximum)
G: 125 V AC or 30 V DC (maximum)
Contacts NO and NC
Temperature See Table 4.1
Notes:
1. The mechanical (M-type) switches are rated for
3 A with inductive load.
2 The mechanical (G-type) switches have gold
contacts. For applications where the benefits
of gold contacts are required, the maximum
current is 1 A.
Wiring diagram:
- M = Mechanical
- G = Mechanical, gold contacts
Cable range : 0.33 - 2.5mm2or 22 - 12AWG
1 Wiring diagram shown, is applicable for actuators with
assembly code “CW”. For actuators with assembly code “CC”
(reverse acting) the “Open” and “Closed” switch connections
are also reversed.
2 Wiring diagram is shown in the actuators mid-stroke position.
Fig 4.8 Wiring diagram mechanical switches
-3° 15° 75° 93°
0° 90°
Contact Switch signal and adjustable
switch range
Close
switch
Open
Switch
Rotation
Switched
Unswitched

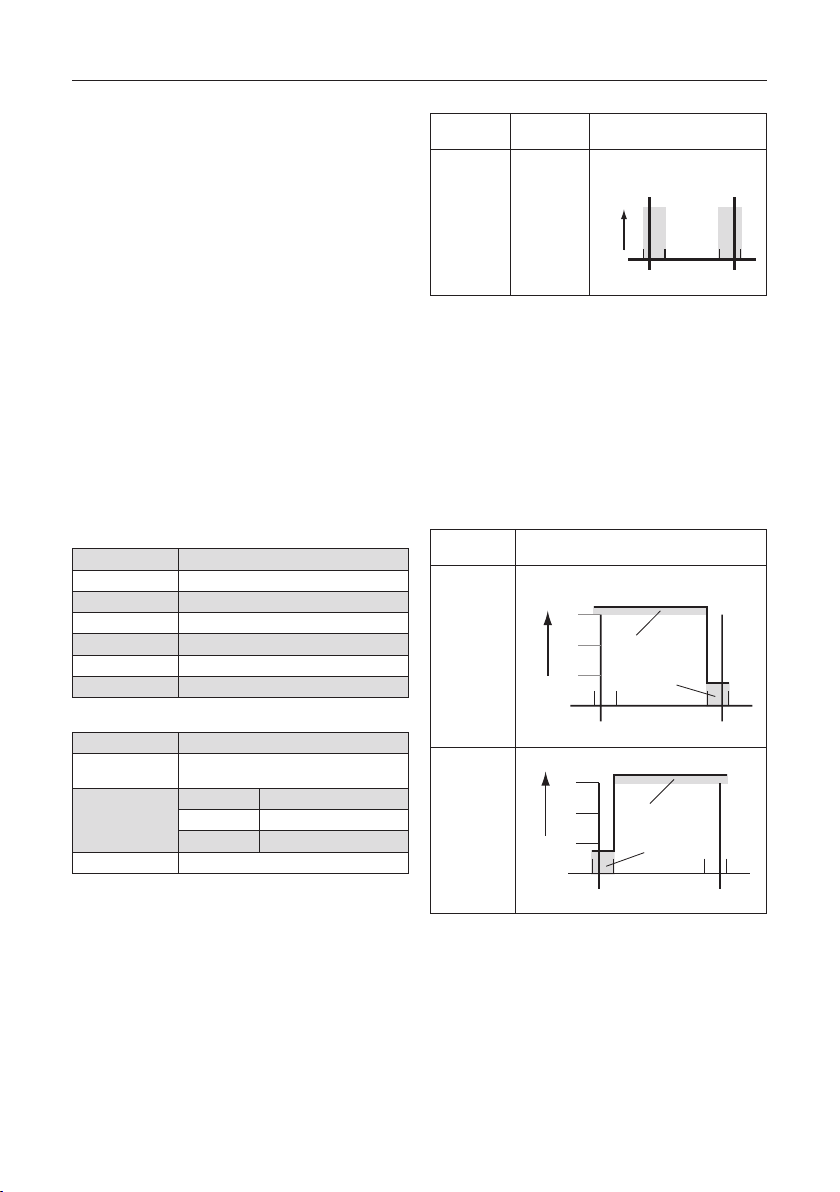

Fig 4.7 Adjustable switch range and factory settings
Switch
operation
Normally
Open
Contacts
Signal
Open Close
Table 4.4 Maximum currents mechanical switches
Switch voltage M type switch G type switch
125 V AC 10 A (3 A1) 0.1 A 2
250 V AC 10 A (3 A1) -
30 V DC 0.5 A 0.1 A 2
125 V DC 0.5 A -
250 V DC 0.25 A -

10
Installation Guide FieldQ
April 2020 DOC.IG.QC41.1 Rev. 4
4.4 Connecting 2-Wire proximity switches
1. Before connecting the switches, check the
model code on the Control Module label.
QCXX.xxxNxx = 2-Wire NAMUR proximity
QCXX.xxxHxx = 2-Wire 230 V AC proximity
2 Guide the cable(s) through the electrical
entry(ies).
- Use and mount cable glands as required by
national or local legislation.
3. Make connections as shown in Figure 4.11 and
Table 4.5 or 4.6.
4. Mount the Control Module cover. Take care that
the cover seal is in place to comply to dust and
water tightness according to IP66 or NEMA4X.
IMPORTANT
For hazardous area installations see instructions in
paragraph 4.1.
-3° 15° 75° 93°
0° 90°
3mA
1mA
-3° 15° 75° 93°
0° 90°
3mA
1mA
≥ 3mA
≤ 1 mA
≥ 3mA
≤ 1 mA
-3° 15° 75° 93°
0° 90°
3mA
1mA
-3° 15° 75° 93°
0° 90°
3mA
1mA
≥ 3mA
≤ 1 mA
≥ 3mA
≤ 1 mA
Switch
operation
Open Switch
Unswitched
Switched
Rotation
Close Switch
Unswitched
Switched
Rotation
Fig 4.10 Switch characteristics 2-wire NAMUR
proximity switch
Fig 4.9 Switch characteristics 2-wire 230 V AC
proximity switch
Switch signal and adjustable switch range
2-wire NAMUR proximity switch
-3° 15° 75° 93°
0° 90°
Switch Switch signal and adjustable
switch range
Close
switch
Open
Switch
Rotation
Switched
Unswitched
Switch
operation
2-Wire 115V
proximity
switch
Signal
Table 4.5 2-Wire NAMUR proximity switches
Option code N
Type 2-wire inductive, normally closed
Voltage 8 V DC nominal
Output Unswitched: > 3 mA
Switched: < 1 mA
Temperature See table 4.1
Compliant to DIN EN 60947-5-6 (NAMUR)
Table 4.6 2-Wire 230 V AC proximity switches
Option code H
Voltage 20 - 250 V AC / 10 - 300 V DC
(50 - 60 Hz AC)
Current Maximum 100 mA
Peak 0.9 A (20 ms/0.5 Hz)
Leakage < 1.7 mA
Temperature See table 4.1

11
Installation Guide FieldQ
DOC.IG.QC41.1 Rev. 4 April 2020
L- L+ 3
2
16
5
4
2
1
2
1
L- L+
Open
Wiring diagram:
- 2-Wire NAMUR proximity switches
- 2-Wire 230 V AC proximity switches
Fig 4.11 Wiring diagram 2-Wire proximity switches
Close
Cable range : 0.33 - 2.5mm2or 22 - 12AWG
1 Wiring diagram shown, is applicable for actuators with
assembly code “CW”. For actuators with assembly code “CC”
(reverse acting) the “Open” and “Closed” switch connections
are also reversed.

12
Installation Guide FieldQ
April 2020 DOC.IG.QC41.1 Rev. 4
4.5 “3-Wire” proximity switches
1. Before connecting the switches, check the
model code on the function module label.
QCXX.xxxOxx = 3-Wire PNP proximity
QCXX.xxxCxx = 3-Wire NPN proximity
2 Guide the cable(s) through the electrical
entry(ies).
- Use and mount cable glands as required by
national or local legislation.
3. Make connections as shown in Figure 4.12 and
Table 4.7
4. Mount the Control Module cover. Take care that
the cover seal is in place to comply to dust and
water tightness according to IP66 or NEMA4X.
IMPORTANT
For hazardous area installations see instructions in
chapter X
Table 4.7 3-Wire proximity switches
Option code O, V3 PNP
Option code C, V3 NPN
Function Make
Voltage 10 - 30 V
Current 100 mA maximum
0 - 0.5 mA typical (Off-state)
Temperature See Table 4.1
3
2
16
5
4
3
4
1
3
4
1
NPN
4
1
3
4
1
3
PNP
32
16
5
4
L- L+ L- L+
L- L+ L- L+
Wiring diagram:
3-Wire proximity switches PNP
Open
Fig. 4.12 Switch characteristics 3-wire PNP or NPN
proximity switches
Fig. 4.12 Wiring diagram 3-wire PNP or NPN proximity
switches
-3° 15° 75° 93°
0° 90°
Switch Switch signal and adjustable
switch range
Close
switch
Open
Switch
Rotation
Switched
Unswitched
Switch
operation
3-Wire PNP or
NPN proximity
switch
Signal
Close
Wiring diagram:
3-Wire proximity switches NPN
Open Close
Cable range : 0.33 - 2.5mm2or 22 - 12AWG
1 Wiring diagram shown, is applicable for actuators with
assembly code “CW”. For actuators with assembly code “CC”
(reverse acting) the “Open” and “Closed” switch connections
are also reversed.

13
Installation Guide FieldQ
DOC.IG.QC41.1 Rev. 4 April 2020

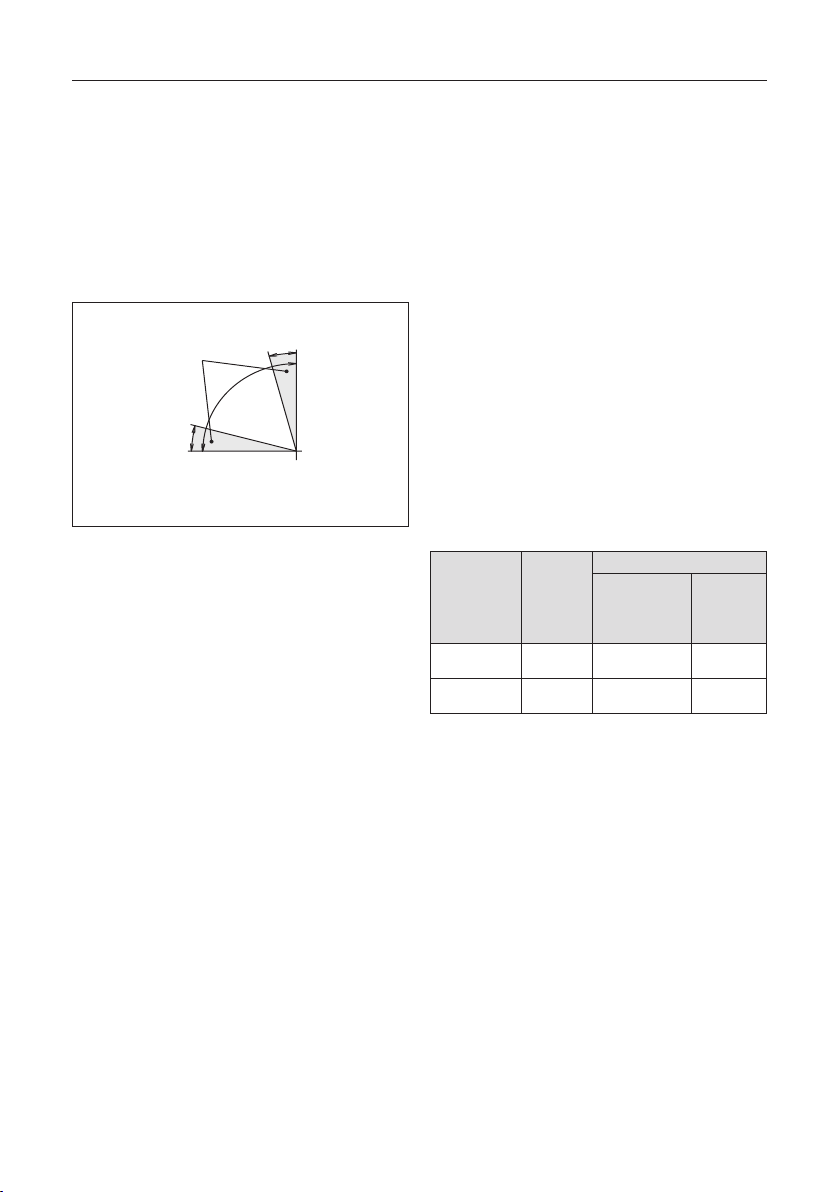

15° max
15° max
Open
5 Limit switch setting
Fig. 5.1 Adjustable range and factory settings
If required the mechanical stroke and the limit
switch setting can be re-adjusted.
- For mechanical stroke adjustment please see
document DOC.IOM.Q.E, available from
www.FieldQ.com.
- For re-adjusting the limit switches, see
procedure below.
5.2 Before re-adjusting the limit switches.
IMPORTANT
* Before mounting the actuator on the valve, be
sure that both the actuator and the valve have
the same “open” or “closed” position.
* Set the Mechanical stroke before setting the
limit switches.
5.2.1 Pneumatic and electrical connections
Make pneumatic and electrical connections before
adjusting the limit switch setting. See chapter 3
and 4.
5.1 Factory settings
Mechanical stroke : 90°±0.5° (Actuator setting)
Switch points : ± 15° before each end of
stroke (open and closed
position, see fig 5.1).
Adjustable range : See chapter 4.2 for the
applicable switch type.
5.2.2 Switch point setting and valve rotation
direction.
The QC41, QC42 and QC43 are equipped with non-
intrusive switch adjustment. The adjustment screws
are accessible behind a small shield in the front of
the module (see fig 5.3).
This means that the switch adjustment can be done
without opening the module.
Normally valves are “Closed” after a clock wise
rotation.
- In this case the top adjustment screw
(see Figure. 5.3), sets the switch point of the
“Closed” position and bottom adjustment screw
sets the switch point of the “Open” position.
- When you have a valve that is “Open” after a
clock wise rotation, the position feedback will be
reversed.
The table below indicates which re-adjustment
screw and terminals are related to the “Open” or
“Closed” switch point setting (see fig 16).
Table 5.1 Re-adjustment screws
Re-
adjustment
screw :
Terminals
Valve movement
“Close” after
a clock wise
rotation
“Open”
after a
clock wise
rotation
Bottom 1, 2,
and 3 Open position Close position
Top 4, 5,
and 6 Close position Open position
Switch points
Closed
Factory settings

14
Installation Guide FieldQ
April 2020 DOC.IG.QC41.1 Rev. 4
D
D
O
O
N
N
O
O
T
T
O
O
P
P
E
E
N
N
W
W
H
H
E
E
N
N
E
E
N
N
E
E
R
R
G
G
I
I
Z
Z
E
E
D
D
-
-
W
W
A
A
R
R
N
N
I
I
N
N
G
G
!
!
-
-
1
2
3
4
9
10
11
12
9
10
5
6
7
8
15
5.2.3 Working principles Switch Operating
Mechanism (see Figure 5.2)
The Switch Operating Mechanism is intend to
operate the position feedback switches and allows
adjustment of the switch points in the open and
closed end positions. Factory setting is that the
switches are activated 15° before the end of the
open and closed stroke.
Switch Operation
The rotation of the actuators pinion operates the
IPT device (1) which results in a linear movement.
The linear movement of the IPT device operates
lever (3). The lever amplifies the linear movement
of the IPT device and operates the switch operating
rod (5). Dowel pin (6) in the rod operated the levers
of the open and closed switch elements (8 and 9).
The lever is of the “floating” type. When the IPT
device operates the lever, it moves completely
upwards until it meets the upper pivot block (4).
At this point the lever will tip over and pull down
the switch operating rod (5) and operates the
bottom switch (7). When the IPT device movesback
the springs cause the lever to move completely
downwards until it meets the lower pivot block
(2). At this point the lever will tip over and push up
the switch operating rod (5) and operates the top
switch (8).

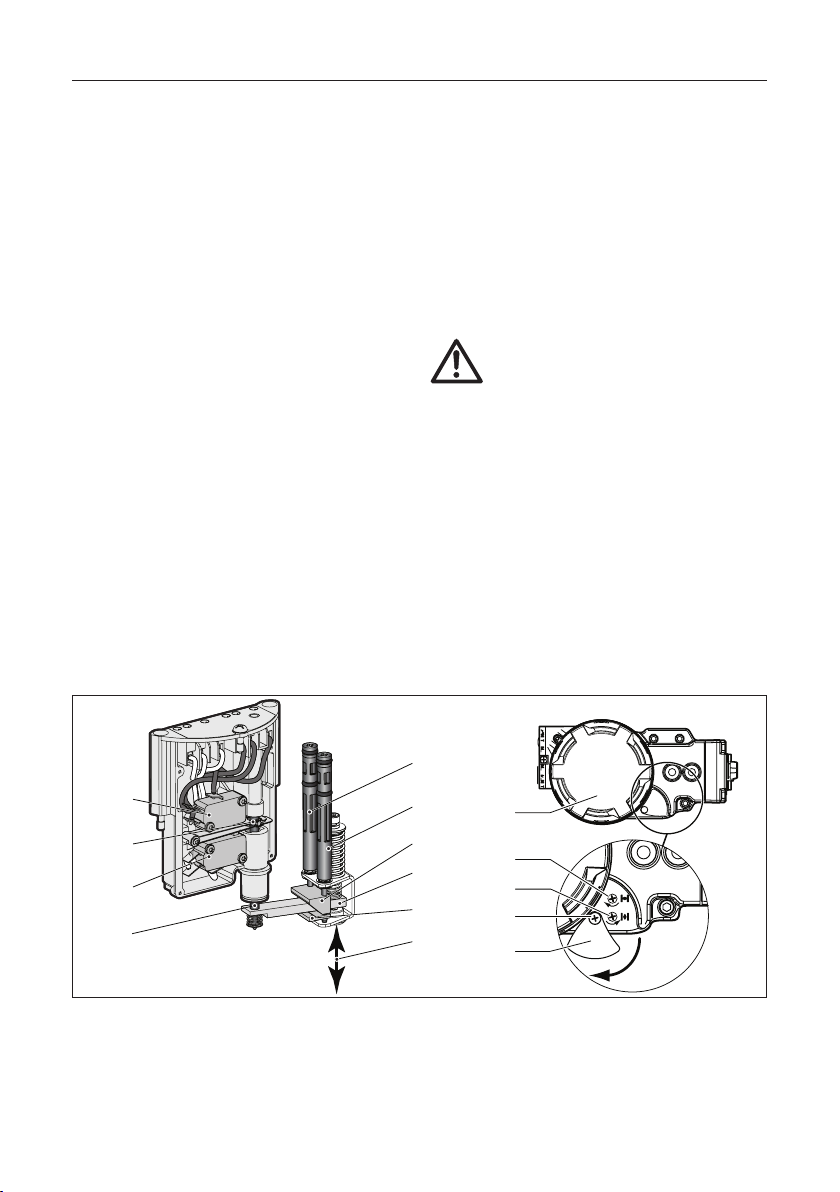

Fig. 5.2 Working principles Switch Operating Mechanism
Switch point adjustment
The position of the lower pivot block (2) can be
changed by adjustment screw (10) and the position
of the upper pivot block (4) can be changed by
adjustment screw (9).
By adjusting the position of these pivot blocks the
switch points will be changed.
The adjustment screws (9 and 10) can be found
behind the shield (12) in front of the module. To
access the adjustment screws loosen the screw (11)
and rotate the shield (12) as shown.
Caution: Do not force the
adjustment screws when
resistance is felt.
During adjustment there are three situations
that can damage the adjustment screw head and
internal mechanisms when forcing the adjustment
screws.
1. Pivot block (2) will be blocked at bottom if screw
(10) is rotated too much counter clock wise.
2. Pivot block (3) will be blocked at top if screw (9)
is rotated too much clock wise.
3. Pivot blocks (2 and 3) will interfere with each
other, if the adjustment screws (9 and 10) are
rotated too much in the direction according to
their related arrows.
Situation 1 and 2 may happen in combination with
situation 3.

15
Installation Guide FieldQ
DOC.IG.QC41.1 Rev. 4 April 2020
IMPORTANT
The procedure below assumes:
- That the actuator and control modules are
according the factory settings.
If the switch setting is somehow lost or
forgotten, then consult paragraph 6.3 to
set the switch point setting back to factory
setting.
- That the actuator / valve assembly is closed
after a clock wise rotation (see chapter 5.2).
Below procedure assures that the position feedback
complies more accurately with the valve position
and will set the switch point at approximately
4° before the end of the stroke.
To set and detect the switch point, use a multi
meter, connected to the switch terminals, to
measure
a resistance change as applicable per switch type
(see applicable wiring diagram in chapter 4.2). For
the proximity switches, you can use a proximity
switch tester.
Procedure (see Figure 5.3):
1. Remove cover (15) and loosen the screw (11) of
the shield (12) and turn the shield down.
Closed Position:
2. Move the actuator/valve assembly to the closed
position by removing the control signal from
pilot valve terminal 8 and 9 (see § 4.1).
3. Turn top screw (10) counter clock wise (do not
force the adjustment screw) until the switch
trips to the “off state” (no signal).
4. Turn top screw (10) clock wise (do not force the
adjustment screw) until the switch trips to the
“on state”. This position represents the actual,
mechanical “closed” position of the valve.
5. Turn the screw minimal a 1/2 turn clock wise.
The “closed” position switch point is now set.
Open Position:
6. Move the actuator to the open position by
applying the applicable voltage to pilot valve
terminal 8 and 9 (see § 4.1).
7. Turn bottom screw (9) clock wise (do not force
the adjustment screw) until the switch trips to
the “off state” (no signal).
8. Turn bottom screw (9) counter clock wise
(do not force the adjustment screw) until the
switch trips to the “on state”. This position
represents the actual “open” position of the valve.
9. Turn the screw minimal a 1/2 turn counter clock
wise. The “open” position switch point is now set.
10.Turn the shield (12) back over the adjustment
screws and fasten it with the screw (11) and
mount the main round cover back in place.
Table 5.2 Tool Table
Shield screw Cross slotted Phillips nr. PH2
Adjustment screws 0.6 x 3.5 or
Cross slotted Phillips nr. PH2
D
D
O
O
N
N
O
O
T
T
O
O
P
P
E
E
N
N
W
W
H
H
E
E
N
N
E
E
N
N
E
E
R
R
G
G
I
I
Z
Z
E
E
D
D
-
-
W
W
A
A
R
R
N
N
I
I
N
N
G
G
!
!
-
-
11
12
9
10
15
“Closed”
Switch point adjustment
“Open”
Switch point adjustment
Note:
360° rotation of adjustment screw is
±8° adjustment of switch point.
Fig. 5.3 Re-adjustment screws for “Open” and
“Closed” position feedback
5.3 Re-adjustment of switch points

16
Installation Guide FieldQ
April 2020 DOC.IG.QC41.1 Rev. 4
6.1 The “Open” and “Closed” position
feedback signals are reversed from the
actual valve positions.
1 Check if the actuator is correctly mounted to
the valve. Before mounting the actuator on
the valve, the actuator and the valve should
have the same “open” or ‘closed” position (see
Installation and Operation Manual FieldQ
Valve Actuator DOC.IOM.Q.E).
2 Some valves may be operated in such a way that
they are:
- “Open” after a clock wise rotation and
- “Closed” after a clock wise rotation.
3 Please see § 5.2 for setting the “Open” and
“Closed” position feedback signals
6.2 The actuator does not give (good) position
feedback signals.
1 Check if the actuator is correctly mounted to
the valve.
2 Re-adjust the limit switch setting as per
chapter 5.3
6.3 Factory setting of the switch points.
IMPORTANT
The procedure below assumes:
- That the actuator / valve assembly is closed
after a clock wise rotation (see also §5.1).
- The control module is pneumatically and
electrically connected according chapter 3
and 4.
This procedure sets the switch point settings of the
switches, back to the factory settings (±15° before
each end of stroke), assuming a mechanical stroke
of 90°±0.5° of the actuator.
To set and detect the switch point, use a multi
meter, connected to the switch terminals, to
measure a resistance change as applicable per
switch type (see applicable wiring diagram in
chapter 4.2). For the proximity switches, you can
use a proximity switch tester.
5.4 Check operation
5.4.1 Default (single) pilot valve
1 Connect pressure according chapter 3 and a
control signal to terminals (7) 8 and 9 according
§ 4.1 Figure 4.3.
2 Actuator moves to “Open” position. “Open”
limit switch is activated and “Close” limit switch
is deactivated.
3 Remove voltage from terminals 9 and 8.
4 Actuator moves to “Close” position. “Close”
limit switch is activated and “Open” limit switch
is deactivated.
6 Mount the cover to the Control Module
(see Figure 4.1).
5.4.2 Dual pilot valve (Fail in Last Position)
operation
1. Connect pressure according chapter 3 and a
control signal to terminals (7) 8 and 9 according
§ 4.1 Figure 4.4.
2. Actuator moves to “Open” position. “Open”
limit switch is activated and “Close” limit switch
is deactivated.
3. Remove voltage from terminals 9 and 8.
4. Actuator Stays in the “Open” position.
5. Connect pressure according chapter 3 and
a control signal to terminals (10) 11 and 12
according § 4.1 Figure 4.4.
6. Actuator moves to “Closed” position. “Close”
limit switch is activated and “Open” limit switch
is deactivated.
7. Remove voltage from terminals 9 and 8.
8. Actuator Stays in the “Closed” position.
9. Mount the cover to the Control Module
(see Figure 4.1).
6 Trouble shooting

17
Installation Guide FieldQ
DOC.IG.QC41.1 Rev. 4 April 2020
45°

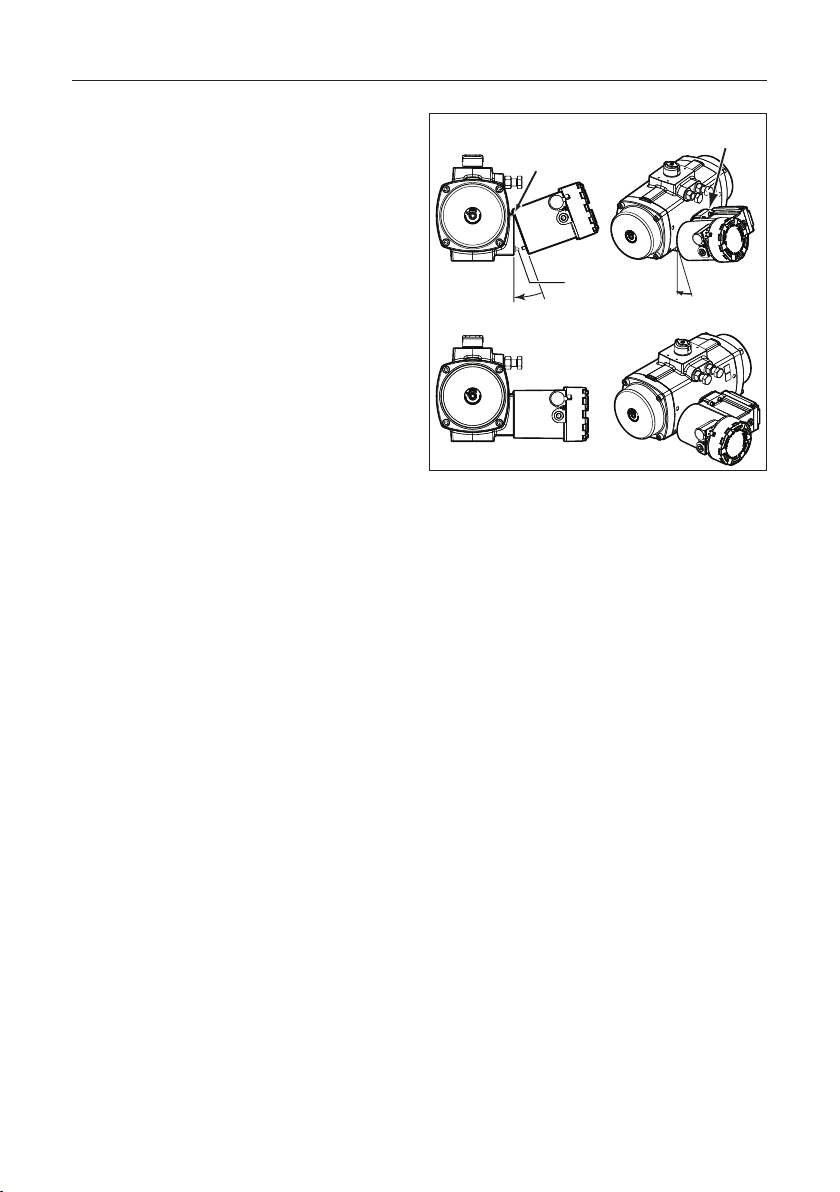

Fig. 8.1 Local Manual Control options
Location for 2nd
Manual Control
Procedure (see Figure 5.3):
1. Remove cover (15) and loosen the screw (11) of
the shield (12) and turn the shield down.
Closed Position:
2. Move the actuator/valve assembly to the closed
position by removing the control signal from
terminal 8 and 9 (see § 4.1).
3. Turn top screw (10) counter clock wise maximum
20 turns, (do not force the adjustment screw)
until the switch trips to the “off state” (no signal).
4. Turn top screw (10) clock wise 1 3/4 turn (do not
force the adjustment screw).
The “closed” position switch point is now set to
factory setting.
Open Position:
5. Move the actuator to the open position by
applying the applicable voltage to terminal 8
and 9 (see § 4.1).
6. Turn bottom screw (9) clock wise maximum
20 turns, (do not force the adjustment screw)
until the switch trips to the “on state” (no signal).
7. Turn bottom screw (9) counter clock wise 1 3/4
turn (do not force the adjustment screw)
The “open” position switch point is now set to
factory setting.
8. Turn the shield (12) back over the adjustment
screws and fasten it with the screw (11) and
mount cover (15) back in place.
IMPORTANT
Do not force the adjustment screws
During switch point adjustment, do not force the
adjustment screws when you feel an obstruction.
Forcing the adjustment screws can damage the
cross head of the adjustment screw.
8.1.1 Mounting Manual Control
1 To add a Manual Control, remove the plug(s)
in front of the module and turn in the Manual
Control.
- For normal operation the module should be
fitted with one Manual Control.
- For Double Acting with a Fail-in-Last-Position
function, two Manual Control can be fitted.
Default location
of Manual Control
The FieldQ Control Modules are designed to
operate without maintenance. For any further
maintenance to the actuator see Installation and
Operation Manual FieldQ Valve Actuator, DOC.
IOM.Q.E or contact your local FieldQ representative.
Installation, adjustment, putting into service, use,
assembly, disassembly, maintenance and repair
of the Control Module must be done by qualified
personnel.
Note:
This product is only intended for use in large-scale
fixed installations excluded from the scope of
Directive 2011/65/EU on the restriction of the use
of certain hazardous substances in electrical and
electronic equipment (RoHS 2).
8 Optional Controls
8.1 Manual Control options
(see Figure 8.1)
For commissioning, emergency or maintenance
purposes, the FieldQ can be supplied with one or
two Manual Control options. These can operate the
pilot valve(s) inside the module and as such operate
the actuator, when there is air pressure available,
but no control signal or power supply.
Lock
Unlock
On
Off
7 Maintenance

18
Installation Guide FieldQ
April 2020 DOC.IG.QC41.1 Rev. 4
21
Spring Return:
Top entry only.
Double Acting:
Bottom and/or top
entries.
Fig. 8.2 Speed control operation
- For standard actuators, the top entry will
throttle the closing stroke.
- For standard actuators, the bottom entry will
throttle the opening stroke.
- For reverse acting actuators, the opposite
strokes will be throttled.
8.2.2 Adjusting Speed Control throttle(s):
1 Remove the nut cap (2).
2 Clockwise rotation of the adjustment screw
reduces the speed.
3 Counter clockwise rotation of the adjustment
screw increases the speed.
4 Replace the nut cap.
9 Related Information
Other documents containing information related to
the FieldQ Module include:
- Q1.604.10 FieldQ Control Module
data sheets
- DOC.IOM.Q.E Installation Operation and
Maintenance Manual.
These documents are available, in multiple
languages, for download from
www.emerson.com/eldq
8.1.2 Manual Control operation
1 The Manual Control has a “Push and Lock”
function:
- To operate the Manual Control, use a
screw driver, push to activate and release
to de-activate the pilot valves.
- If required turn it 45°, to lock it in position
and keep the actuator in its operated state.
2 In case of a Fail in Last Position configuration
with two manual controls:
- The manual control on the right side
(default location) will pressurize the central
air chamber and cause the actuator to rotate
counter clock wise. For reverse acting FieldQ
actuators (Assembly code CC) the actuator
will rotate clock wise.
- The manual control on the left side (Location
for 2nd Manual Control) will pressurize the
end cap air chambers and cause the actuator
to rotate clock wise. For reverse acting FieldQ
actuators (Assembly code CC) the actuator
will rotate counter clock wise.
- In order to operate one of the manual
control, be sure the opposite manual control
is de-activated and unlocked.
3 It is possible to rotate the screw multiple cycles.
The unit will than toggle every 90° between
“locked” (1) and “unlocked” (0).
8.2 Speed control option
(see Figure 8.2).
The FieldQ can be supplied with a Speed Control
option. One throttle is required for Spring Return
actuators and up to two for Double Acting
actuators.
The speed control throttle controls the air flow
in and out of an air chamber and as such limits
the speed of the “Opening” and “Closing” stroke
simultaneously.
8.2.1 Mounting Speed Control throttle(s):
1 Remove the plug(s) at the side of the module
and turn in the throttle (1).
2 Spring Return actuators: Use the top entry only.
3 Double acting actuators: Use both bottom and
top entries.

19
Installation Guide FieldQ
DOC.IG.QC41.1 Rev. 4 April 2020

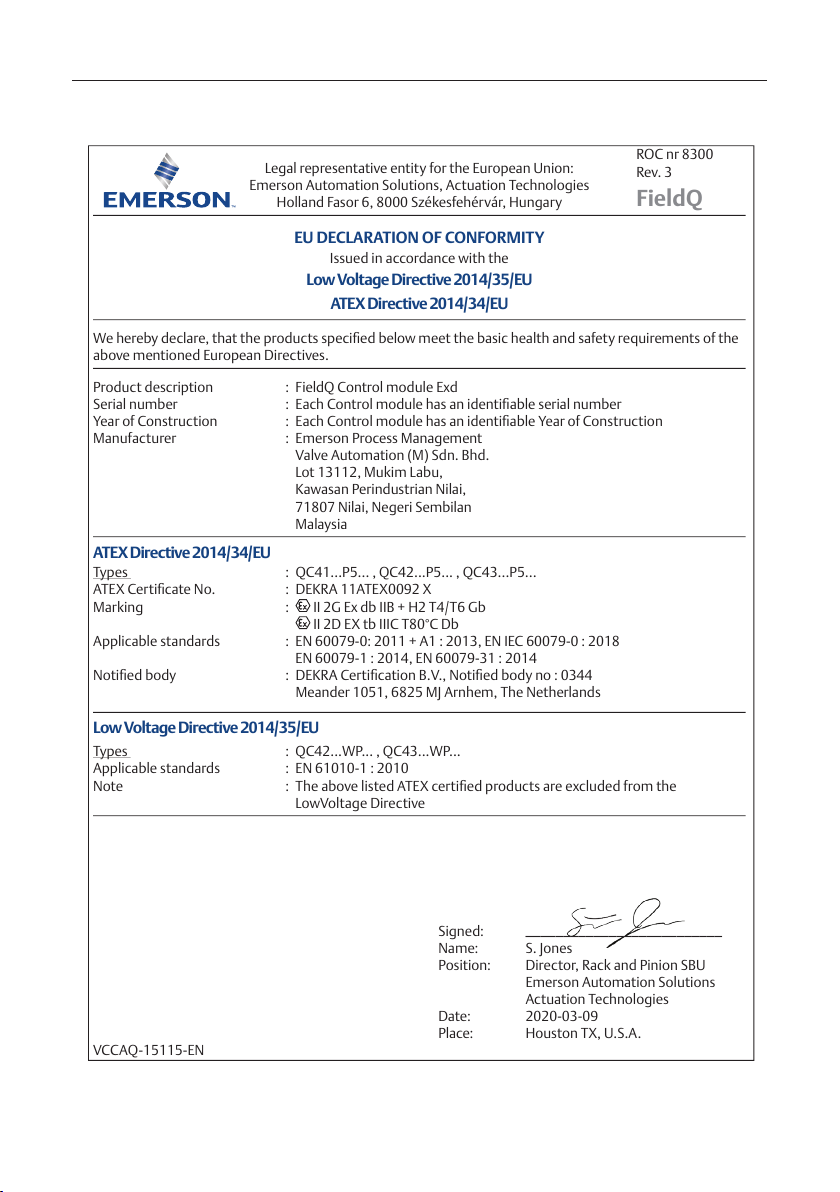

10 EU - Declaration of Conformity
__________________________
S. Jones
Director, Rack and Pinion SBU
Emerson Automation Solutions
Actuation Technologies
2020-03-09
Houston TX, U.S.A.
FieldQ
ROC nr 8300
Rev. 3
Types : QC42...WP... , QC43...WP...
Applicable standards : EN 61010-1 : 2010
Note  : TheabovelistedATE Xcertiedproductsareexcludedfromthe
LowVoltage Directive
LegalrepresentativeentityfortheEuropeanUnion:
EmersonAutomationSolutions,ActuationTechnologies
HollandFasor6,8000Székesfehérvár,Hungary
EU DECLARATION OF CONFORMITY
Issuedinaccordancewiththe
Low Voltage Directive 2014/35/EU
ATEX Directive 2014/34/EU
Weherebydeclare,thattheproductsspeciedbelowmeetthebasichealthandsafetyrequirementsofthe
abovementionedEuropeanDirectives.
Productdescription : FieldQControlmoduleExd
Serialnumber : EachControlmodulehasanidentiableserialnumber
YearofConstruction : EachControlmodulehasanidentiableYearofConstruction
Manufacturer : EmersonProcessManagement
ValveAutomation(M)Sdn.Bhd.
Lot13112,MukimLabu,
KawasanPerindustrianNilai,
71807Nilai,NegeriSembilan
Malaysia
ATEX Directive 2014/34/EU
Types : QC41...P5... , QC42...P5... , QC43...P5...
ATE XCerticateNo. : DEKRA11ATEX0092X
Marking  : II2GExdbIIB+H2T4/T6Gb
II 2D EX tb IIIC T80°C Db
Applicablestandards : EN60079-0:2011+A1:2013,ENIEC60079-0:2018
EN60079-1:2014,EN60079-31:2014
Notiedbody : DEKRACerticationB.V.,Notiedbodyno:0344
  Meander1051,6825MJArnhem,TheNetherlands
Low Voltage Directive 2014/35/EU
Signed:
Name:
Position:
Date:
Place:
VCCAQ-15115-EN

FieldQ
World Area Conguration Centers (WACC) offer sales support, service,
inventory and commissioning to our global customers.
Choose the WACC or sales ofce nearest you:
NORTH & SOUTH AMERICA
19200 Northwest Freeway
Houston TX 77065
USA
T [phone]
Av. Hollingsworth
325 Iporanga Sorocaba
SP 18087-105
Brazil
T [phone]
ASIA PACIFIC
No. 9 Gul Road
#01-02 Singapore 629361
T [phone]
No. 1 Lai Yuan Road
Wuqing Development Area
Tianjin 301700
P. R. China
T [phone]
MIDDLE EAST & AFRICA
P. O. Box 17033
Jebel Ali Free Zone
Dubai
T [phone]
P. O. Box 10305
Jubail 31961
Saudi Arabia
T [phone]
24 Angus Crescent
Longmeadow Business Estate East
P.O. Box 6908 Greenstone
1616 Modderfontein Extension 5
South Africa
T [phone]
EUROPE
Holland Fasor 6
Székesfehérvár 8000
Hungary
T [phone]
Strada Biffi 165
29017 Fiorenzuola d’Arda (PC)
Italy
T [phone]
www.emerson.com/fieldq
VCIOM-15086-EN ©2020 Emerson. All rights reserved.
The Emerson logo is a trademark and service mark of Emerson
Electric Co. FieldQTM is a mark of one of the Emerson family of
companies. All other marks are property of their respective
owners.
The contents of this publication are presented for information
purposes only, and while every effort has been made to ensure
their accuracy, they are not to be construed as warranties or
guarantees, express or implied, regarding the products or
services described herein or their use or applicability. All sales are
governed by our terms and conditions, which are available on
request. We reserve the right to modify or improve the designs or
specifications of our products at any time without notice.
For complete list of sales and manufacturing sites, please visit
www.emerson.com/actuationtechnologieslocations or contact
us at [e-mail]
